Product Overview

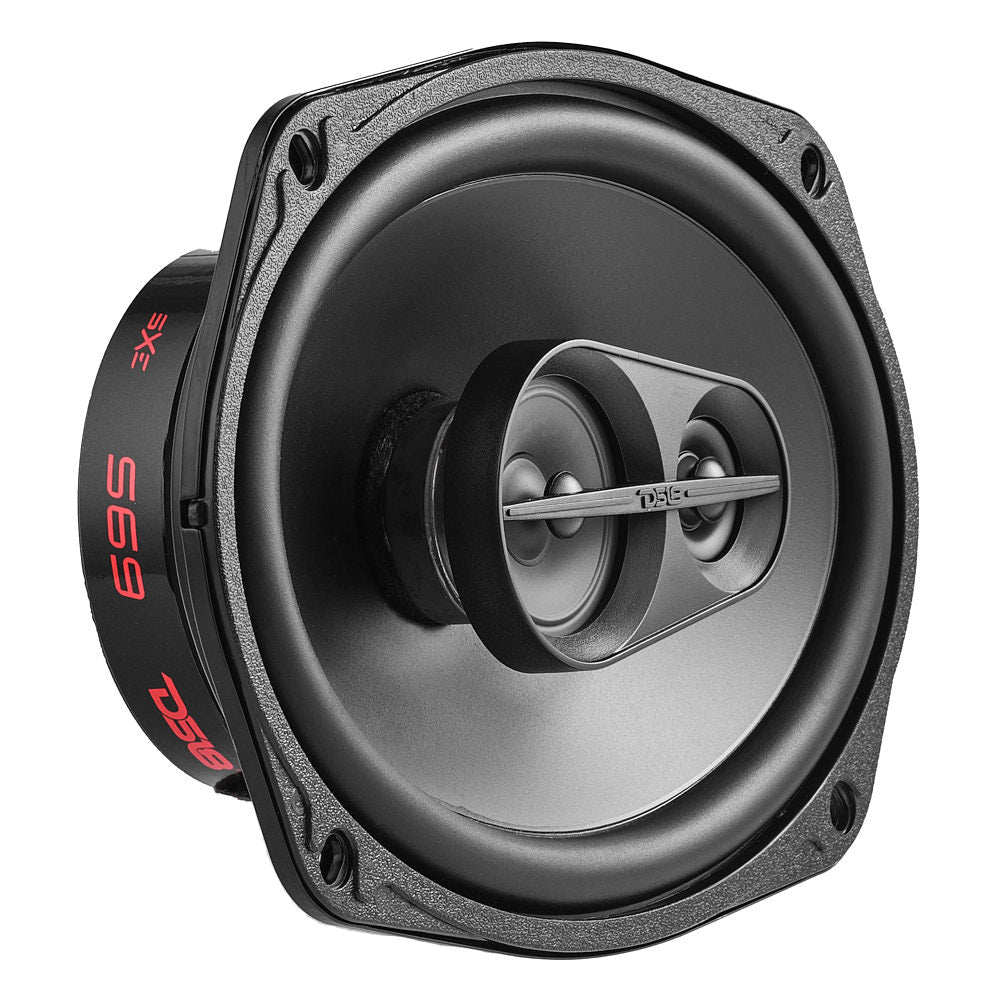

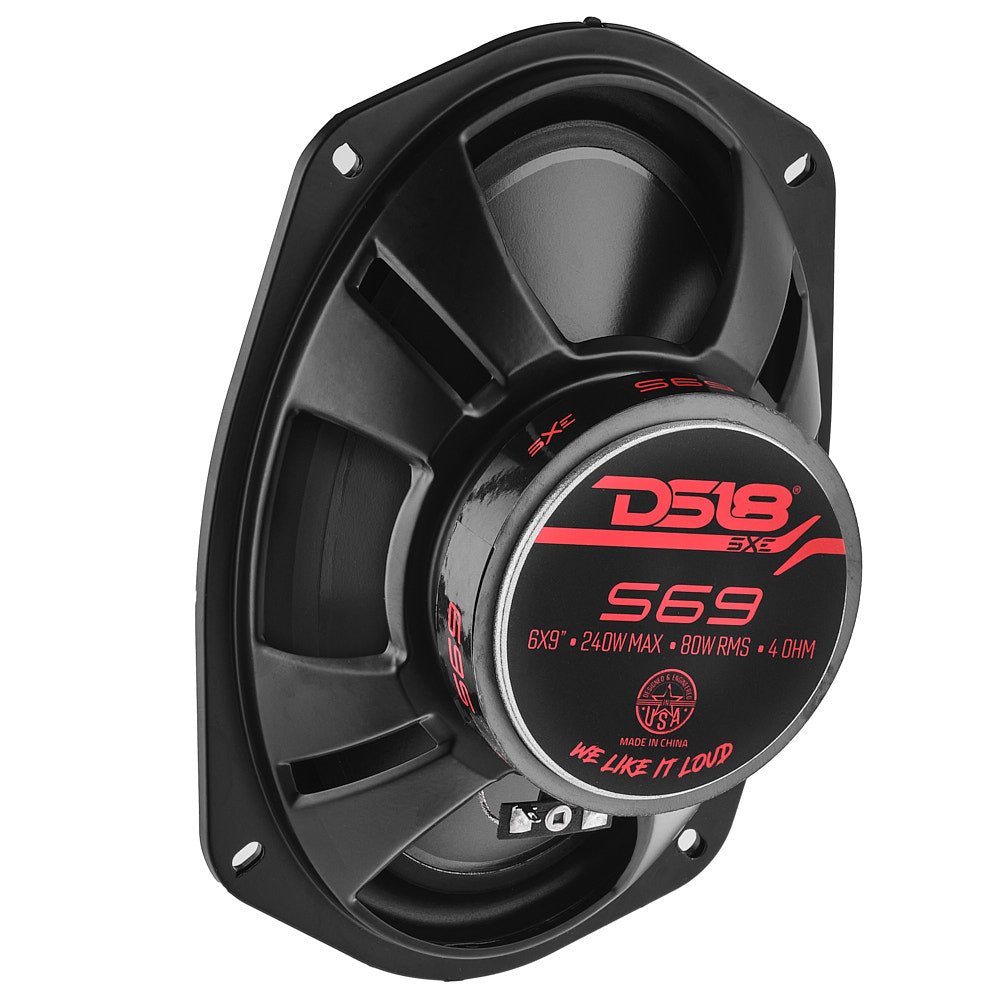

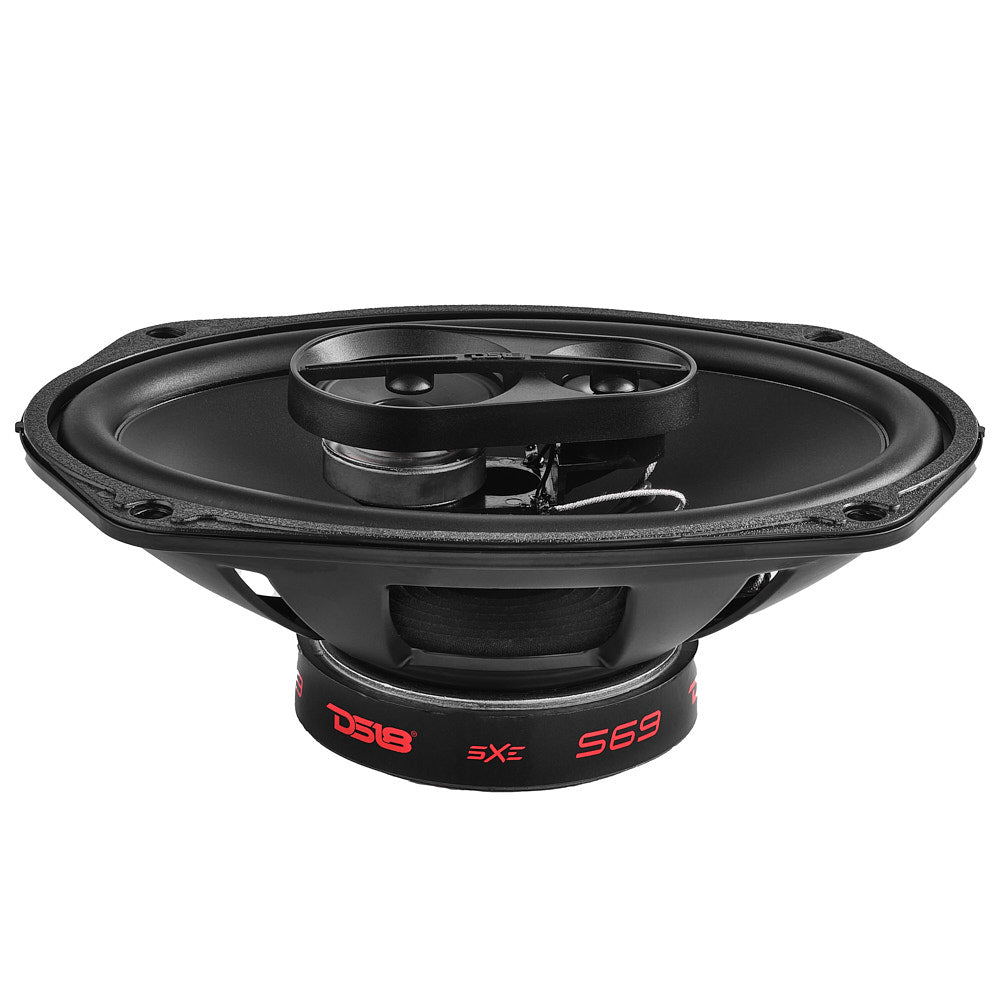

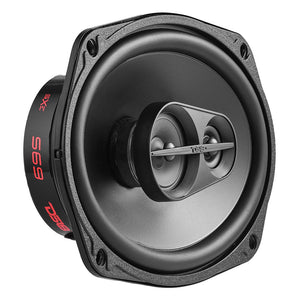

DS18 S69 SELECT 6x9" 3-Way Coaxial Speaker 240 Watts 4-Ohm
Get crystal-clear sound easy with DS18’s S69!
Designed for peak performance, these 3-way coaxial speakers have a nominal impedance of 4 OHM and an RMS power handling of 80W, for powerful and dynamic audio output.
These 6x9” speakers offer a wide frequency response of 35Hz-20KHz, allowing you to enjoy deep bass and crisp highs. The sensitivity rating of 90.8dB ensures that every note is reproduced with incredible detail and accuracy.
The woofer is equipped with a 1" voice coil diameter and features ASV voice coil former material, ensuring durability and optimal performance. The cone is made from PPI material, providing excellent rigidity for enhanced bass response. The rubber surround allows for controlled cone movement, resulting in accurate sound reproduction. The tweeter consists of two units delivering clear and vibrant high-frequency sounds. Both tweeters are magnetically driven to ensure precise audio reproduction.

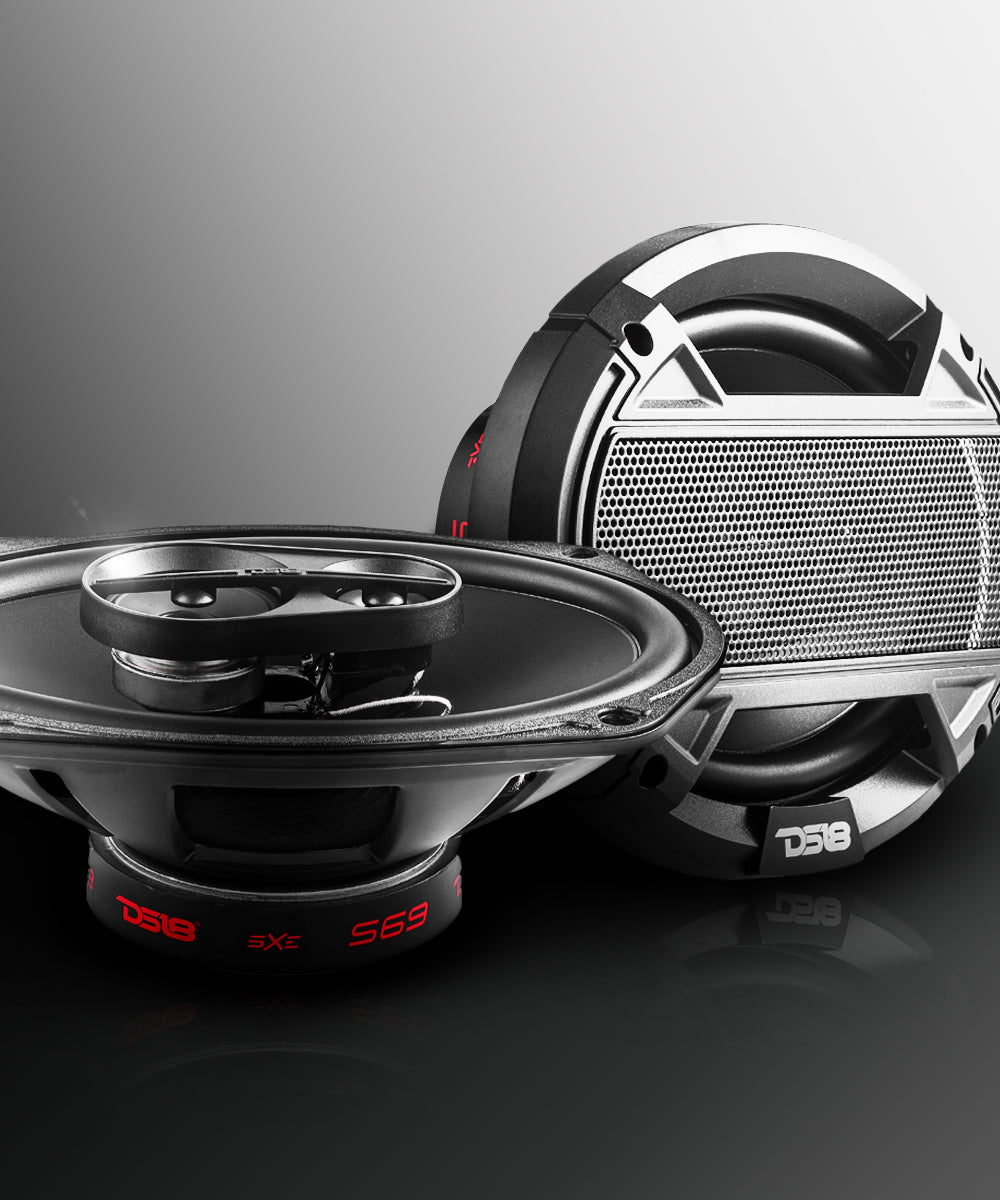

With its sleek black matte steel basket and included grill, these speakers sound and look amazing in any vehicle’s audio system. Upgrade your car audio system with DS18’s S69 and enjoy a truly immersive sound experience.
Key Features
- 6 X 9" 3-Way Coaxial
- MAX Power: 240 Watts
- RMS Power: 80 Watts
- Impedance: 4 Ohm
- Barium Ferrite Magnets
- Pair ~ 90.8dB
Specifications
| SKU | S69 |
|---|---|
| Nominal Diameter | 6X9" / 152x228mm / Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 80W |
| MAX Power Handling | 240W |
| Sensitivity (1w/1m) | 90.8dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 3 |
| Pair or Single | Pair |

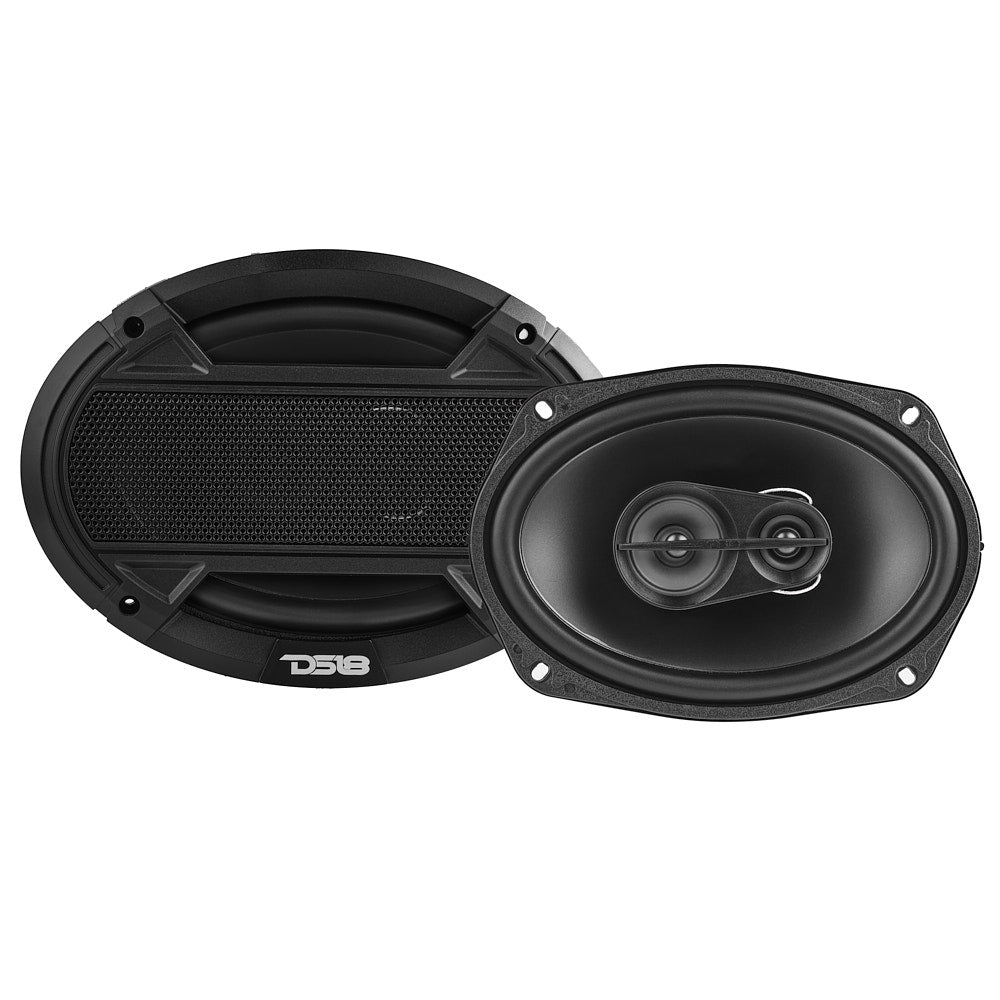

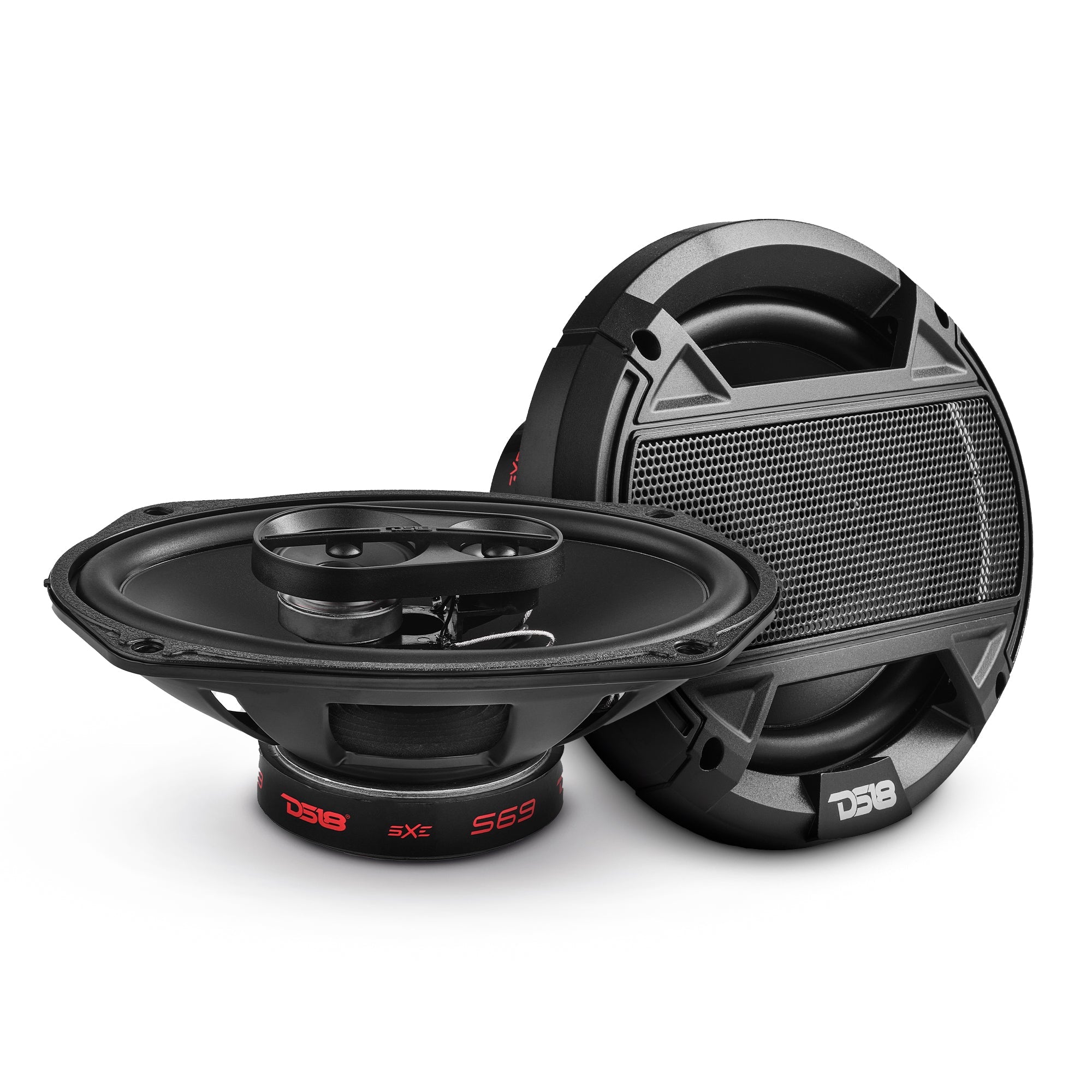

| Grill Included | Yes |
| Voice Coil Diameter | 1" / 25.5mm / Tw1: 0.6" / 17mm Tw2: Piezo |
| Voice Coil Former Material | ASV / Tw1: PESV Tw2: N/A |
| Winding Material | EISV / Tw1: EISVM Tw2: N/A |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite / Tw1: Barium Ferrite Tw2: N/A |
| Magnet Weight | 15.7Oz / 445g / Tw1: 35g Tw2: N/A |
| Equivalent Volume Vas | 15.9L / 0.56ft3 |
| Excursion (one way) Xmax | 3.3mm |
| Free Air Resonance Fs | 61Hz |
| Mechanical Factor Qms | 4.86 |
| Electrical Factor Qes | 1.79 |
| Total Factor Qts | 1.31 |
| Mechanical Mass Mms | 24g |
| Mechanical Compliance Cms | 238mm/N |
| BL Factor BL | 5.2 |
| Voice Coil Inductance Le | 199uH |
| Cone Area Sd | 217cm2 |
| DC Resistance Re | 3.4 Ohms |
| Mechanical Mass w/o air Mmd | 20.5g |
| Diaphragm Material | Tw1: Mylar Tw2: Mylar |

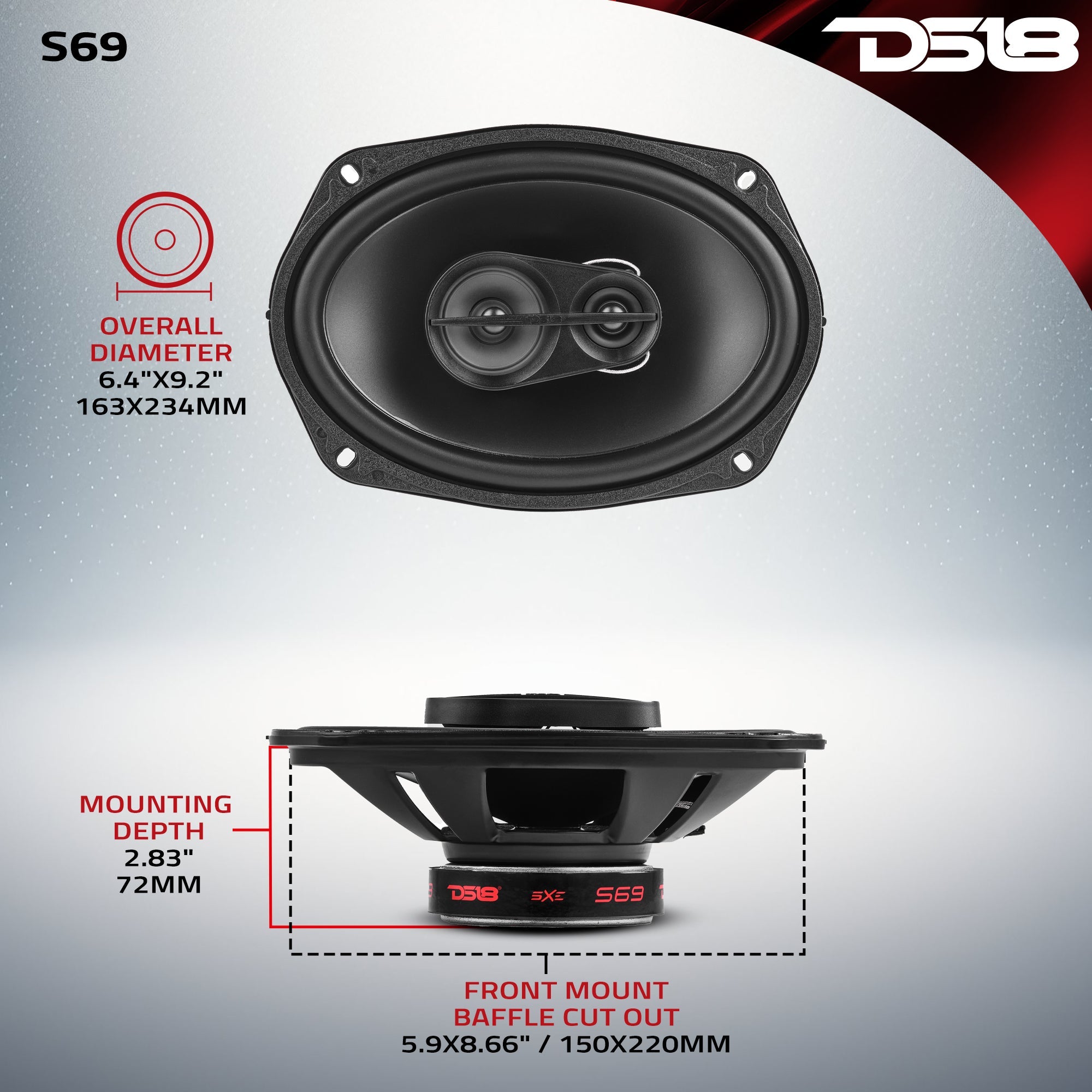

| Overall Diameter | 6.4"x9.2" / 163x234mm |

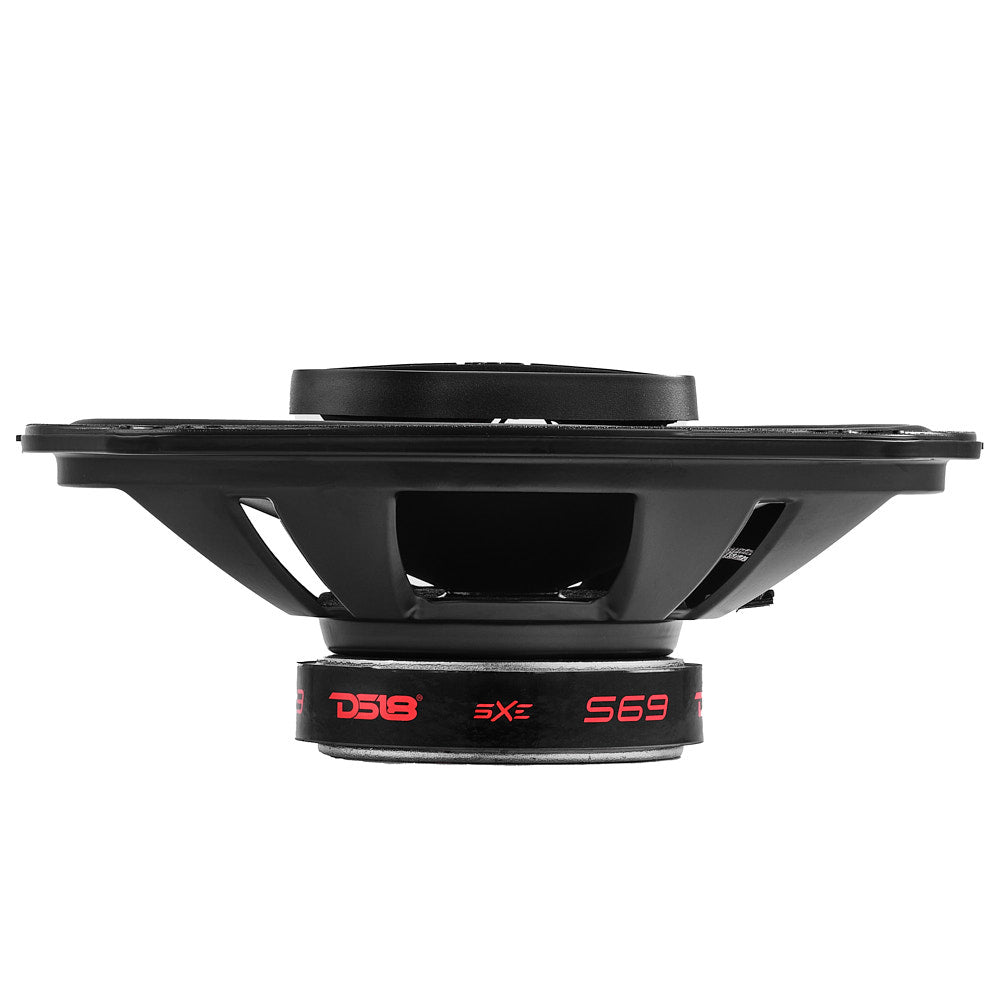

| Overall Depth | 3.15" / 80mm |
| Overall Diameter (With Grill) | 7.5"x10.4" / 190x264mm |
| Overall Depth (With Grill) | 4" / 102mm |
| Front Mount Baffle Cutout | 5.9x8.66" / 150x220mm |
| Mounting Depth | 2.83" / 72mm |
| Motor Diameter | 3.93" / 100mm |
| Tweeter Protrusion | 0.6" / 16mm |
| Gross Single Unit Weight | 1.25kg |
| Single Unit Box Dimensions W x L x H | 275*110*390mm |
| Quantity of Units in Master Carton | 5 PRS/CTN |
| Gross Master Carton Weight | 14.5kg |
| Master Carton Dimensions W x L x H | 575*290*410mm |
