SELECT 6.5" 2-Way Component Speaker Set | 200W RMS 4-Ohm
Product Overview
DS18 S65C SELECT 6.5 2-Way Component Speaker Set 200 Watts 4-Ohm
Car audio has never sounded better than with DS18’s S65C 2-Way Component Set. This premium quality component speaker system is designed to deliver exceptional sound and elevate your car audio to new heights.

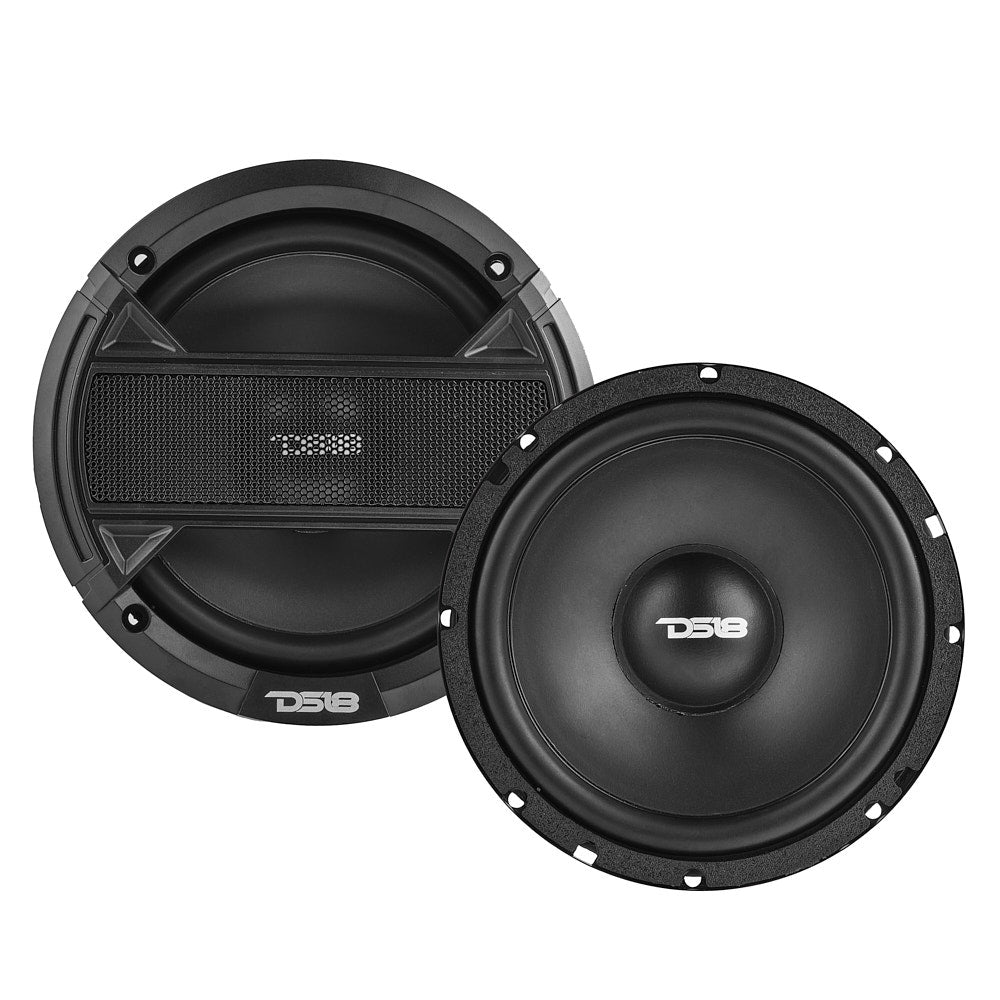

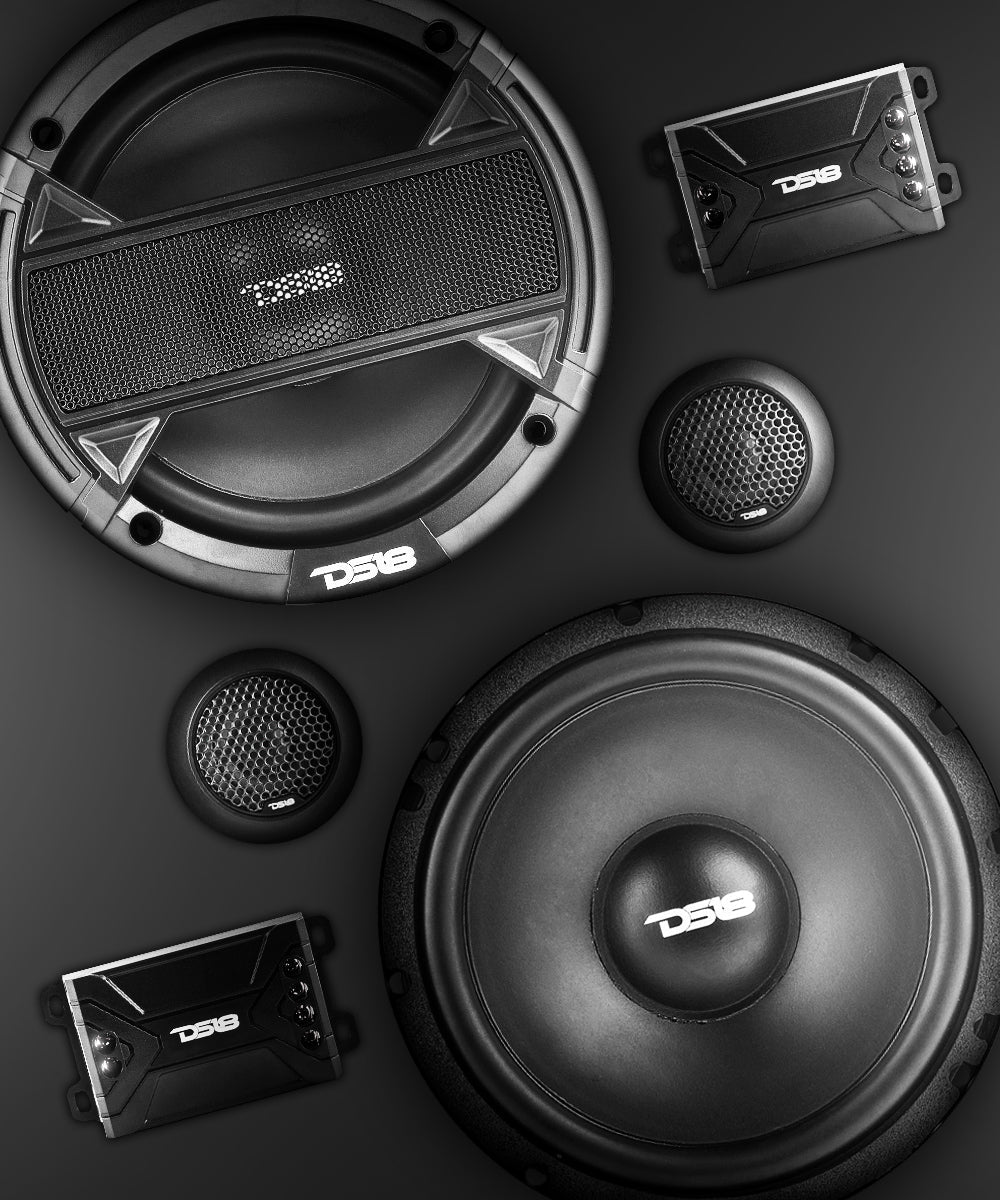

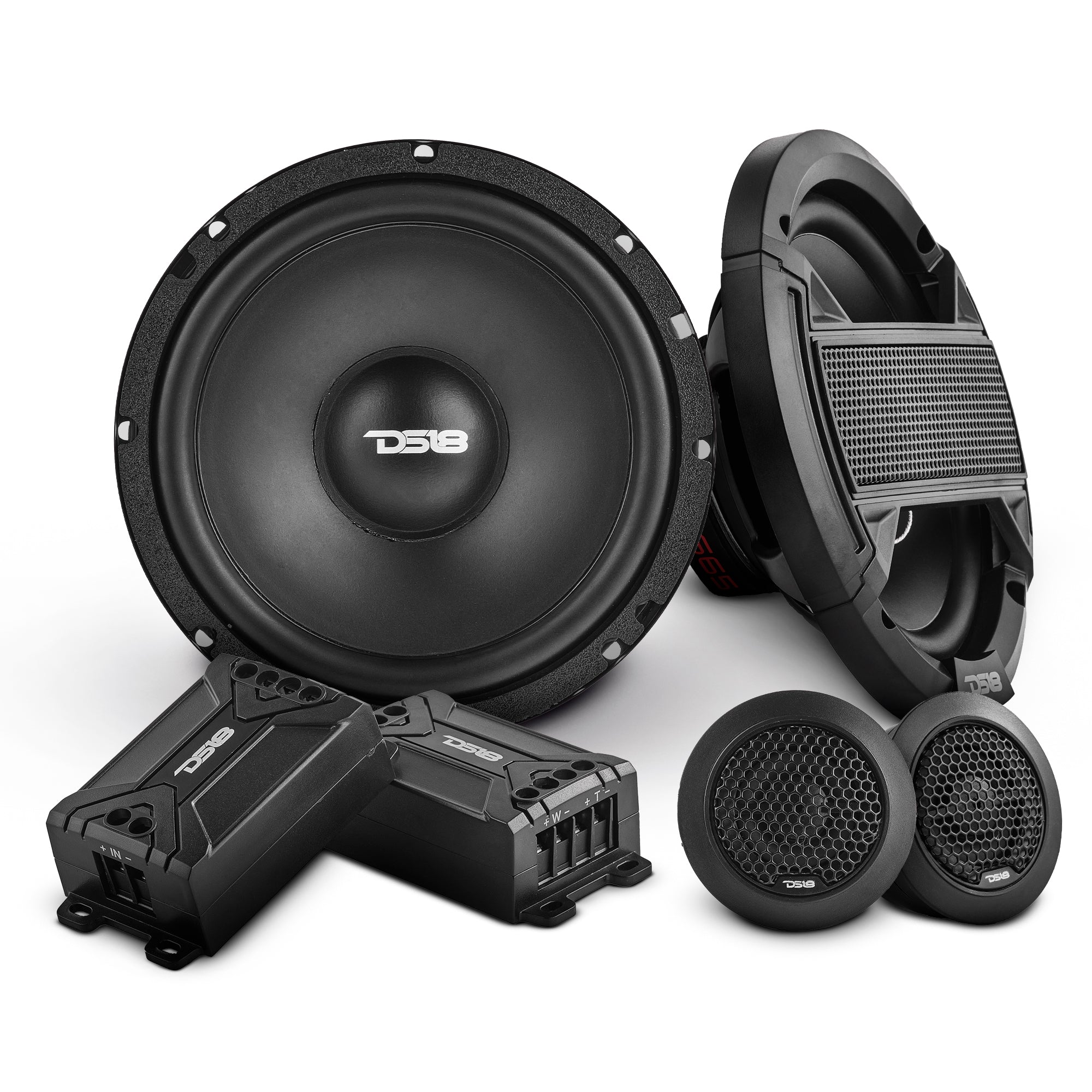

Featuring two 6.5" woofers, two 1.5" tweeters, and two passive 2-way crossovers, the S65C provides a complete audio solution for your vehicle.

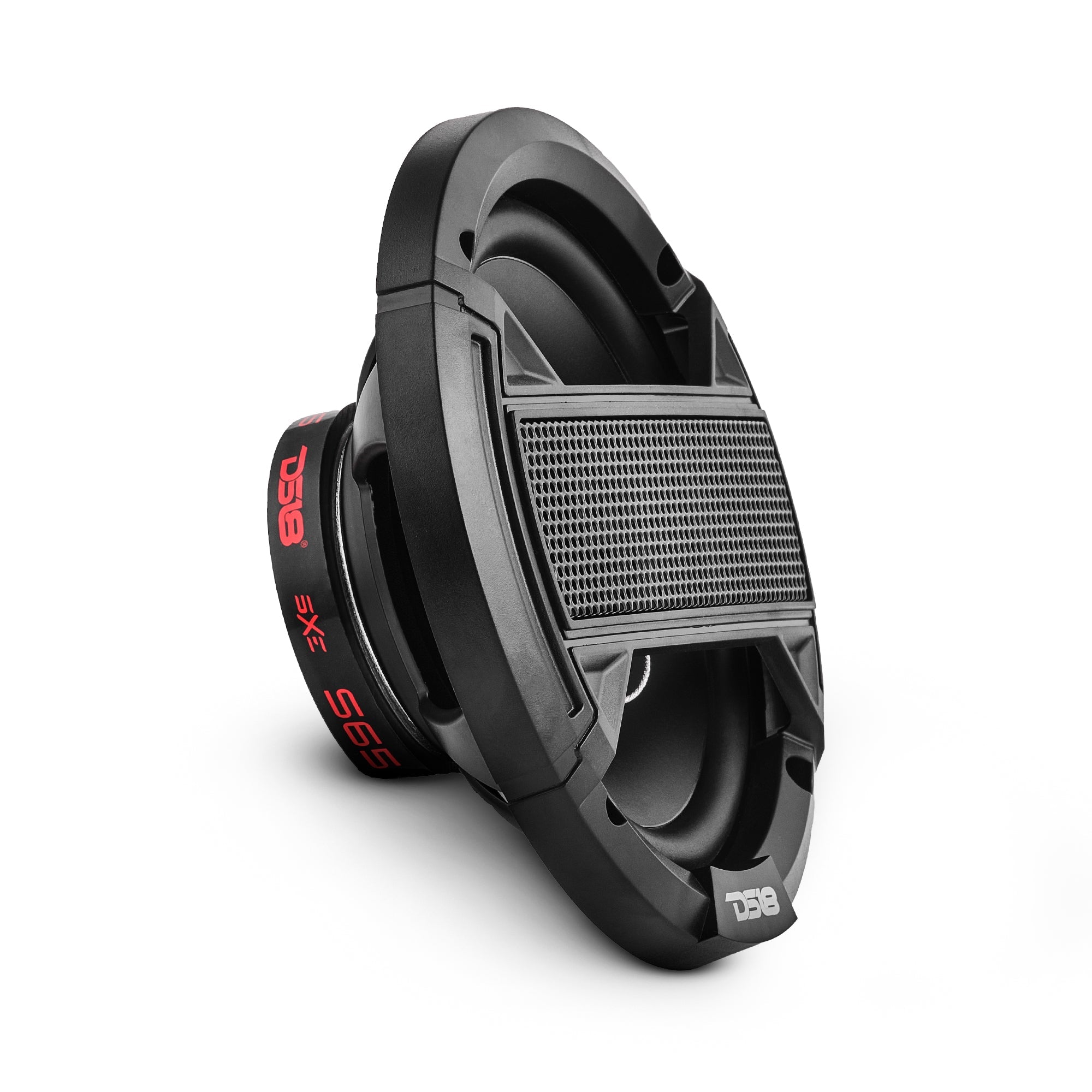

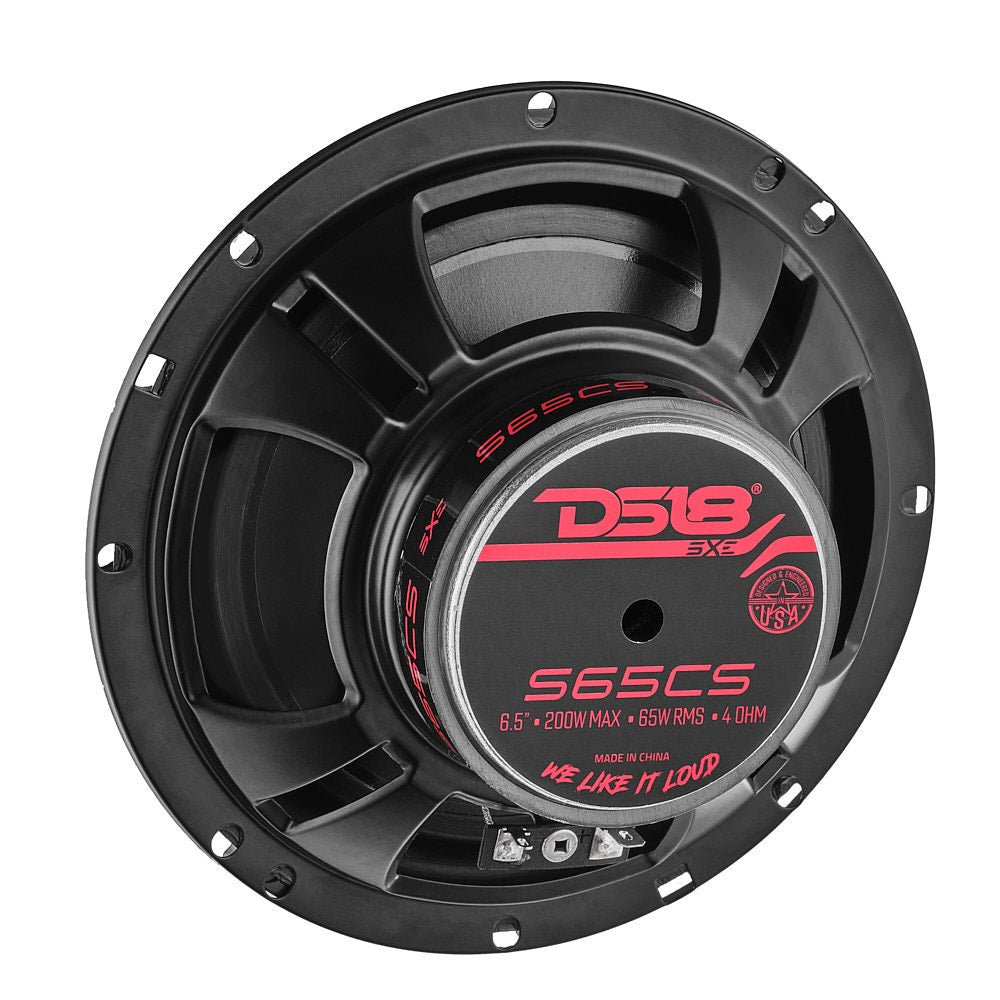

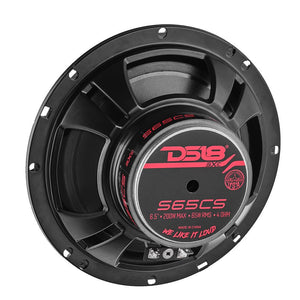

The S65 woofers are a perfect fit for any vehicle’s audio system. The 4 Ohm nominal impedance ensures compatibility with a wide range of amplifiers, allowing you to customize your sound system to your preferences. With a maximum power handling of 180W, these speakers can handle even the most demanding audio setups. The included grill provides an extra layer protection against kicks and scuffs car audio speakers are subjected to.

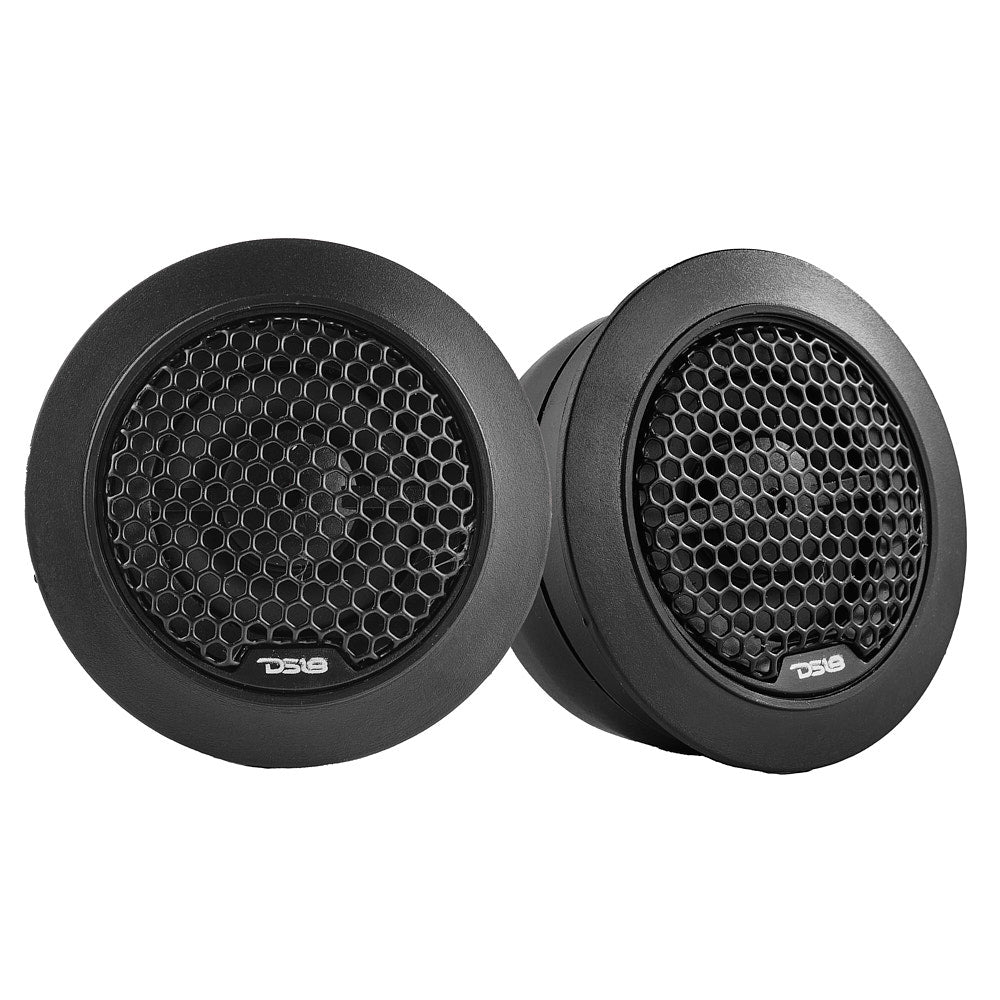

The Neodymium Tweeter is designed for crystal clear accuracy and exceptional response. The neodymium magnet provides excellent efficiency and power handling, while the lightweight design ensures that the tweeter can respond accurately to changes in sound.

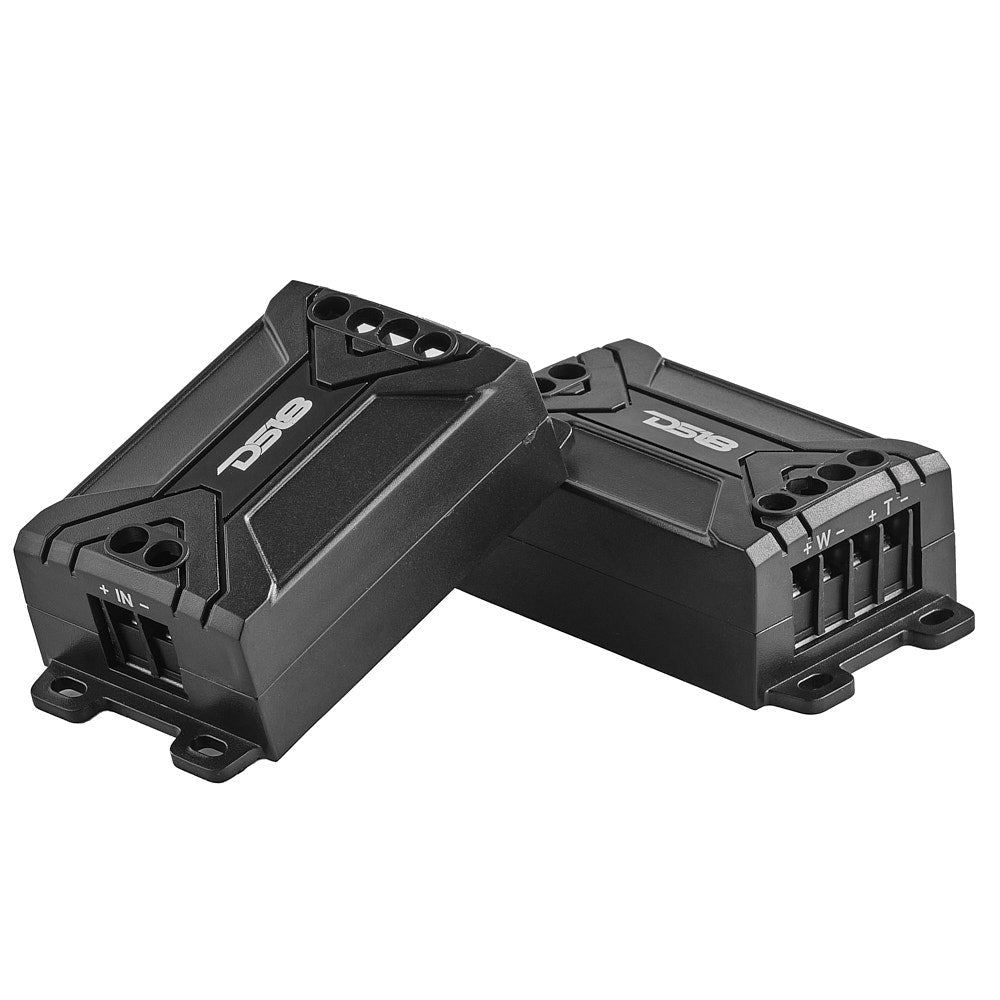

Also included are two 2-way passive crossovers which accurately separates wattage and frequencies for your component set, ensuring long lasting and great sounding experiences.
With a nominal impedance of 4 OHM and an RMS power handling of 65W (MAX power handling of 200W) per passive crossover, this component set delivers powerful and balanced sound across a wide frequency range of 35Hz-20KHz.
Experience the power of DS18’s S65C 2-Way Component Set and transform your car’s audio today.
Key Features
- 6.5" 2-Way Component
- MAX Power: 200 Watts
- RMS Power: 65 Watts
- Impedance: 4 Ohm ~ 87dB
- Barium Ferrite & Neodymium Magnets
- Pair ~ Crossover & Grills Included
Specifications
| SKU | S65C |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 65W |
| MAX Power Handling | 200W |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
| Voice Coil Diameter | 1" / 25.5mm / 0.52" / 13mm |
| Voice Coil Former Material | ASV / KAPTON |
| Winding Material | EISV / EISVM |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 9.87oz / 280g / 1.8g |
| Equivalent Volume Vas | 8.57L / 0.3ft3 |
| Excursion (one way) Xmax | 2.9mm |
| Free Air Resonance Fs | 75Hz |
| Mechanical Factor Qms | 5.97 |
| Electrical Factor Qes | 1.68 |
| Total Factor Qts | 1.31 |
| Mechanical Mass Mms | 13.8g |
| Mechanical Compliance Cms | 322mm/N |
| BL Factor BL | 4.9 |
| Voice Coil Inductance Le | 193uH |
| Cone Area Sd | 136.8cm2 |
| DC Resistance Re | 3.7 Ohms |
| Mechanical Mass w/o air Mmd | 12g |
| Overall Diameter | 6.5" / 165.5mm / 1.5" / 39mm |
| Overall Depth | 2.44" / 62mm / 0.66" / 17mm |
| Overall Diameter (With Grill) | 7" / 179mm |
| Overall Depth (With Grill) | 3.22" / 82mm |
| Front Mount Baffle Cutout | 5.6" / 143mm |
| Mounting Depth | 2.24" / 57mm |
| Motor Diameter | 3.15" / 80mm |
| Diaphragm Material | MYLAR |
| Overall Diameter With Adapter | 1.96" / 50mm |
| Overall Depth With Adapter | 0.98" / 25mm |
| Front Mount Baffle Cutout With Adapter | 1.77" / 45mm |
| Mounting Depth With Adapter | 0.76" / 19.5mm |
| Passive Crossover Ways | 2 (Woofer / Tweeter) |
| Frequency Crossover point | 3.5KHz |
| Cut-Off Slope | 12dB/Oct |
| Tweeter Attenuation | N/A |
| Capacitor Type | Metal Film |
| Coil Type | Inductor |
| Terminal Type | Screw |
| Housing Material | ABS |
| Overall Length | 1.88" / 48mm |
| Overall Width | 2" / 52mm |
| Overall Height | 1.18" / 30mm |
| Gross Single Unit Weight | 1.3 KG |
