SELECT 6.5" 2-Way Coaxial Speaker | 180W RMS 4-Ohm
Product Overview DS18 S65 SELECT 6.5" 2-Way Coaxial Speaker 180 Watts 4-Ohm Enhance your driving experience with DS18’s...
- $41.95
- $41.95
- Unit price
- per
Subtotal:
$41.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

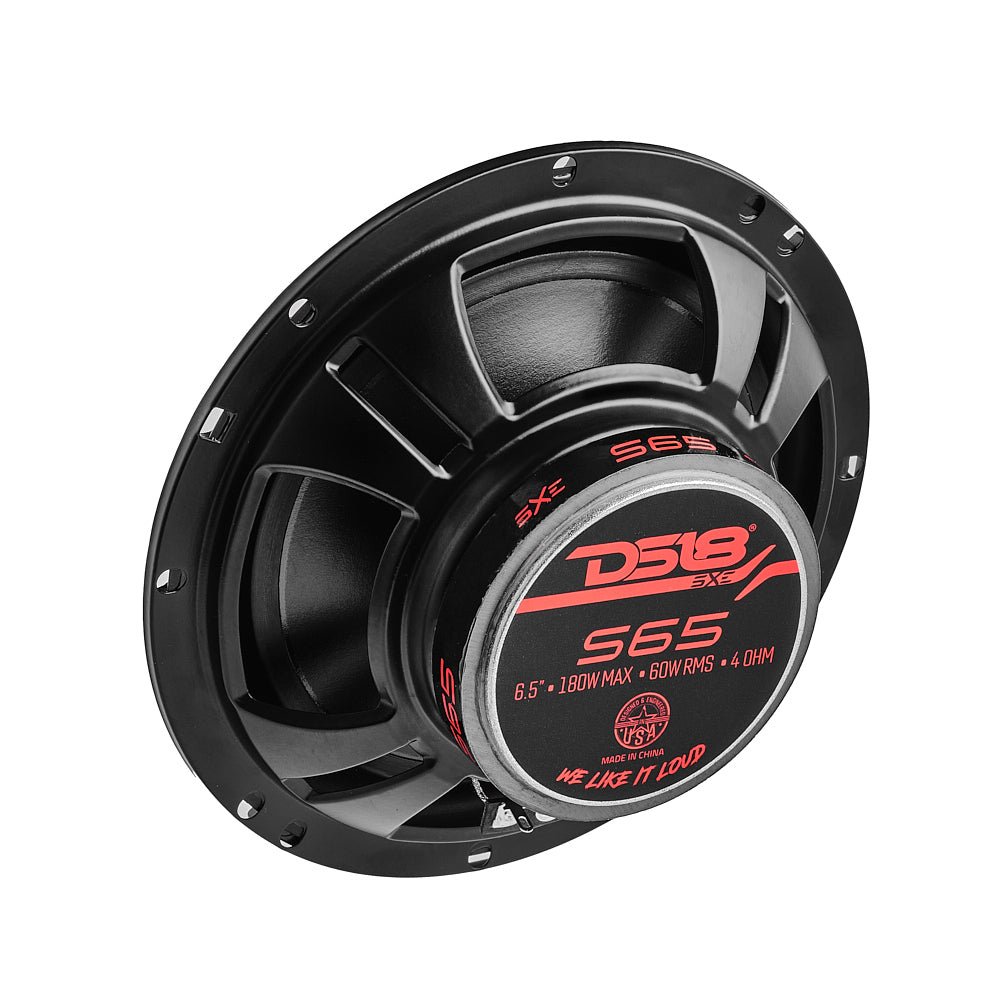

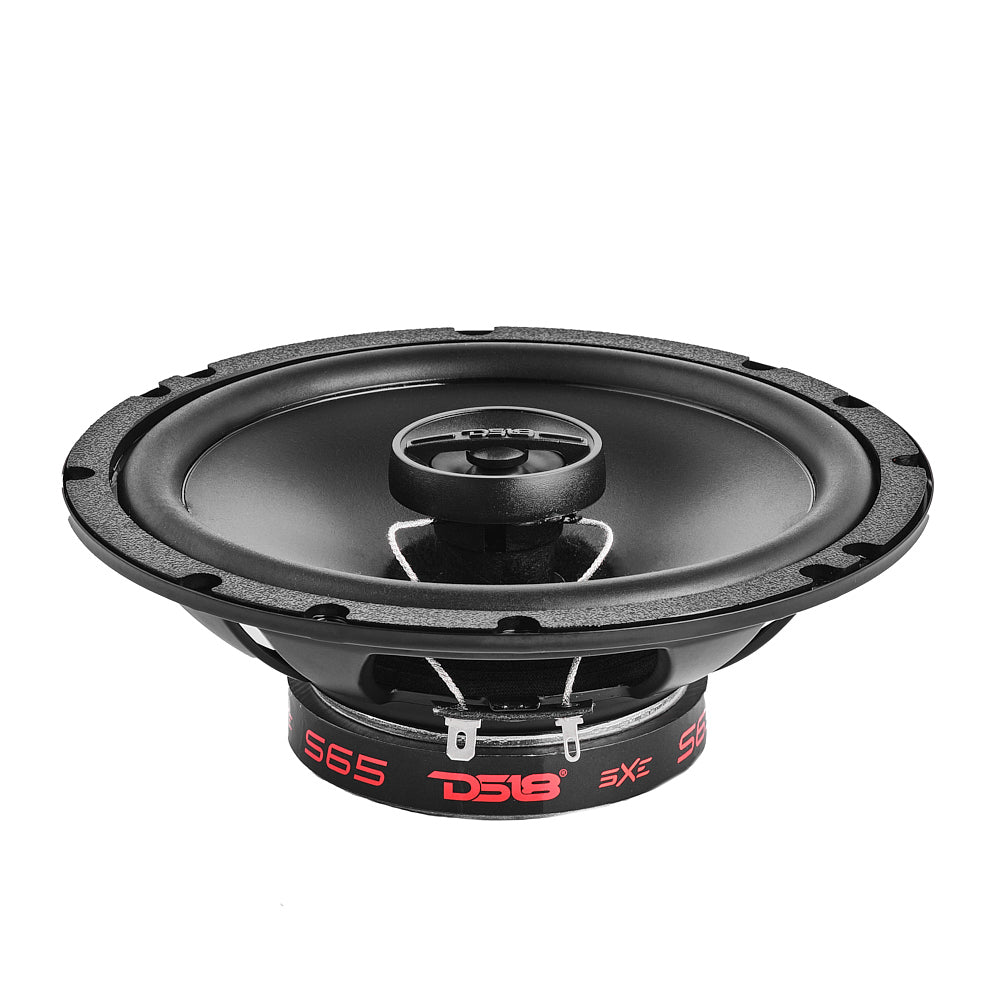

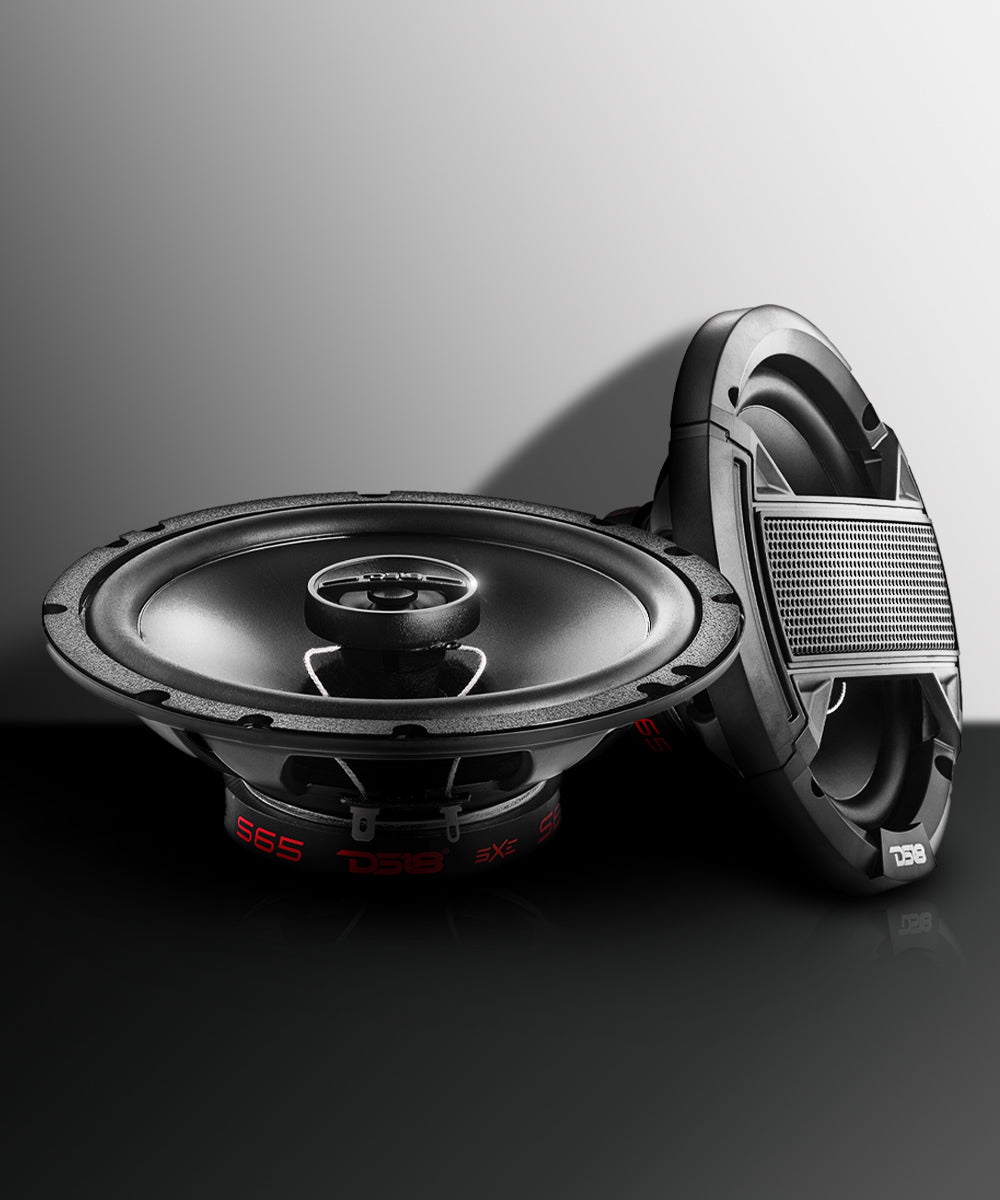

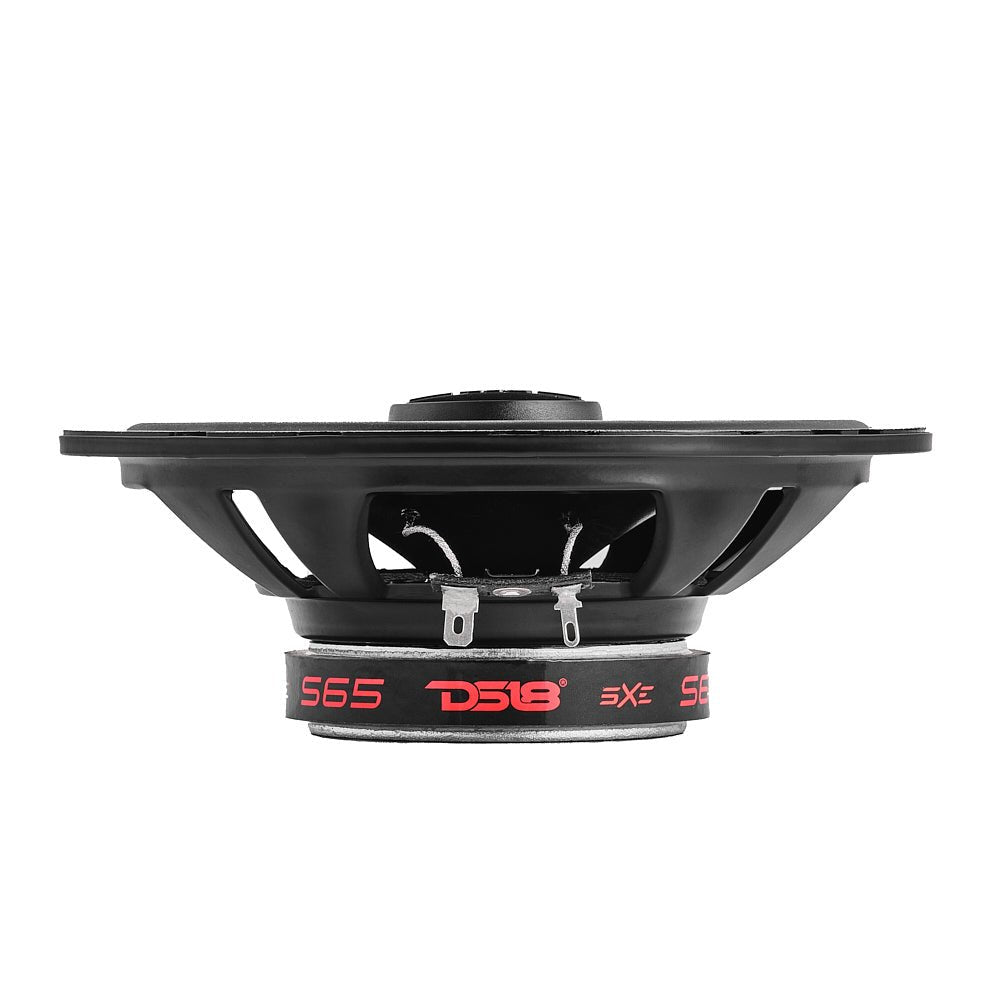

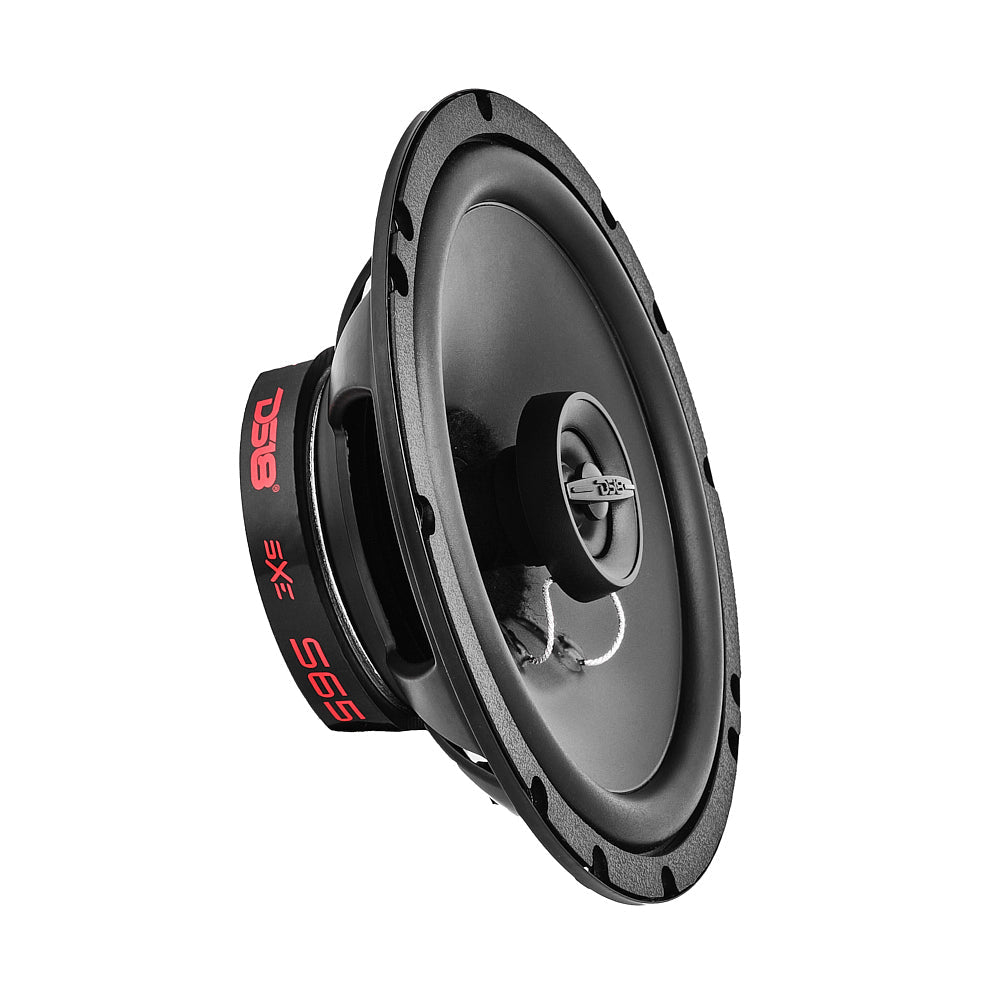

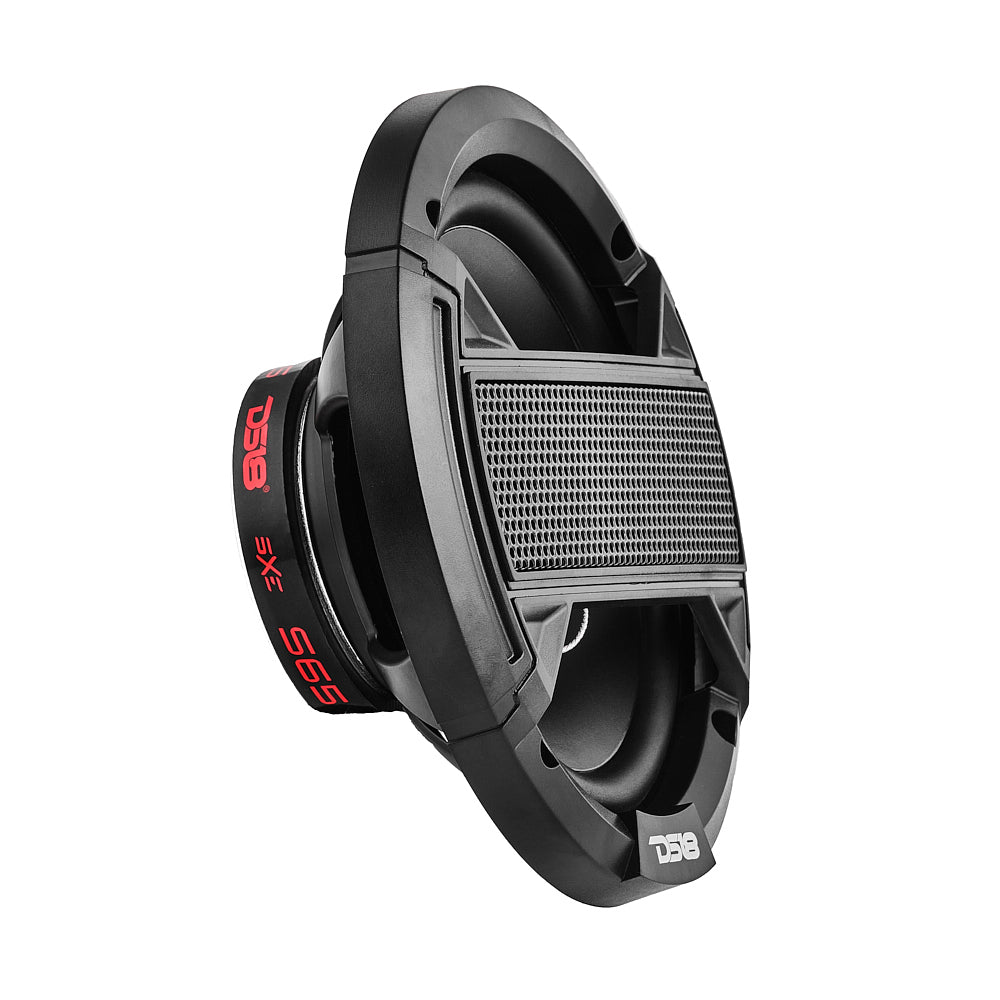

DS18 S65 SELECT 6.5" 2-Way Coaxial Speaker 180 Watts 4-Ohm
Enhance your driving experience with DS18’s S65. These high-quality 6.5” 2-way coaxial speakers deliver powerful, crystal-clear sound that will transform your car’s audio.

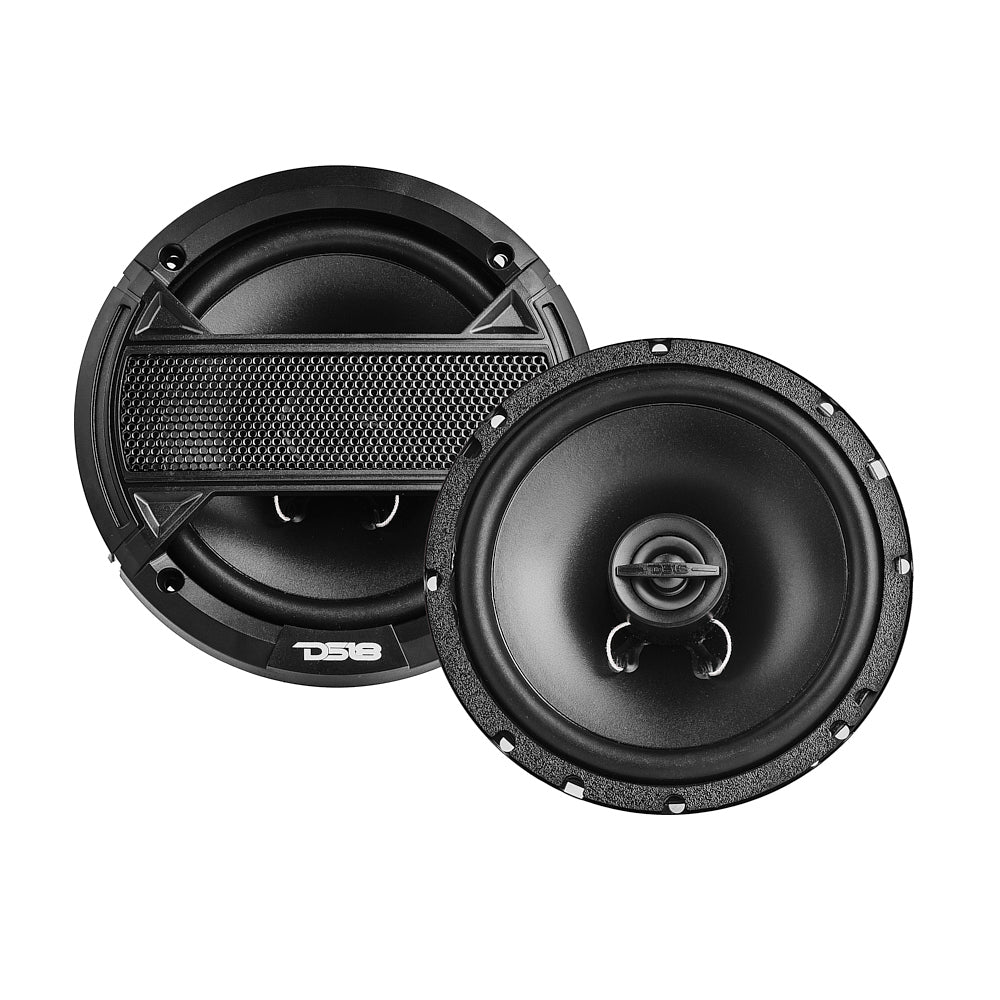

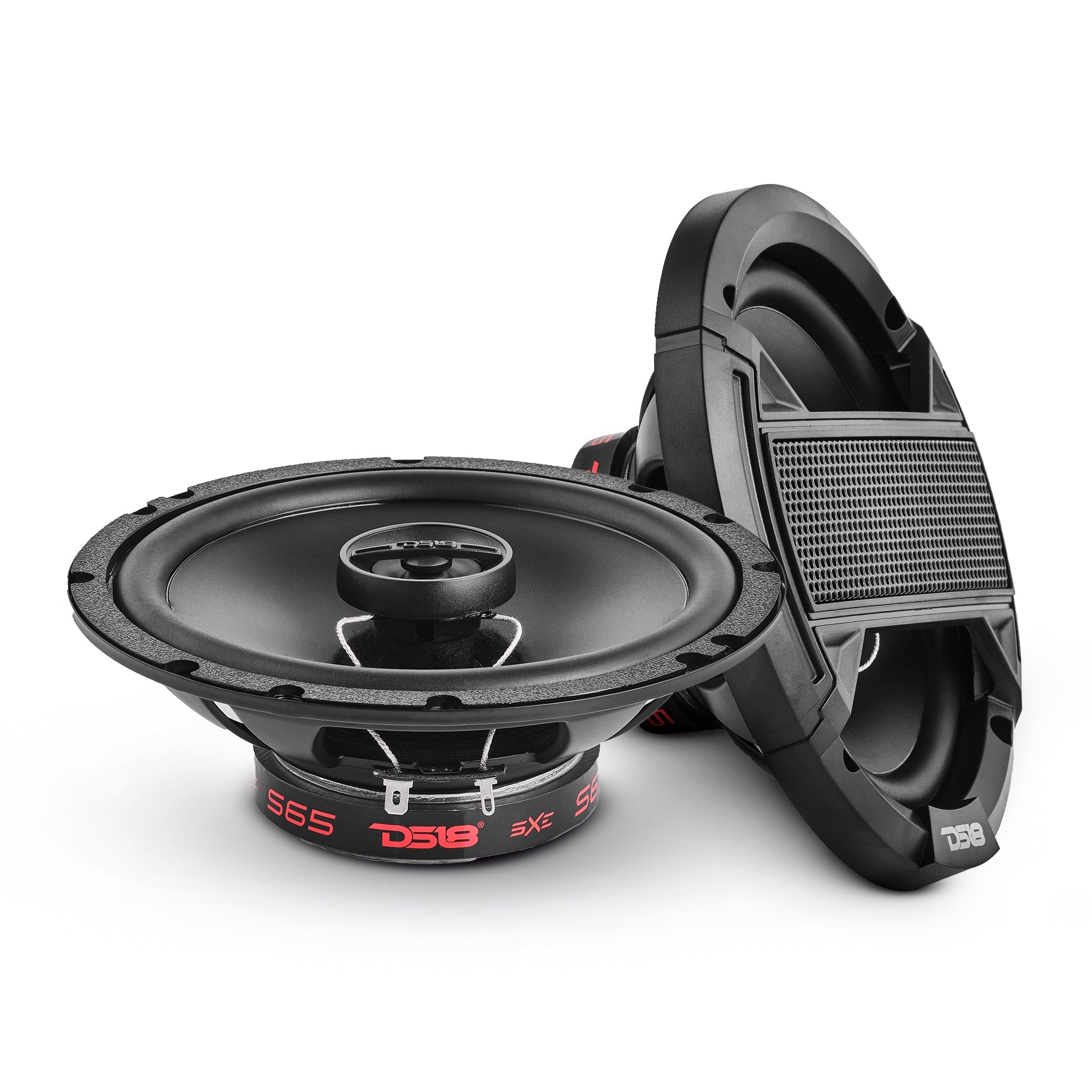

Designed with both style and functionality in mind, these speakers feature a sleek black matte basket and come in pairs with grills included.
The S65’s are a perfect fit for any vehicle’s audio system. The 4 Ohm nominal impedance ensures compatibility with a wide range of amplifiers, allowing you to customize your sound system to your preferences. With an RMS power handling of 60W, these speakers can handle even the most demanding audio setups.
DS18’s S65’s are built to impress. The woofer is equipped with a 1" voice coil and The cone is made from PPI material, delivering clear and accurate bass response. The rubber surround provides excellent damping properties, enhancing overall sound quality.
Not just focused on low frequencies, these speakers also excel in reproducing high frequencies with the integrated 1" tweeter. The neodymium magnet and Mylar diaphragm ensure crisp and detailed high frequency sound reproduction.
Upgrade your car audio system today and enjoy the immersive sound experience that only DS18 can provide.
Key Features
- 6.5" 2-Way Coaxial
- MAX Power: 180 Watts
- RMS Power: 60 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 88.5dB
Specifications
| SKU | S65 |
|---|---|
| Nominal Diameter | 6.5" / 165mm / 1" / 25.5mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 60W |
| MAX Power Handling | 180W |
| Sensitivity (1w/1m) | 88.5dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
| Voice Coil Diameter | 1" / 25.5mm / 0.5" / 13.25mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV / EISVM |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 8Oz / 227g / 1.8g |
| Equivalent Volume Vas | 8.25L / 0.29ft3 |
| Excursion (one way) Xmax | 2.7mm |
| Free Air Resonance Fs | 70Hz |
| Mechanical Factor Qms | 6.09 |
| Electrical Factor Qes | 1.93 |
| Total Factor Qts | 1.47 |
| Mechanical Mass Mms | 11.4g |
| Mechanical Compliance Cms | 320mm/N |
| BL Factor BL | 3.96 |
| Voice Coil Inductance Le | 187uH |
| Cone Area Sd | 136.8cm2 |
| DC Resistance Re | 3.4 Ohms |
| Mechanical Mass w/o air Mmd | 12g |
| Diaphragm Material | Mylar |

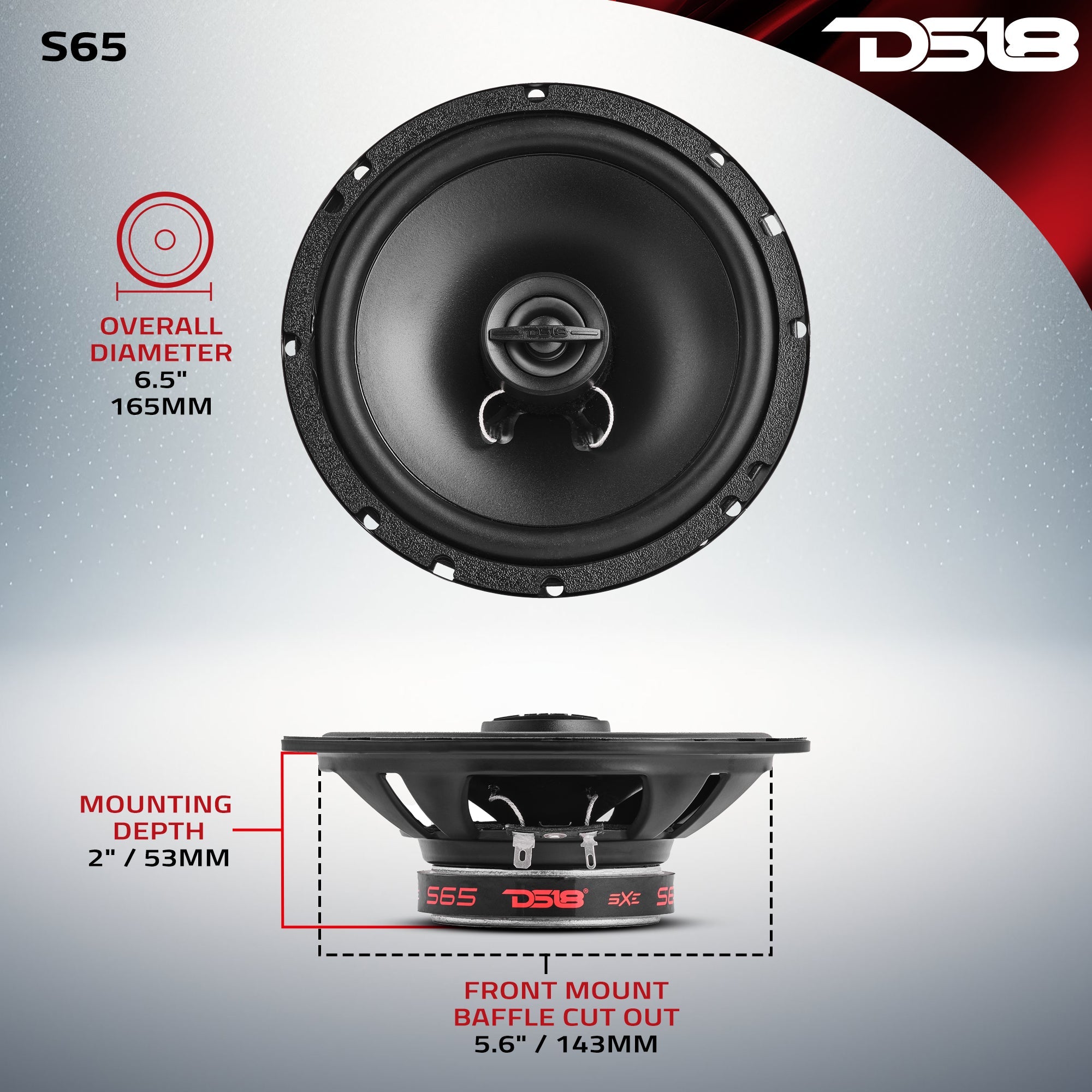

| Overall Diameter | 6.5" / 165mm |
| Overall Depth | 2.3" / 58.5mm |
| Overall Diameter (With Grill) | 7" / 179mm |
| Overall Depth (With Grill) | 3" / 77mm |
| Front Mount Baffle Cutout | 5.6" / 143mm |
| Mounting Depth | 2" / 53mm |
| Motor Diameter | 3.15" / 80mm |
| Tweeter Protrusion | 0.25" / 6.4mm |
| Gross Single Unit Weight | 0.71kg |
| Single Unit Box Dimensions W x L x H | 185*90*370mm |
| Quantity of Units in Master Carton | 10 PRS/CTN |
| Gross Master Carton Weight | 17kg |
| Master Carton Dimensions W x L x H | 475*385*390mm |
