RZR24RCXP-STG6

Overview

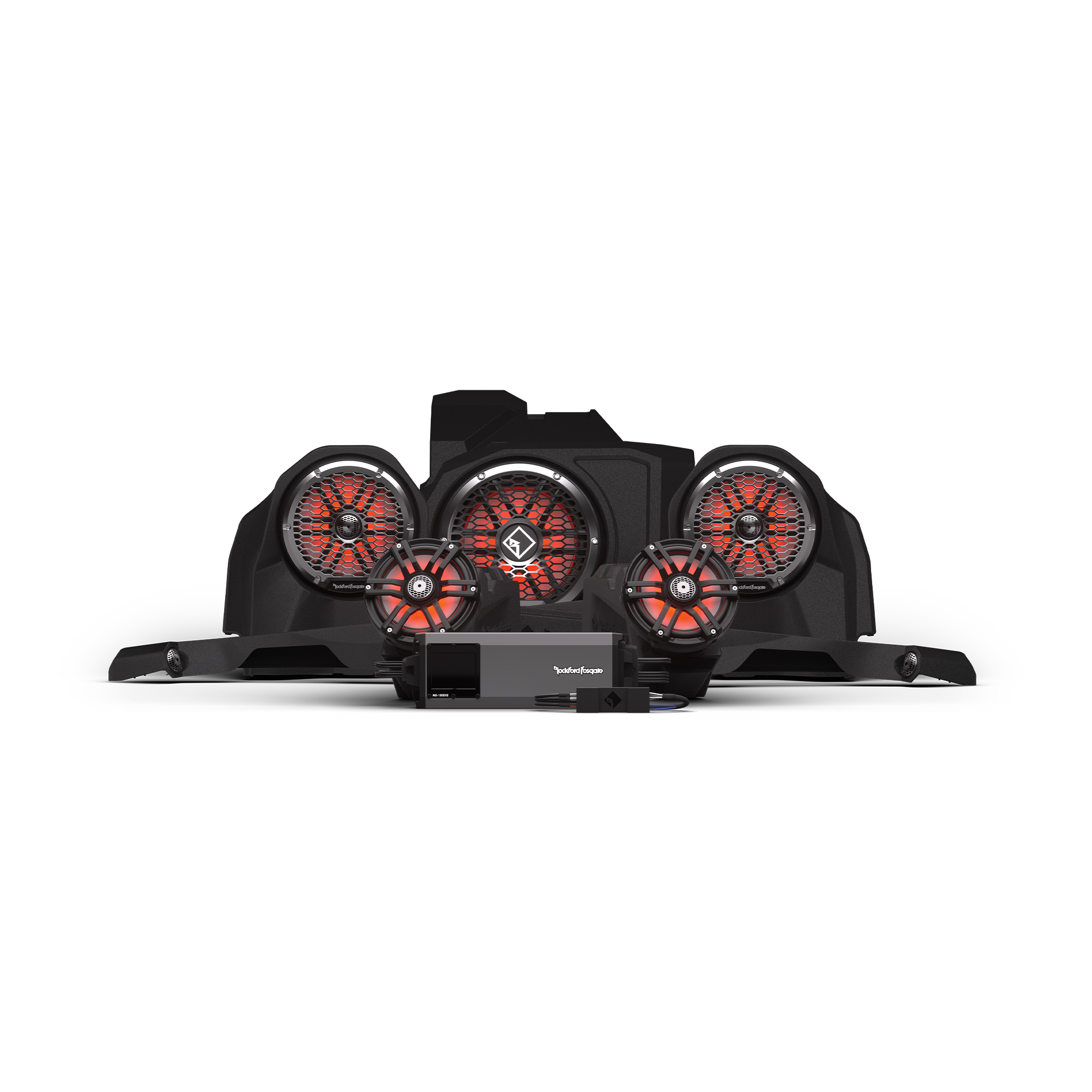

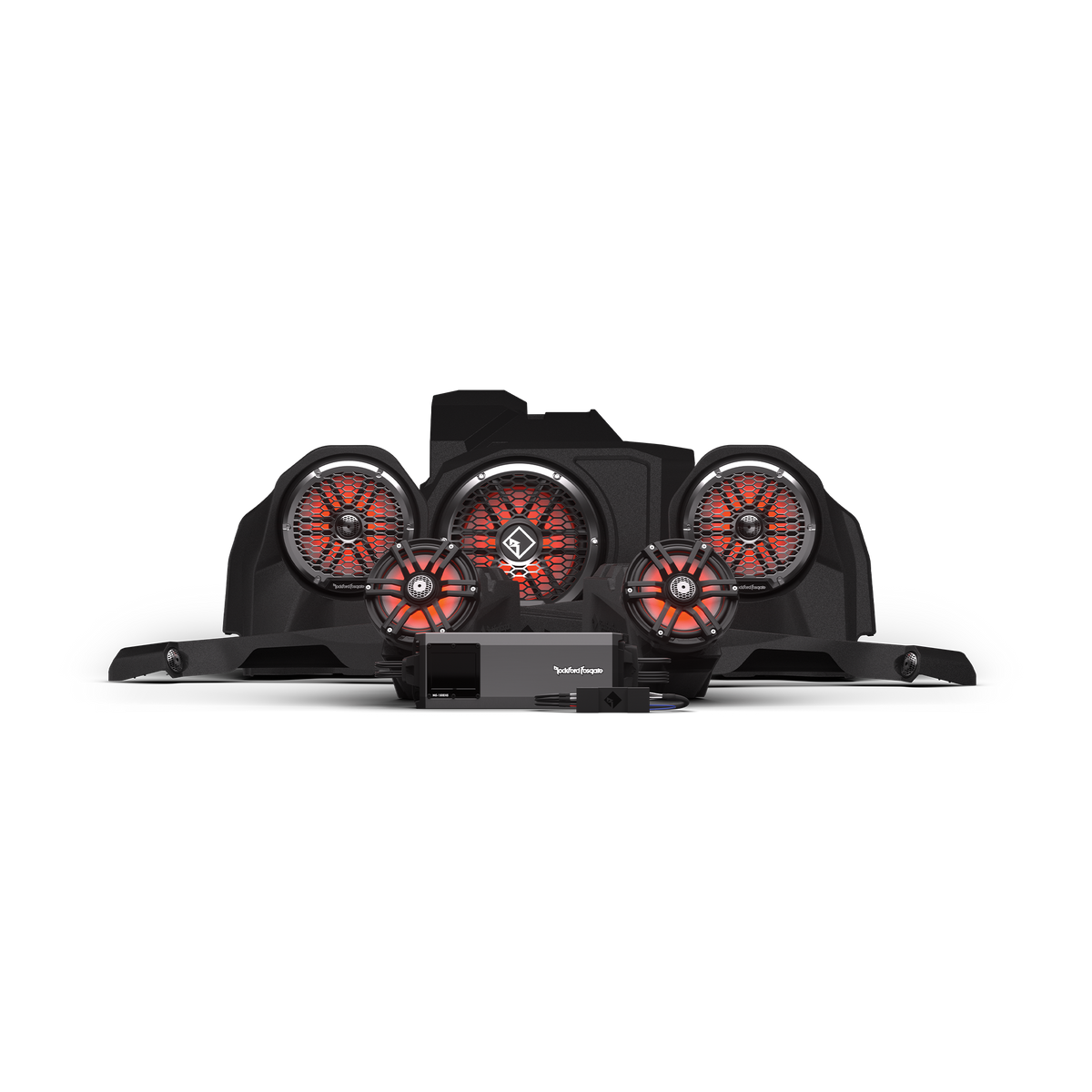

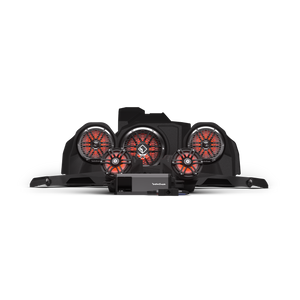

The all-new Rockford Fosgate aftermarket Stage 6 is a premium 1,500-Watt 7-speaker audio system for 2024+ Polaris RZR XP and features our proprietary interface that allows you to use Ride Command as your source unit. An IPX6 rated 5-channel amplifier powers M2 Color Optix TM speakers that include 6.5" front coax, 1" door pod tweeters, 8" rear coax, and a single 10" under-dash subwoofer. All enclosures are custom fabricated and designed to fit seamlessly into the interior without loss of functional cabin space. The system features a Color Optix TM controller for adjusting speaker LED colors and includes a complete wiring harness with OEM style connectors for true plug-and-play integration. This kit allows for future expansion of a PMX-3 source unit for better control and sound quality.

Features

• Element Ready TM to withstand the harsh outdoor environment like dust, water, and UV rays
• True plug-and-play design with OEM connectors for easy installation
• Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
• RFPOL-RCA: Ride Command 3-way active noise reduction interface for select RZR models
• M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready TM Amplifier
• M2-TS: M2 1" Element Ready TM marine grade tweeters
• Tweeter pods mount to top of doors and compliment vehicle body lines
• M2-65B: M2 6.5" Color Optix TM marine grade 2-Way speakers - Black
• M2-8B: M2 8" Color Optix TM marine grade 2-way speakers - Black
• Rear speaker pods do not interfere with Polaris branded spare tire carrier, coolers, or storage boxes
• M2D4-10IB-G2: M2 10" DVC 4Ohm Element Ready TM Color Optix TM Subwoofer - Black (Gen-2)
• Ported enclosure with optional cap for deep-water use or tighter, sealed bass
• PMX-RGB: Color Optix TM speaker color controllable via RF Connect mobile app
• -->RZR24XP-DK-->: source unit dash kit for select 2024+ RZR models
• -->RZR24XP-FTP-->: 1" front door tweeter pods for select 2024+ RZR models
• -->RZR24XP-FSE-->: 6.5" front speaker enclosures for select 2024+ RZR models
• -->RZR24XP-RSE: 8" rear speaker enclosures for select 2024+ RZR models
• -->RZR24XP-FWE-->: 10" front woofer enclosure for select 2024+ RZR models
• -->RZR24XP-K4-->: 4-gauge amplifier wiring kit for select 2024+ RZR models
• Harness has RGB accessory port (rock lights/whip) controllable via RF Connect app
• Enclosures for speakers/subwoofer integrate with no loss of passenger space
• Video installation tutorial with easy-to-follow instructions
• 2-Year Warranty

Specifications

• Speaker Qty: 7
• Amplifier Type: External
• Total Power: 1,500 Watts
• Mounting Hardware: Yes
• Grille-Trim Ring Included: Yes
• Expansion Ports: Color Optix TM RGB:; Front: DT06-4S (4-Pin); Rear: DT06-4S (4-Pin)
• Included Components: (1 ea) RFPOL-RCA; (1 ea) M5-1500X5; (1 pr) M2-TS; (1 pr) M2-65B; (1 pr) M2-8B; (1 ea) M2D4-10IB-G2; (1 ea) PMX-RGB
• Included In The Box: PMX-DK; - (4) Torx plastic tapping screw, 1/4" x 1" long; - (1) PMX radio bracket; RZR24XP-FSE; - (1) RZR24 Driver FSE; - (1) RZR24 Passenger FSE; - (6) Torx Bolt M6x0.75mm, 14mm long; - (12) Hex Bolt M4x0.7mm, 22mm long; - (2) Hex Screw M6 self-tapping; - (2) Tube clamp mount bracket; RZR24-FTP; - (1) RZR24 Driver Pod; - (1) RZR24 Passenger Pod; - (4) Washer, M3x1.5" thick; - (2) Hex bolt M3x0.6mm, 20mm long; - (1) Hex key 2.5mm
• Included In The Box: RZR24-RSE; - (1) RZR24 Driver RSE; - (1) RZR24 Passenger RSE; - (1) RSE Driver bracket; - (1) RSE Passenger bracket; - (4) Torx screw M8x25mm long; - (2) T40 Torx screw M6x25mm long; - (2) Gasket A; - (2) Gasket B; - (12) Hex crew M4x0.7mm, 30mm long; RZR24-FWE; - (1) RZR24 FWE; - (1) Passenger dash trim; - (1) Port tube cap; - (2) Torx screw M5, 36mm long; - (2) Torx screw M5, 22mm long; - (6) Hex bolt M5x0.8mm, 48mm long; - (4) Torx bolt M6x0.75mm, 14mm long; - (2) Tube clamp mount; RZR24-K4; - (1) RZR24-K4 bracket; - (1) RZR24 wiring harness; - (1) Tube clamp; - (1) T40 Torx bit; - (1) Hex key 2.5mm; - (1) Hex key 3mm; - (1) Hex key 5mm; - (6) Hex screw M4x0.7mm
• Shipping Weight: TBA
