Product Overview
DS18 RZR-RCSUB10LD
Bandpass Subwoofer Enclosure with EXL-X10.2D for Polaris RZR Rear Cargo Box

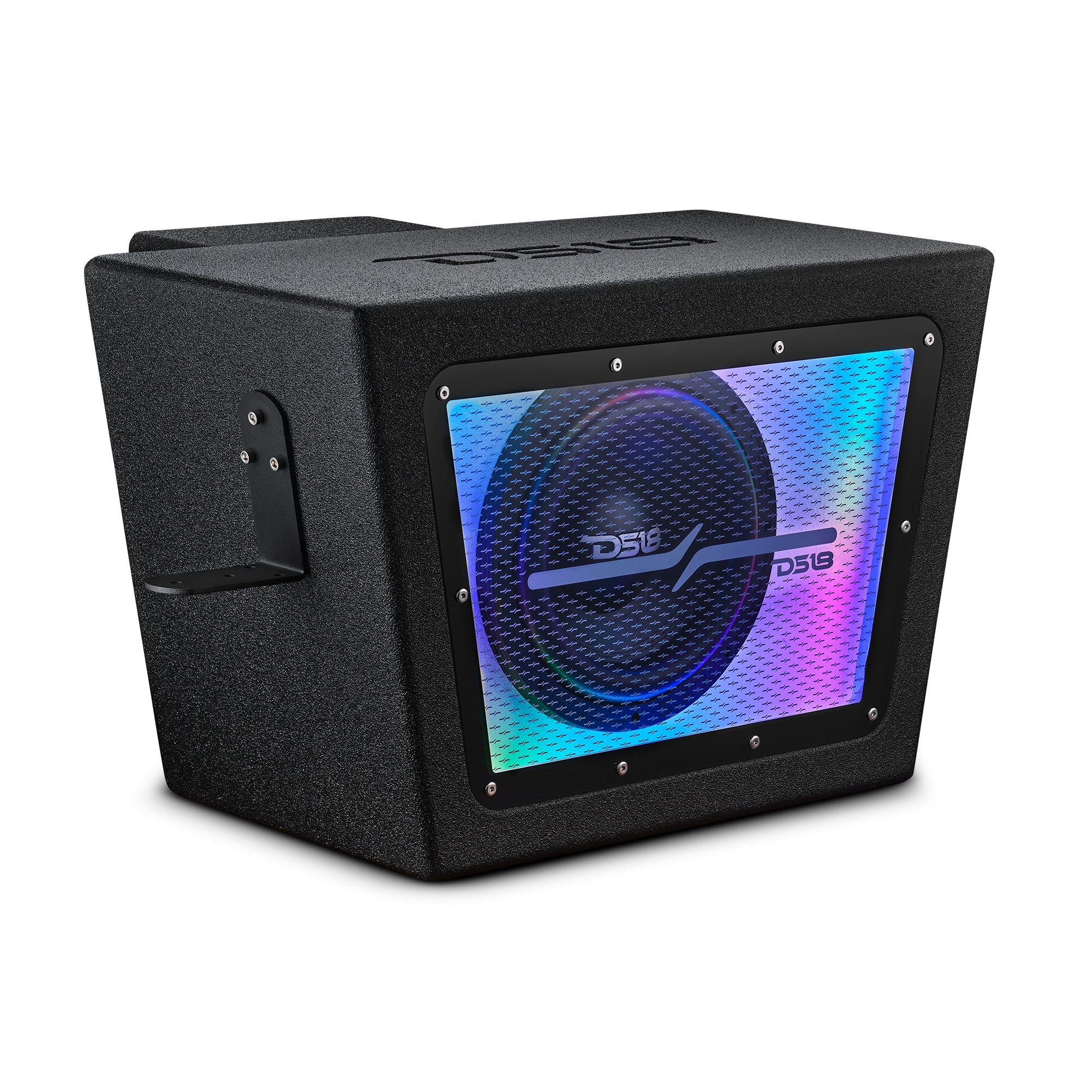

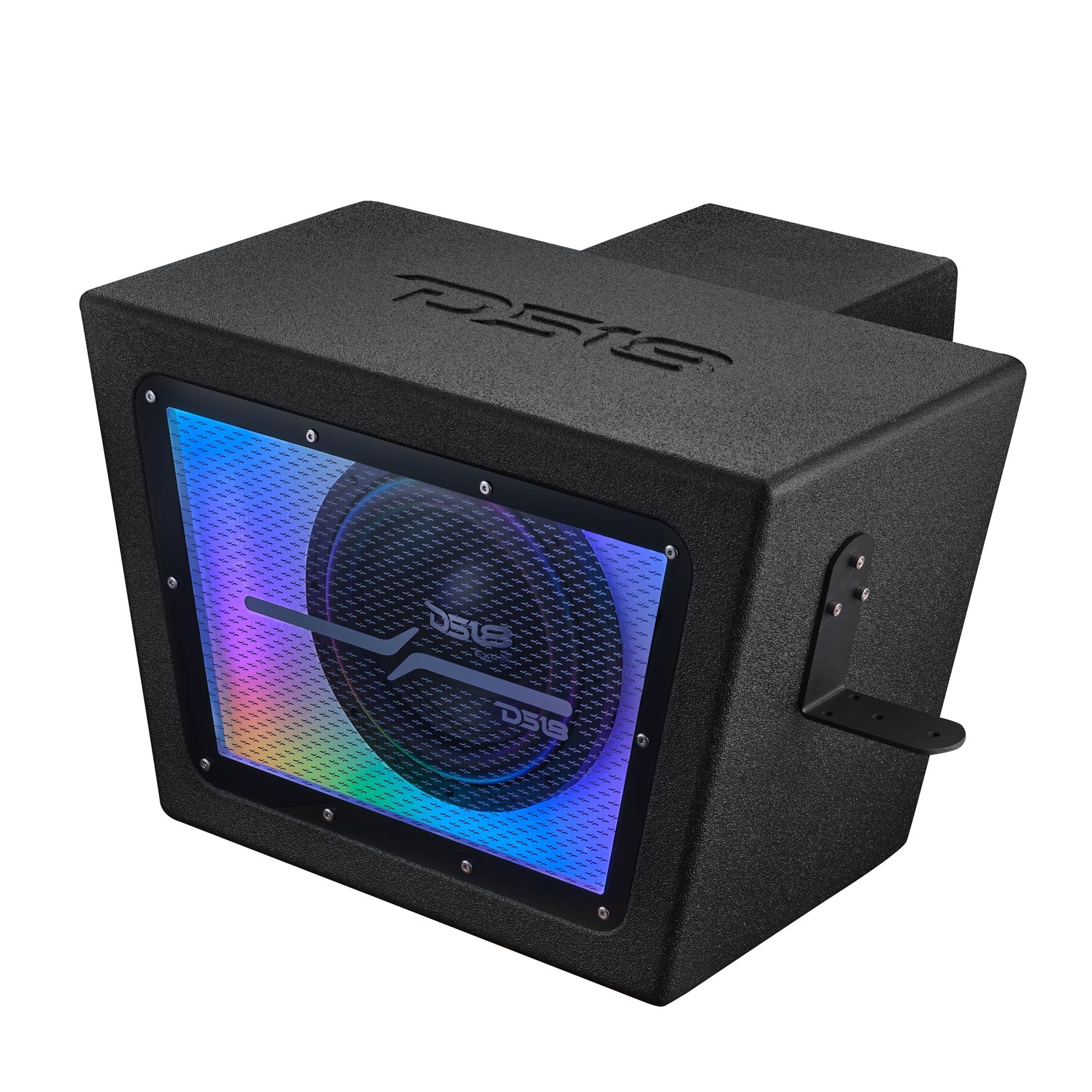

DS18’s RZR-RCSUB10LD is a rear cargo-loaded subwoofer enclosure made for Polaris RZR PRO and XP owners who want serious bass without sacrificing fit. Preloaded with a powerhouse EXL-X10.2D 10” sub, this box offers extremely deep, punchy low output—backed by rugged design and complemented by digital LED lighting.
Drop-In and Get LOUD!

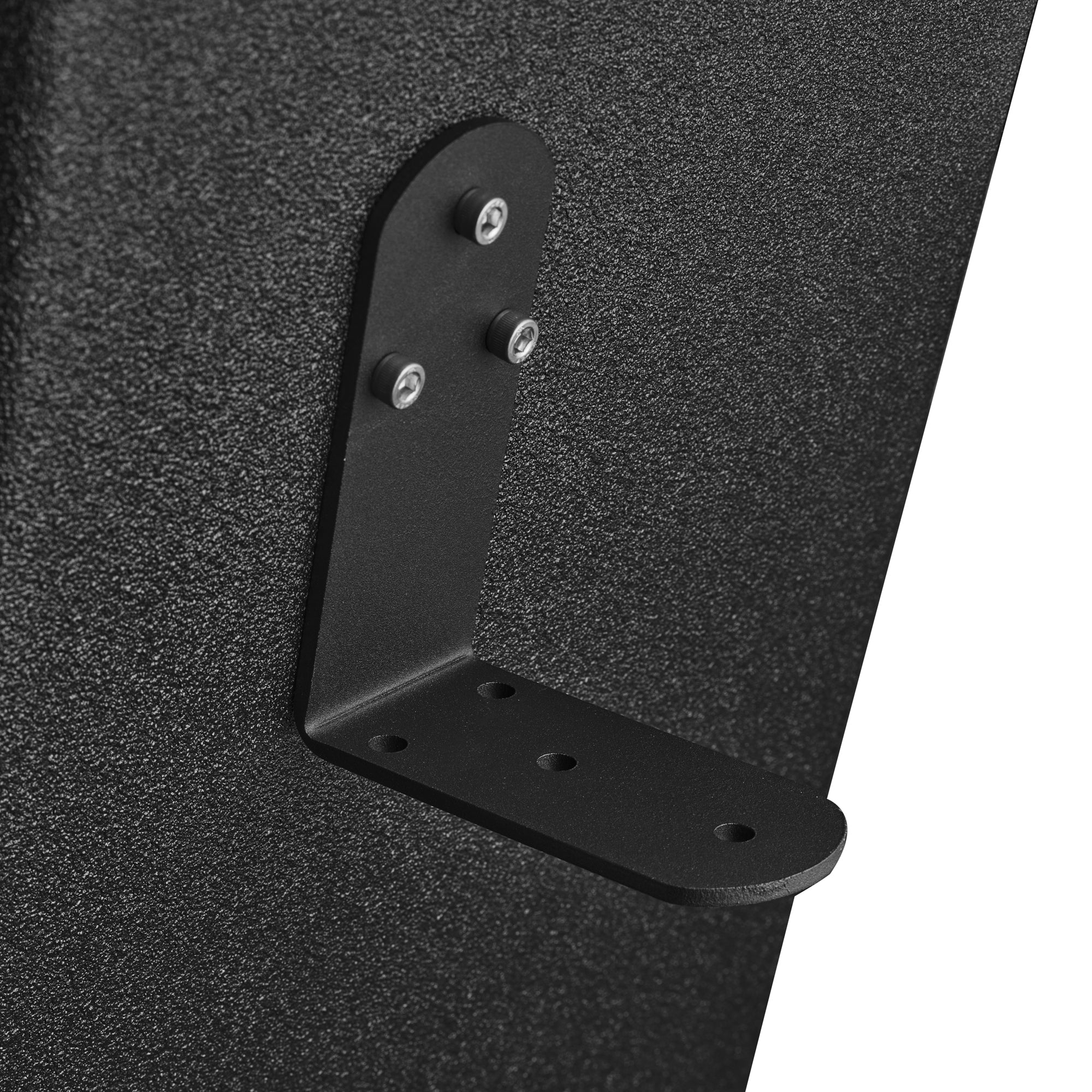

Inside, you’ll find a 10” EXL-X series subwoofer wired to 1 Ohm, pushing up to 850W RMS (1700W MAX). Tuned at 35Hz with a bandpass design and 1.35ft³ internal volume, this system delivers tight bass loud enough for the trails. It includes everything you need—brackets, screws, sub, wiring. Just add an amplifier and you’re ready to dominate the trails.
Engineered to Handle the Elements

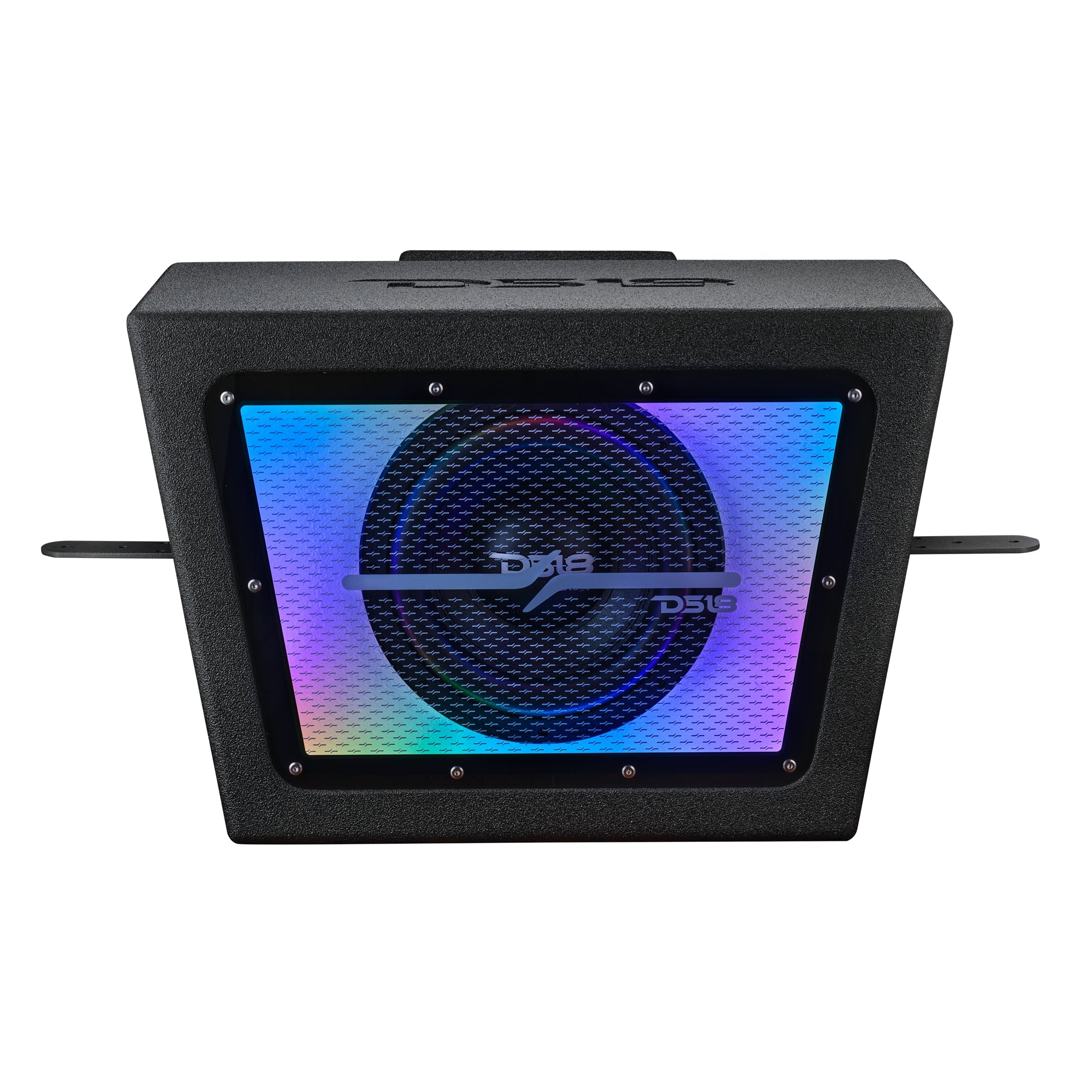

Constructed from ¾” MDF with a black bed-liner finish, this enclosure is ready for your system. A 12mm acrylic viewing window lets you show off the internals and the integrated digital LED lights bring the energy. The entire unit is UV-protected and designed for wet or dry use when paired with DS18’s LC-DRM controller (sold separately).
Get booming bass in the great outdoors with DS18’s RZR-RCSUB10LD: a full-send subwoofer system built for real trail riders!
Key Features
- Preloaded with EXL-X10.2D 10" Subwoofer
- Wired to 1 Ohm final impedance
- 3/4" MDF construction with acrylic window
- Integrated Digital LED lighting (LC-DRM required)
- 100% UV stable for outdoor use

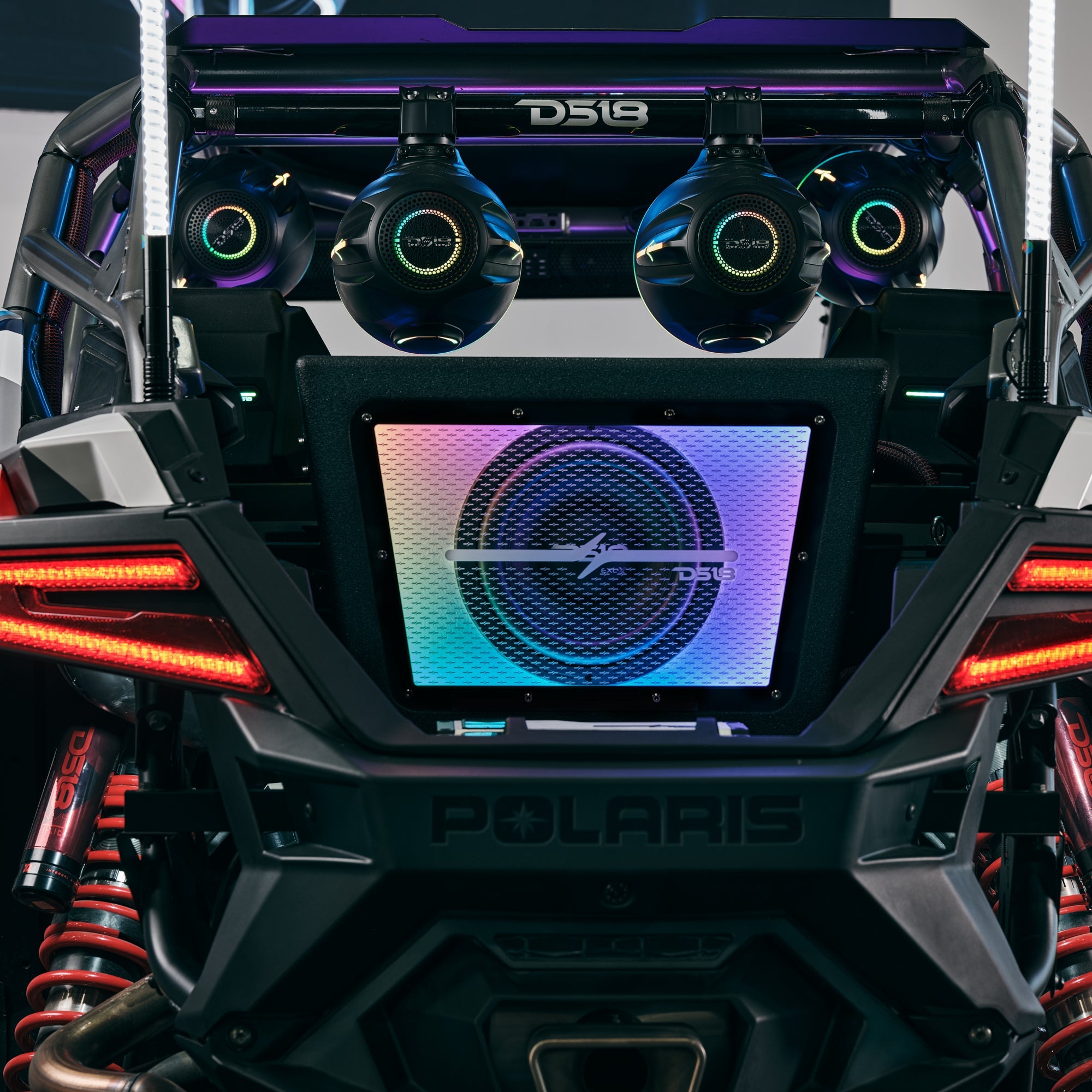

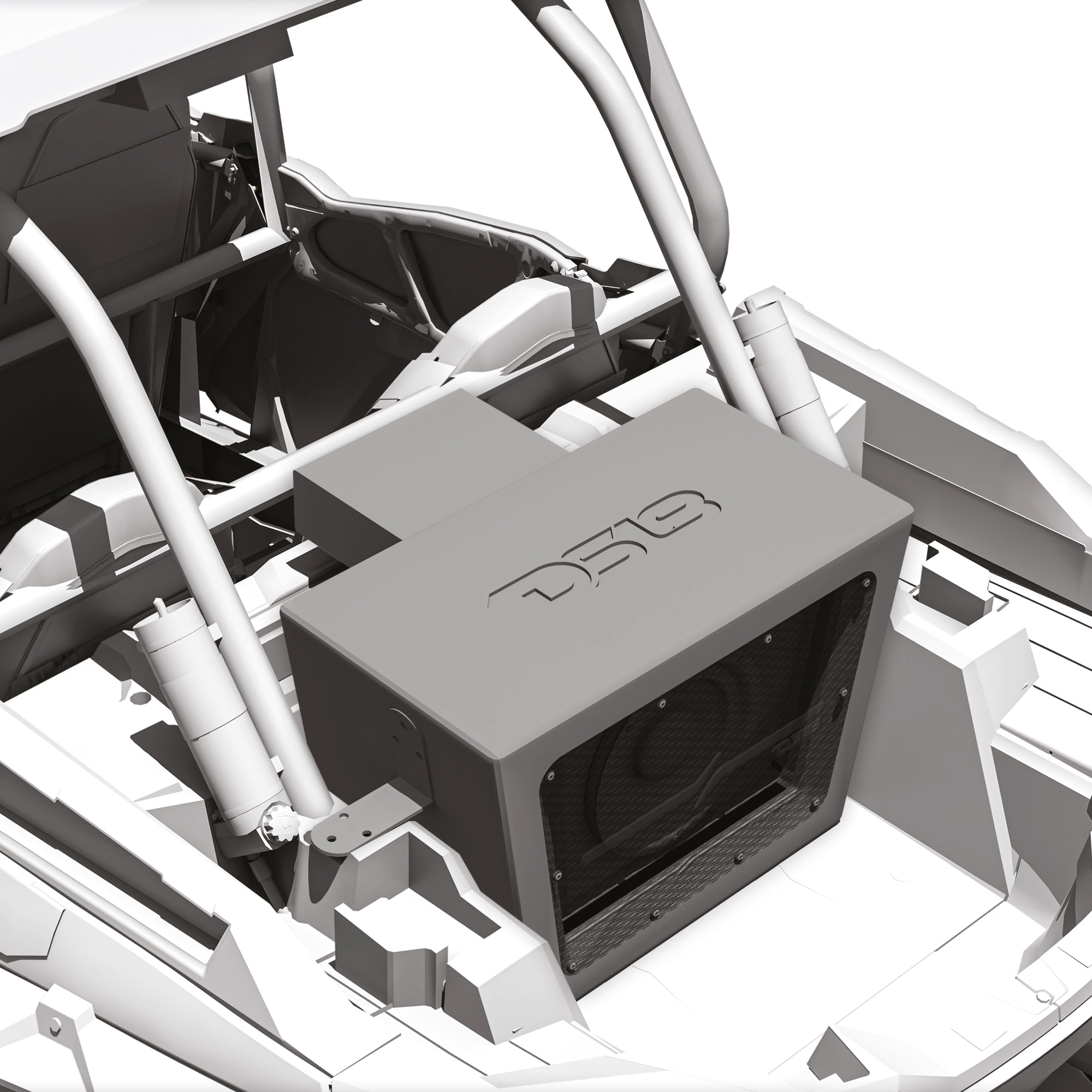

- Designed for Polaris RZR PRO and XP cargo boxes
Specifications
| SKU | RZR-RCSUB10LD / EXL-X10.2D |
|---|---|
| Speaker Type / Size | 10" / 254mm |
| Total Impedance | 1 Ohm |
| Total RMS Power Handling | 850W |
| Total MAX Power Handling | 1700W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 35Hz-250Hz |
| Recommended Low-Pass Crossover | 120Hz |

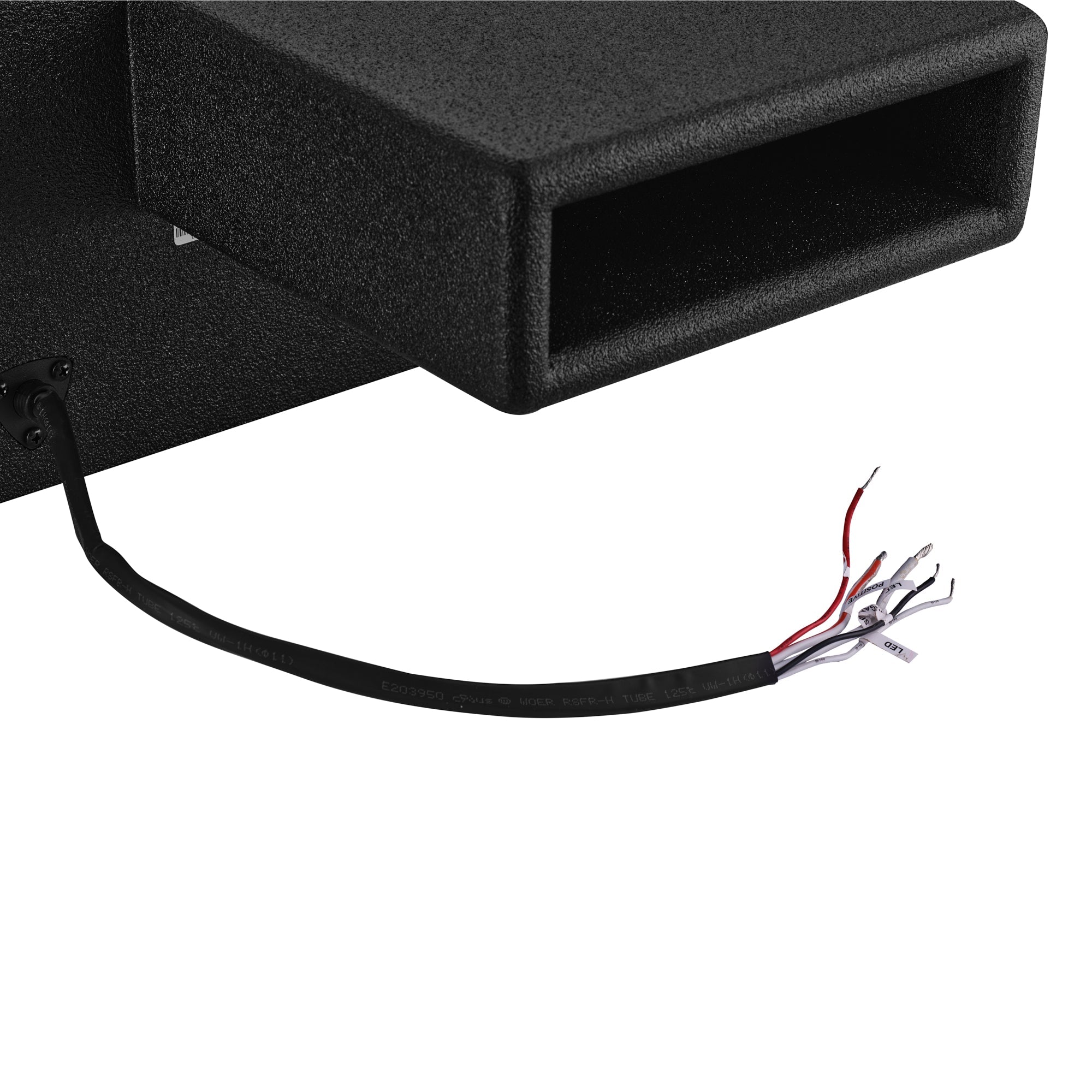

| Wiring | 5 Core Wires for Lighting and Speaker |
| UV Protection | Yes, 100% Stable |
| LED Lights | Yes, Digital LED integrated |
| Digital LED Connection Type | 12V + Digital input |
| Digital LED Chip Type | WS2811 |
| Acrylic Window | Clear 12mm |
| Bracket Included for Polaris ZRZ | Yes, PRO and XP models |
| Voice Coil Diameter | 2.57" / 65.2mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non Pressed Paper + Glass fiber |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 2 x 90oz |
| Internal Volume | 38.5L / 1.35ft3 |
| Port Tune (Fb) | 35Hz |
| Load Configuration | Parallel |
| Box Type | Band-Pass |
| Box Material | 3/4" MDF |
| Finish Material | Bed-Liner Paint |
| -3Db Dropping Point (F3) | 30Hz |
| Height | 16" / 406mm |
| Width | 23.8" / 606.5mm |
| Depth (Box) | 13" / 330mm |
| Depth (With Port) | 21.3" / 542mm |
