Product Overview

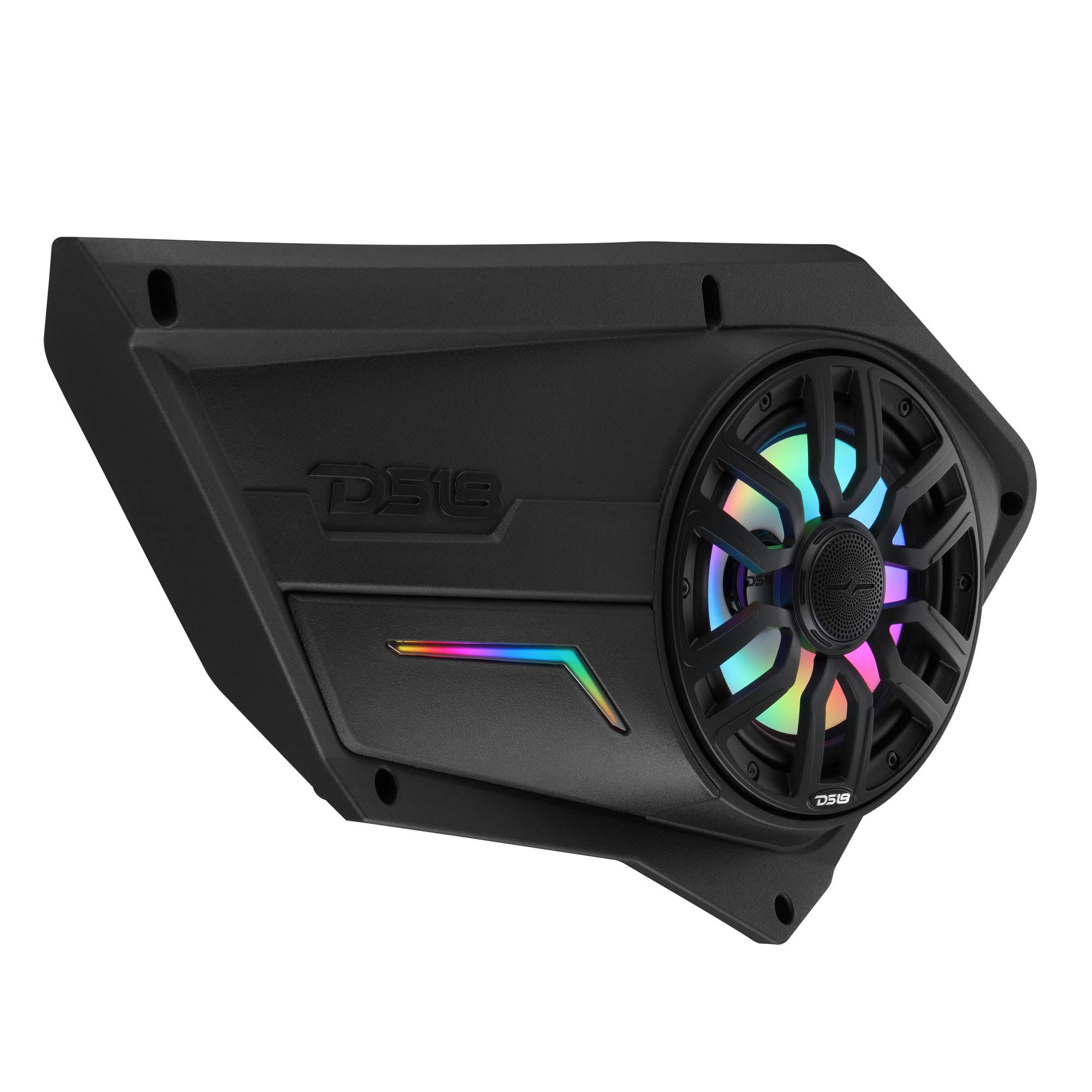

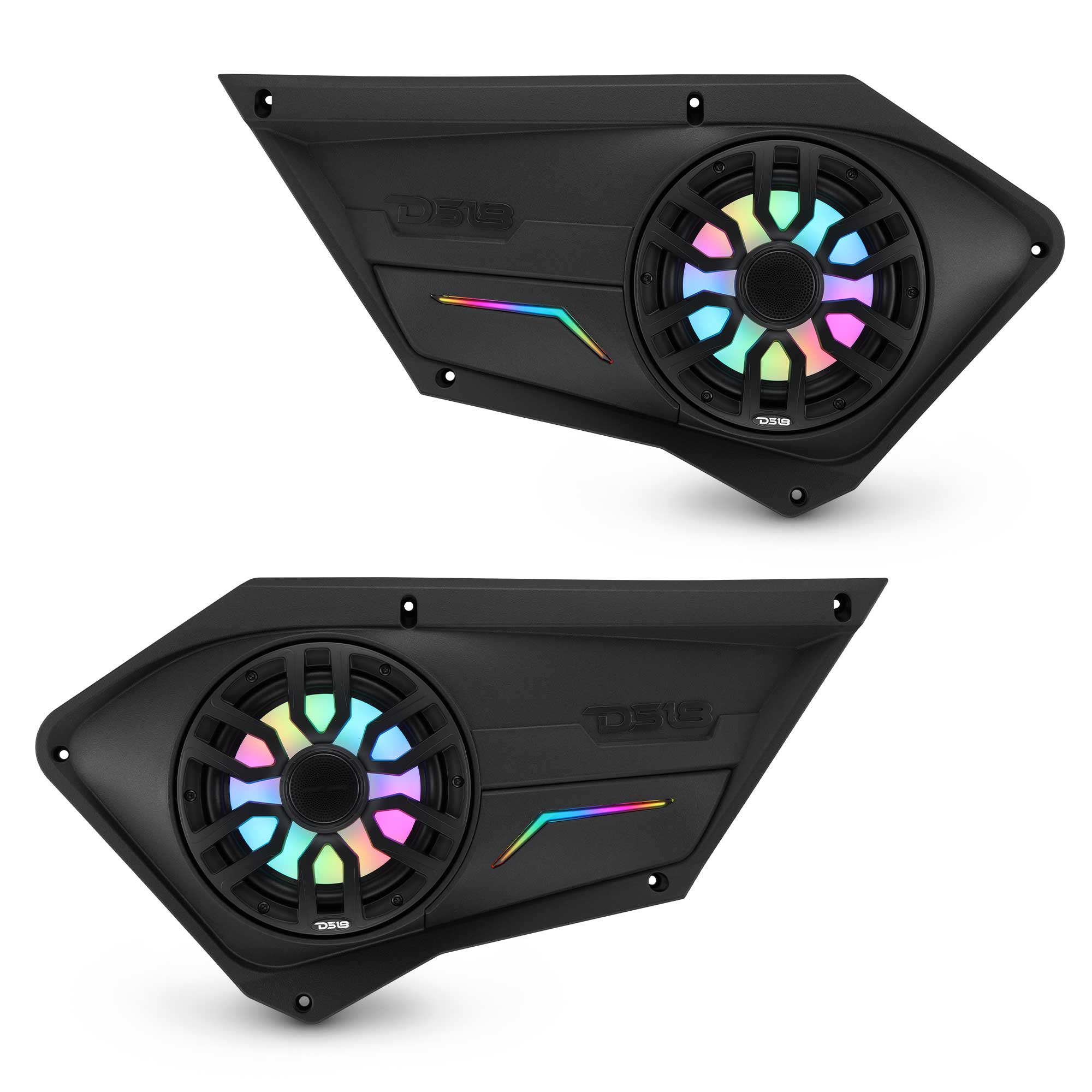

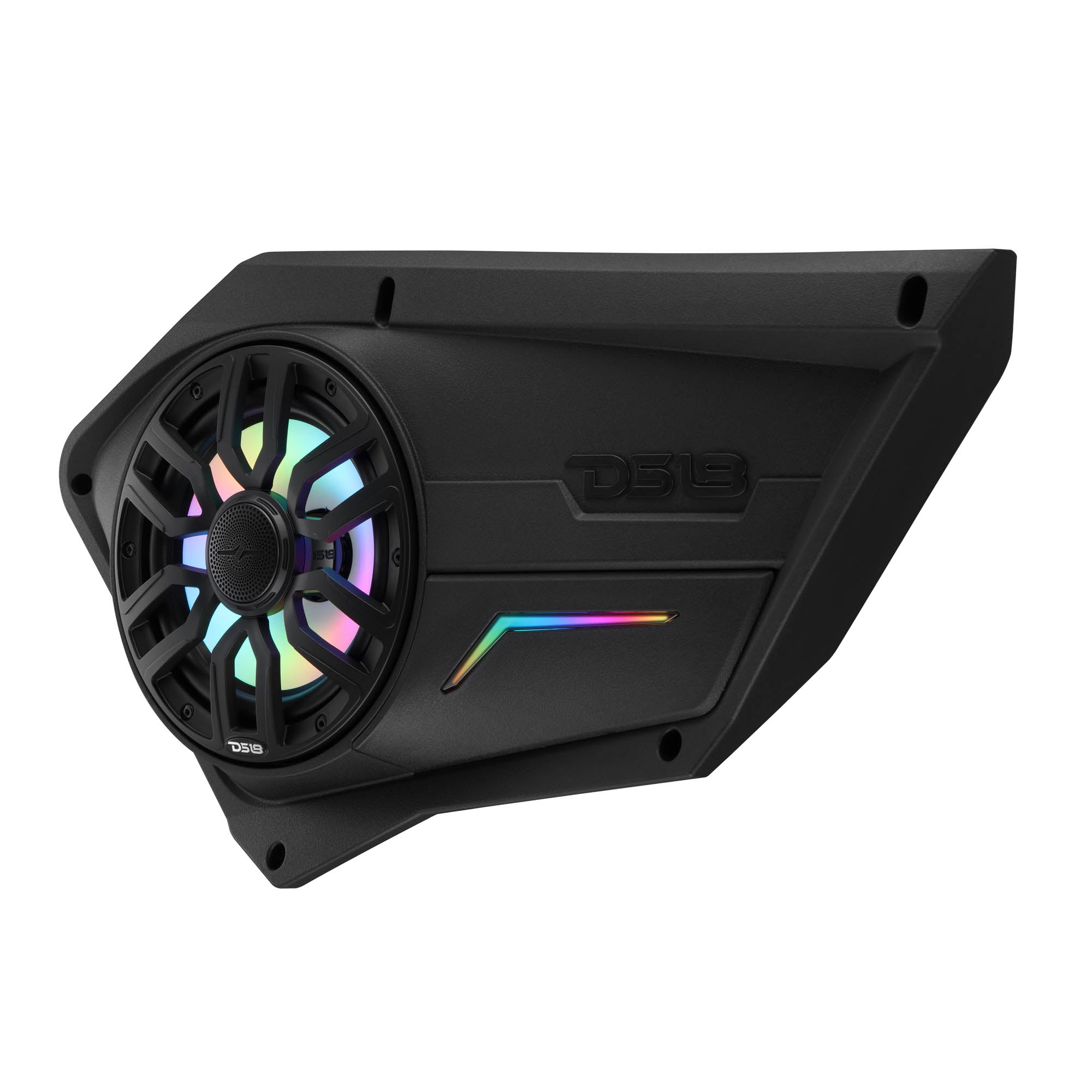

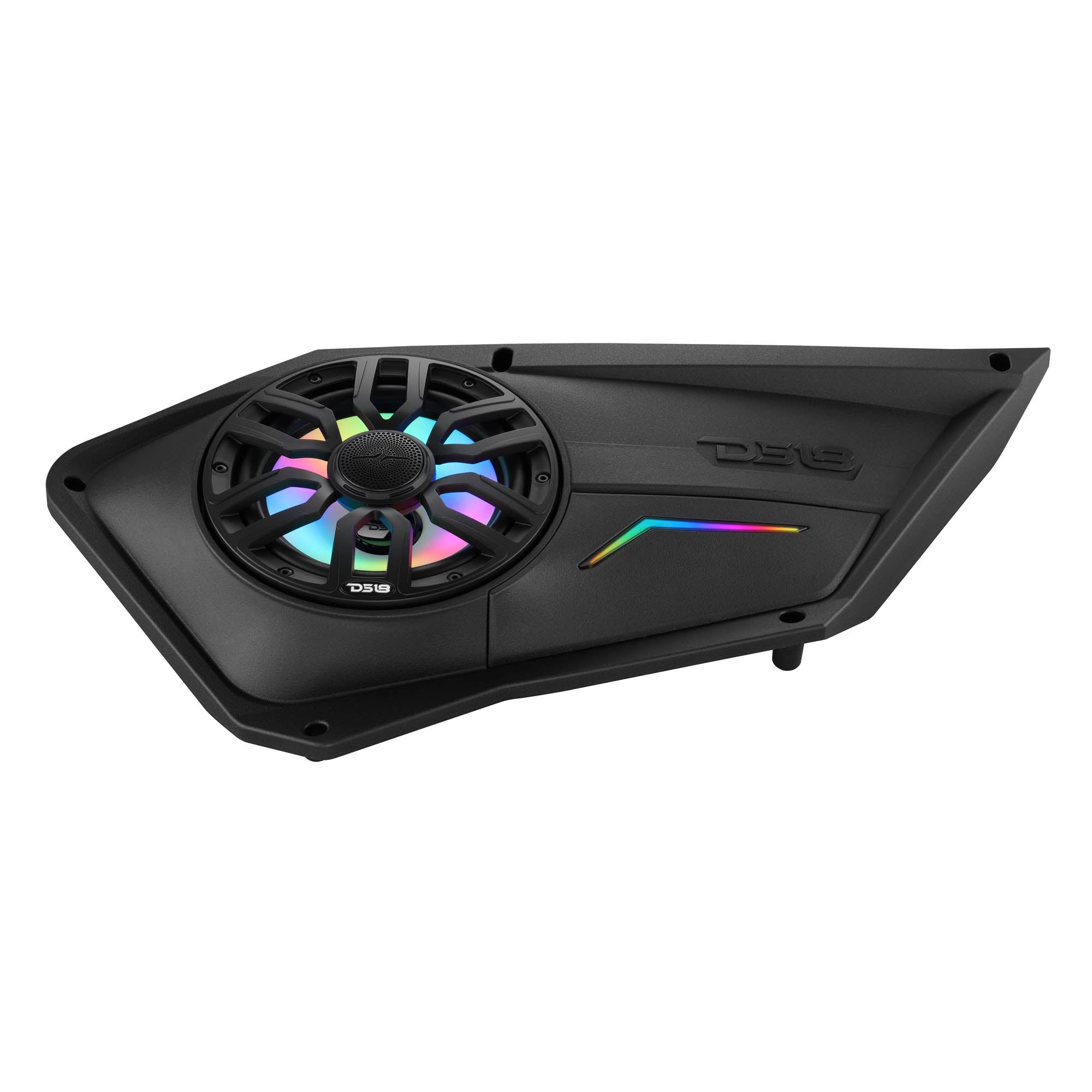

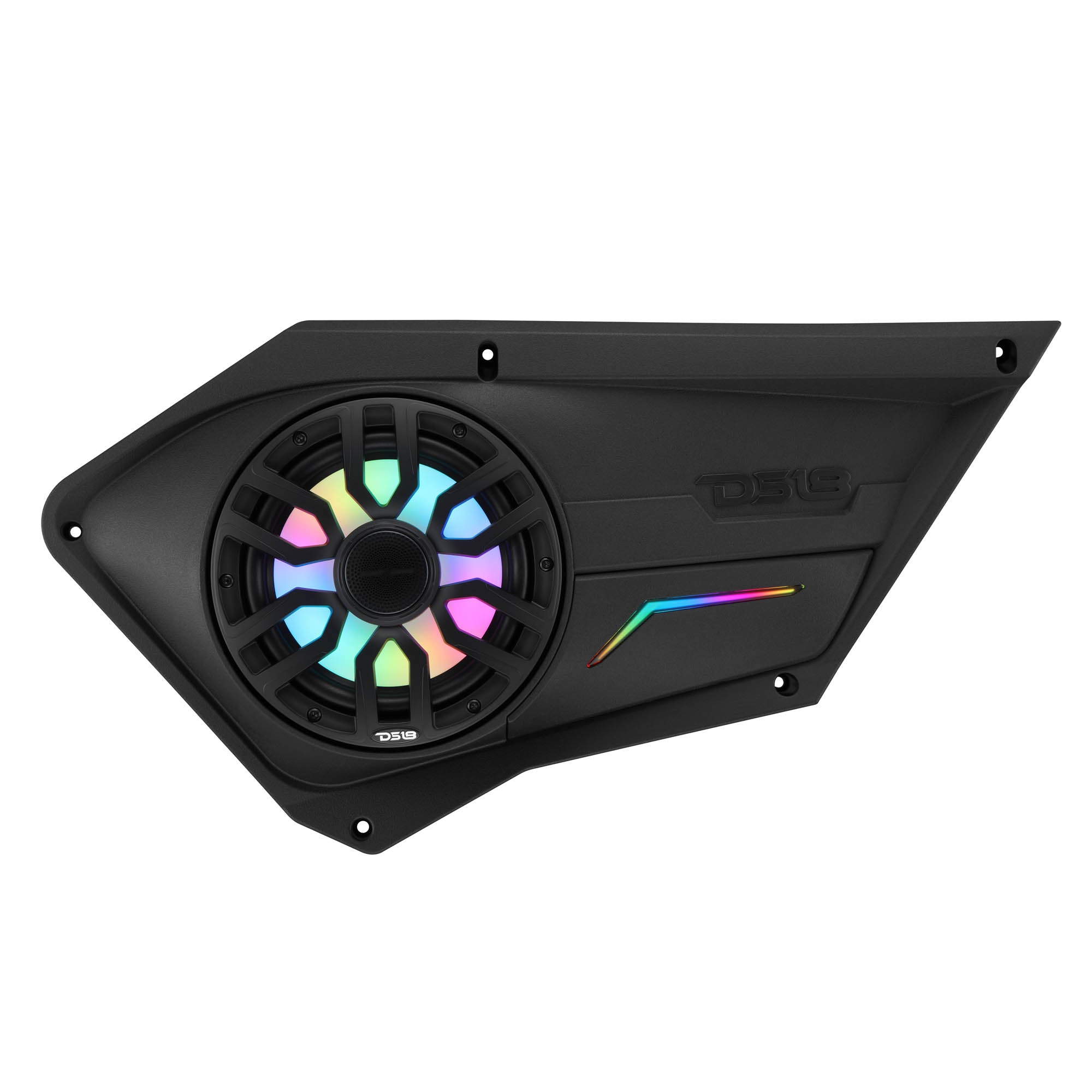

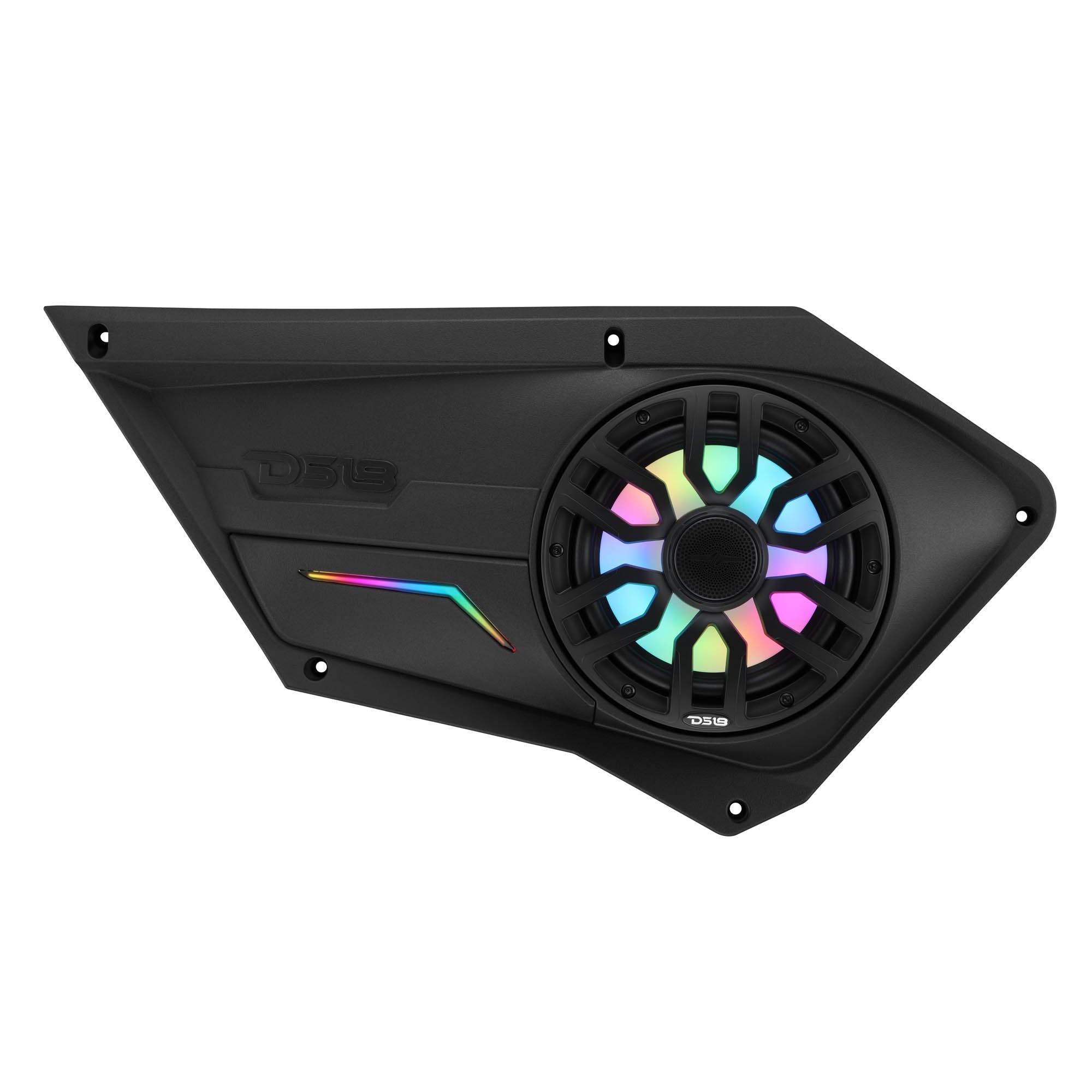

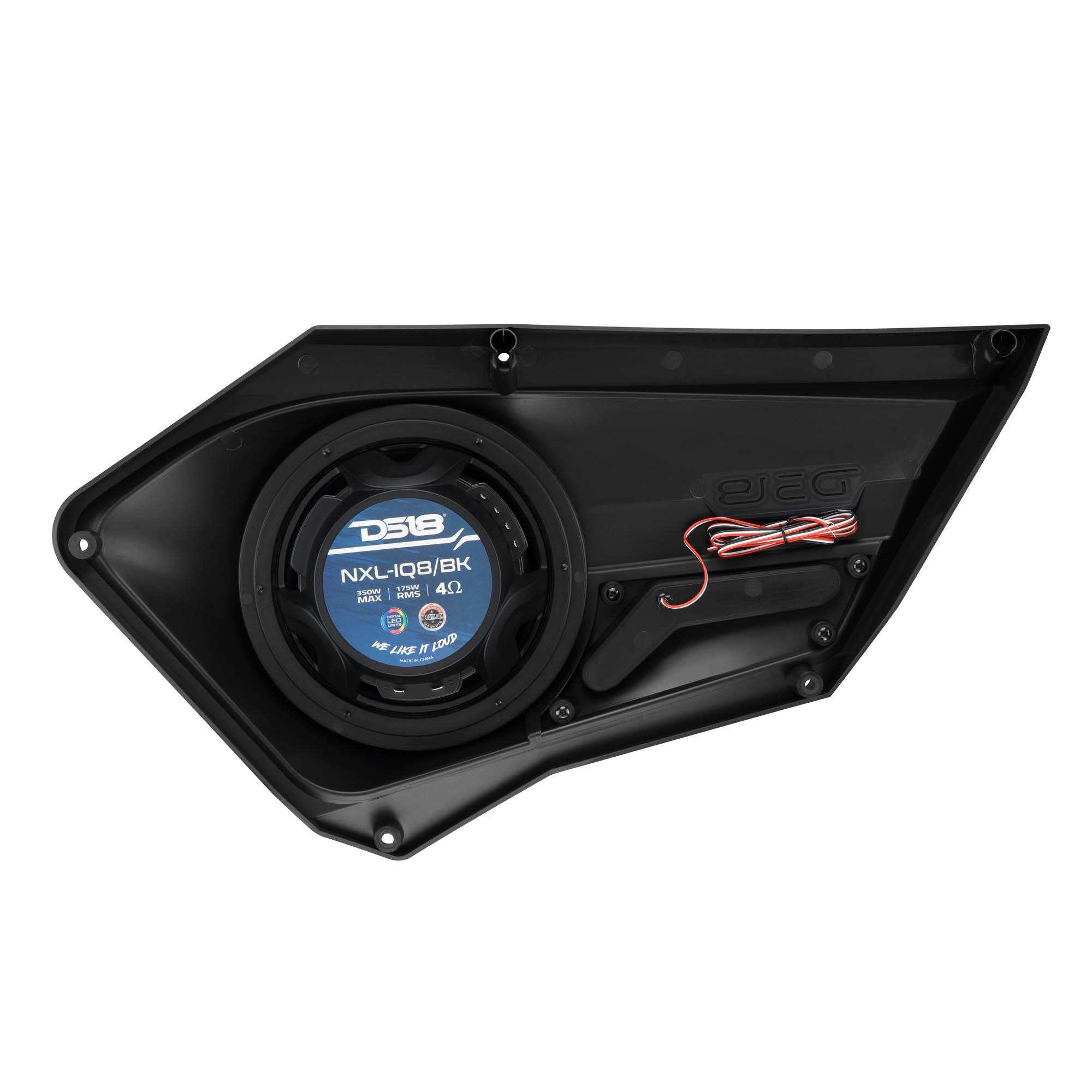

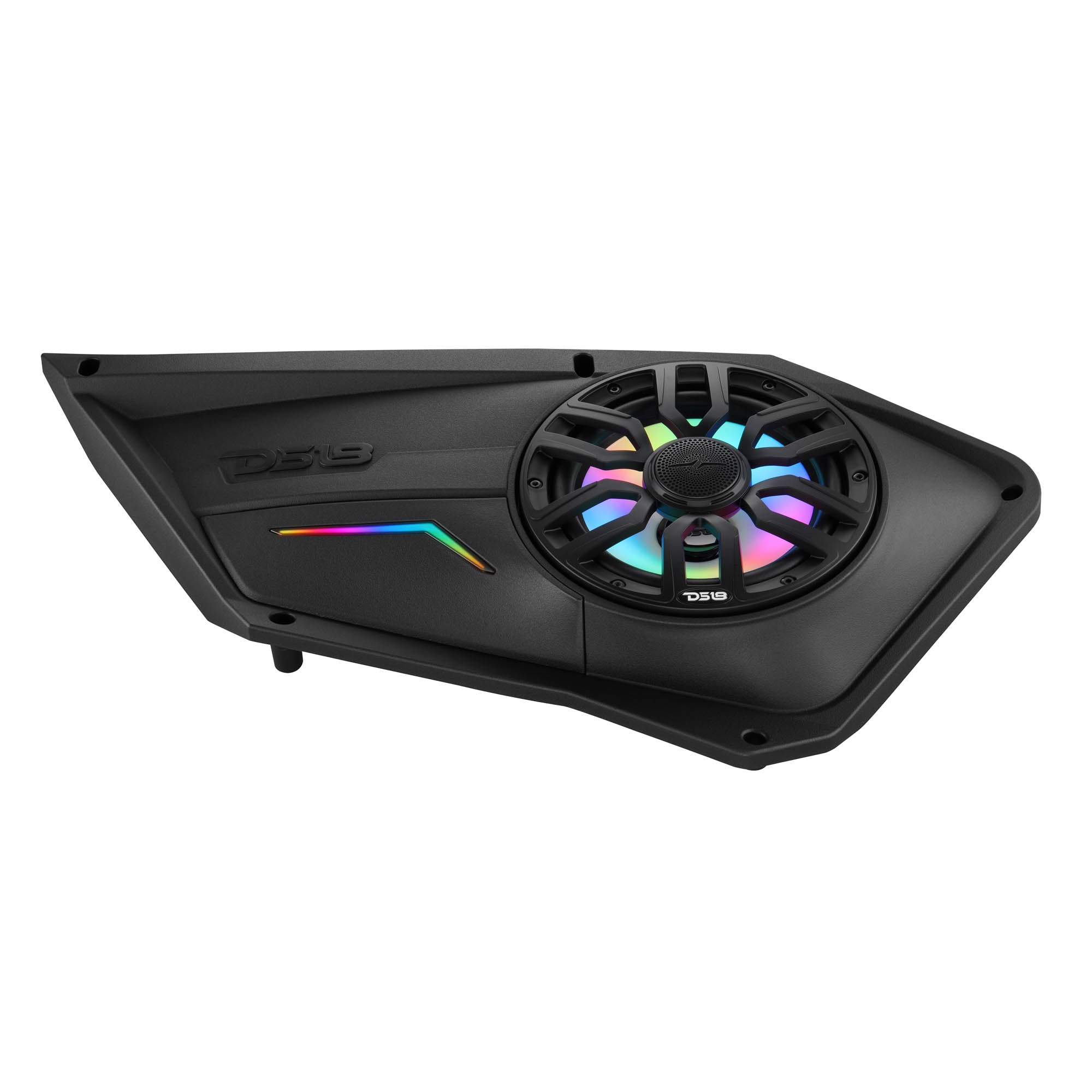

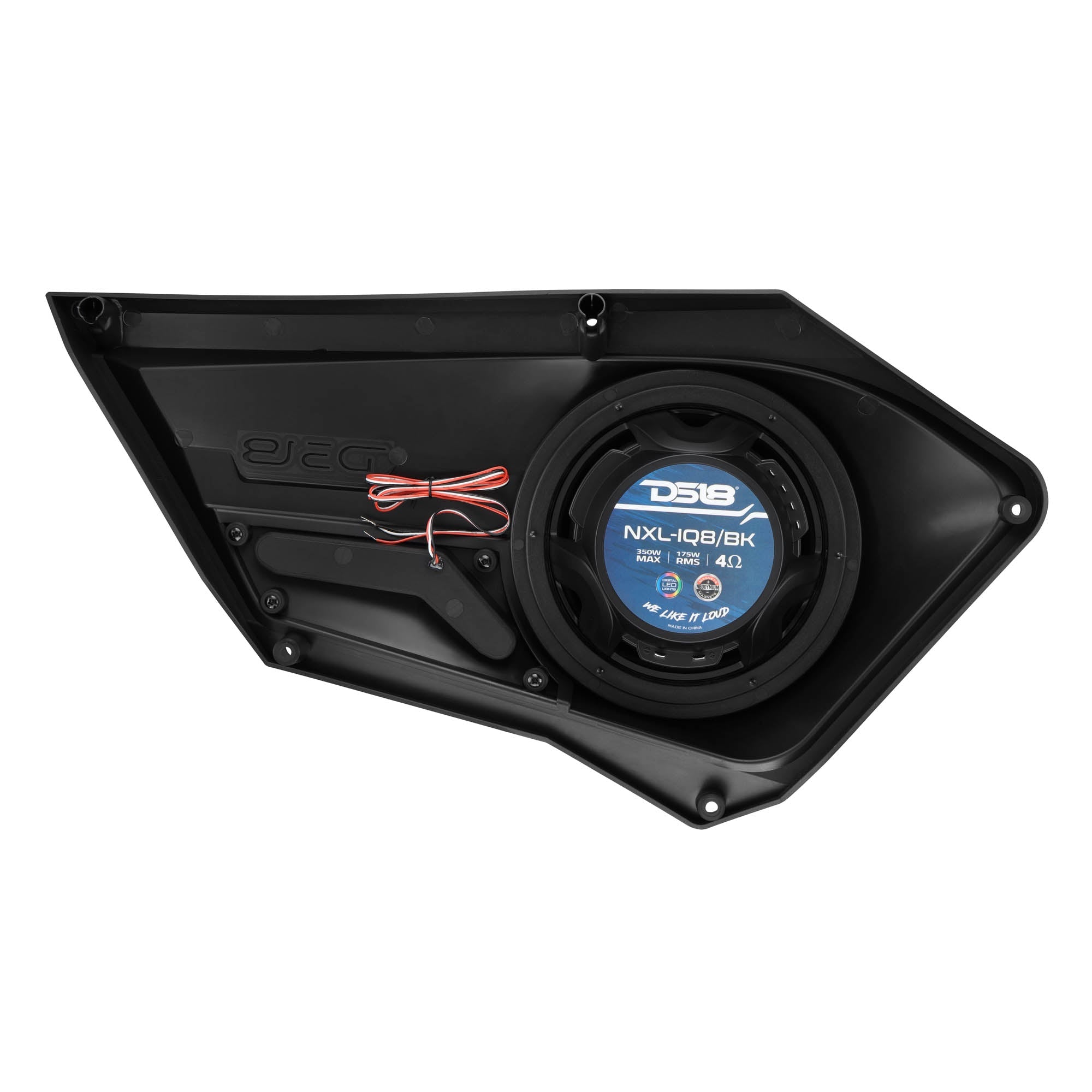

RZR-PROFD8LD Front Door Panels Loaded with NXL-IQ/BK Coaxial Speaker
Quality Sound All-Around
Take your off-road experience to the next level with the loaded RZR-PROFD8LD front door panels, featuring the NXL-IQ8/BK 2-way coaxial speaker. Designed for 2-door and 4-door 2020-2024 Polaris RZR-PROs, these loaded front panels keep the volume pumping wherever you go.
Sleek Durability
These front door panels use polyethylene with a black finish, along with a water resistance level of IP65, to give you a durable and stylish OEM fit and texture to your RZR-PRO.
Power Up Your Ride
The NXL-IQ8/BK coaxial speakers give your RZR-PRO a real boost with a power rating of 175W RMS / 350W MAX and a frequency response of 35Hz-20kHz. A floating bullet tweeter balances out the booming sounds with clear and crisp highs, courtesy of an aluminum diaphragm and neodymium magnets.
Style You Control

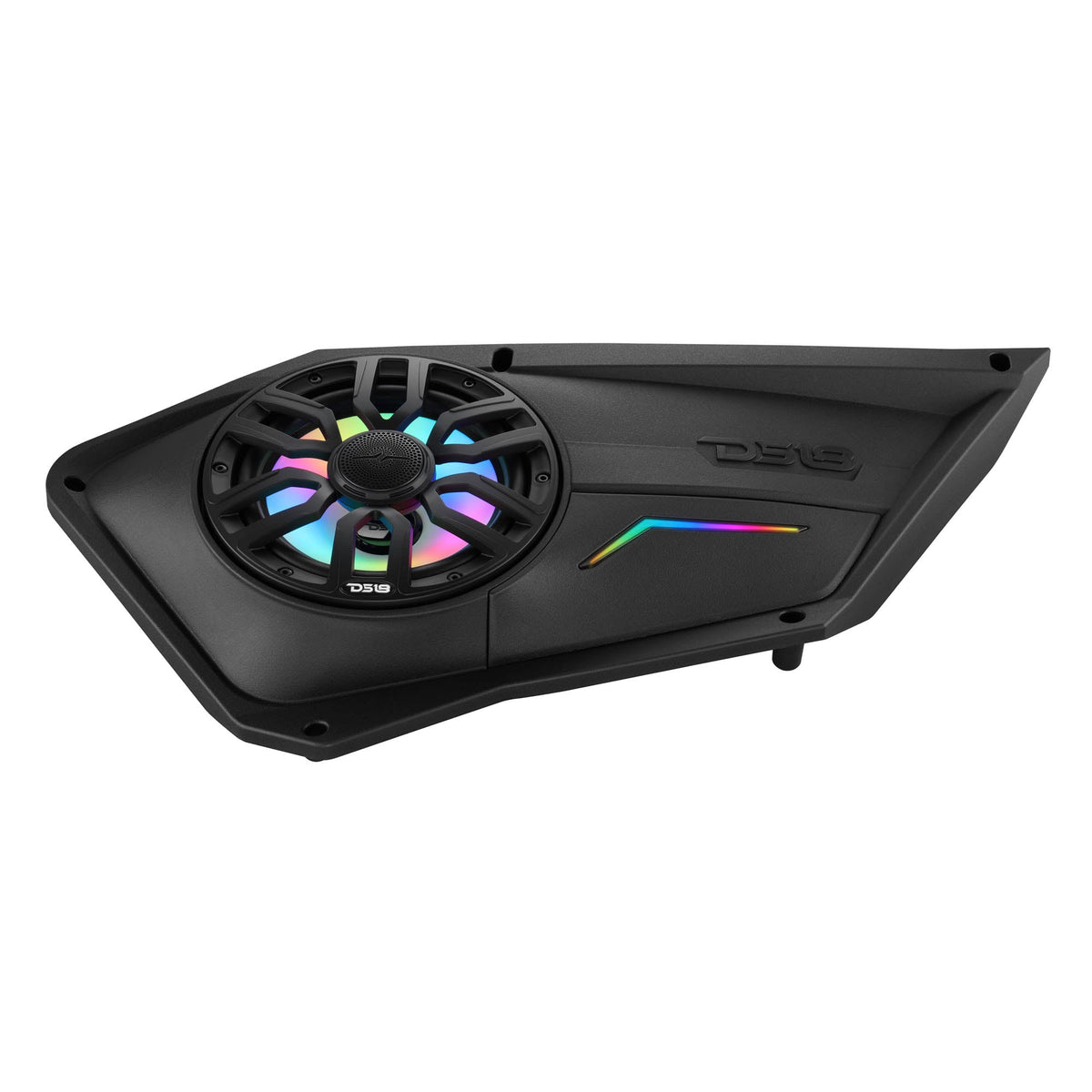

Digital LED lights give both your panels and speakers extra flair with changeable lights and colors to match your mood and vibe. The LED lights are controlled with the LC-DRM (sold separately) via the LC app (available on Android and iOS).
On and Off the Road
Made for the adventurous, the RZR series gives you quality performance, from speakers and amplifiers to enclosures and pocket mounts. With DS18, your RZR is ready for anything.
Key Features
- Loaded with NXL-IQ8/BK 8” Coaxial Speakers
- Fits 2020–2024 Polaris RZR-PRO Models
- 175W RMS / 350W MAX Power Handling
- IP65 Water-Resistant Polyethylene Panels
- Digital LED Lighting with LC App Control
Specifications
| Panel Type | Front Bafle |
|---|---|
| Panel Material | Polyethylene (PE) |
| Finish Material | Black / OEM Texture |
| UV Protection | Yes |
| IP Rating | IP65 |

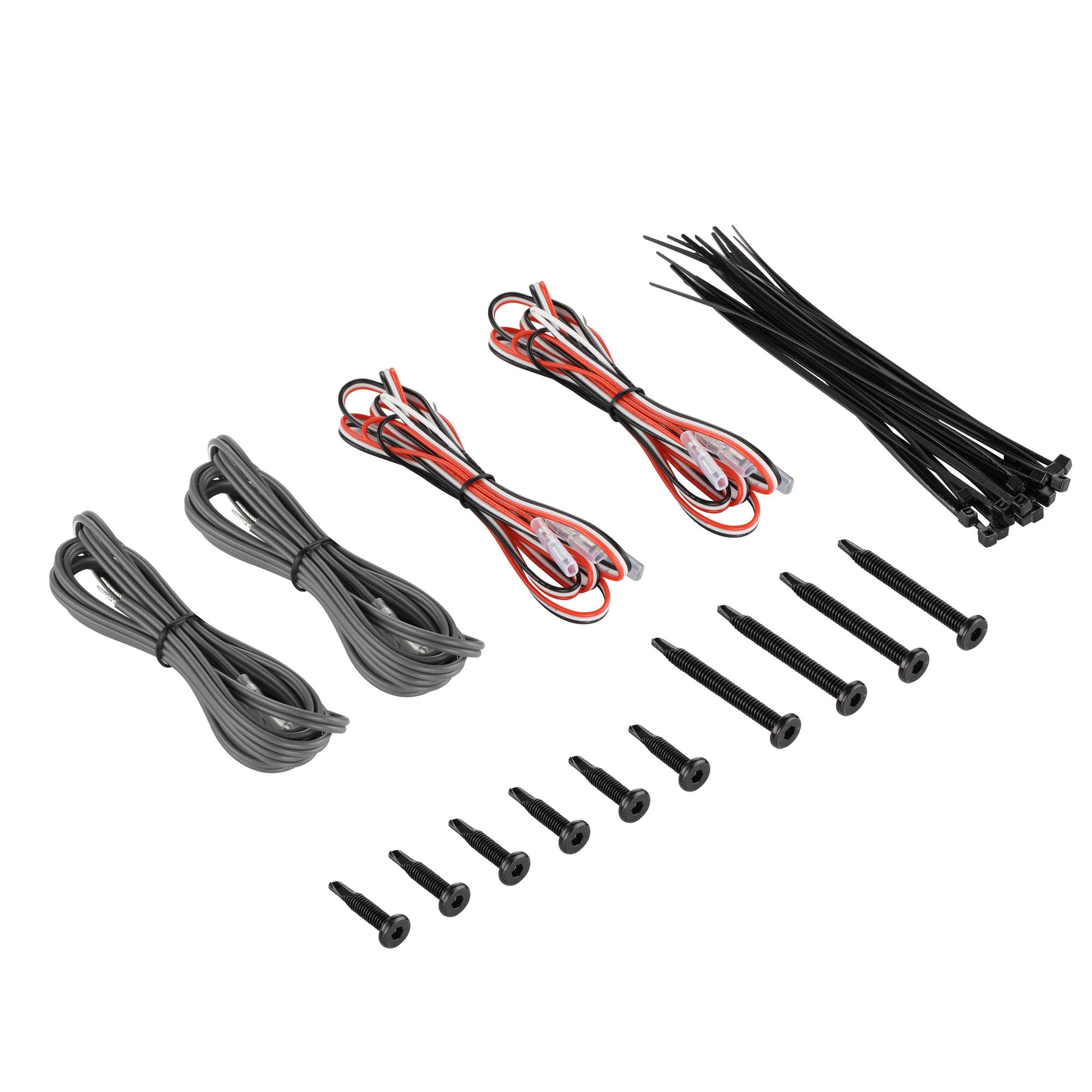

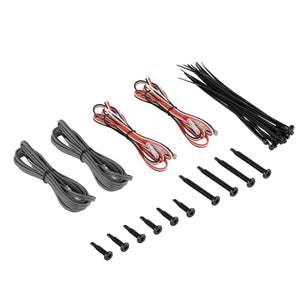

| Input Wire | LED + SPK 5 Core OFC Tinned (2ft / 0.6m) |
| Sold in Pairs | Left & Right |
| OEM Fit | Yes |
| Compatible Model / Year | RZR-PRO / 2020-2024 2 & 4 Doors Models |
| Speaker Type / Size | 8" Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeter |
| Total Impedance | 4-Ohm |
| RMS Power Handling | 175W |
| MAX Power Handling | 350W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 35Hz - 20KHz |
| Recommended High-Pass Crossover | 40Hz |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Polypropylene Injected (PPI) |
| Surround Material | Rubber |
| Basket Material | Injection Molded Composite PC with UV Protection coating |
| Magnet Material | Ferrite + Neodymium / Neodymium (N35H) |
| Magnet Weight | 24 oz + 1.1oz / 0.4 Oz |
| Speaker Type | Floating Bullet Tweeter |
| Diaphragm Material | Aluminum |
| Bullet Material | Injection Molded Composite PC with UV Protection coating |
| Panel Overall Height | 13.42" / 341mm |
| Panel Overall Width | 25.23" / 641mm |
| Panel Overall Depth | 3.11" / 79mm |
