Polaris RZR Rear Door Panels Loaded with NXL-IQ/BK 8" Coaxial Speakers
Polaris RZR Rear Door Panels Loaded with NXL-IQ/BK 8" Coaxial Speakers
Product Overview

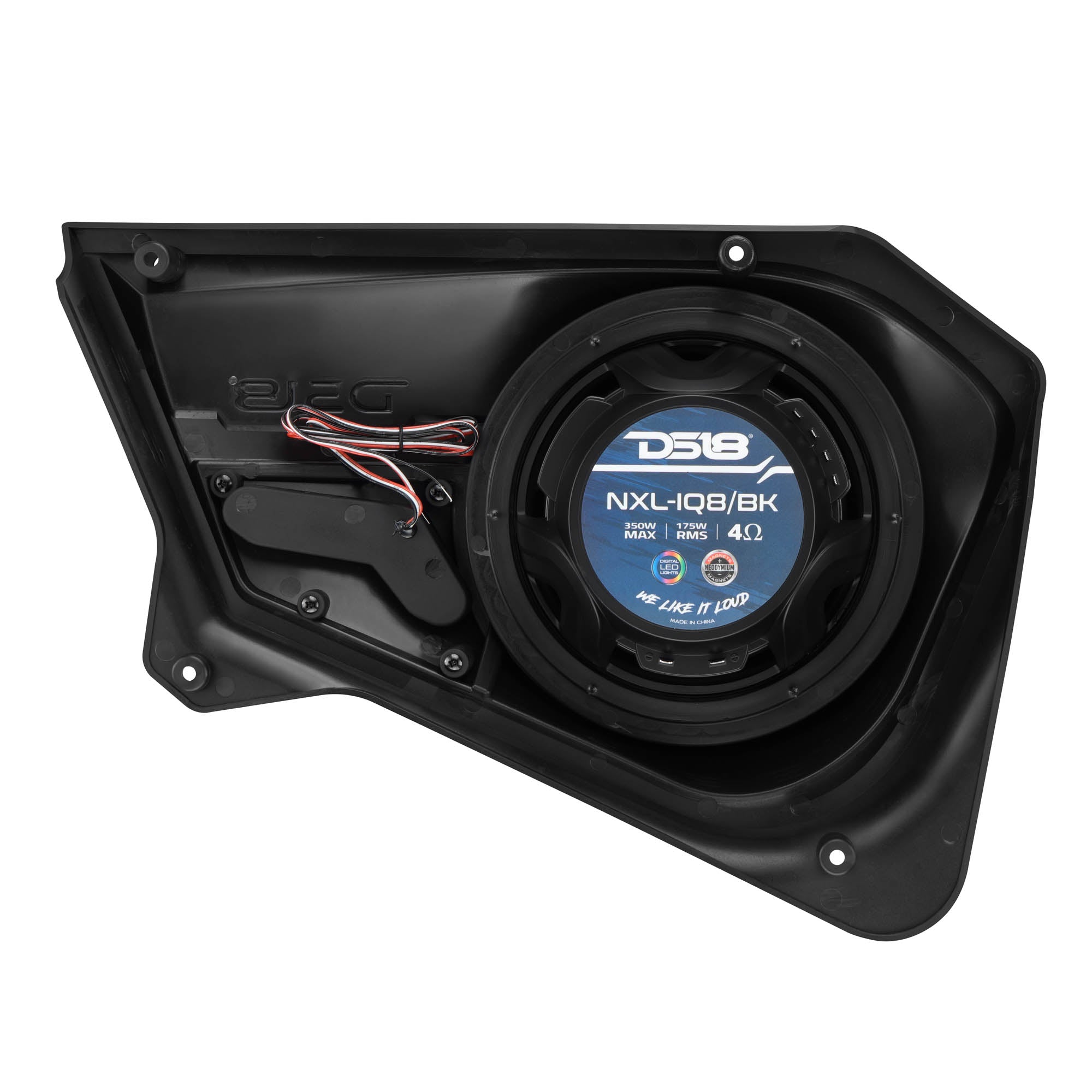

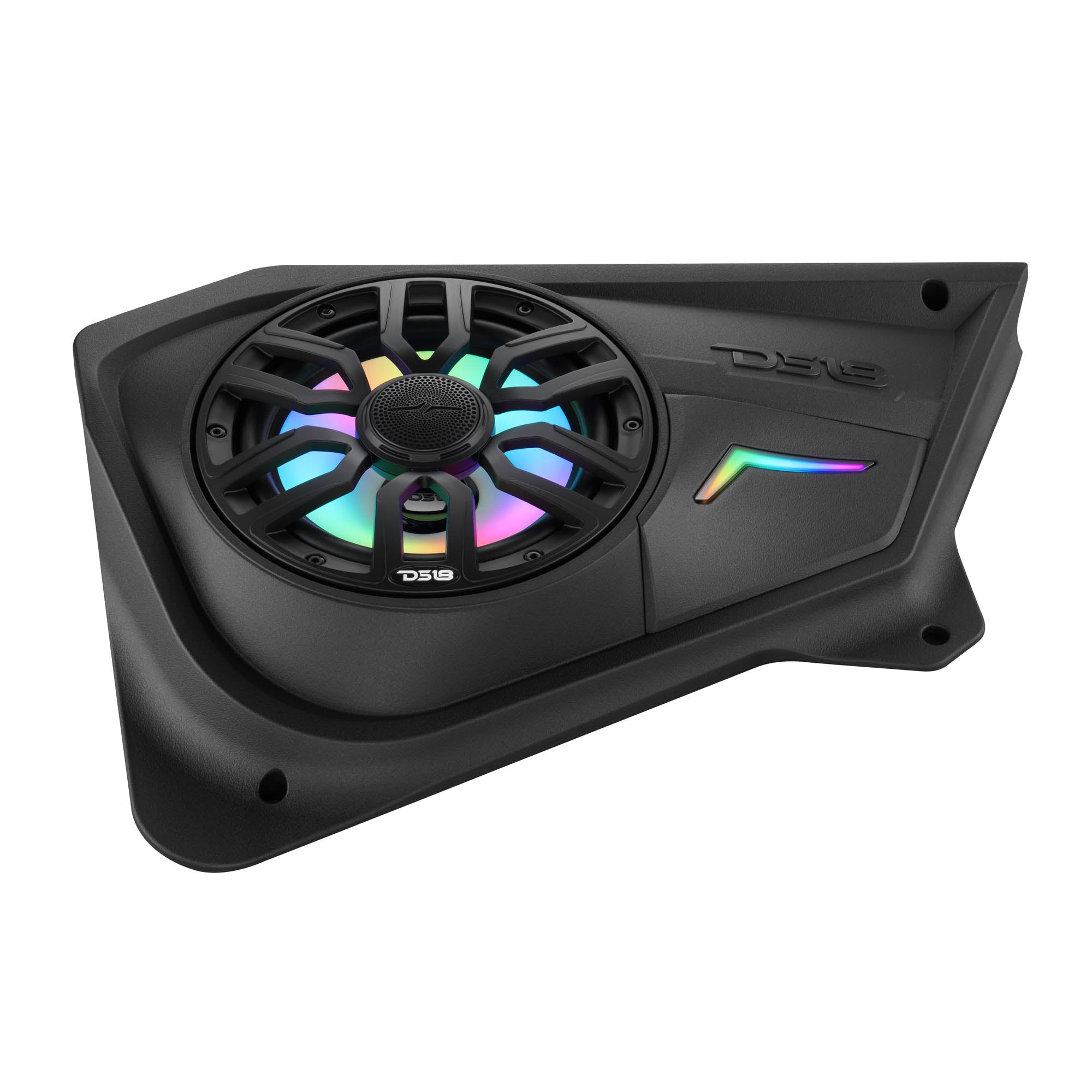

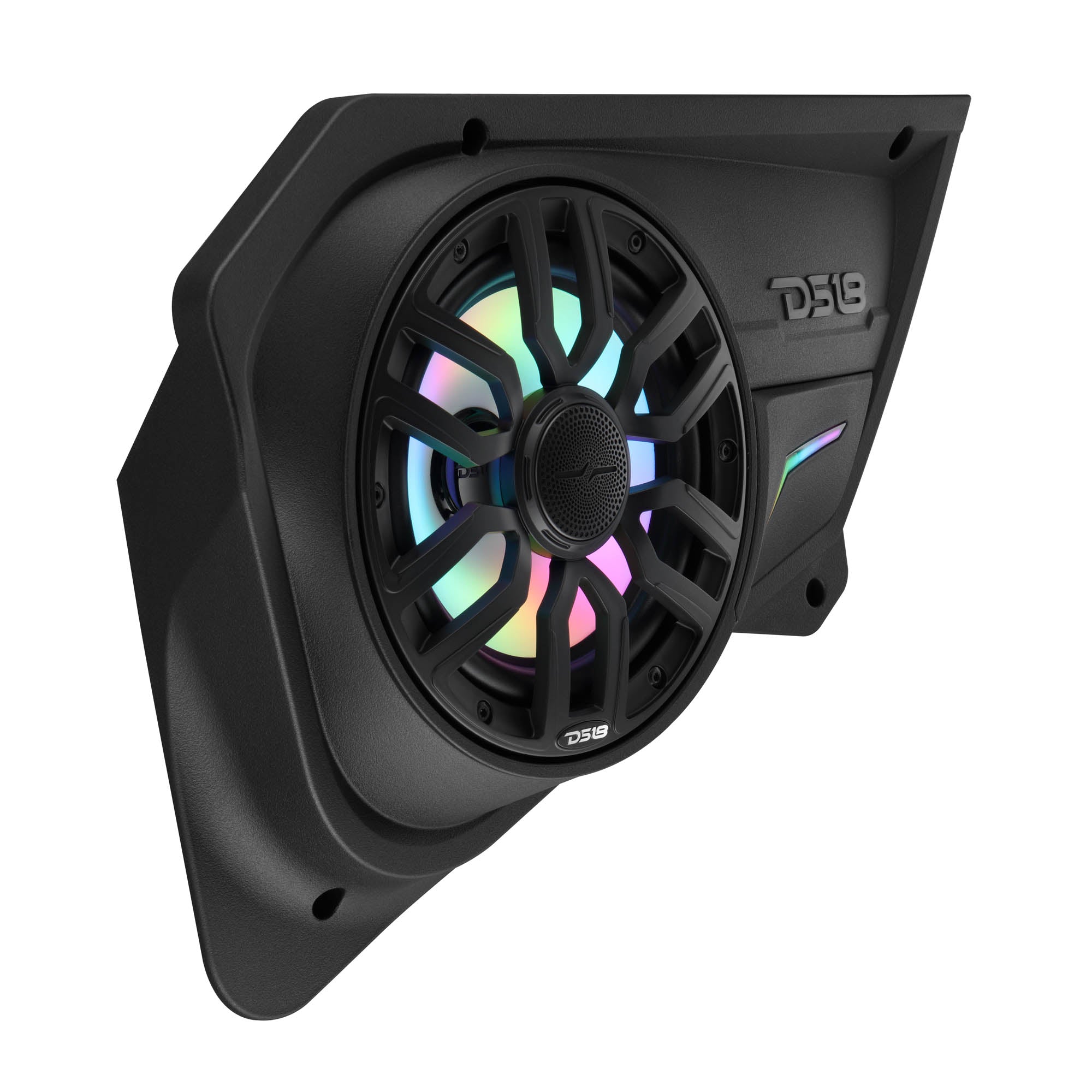

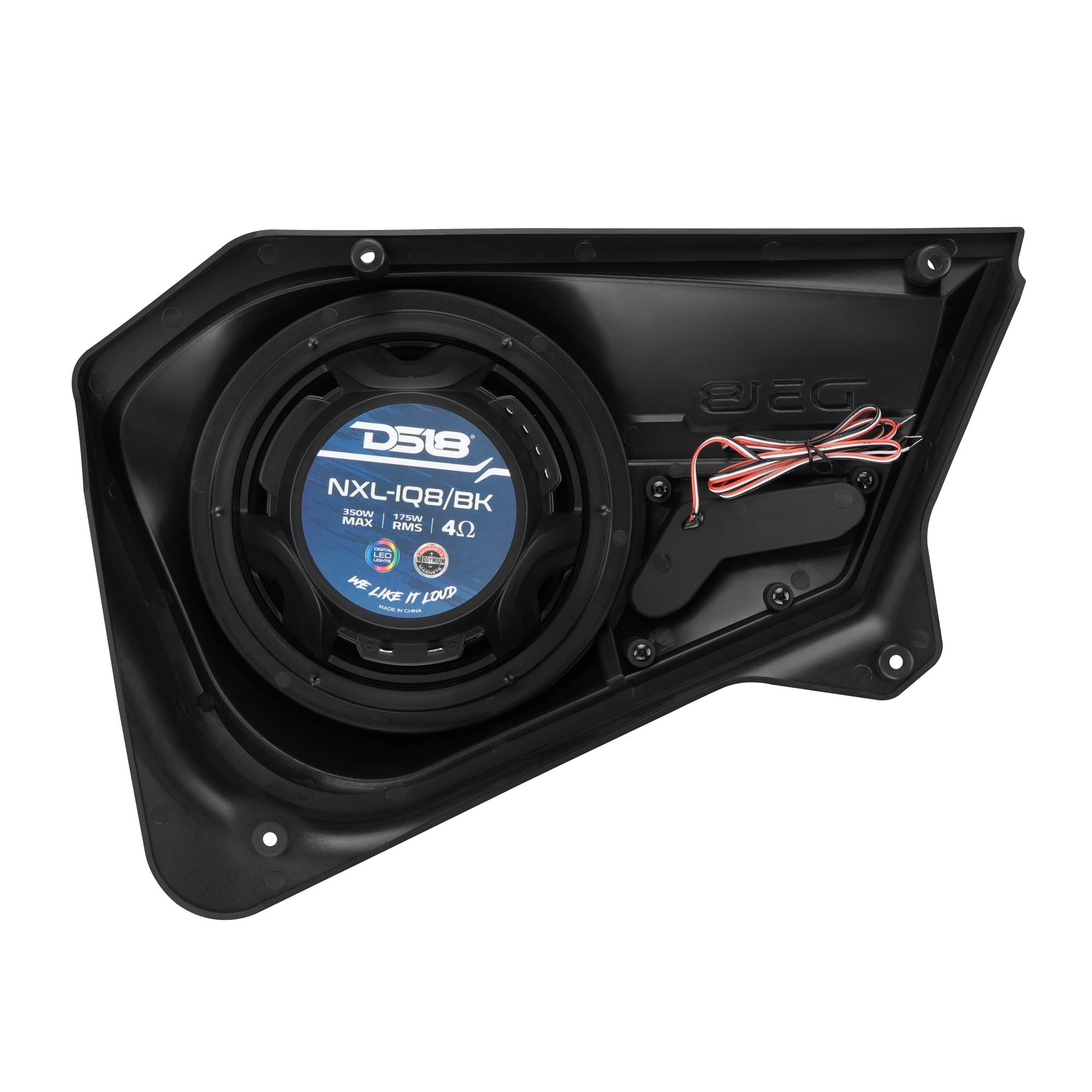

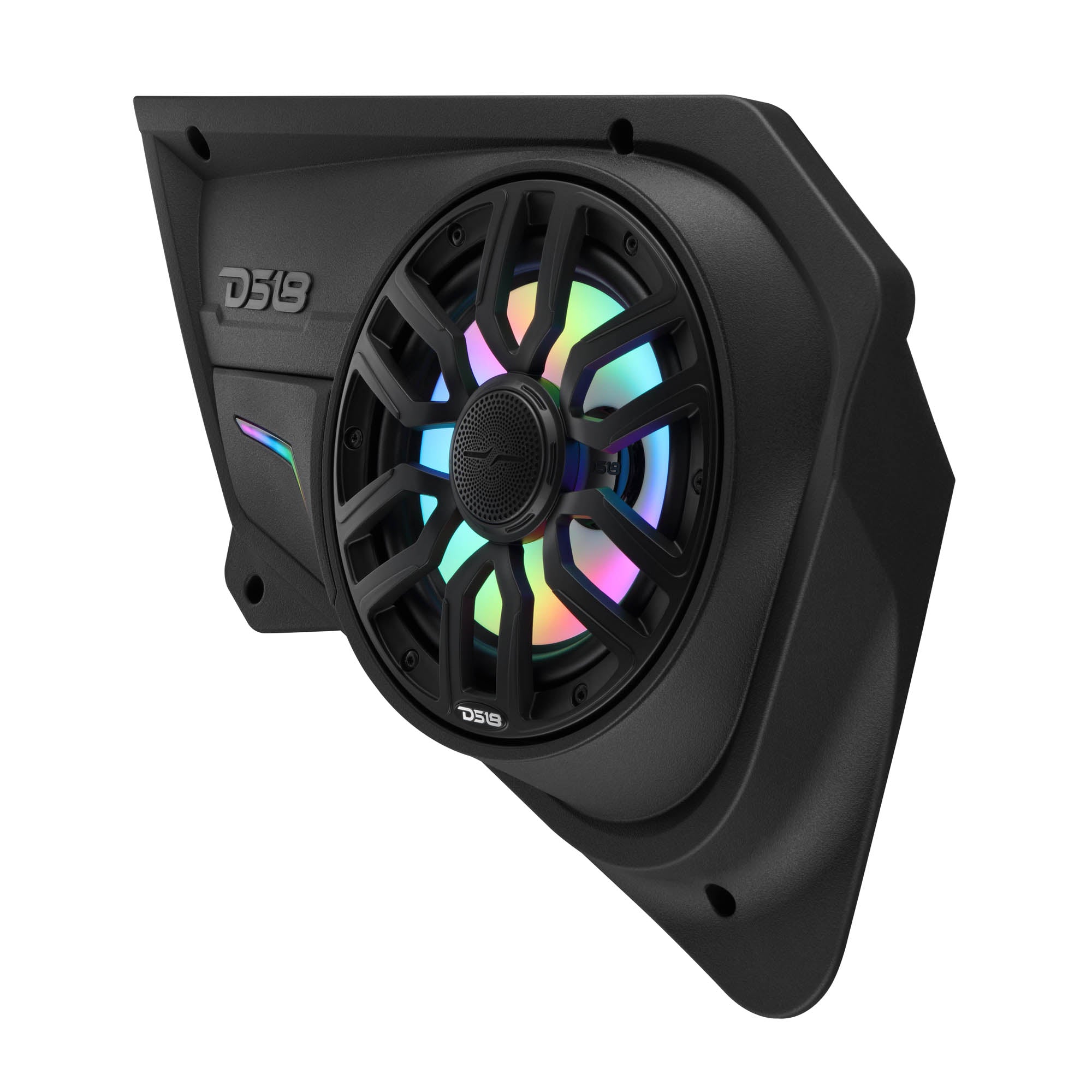

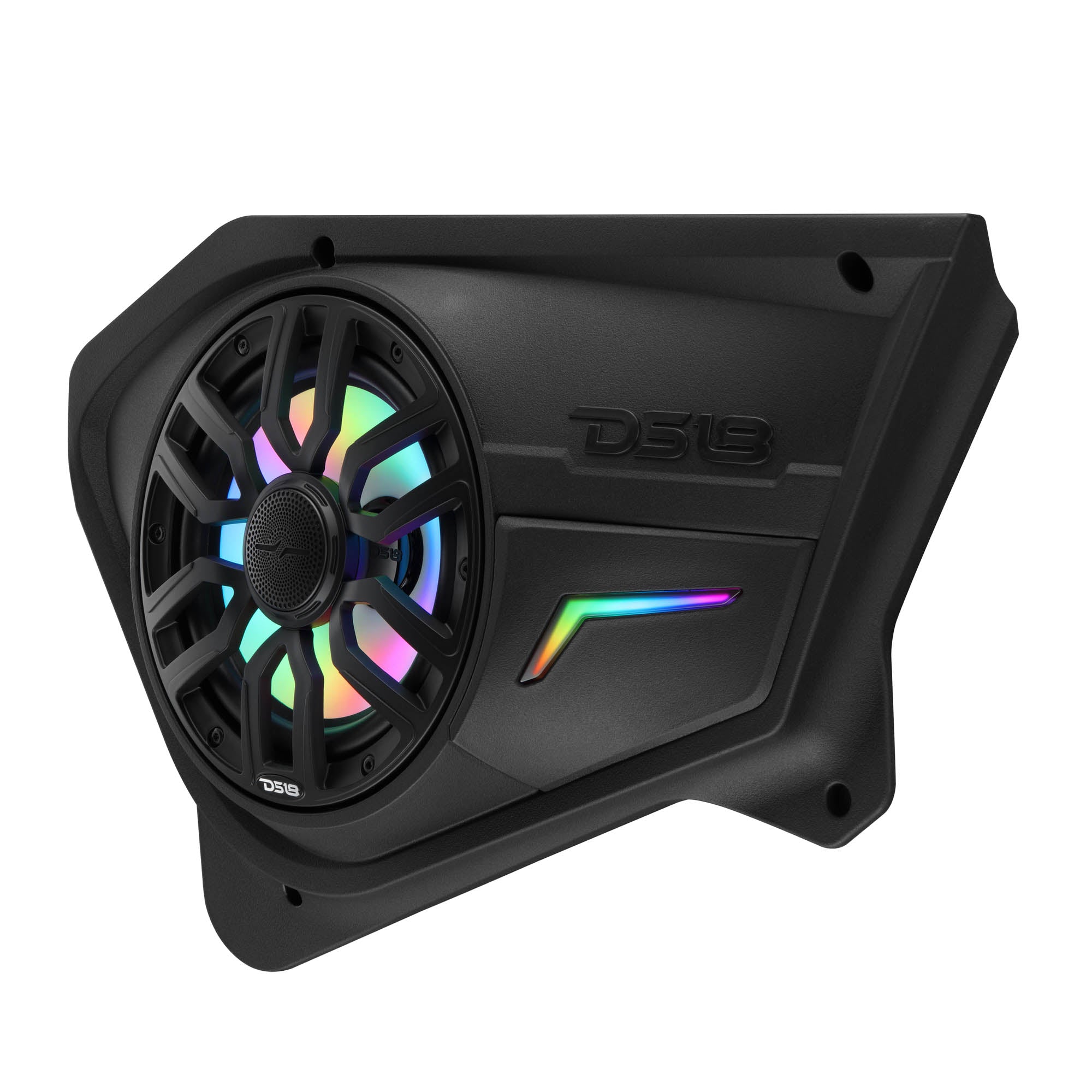

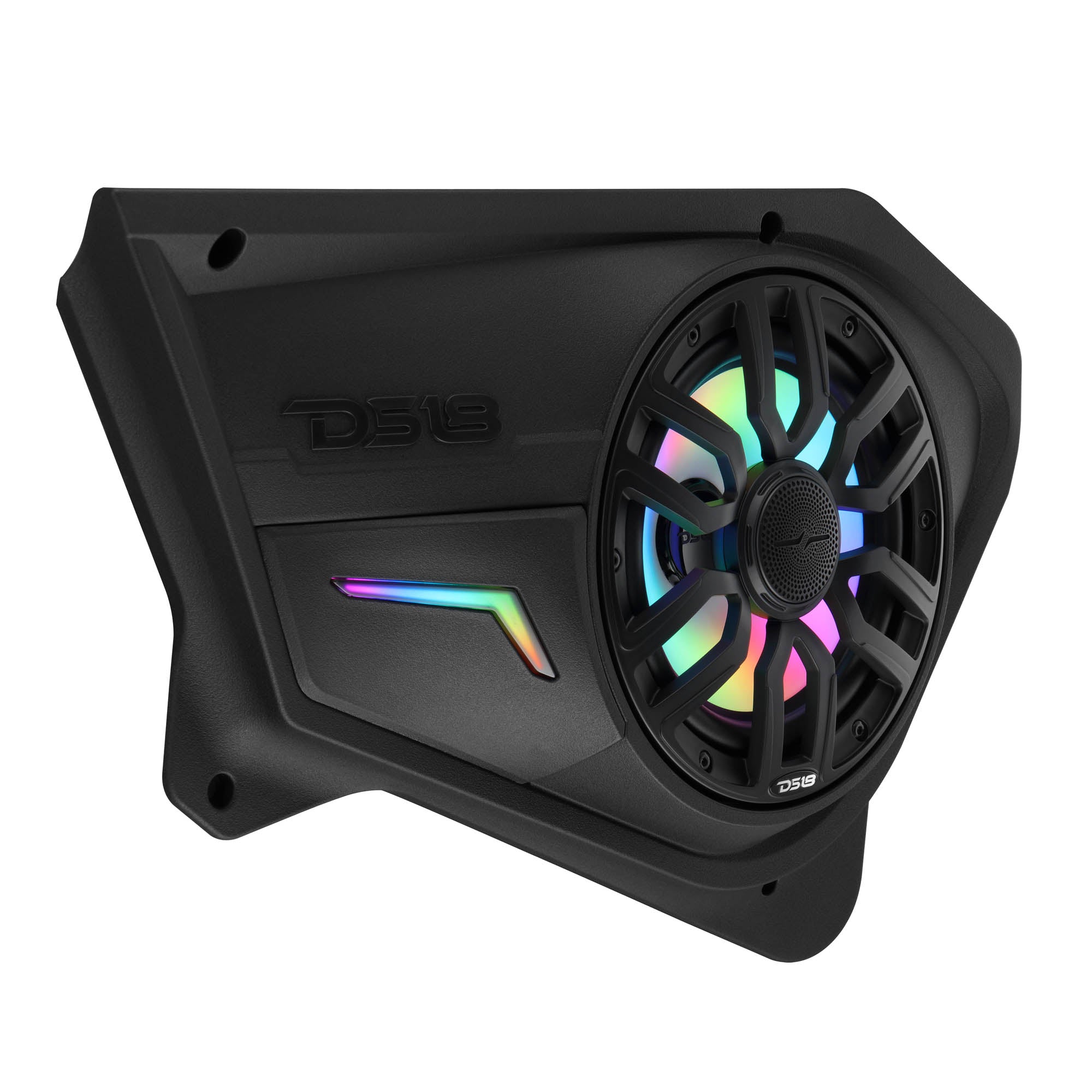

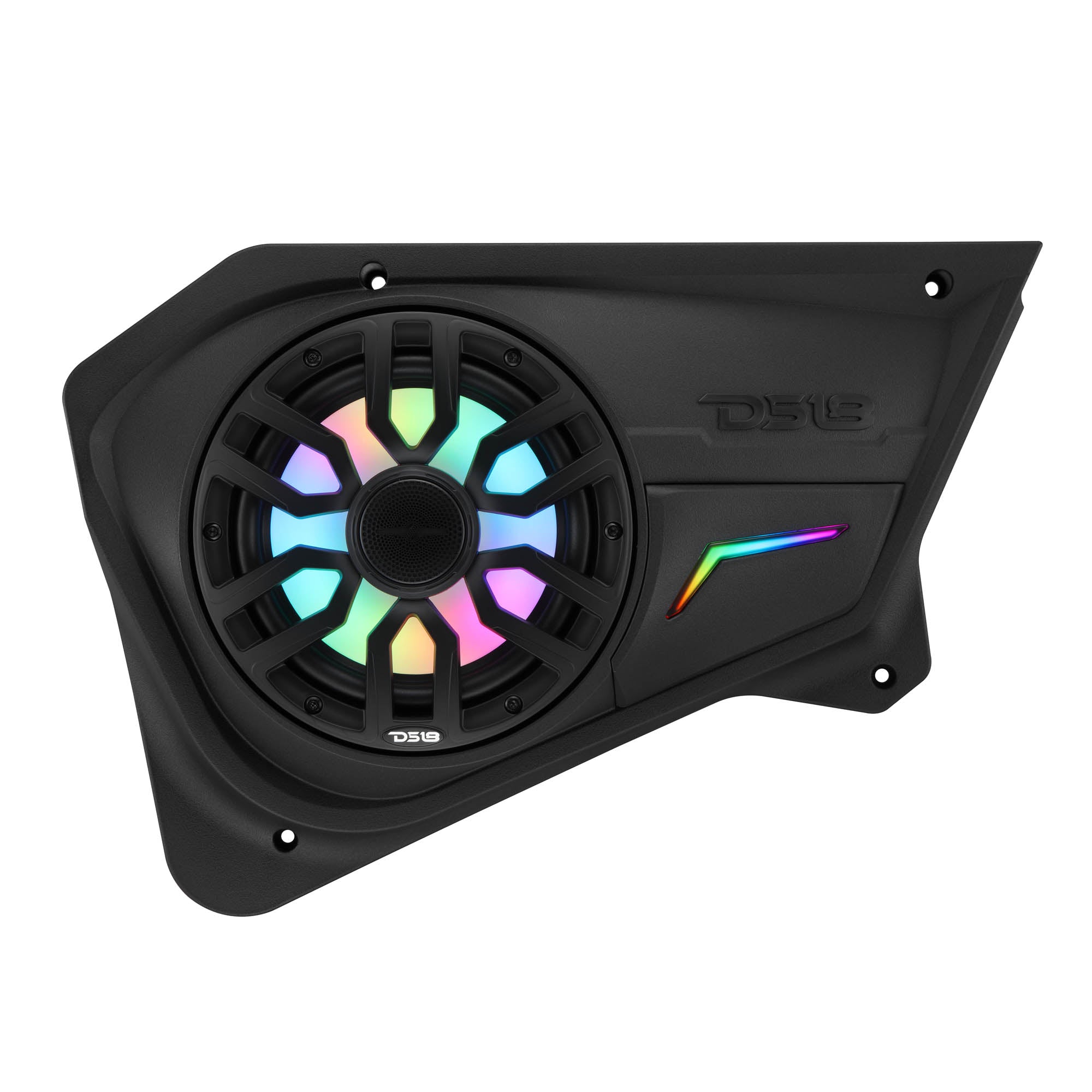

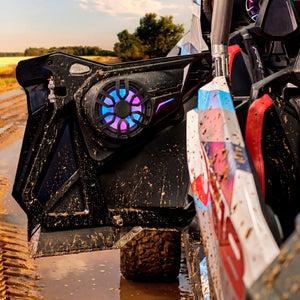

RZR-PROBD8LD Rear Door Panels Loaded with NXL-IQ/BK Coaxial Speaker
Elevate Your Setup

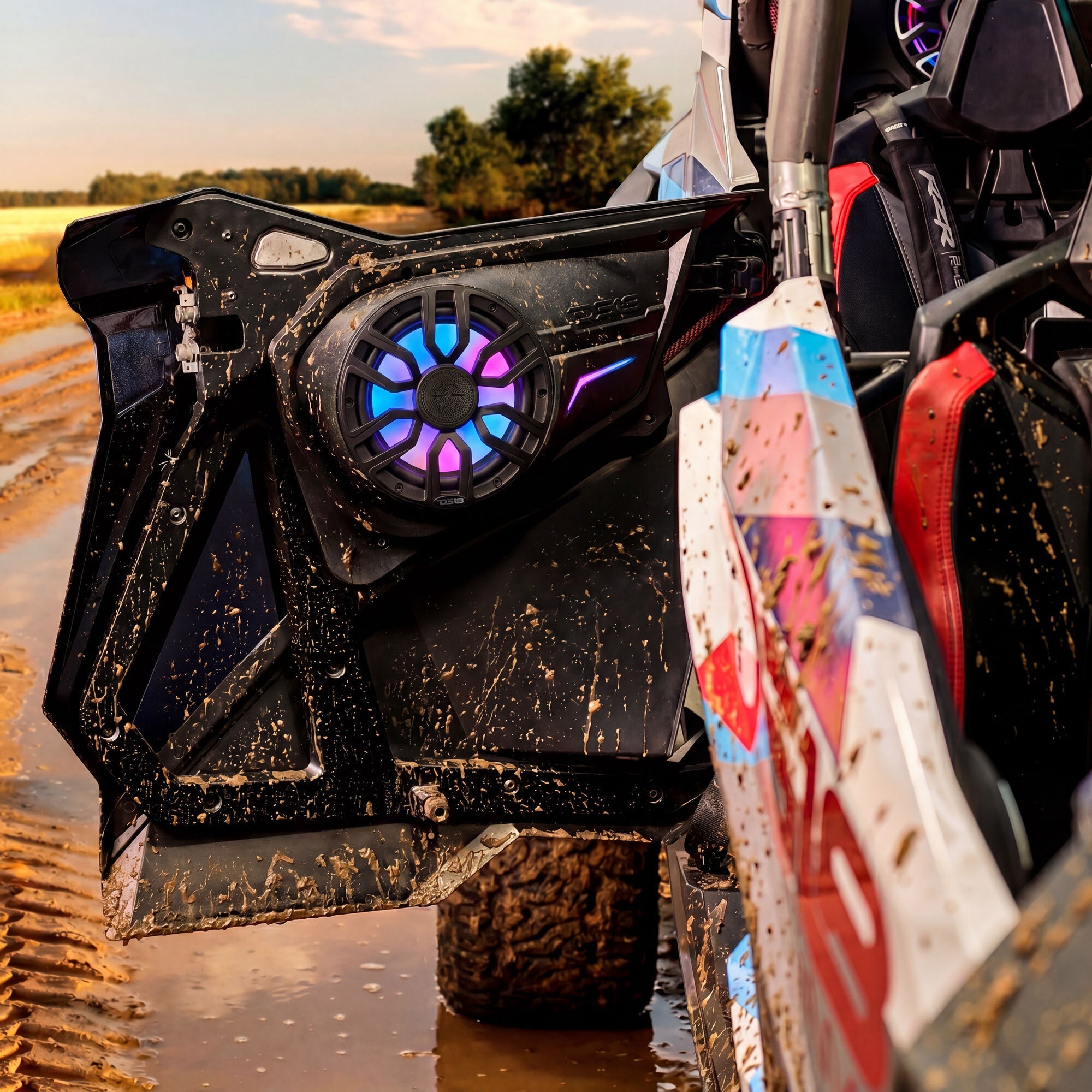

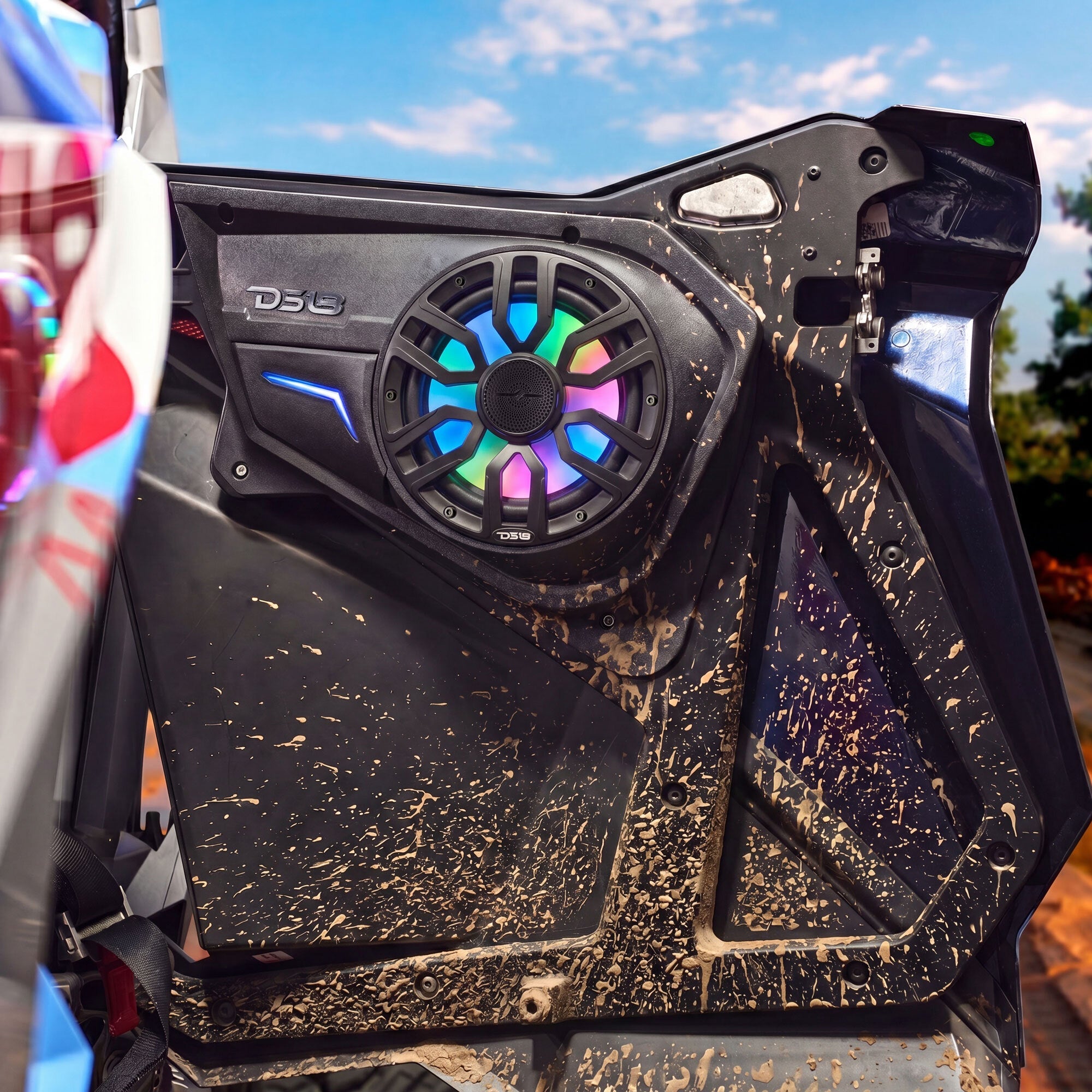

Take your off-road experience to the next level with the loaded RZR-PROBD8LD front door panels, featuring the NXL-IQ8/BK 2-way coaxial speaker. Designed for 4-door 2020-2024 Polaris RZR-PROs, these loaded front panels keep the volume pumping wherever you go.
Durable Style
These front door panels use polyethylene with a black finish, along with a water resistance level of IP65, to give you a durable and stylish OEM fit and texture to your RZR-PRO.
Pump Up the Volume
The NXL-IQ8/BK coaxial speakers give your RZR-PRO a real boost with a power rating of 175W RMS / 350W MAX and a frequency response of 35Hz-20kHz. A floating bullet tweeter balances out the booming sounds with clear and crisp highs, courtesy of an aluminum diaphragm and neodymium magnets.
Lit Up Looks

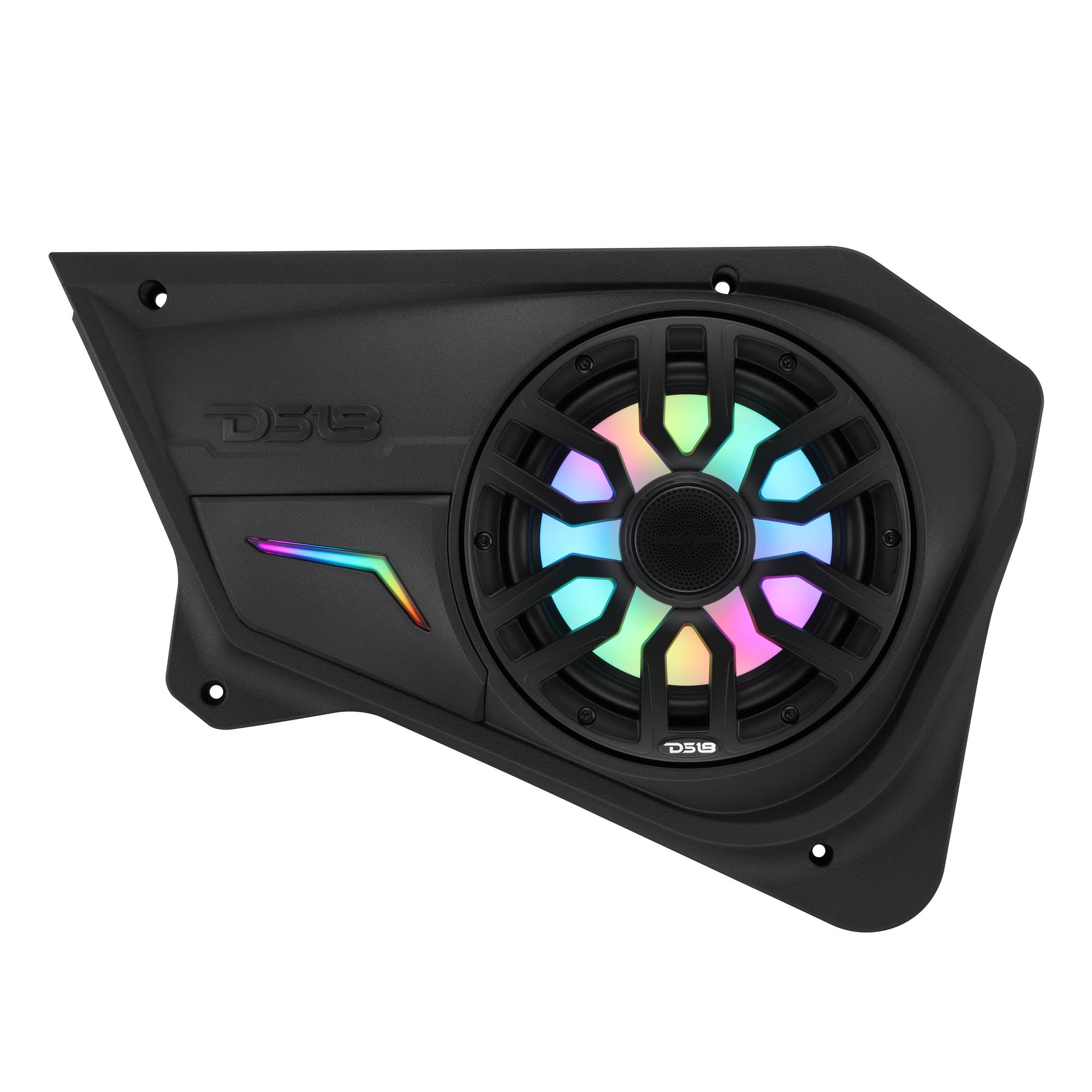

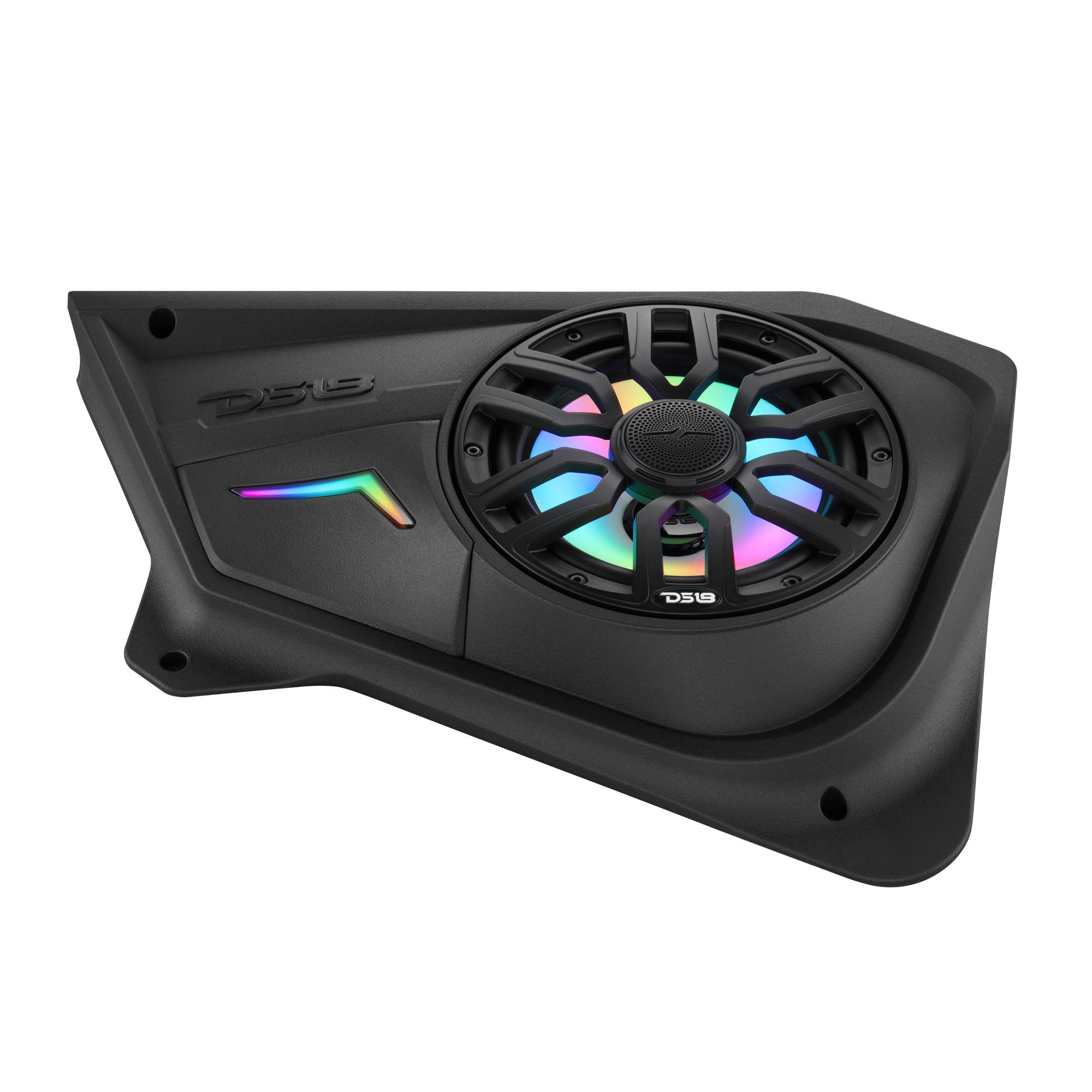

Digital LED lights give both your panels and speakers extra flair with changeable lights and colors to match your mood and vibe. The LED lights are controlled with the LC-DRM (sold separately) via the LC app (available on Android and iOS).
Road Ready
Made for the adventurous, the RZR series gives you quality performance, from speakers and amplifiers to enclosures and pocket mounts. With DS18, your RZR is ready for anything.
Key Features

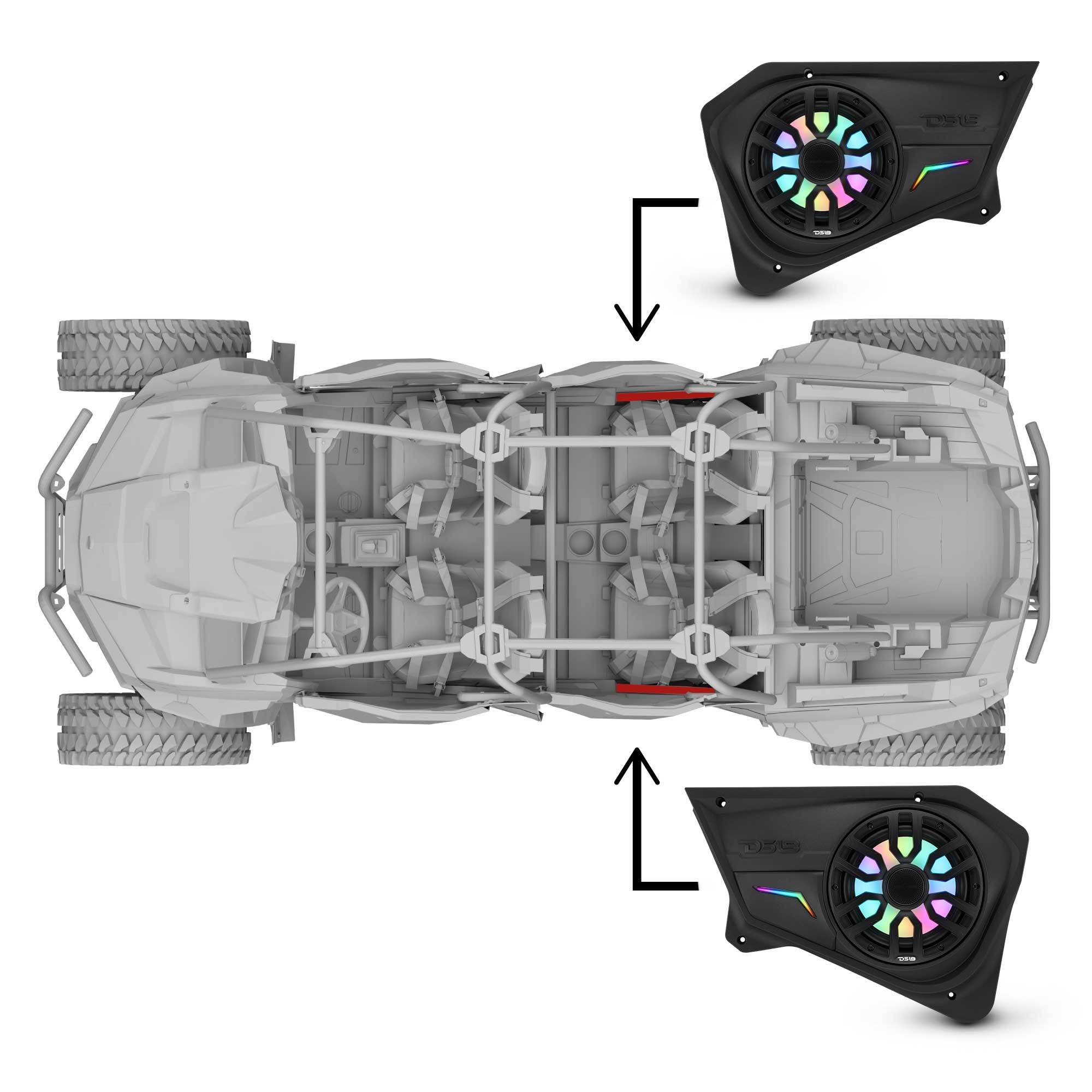

- Fits 4-Door 2020-2024 Polaris RZR-PRO
- Loaded with NXL-IQ8/BK 8" 2-Way Coaxial Speakers
- 175W RMS / 350W MAX Power Handling
- Digital LED Lighting for Custom Style
- IP65-Rated Water-Resistant Polyethylene Panels
Specifications
| Panel Type | Front Bafle |
|---|---|
| Panel Material | Polyethylene (PE) |
| Finish Material | Black / OEM Texture |
| UV Protection | Yes |
| IP Rating | IP65 |

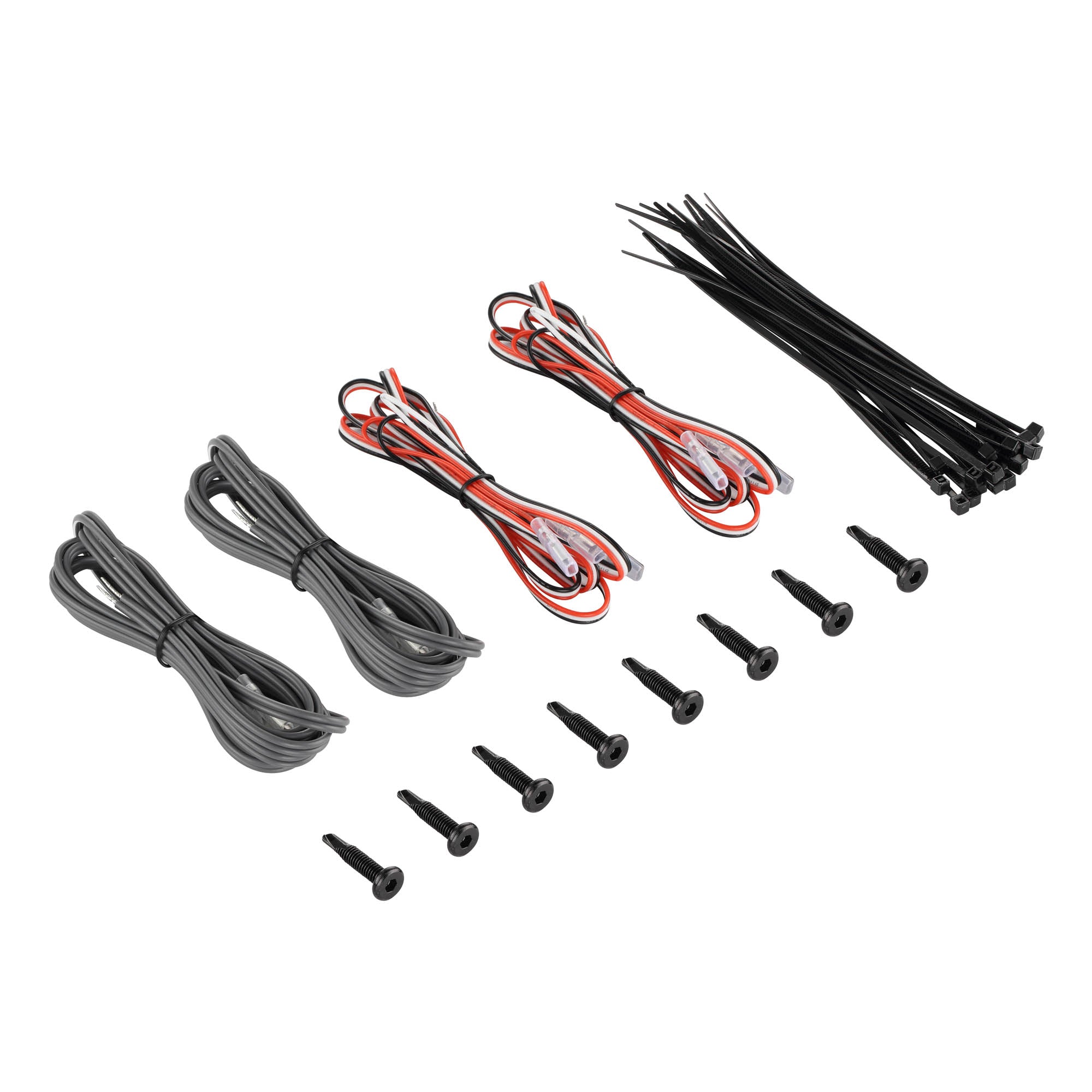

| Input Wire | LED + SPK 5 Core OFC Tinned (2ft / 0.6m) |

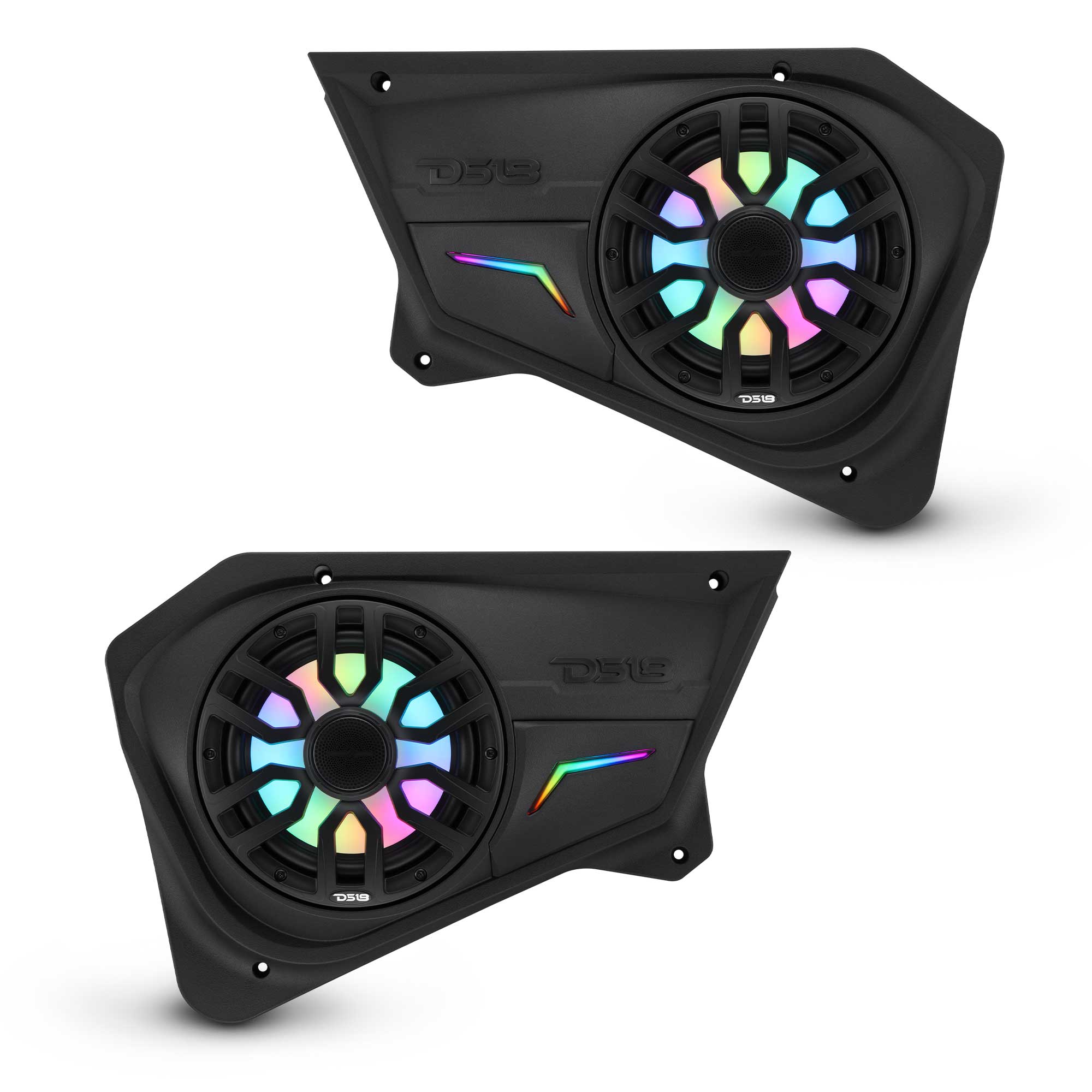

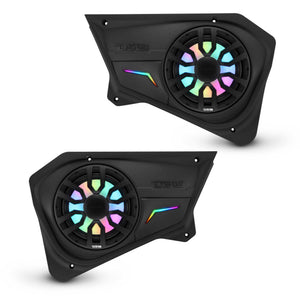

| Sold in Pairs | Left & Right |
| OEM Fit | Yes |
| Compatible Model / Year | RZR-PRO / 2020-2024 / 4 Doors Models |
| Speaker Type / Size | 8" Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeter |
| Total Impedance | 4-Ohm |
| RMS Power Handling | 175W |
| MAX Power Handling | 350W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 35Hz - 20KHz |
| Recommended High-Pass Crossover | 40Hz |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Polypropylene Injected (PPI) |
| Surround Material | Rubber |
| Basket Material | Injection Molded Composite PC with UV Protection coating |
| Magnet Material | Ferrite + Neodymium / Neodymium (N35H) |
| Magnet Weight | 24 oz + 1.1oz / 0.4 Oz |
| Speaker Type | Floating Bullet Tweeter |
| Diaphragm Material | Aluminum |
| Bullet Material | Injection Molded Composite PC with UV Protection coating |
| Panel Overall Height | 13.46" / 342mm |
| Panel Overall Width | 19" / 482mm |
| Panel Overall Depth | 3.45" / 88mm |
