RNGR18-ROOF4M2

Overview

Upgrade your off-road journey with RNGR18-ROOF4M2. Unleash superior audio quality and durability on your adventures. Elevate your ride today!

Features

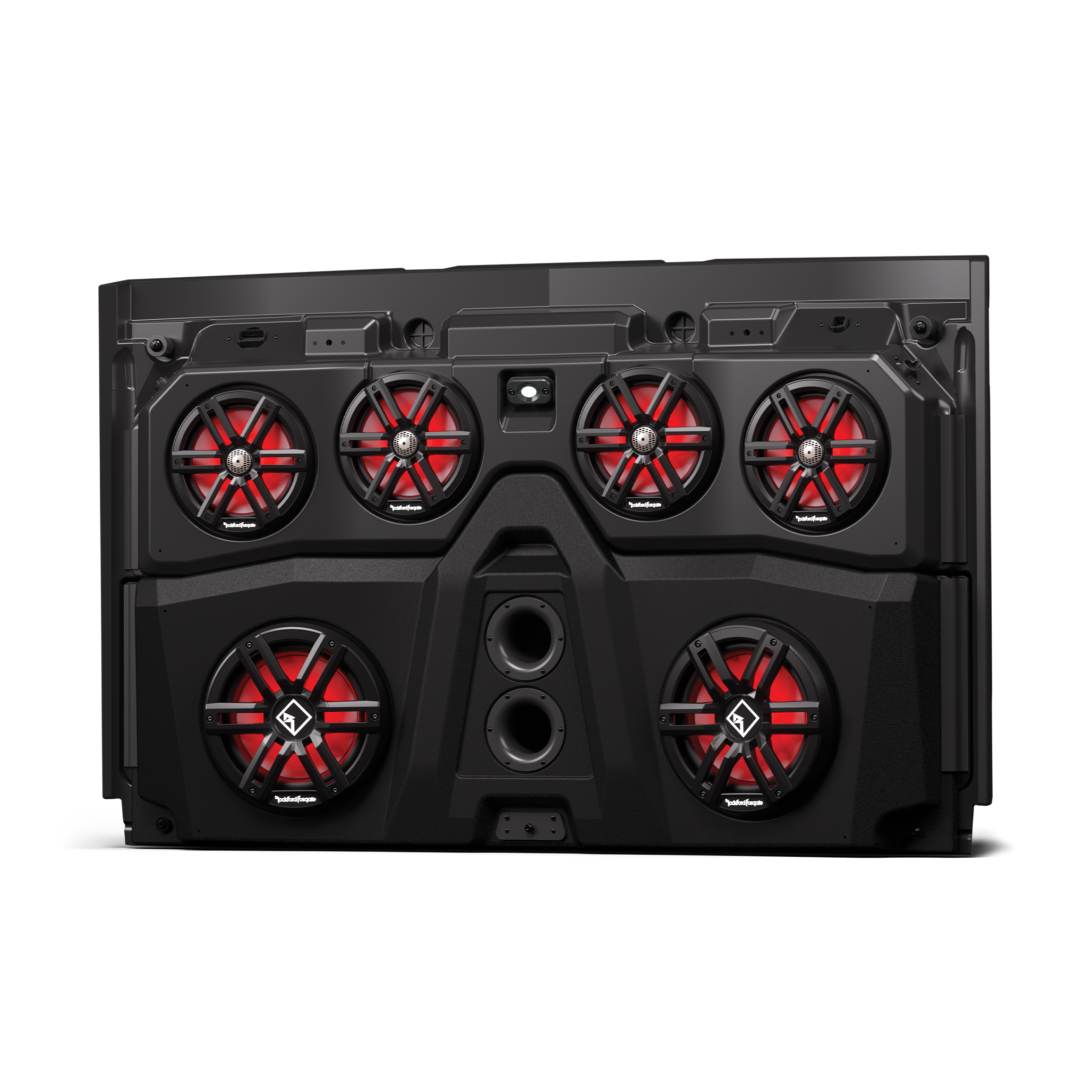

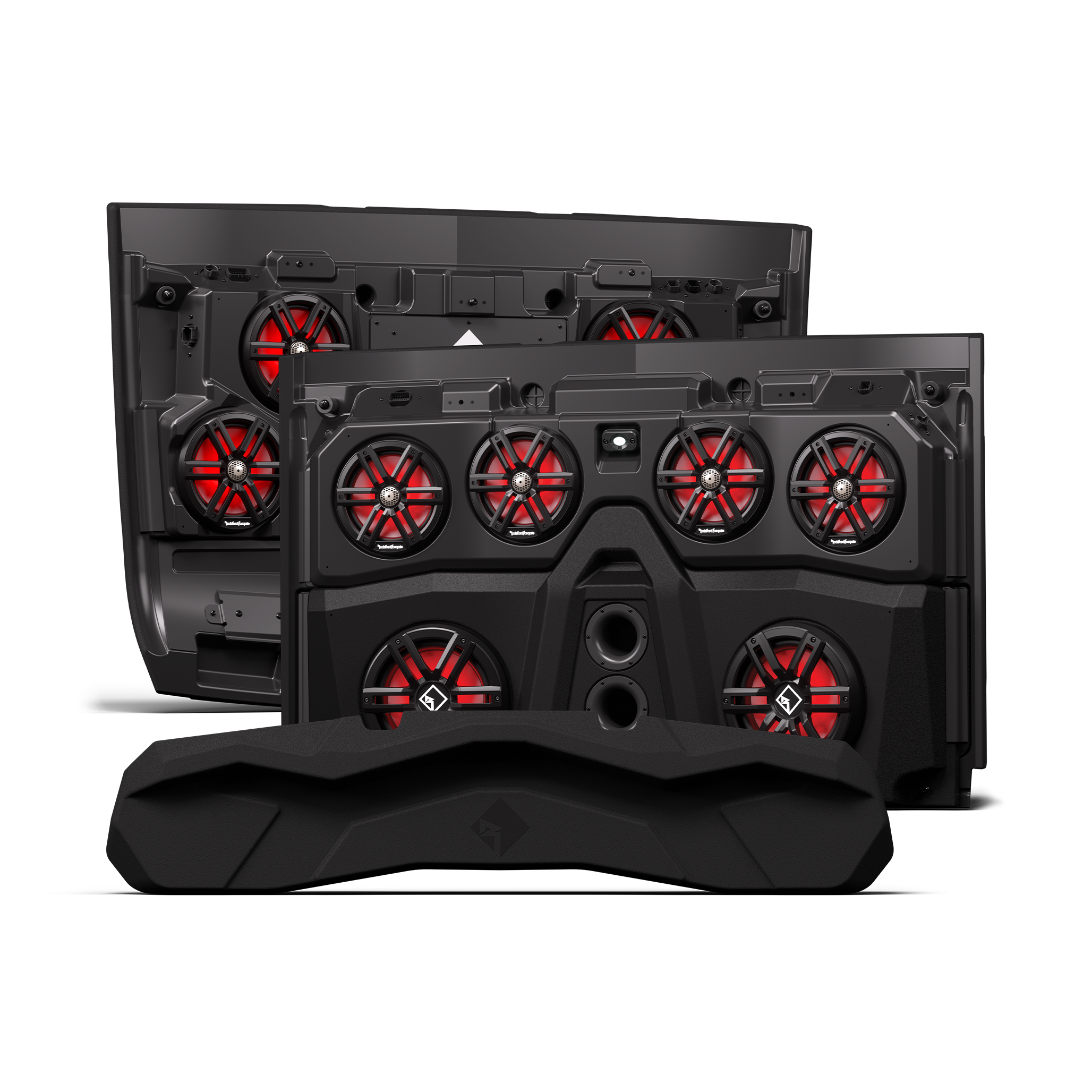

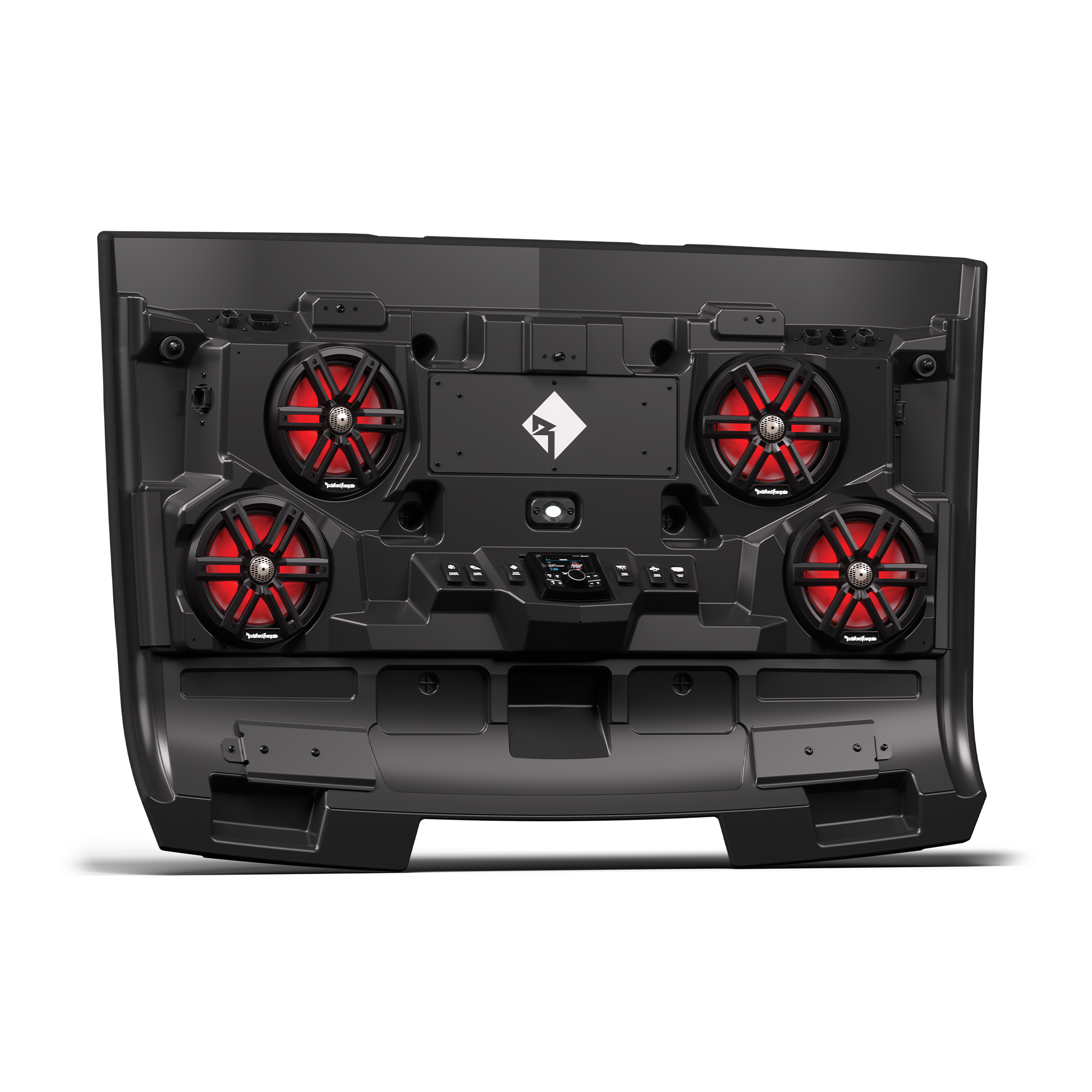

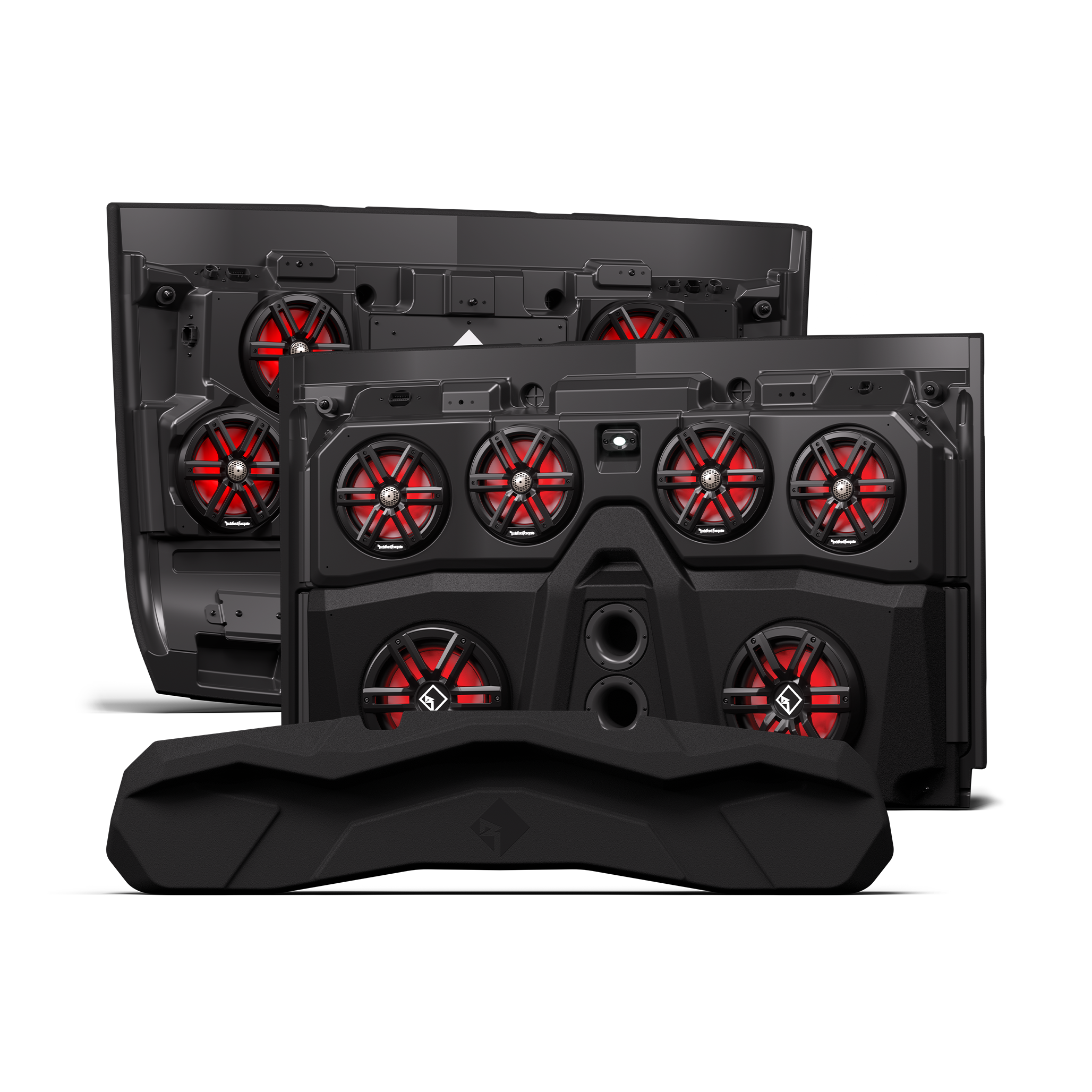

• Complete all-in-one roof audio solution
• Integrated rear passenger LED dome light
• Plug-and-Play design for easy installation

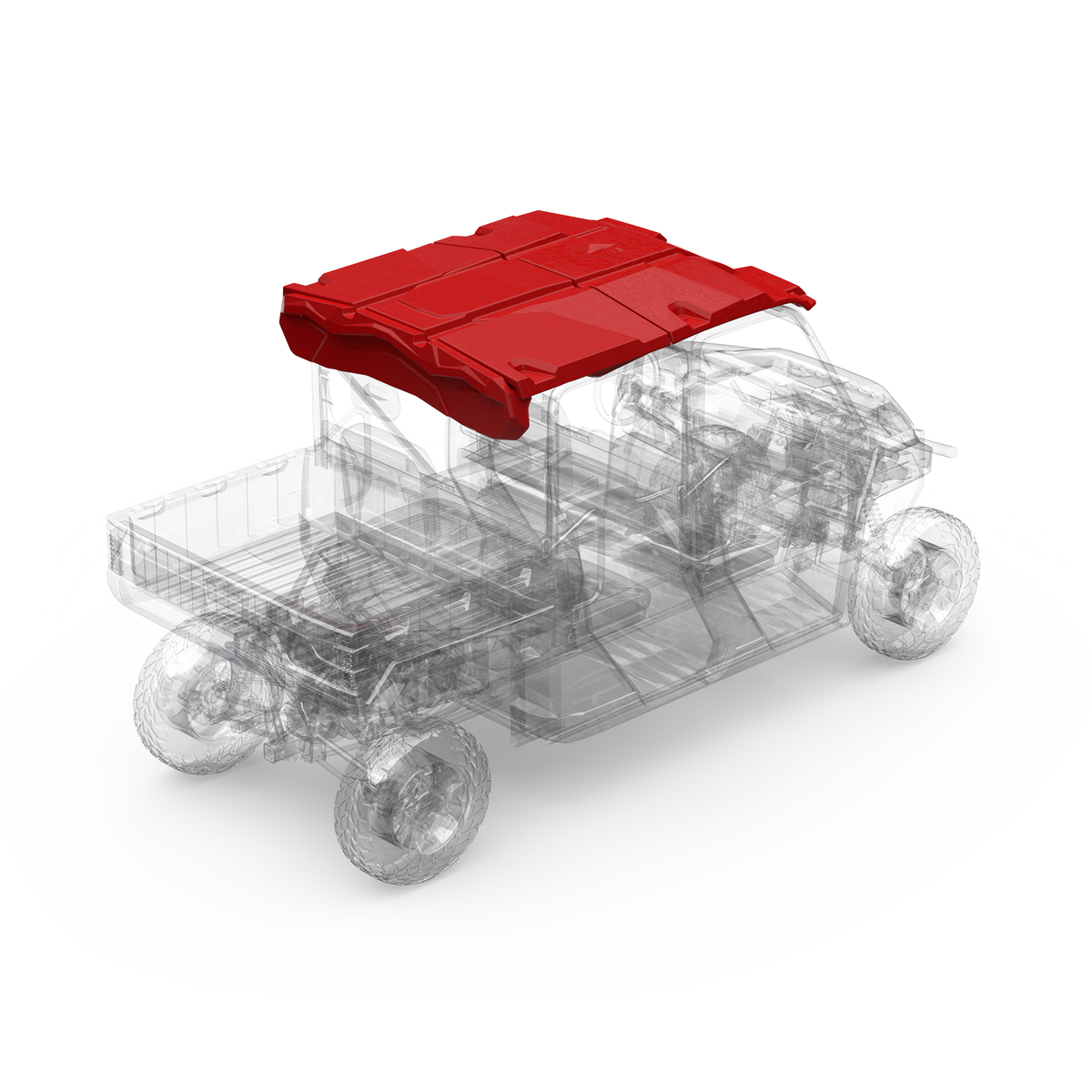

• Direct bolt into vehicle using OEM mounting holes
• BluetoothTM connectivity with A2DP wireless audio streaming
• M2-8B: M2 8" Color Optix TM marine grade 2-way speakers - Black
• Integrated driver/passenger LED dome light
• Prewired for LED light bar (30" min - 40" max)
• Compatible with Northstar power windows
• PMX-3: Compact AM/FM/WB SiriusXM ReadyTM 2.7" Digital Media Receiver
• Dual high-output subwoofer ports, flared for low-noise output.

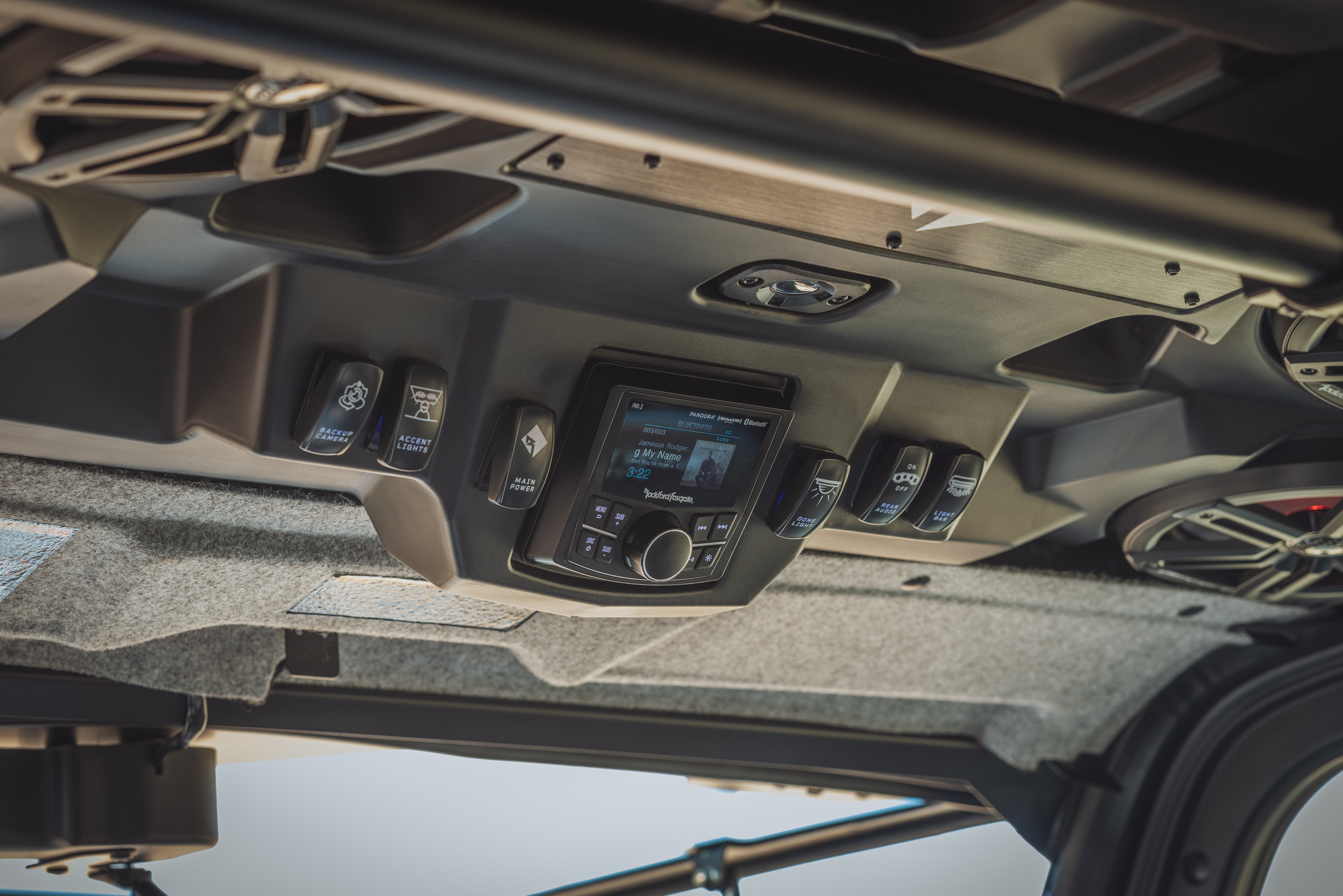

• Rocker switches: main power, backup camera, cargo lights, dome light, rear audio, light bar
• Requires minimal disassembly and drilling for installation
• Upgradeable with RNGR18-CAPM2 loaded rear cap for rear firing audio
• Upgradeable with RNGR18-FWE Color Optix 10" subwoofer/enclosure
• M2D2-10IB: 10" Color Optix TM subwoofers - Black
• M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready TM Amplifier
• Element Ready TM to withstand the harsh outdoor environment like dust, water, and UV rays
• Durable HDPE (High Density Poly Ethylene) material

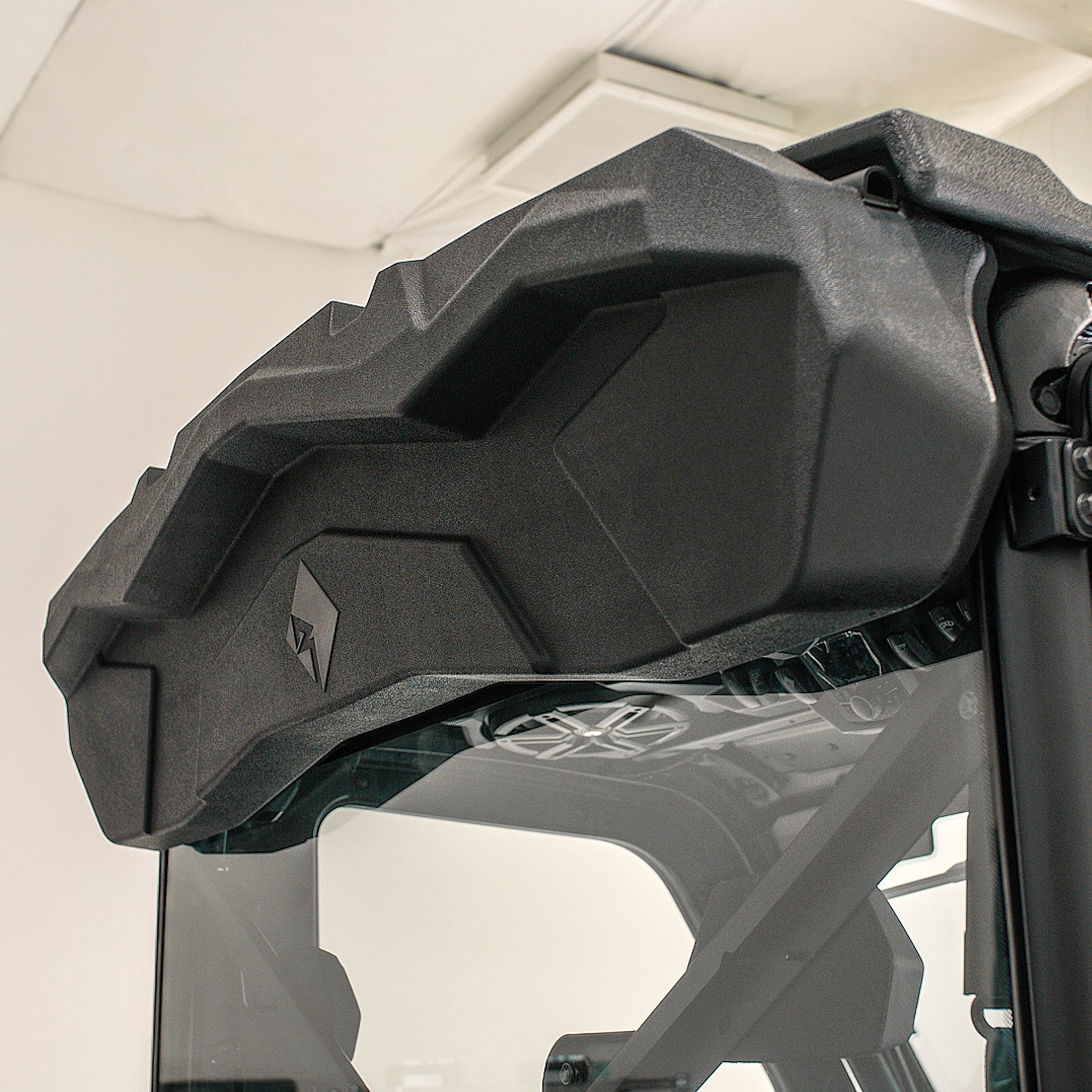

• Includes unloaded rear cap for structural support
• Sport grilles featured on all speakers
• 2-Year Warranty

Specifications

• Source Unit: PMX-3
• Speaker Model: M2-8B
• Amplifier Model: M5-1500X5
• Subwoofer Qty: 2
• Subwoofer Model: M2D2-10IB
• Amplifier Type: Internal
• Speaker Qty: 8
• Total Power: 1,500 Watts
• Mounting Hardware: Yes
• Grille/Trim Ring Included: Yes
• Light Bar Fuse: 15 A

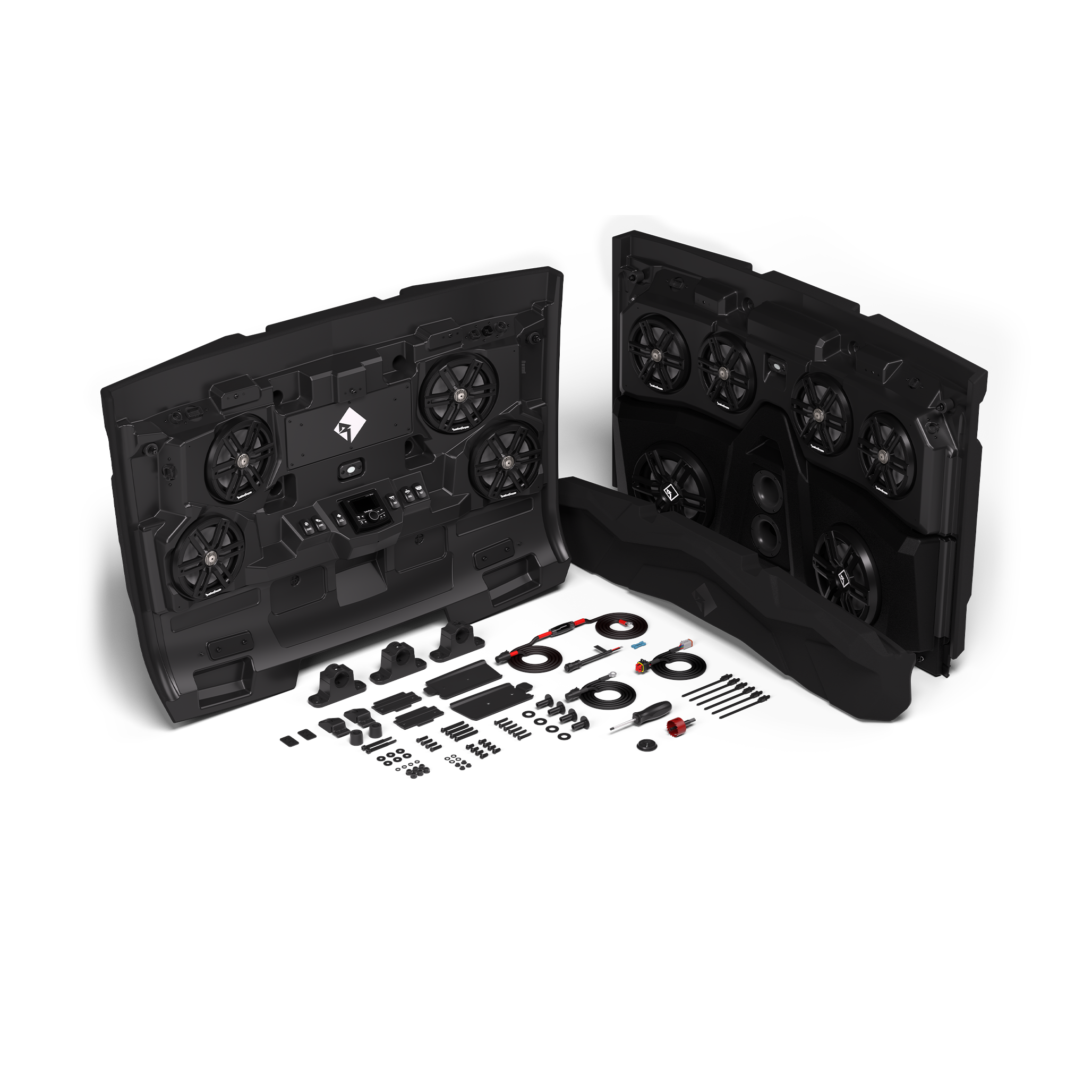

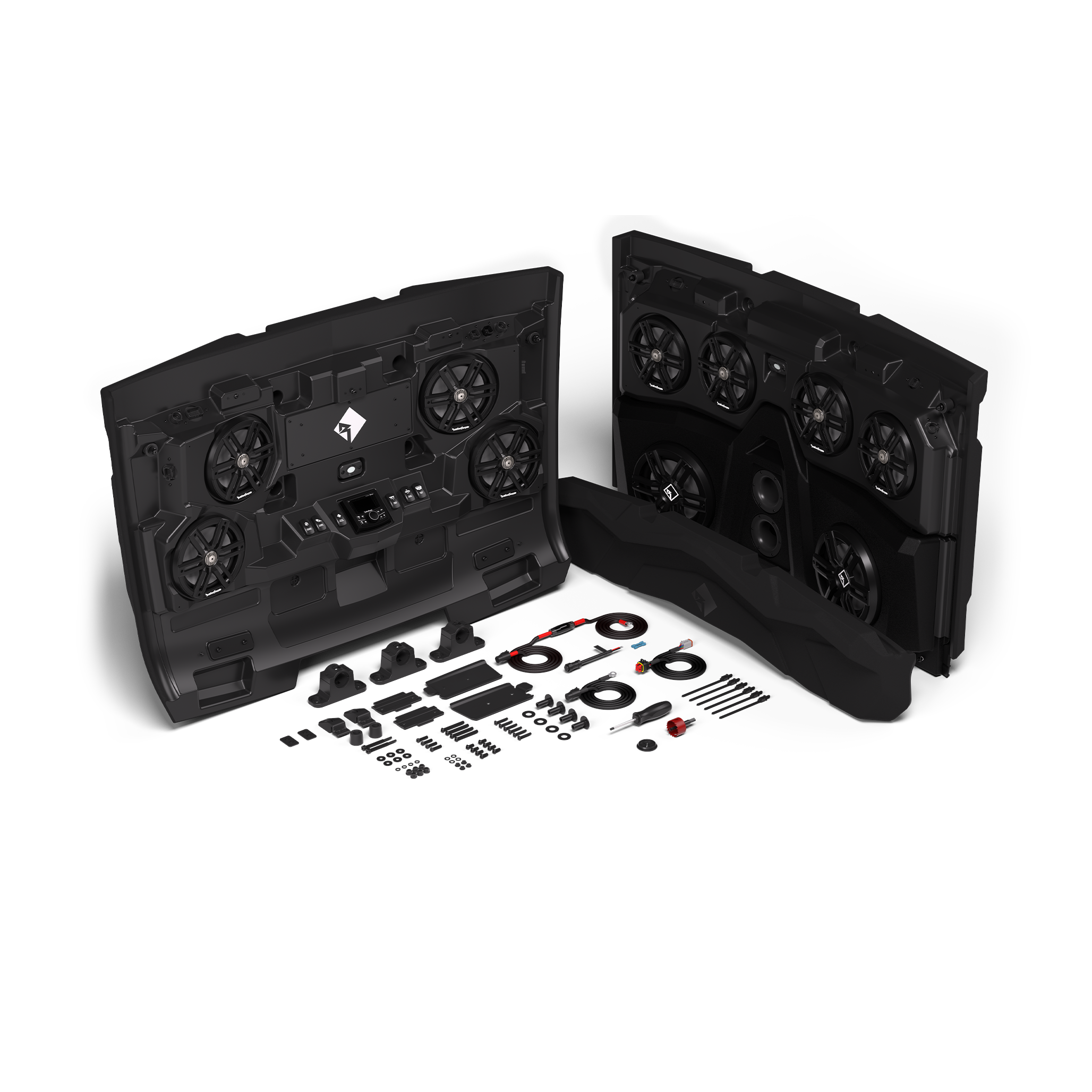

• Included In The Box: (1) Front roof assembly; (1) Blank rear cap; (1) 1130-77294-01 front AP pack; (1) Rear roof assembly; (1) Upper clamp base; (1) Upper clamp base gasket; (1) 1130-77211-01 rear AP pack (see below); -(2) Gasket 35mm OD, 16.6mm ID; -(4) Torx Screw M8x1.25, 20mm; -(2) Hex nut nyloc M8x1.25; -(2) Spacer top hat 40.8mm; -(2) T40 Torx screw M8x1.25, 68mm; -(6) T25 Torx screw M6x1, 38mm; -(4) Flat washer 23mm OD, 8.60 ID

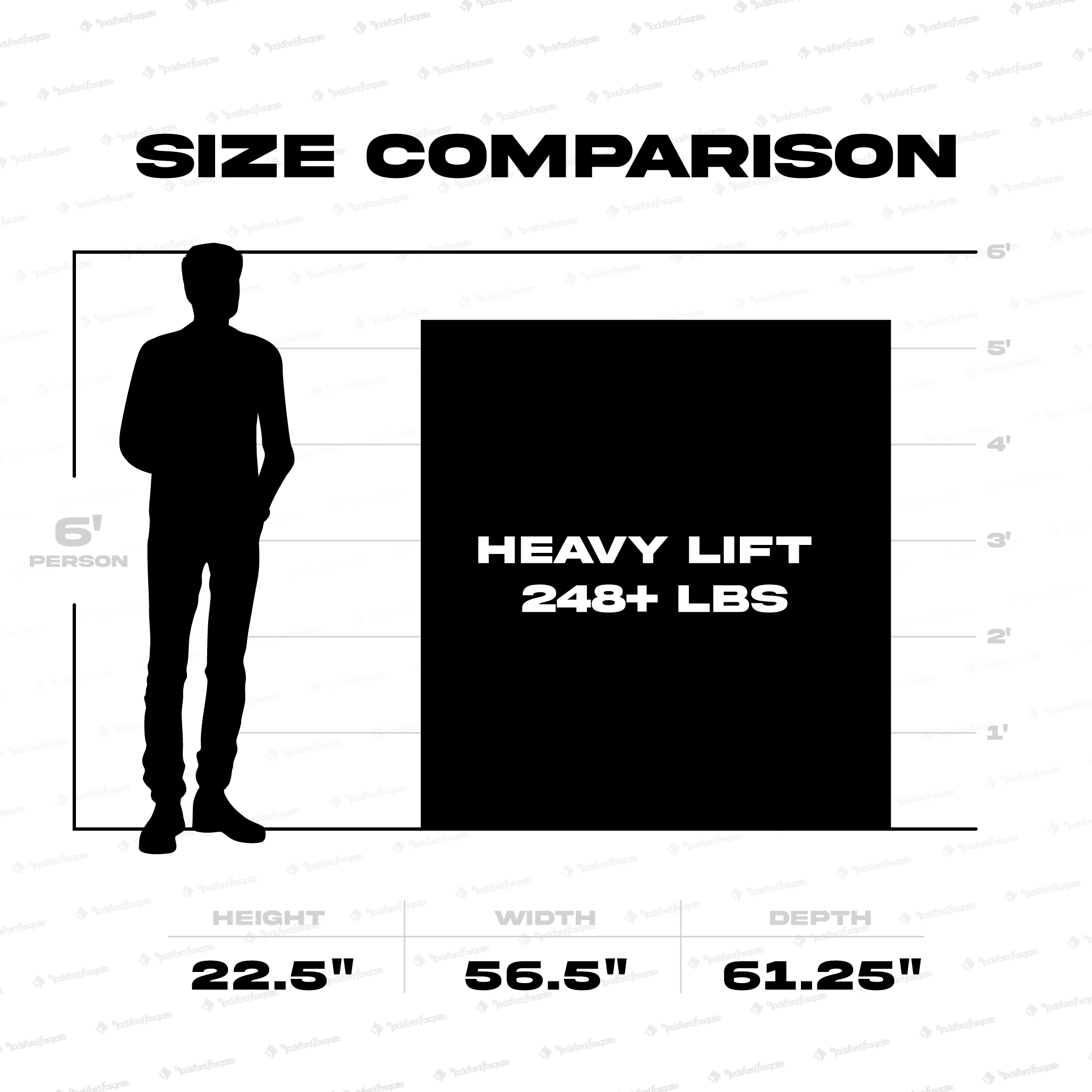

• Shipping Dimensions: Front Roof: 10.75" x 56.50" x 61.25"; 27 cm x 144 cm x 156 cm; Rear Roof: 11.75" x 40.50" x 61.25"; 30 cm x 103 cm x 156 cm; Overall: 22.5" x 56.50" x 61.25"; 57 cm x 144 cm x 156 cm
• Shipping Weight: 248 Lbs. (112.5 Kg.)
