RM110D2B

Overview

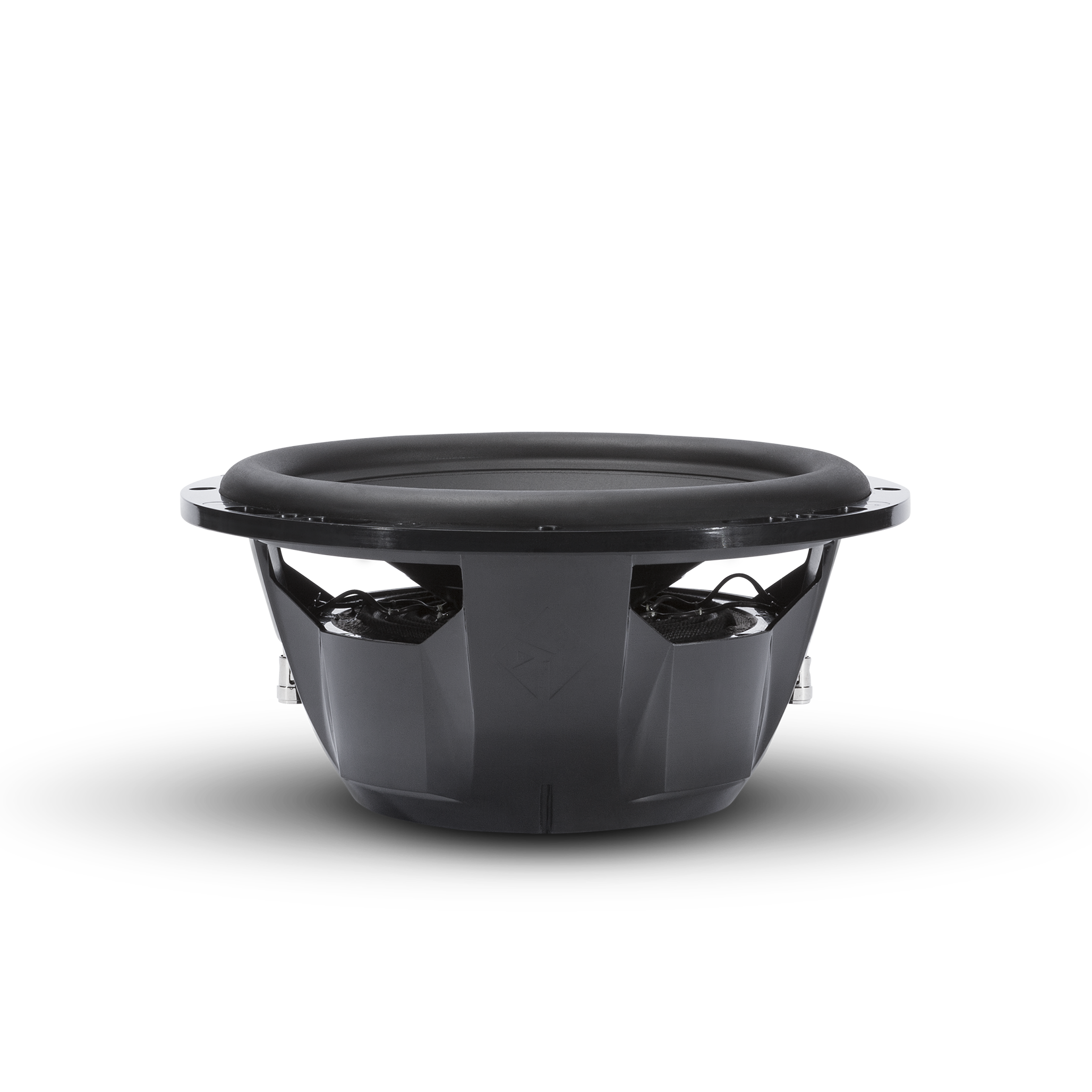

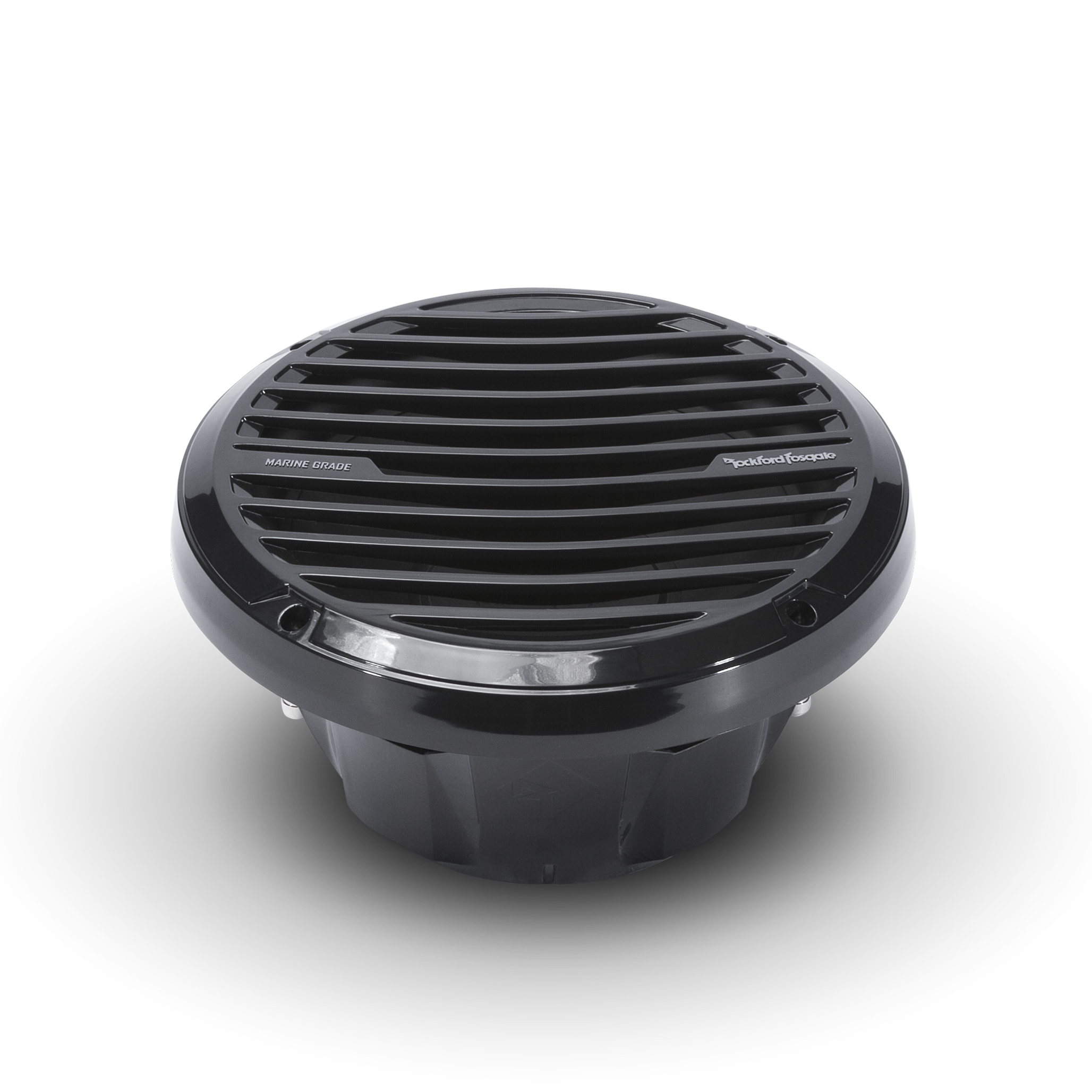

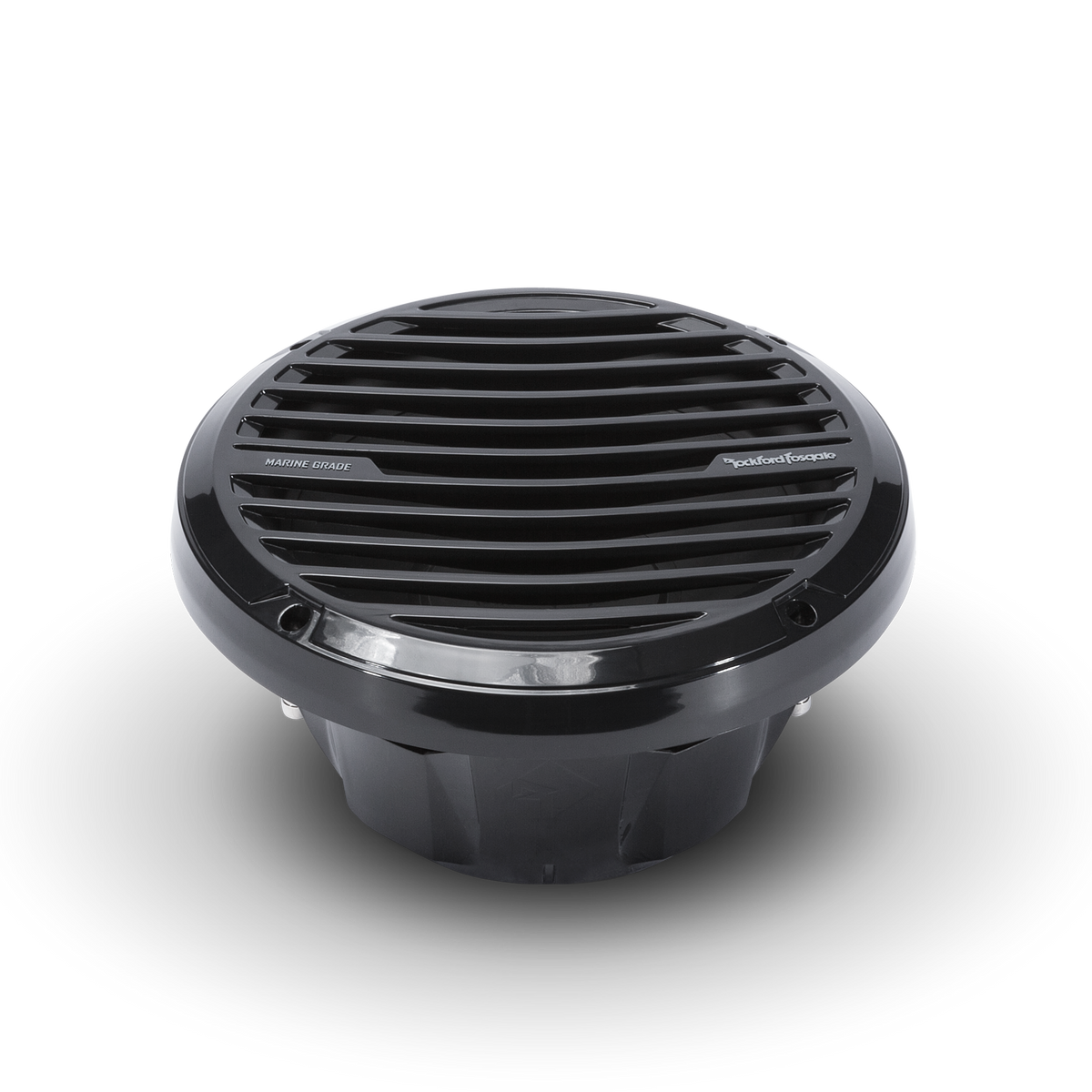

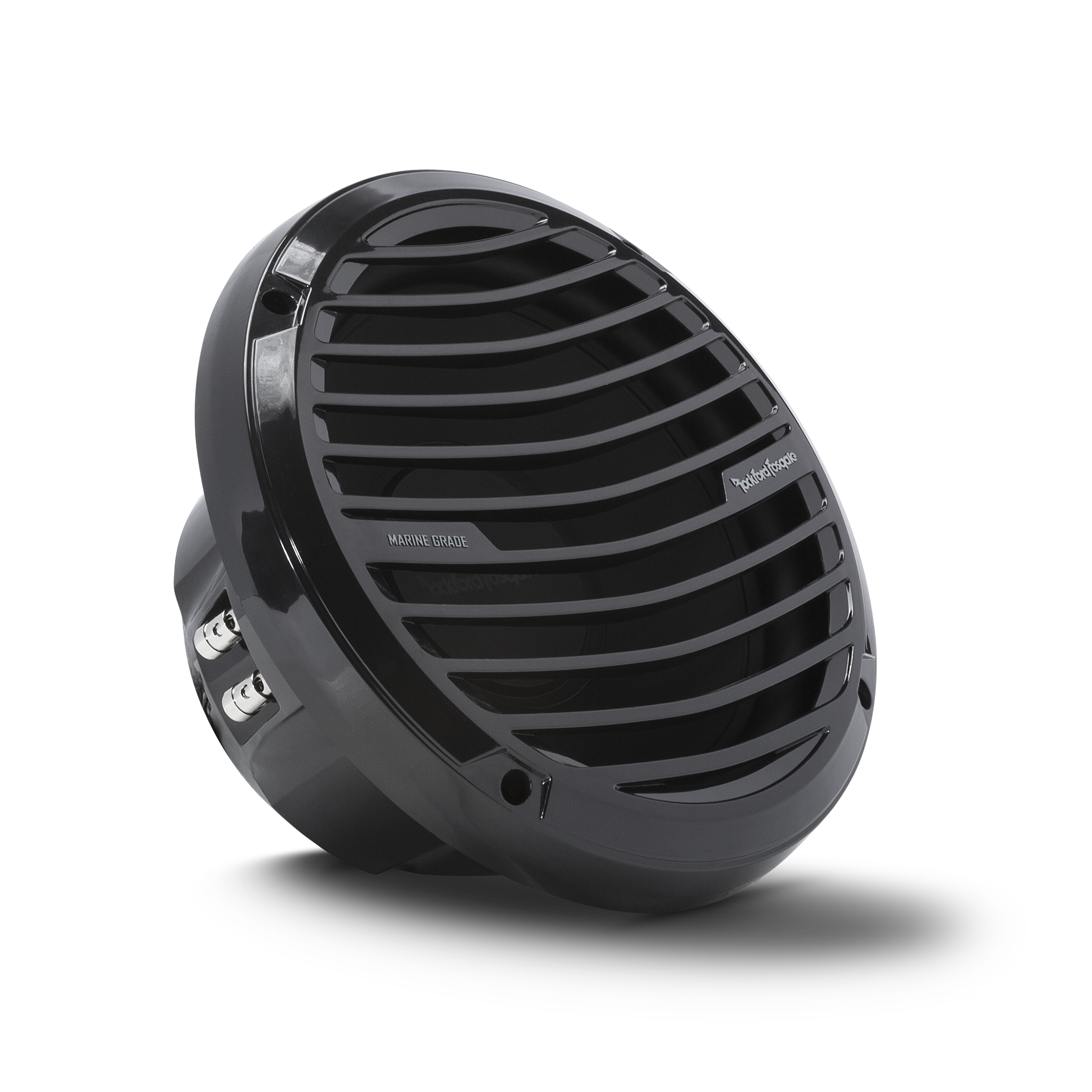

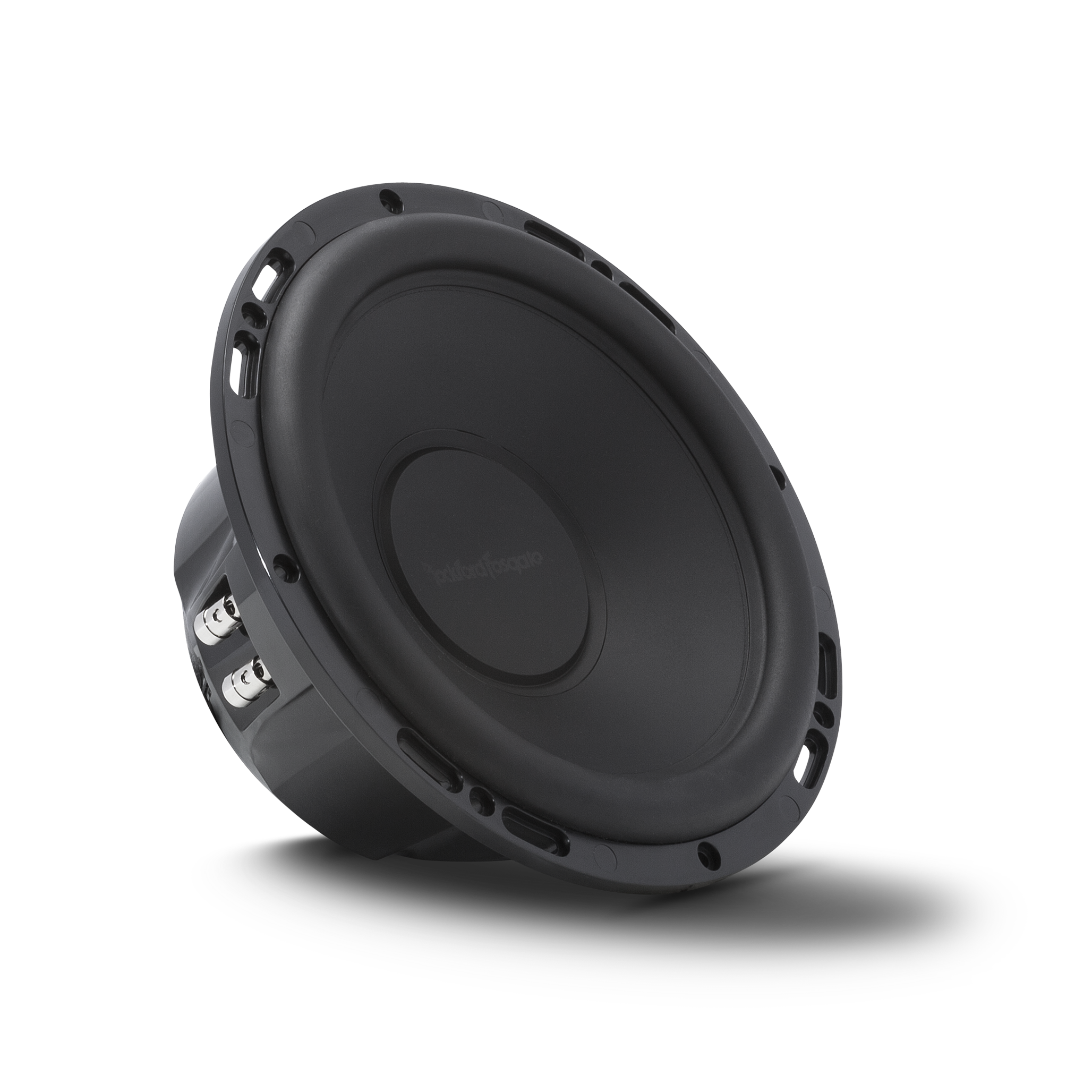

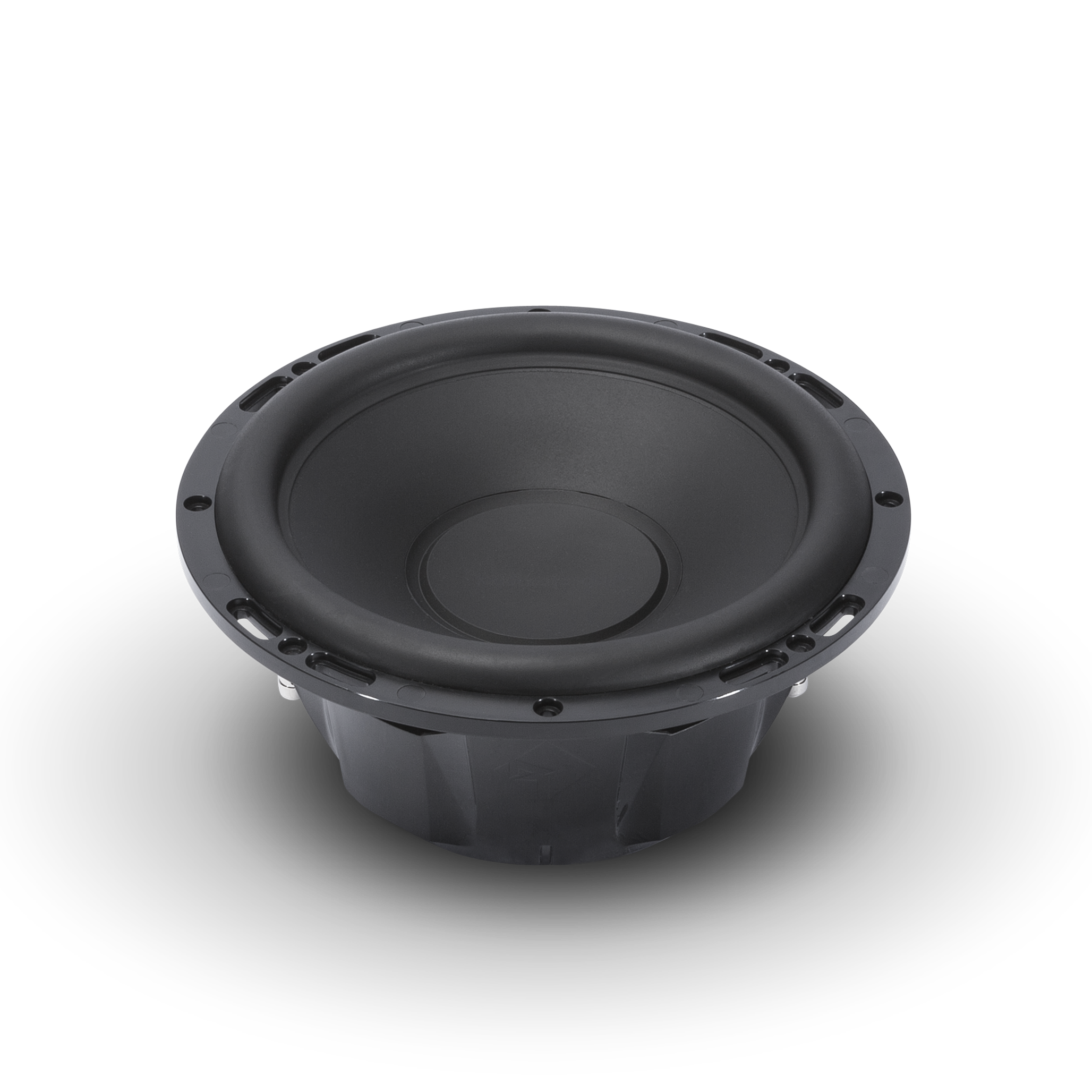

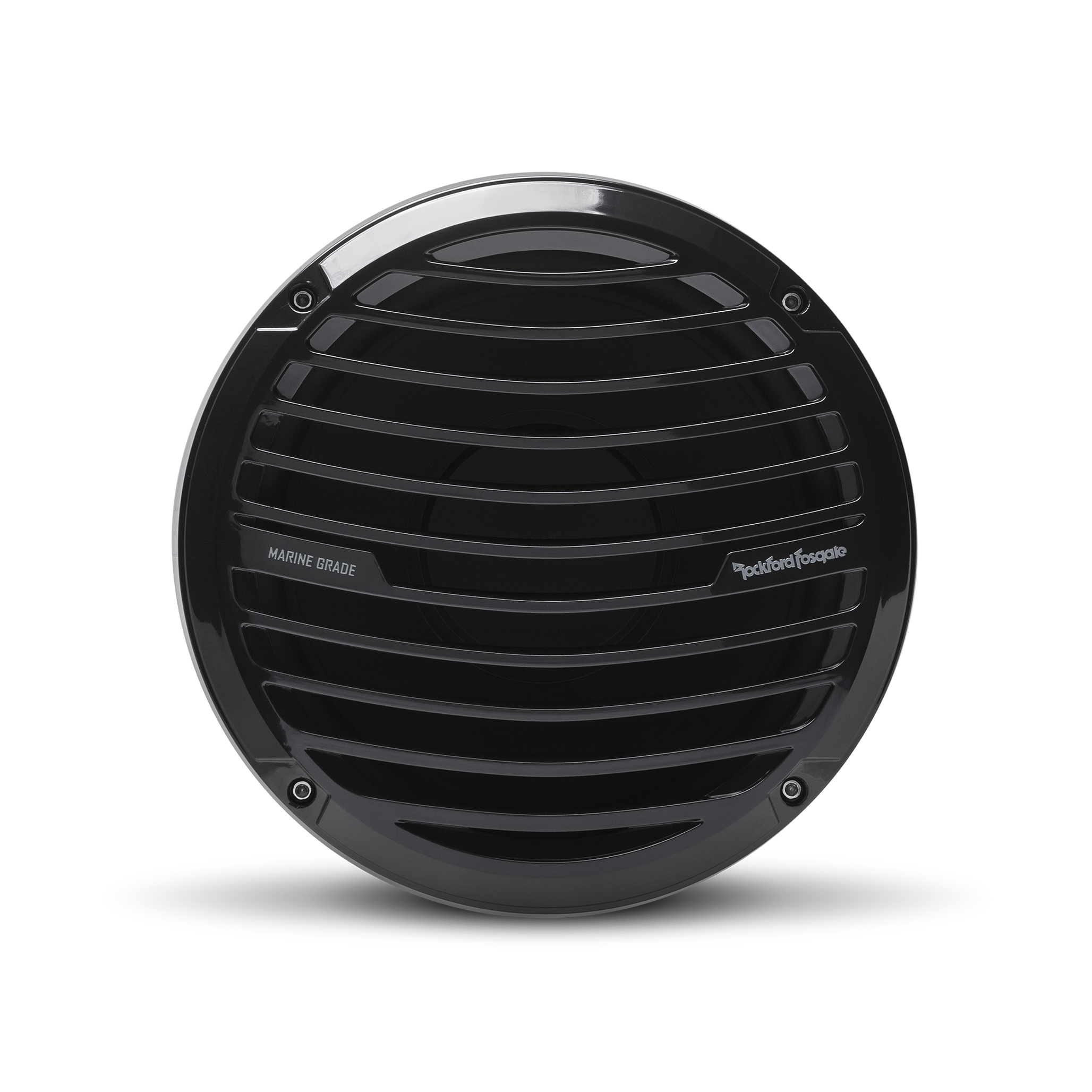

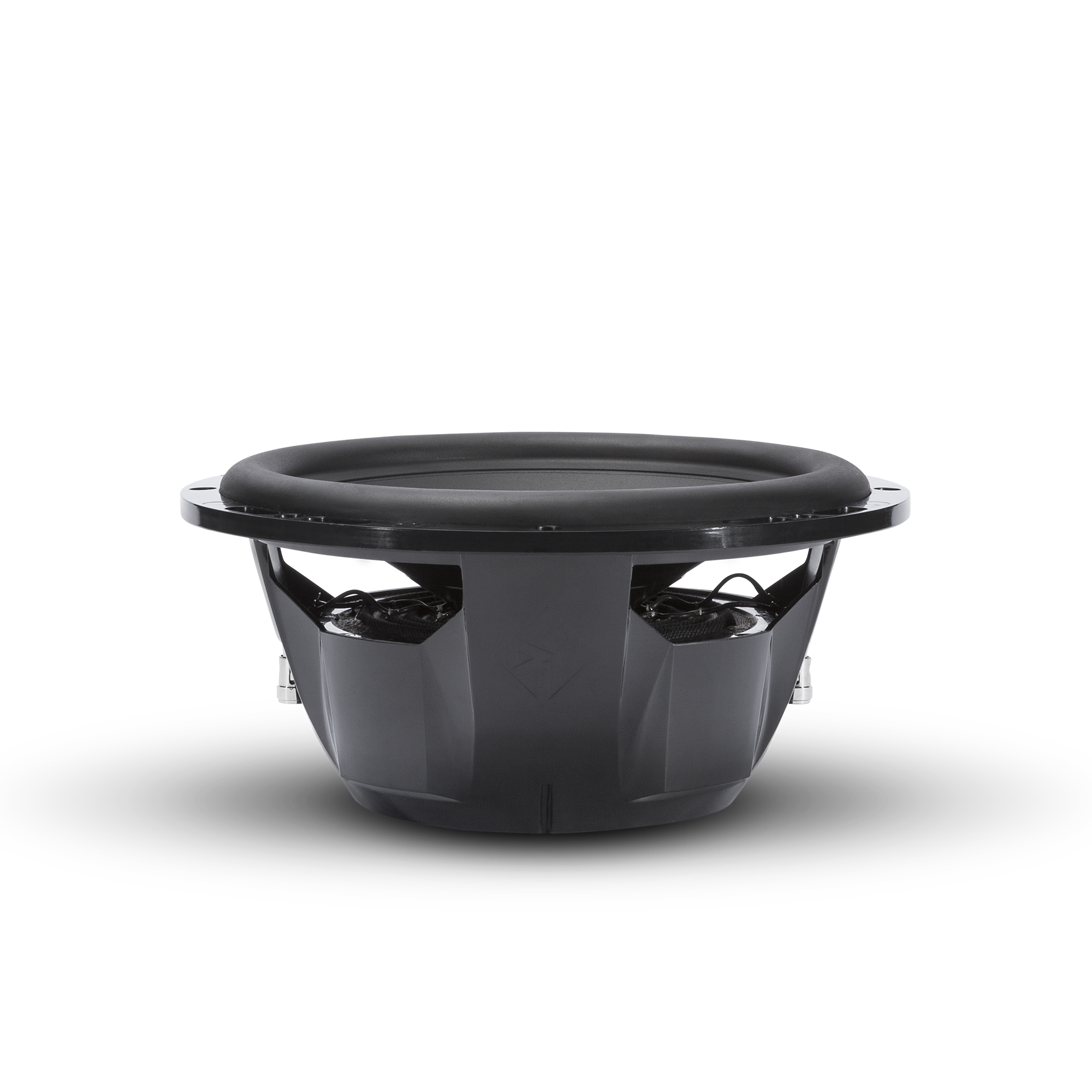

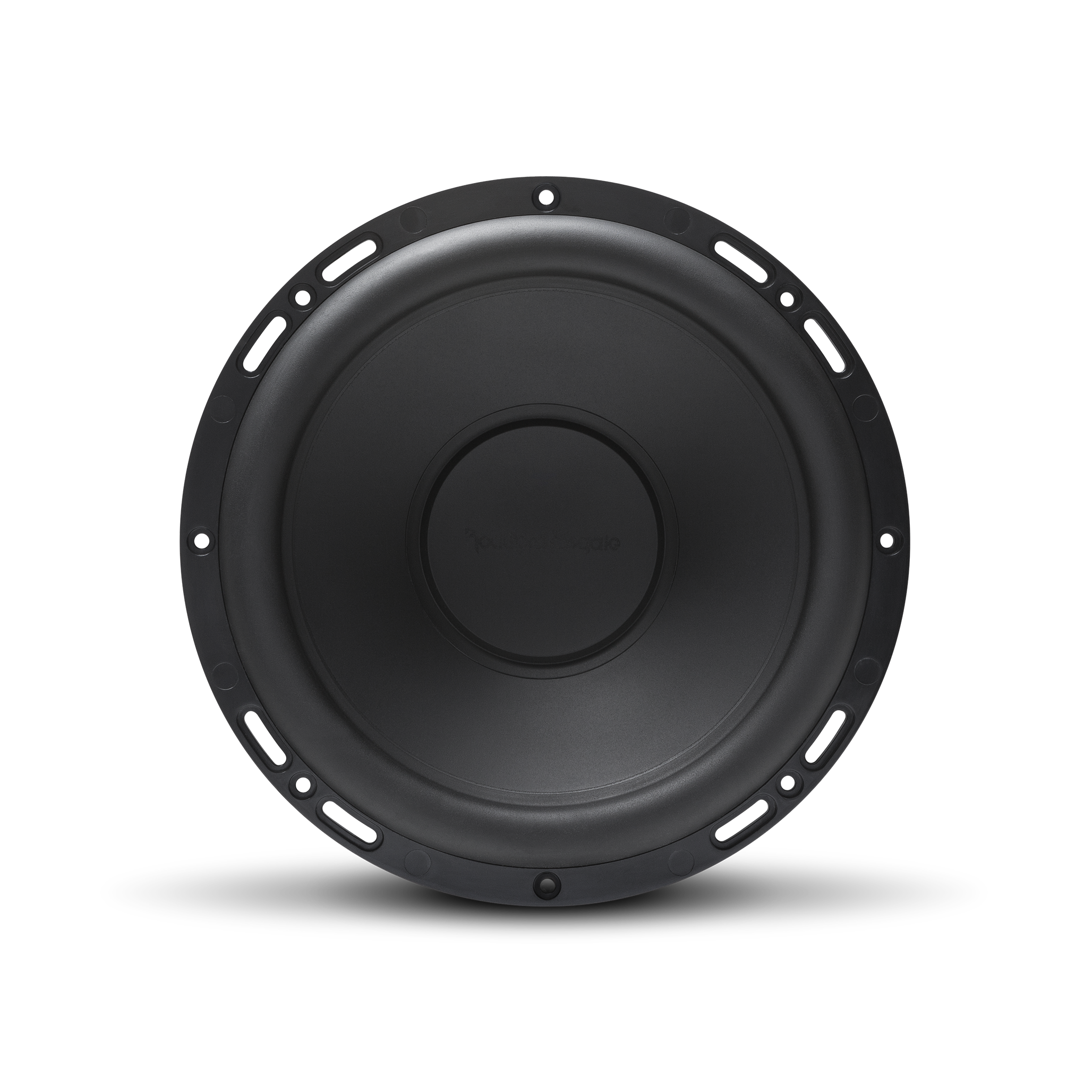

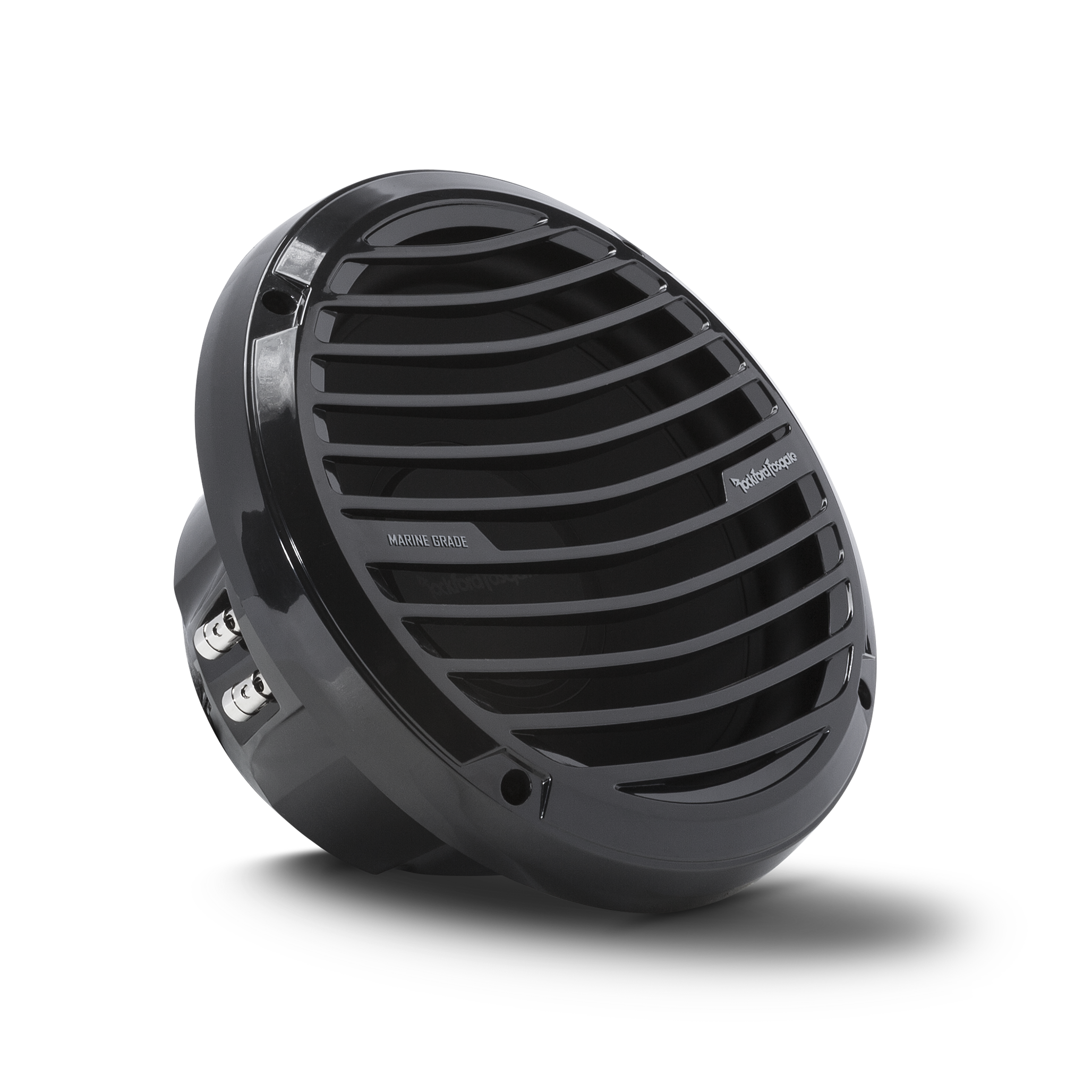

The RM10D2B is a black 10" Prime R1 subwoofer designed for marine watercraft or powersports applications. It features color matched grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations.

Features

• 100% UV stable ASA injection molded plastic parts
• 2-Year Warranty
• Available in black or white
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Moisture, tear and fatigue resistant Aramid fiber spider

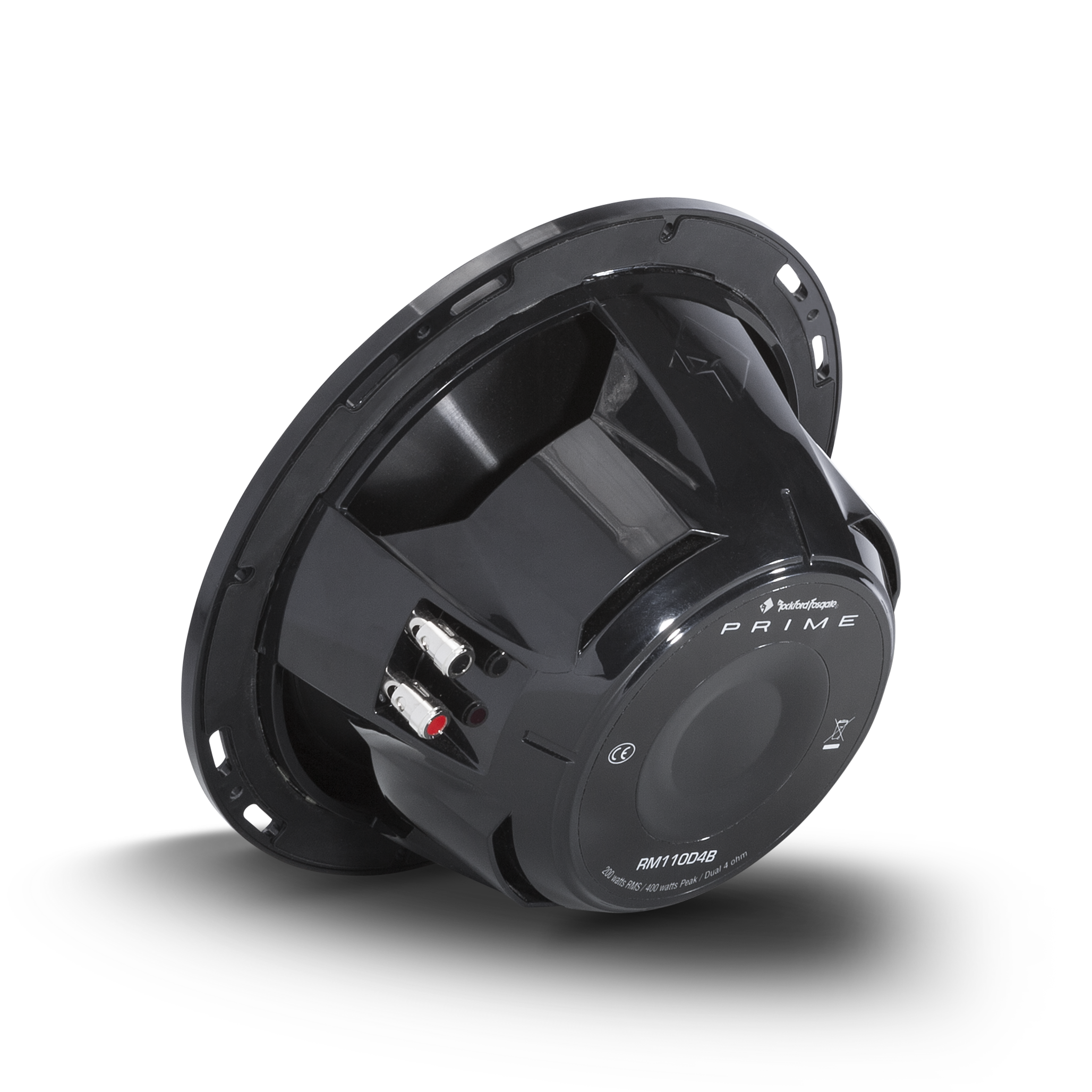

• Proprietary corrosion resistant spring loaded push terminals

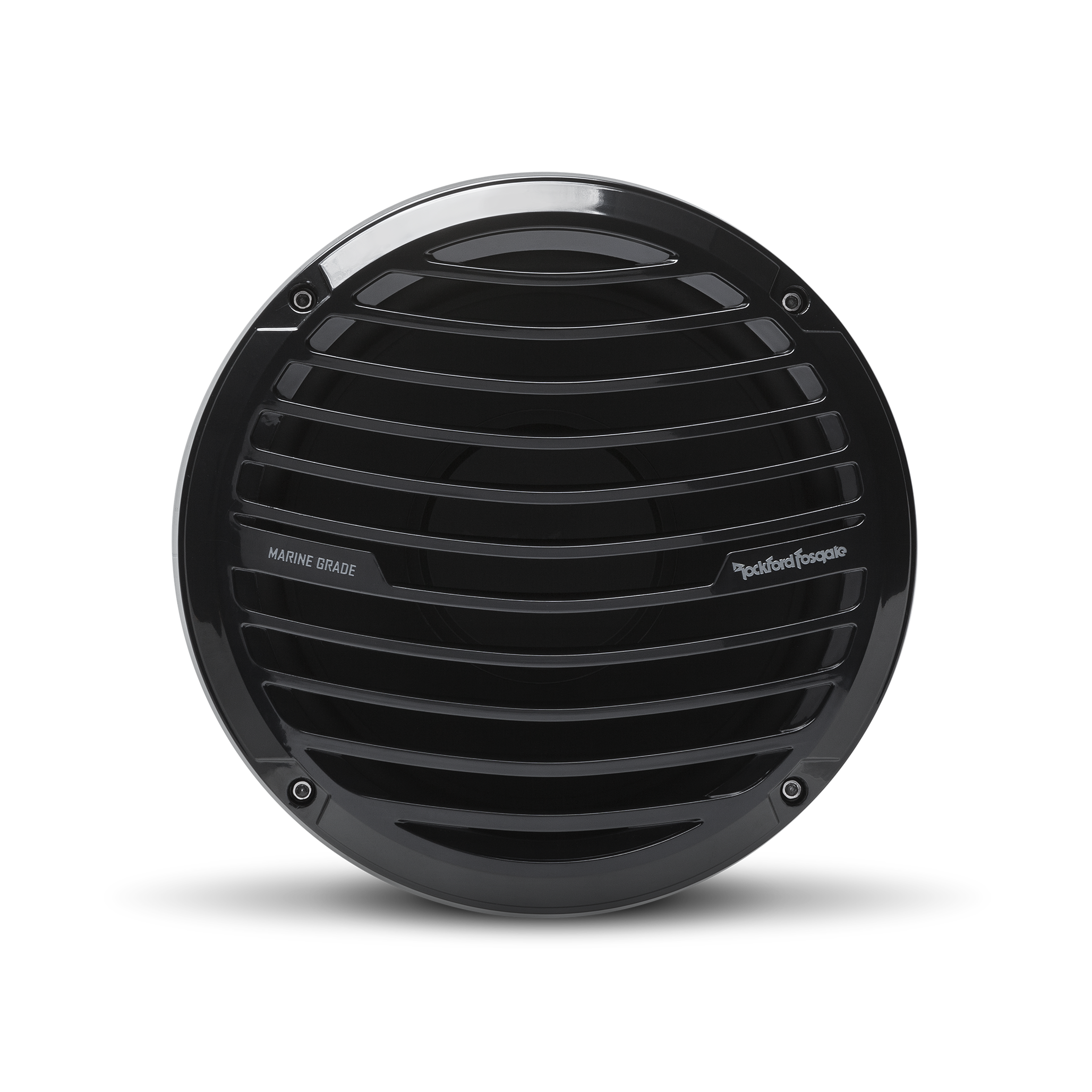

• Removable trim ring/grille
• True Marine Grade compliance
• UV and Salt-Fog Resistant Santoprene surround
• Ultra-flexible fully insulated silicone lead wire

Specifications

• Le (mH): 2.17
• Nominal Impedance: Dual 2-Ohm
• Power Handling (Watts RMS): 200 Watts RMS; 400 Watts Max
• Qts: 0.47
• Re (Ohms): 3.7
• Sd (cm2): 394
• Vas (Liters): 50.2
• Voice Coil Type: Dual Voice Coil
• Xmax (mm): 7
• Woofer Displacement: 0.10 cu. ft. (2.80 Liters)
• Cutout Diameter: 8.95 in. (227 mm)
• Qes: 0.5
• Fs (Hz): 33.5
• Magnet Weight (oz): 39.75 oz. (1.13 Kg)
• Size: 10"
• SPL (dB @ 1w/1m): 89
• Qms: 8.18
• Speaker Connector: Dual 12 AWG compression
• Mounting Depth: 4.4 in. (112 mm)
• Voice Coil Diameter: 2" aluminum
• Shipping Weight: 10.25 Lbs. (4.6 Kg.)
