4.5" Super Bullet Tweeter 280 Watts 1.75" Titanium 4-Ohm Vc with RGB LED Lights

Availability: In stock SKU: PRO-TW4L
Sale price $67.95

4.5" Super Bullet Tweeter 280 Watts 1.75" Titanium 4-Ohm Vc with RGB LED Lights - DS18
4.5" Super Bullet Tweeter 280 Watts 1.75" Titanium 4-Ohm Vc with RGB LED Lights
Sale price$67.95
4.5" Super Bullet Tweeter 280 Watts 1.75" Titanium 4-Ohm Vc with RGB LED Lights - DS18

4.5" Super Bullet Tweeter 280 Watts 1.75" Titanium 4-Ohm Vc with RGB LED Lights

$67.95

Product Overview

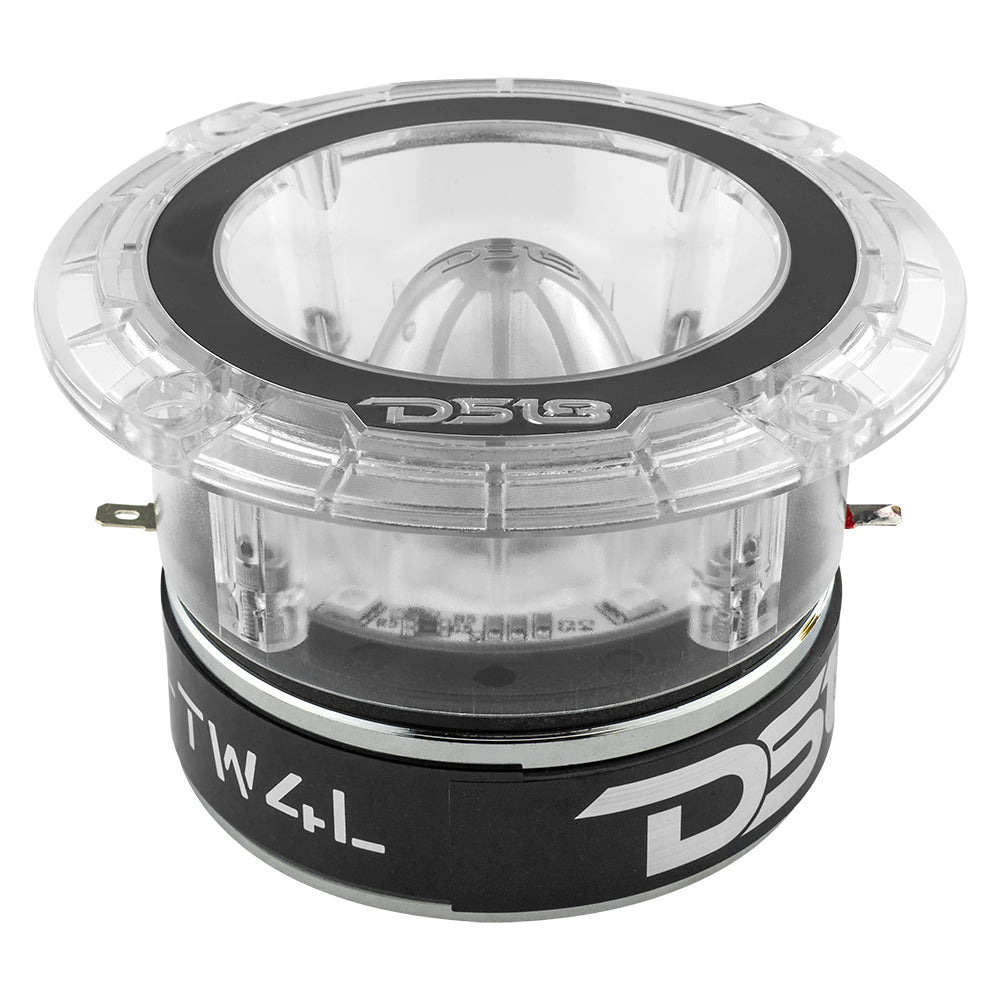

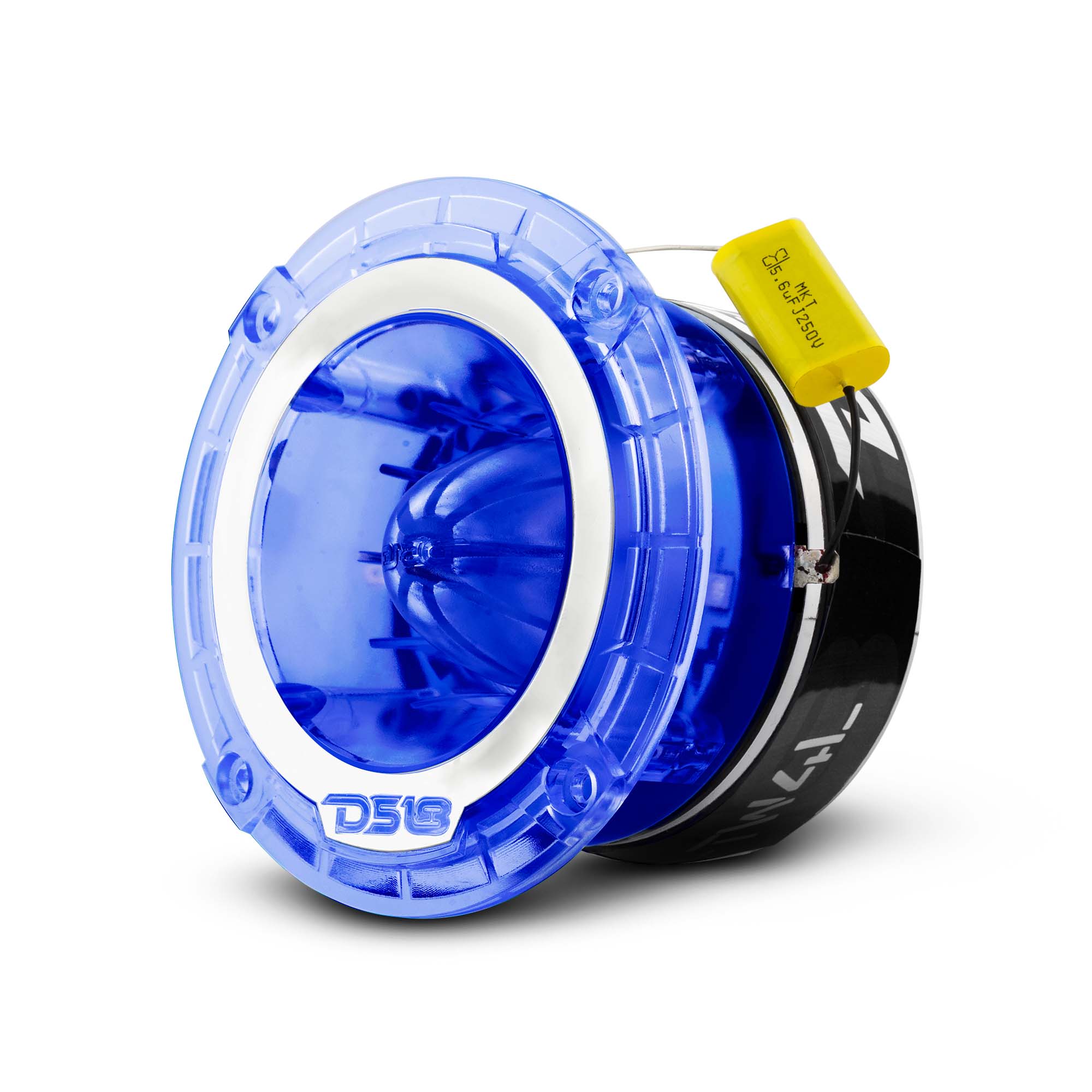

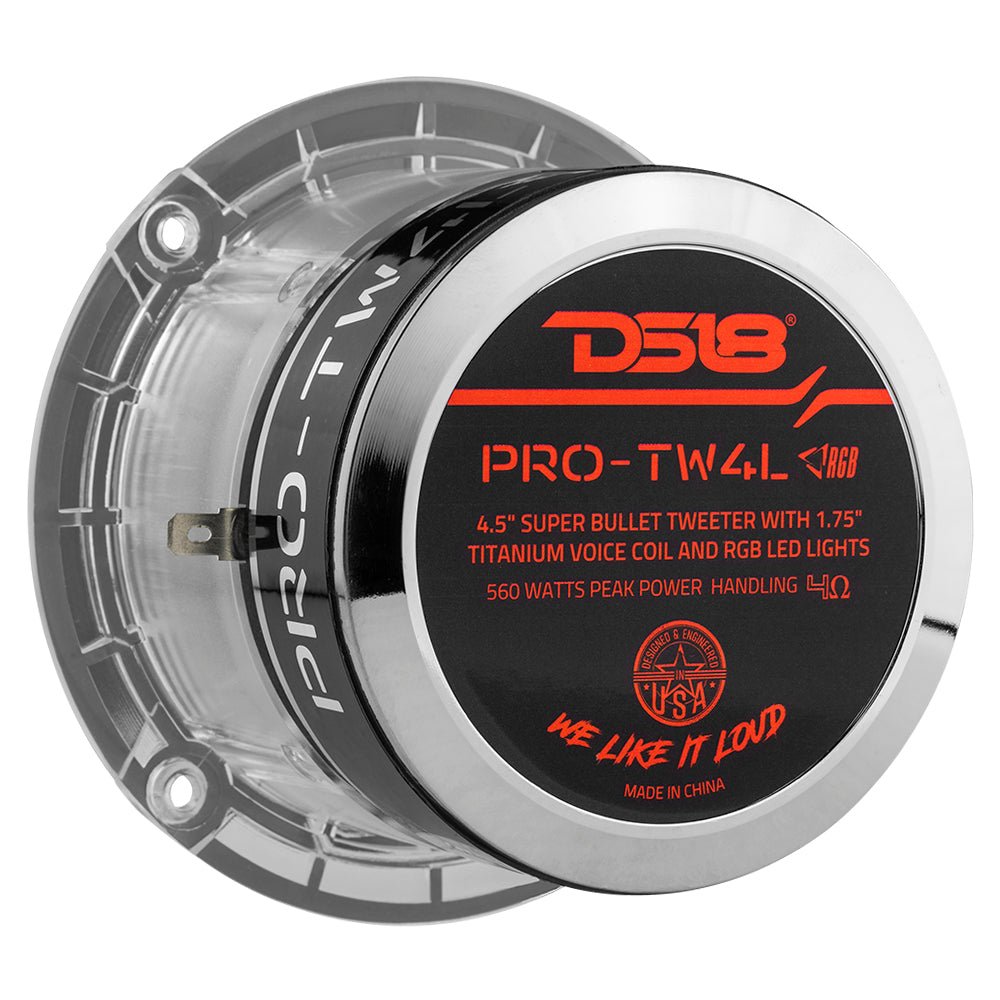

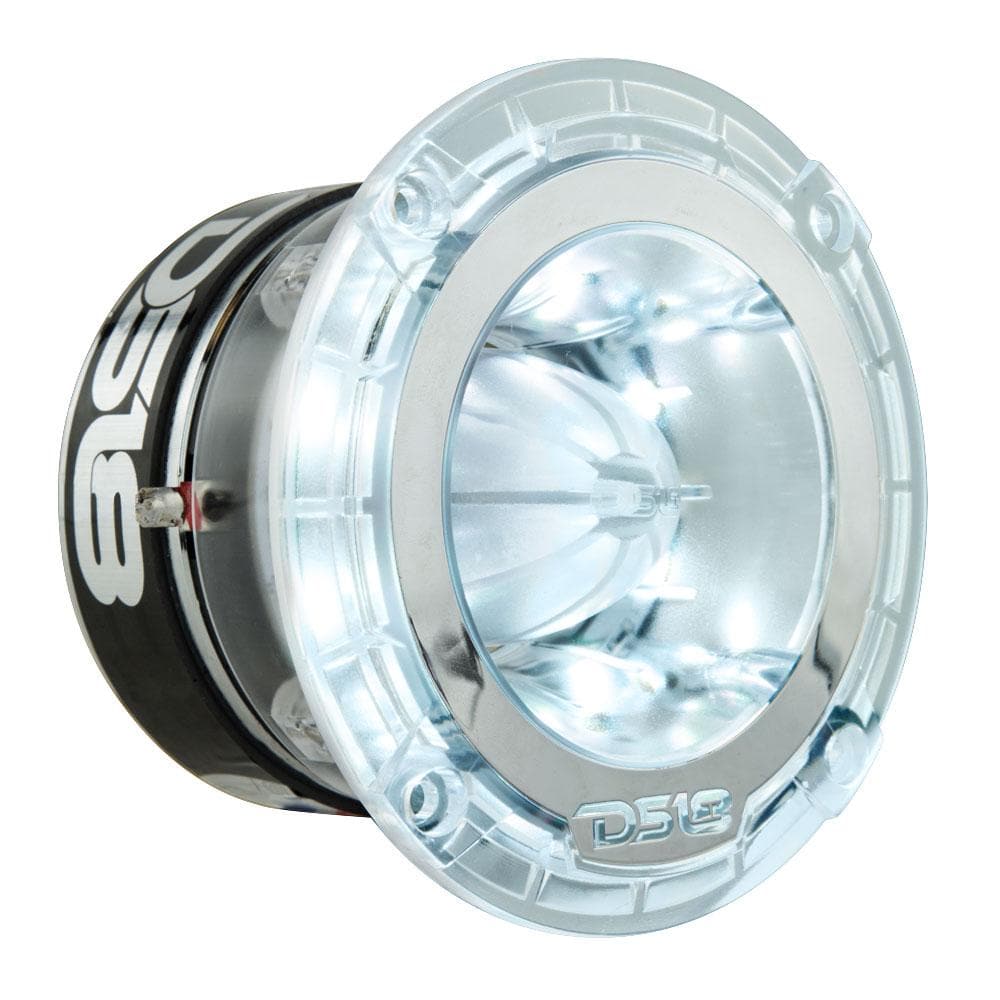

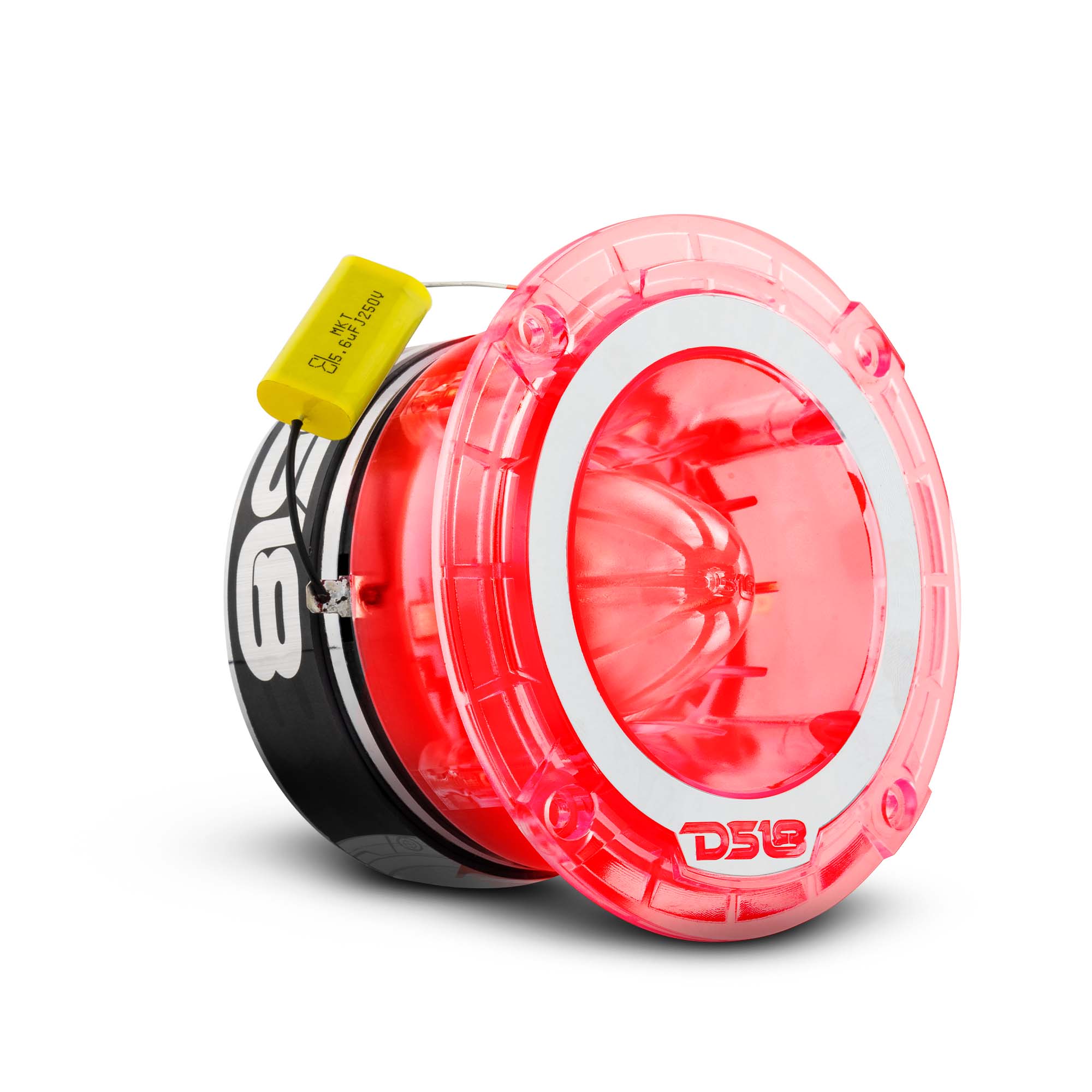

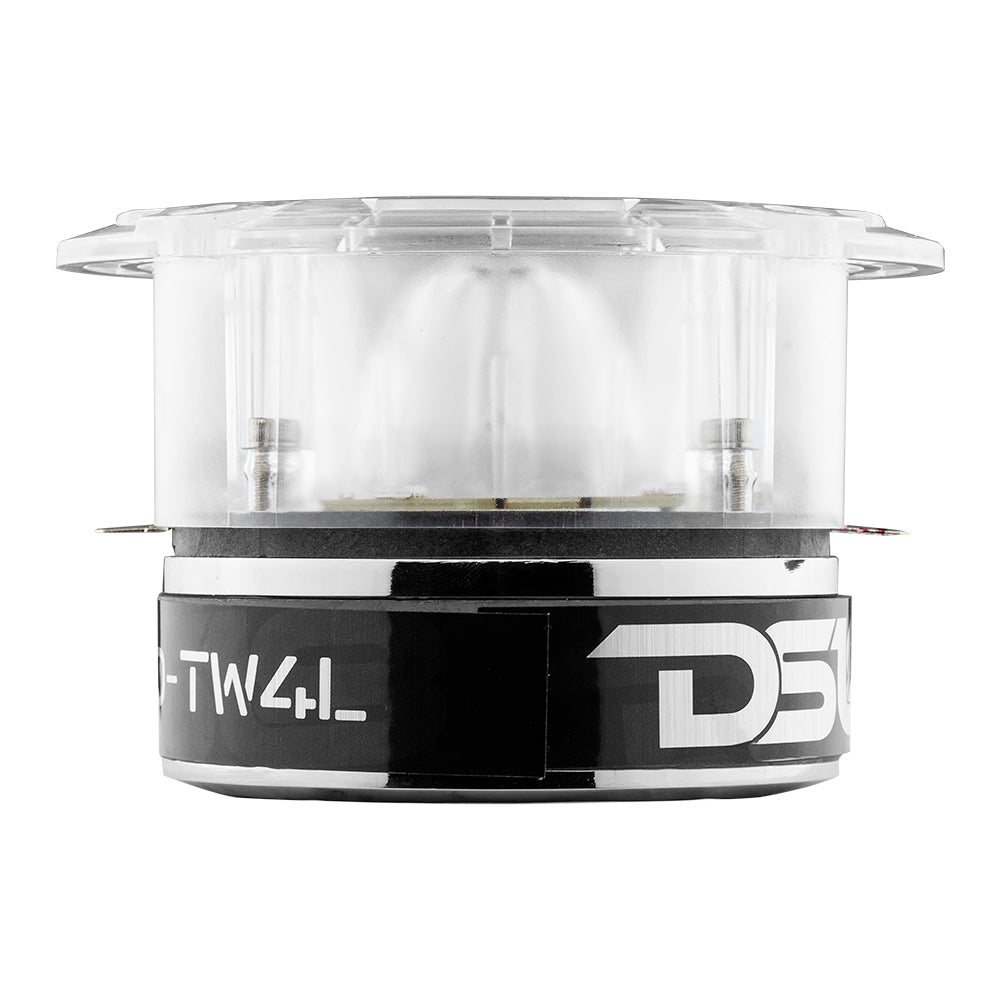

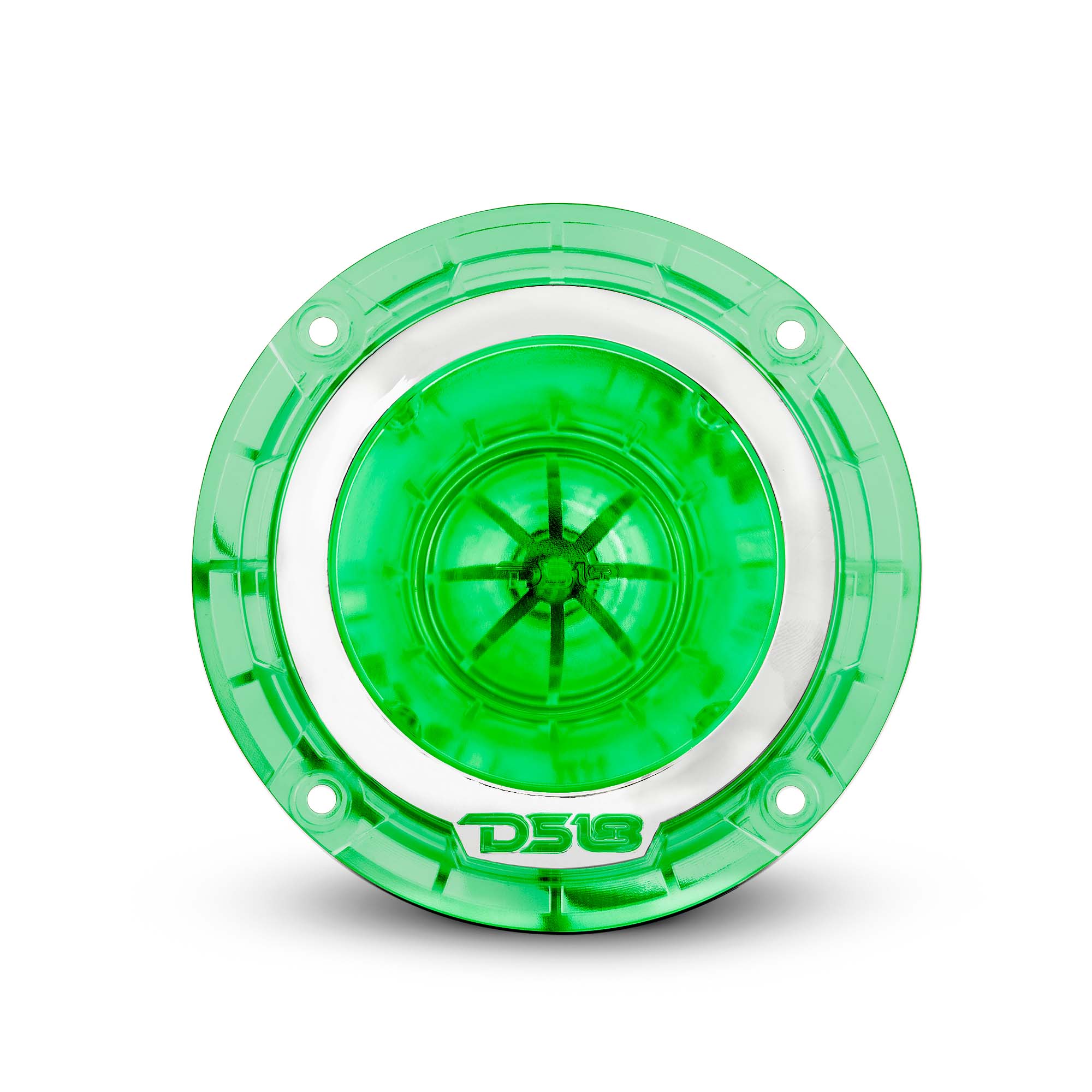

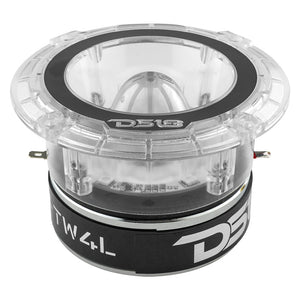

DS18 PRO-TW4L 4.5" Super Bullet Tweeter with RGB LED Lights 560 Watts 1.75" Titanium 4-Ohm Vc

Engineered and designed in the US, the DS18 PRO tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready to deploy for a major concert.

There are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters!

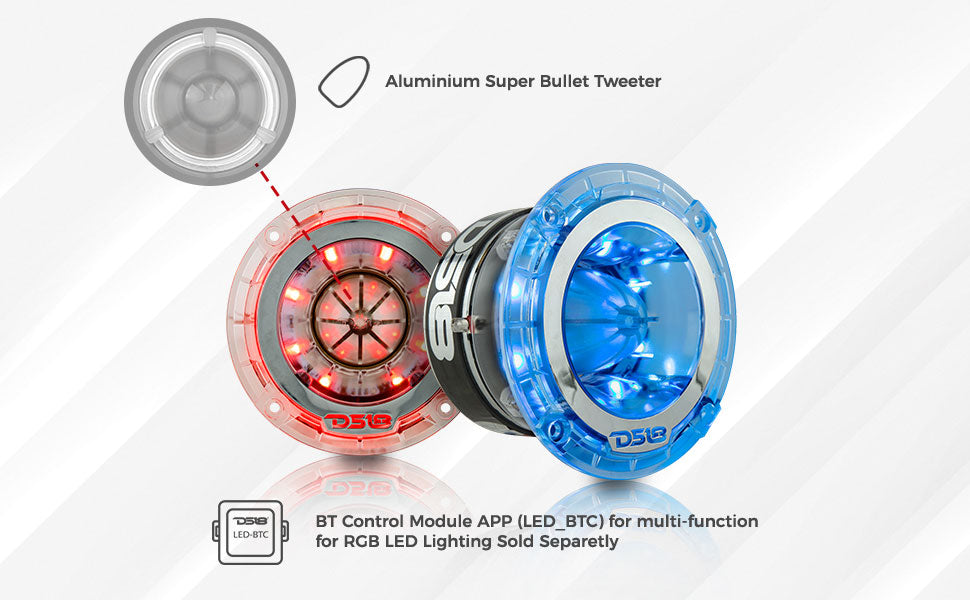

Compatible with DS18 LED-BTC or any other RF/BT/Wi-Fi Controller for Multi-Function RGB LED Lighting (Sold Separately)

Highlights

  • Highly popular mid sized tweeter design that handles big power.
  • Flared design giving it more directional volume than other tweeters.
  • Easily repaired in just a few minutes anywhere in the low chance you need to swap the voice coil out for a new one.
  • Multi colored RGB LEDs to match any color scheme you can imagine.

Technical Details
                                                    PRO-TW4L Product Manual

Model: PRO-TW4L
Type:

Bullet Tweeter
AES Power Handling:
Program Power Handling:		 140 Watts
280 Watts
Peak Power Handling: 560 Watts
Sensitivity: 108dB
Magnet Size: 16oz
Magnet Material: Ferrite
Frequency Response: 1.5KHz - 20KHz
Impedance: 4 Ohms
Diaphragm Material: Titanium
Replacement Diaphragm Model: PRO-TW4LVC
Cut-Out Diameter: 3.56" (90.4mm)
Mounting Depth: 2.66" (67.5mm)
Features: Transparent
Polycarbonate Frame

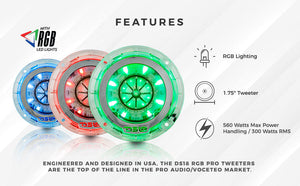

Built-in RGB LED

Key Features

  • 4.5" Super Bullet Tweeter
  • RMS Power: 280 Watts(560 Watts Peak)
  • Impedance : 4 Ohm ~ 108dB
  • Ferrite Magnet
  • RGB LED Lights
  • Easily Repaired With The PRO-TW4.8VC

Specifications

SKU PRO-TW4L
Nominal Diameter 4.5" / 114.3mm
Nominal Impedance 4 Ohm
AES Power Handling 140W
Program Power Handling 280W
Peak Power Handling 560W
Sensitivity (1w/1m) 108 dB

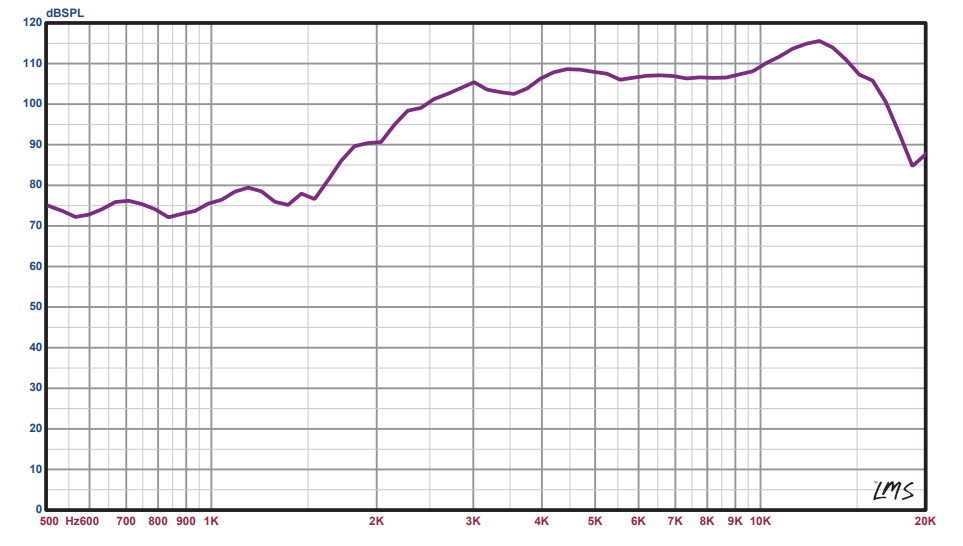

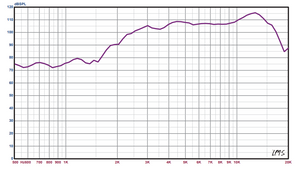

Frequency Response 1.5K - 20KHz
Recommended Hi Pass Crossover 2KHz
Pair or Single Single
Body Material Transparent Polycarbonate
Body Color / Finish Translucid RGB Illuminated
Bullet Material Transparent Polycarbonate
RGB LED YES with 3.2ft input Wire
Voice Coil Diameter 1.75" / 44.4mm
Voice Coil Former Material Kapton
Winding Material CCA
Diaphragm Material Titanium
Magnet Material Ferrite Y30
Magnet Weight 16 Oz

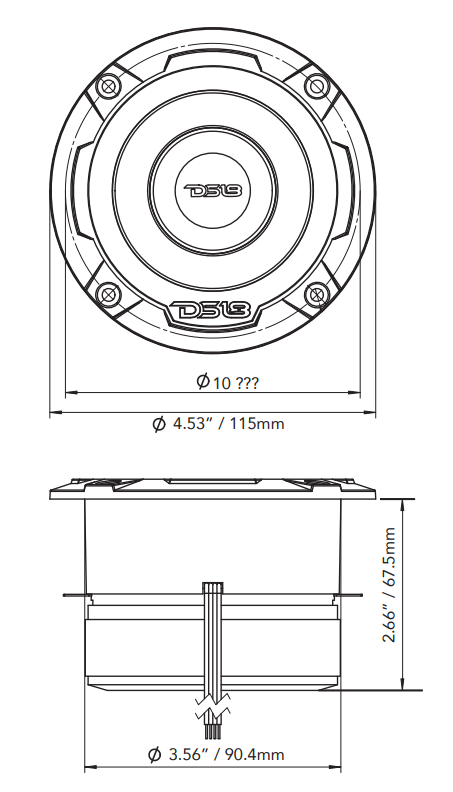

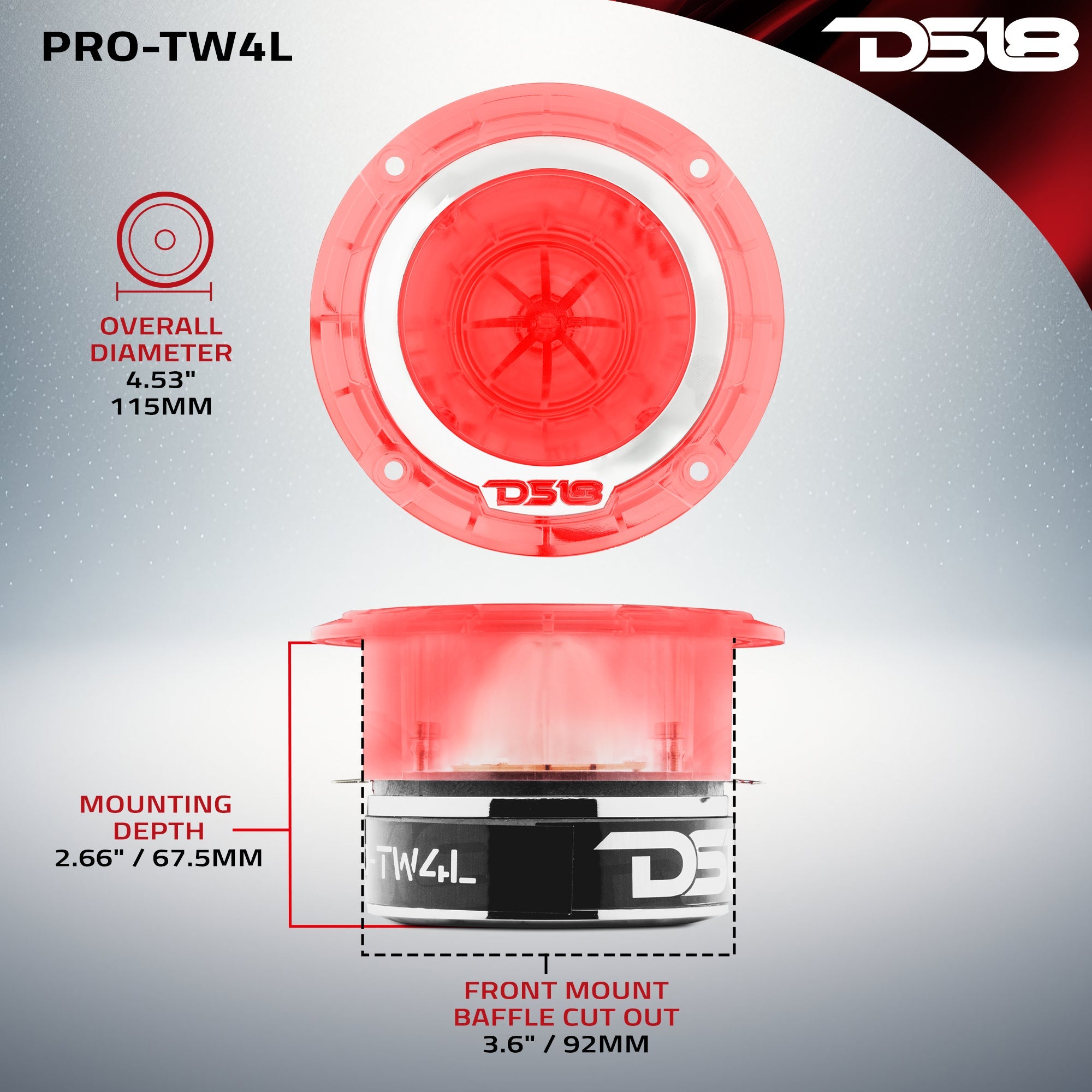

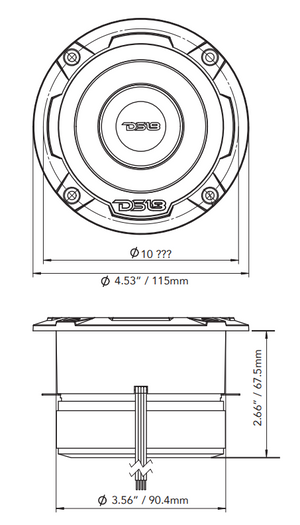

Overall Diameter 4.53" / 115mm
Overall Depth 2.85" / 72.5mm
Front Mount Baffle Cutout 3.6" / 92mm
Mounting Depth 2.66" / 67.5mm
Magnet Diameter 3.54" / 90mm
Gross Single Unit Weight (lb) 3
Single Unit Box Dimensions W x L x H (Inches) 5.5 x 5 x 3.25
Quantity of Units in Master Carton 12
Gross Master Carton Weight (lb) 37
Master Carton Dimensions W x L x H (Inches) 12 x 7 x 16
