Recone Kit for PRO-3KP12.2
Recone Kit for PRO-3KP12.2
Recone Kit for PRO-3KP12.2
Product Overview

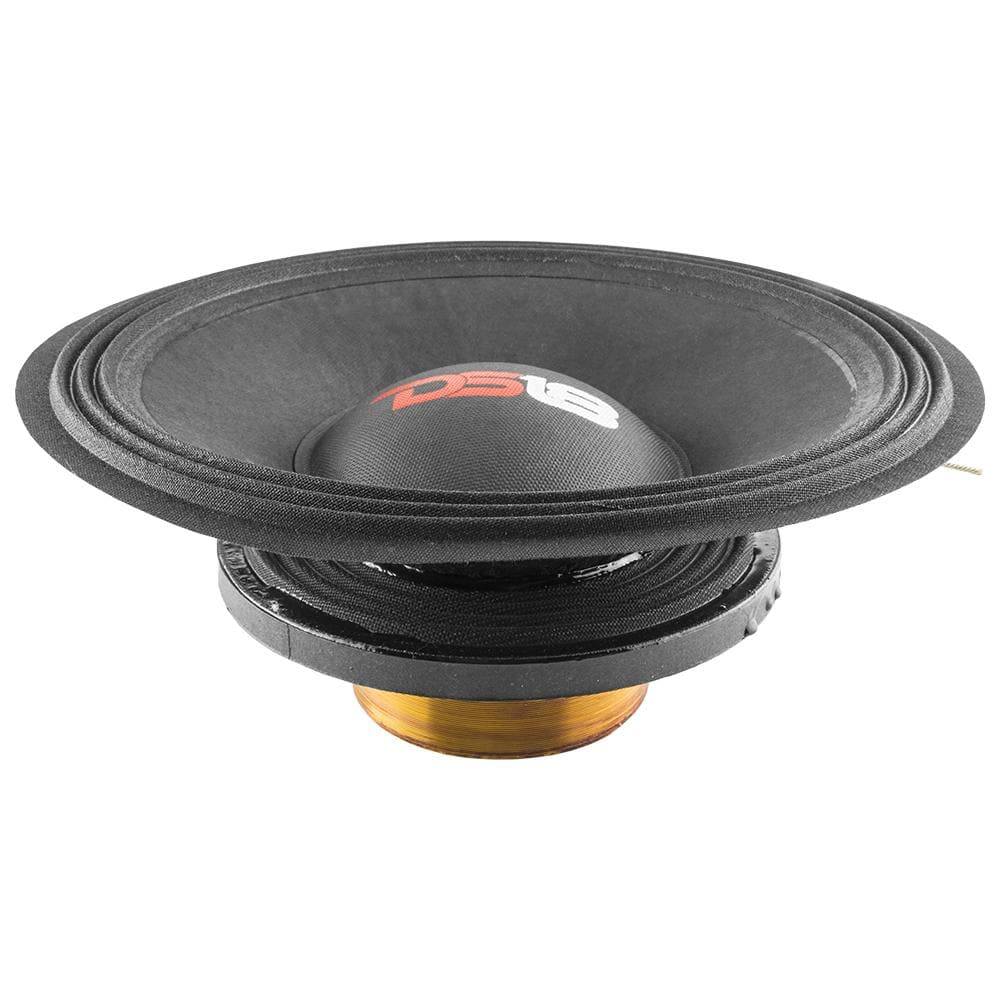

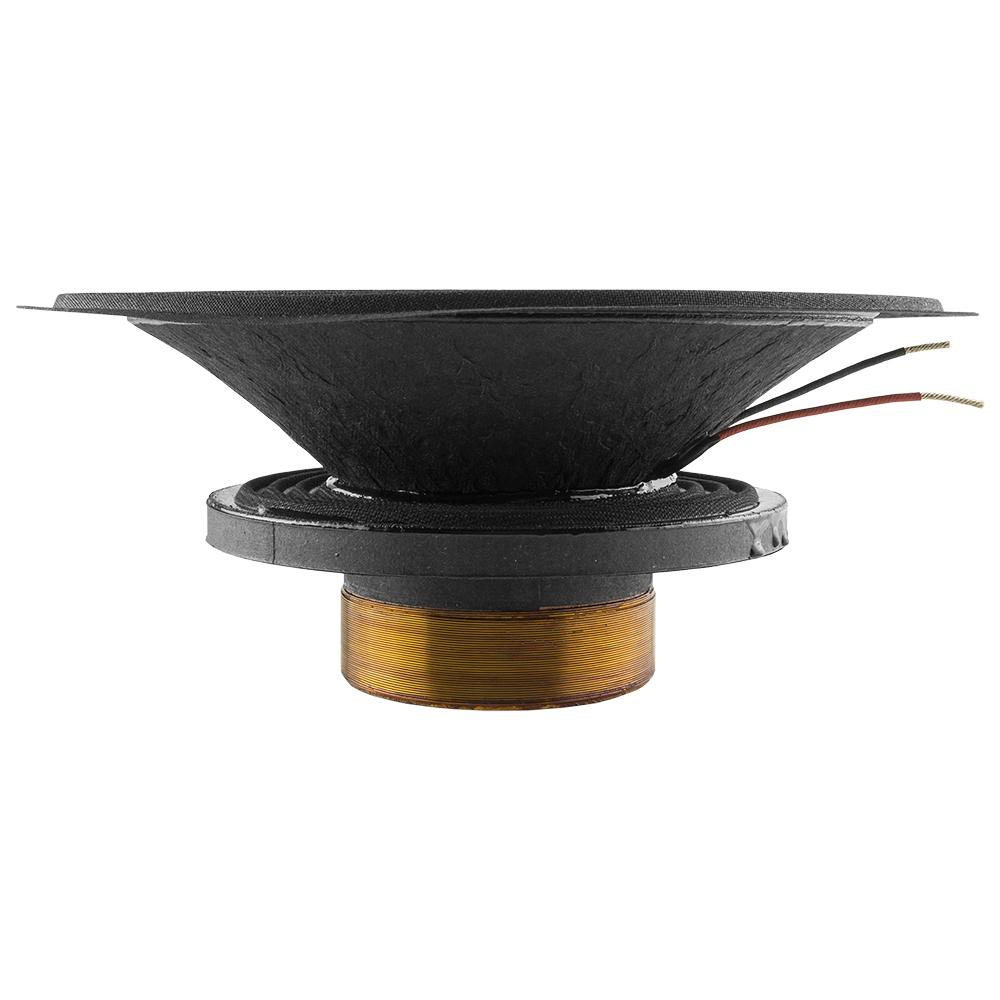

DS18 PRO-3KP12.2RCK Recone Kit for PRO-3KP12.2
PANCADÃO 12" 2 OHM RECONE KIT
Highlights
Easy to use drop in recone kit for your speaker or subwoofer. The recone will require CA Glue and E6000 glue to firmly glue the new replacement parts firmly to the old baskets and magnets.
Key Features
- Re Cone Kit
- For PRO-3KP12.2
- Impedance: 2 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
Specifications
| SKU | PRO-3KP12.2 |
|---|---|
| Nominal Diameter | 12" |
| Nominal Impedance | 2 ohms |
| RMS Power Handing | 3000W |
| Maximum Power Handing | 4500W |
| Sensitivity (1w/1m) | 94.3dB |
| Frequency Response | 60Hz-9KH |
| Recommended Hi Pass Crossover | 70 Hz |
| Voice Coil Diameter | 4" |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 250 oz |
| Vas | 39.97 L |
| Xmax | 7 mm |
| Fs | 45.13Hz |
| Qms | 7.79 |
| Qes | 0.209 |
| Qts | 0.203 |
| Re | 1.8 ohm |
| Overall Diameter | 12.36" / 314 mm |
| Front Mount Baffle Cutout | 11.18" / 284 mm |
| Mounting Depth | 7.2" / 183 mm |
| Overall Depth | 7.75" / 197 mm |
| Product Weight | 51 lbs |
| Product Dimensions | 15 x 15 x 11 |
| M/C Weight | 51 lbs |
| M/C Dimensions | 15 x 15 x 11 |
| M/C QTY | 1 |
| Sold In | Piece |
