Shackle Relocation Kit | Jeep Cherokee XJ 2WD/4WD (1984-2001)
Fine-tuning the rear suspension travel of your Jeep XJ has never been easier, thanks to Rough Country's...
- $129.95
- $129.95
- Unit price
- per
Subtotal:
$129.95
Couldn't load pickup availability
Out of stock

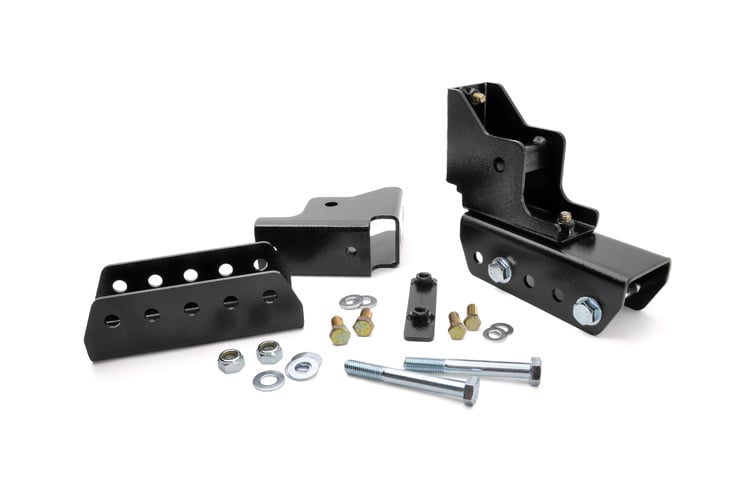

Fine-tuning the rear suspension travel of your Jeep XJ has never been easier, thanks to Rough Country's Jeep XJ Shackle Relocation Kit. Featuring a set of frame brackets and shackle brackets, this kit relocates the stock shackle positioning, preventing it from bottoming out against the unibody. Once installed, the shackle is capable of a much greater range of motion, offering increased articulation for off-road use. Whether you run a stock or aftermarket shackle, need to accommodate various sized leaf springs, or want to use in conjunction with a separate lift kit, these shackle brackets offer 5 different mounting points which allow you to select the shackle angle you prefer with the equipment you have. Depending on which mounting point you select, this kit can provide up to 1.5in of lift as well. These powder coated components feature 100% bolt-on installation, making them one of the easiest Shackle Kits to install in the industry, all at an industry leading price.
Features
Easy bolt-on installation.
Fine tune the rear suspension of your XJ.
5 different mounting points.
Places shackle in optimum location for maximum articulation.
Allows for greater articulation off-road.
Notes
Adds approximately 1in - 1.5in of lift. Longer rear shocks are recommended. A taller coil or coil spacers in the front are recommended to level the vehicle. Exhaust modifications may be required for adequate clearance of the shackle bracket.
Instructions
The Kaos Run Down
Fitment Year: 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Make: Jeep
Model: Cherokee
Submodel: Classic
Drive: 4WD
Install Time: 2-3 hours
Manufacturer SKU: 1117
