R2SD4-10
R2SD4-10
R2SD4-10
Overview

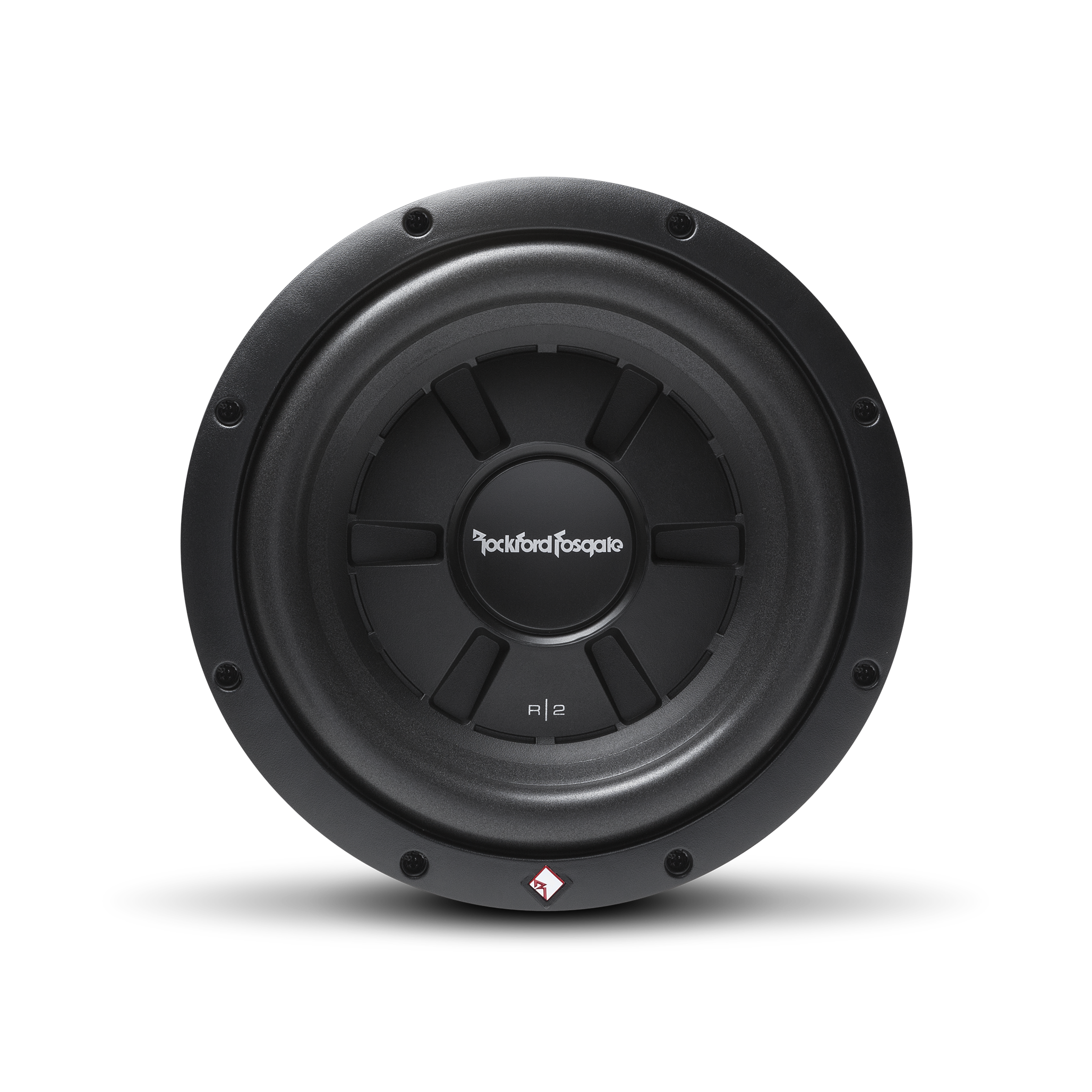

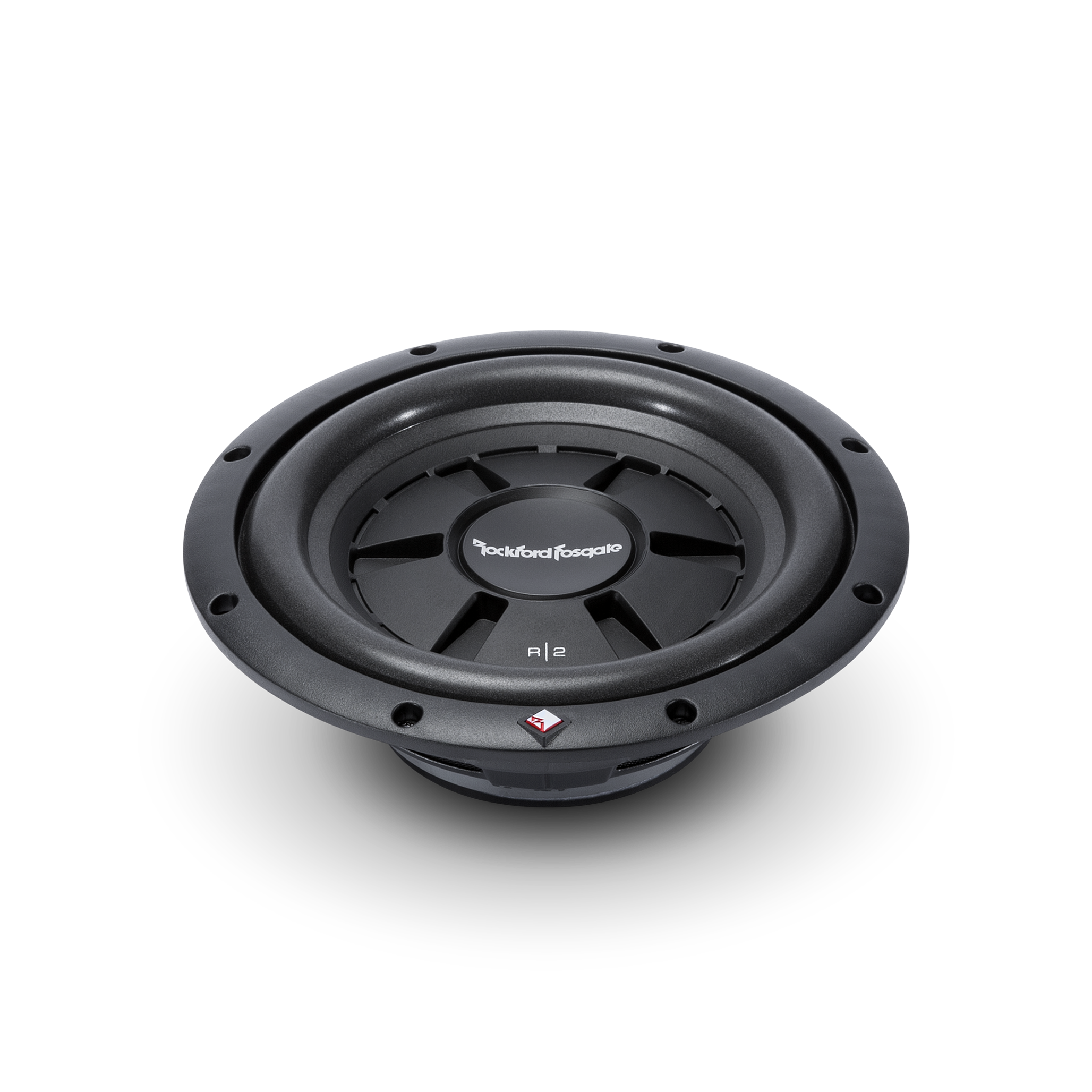

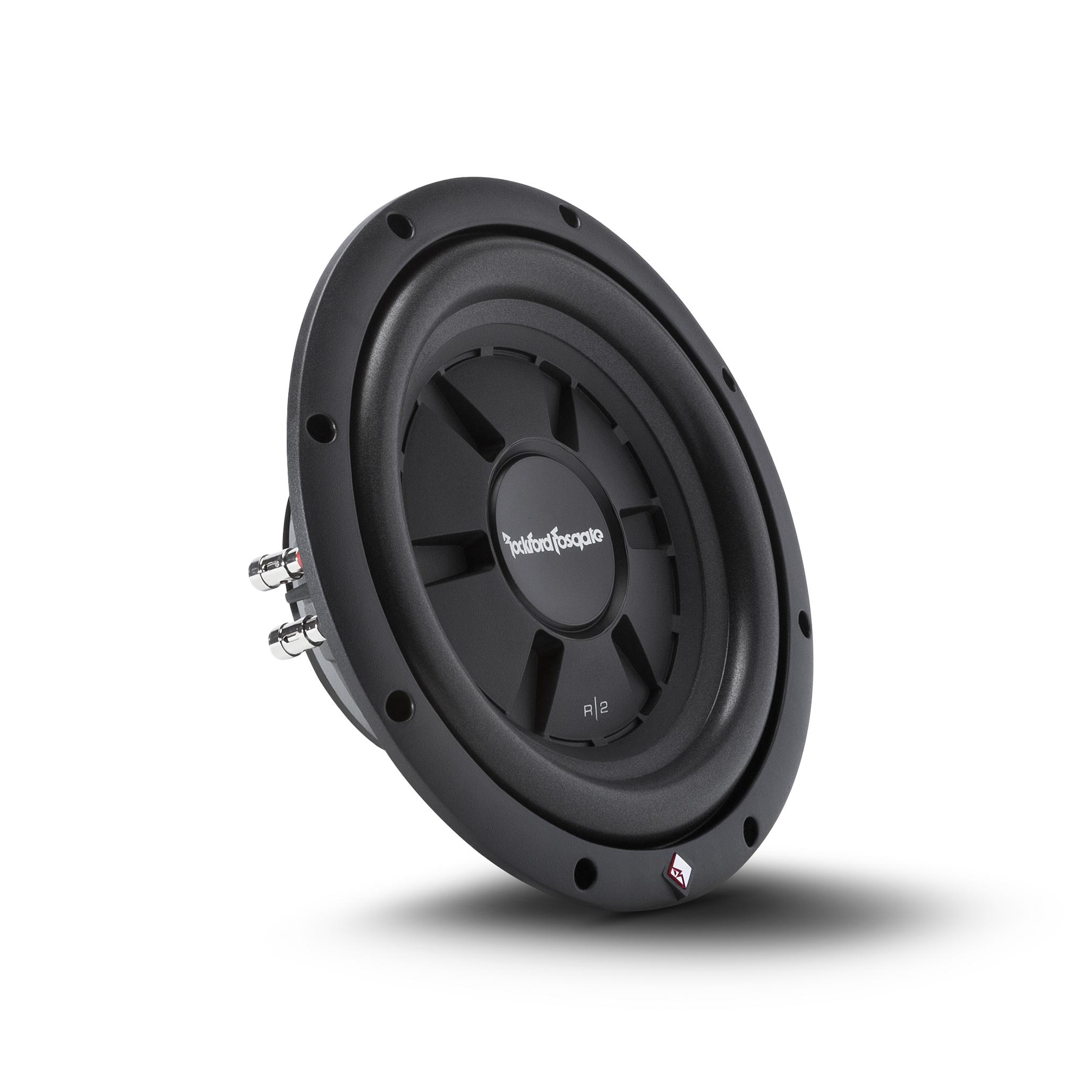

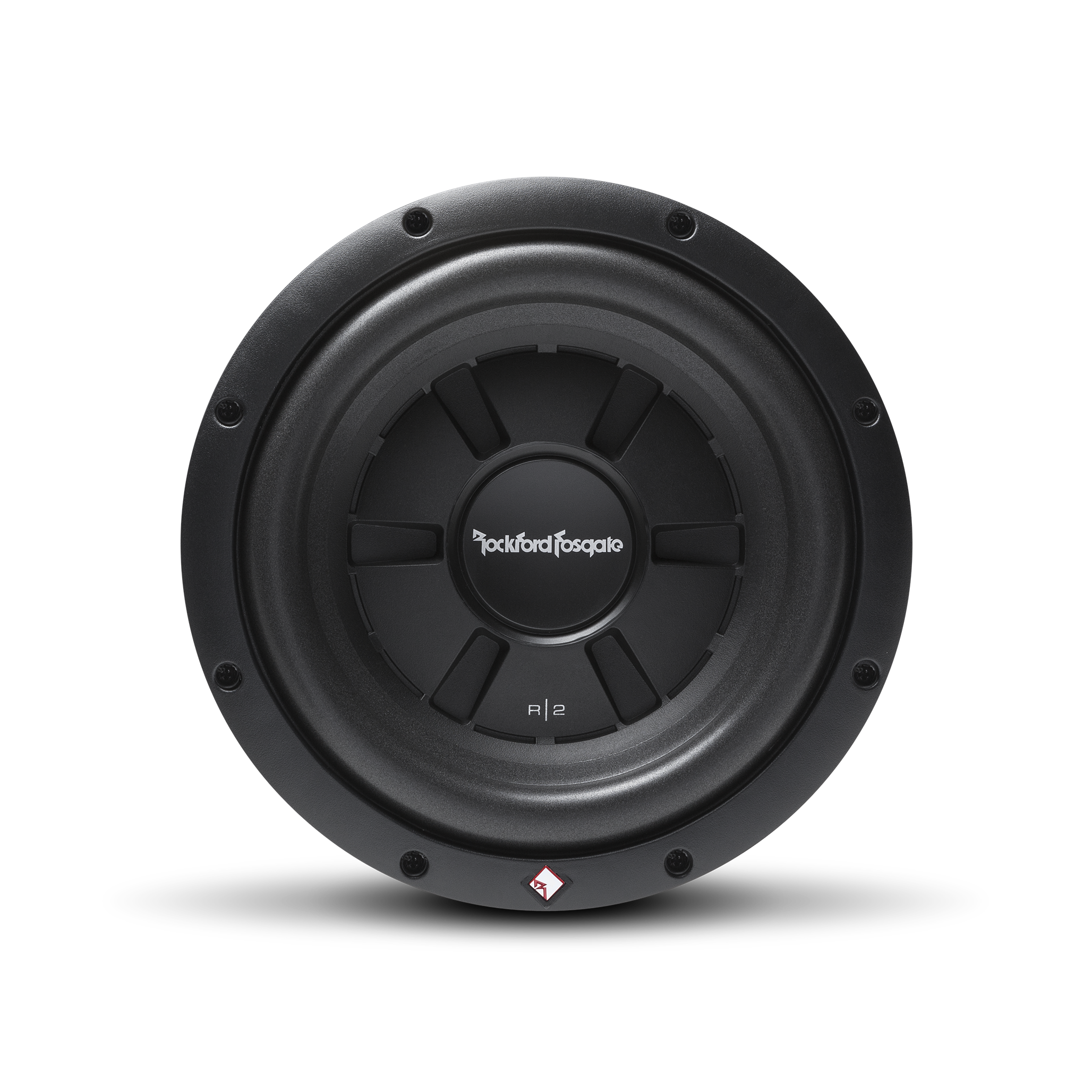

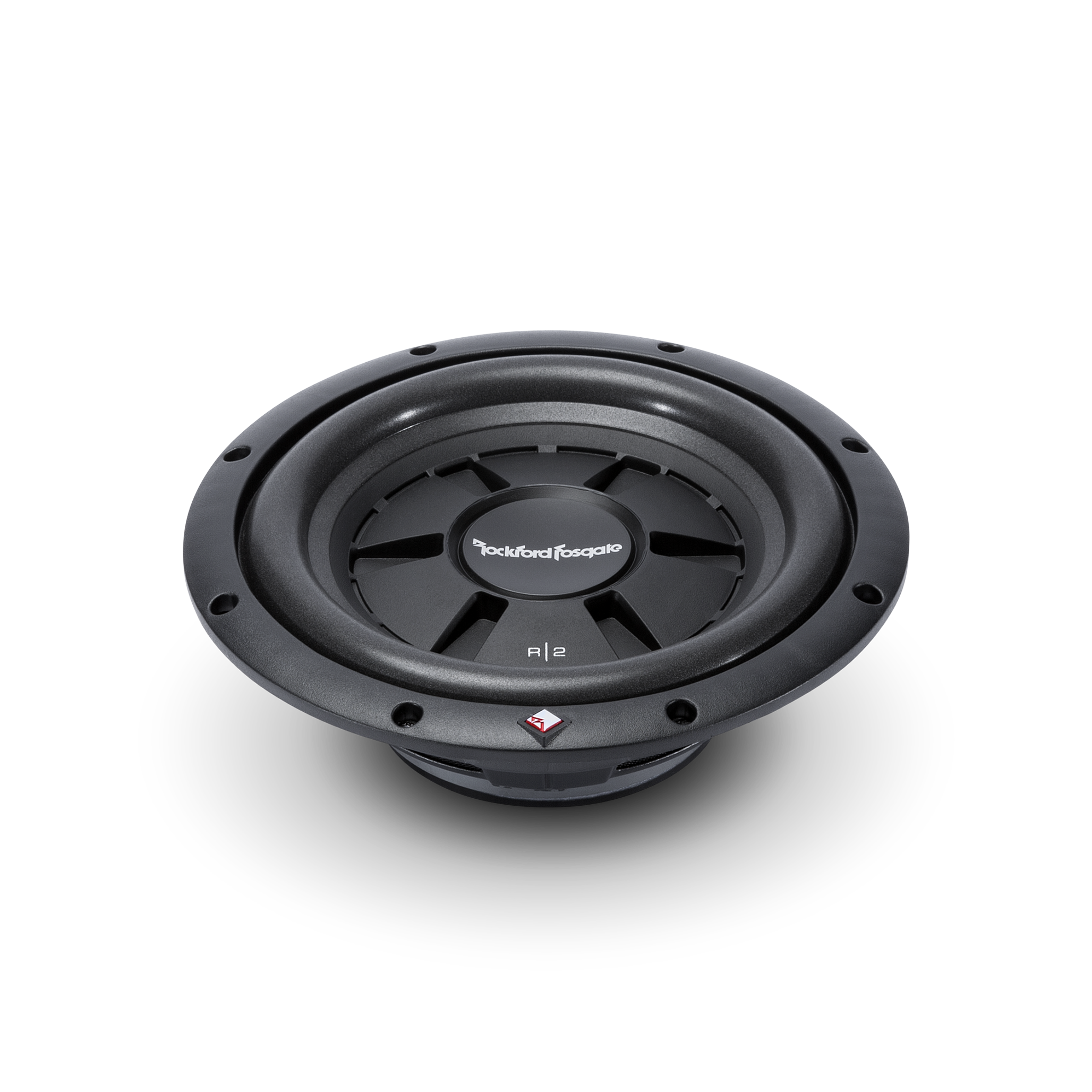

When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10" subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.
Features
- 1 Year Warranty
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Integrated PVC trim ring
- Linear spider with embedded 16 AWG tinsel leads
- Mica injected polypropylene cone
- Optimized for sealed enclosures

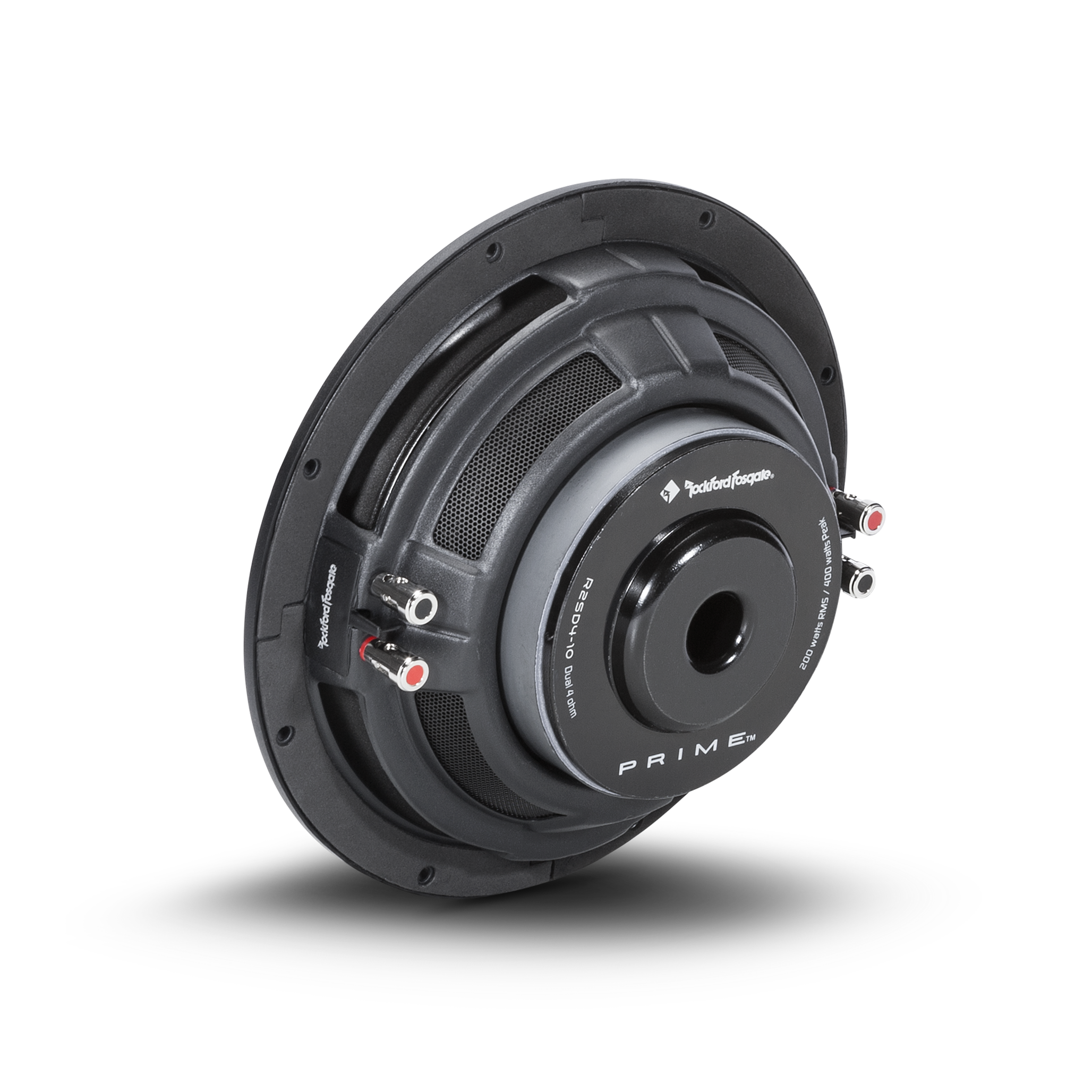

- Shallow Motor Assembly
- StampCast basket with integrated spider venting
Specifications
- Cutout Diameter: 9.125 in. (232 mm)
- Fs (Hz): 39.3
- Le (mH): 4.2
- Magnet Weight (oz): 45 oz. 1.28 kg.
- Mounting Depth: 3.417 in. (86 mm)
- Nominal Impedance: Dual 4-Ohm
- Power Handling (Watts RMS): 200 Watts RMS; 400 Watts Max
- Re (Ohms): 6.6
- SPL (dB @ 1w/1m): 82.5
- Sd (cm2): 333
- Size: 10"
- Vas (Liters): 21.7
- Xmax (mm): 8
- Voice Coil Diameter: 2" (50 mm)
- Shipping Weight: 10.588 Lbs. (4.80 kg.)
- Speaker Connector: Dual 12 AWG compression
- Qms: 7
- Qts: 0.73
- Woofer Displacement: 0.037 cu. ft. (1.05 Liters)
- Qes: 0.81
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.7 cu. ft. (19.8 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
