Overview

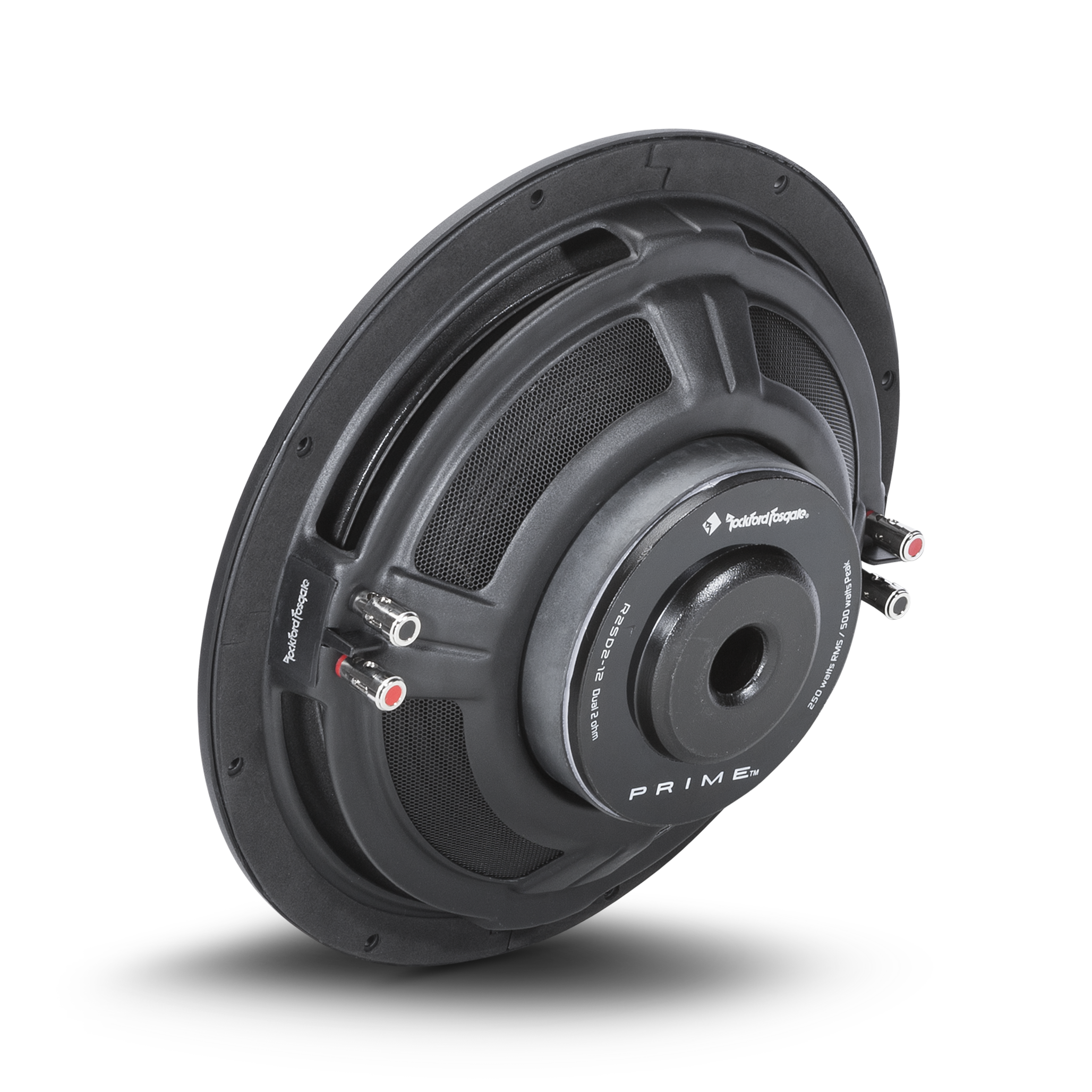

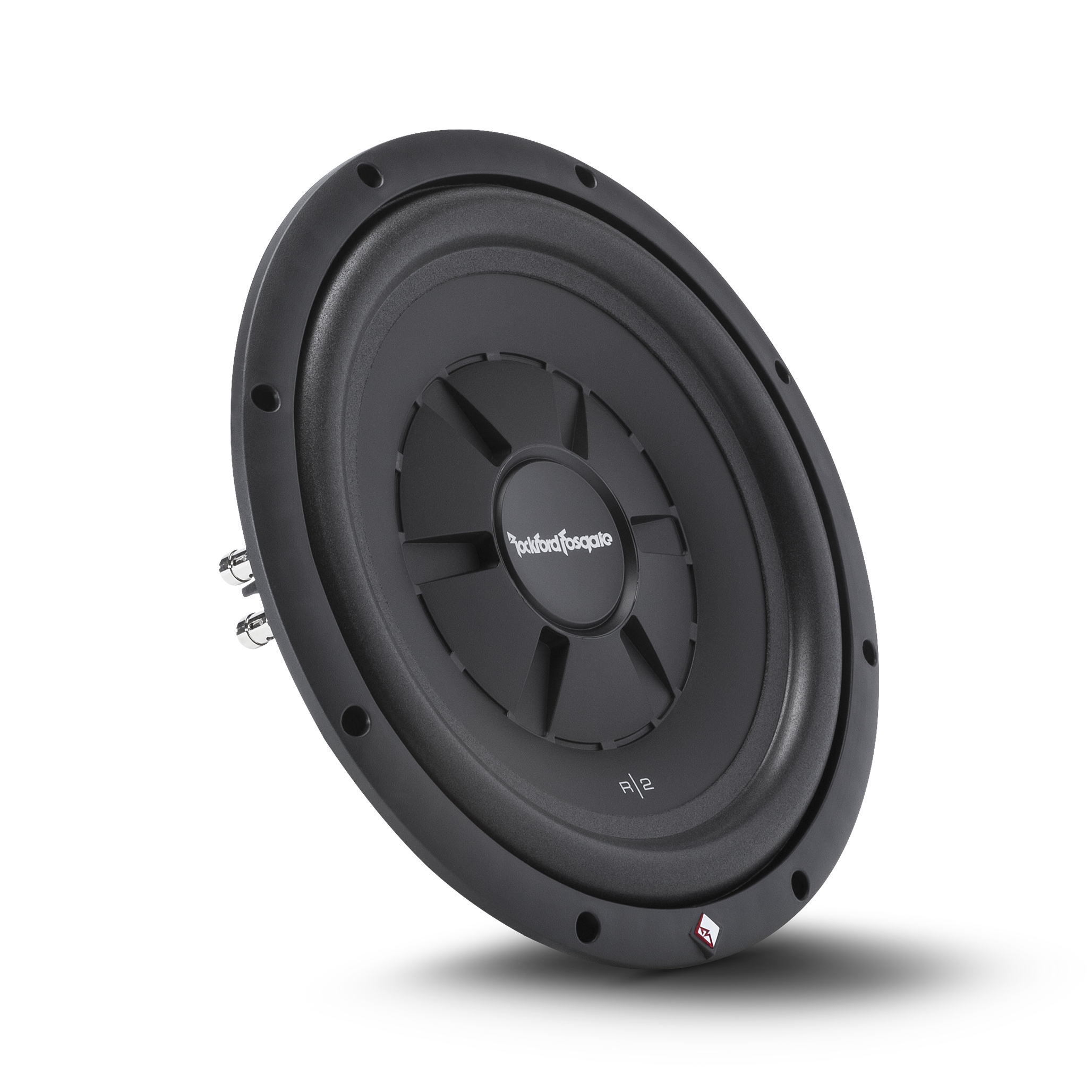

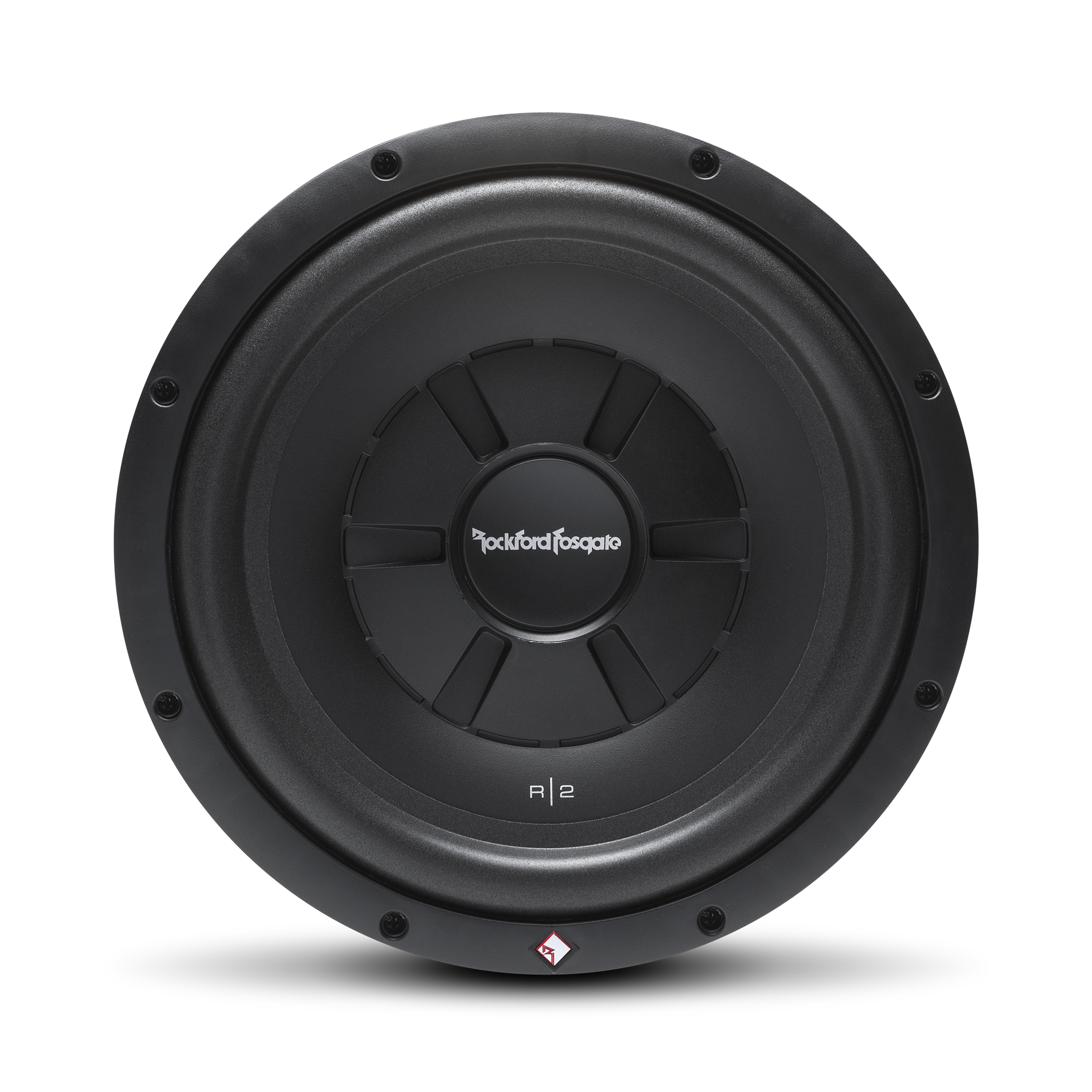

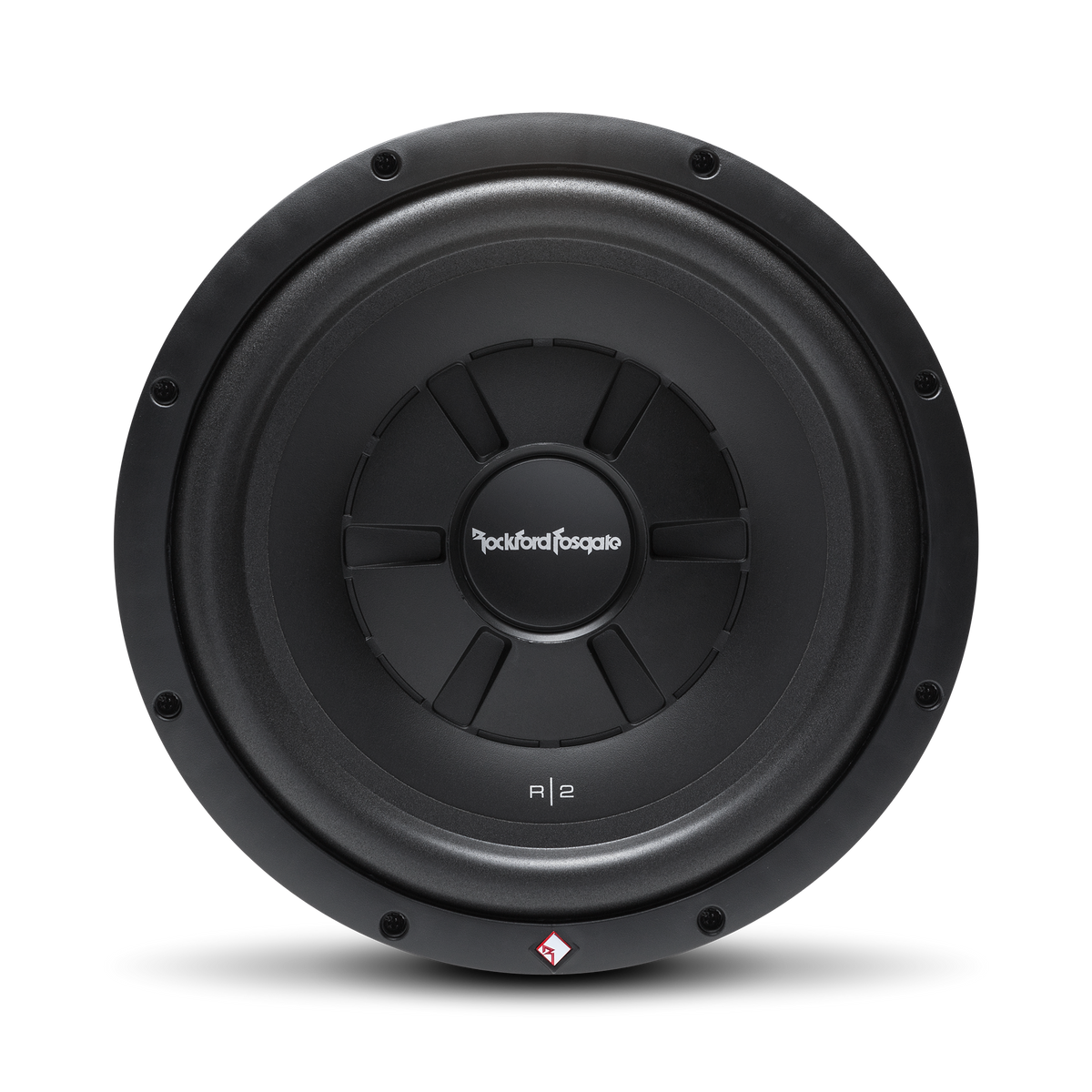

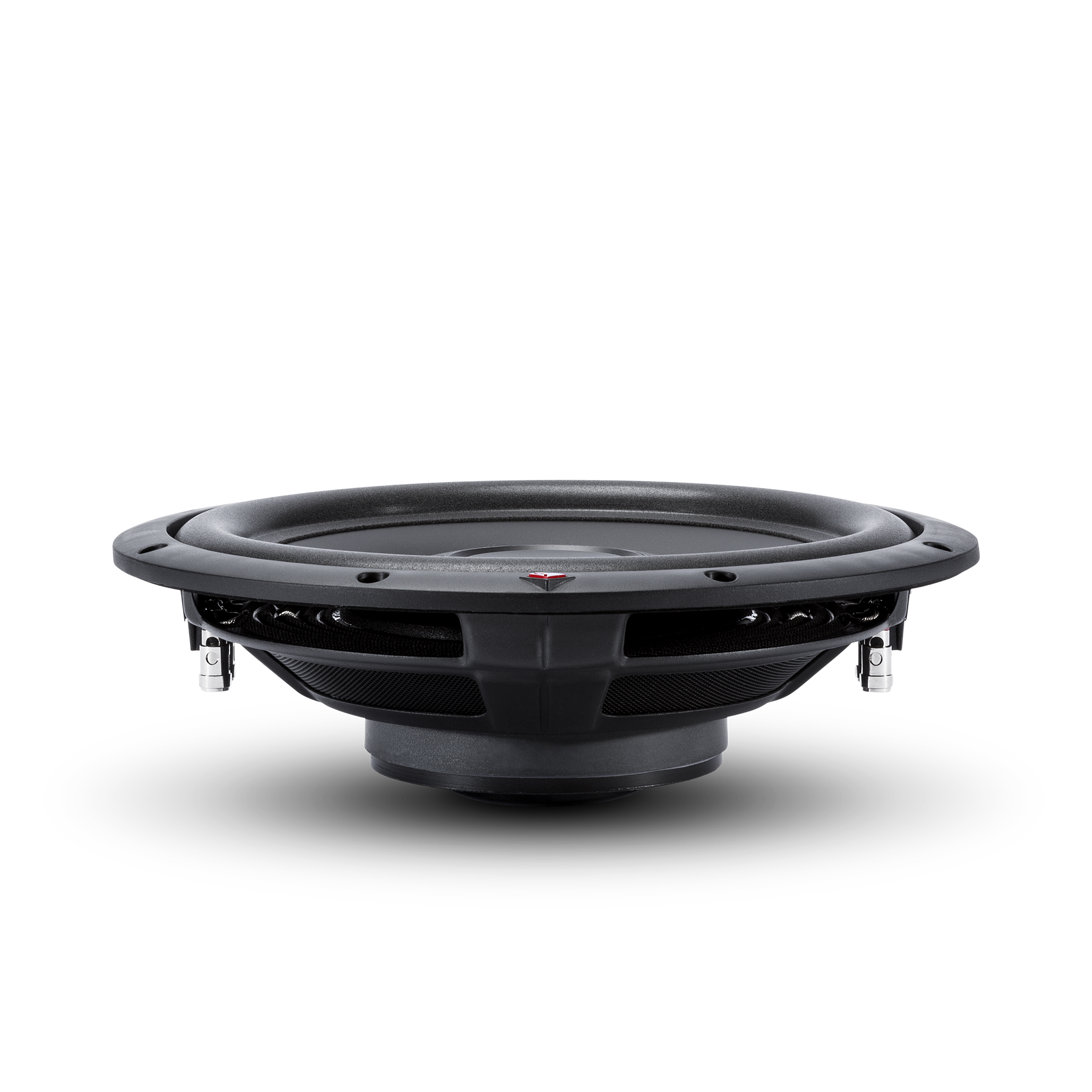

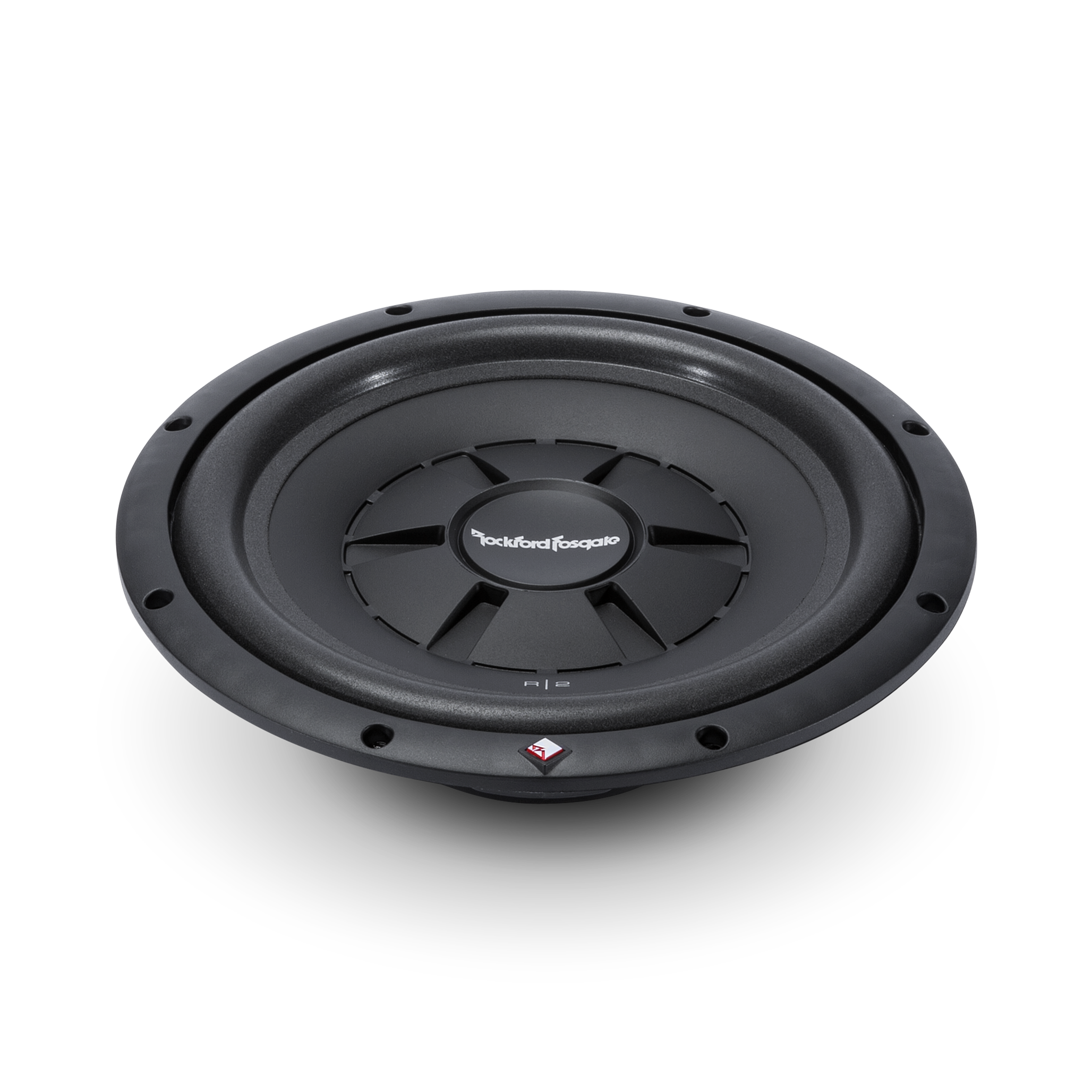

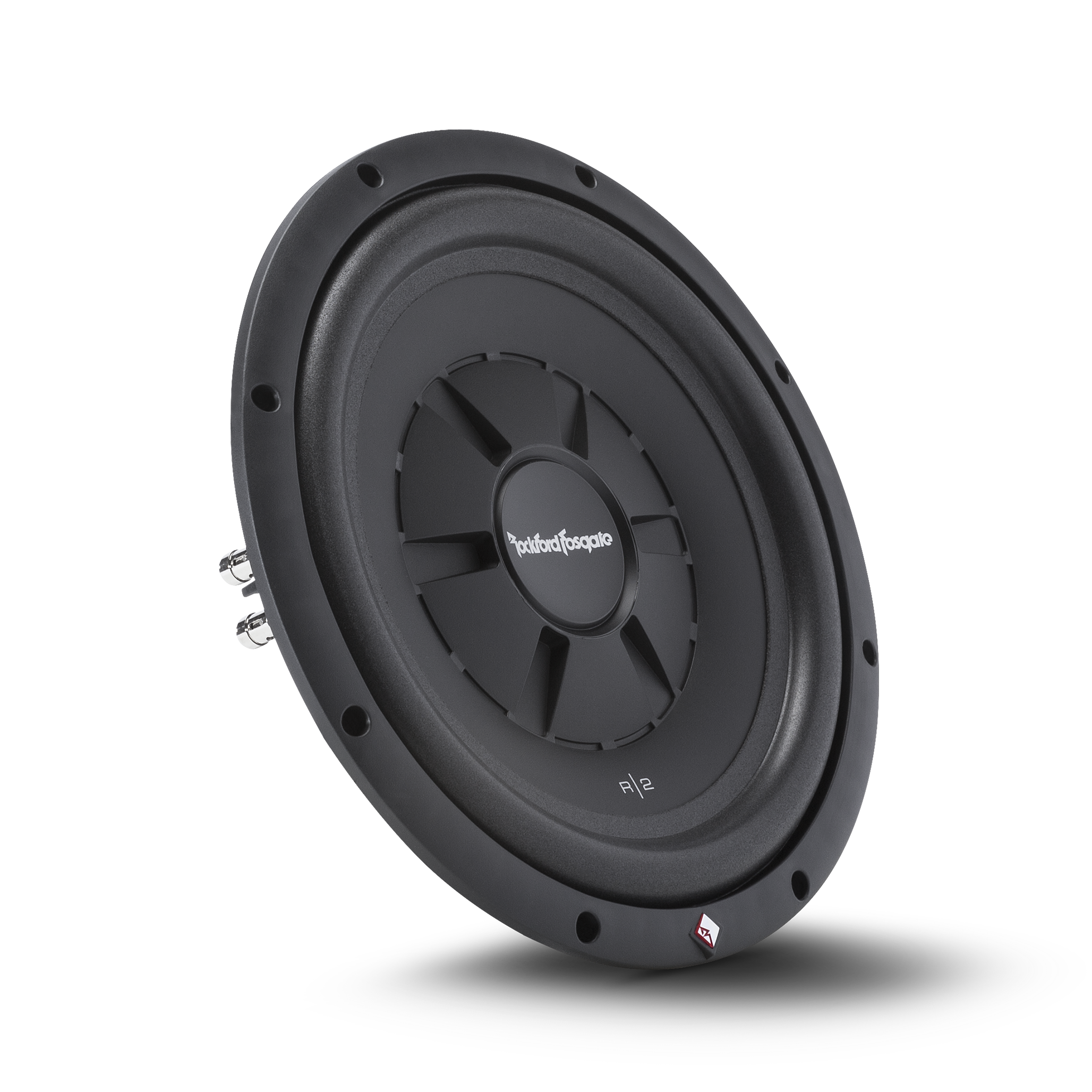

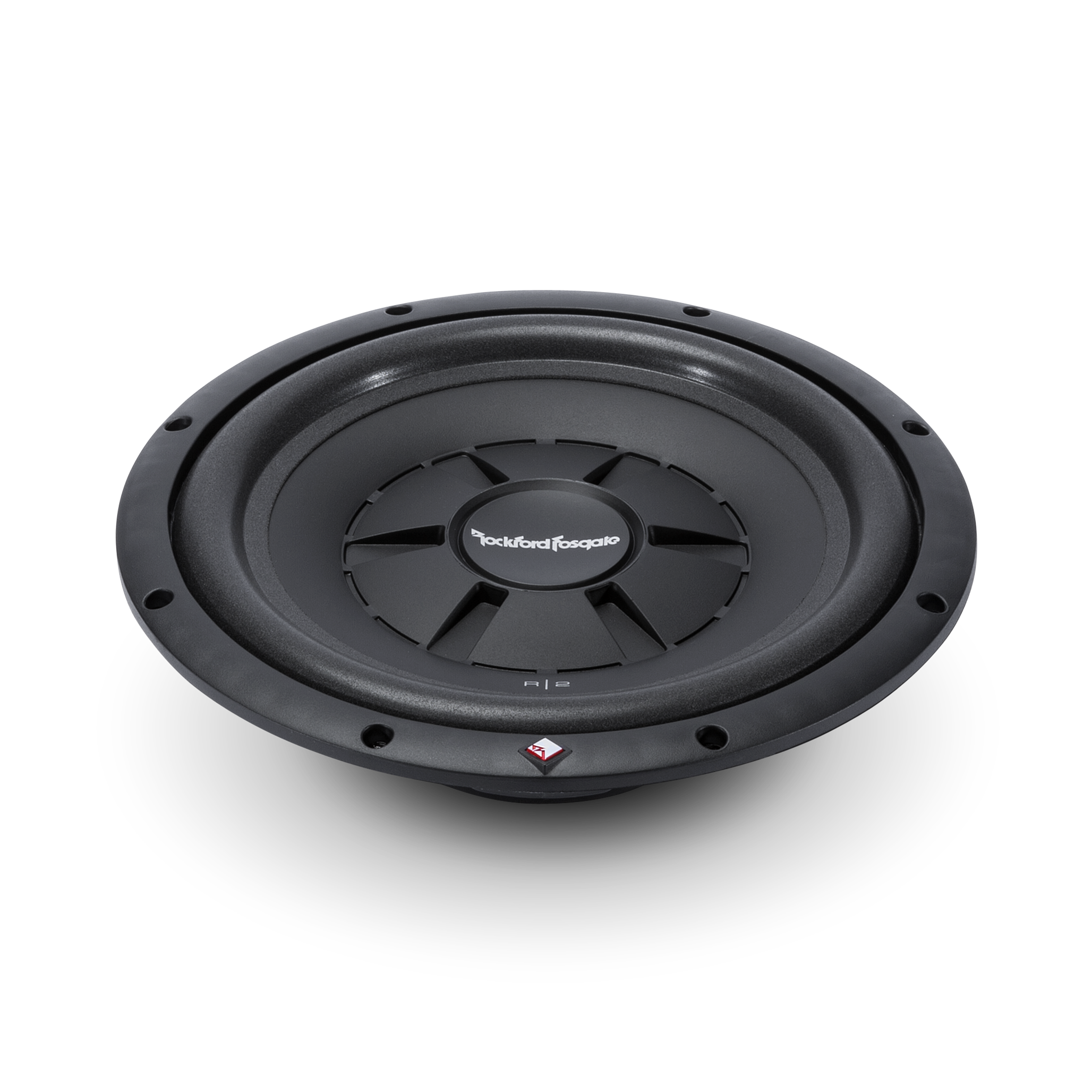

The Prime R2SD2-12 is a 12" subwoofer that handles 250 Watts RMS and has a 2-Ohm Dual Voice Coil design that lets you wire them in various configurations.
Features
- 1 Year Warranty
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Integrated PVC trim ring
- Linear spider with embedded 16 AWG tinsel leads
- Mica injected polypropylene cone
- Optimized for sealed enclosures
- Shallow Motor Assembly
- StampCast basket with integrated spider venting
Specifications
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- Nominal Impedance: Dual 2-Ohm
- Sd (cm2): 534.8
- Size: 12"
- Speaker Connector: Dual 12 AWG compression
- Shipping Weight: 12.013 Lbs. (5.44 kg.)
- Fs (Hz): 29.7
- Voice Coil Diameter: 2" (50 mm)
- Cutout Diameter: 11.25 in. (285 mm)
- Woofer Displacement: 0.039 cu. ft. (1.1 Liters)
- Qts: 0.66
- Qes: 0.71
- Qms: 9
- SPL (dB @ 1w/1m): 85
- Mounting Depth: 3.602 in. (91 mm)
- Le (mH): 4.2
- Magnet Weight (oz): 51 oz. (1.45 kg.)
- Re (Ohms): 3.8
- Vas (Liters): 65.4
- Xmax (mm): 10
- Subwoofer Type: Shallow
- Sealed Box Volume (Vb): 0.9 cu. ft. (25.4 Liters)
- Voice Coil Type: Dual Voice Coil
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
