Overview

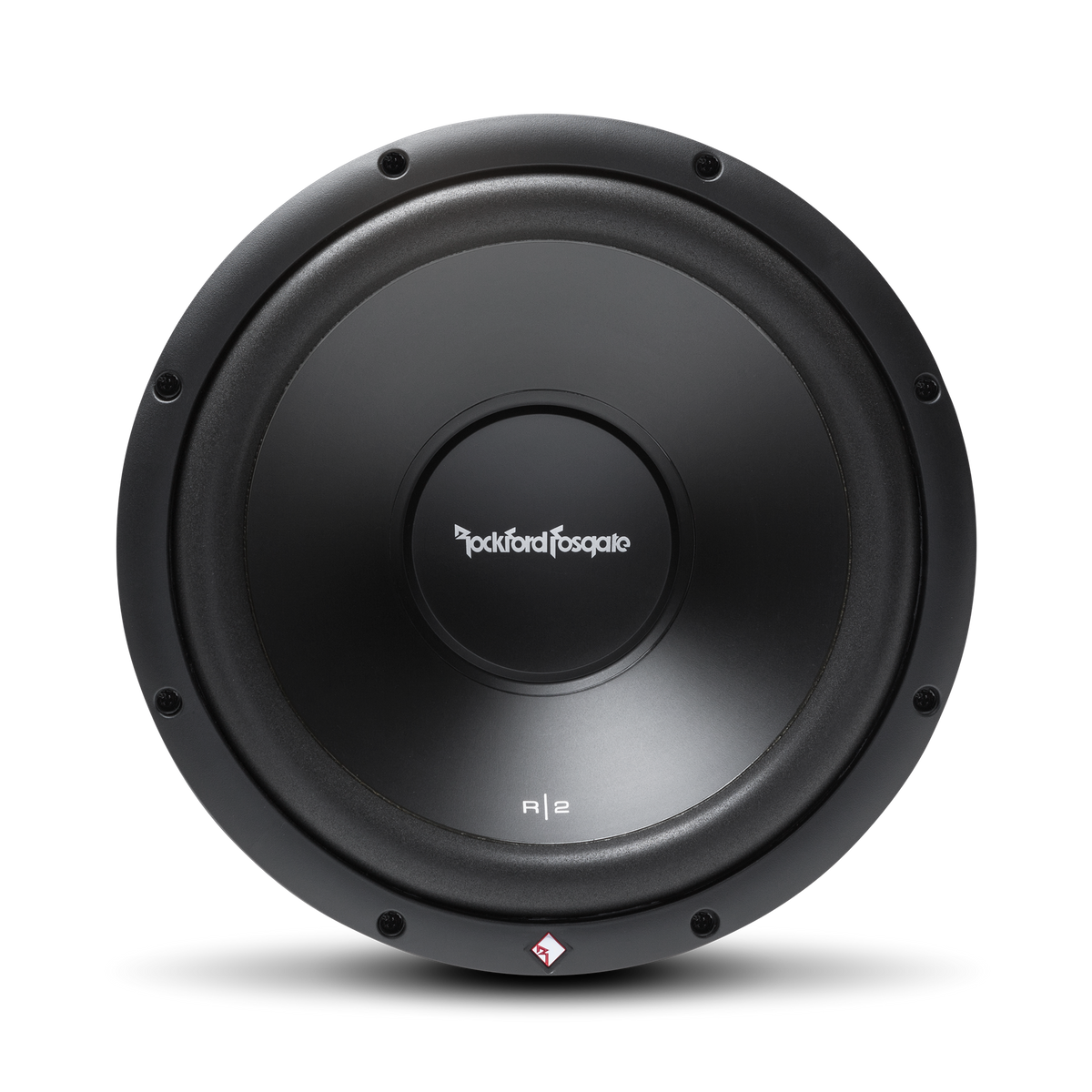

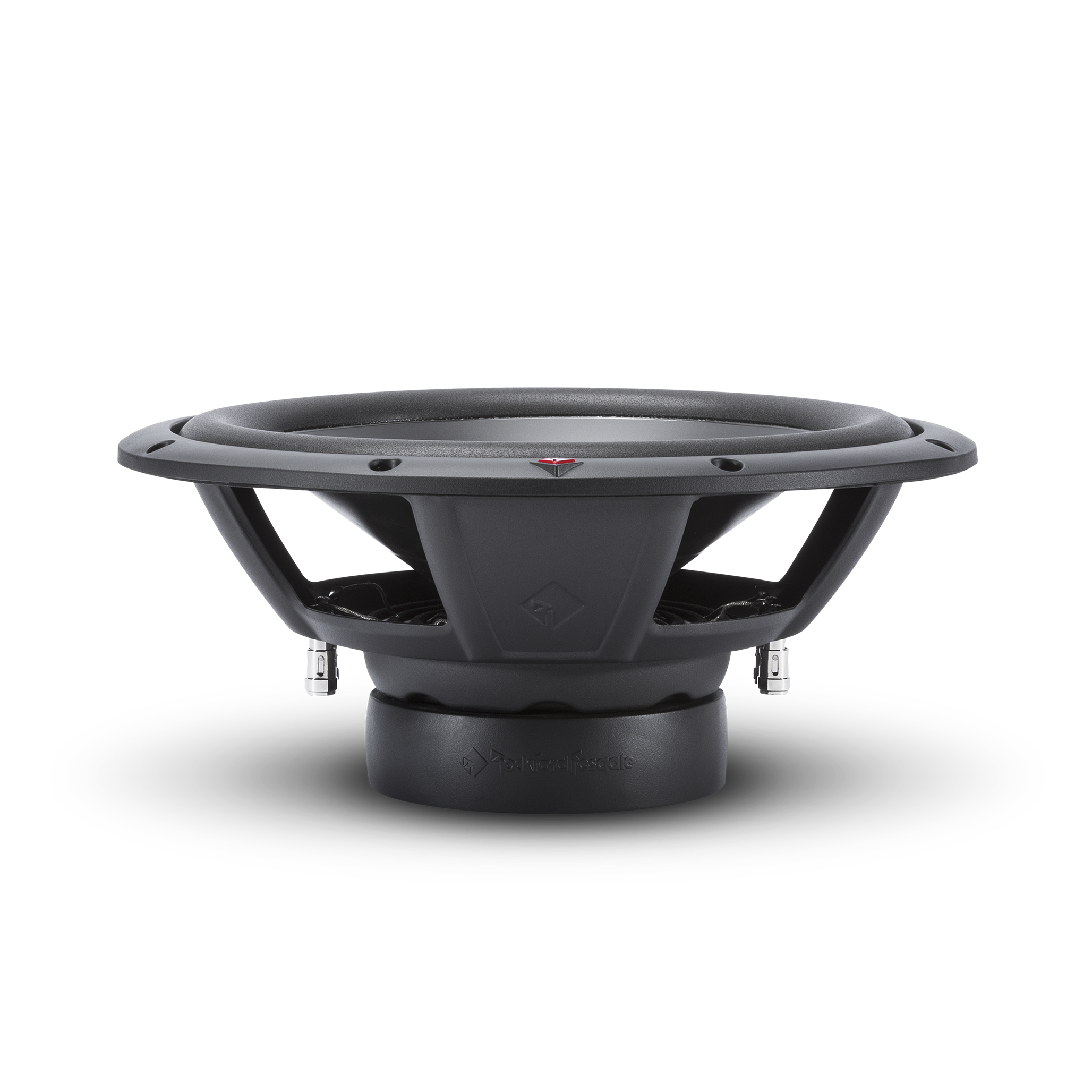

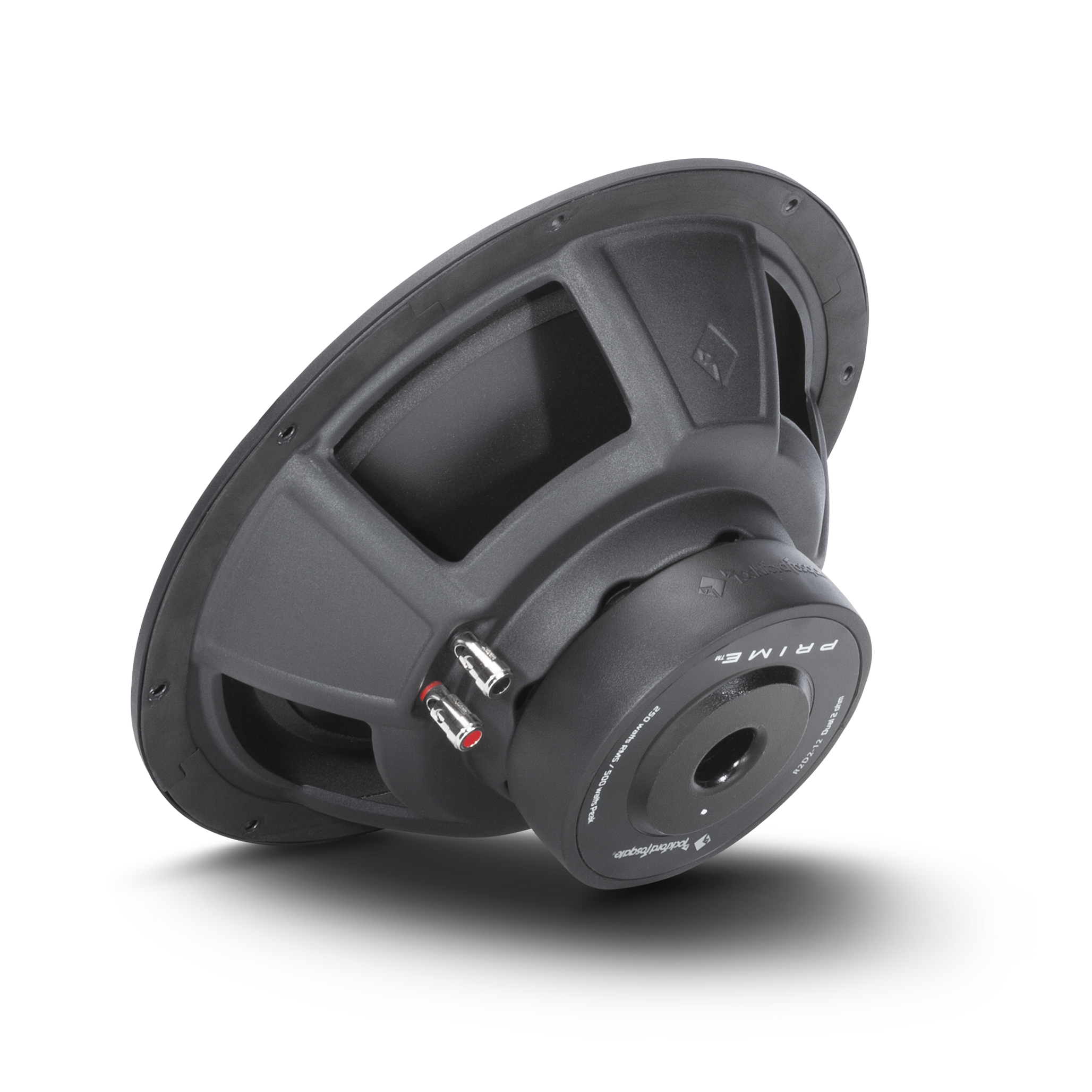

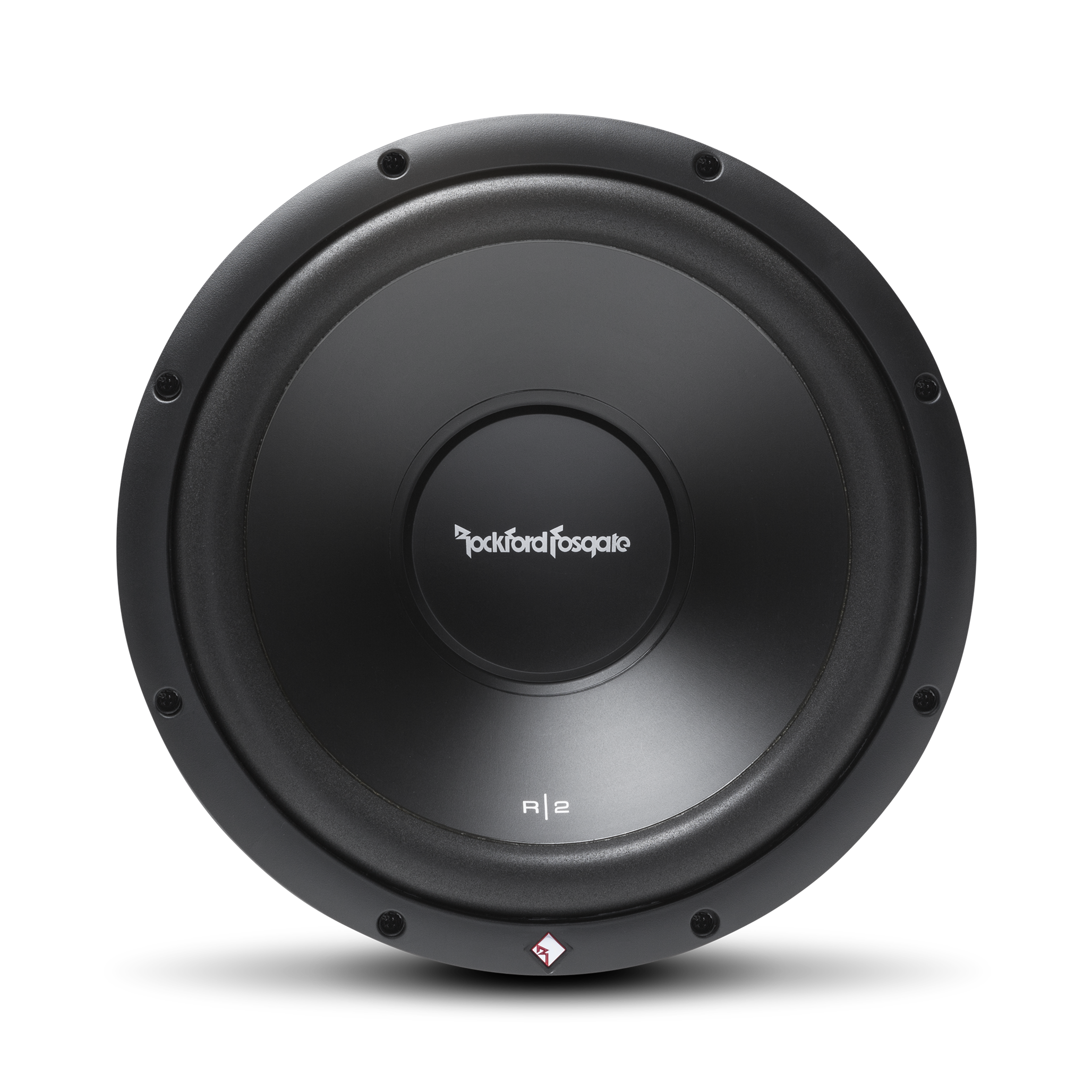

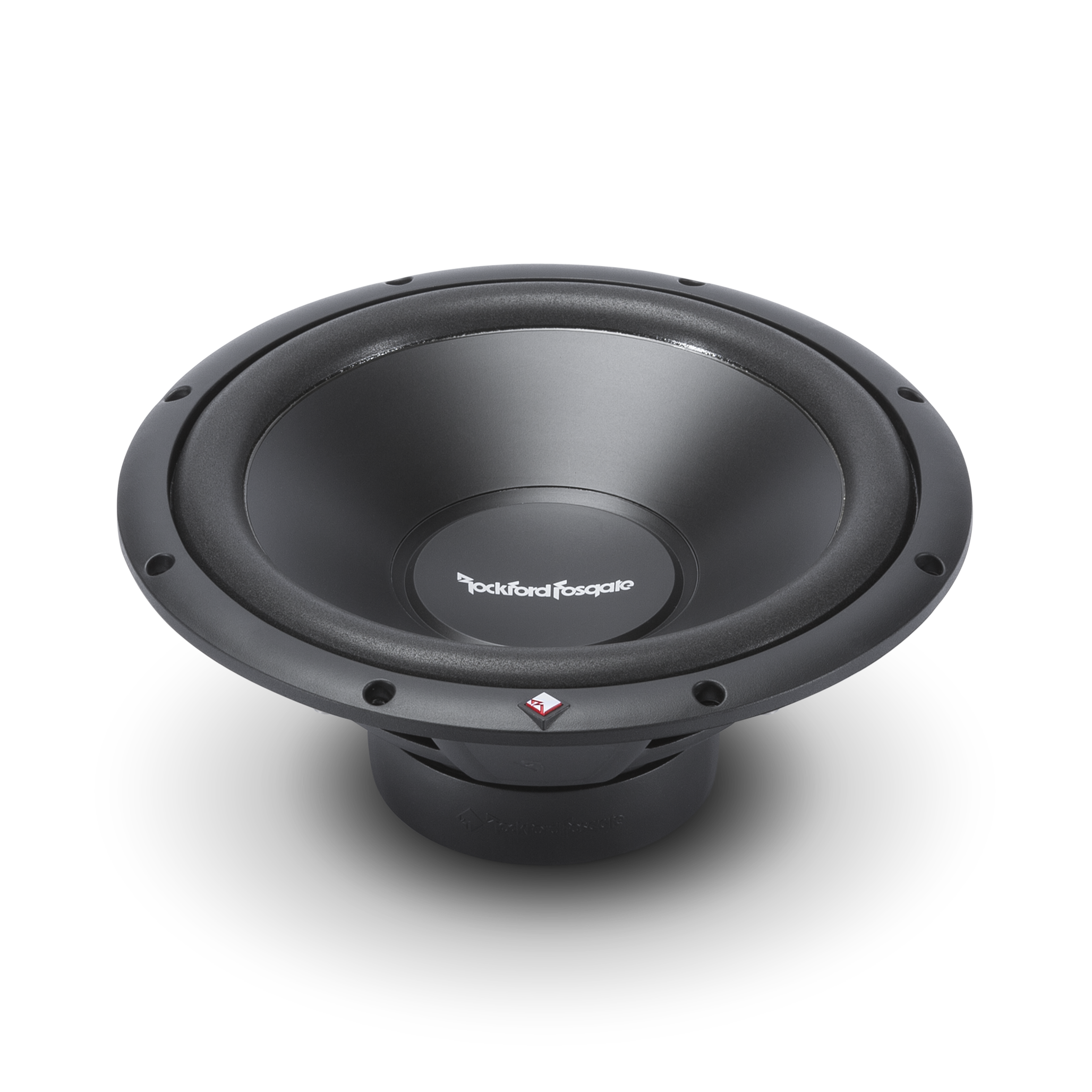

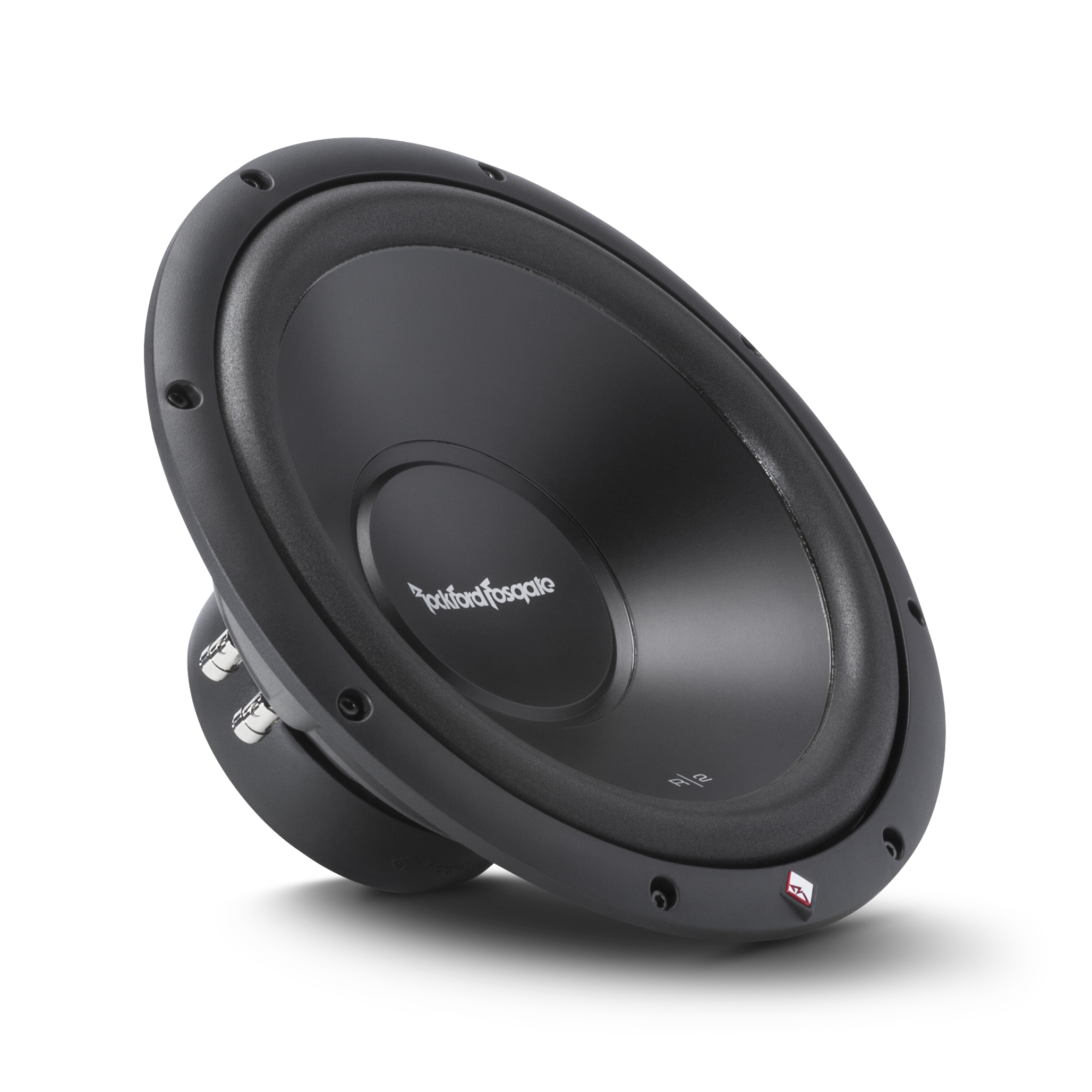

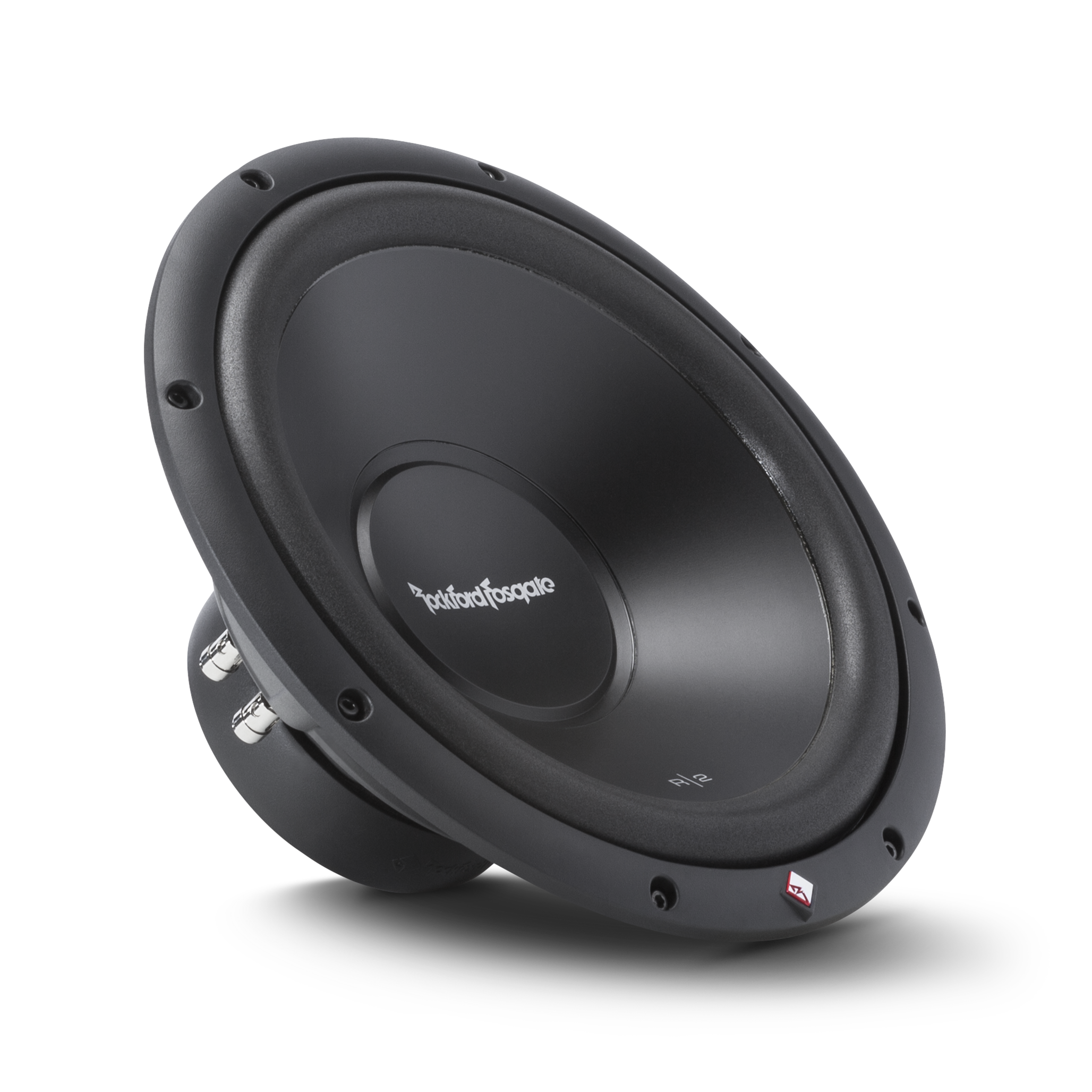

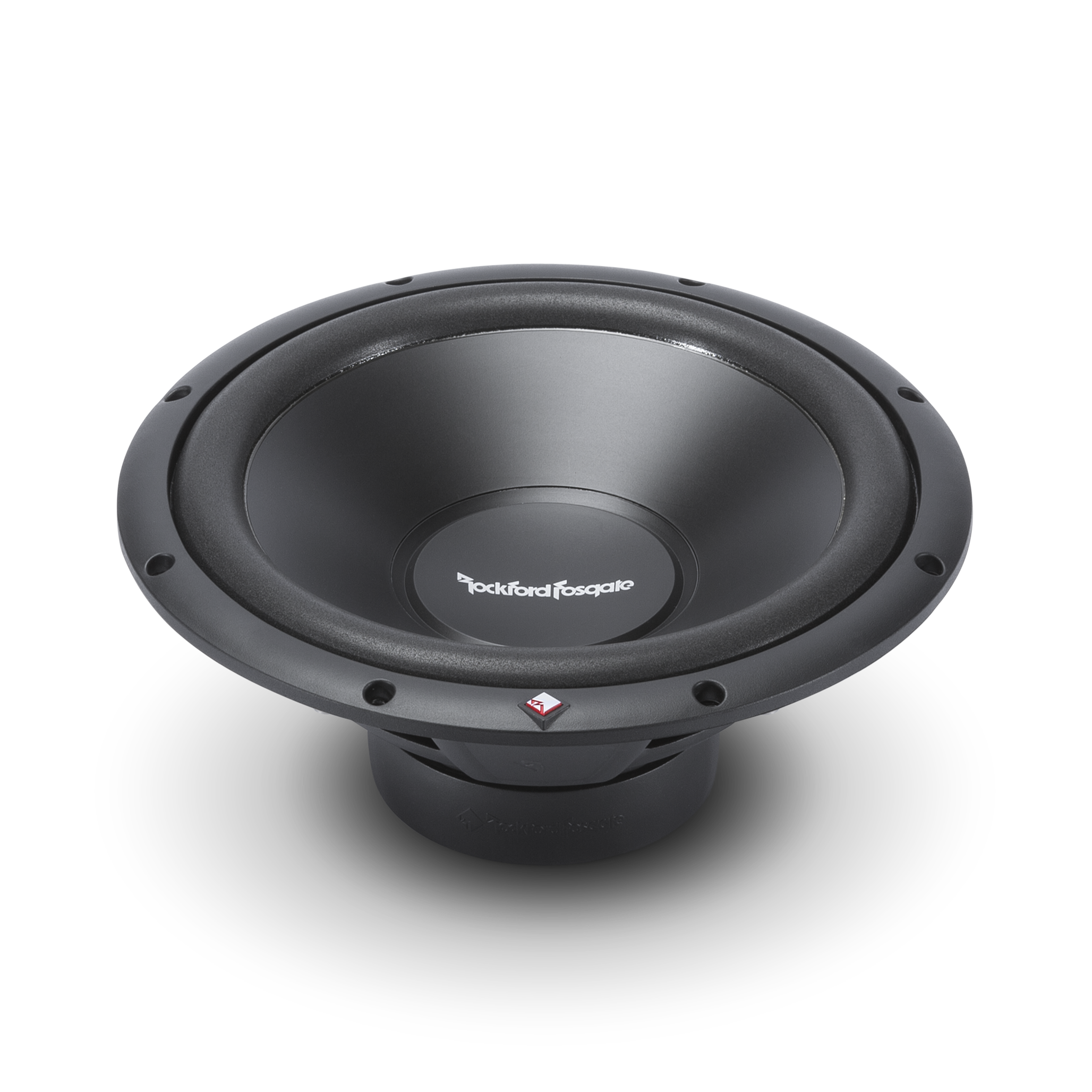

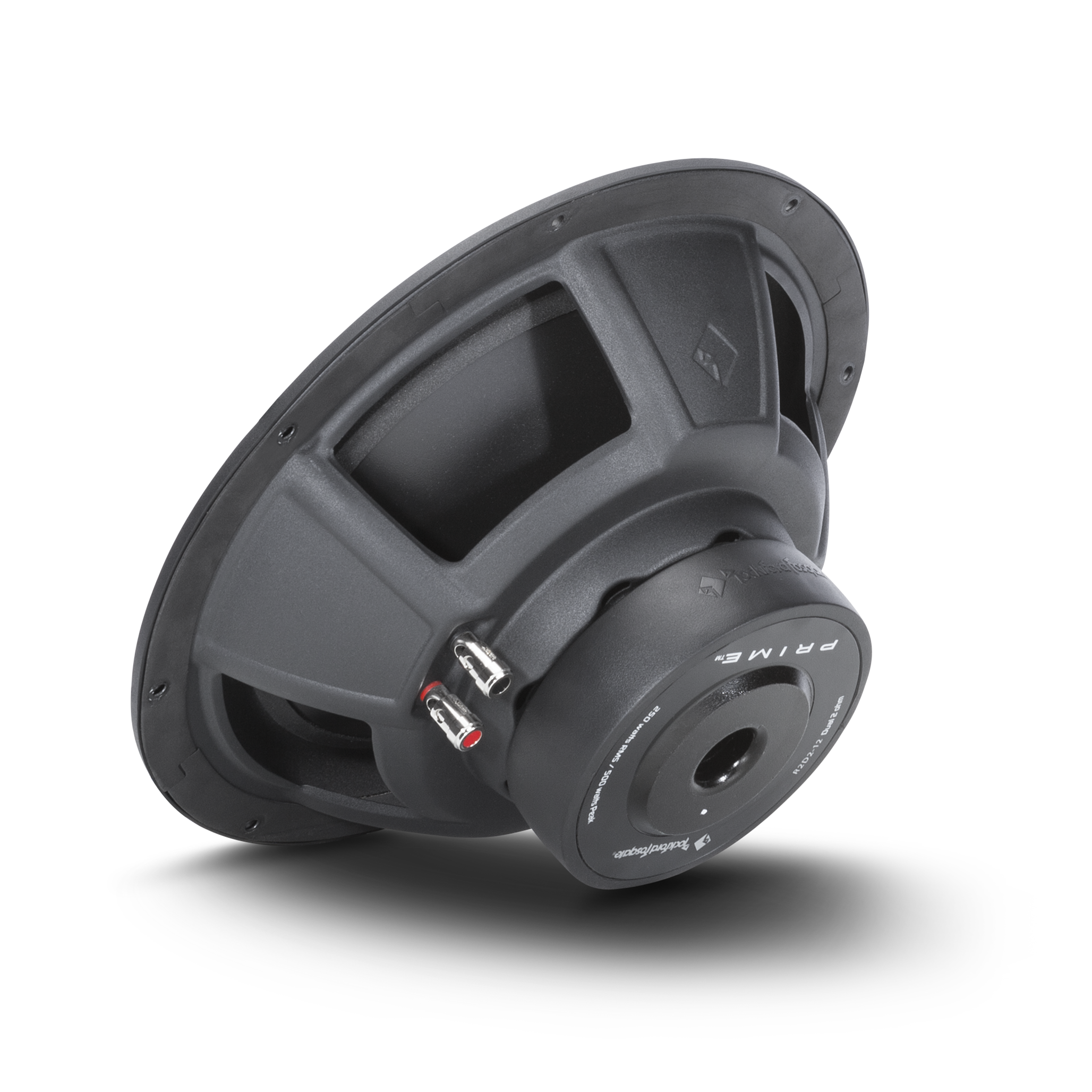

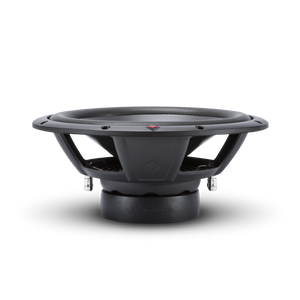

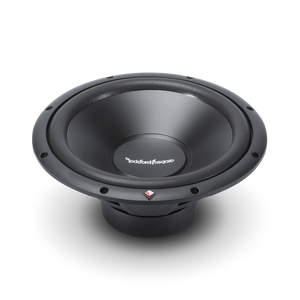

Car audio fanatics wanting big bass can rely on the Prime R2D2-12 subwoofer. This 12" subwoofer handles 250-watt RMS and the 2-Ohm Dual Voice Coil design.
Features
- 1 Year Warranty
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Integrated PVC trim ring
- Linear spider with embedded 16 AWG tinsel leads
- Mica injected polypropylene cone
- Optimized for both sealed and vented enclosures
- StampCast basket with integrated spider venting
Specifications
- Size: 12"
- Voice Coil Type: Dual Voice Coil
- Nominal Impedance: Dual 2-Ohm
- Subwoofer Type: Standard
- Voice Coil Diameter: 2" (51mm)
- Fs (Hz): 34.6
- Speaker Connector: Dual 12 AWG compression
- Sd (cm2): 539.1
- Le (mH): 3.9
- Re (Ohms): 3.8
- Qes: 0.62
- Qms: 8.29
- Qts: 0.58
- Vas (Liters): 66.4
- Cutout Diameter: 11.25 in. (285 mm)
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- SPL (dB @ 1w/1m): 88.7
- Xmax (mm): 6.5
- Magnet Weight (oz): 47.7 oz. (1.35 kg)
- Mounting Depth: 5.067 in. (128 mm)
- Woofer Displacement: 0.046 cu. ft. (1.3 Liters)
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Shipping Weight: 9.9 Lbs. (4.49 kg)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
