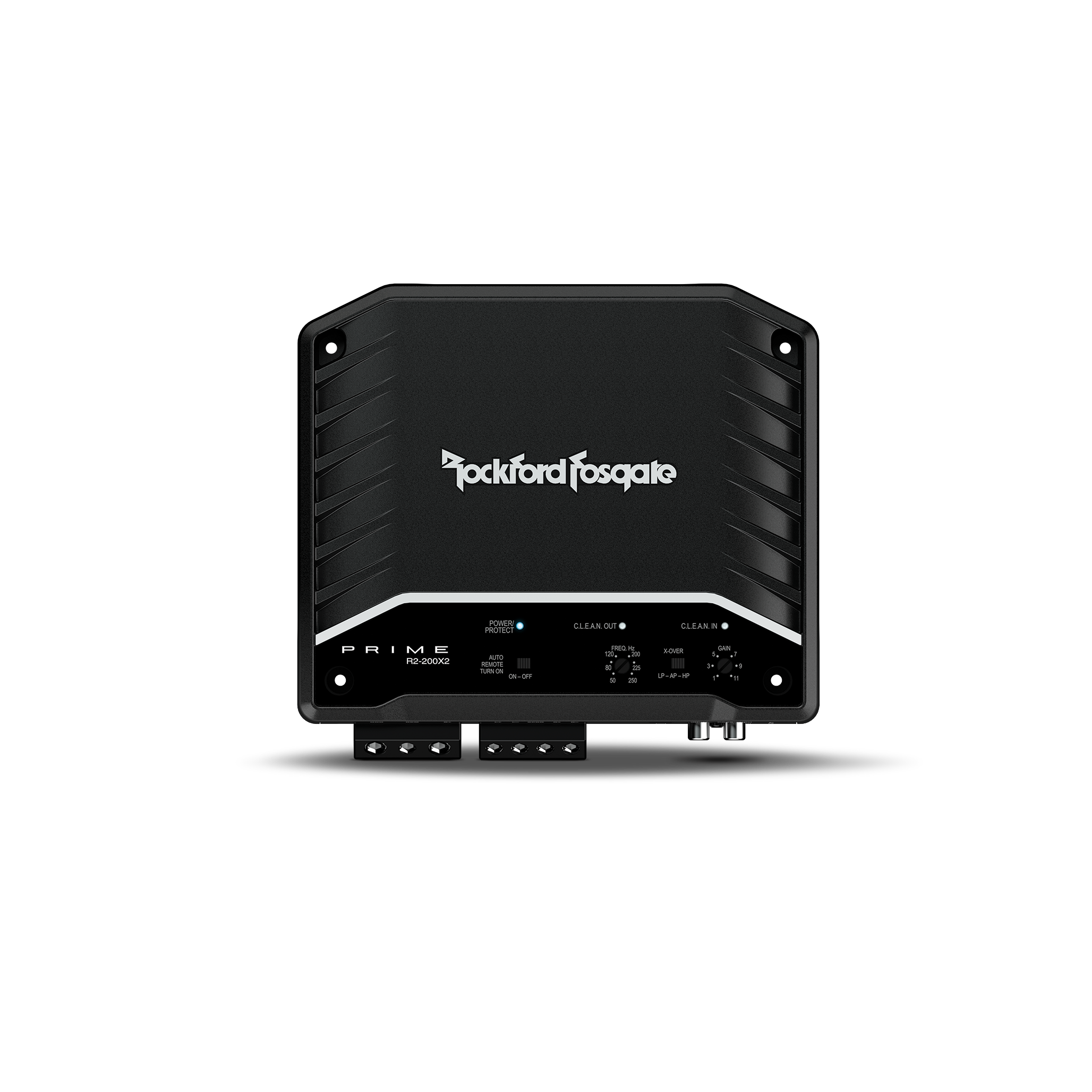

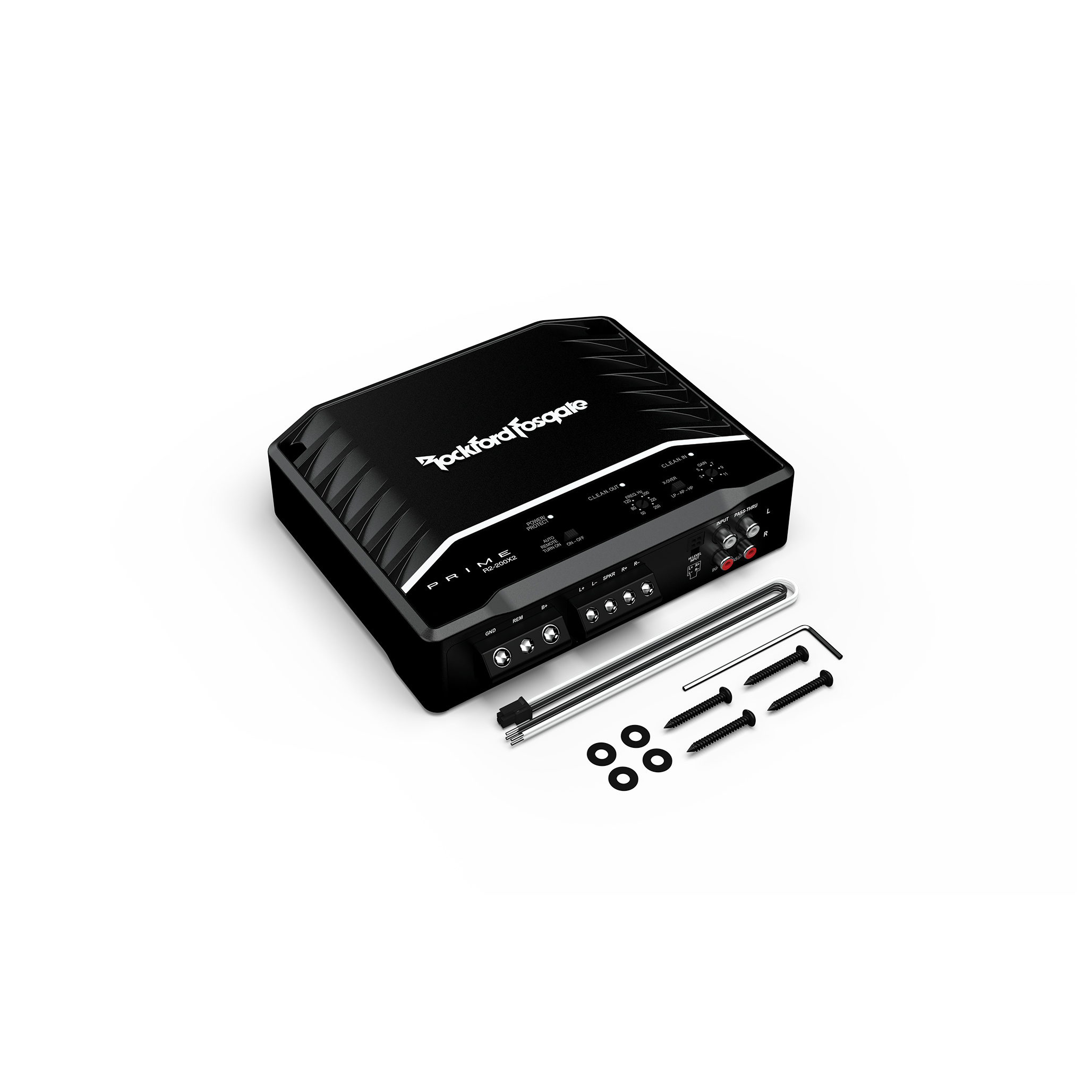

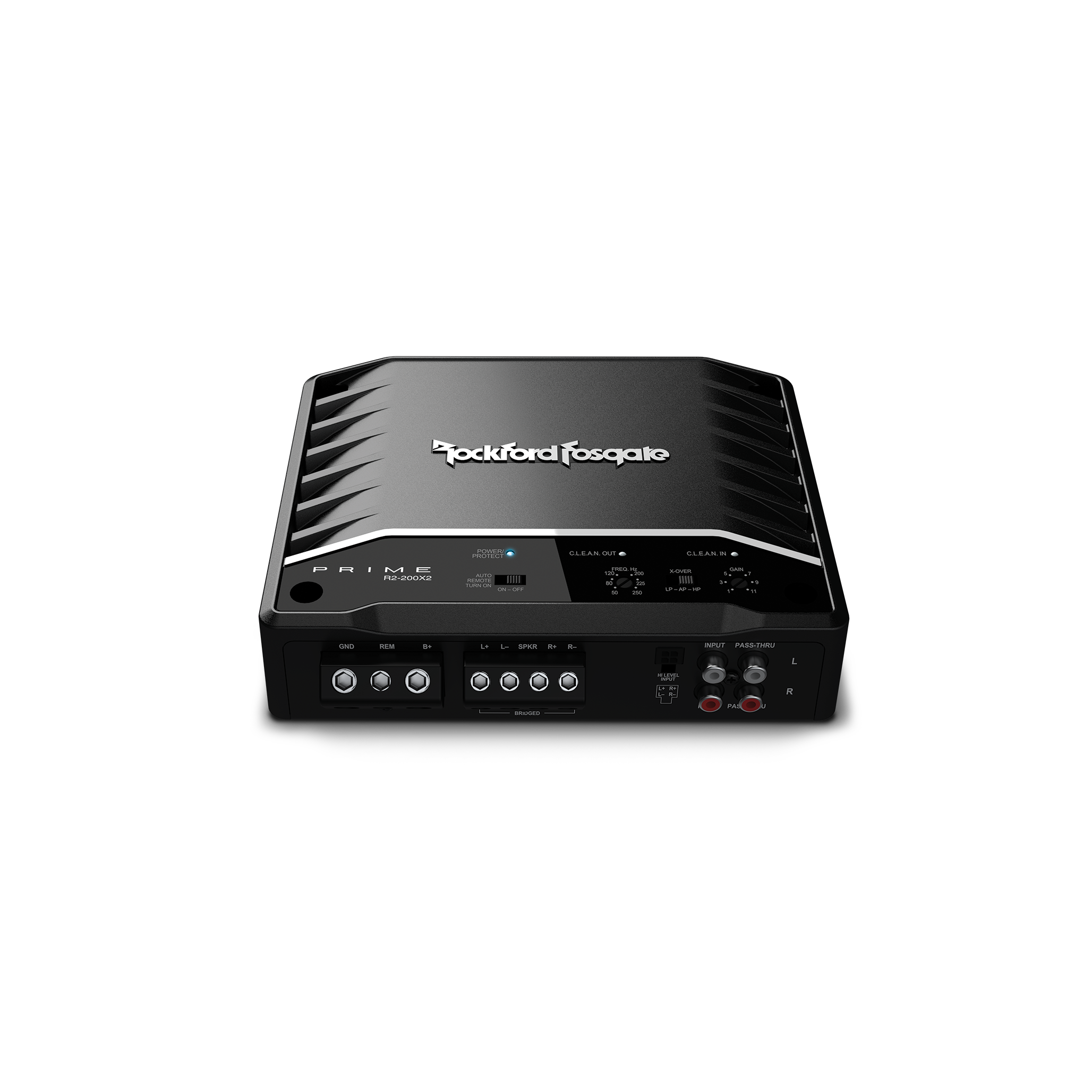

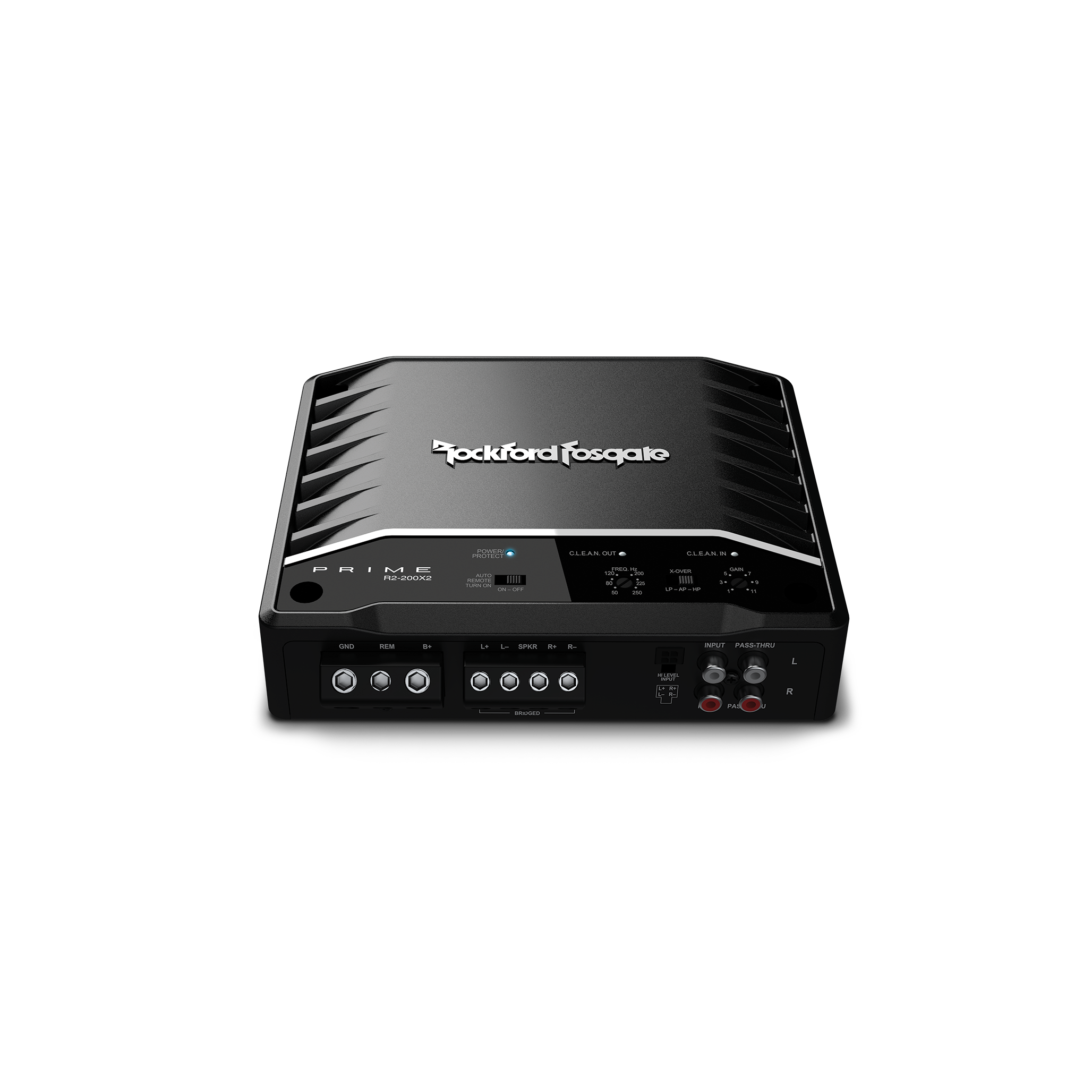

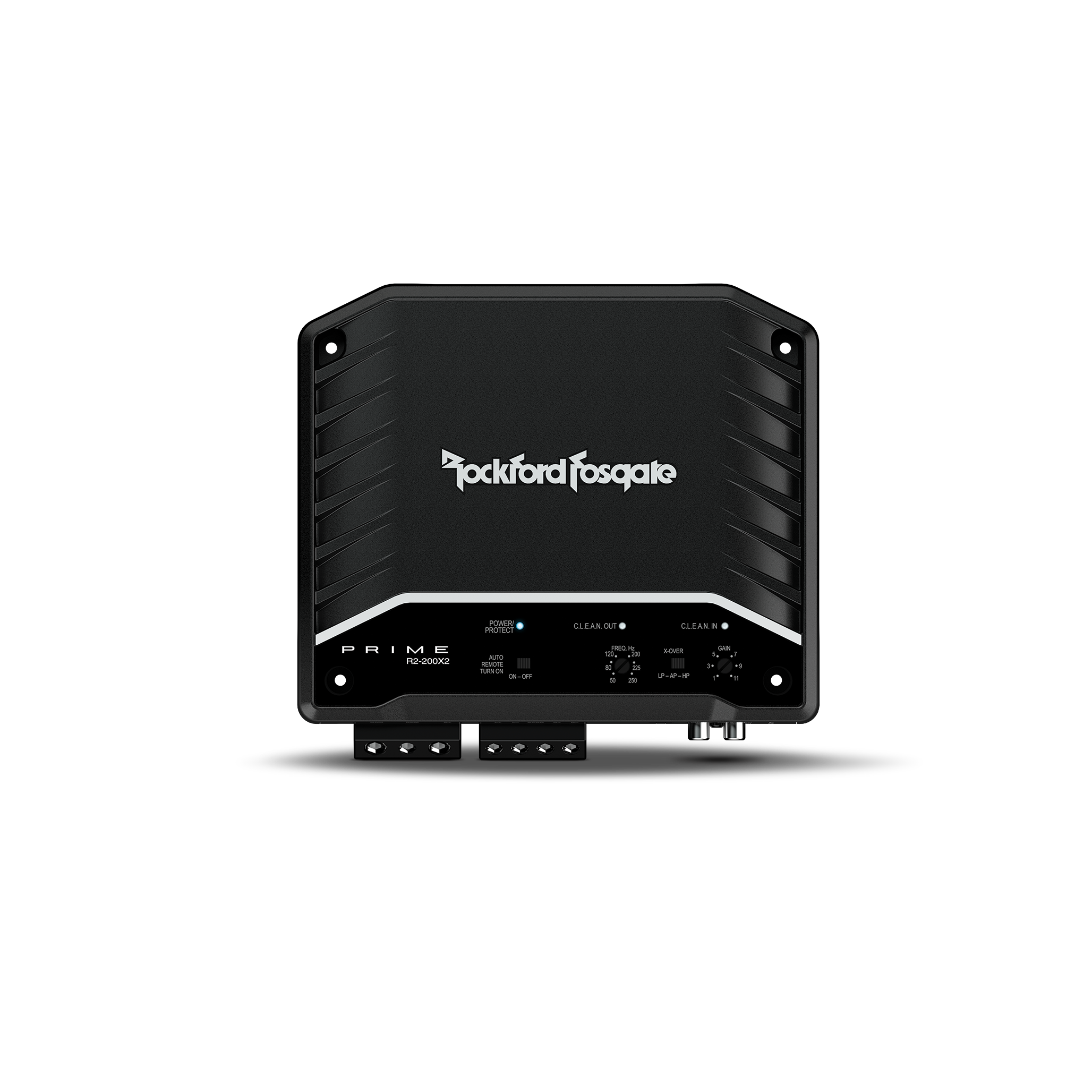

Prime 200 Watt 2-Channel Amplifier

Overview

Rockford Fosgate R2-200X2 is an efficient, powerful 200-watt, full-range Class-D amplifier with C.L.E.A.N. circuitry and P.O.W.E.R. supply for versatile audio.

Features

• Balanced Differential Inputs with RCA Pass Through Outputs
• High Level Input Capable
• Variable Input Gain adjustment level
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• Features C.L.E.A.N. Set-up
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Top Mounted Control Panel
• Full Range Class-D
• Short Circuit & Over Current Protection
• 1 Year Warranty
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink

Technologies

• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• Full Range Class-D: A full-range version of the Class-D topology which is a high efficiency amplifier design that reduces current consumption from the charging system.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• MEHSA 4 (Maximum Efficiency Heat Sink Application): MEHSA⁴ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• P.O.W.E.R.: Power supply circuit design that allows the amplifier to increase output power as voltage increases.

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 50W x 2 @ 4Ω ≤1.0% THD+N
Number of Channels	2
Rated Power (RMS Continuous Power)	50 Watts x 2 @ 4Ω 100 Watts x 2 @ 2Ω 200 Watts x 1 @ 4Ω Bridged/Mono
Total Power (Sum of Rated Power)	200 Watts
Dynamic Power (PVC/PowerCube®)	60 Watts x 2 @ 4Ω 107 Watts x 2 @ 2Ω 215 Watts x 1 @ 4Ω Bridged/Mono
Bridgeable	Yes
Frequency Response	20 Hz - 20 kHz
Input Sensitivity	Low-Level: 150 mV - 4 V High-Level: 450 mV - 12 V
Circuit Topology Class	Class-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)	4Ω: <1.0% 2Ω: <1.0%
Signal-to-Noise (CEA)	CEA-2006: >80 dB Rated-Power: >100 dB
Channel Separation	>50 dB
Common Mode Rejection Ratio	>55 dB
Damping Factor
Accepts RCA Input	Yes

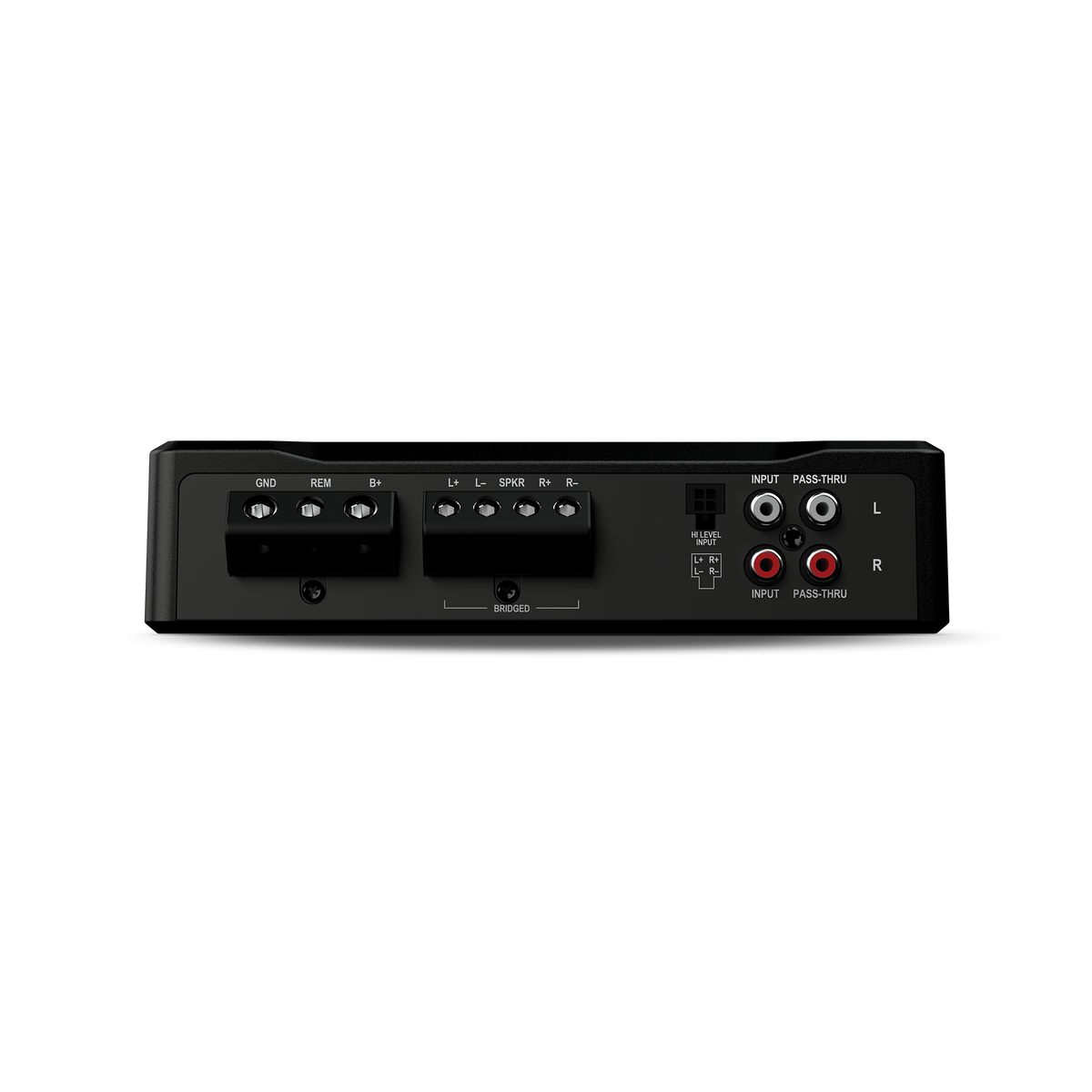

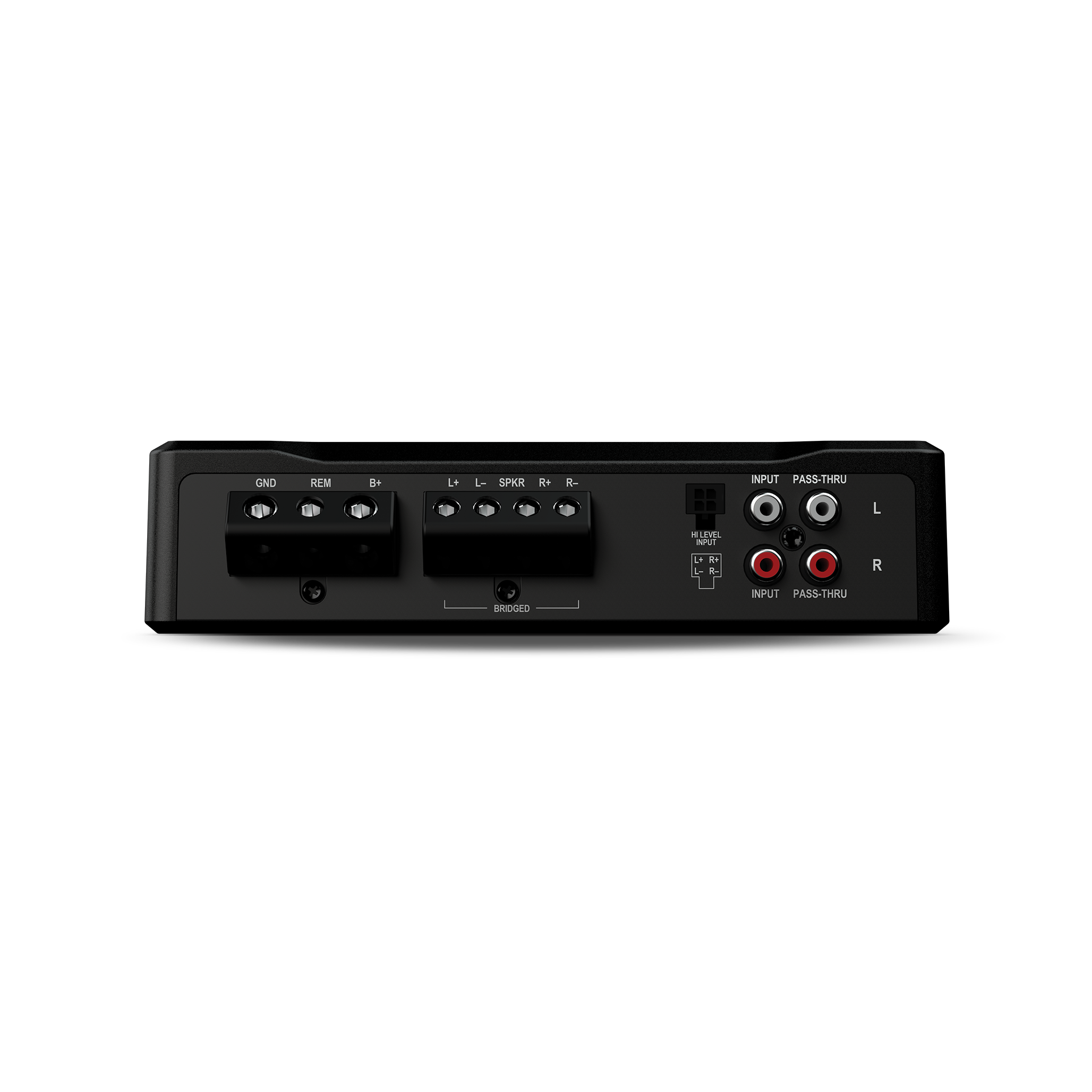

Signal Input	Low-Level: 2 RCA High-Level: 4-Pin Molex
Signal Output	Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
Pass Thru Output	Yes
Tone Controls	No
Adjustable Crossovers	Yes
Crossover Controls	High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes
Remote Controls	No
Visual Indicators	POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge	4 AWG
Power Input Connector	Compression Terminal Block
Speaker Wire Gauge	8 AWG
Speaker Output Connector	Compression Terminal Block
Cooling	Convection
Heatsink Type	Die Cast Aluminum
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	30 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)	18 A
Suggested Alternator
Dimensions (H x W x D)	1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm)
Shipping Weight
