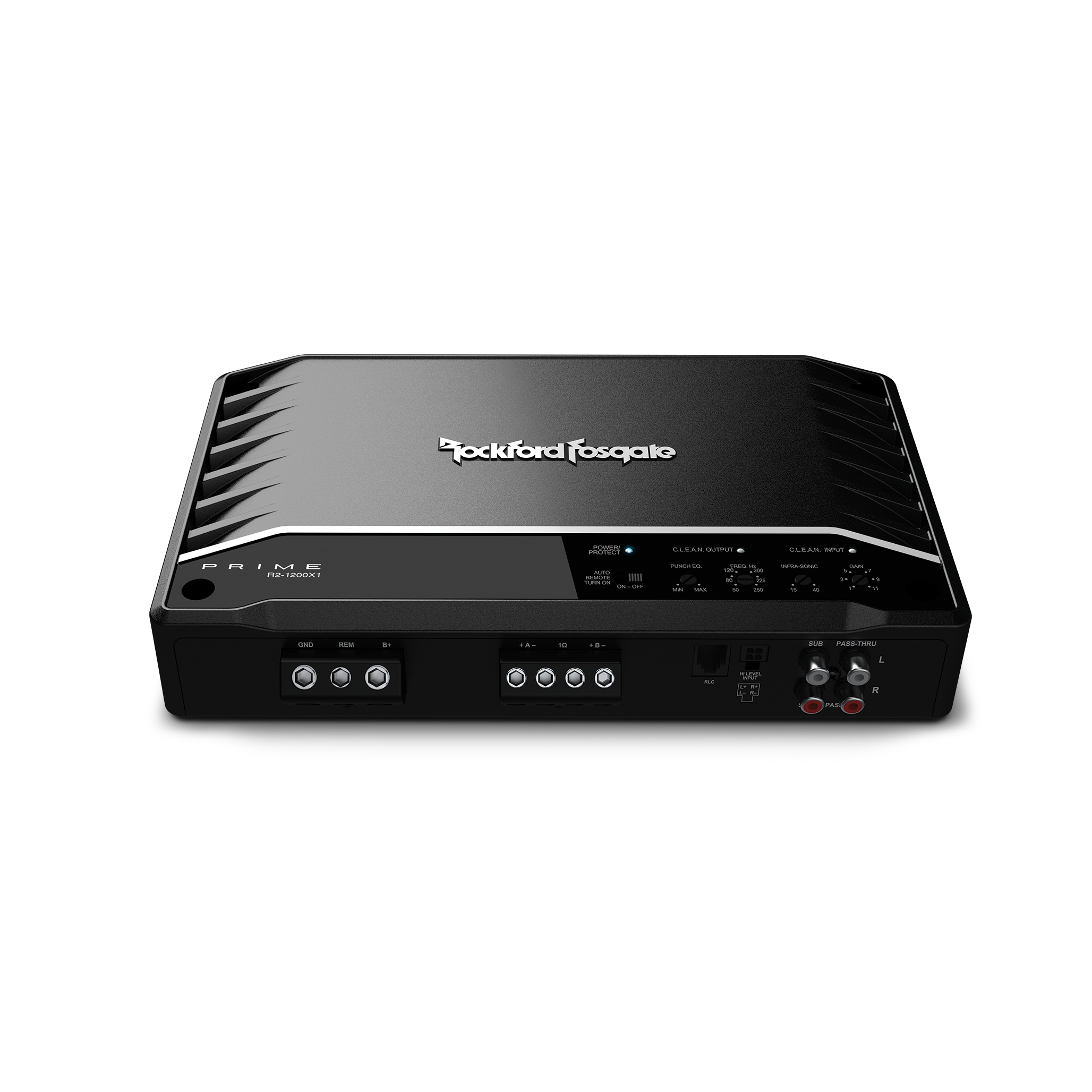

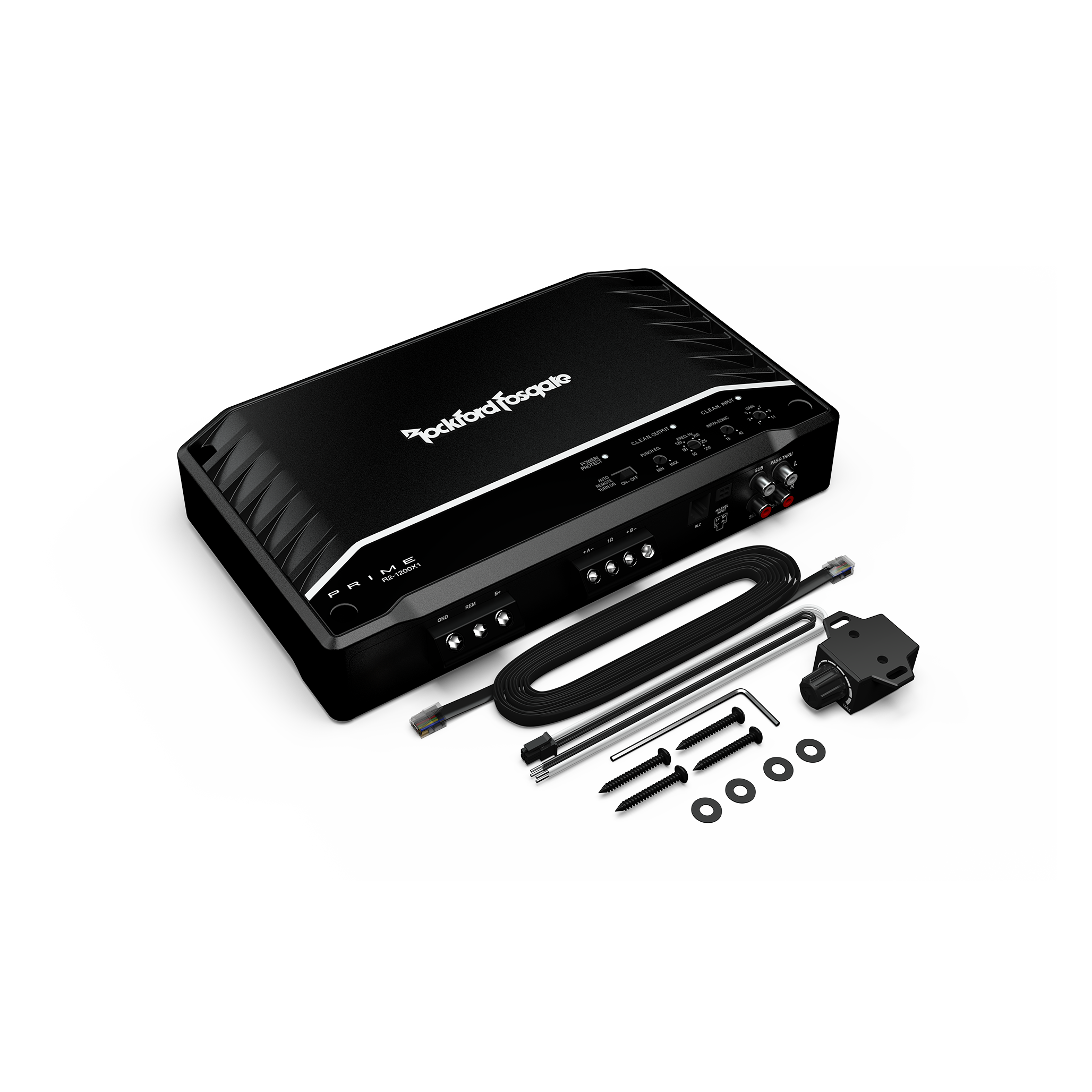

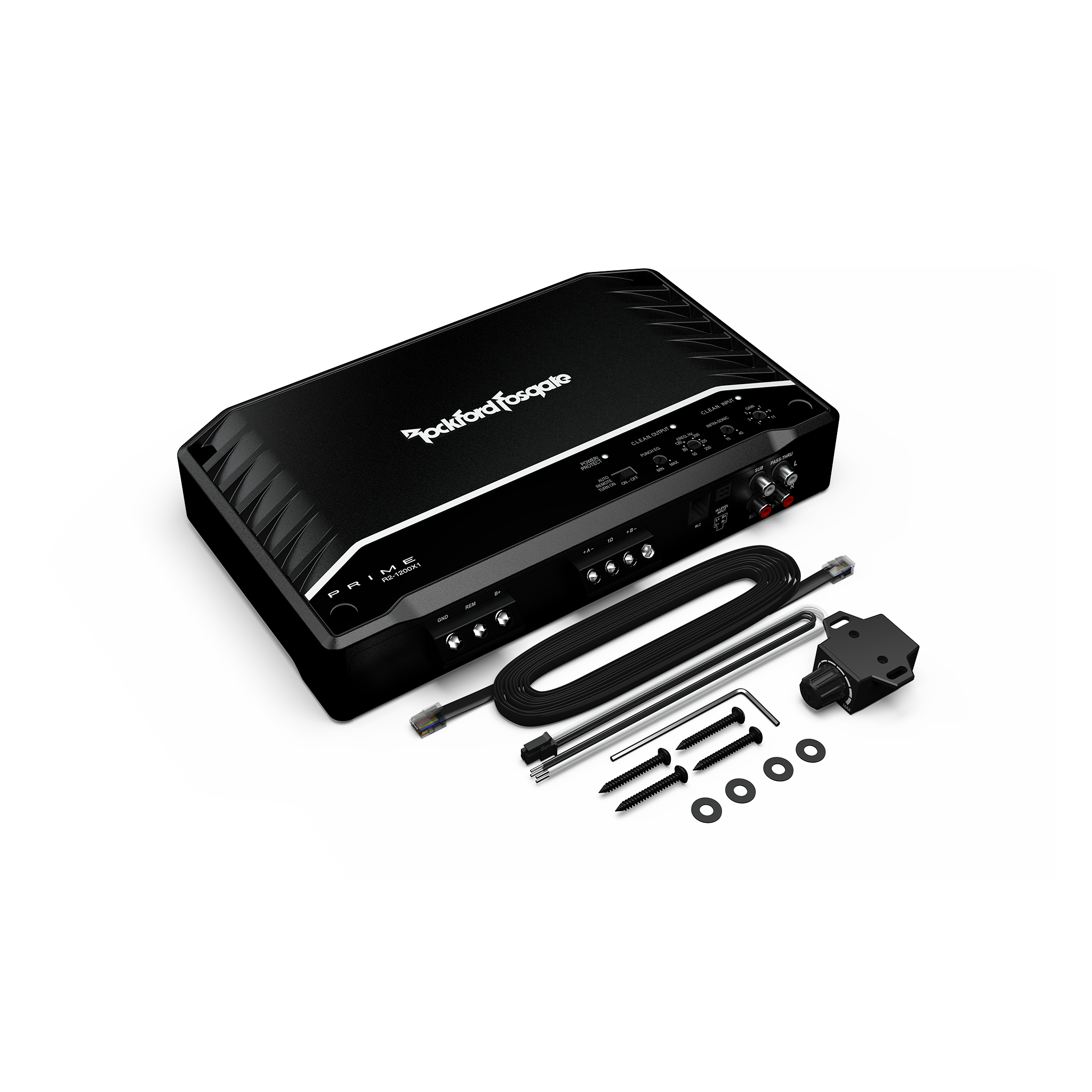

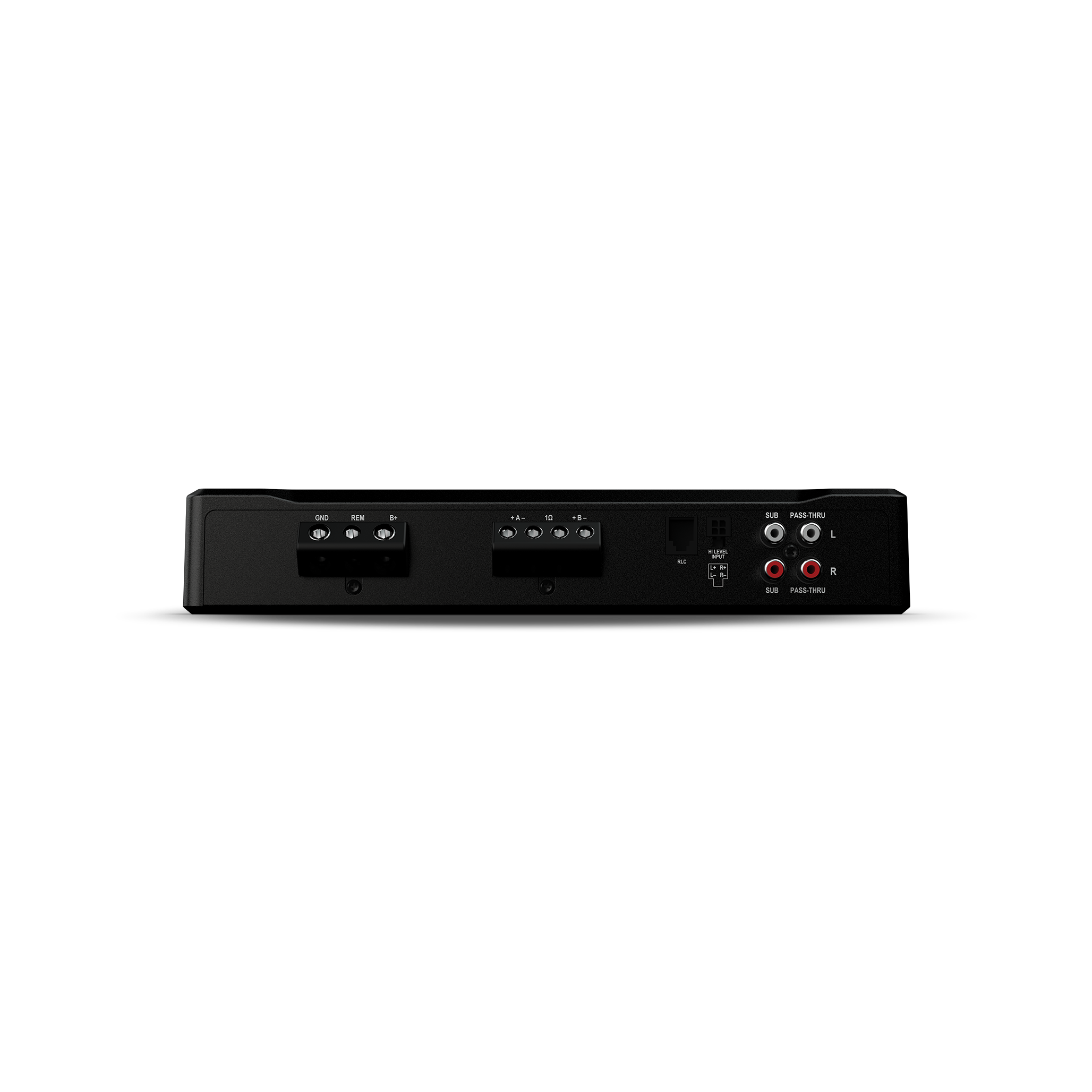

Prime 1200 Watt Mono Amplifier

Overview

The R2-1200X1 is a powerful 1200W Class-D subwoofer amplifier with C.L.E.A.N. circuitry, P.O.W.E.R. supply, Punch EQ, & level control for adjustable, deep bass.

Features

• Variable Input Gain adjustment level
• Balanced Differential Inputs with RCA Pass Through Outputs
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• High Level Input Capable
• Short Circuit & Over Current Protection
• Cast aluminum heat sink

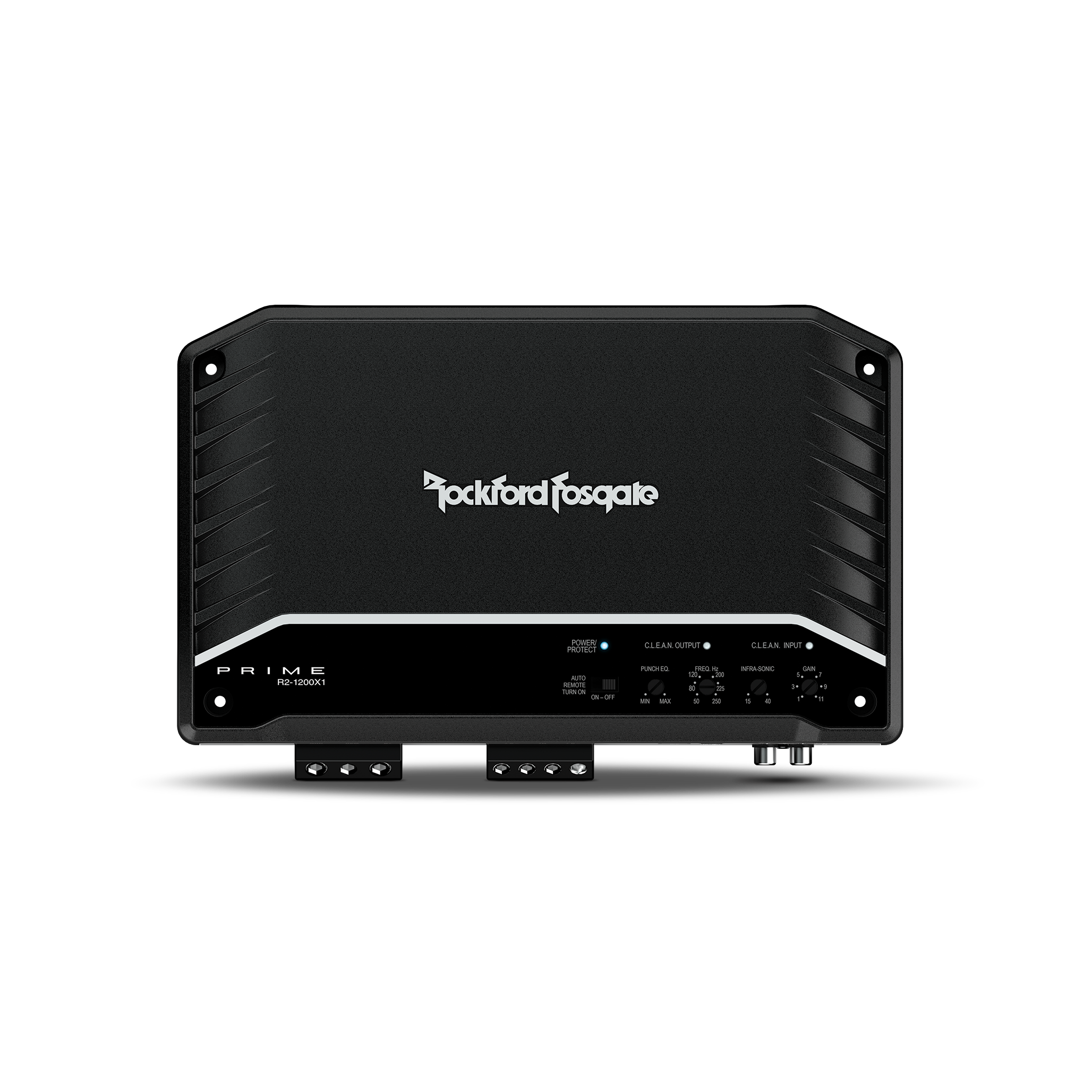

• Top Mounted Control Panel
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Rollback Protection
• Continuously Variable On Board Punch EQ

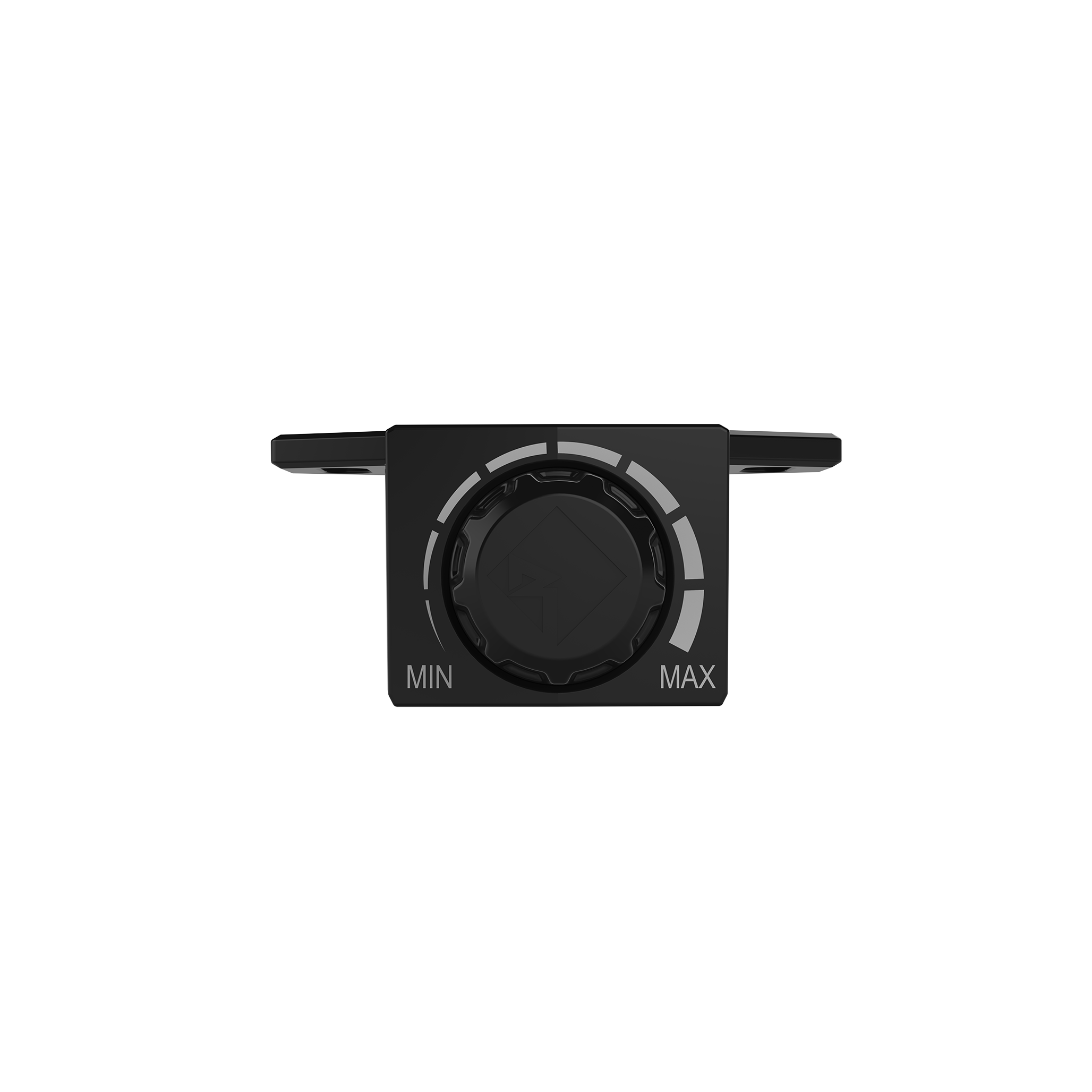

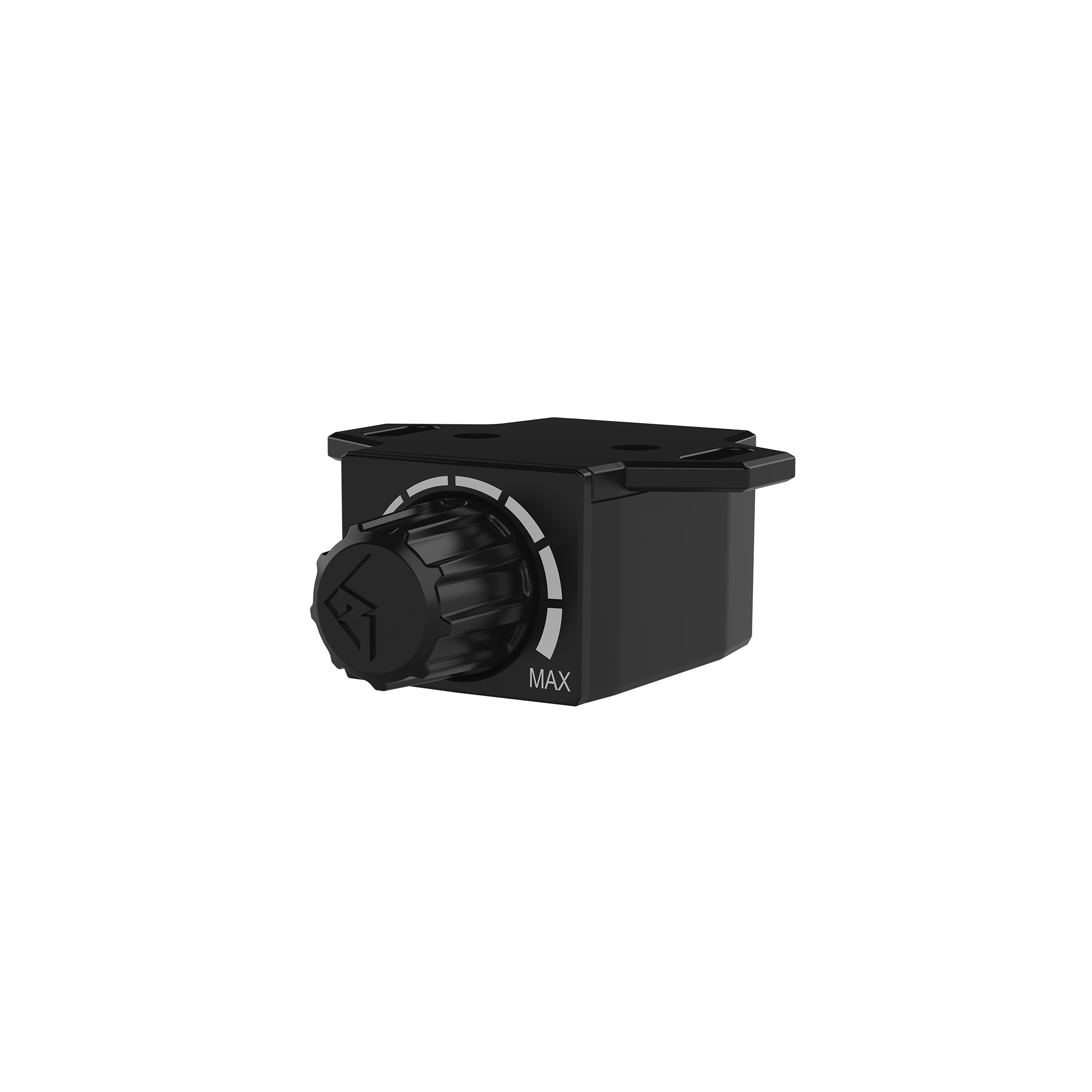

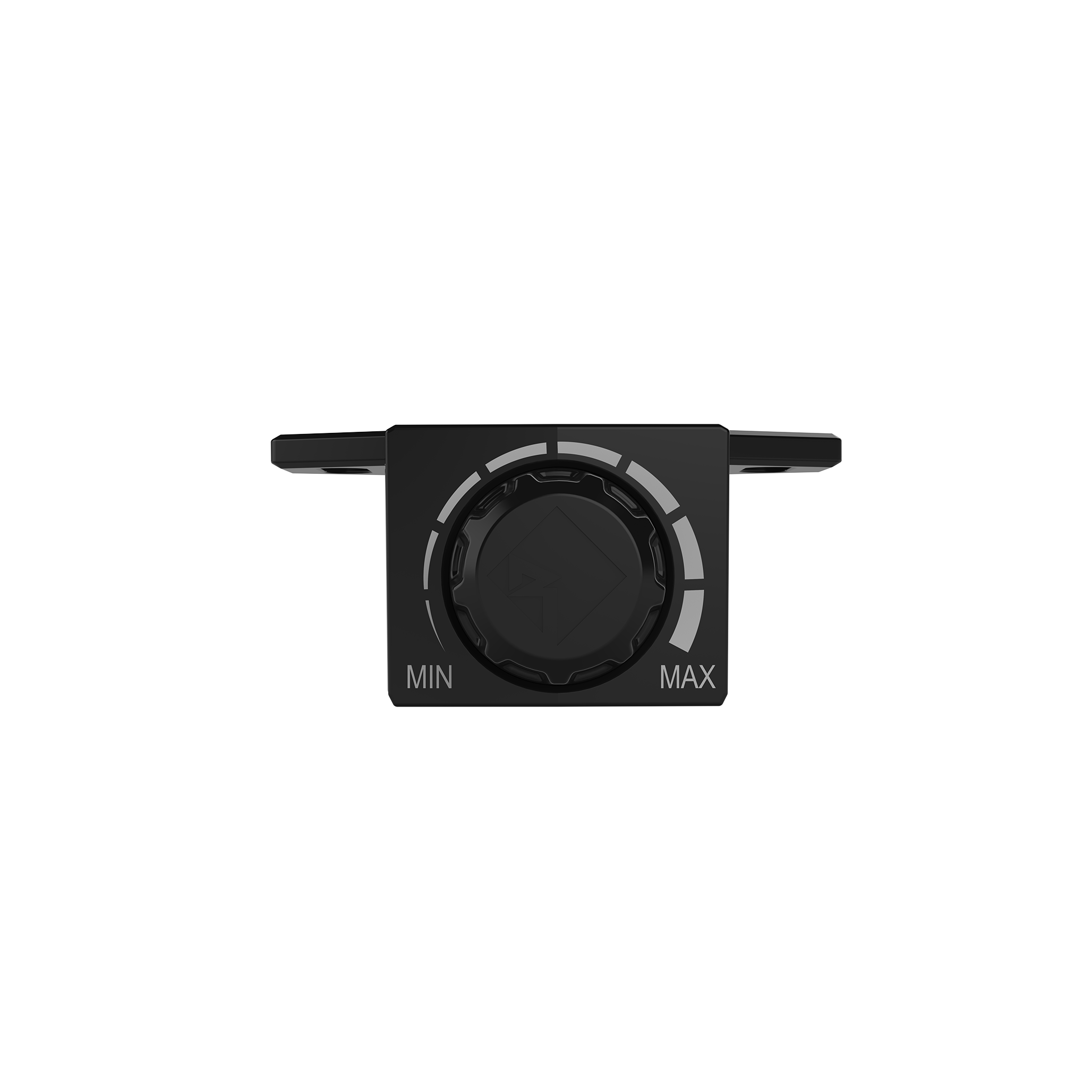

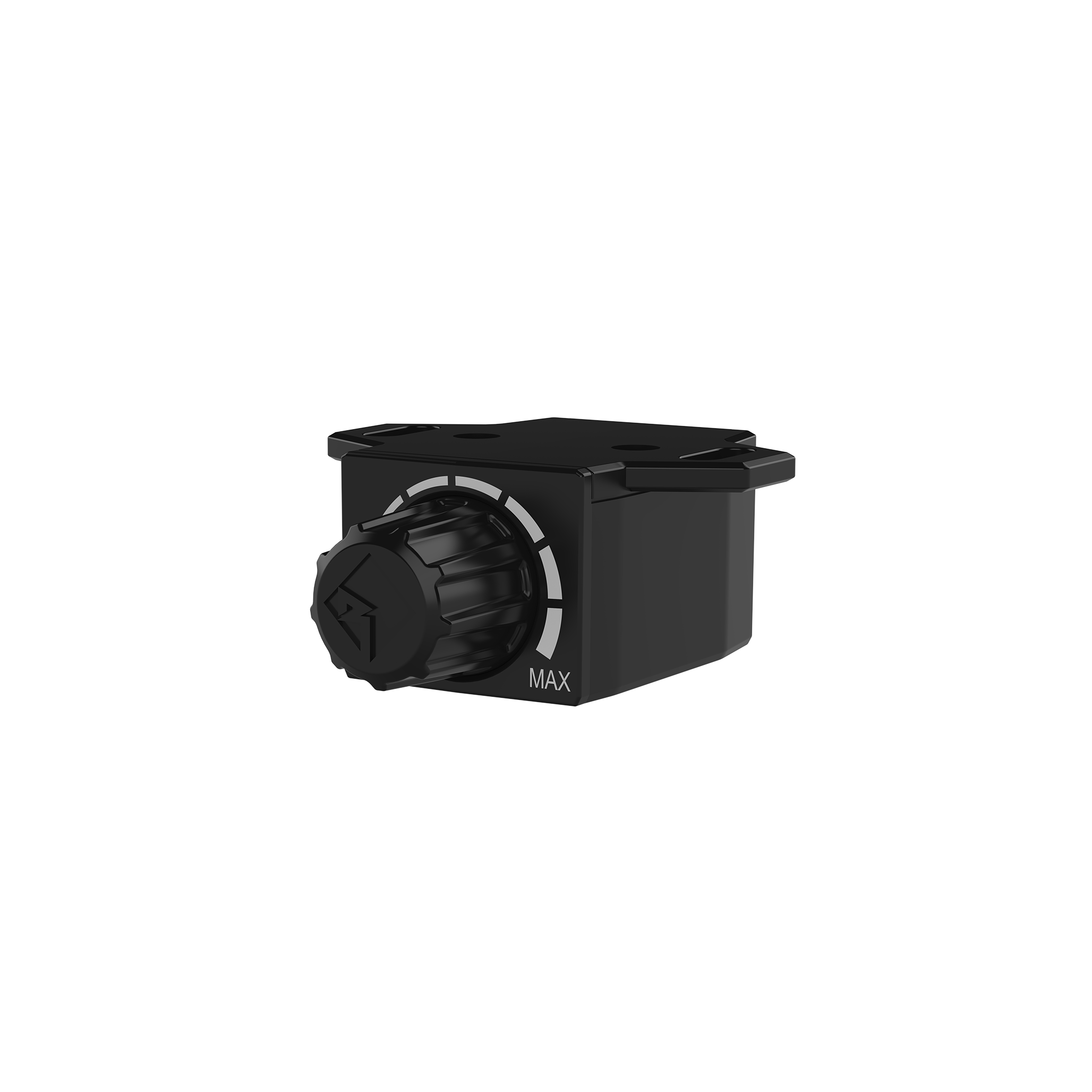

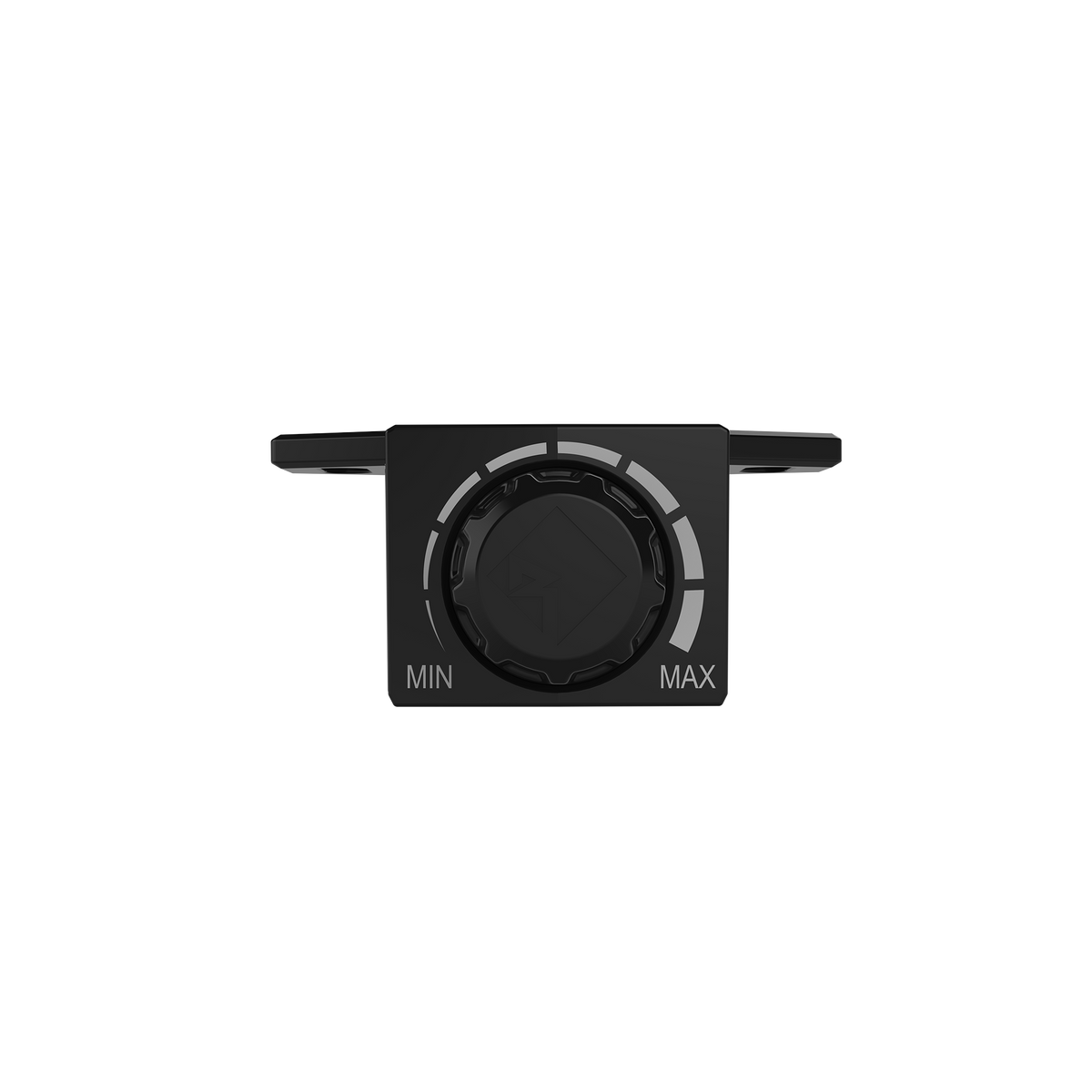

• Includes RLC Remote Level Control
• Class-D Topology
• Features C.L.E.A.N. Set-up
• 1 Year Warranty
• Variable Infrasonic Filter
• CEA-2006 Compliant & CE Compliant

Technologies

• P.O.W.E.R.: Power supply circuit design that allows the amplifier to increase output power as voltage increases.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• Class-D: High efficiency amplifier design that reduces current consumption from the charging system.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• MEHSA 4 (Maximum Efficiency Heat Sink Application): MEHSA⁴ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Rollback Protection: During demanding musical conditions, the amplifier can dynamically reduce demand to prevent stress on the output devices.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Specifications

Dynamic Power (PVC/PowerCube®)	489 Watts x 1 @ 4Ω 889 Watts x 1 @ 2Ω 1389 Watts x 1 @ 1Ω
Total Power (Sum of Rated Power)	1200 Watts
Number of Channels	1
Rated Power (RMS Continuous Power)	400 Watts x 1 @ 4Ω 800 Watts x 1 @ 2Ω 1200 Watts x 1 @ 1Ω
CEA-2006 Compliant	CEA-2006 Power Rating 400W x 1 @ 4Ω ≤1.0% THD+N
Bridgeable	No
Frequency Response	20 Hz - 250 Hz
Input Sensitivity	Low-Level: 150 mV - 4 V High-Level: 450 mV - 12 V
Circuit Topology Class	Class-D
Efficiency (average)	> 80%
Total Harmonic Distortion (THD+Noise)	4Ω: <1.0% 2Ω: <1.0% 1Ω: <1.0%
Signal-to-Noise (CEA)	CEA-2006: >75 dB Rated-Power: >100 dB
Channel Separation
Common Mode Rejection Ratio	>55 dB
Damping Factor
Accepts RCA Input	Yes
Signal Input	Low-Level: 2 RCA High-Level: 4-Pin Molex
Signal Output	Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
Tone Controls	0 to +18 dB @ 45 Hz
Adjustable Crossovers	Yes
Crossover Controls	Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls	Yes
Visual Indicators	POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge	4 AWG

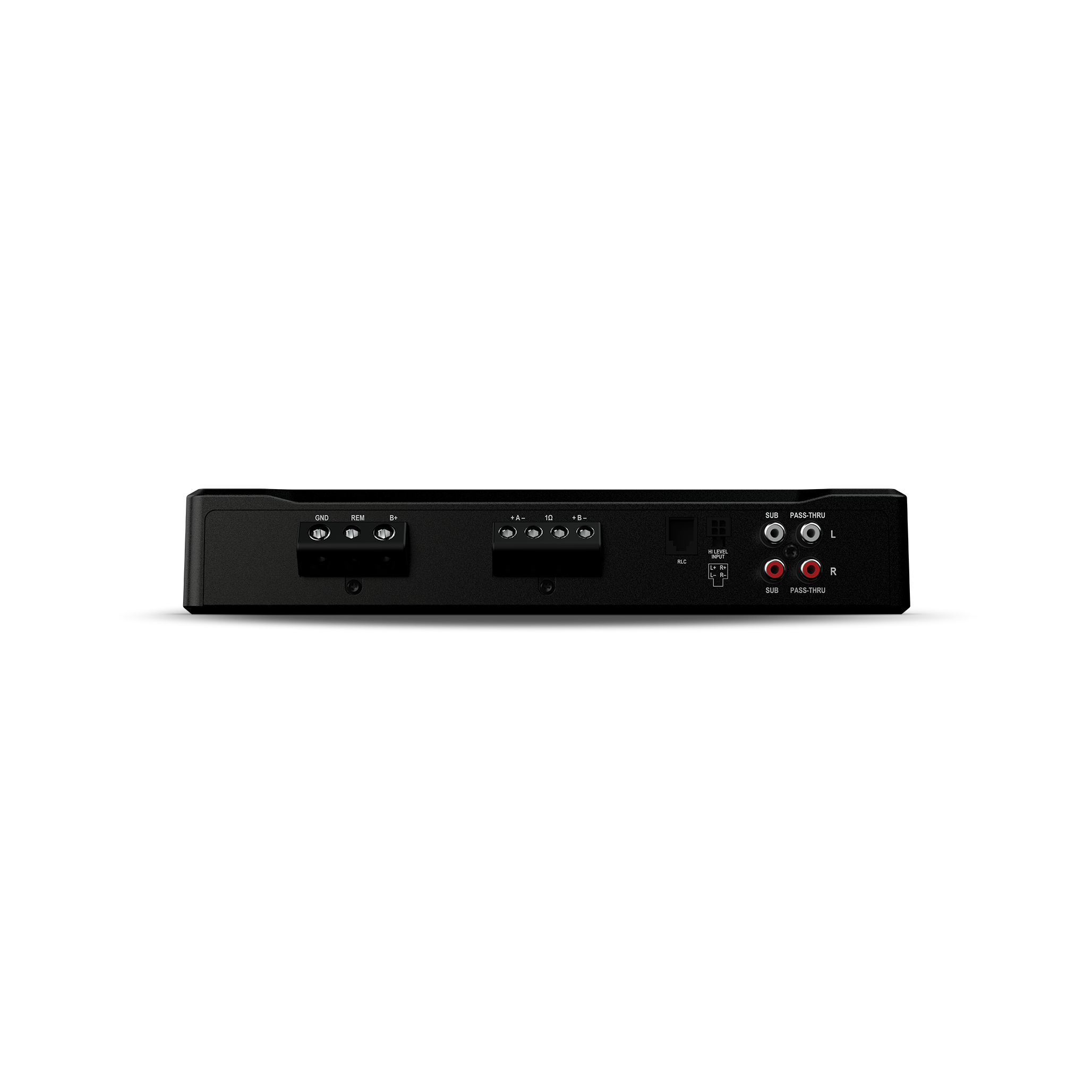

Power Input Connector	Compression Terminal Block
Speaker Wire Gauge	8 AWG
Speaker Output Connector	Compression Terminal Block
Cooling	Convection
Heatsink Type	Die Cast Aluminum
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	200 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)	121 A
Suggested Alternator
Dimensions (H x W x D)	1.9" x 6.8" x 11.3" (4.9 cm x 17.3 cm x 28.5 cm)
Shipping Weight

Videos

• R2 Amplifier Product Overview - Rockford Fosgate's R2 amplifiers are the building blocks for great audio systems, powerful enough to even DRIVE our Punch speakers and subwoofers. They have undergone an amazing upgrade by packing them with the latest features at an incredible value. Best of all, they are designed and engineered here in Tempe, Arizona.
