R1T-S

Overview

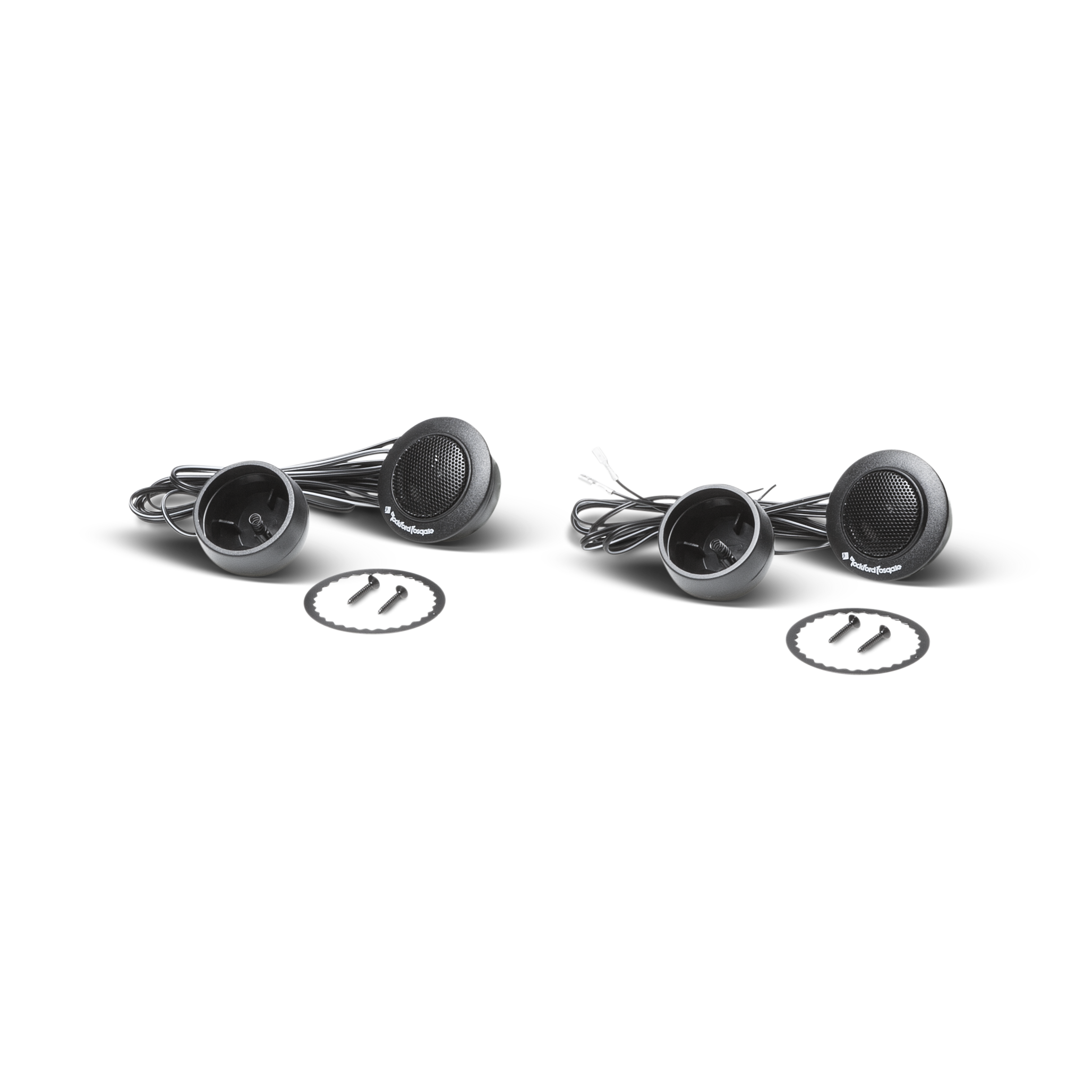

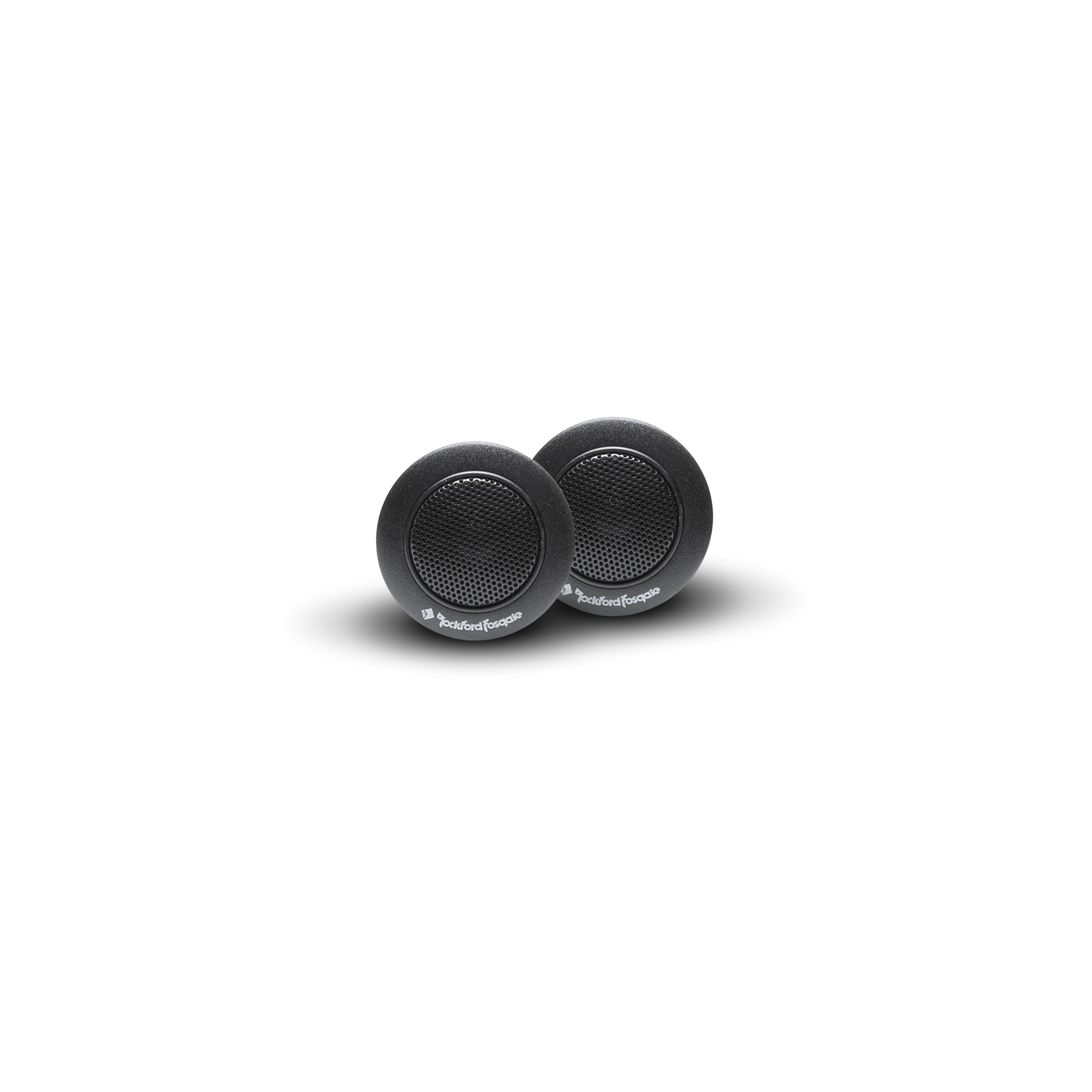

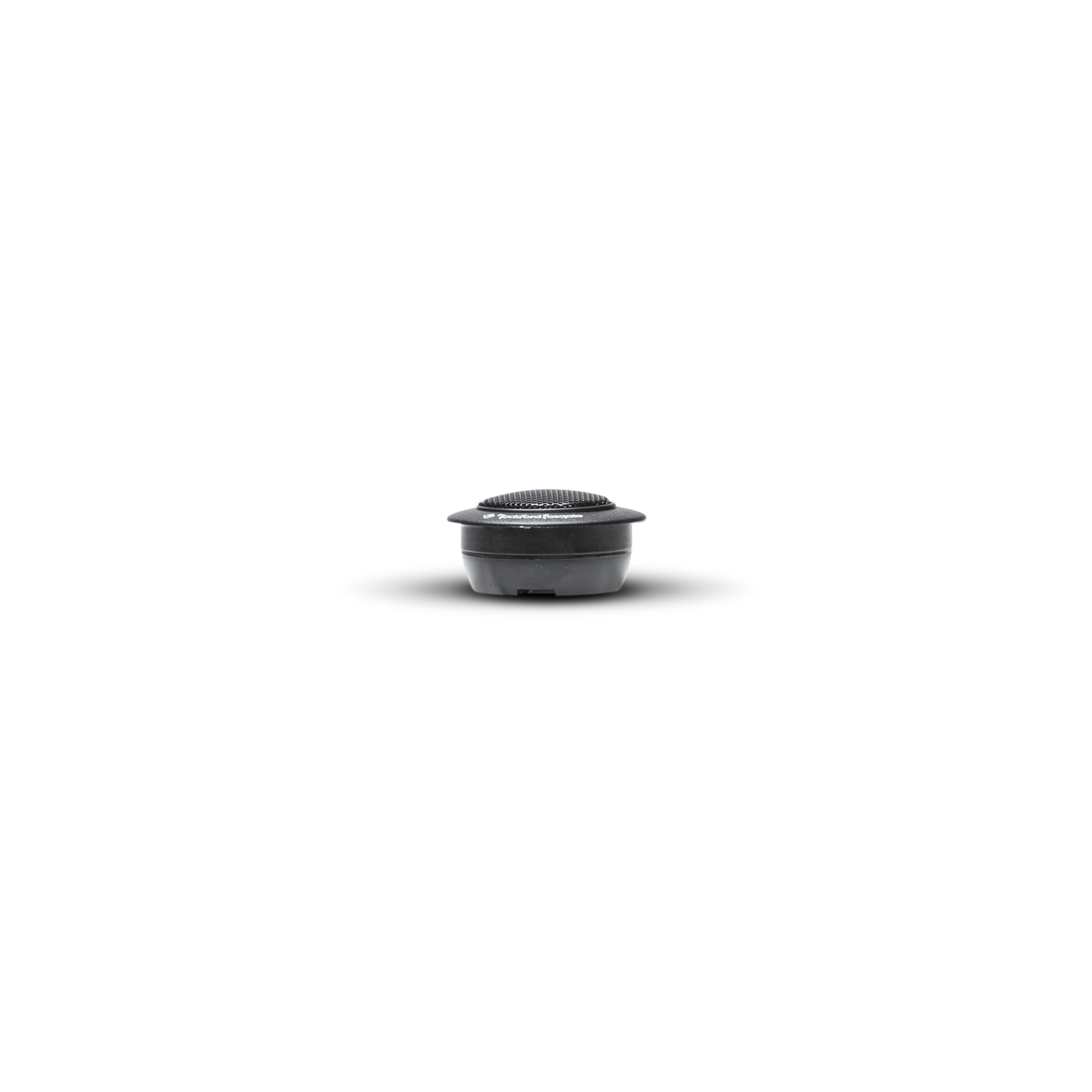

The R1T-S is a 1" tweeter kit rated at 40 watts RMS with a 0.5" voice coil and Mylar dome. This kit includes high-pass crossovers and installation components.

Features

• 1 Year Warranty
• 1/2" (13mm) Mylar balanced dome
• Multiple mounding configurations: flush-surface-angle
• Sold in pairs (2 each)

Specifications

• Midrange Mounting Diameter: -
• Nominal Impedance (Ohms): 4-Ohm
• Speaker Type: Tweeter
• Tweeter Mounting Depth: 0.76" (1.93cm) Flush Mount; 1.06" (2.68cm) Surface/Angle Mount
• Crossover: Tweeter High-Pass (HP): 4.5kHz @ 6dB/octave
• Sensitivity; (dB @ 1W/1M): 72.5 dB
• Tweeter Size; (Nominal Diameter): 1.0" (25.4mm)
• Midrange Size; (Nominal Diameter): -
• Power Handling (RMS): 40 Watts RMS; 80 Watts Max
• Frequency Response (Hz): 2.5kHz - 22kHz
• Grille/Trim Ring Included: Yes
• Shipping Weight: 0.696 Lbs. (0.31 kg.)
• Mounting Hardware: Yes
