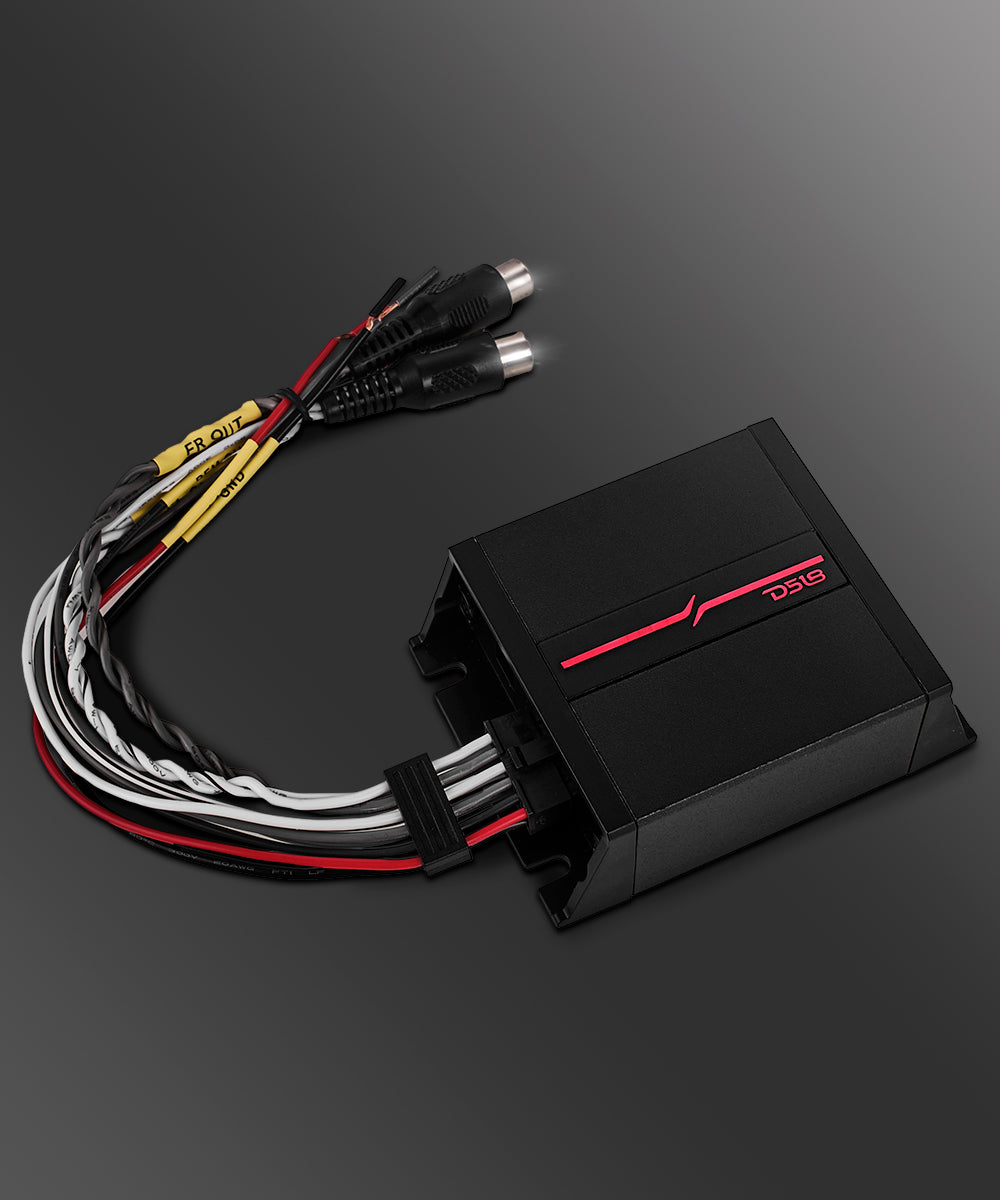

2-Channel Lossless Audio Line Output Converter with Auto Turn-On And Speaker Emulator
Product Overview 2-Channel Lossless Audio Line Output Converter With Auto Turn-On And Speaker Emulator Upgrade your vehicle's...
- $119.95
- $119.95
- Unit price
- per
Subtotal:
$119.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
2-Channel Lossless Audio Line Output Converter With Auto Turn-On And Speaker Emulator
Upgrade your vehicle's sound system with DS18’s QHL2. This compact converter is your key to unlocking superior audio quality and seamless integration.
Engineered for those who demand nothing but the best, this 2-channel converter delivers pure, unfiltered sound with seamless integration into any vehicle system, whether OEM or aftermarket. Advanced transformers and cutting-edge noise rejection technology ensure that your audio remains untouched by interference. Plus, the QHL2 requires no power supply, further reducing the chance of ground feedback noise.

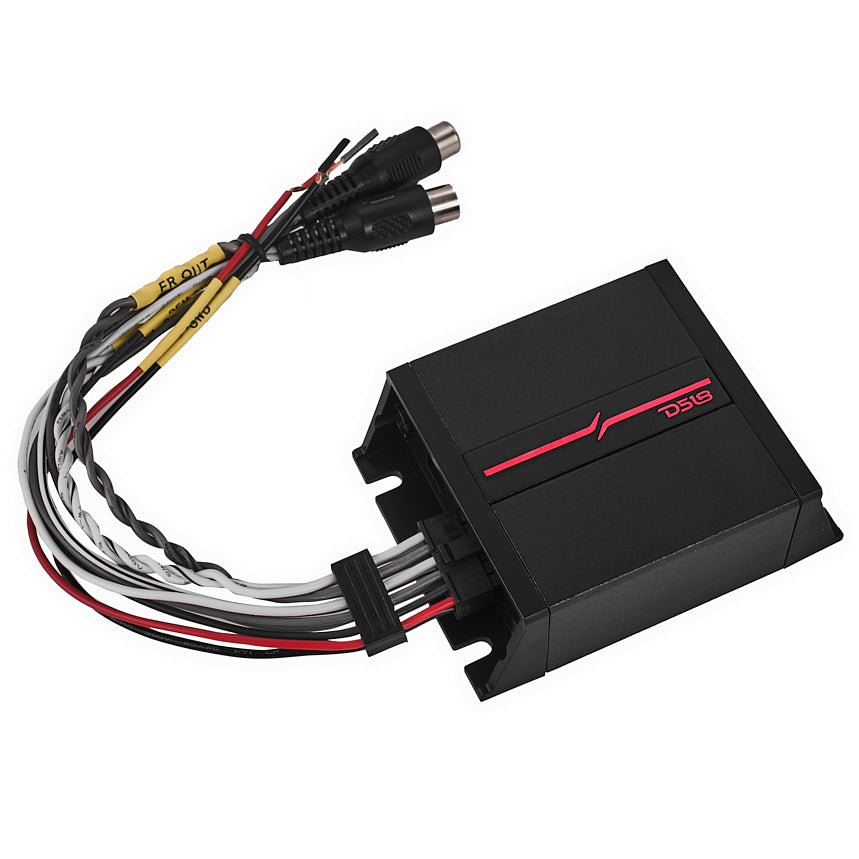

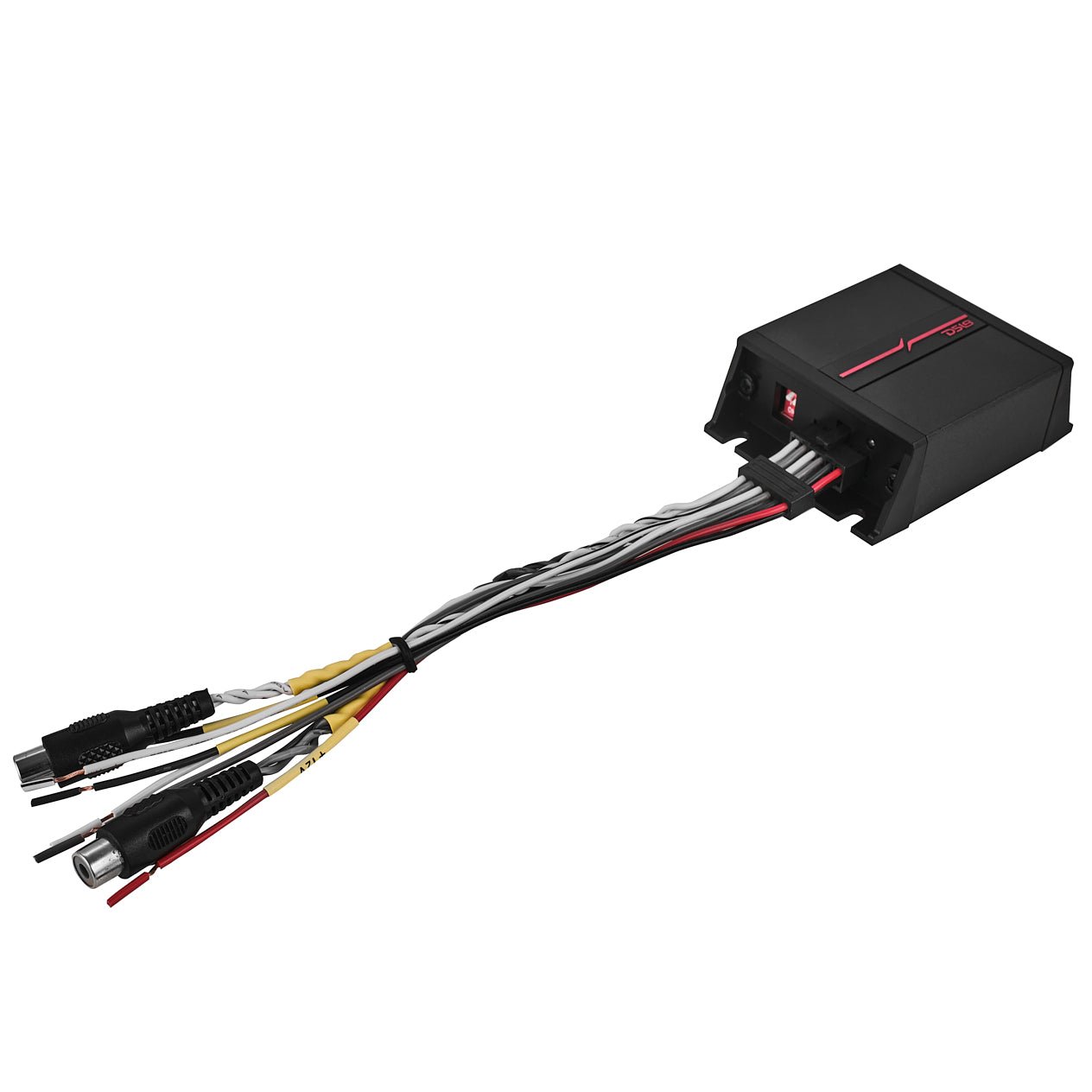

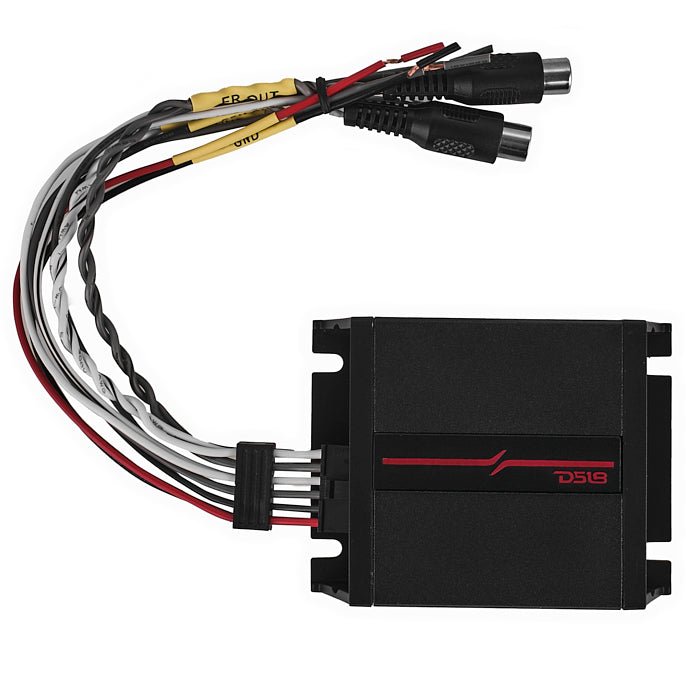

Installation is a breeze thanks to its compact, rugged design, complete with a detachable harness and straightforward labeling. Versatility is at its core, the QHL2’s Double-Step Down Ratio allows it to handle both high-power (6.5:1) and low-power (4:1) sources, making it the perfect companion for any setup. With built-in speaker emulation, the QHL2 guarantees flawless integration by ensuring your OEM source detects the original speaker load.
The QHL2 doesn’t just stop at superior sound—it’s smart too. The intelligent +12V remote output automatically triggers your amplifiers, with LED indicators for easy monitoring. Only the auto turn-on feature requires power, ensuring minimal impact on your vehicle’s electrical system. And with its durable aluminum housing and tear-proof wiring connector, you can trust it’s built to last.
Disclaimer: Ensure your vehicle's electrical system operates at 12V DC with a negative ground.
Key Features
- Line Output Converter
- 2 Channel
- Lossless Audio ~ Double Step Down Ratio
- Compact ~ Level Matching Controls(High/Low)
- Selectable Auto Turn On ~ Remote Out
- Noise Rejection ~ Speaker Emulator
Specifications
| SKU | QHL2 |
|---|---|
| Maximum Speaker Level Input | 50W (Low Power) / 100W (High Power) |
| Maximum Preamp Output | 2.5V |
| Nominal Conversion Ratio | 4:1 (Low Power) / 6.5:1 (High Power) |
| Frequency Response | 15Hz-20KHz |
| Total Harmonic Distortion | 0.07% (1KHz) |
| Input Impedance | 6 ohms (Speaker Emulator) |
| Output Impedance | 600 ohms |
| Speaker Level Input | Yes, 2Ch |
| Selectable Auto Turn-On | Yes, Audio (3v) / DC (2.5v) |
| Remote Output | Yes, 12v DC 100mA max |
| Amplifier Outputs | 2 Channels RCA (L/R) |
| Level Matching Controls | Yes, (Low Power / High Power) |
| LED Indicators | Yes, ON LED indicator |
| Housing Material / Color | Aluminum / Black |

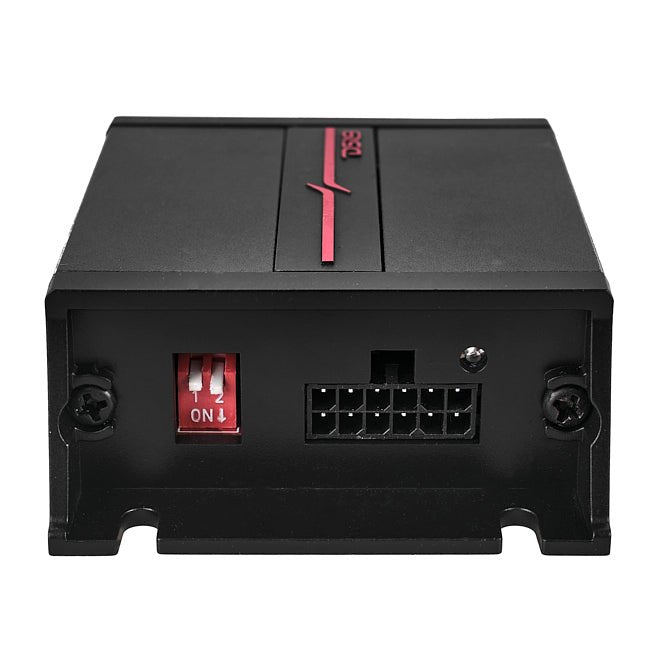

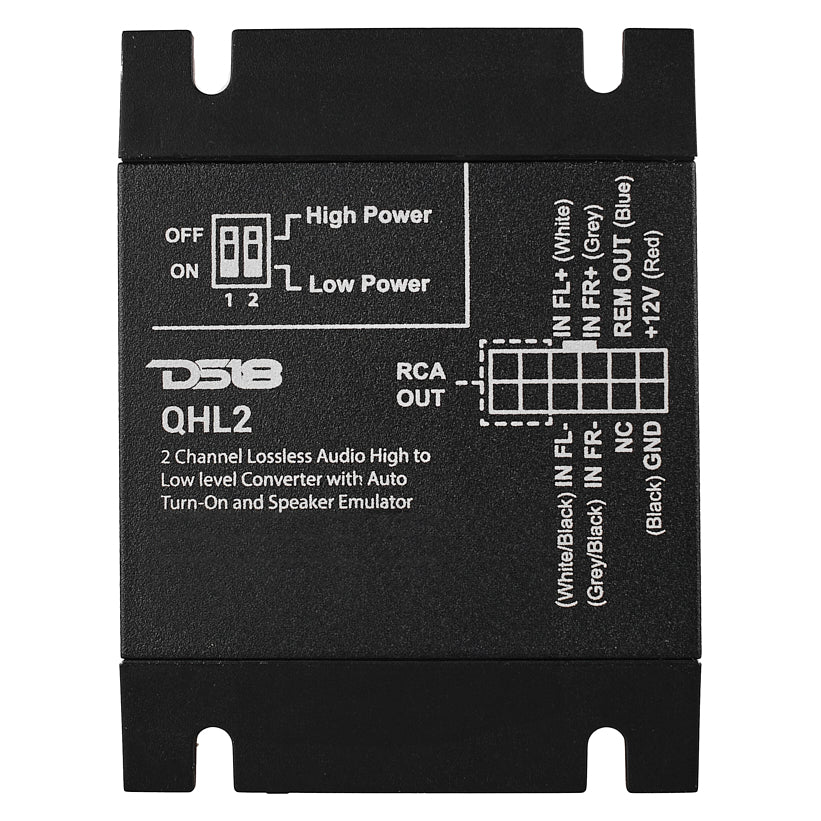

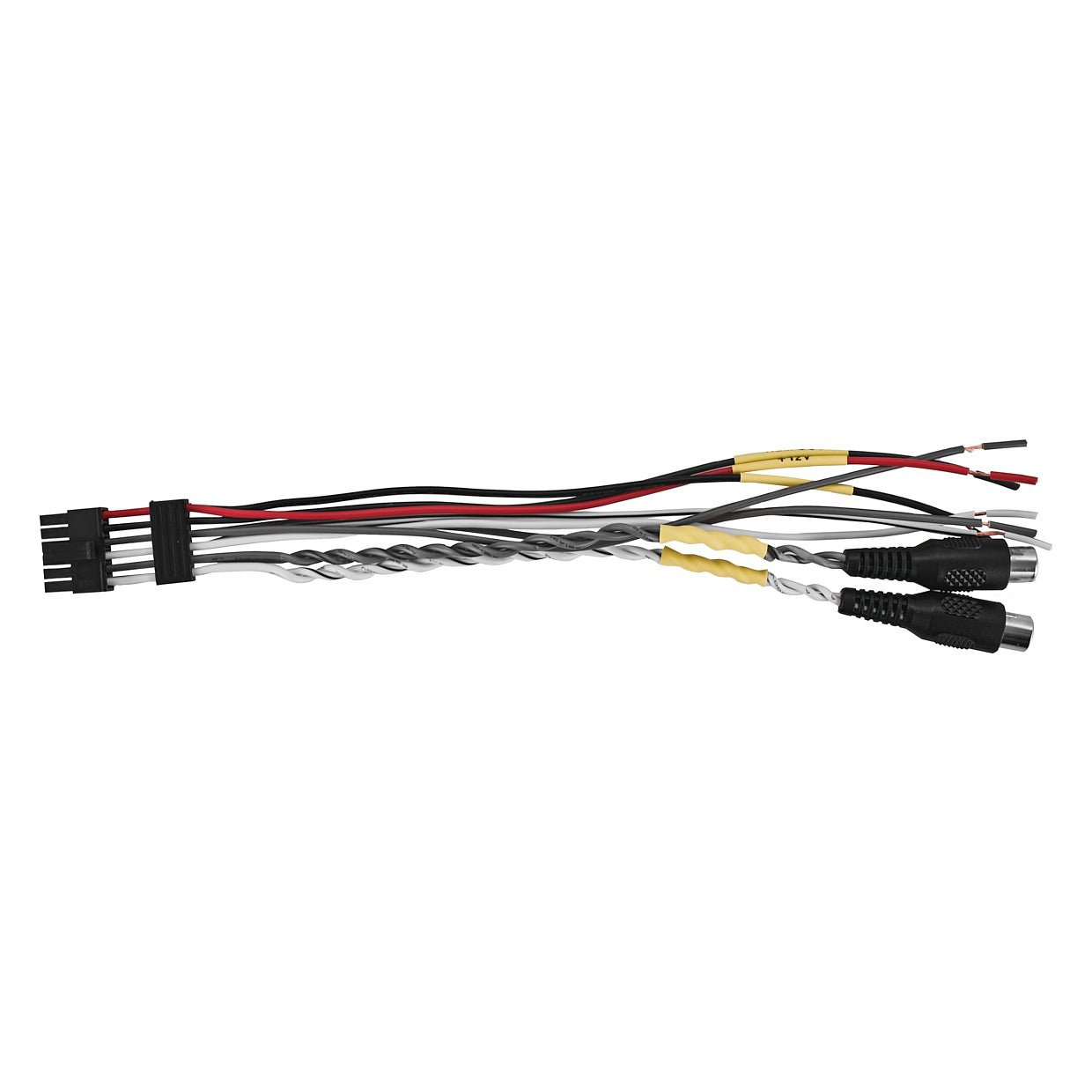

| Wiring Connector | Single Molex |
| Noise Rejection | Transformers with Galvanic Insulation |
| Step-Down Method | High-Quality Lossless Transformers |

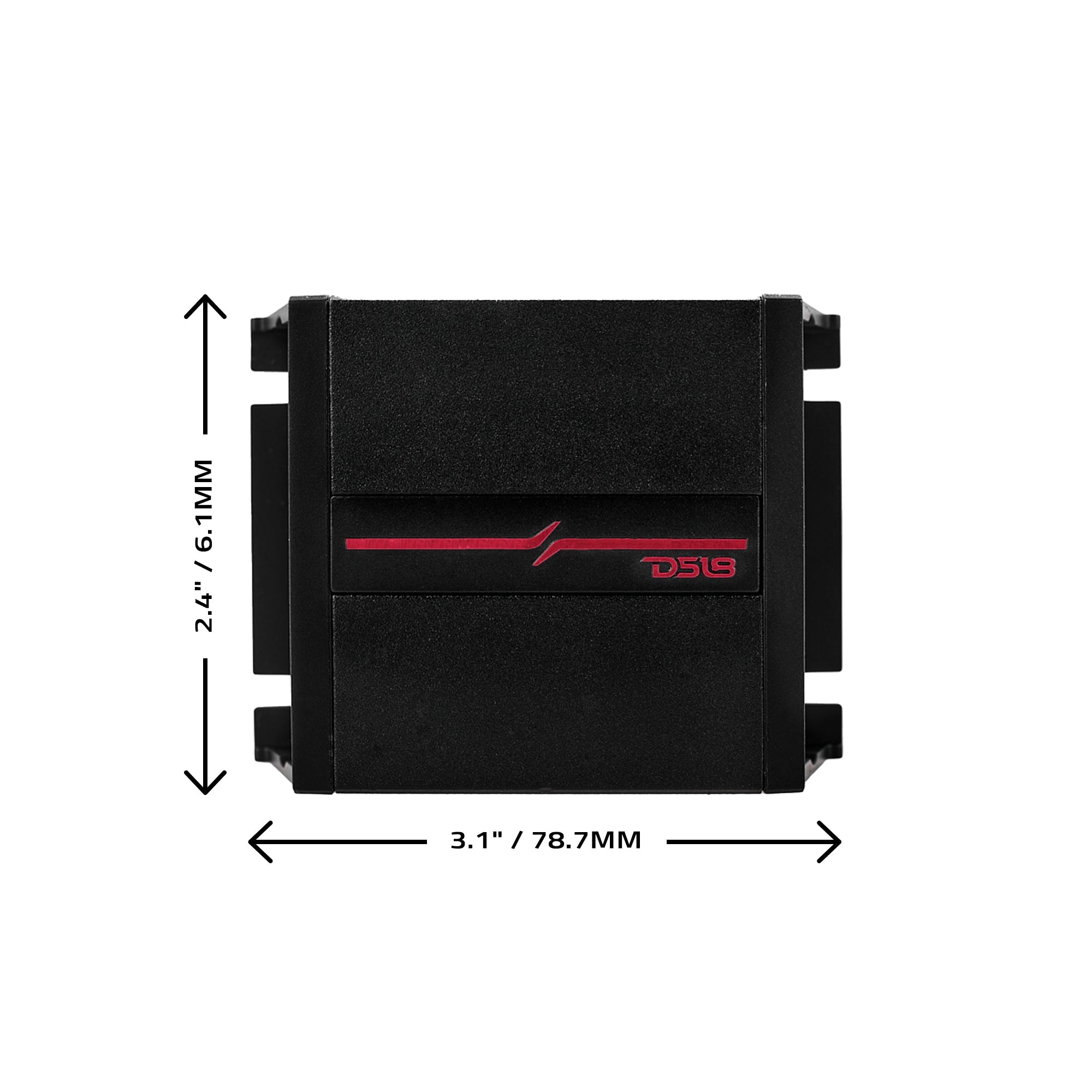

| Overall Length | 3.1" / 78.7mm |
| Overall Width | 2.4" / 61mm |
| Overall Height | 1.1" / 28mm |
| Gross Single Unit Weight | 0.36 Oz (0.16kg) |
