PS-8

Overview

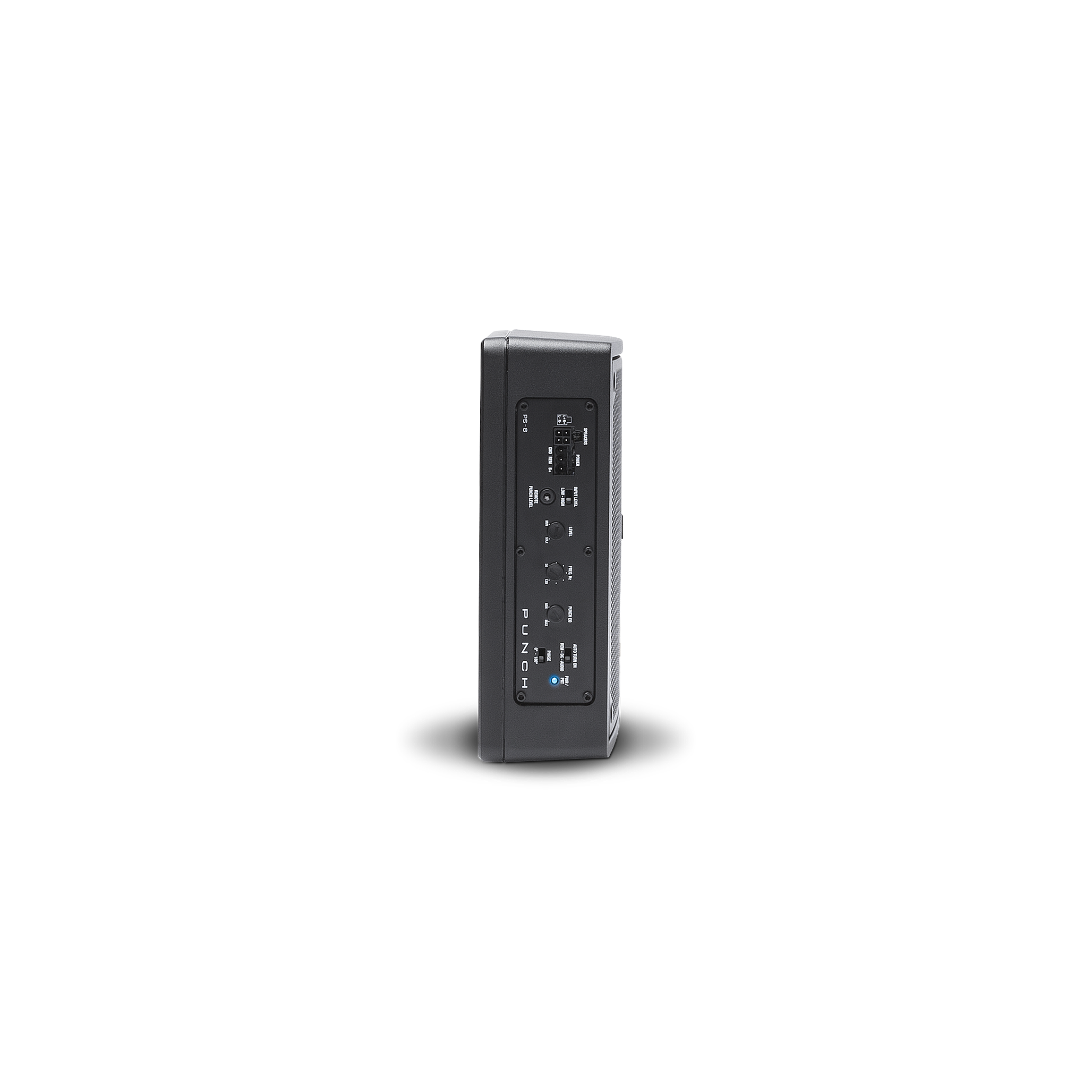

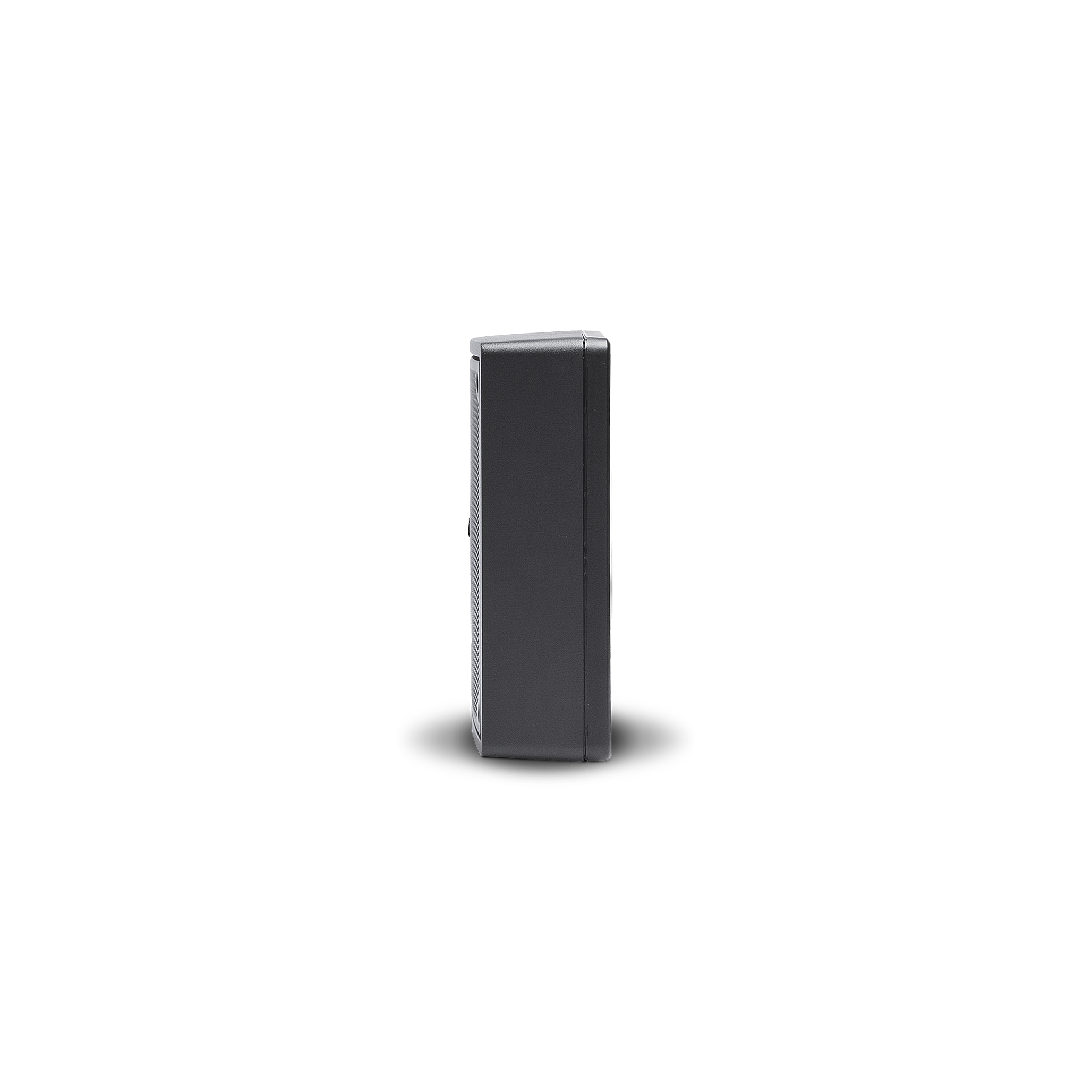

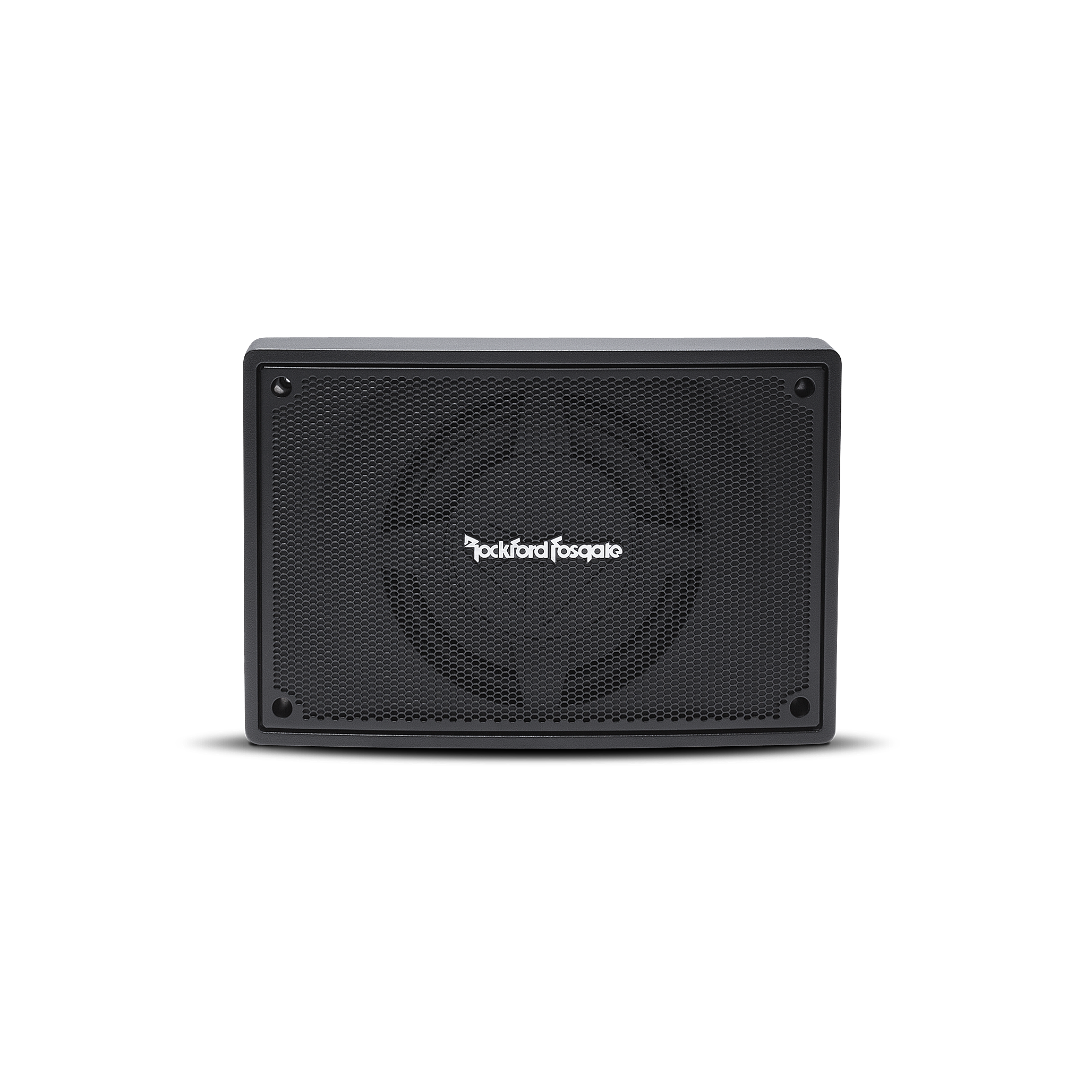

The Punch PS-8 is a self-contained amplified subwoofer system featuring a single Punch 8" driver in a sealed enclosure and a built-in 150 watt amplifier.

Features

• "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
• 1 Year Warranty
• 150 Watt Class D Amplifier and 8" Shallow Woofer
• Adjustable 12db/Octave low pass crossover
• Built-in 0 deg/180 deg phase switch
• Built-in adjustable bass boost EQ
• Hi-level/low-level inputs

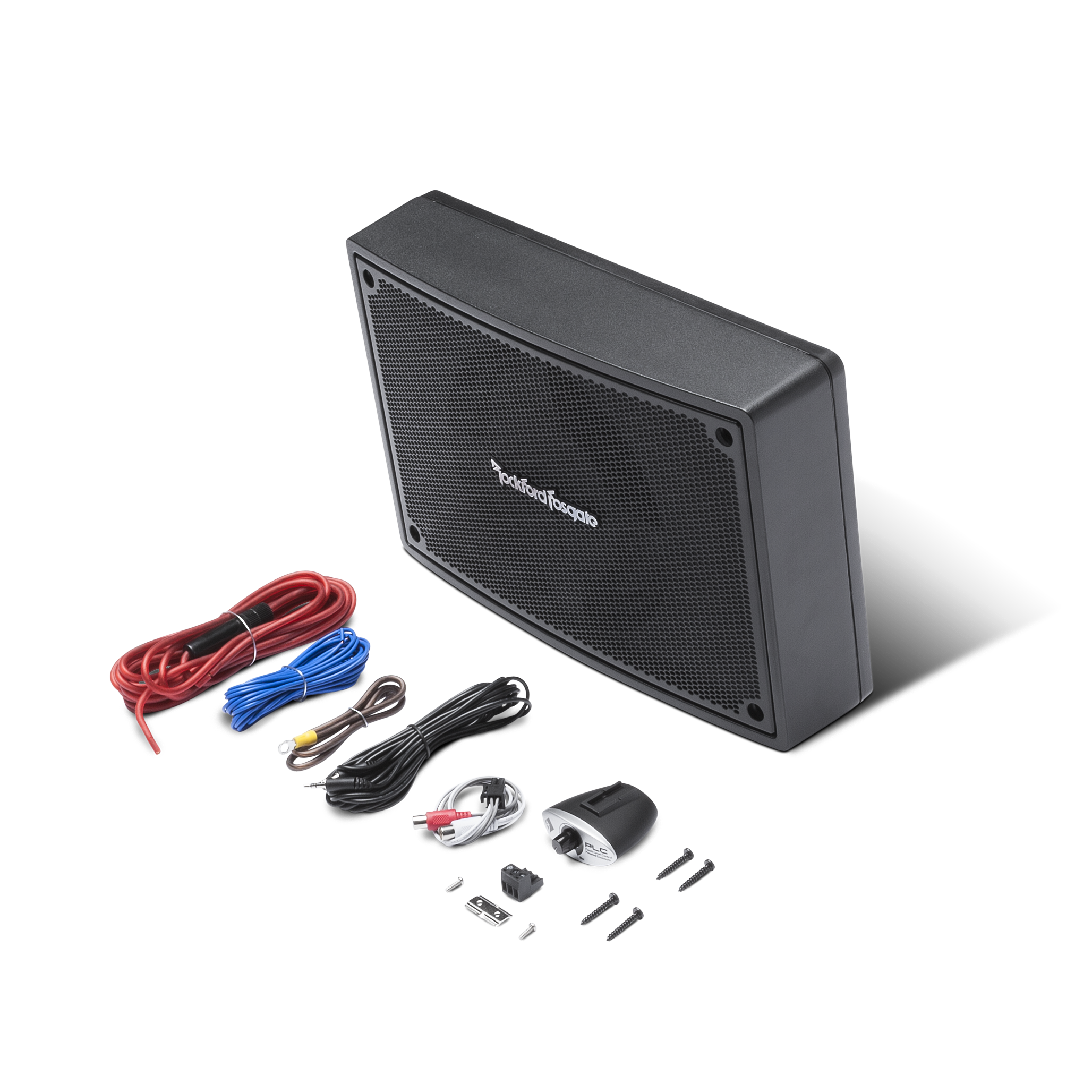

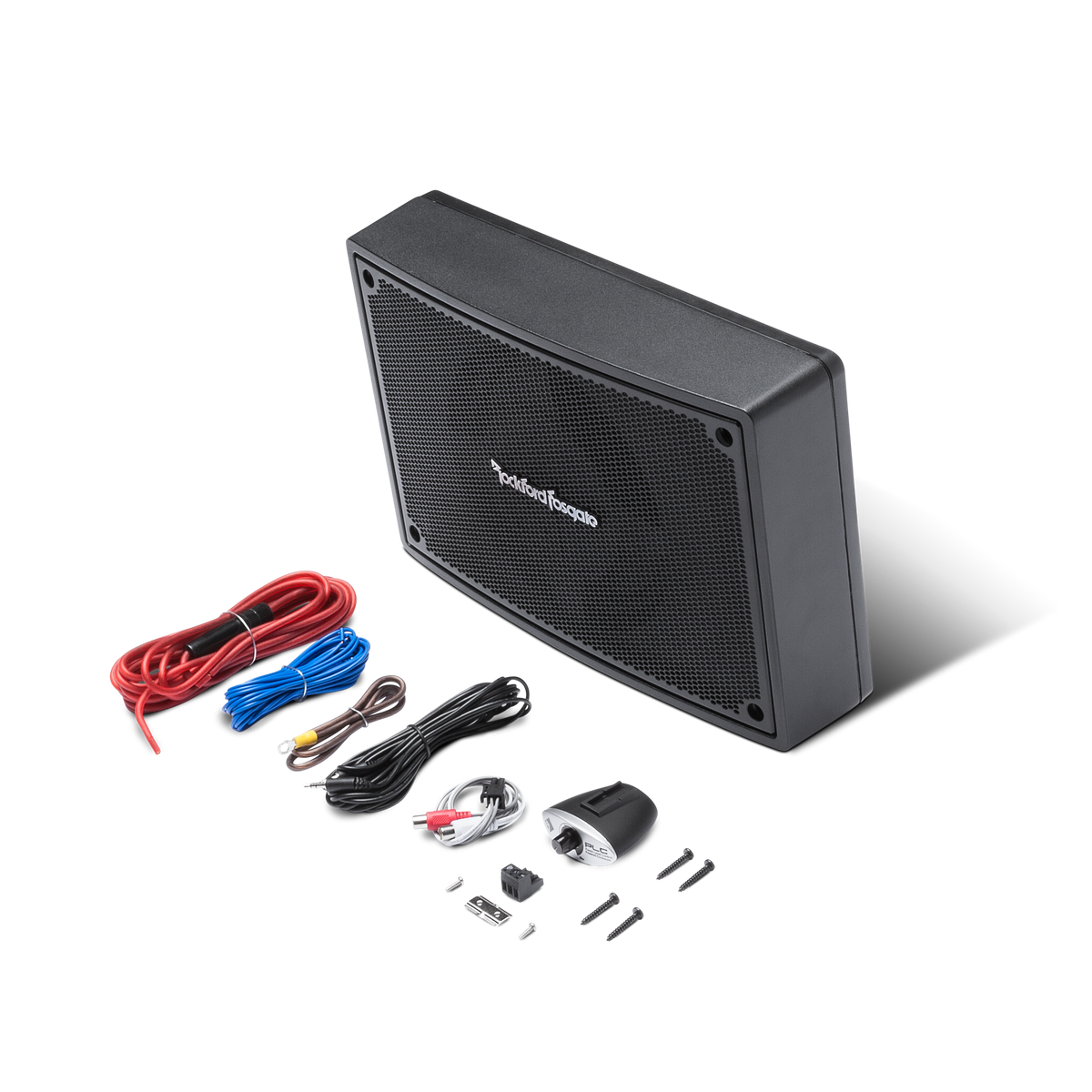

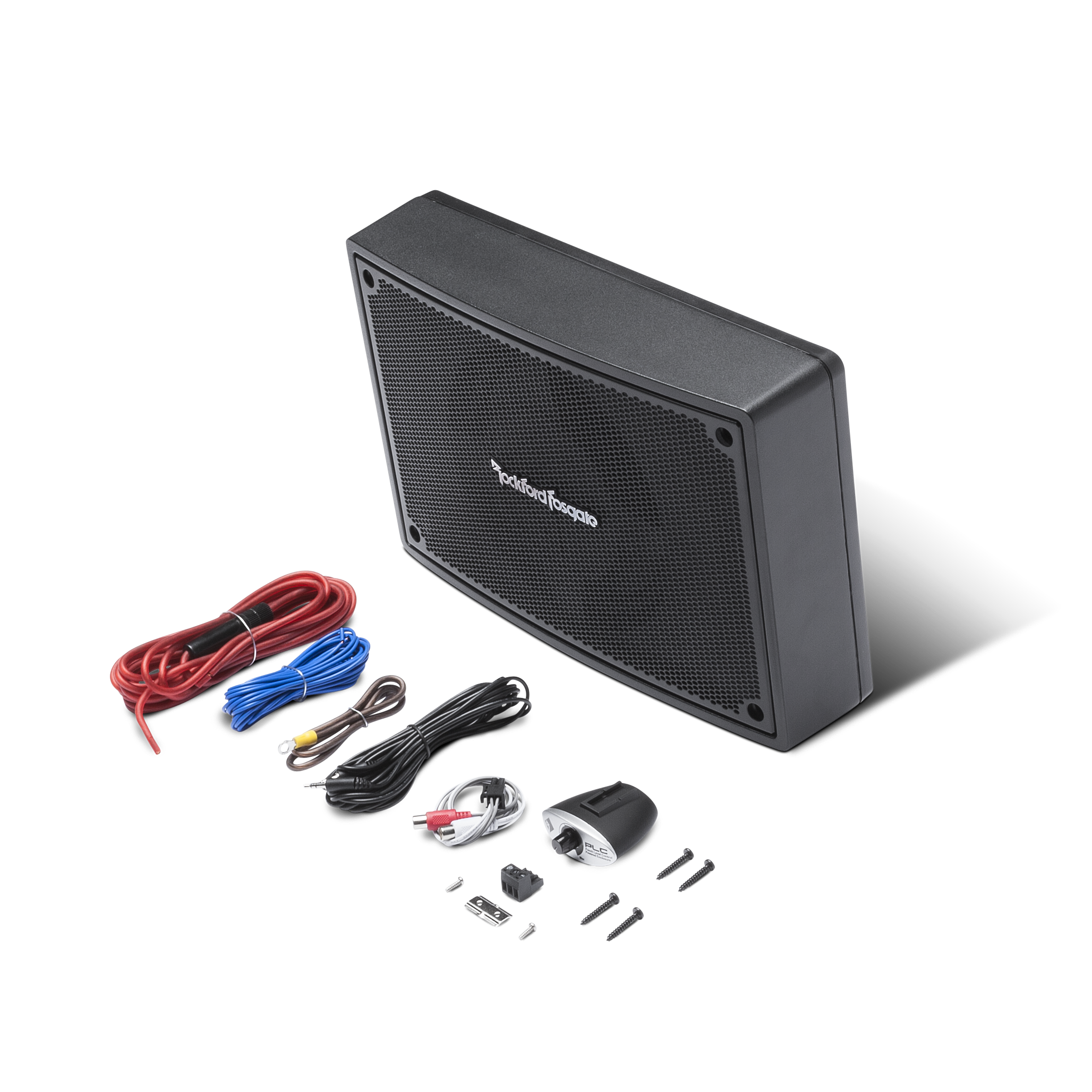

• Includes mounting hardware
• Includes power, ground, and turn-on wires
• Quick disconnect power and signal connections
• Remote bass level control included
• Remote/DC Offset/Signal Sense turn on select
• Short circuit, thermal, and reverse polarity protection

Specifications

• Nominal Impedance (ea): -
• Crossover Controls: Variable 50 Hz to 120 Hz; 12dB/Octave Butterworth
• Integrated Amplifier: 150 Watts RMS
• Frequency Response: 25 Hz to 150 Hz
• Woofer Size: 8"
• Power Handling (Watts RMS): 150 Watts RMS
• Enclosure Type: Amplified

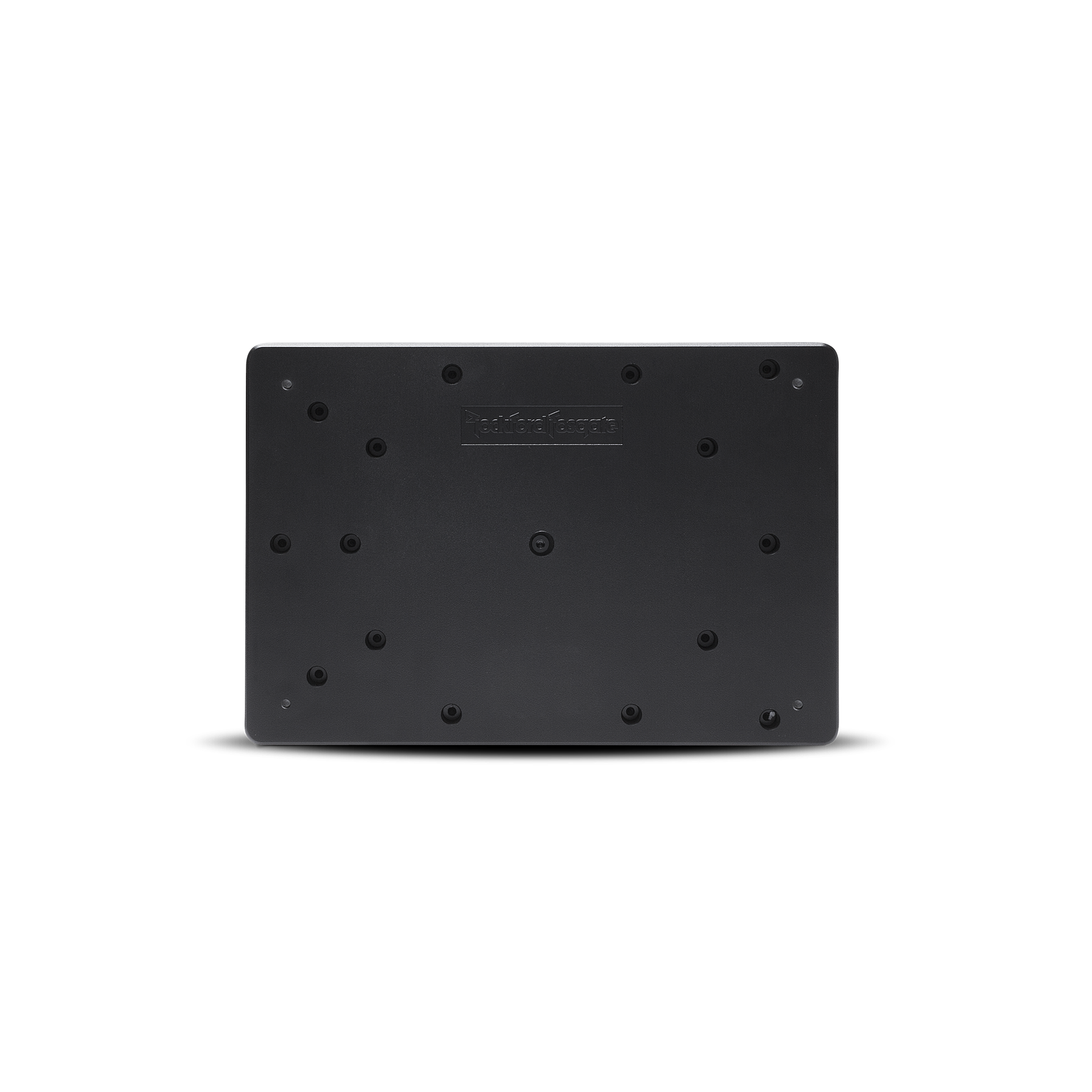

• Enclosure Material: Cast aluminum w/ ABS backplate
• Tone Controls: Gain & Bass Boost
• Woofer Quantity: 1
• Woofer Series: Proprietary
• Signal Input: Low-Level: 1 RCA Pair; High-Level: Left/Right Summed Inputs
• Power Input Connector: Removable Connector; Power/Ground/Remote; Replacement 1130-59232-01
• Power Wire Gauge: Included
• Remote Control: Included
• Visual Indicators: Power; Protect
• Cooling: Convection
• Heat Sink Type: Cast Aluminum
• Circuit Topology Class: Class-D
• Dimensions; Box (H x W x D); Wedge (H x W x D1 x D2): 14.4 x 9.4 x 3.3 (in); 36.5 x 23.8 x 8.3 (cm)
