PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm

Availability: In stock SKU: PRO-ZT69
Sale price $114.95

PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm - DS18

PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 275W RMS 4-Ohm

$114.95

Product Overview

6x9” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 550W 4-Ohm

Experience earth-shaking sound with the PRO-ZT69: a 2-way mid-range built for raw power, accurate reproduction, and crystal-clear clarity across the entire frequency range. Packed into a rugged, water-resistant coaxial build.

Insane Power
Handling an RMS power of 275W and a MAX power of 550W, the PRO-ZT69 reaches volumes that will take your breath away. With a 4-Ohm impedance for easy installation and an ultra-sensitive 98dB rating, you’re guaranteed powerful output at lower power levels.

Wide Frequency Range
With an impressive frequency response of 60Hz - 22KHz, the PRO-ZT69 captures every nuance across the entire audio spectrum. The integrated neodymium tweeter refines the balance between highs and lows, ensuring you hear every detail of your music.

Deep, Impactful Bass
Engineered with a robust ferrite magnet, the 6x9" mid-range woofer generates a deep low-end punch, for immersive bass response. This powerful magnet structure enhances voice coil action for forceful impact in your low-end.

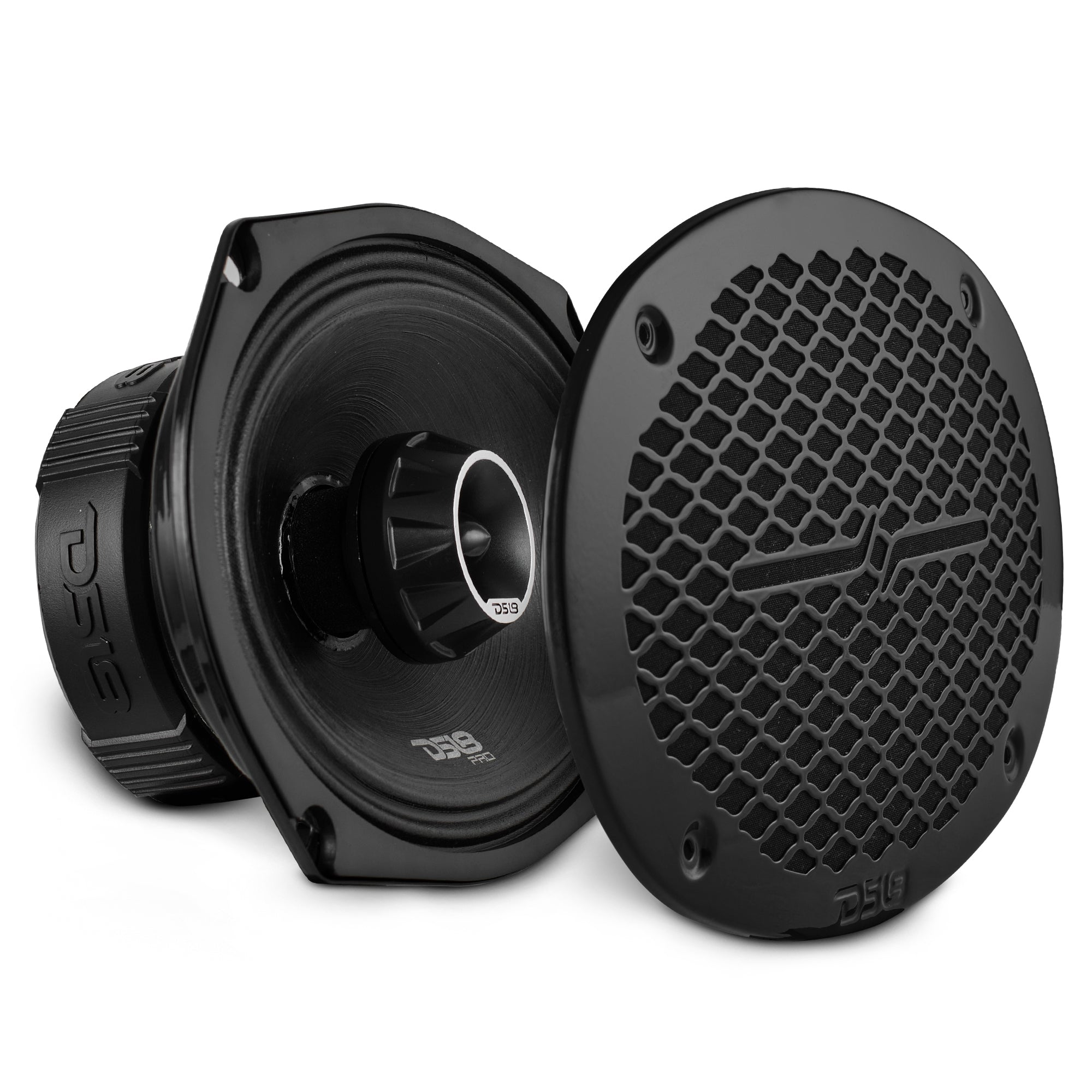

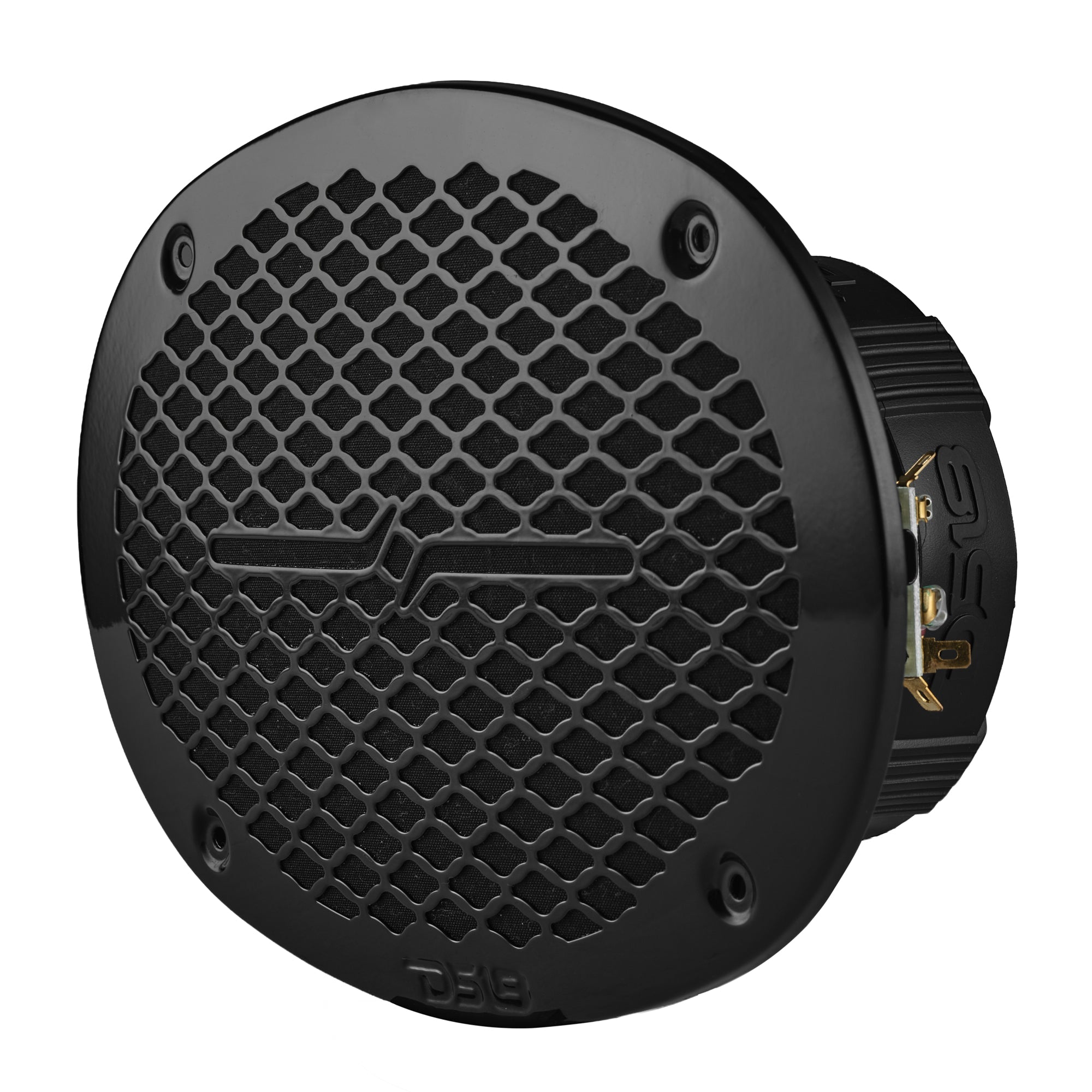

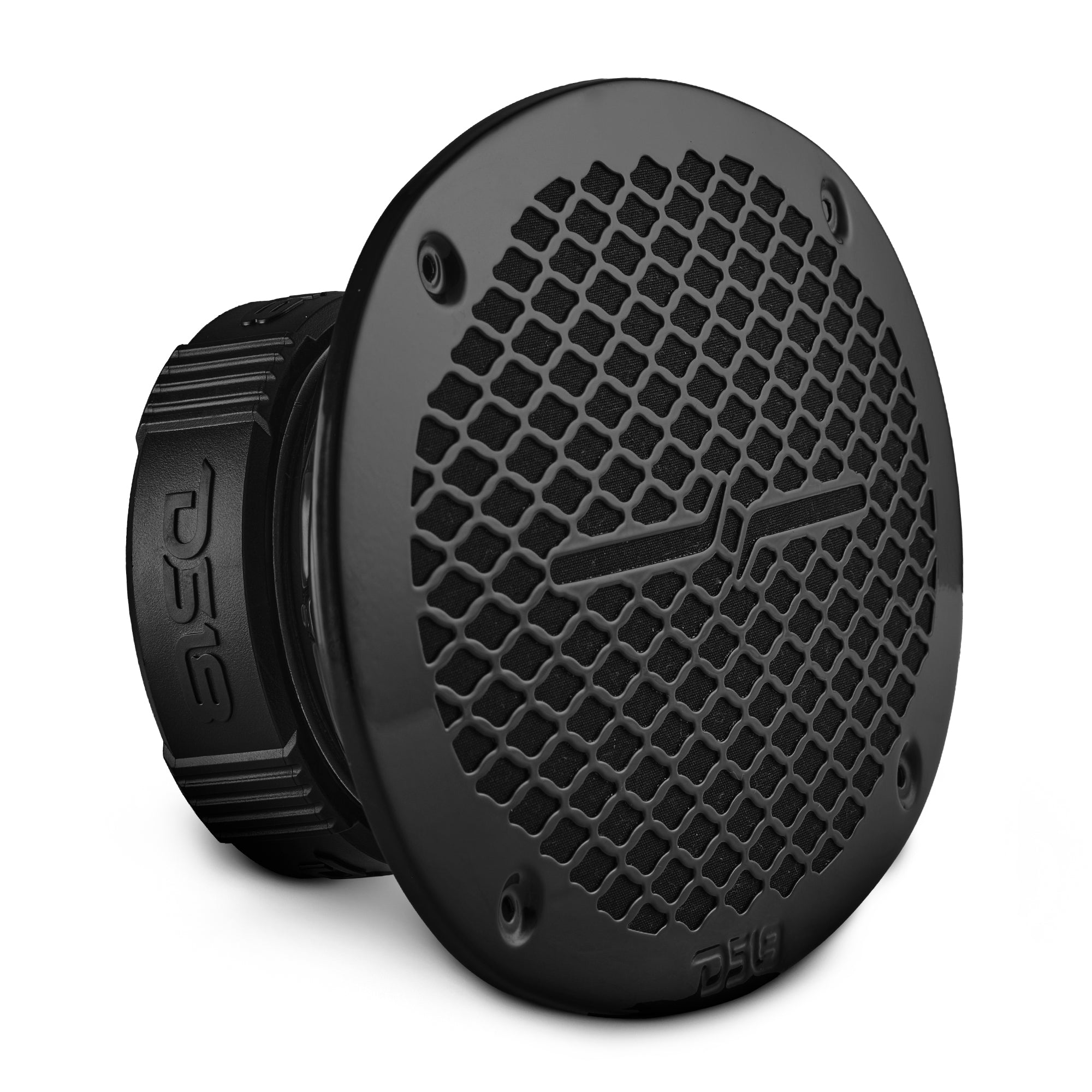

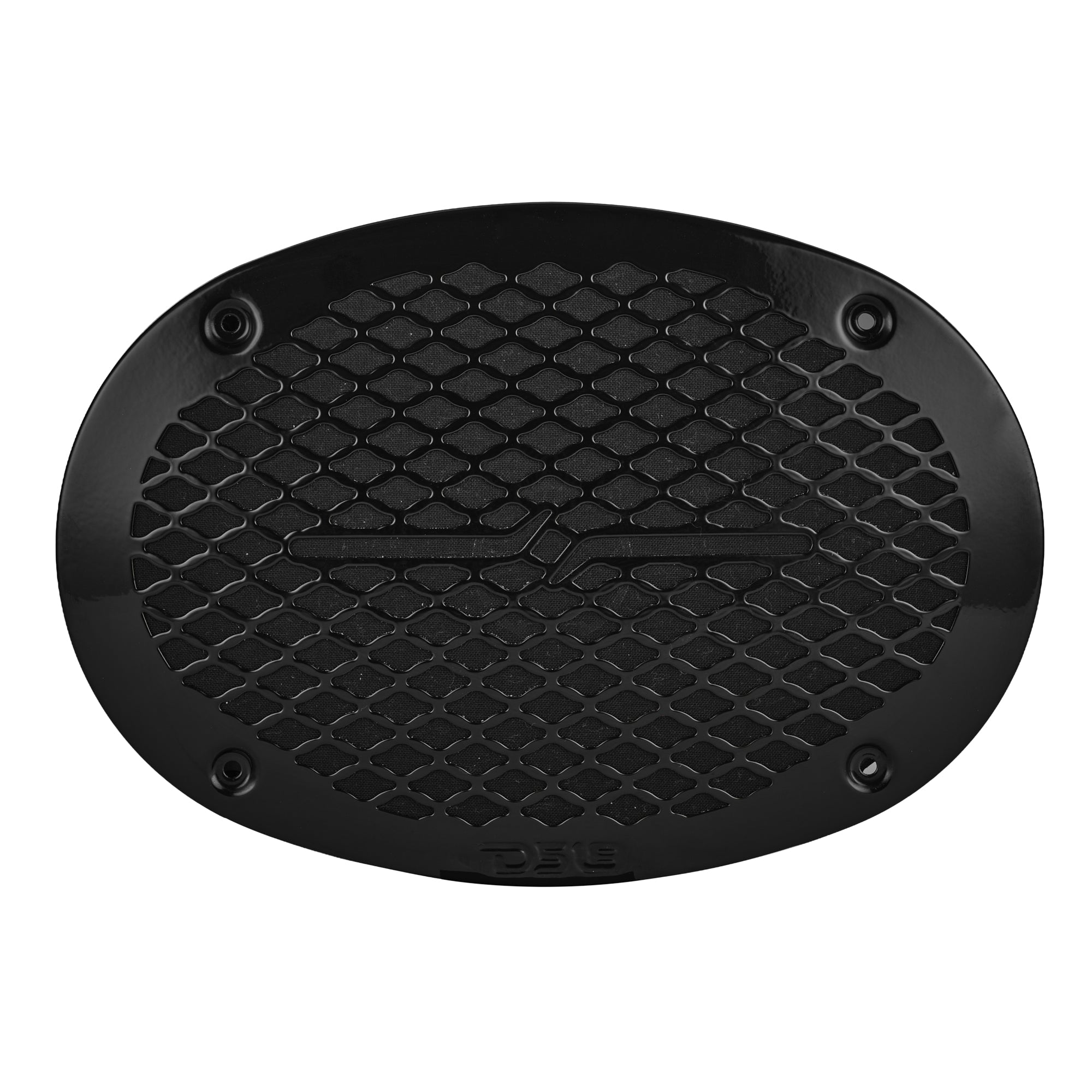

Protective Grill Included
The rugged steel mesh grille now comes with an integrated cloth shade. This added layer helps block dust, water spray, and direct sunlight from reaching the cone, protecting internal components and maintaining performance in any conditions.

Transform your system with the PRO-ZT69 and experience audio the way it was meant to be heard!

Key Features

  • 6X9" Coaxial Water Resistant Mid-Range
  • RMS Power: 275 Watts (550W Peak)
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets
  • Grill with Cloth Shade
  • 98dB

Specifications

SKU PRO-ZT69
Nominal Diameter 6x9”
Nominal Impedance 4 ohms
RMS Power Handing 275 Watts
Maximum Power Handing 550 Watts
Sensitivity (1w/1m) 98dB
Frequency Response 60Hz-22KHz
Recommended Hi Pass Crossover 80 Hz
Sold as Single Unit
Voice Coil Diameter 1.5” (38.1 mm) / 1”
Voice Coil Former Material Kapton
Winding Material CCAW
Basket Material Steel
Magnet Weight 27 oz / 0.44 oz
Magnet Material Ferrite / NEODYMIUM (N38H)
Cone Material Water-Resistant Paper
Surround Material Treated Cloth
Voice Coil Material KAPTON
Diaphragm Material ALUMINUM ALLOY
Vas 14.6927 LTR
Xmax 16 mm
Fs 85 Hz
Qms 3.906
Qes 0.639
Qts 0.549
Re 3.2 ohms
Overall Diameter 260 x 180 mm (10.24 x 7.09”)
Front Mount Baffle Cutout 219 x 150 mm (8.62 x 5.91”)
Mounting Depth 85 mm (3.35”)
Overall Depth 97 mm ( 3.81”)
