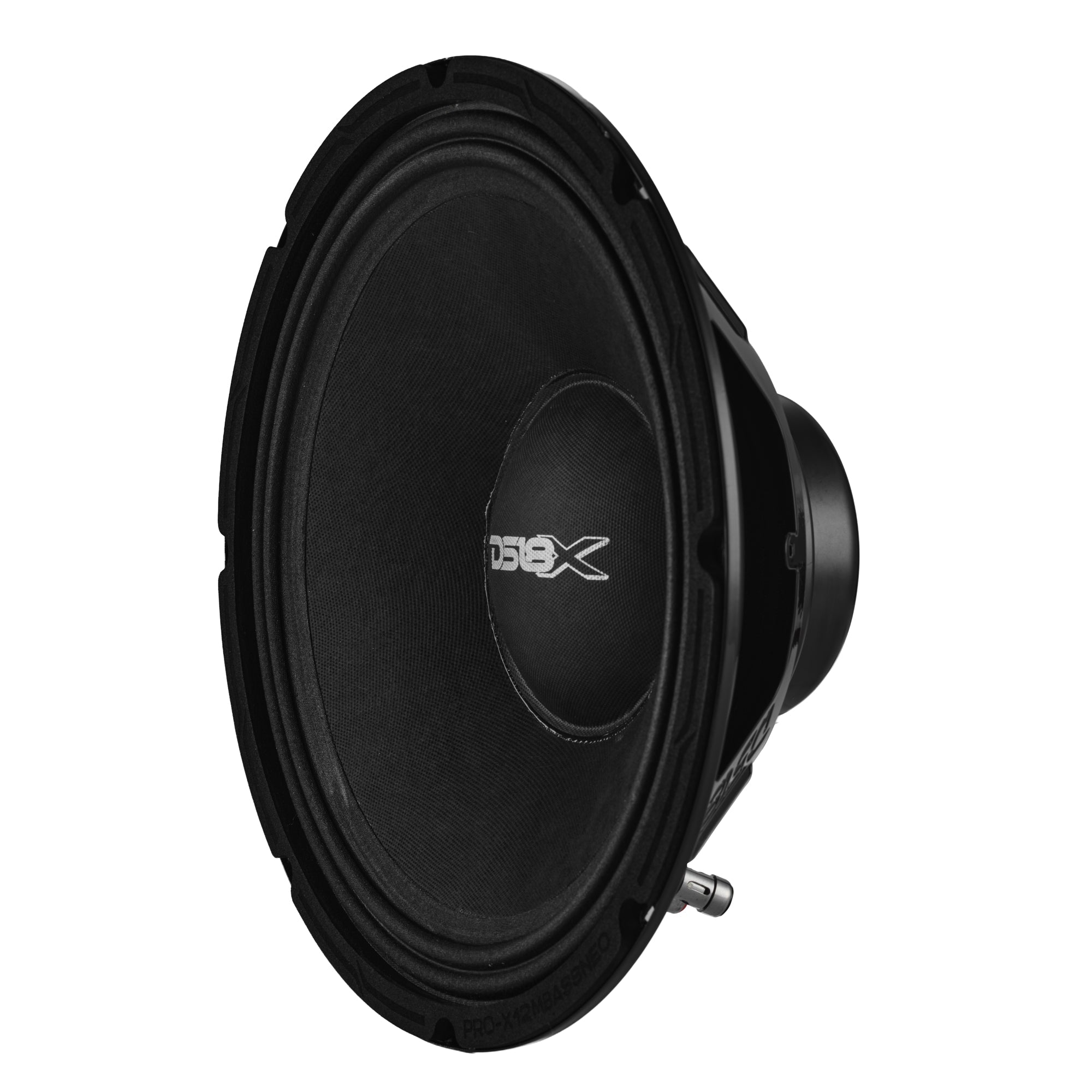

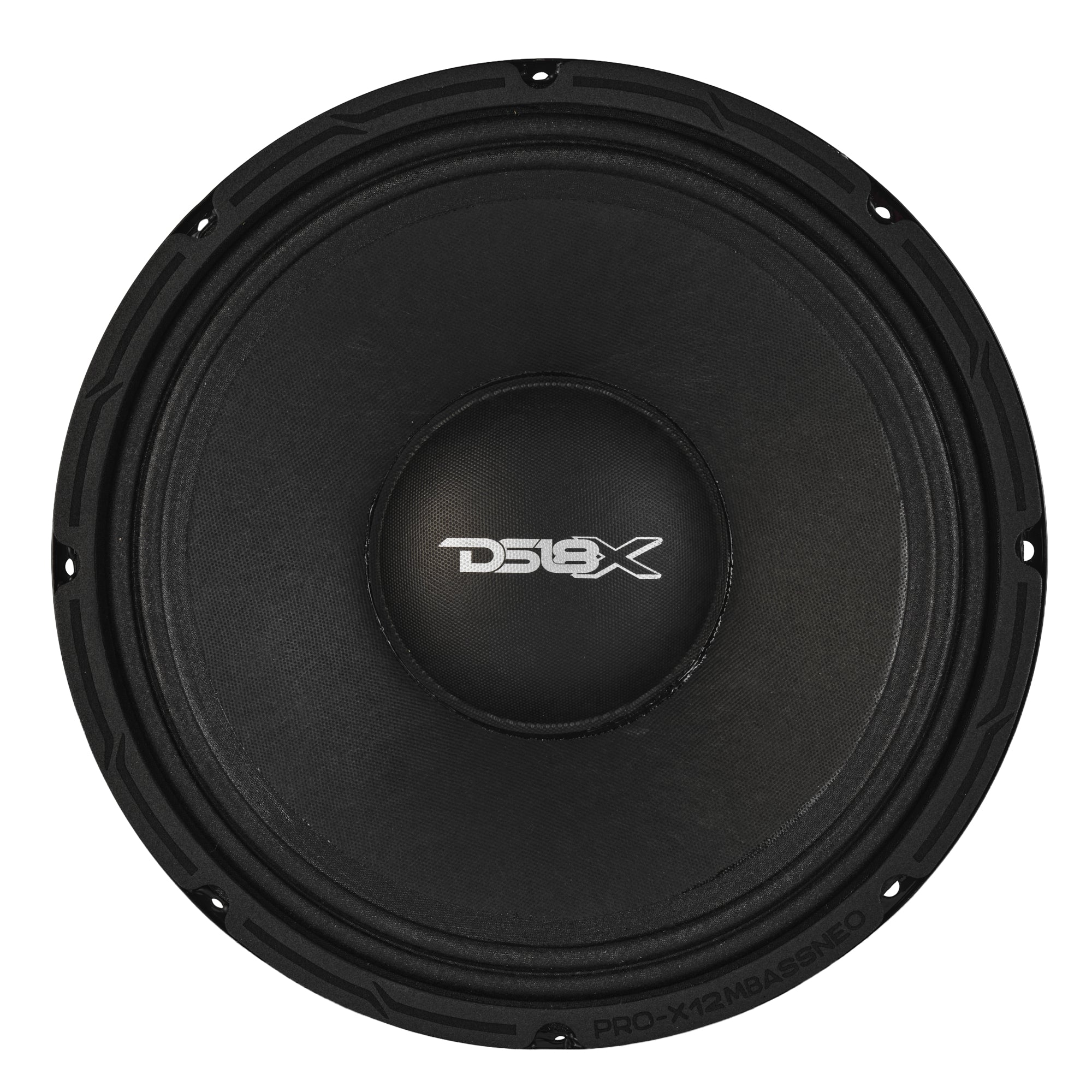

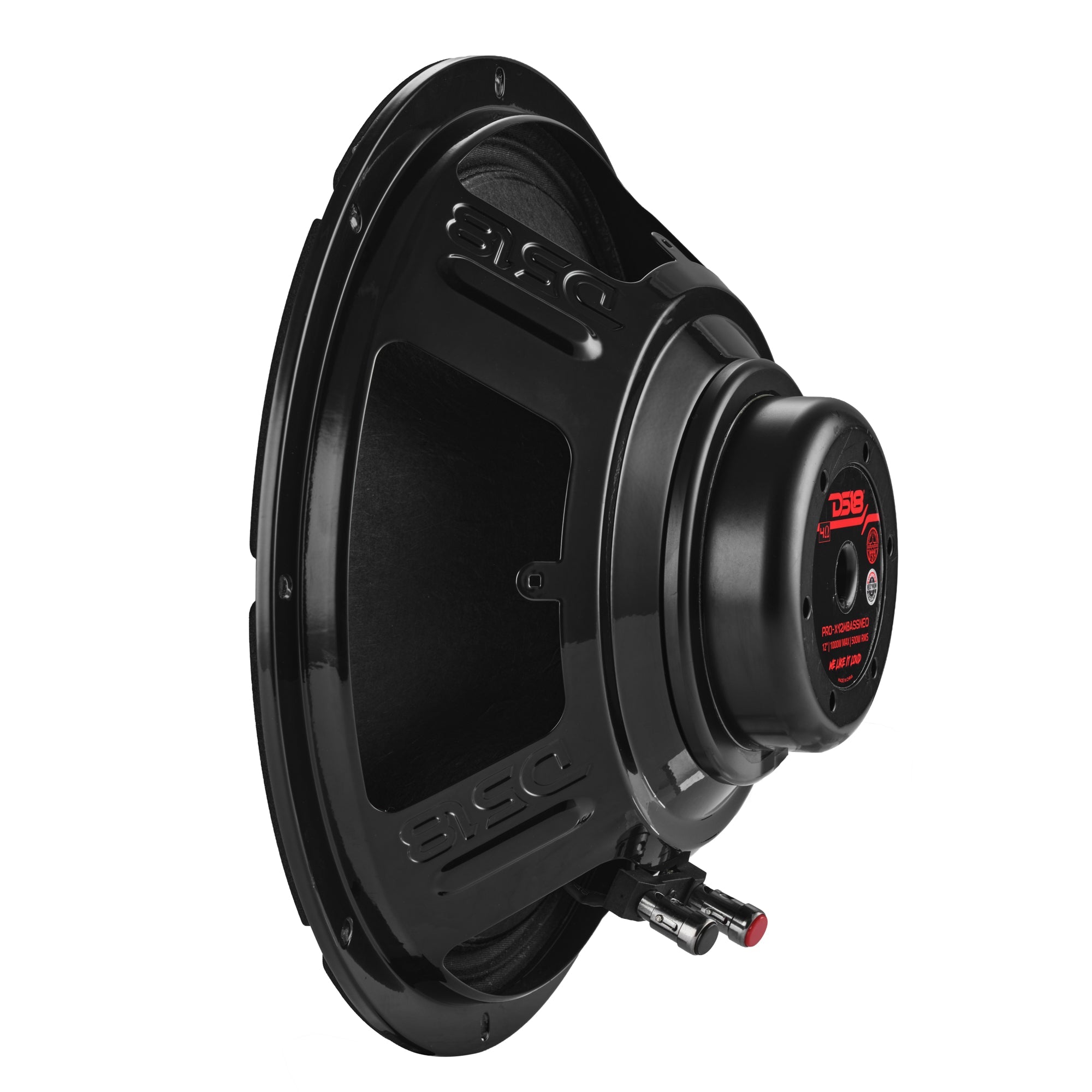

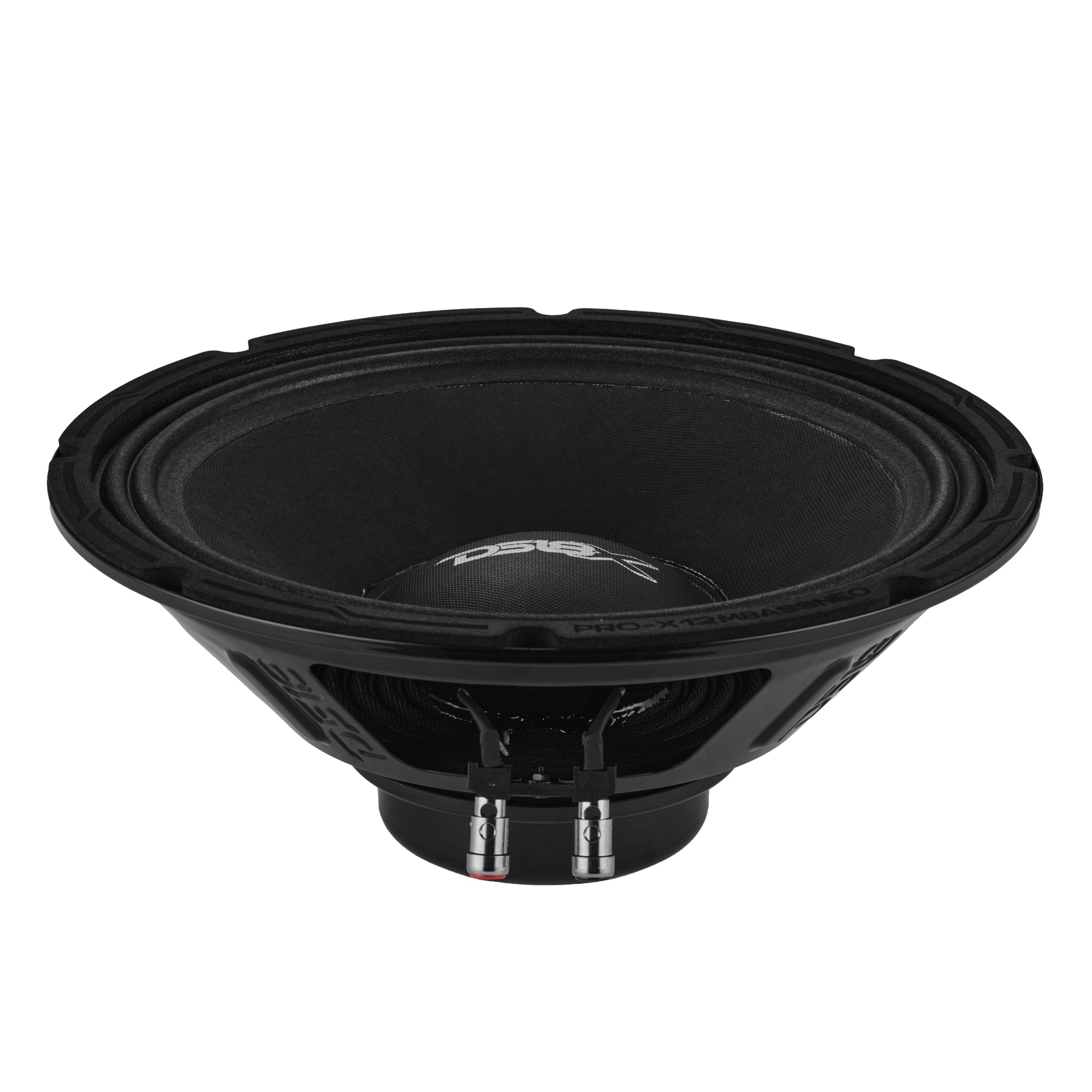

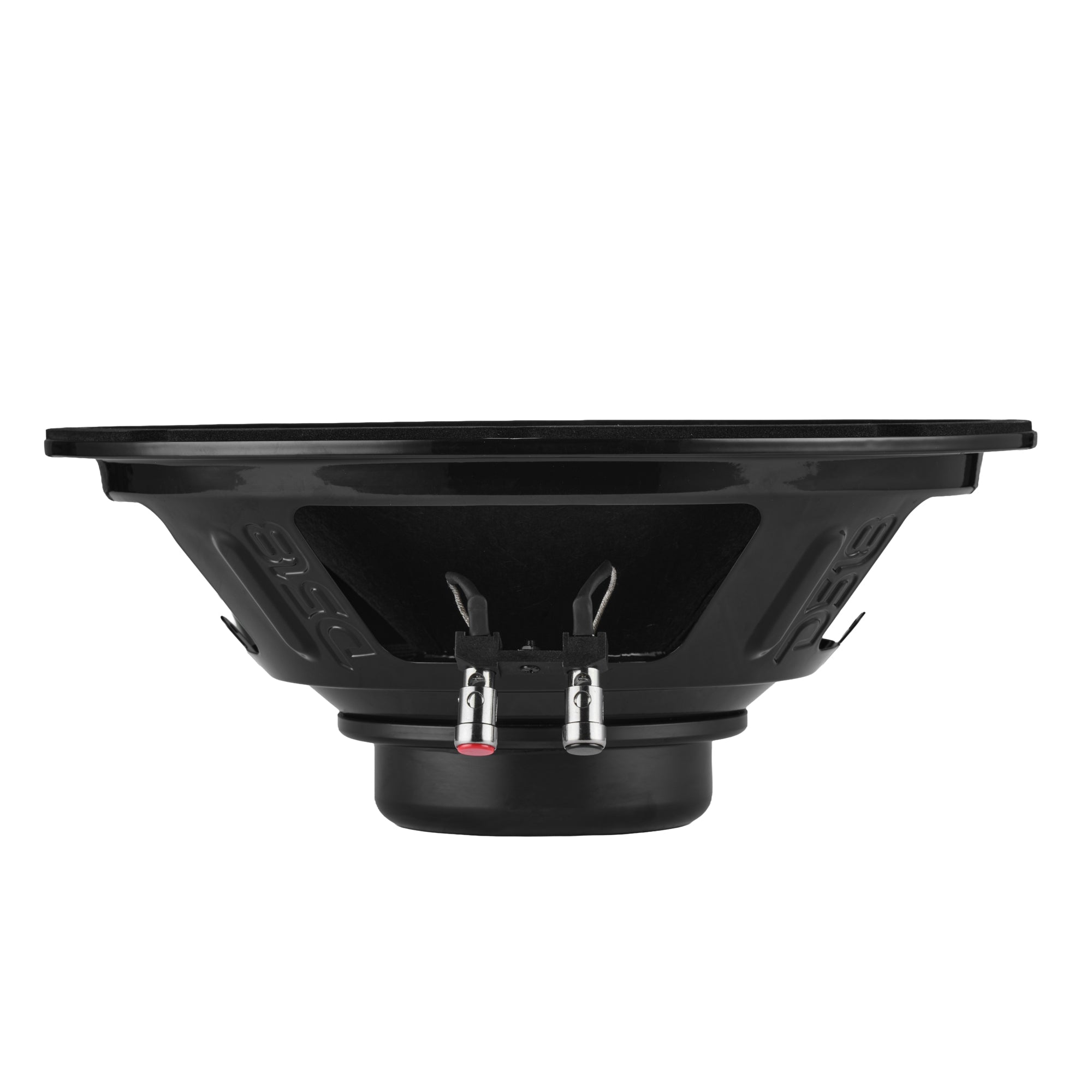

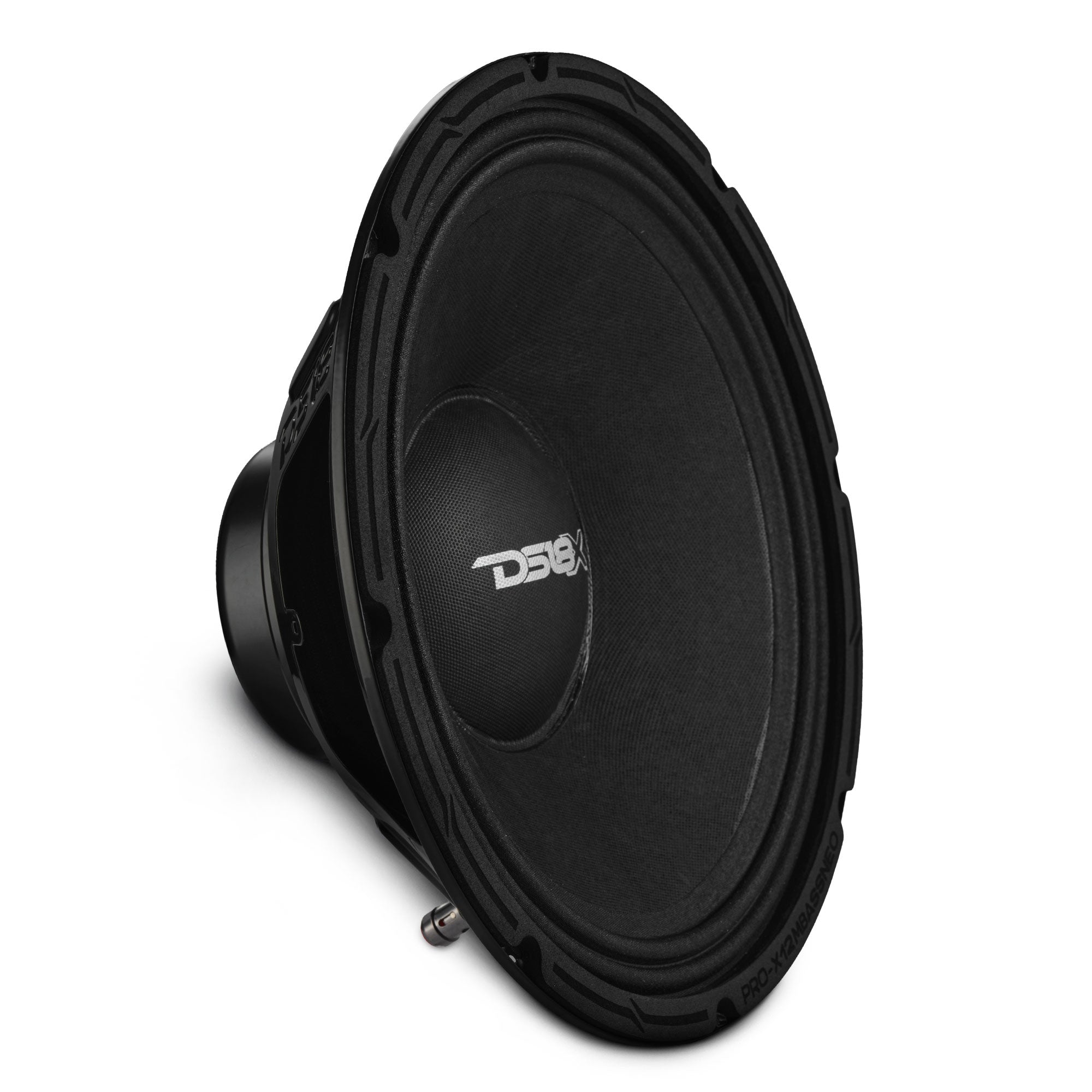

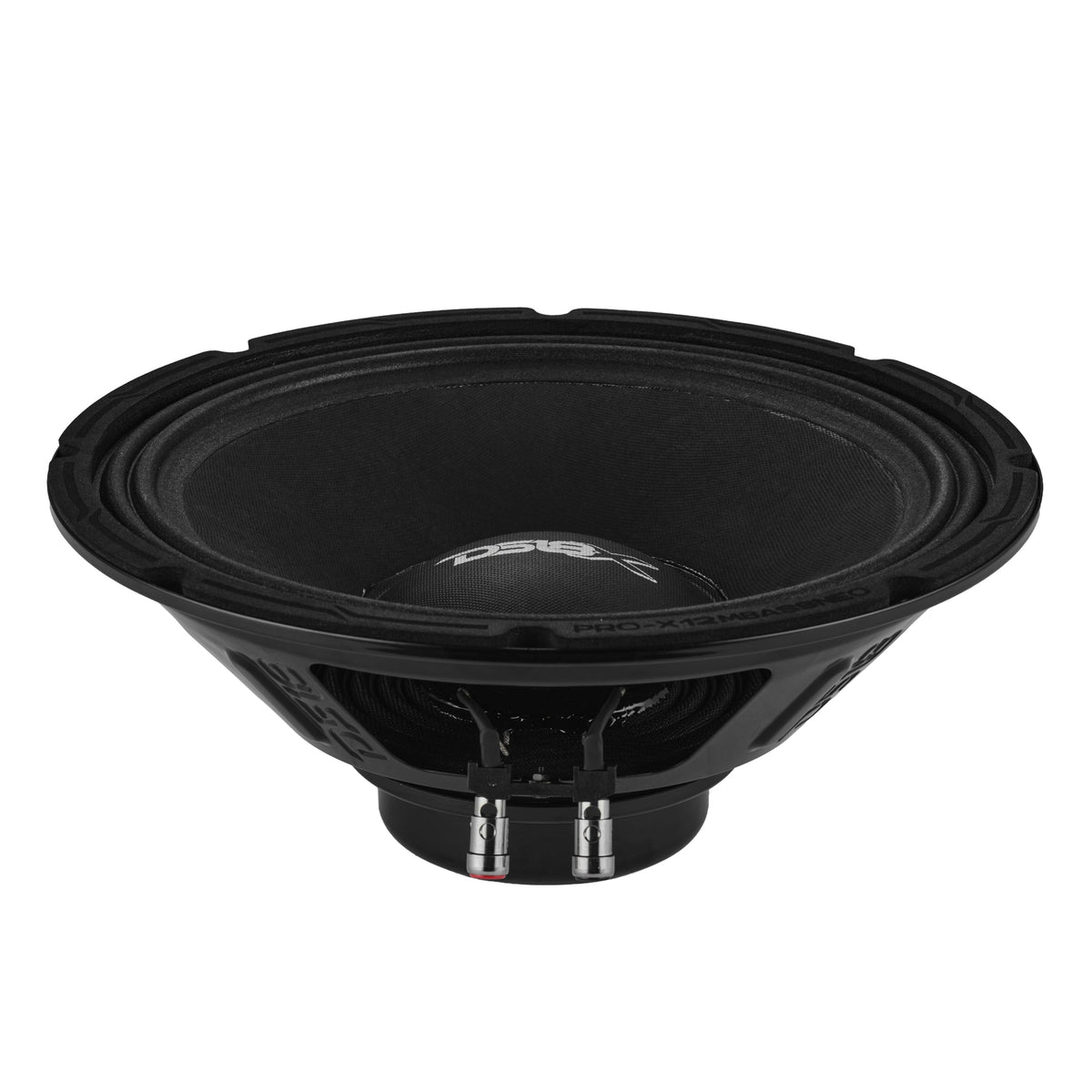

PRO-X 12” Mid-Bass Loudspeaker With Neodymium Magnet | 500W RMS 4-Ohm
PRO-X 12” Mid-Bass Loudspeaker With Neodymium Magnet | 500W RMS 4-Ohm
Product Overview

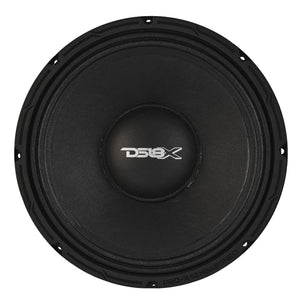

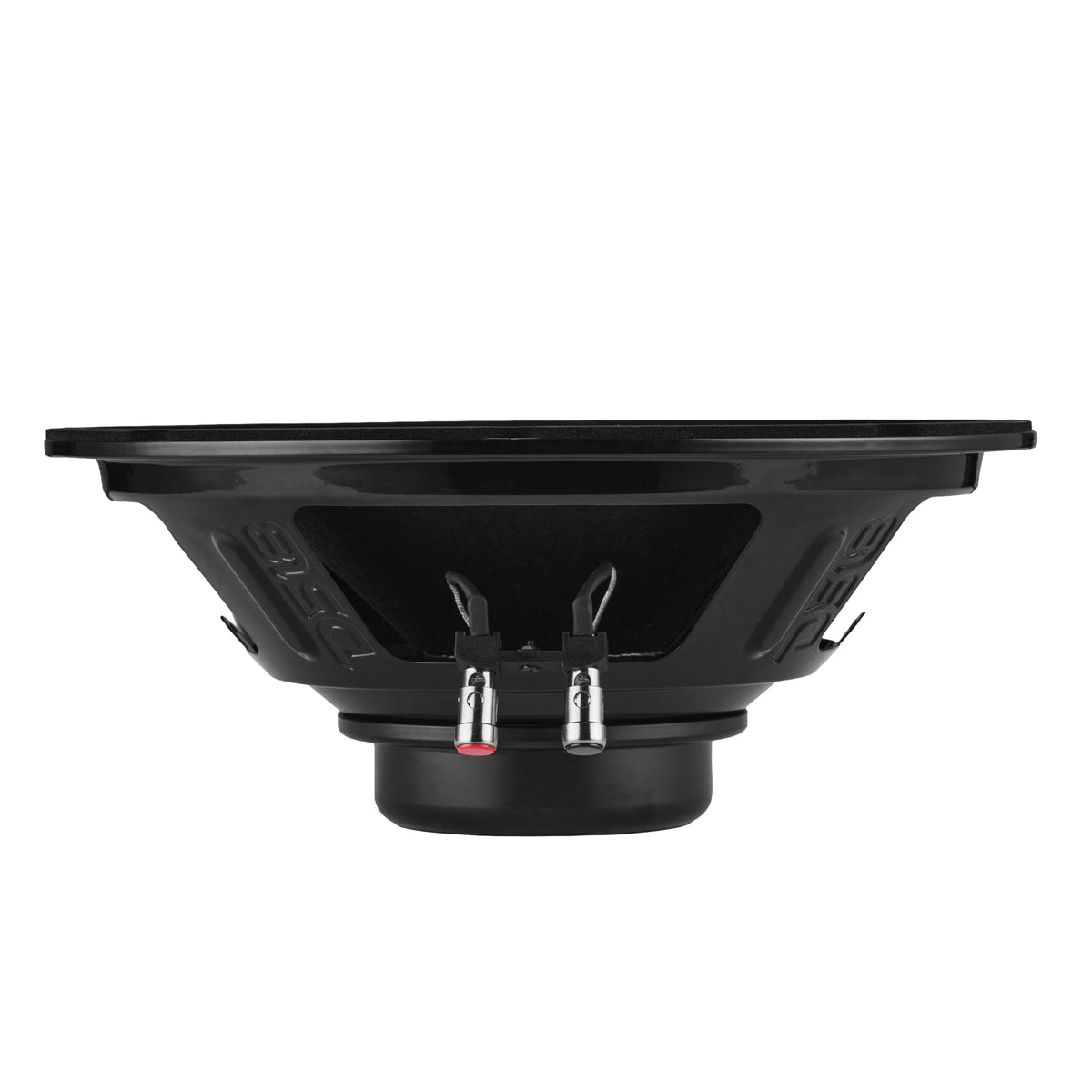

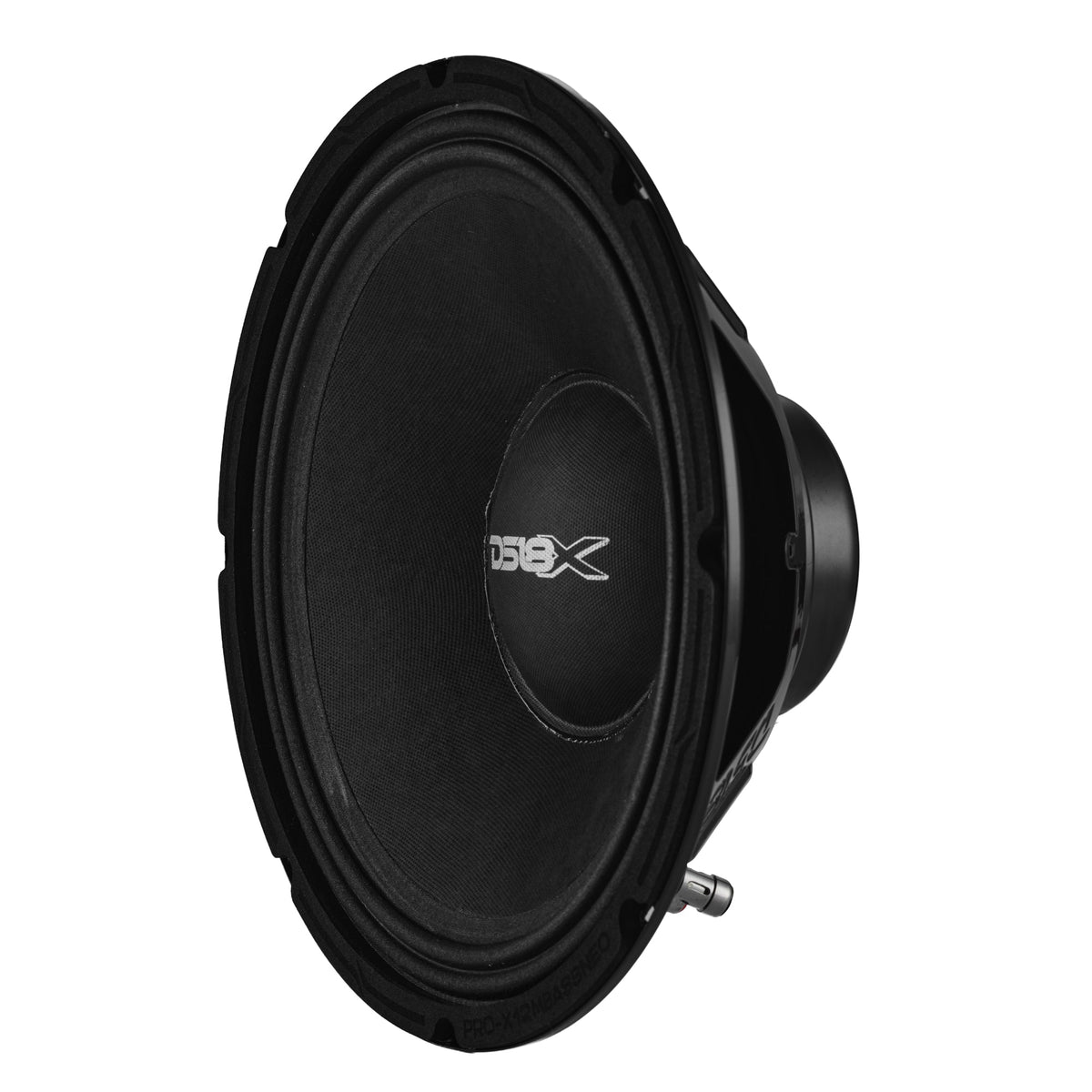

12” Mid-Bass Loudspeaker With Neodymium Magnet
The PRO-X12MBASSNEO is HERE! Engineered for clarity and strength, this 12-inch mid-bass speaker brings powerful, distortion-free sound at 500W RMS and 1000W MAX.
Hybrid Design
Equipped with a 3-inch voice coil built with TSV technology and wrapped around a neodymium magnet, the PRO-X12MBASSNEO ensures crisp mids, solid bass response, and long-lasting performance.
Precision Engineering
With a wide frequency response from 40Hz to 5kHz and a sensitivity rating of 96dB, this mid-bass driver captures every detail of your favorite tracks. Its 4-ohm impedance makes it a versatile choice for high-quality car audio upgrades.
Get DS18’s PRO-X12MBASSNEO for deep, clean mid-bass and experience sound like never before!
Key Features
- 12" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB
Specifications
| Nominal Diameter | 12" / 304.8mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 40Hz-5KHz |
| Recommended HI Pass Crossover | 60Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 3" / 76mm |
| Voice Coil Former Material | TSV |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Finish / Color | Gloss Black |
| Magnet Material | Neodymium |
| Magnet Weight | 8.76 Oz |
| Equivalent Volume | 64.8L / 2.28ft3 |
| Excursion (one way) | 8mm |
| Free Air Resonance | 53Hz |
| Mechanical Factor | 10.81 |
| Electrical Factor | 0.68 |
| Total Factor | 0.64 |
| Mechanical Mass | 54.74g |
| Mechanical Compliance | 0.16mm/N |
| BL Factor | 11.22 |
| Voice Coil Inductance | 0.2mH |
| Cone Area | 526.85cm2 |
| DC Resistance | 3.5 ohms |

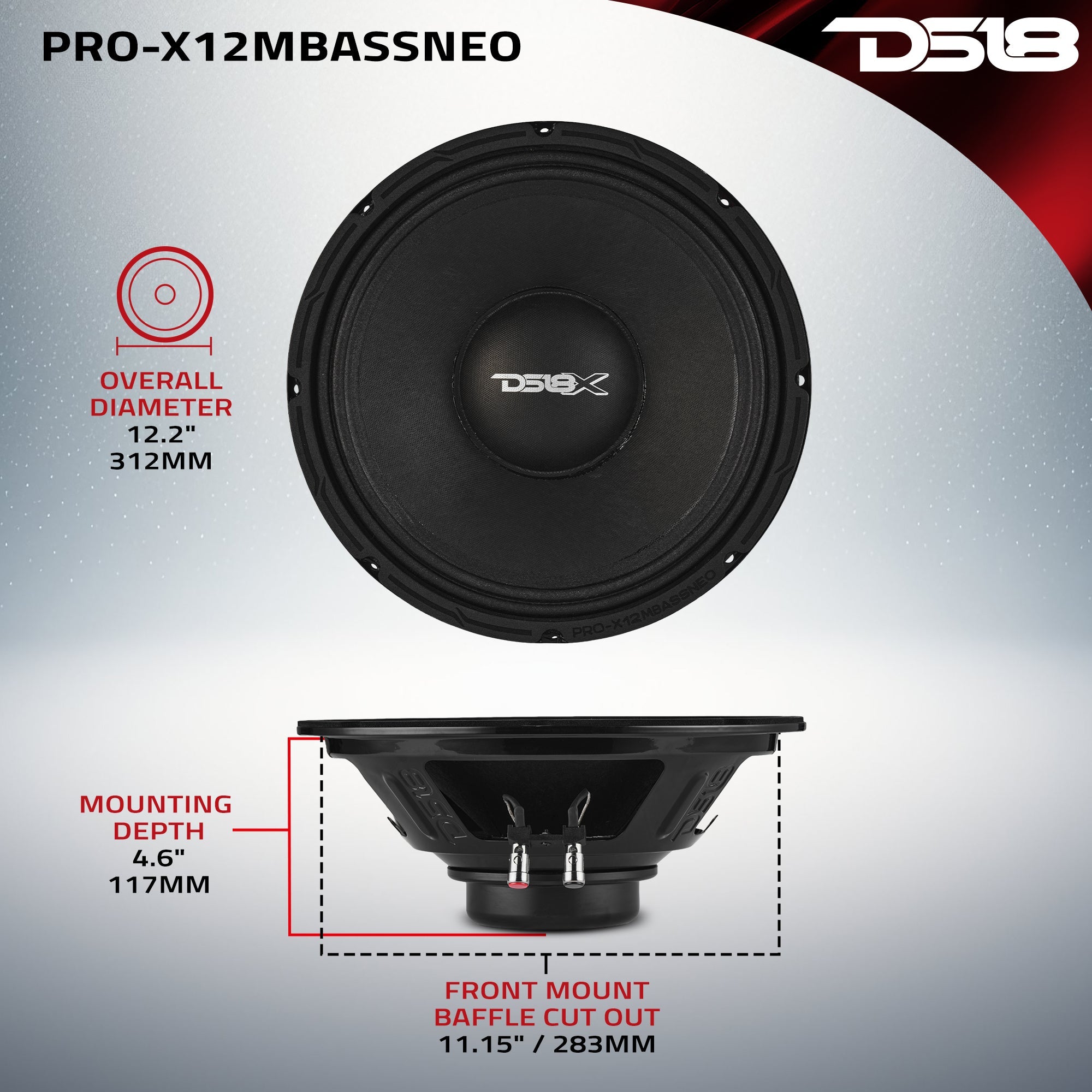

| Overall Diameter | 12.2" / 312mm |
| Overall Depth | 4.9" / 124.5mm |
| Front Mount Baffle Cutout | 11.15" / 283mm |
| Mounting Depth | 4.6" / 117mm |
| Motor Diameter | 4.25" / 108mm |
