PRO-X 8" Mid-Range Loudspeaker 275 Watts Rms 4-Ohm
PRO-X 8" Mid-Range Loudspeaker 275 Watts Rms 4-Ohm
Product Overview

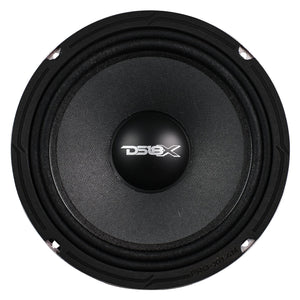

8” Mid-Range Loudspeaker
Step into high-quality sound with DS18’s PRO-X8.4M, now upgraded with a new, durable steel basket. Designed for the best in audio, the PRO-X8.4M delivers a concert-like experience with zero distortion.
With an impressive 275W RMS and 4-ohm impedance, the PRO-X8.4M lets you crank up the volume with confidence. Featuring a high 97dB sensitivity, this speaker captures every detail in the music while maintaining clarity. The 80Hz to 13KHz frequency range enhances every note, allowing listeners to experience richer, more accurate tones that bring music to life.

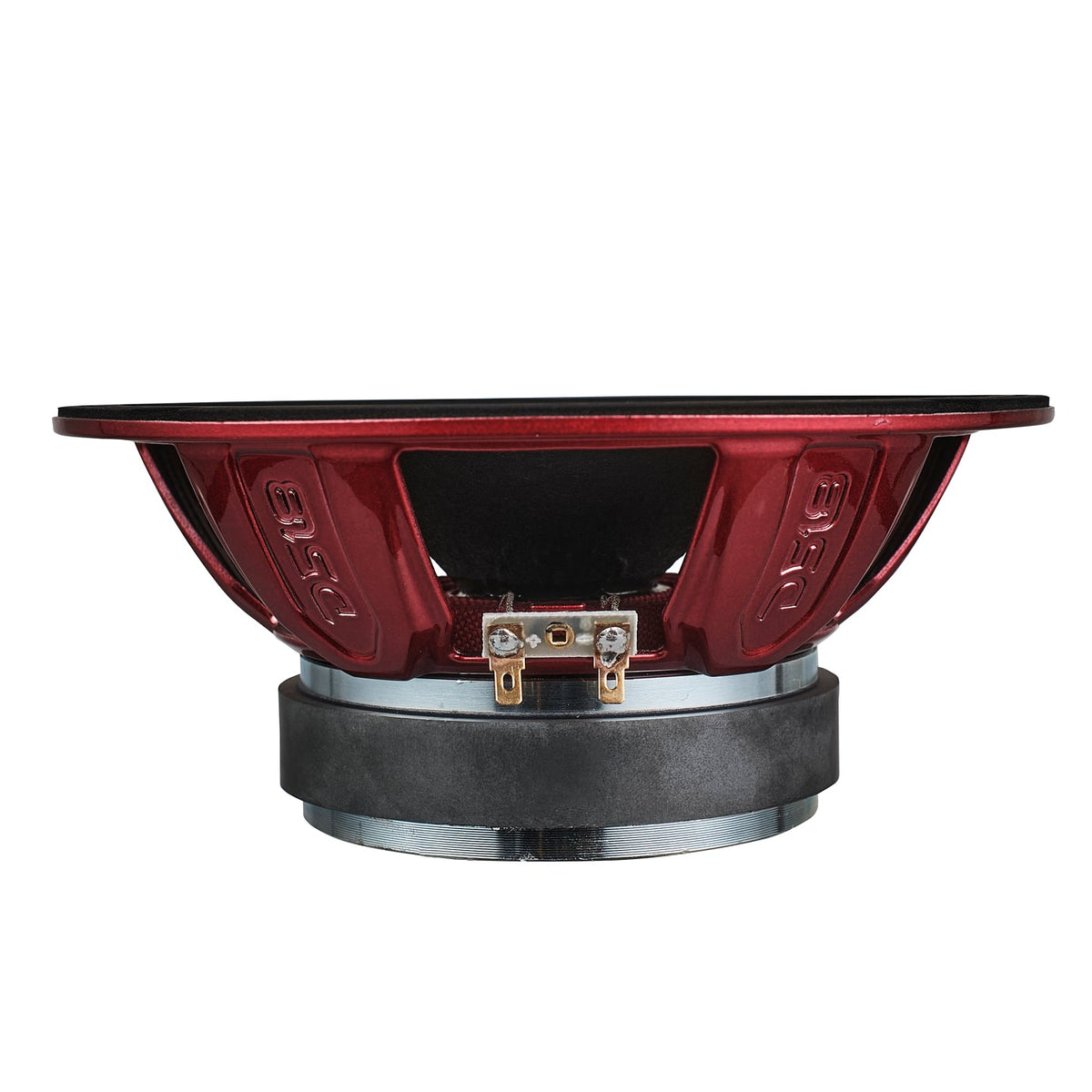

The PRO-X8.4M’s powerful 30 oz ferrite magnet and 1.5” voice coil ensure efficient handling of every beat, allowing for consistent performance, even with heavy usage. Compact with a 3.2” mounting depth, its ideal for easy installation in cars, trucks, or even home setups, combining high performance with convenience.
Upgrade to the PRO-X8.4M for crystal-clear sound that stands the test of time. Order yours today and enjoy music like never before!
Key Features
- 8" Mid-Range
- MAX Power: 550 Watts
- RMS Power: 275 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
Specifications
| SKU | PRO-X8.4M |
|---|---|
| Nominal Diameter | 8" (203.2 mm) |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 275 WATTS |
| Maximum Power Handing | 550 WATTS |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 80Hz-13KHz |
| Recommended Hi Pass Crossover | 120 Hz |
| Voice Coil Diameter | 1.5" (38.1 mm) |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 30 oz |
| Vas | 7.56 LTR |
| Xmax | 9.3 mm |
| Fs | 120 Hz |
| Qms | 8.23 |
| Qes | 1.009 |
| Qts | 14.588g |
| Re | 3.3 ohms |

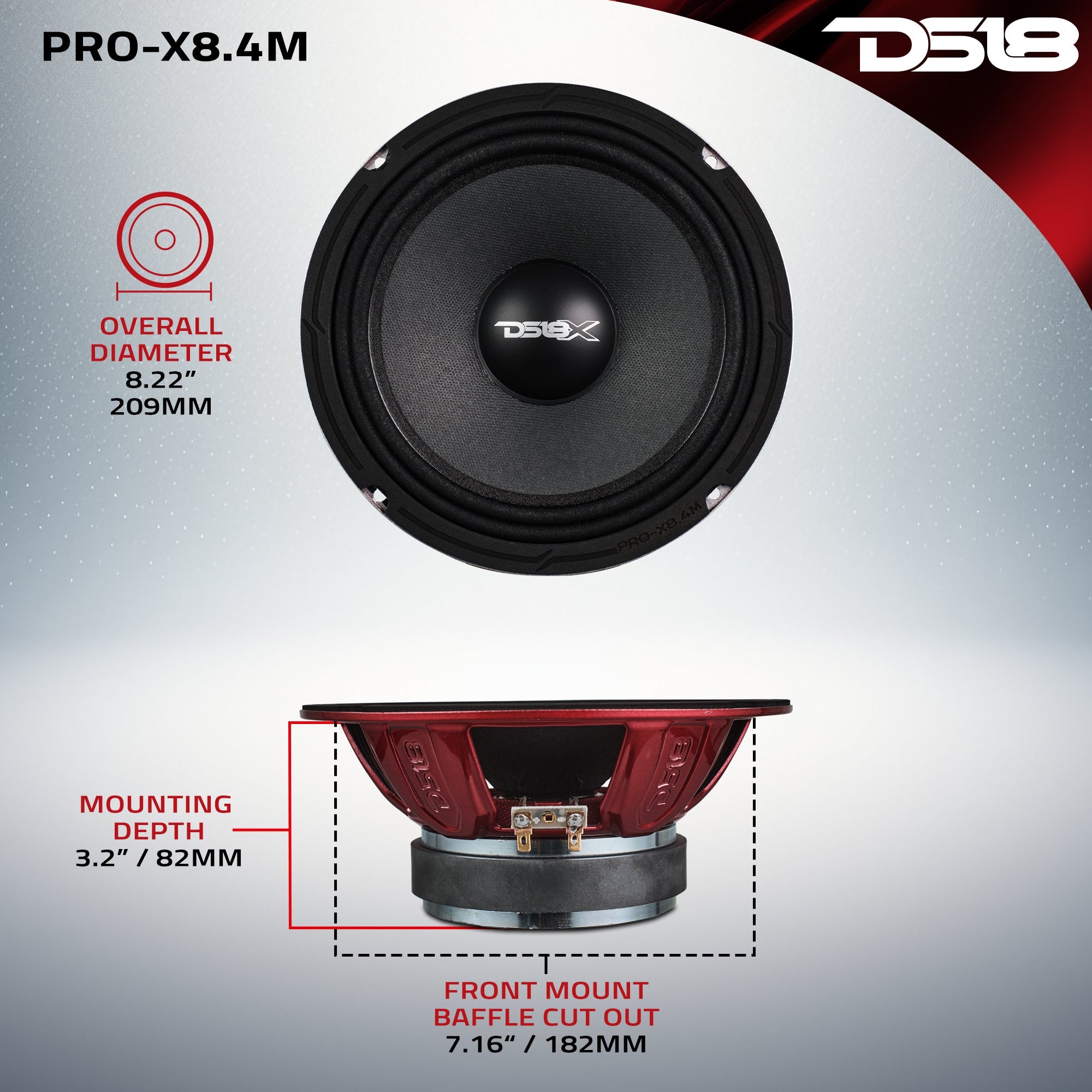

| Overall Diameter | 8.22" / 209mm |
| Front Mount Baffle Cutout | 7.16" / 182mm |
| Mounting Depth | 3.2" / 82mm |
| Overall Depth | 3.5" / 88.6mm |
| Product Weight | 5.9 lbs |
| Product Dimensions | 9 x 9 x 3.875 |
| M/C Weight | 24.5 lbs |
| M/C Dimensions | 18.75 x 9.75 x 8.5 |
| M/C QTY | 4 |
| Sold In | Single |
