PRO-X 12" Mid-Range Loudspeaker 450 Watts Rms 8-Ohm
PRO-X 12" Mid-Range Loudspeaker 450 Watts Rms 8-Ohm
Product Overview

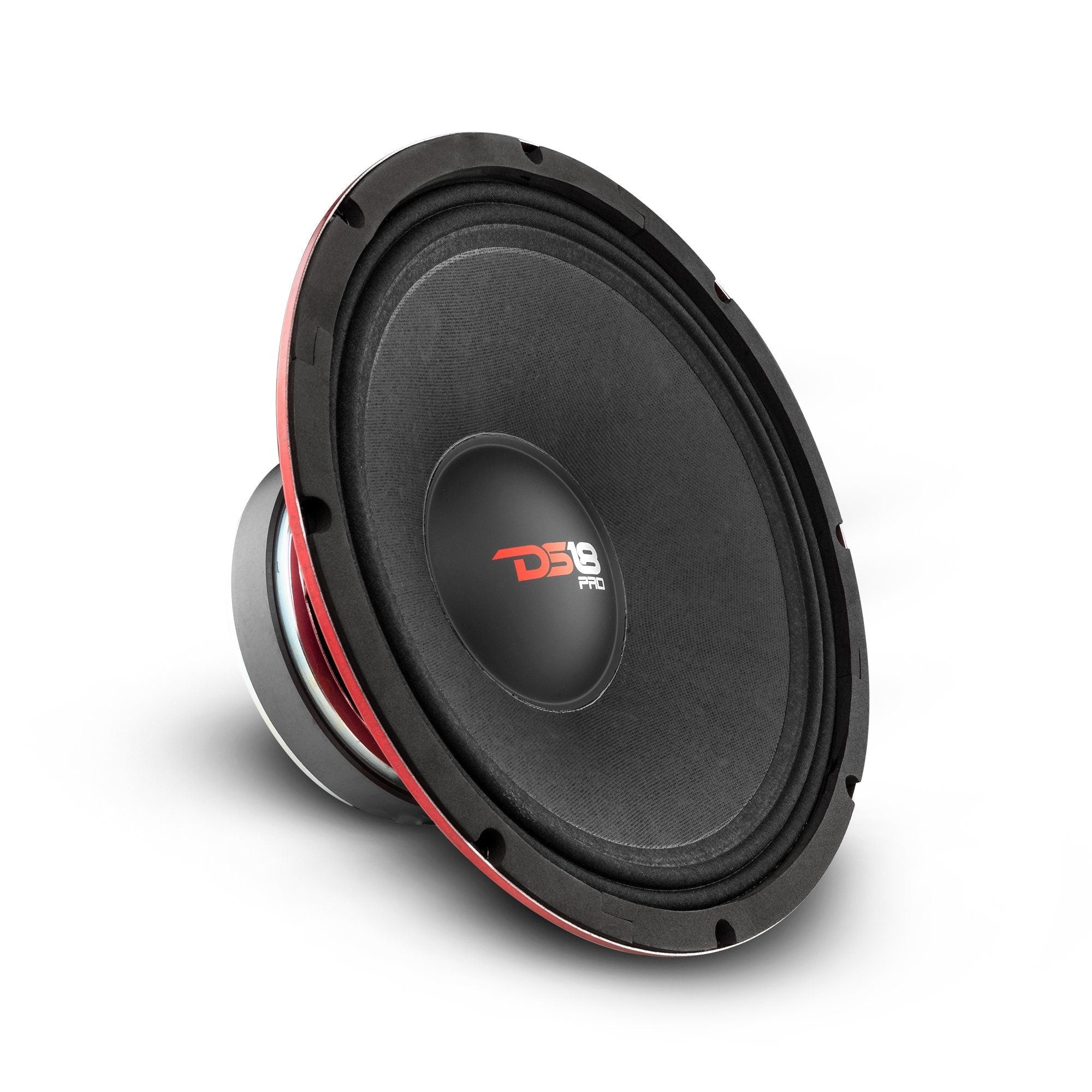

DS18 PRO-X12M 12” Mid-Range Loudspeaker 450 Watts RMS 8-Ohm
Loud & Powerful Music, Without Distortion
With strong midrange and clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 2.5” 8-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time.
Order the DS18 PRO-X12M today to own powerful midrange speakers that will last for years and give an amazing audio experience every time!
Blast Concert-Like Music for Years to Come!

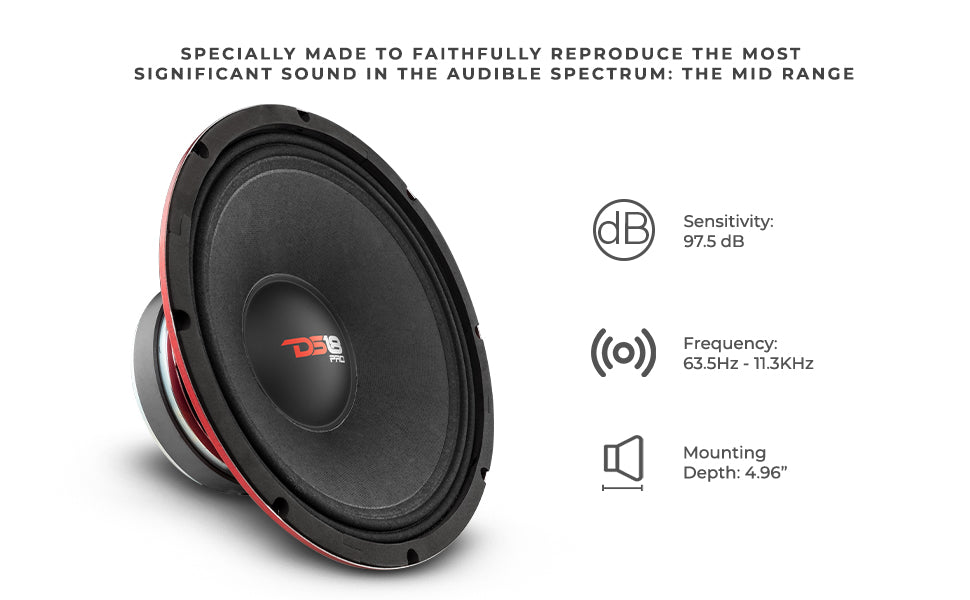

The high 97.5dB sensitivity of the PRO-X12M lets you crank up the volume without any sound distortion, while the 63.5Hz to 11.3KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 450 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!
Product Highlights

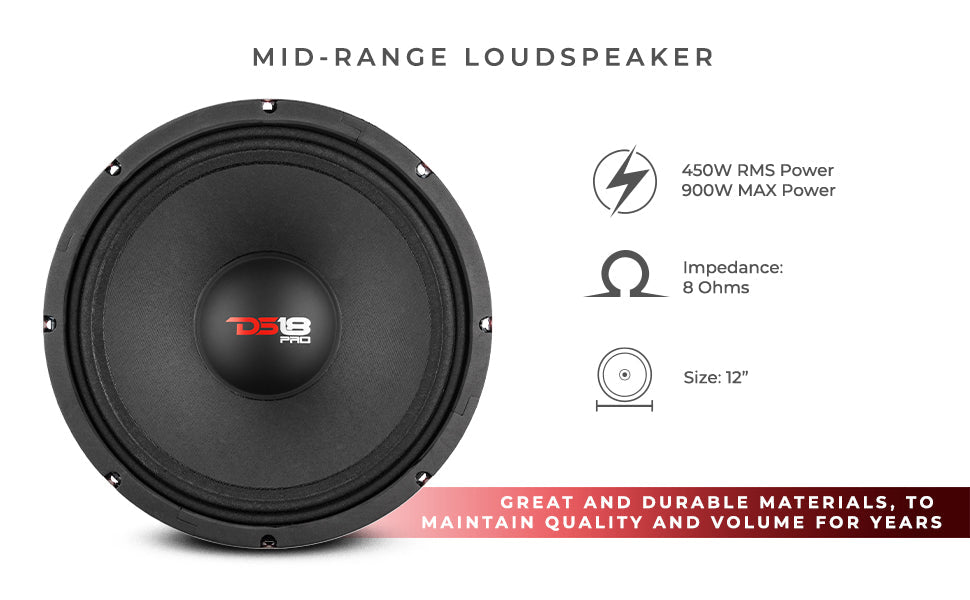

- 12” Midrange Loudspeaker
- MAX Power Handling: 900 Watts
- RMS Power Handling: 450 Watts

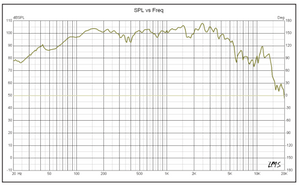

- Frequency Response: 63.5Hz-11.3Khz

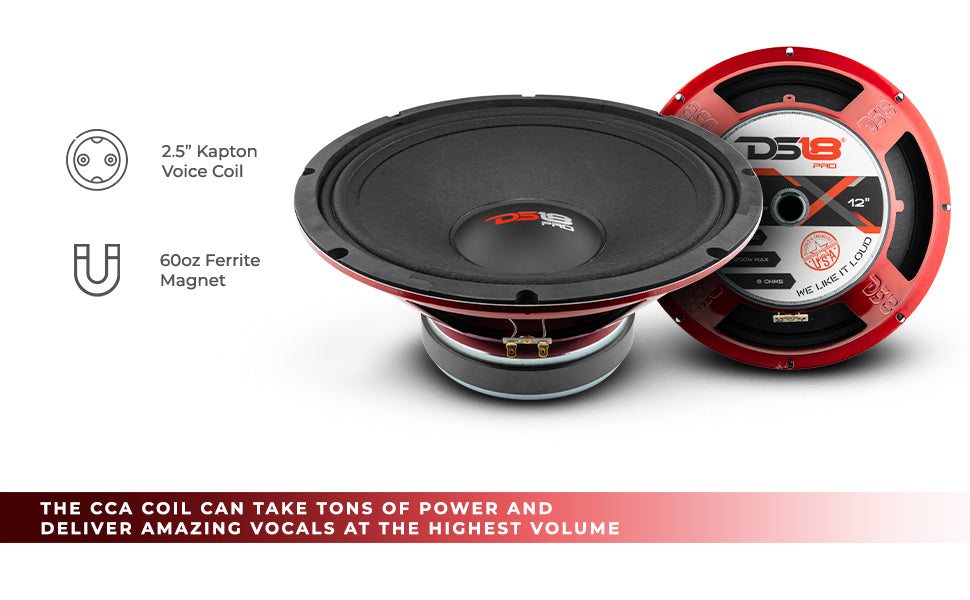

- Voice Coil Diameter: 2.5”
- Voice Coil Material: Kapton
- Impedance: 8-Ohms
- Sensitivity (1W/1M): 97.5dB
- Magnet Weight: 60 Oz
- Magnet Material: Ferrite
- Mounting Depth: 4.96”
Technical Details
| Model: | PRO-X12M |
| Type: | Midrange Loudspeaker |
| Size: | 12" |
| RMS Power: | 450W |
| MAX Power: | 900W |
| Frequency Response: | 63.5Hz-11.3KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 97.5dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Diameters | |
| Voice Coil Size: | 2.5" |
| Magnet Size: | 60 oz. |
| Mounting Depth: | 4.96 (126mm) |
| Cut-Out Dimension: | 11.22" (285mm) |
| Parameters | |
| Vas | 23.78 LTR |
| Xmax | 10.5 |
| Fs | 64.6 Hz |
| Qms | 2.2 |
| Qes | 0.485 |
| Qts | 0.392 |
| Re | 5.2 Ohms |
Key Features
- 12" Mid-Range
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97.5dB
Specifications
| SKU | PRO-X12M |
|---|---|
| Nominal Diameter | 12" (308 mm) |
| Nominal Impedance | 8 ohms |
| RMS Power Handing | 450 Watts |
| Maximum Power Handing | 900 Watts |
| Sensitivity (1w/1m) | 97.5 dB |

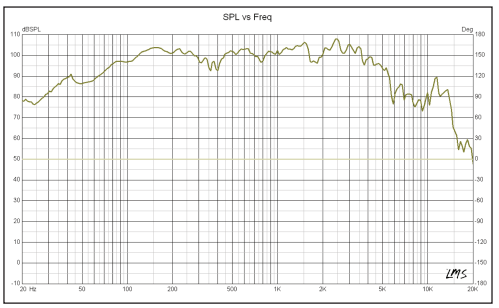

| Frequency Response | 63.5Hz-11.3KHz |
| Recommended Hi Pass Crossover | 100Hz |
| Voice Coil Diameter | 2.5 (65.5 mm") |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 60 oz |
| Vas | 23.78 LTR |
| Xmax | 10.5 mm |
| Fs | 64.6 Hz |
| Qms | 2.2 |
| Qes | 0.485 |
| Qts | 0.392 |
| Re | 5.2 ohms |

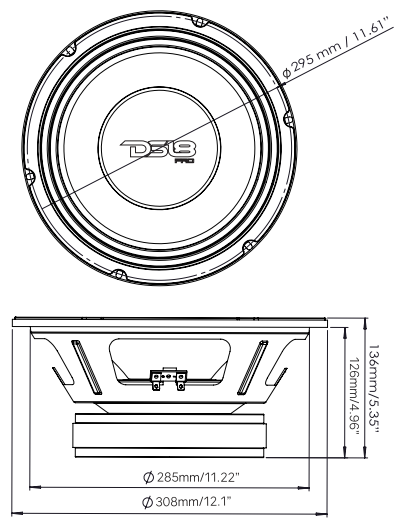

| Overall Diameter | 12.12" / 308mm |
| Front Mount Baffle Cutout | 10.9" / 278mm |
| Mounting Depth | 4.96" / 126mm |
| Overall Depth | 5.35" / 136mm |
| Product Weight | 11.5 lbs |
| Product Dimensions | 12.875 x 12.875 x 5.75 |
| M/C Weight | 48.5 lbs |
| M/C Dimensions | 26.25 x 13.5 x 12.25 |
| M/C QTY | 4 |
| Sold In | Piece |
