Product Overview
DS18 PRO-X10.4M 10” Mid-range Loudspeaker 300 Watts RMS 4-Ohm
Loud & Powerful Music, Without Distortion
With strong midrange and clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 2.0” 4-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time.
Order the DS18 PRO-X10.4M today to own powerful midrange speakers that will last for years and give an amazing audio experience every time!
Blast Concert-Like Music for Years to Come!
The high 100.2dB sensitivity of the PRO-X10.4M lets you crank up the volume without any sound distortion, while the 76Hz to 6.8KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 300 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!
Product Highlights
- 10” Midrange Loudspeaker
- MAX Power Handling: 600 Watts
- RMS Power Handling: 300 Watts
- Frequency Response: 76Hz-6.8Khz
- Voice Coil Diameter: 2.0”
- Voice Coil Material: Kapton
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 94dB
- Magnet Weight: 40 Oz
- Magnet Material: Ferrite
- Mounting Depth: 4.06”
Technical Details
| Model: | PRO-X10.4M |
| Type: | Midrange Loudspeaker |
| Size: | 10" |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Frequency Response: | 76-6.8KHz |
| Impedance: | 4 ohm |
| Sensitivity: | 100.2dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Measurements | |
| Voice Coil Size: | 2" |
| Magnet Weight: | 40 oz. |
| Mounting Depth: | 4.06" (103mm) |
| Cut-Out Dimension: | 9.05" (230mm) |
Key Features
- 10" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-X10.4M |
|---|---|
| Nominal Diameter | 10” / 254mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 300 W |
| Maximum Power Handing | 600 W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 70Hz - 5KHz |
| Recommended Hi Pass Crossover | 100Hz |
| Voice Coil Diameter | 2” / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | Ferrite 40 oz |
| Vas | 23.34L / 0.824ft3 |
| Xmax | 9.8mm |
| Fs | 81Hz |
| Qms | 5.776 |
| Qes | 0.887 |
| Qts | 0.769 |
| Re | 3.3 ohms |

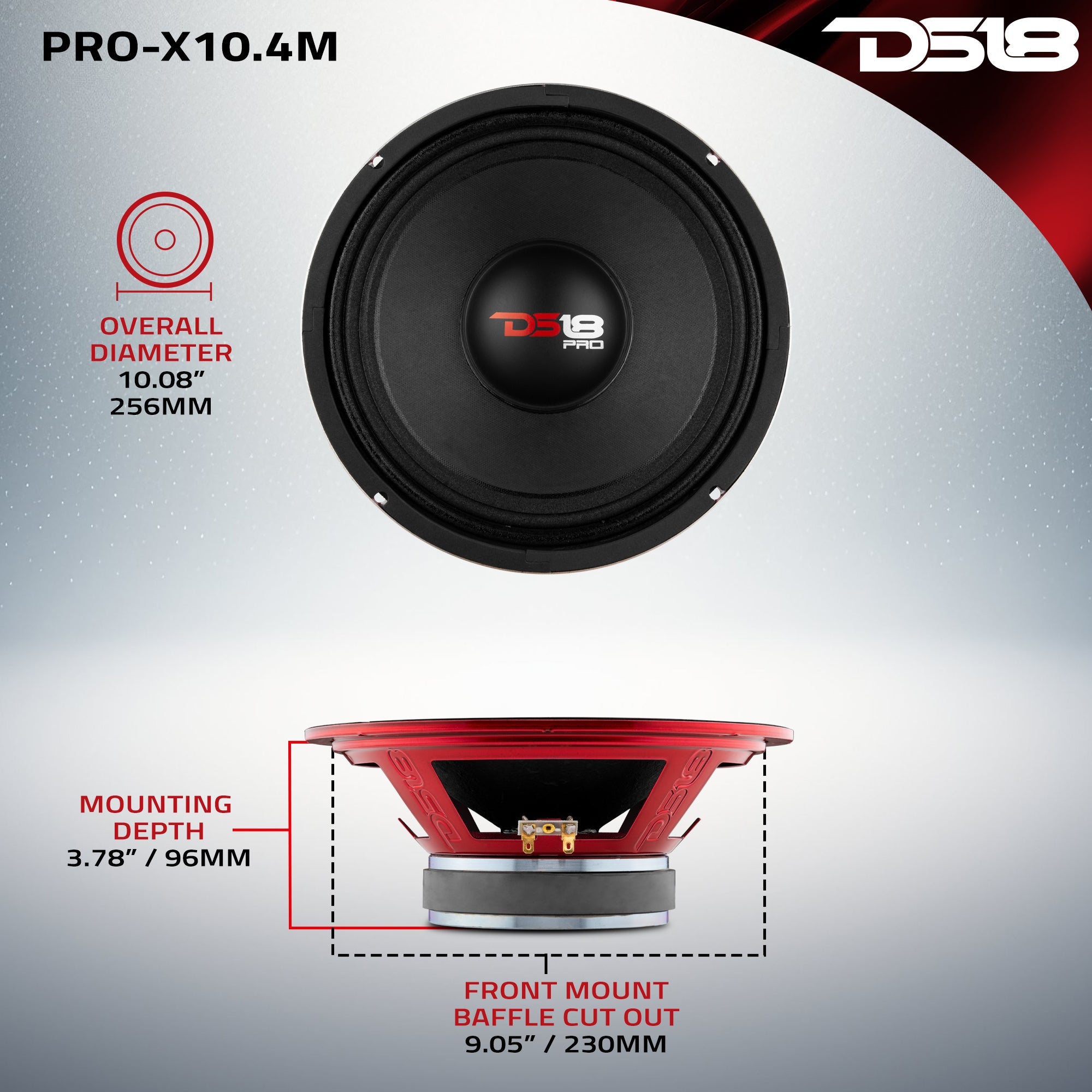

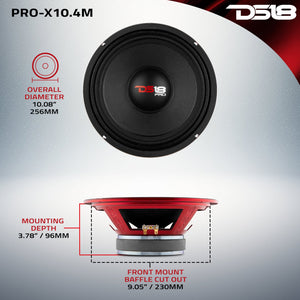

| Overall Diameter | 10" / 256mm |
| Front Mount Baffle Cutout | 9" / 230mm |
| Mounting Depth | 3.77" / 96mm |
| Overall Depth | 4" / 103mm |
| Product Weight | 8.5 |
| Product Dimensions | 10.75 x 10.75 x 4.5 |
| M/C Weight | 35 |
| M/C Dimensions | 22.25 x 11.5 x 9.75 |
| M/C QTY | 4 |
| Sold In | Piece |
