Product Overview

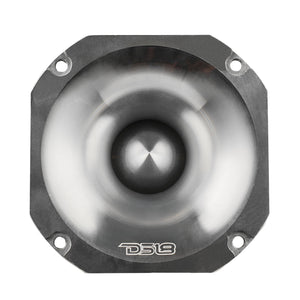

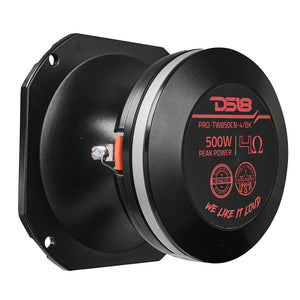

DS18 PRO-TW850CN-4
4” High Compression Hybrid Driver / Tweeter With 1.5” PEI Voice Coil and Neodymium Magnet
Reach new heights with DS18’s PRO-TW850CN-4, a high-performance tweeter redefining what’s possible in sound reproduction. This 4-inch high-frequency driver brings clarity and precision to any audio setup.
This high-frequency driver has an impressive frequency range of 700Hz–20KHz, guaranteeing crystal clear highs and rich detail. The 1.5" PEI voice coil tweeter offers the best audio delivery available on the market today, and the neodymium magnet heightens sensitivity and responsiveness, so you can feel the vibrancy and depth in your audio.

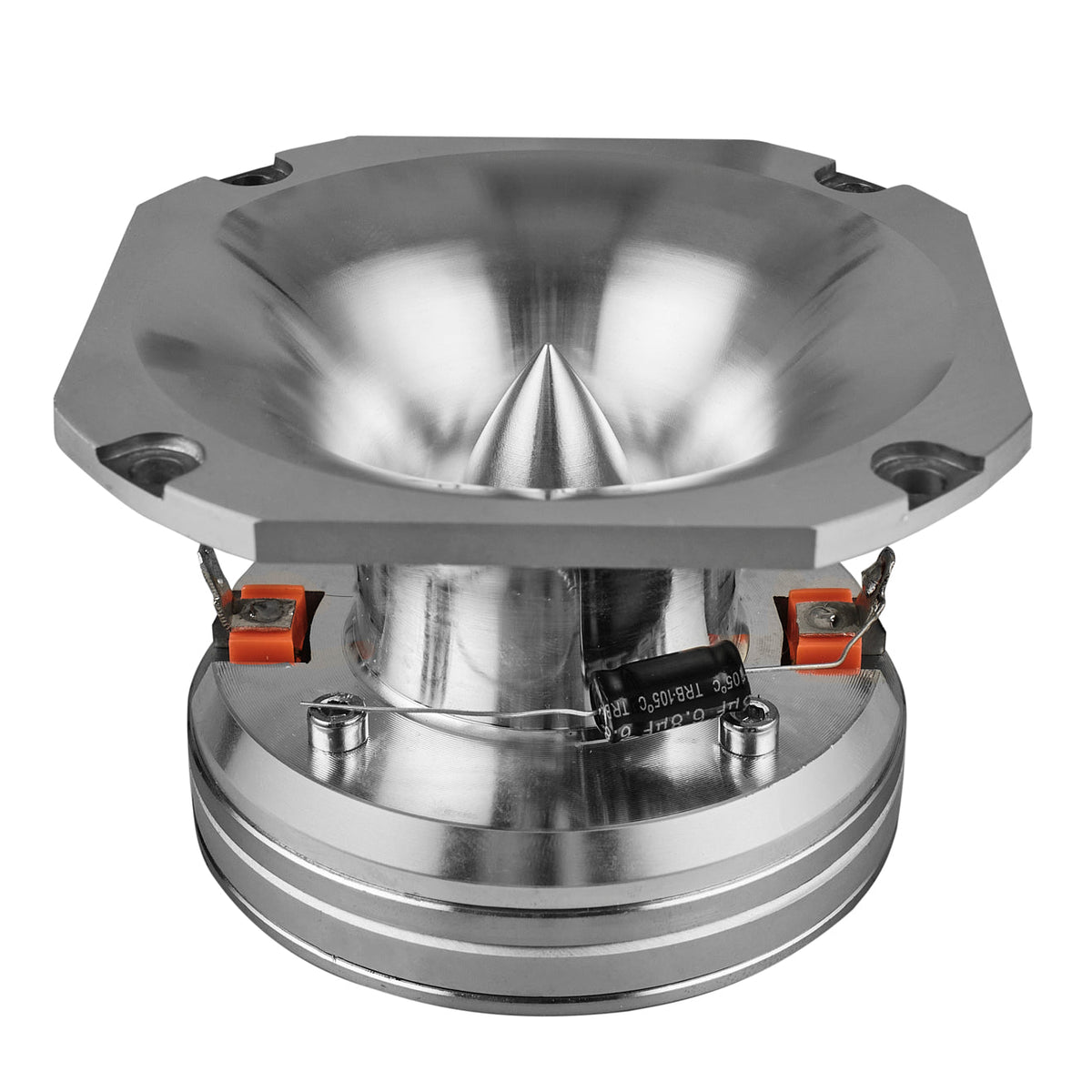

Crafted from CNC aluminum, the bullet and body offer sleek aesthetics and ensure durability for years of reliable performance. This powerhouse is available in both silver and black to match your system’s style. With an AES Power Handling of 170W, and Program Power Handling of 250W this tweeter handles the most dynamic soundtracks effortlessly.
Installation is easy thanks to compact design and a flush mount depth of just 2.6. The versatile compatibility of this high-performance tweeter ensures it pairs effortlessly across various systems.
Step up from standard tweeters and embrace the next chapter in high fidelity with DS18’s PRO-TW850CN-4!
Key Features
- 4" High Compression Tweeter
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm ~ 111dB
- Neodymium Magnet
- Easily Repaired With The
Specifications
| SKU | PRO-TW850CN-4/BK |
|---|---|
| Nominal Diameter | 4" / 101mm |
| Nominal Impedance | 4 ohms |
| AES Power Handling | 170W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 111dB |
| Frequency Response | 700Hz-20KHz |
| Recommended Hi Pass Crossover | 1KHz |
| Sold In Pair or Single | Single |

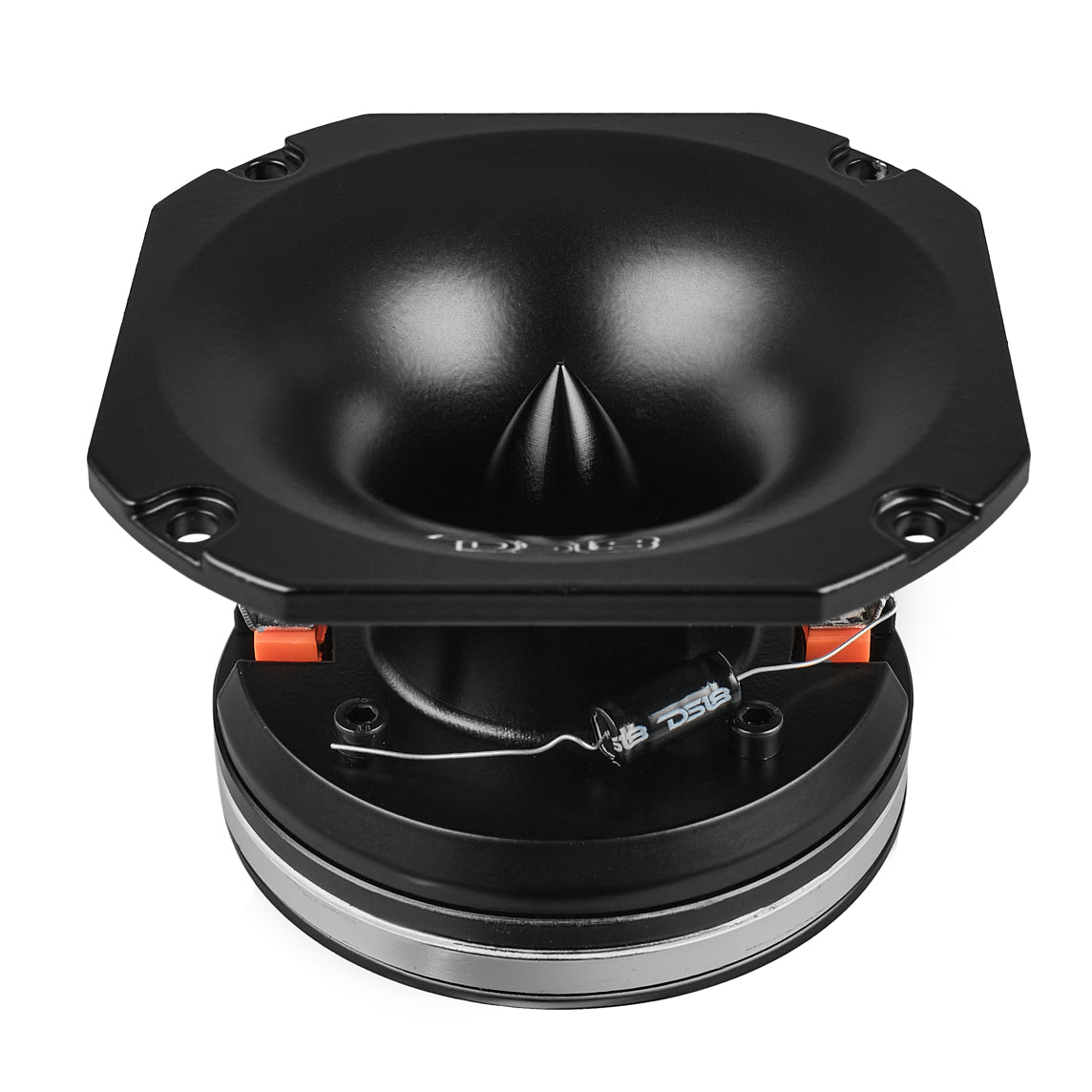

| Filter (Bass Blocker) | 4.7uf / 100V |
| Body Material | Aluminum |
| Bullet Material | CNC Aluminum |

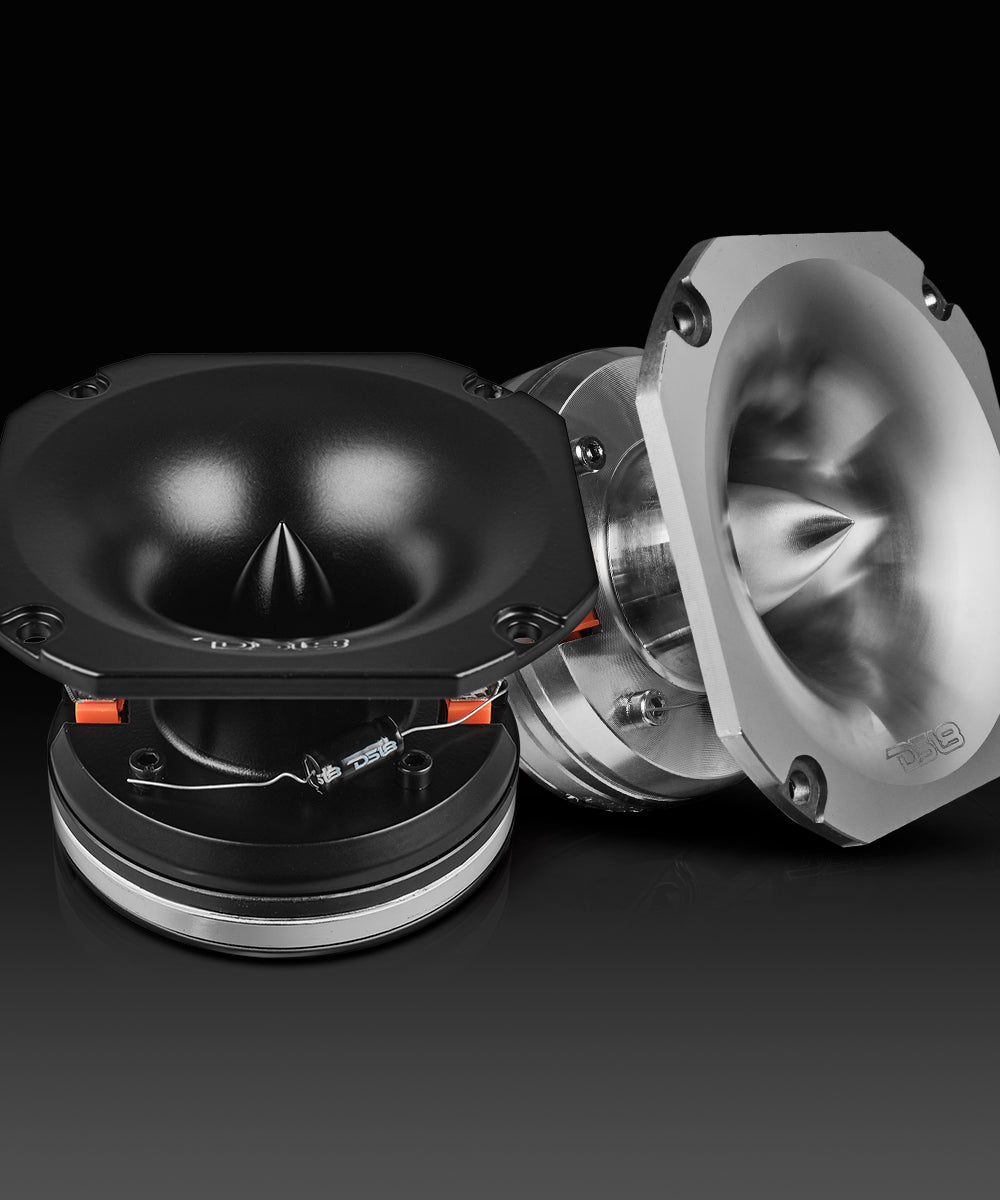

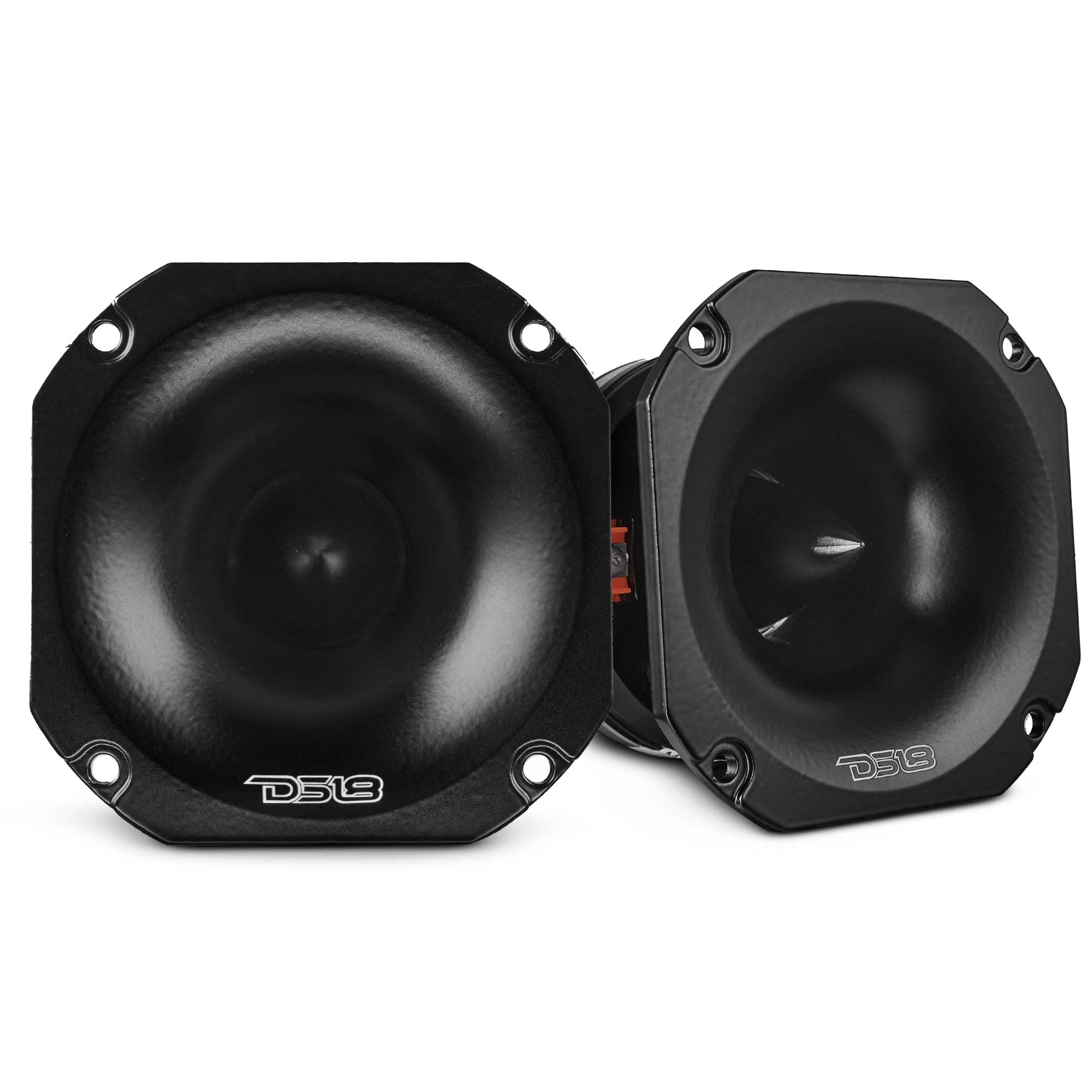

| Colors Available | Black, Silver |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAR |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Size | 3.42"x0.25" / 87x6mm |
| Magnet Weight | 7.4 Oz |

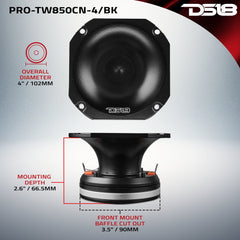

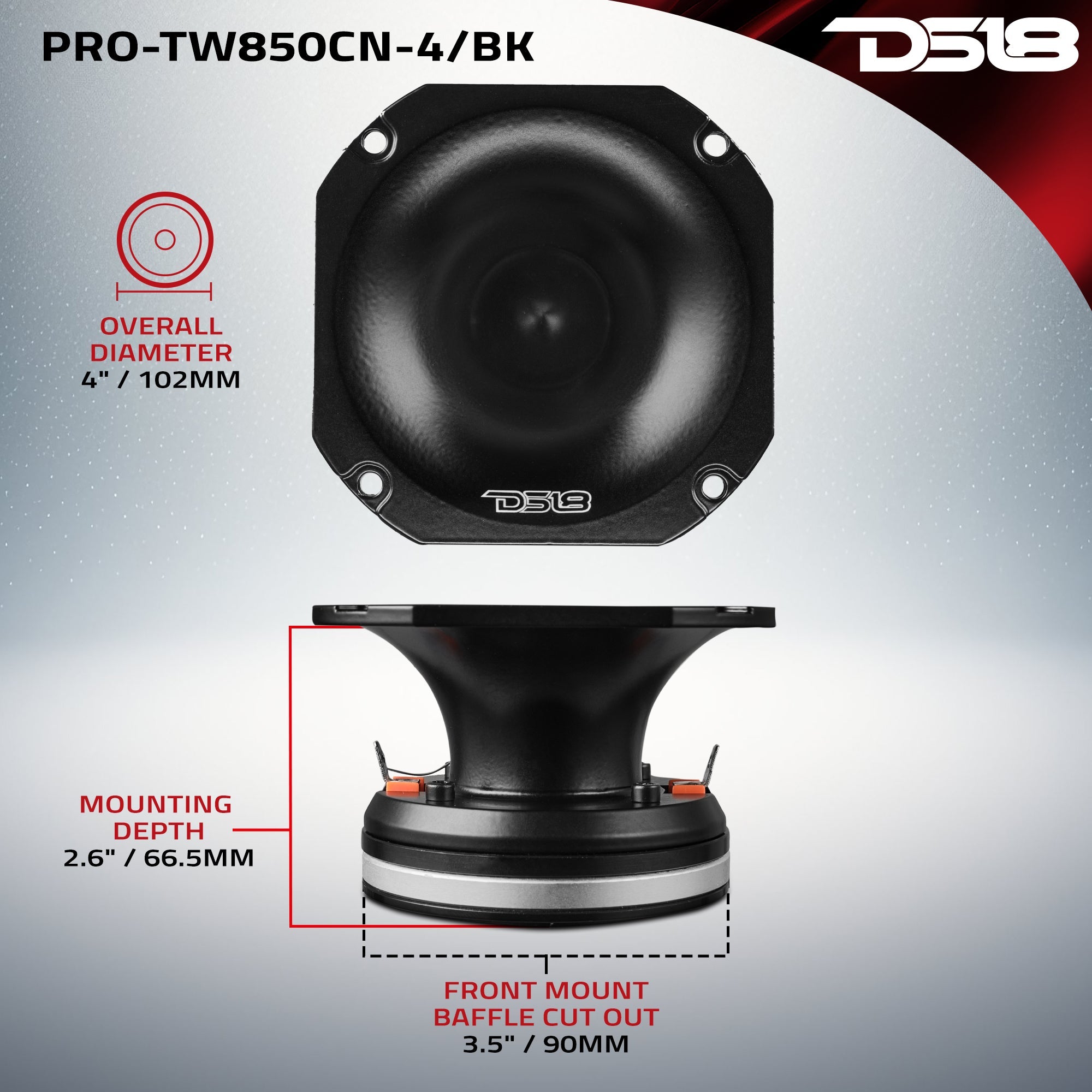

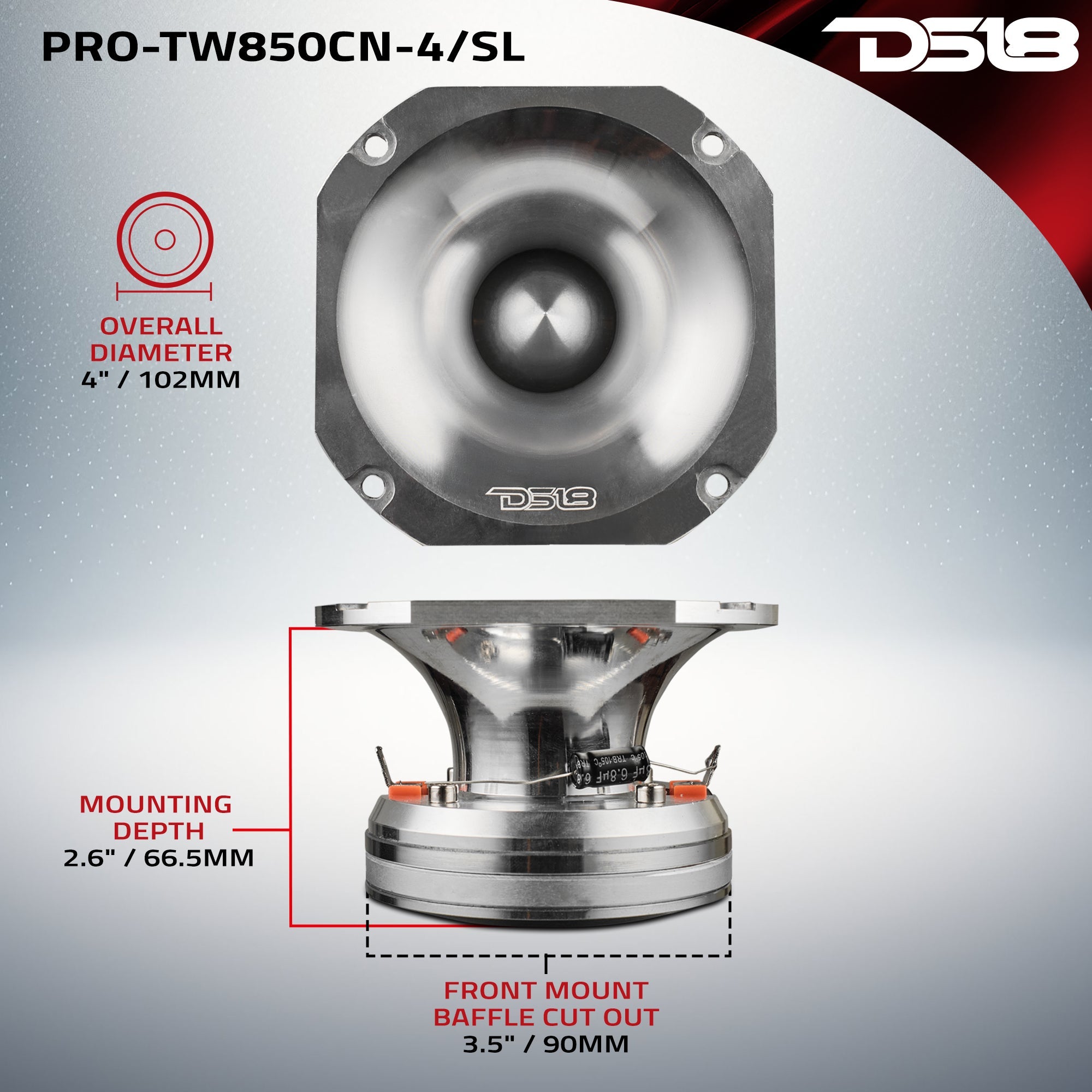

| Overall Diameter | 4" / 102mm |
| Overall Depth | 2.8" / 71.5mm |
| Front Mount Baffle Cutout | 3.5" / 90mm |
| Mounting Depth | 2.6" / 66.5mm |
