4" Super Bullet Tweeter with 1.5" Titanium Voice Coil Neodymium Magnet 220 Watts 8-Ohm
4" Super Bullet Tweeter with 1.5" Titanium Voice Coil Neodymium Magnet 220 Watts 8-Ohm
Product Overview
DS18 PRO-TW750CN-8
4" Super Bullet Tweeter With 1.5" Titanium Voice Coil With Neodymium Magnet
Go higher with DS18’s PRO-TW750CN-8: a 4-inch super bullet tweeter made for premium audio experiences. Designed for all systems, this titanium voice coil tweeter promises high-frequency clarity in the deepest systems.
What makes the PRO-TW750CN-8 stand out is its impressive wide frequency response ranging from 900Hz to 20KHz. With a formidable 440W peak power and 110dB sensitivity, expect dynamic sound delivery that fills any space without distortion, even at high volumes. To optimize its performance, we’ve paired it with a 3.3uF bass blocker ensures that low-frequency sounds are filtered out, preventing distortion and protecting the tweeter from damage.
The PRO-TW750CN-8’s build quality is exceptional, featuring a neodymium magnet and robust 1.5" titanium voice coil that guarantees accurate reproduction. Its CNC aluminum bullet design not only enhances durability but also adds a sleek aesthetic to your audio system. The shallow mounting depth of just 1.8 inches makes it versatile and easy to install in any setup.
Upgrade with DS18’s PRO-TW750CN-8 and hear every detail like never before.
Key Features
- 4" Super Bullet Tweeter
- RMS Power: 220 Watts(440 Watts Peak)
- Impedance: 8 Ohm ~ 110dB
- Neodymium Magnet
- BLACK
- Easily Repaired With
Specifications
| SKU | PRO-TW750CN-8/BK |
|---|---|
| Nominal Diameter | 4" / 101mm |
| Nominal Impedance | 8 ohms |
| AES Power Handling | 160W |
| Program Power Handling | 220W |
| Peak Power Handling | 440W |
| Sensitivity (1w/1m) | 110dB |
| Frequency Response | 900Hz-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Sold In Pair or Single | Single |
| Filter (Bass Blocker) | 3.3uf / 100V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Aluminum |
| Faceplate Color / Finish | Black / Aluminum |
| Bullet Material | CNC Aluminum |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size | 3.54"x0.19" / 90x5mm |
| Magnet Weight | 5.82 Oz |

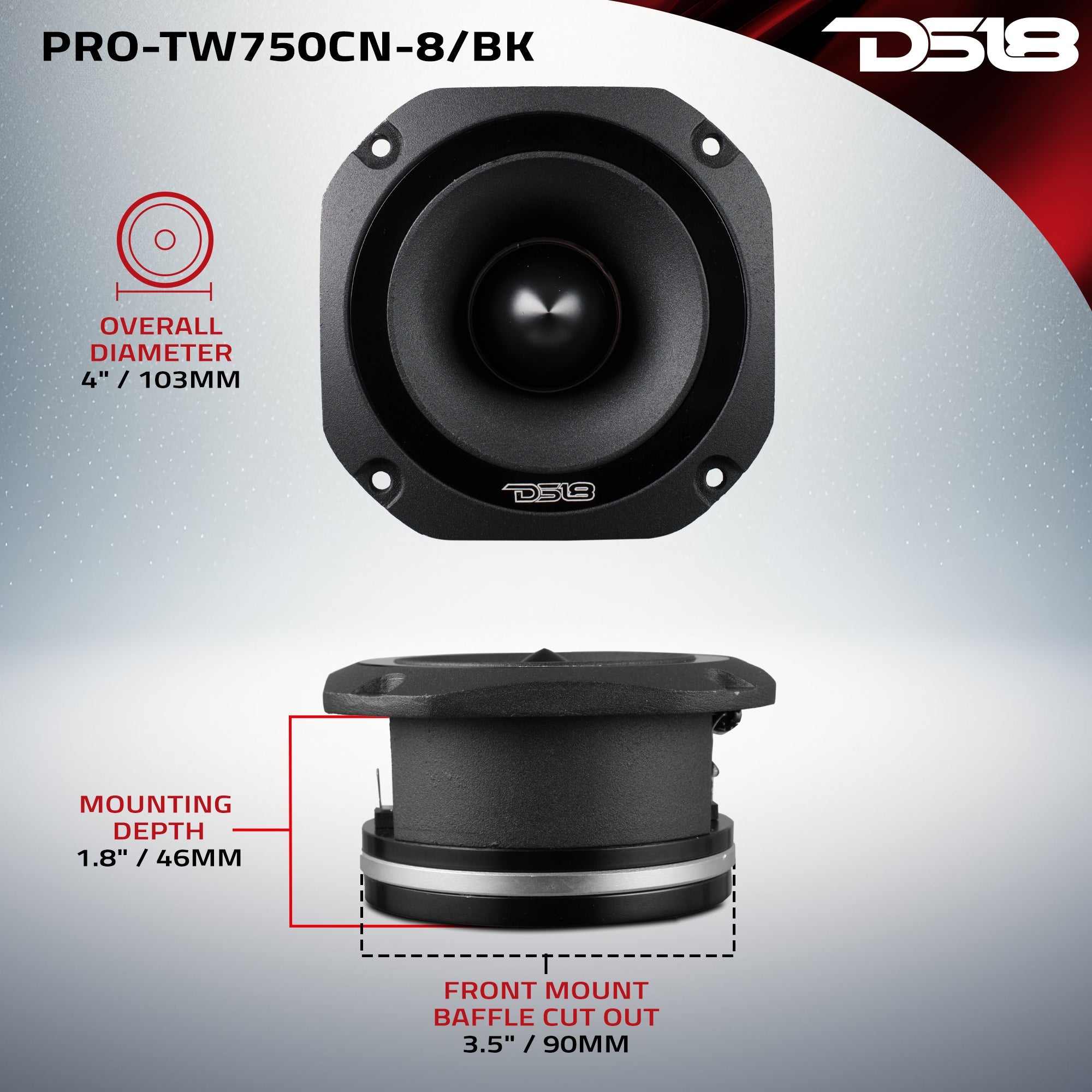

| Overall Diameter | 4" / 103mm |
| Overall Depth | 2.28" / 58mm |
| Front Mount Baffle Cutout | 3.5" / 90mm |
| Mounting Depth | 1.8" / 46mm |
