Product Overview

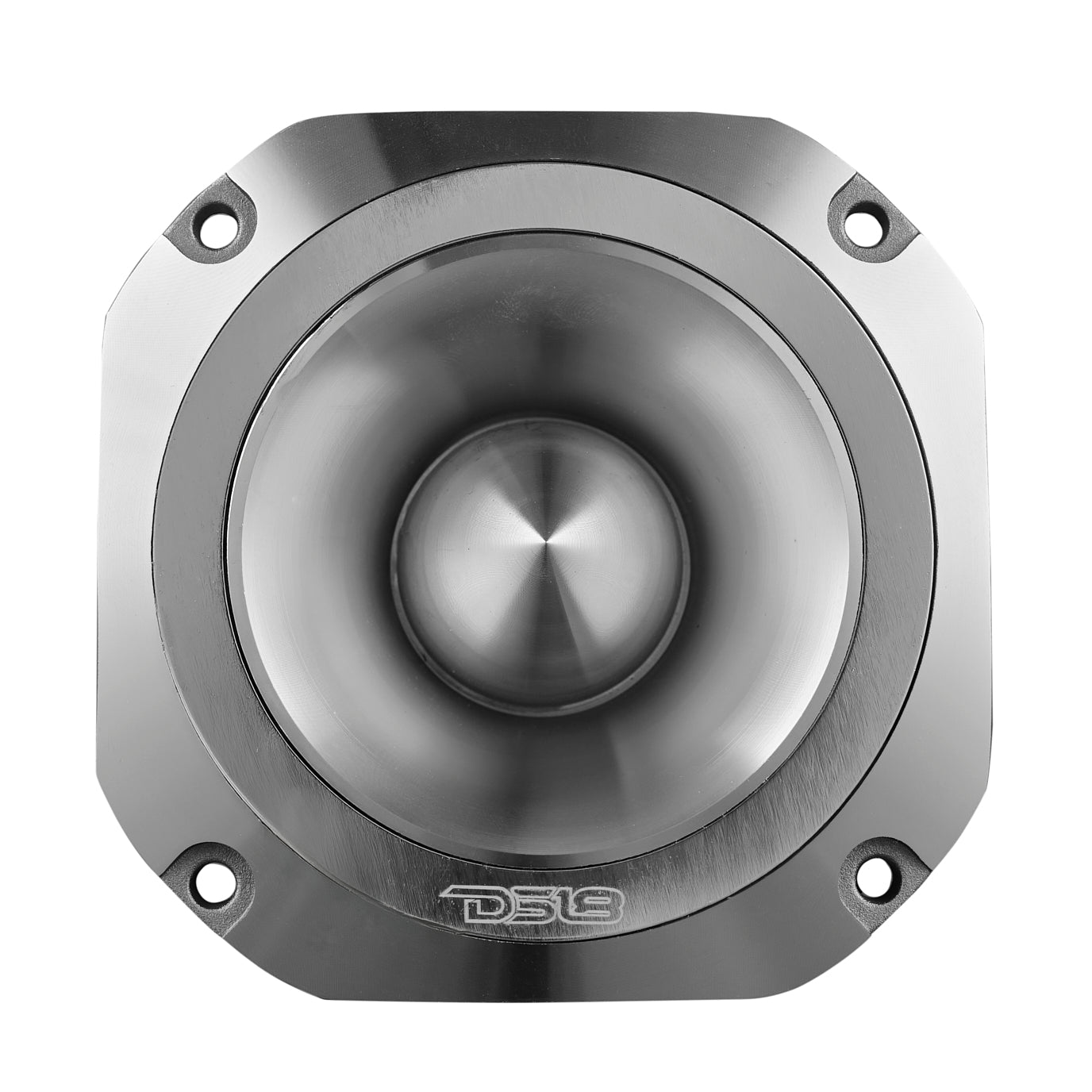

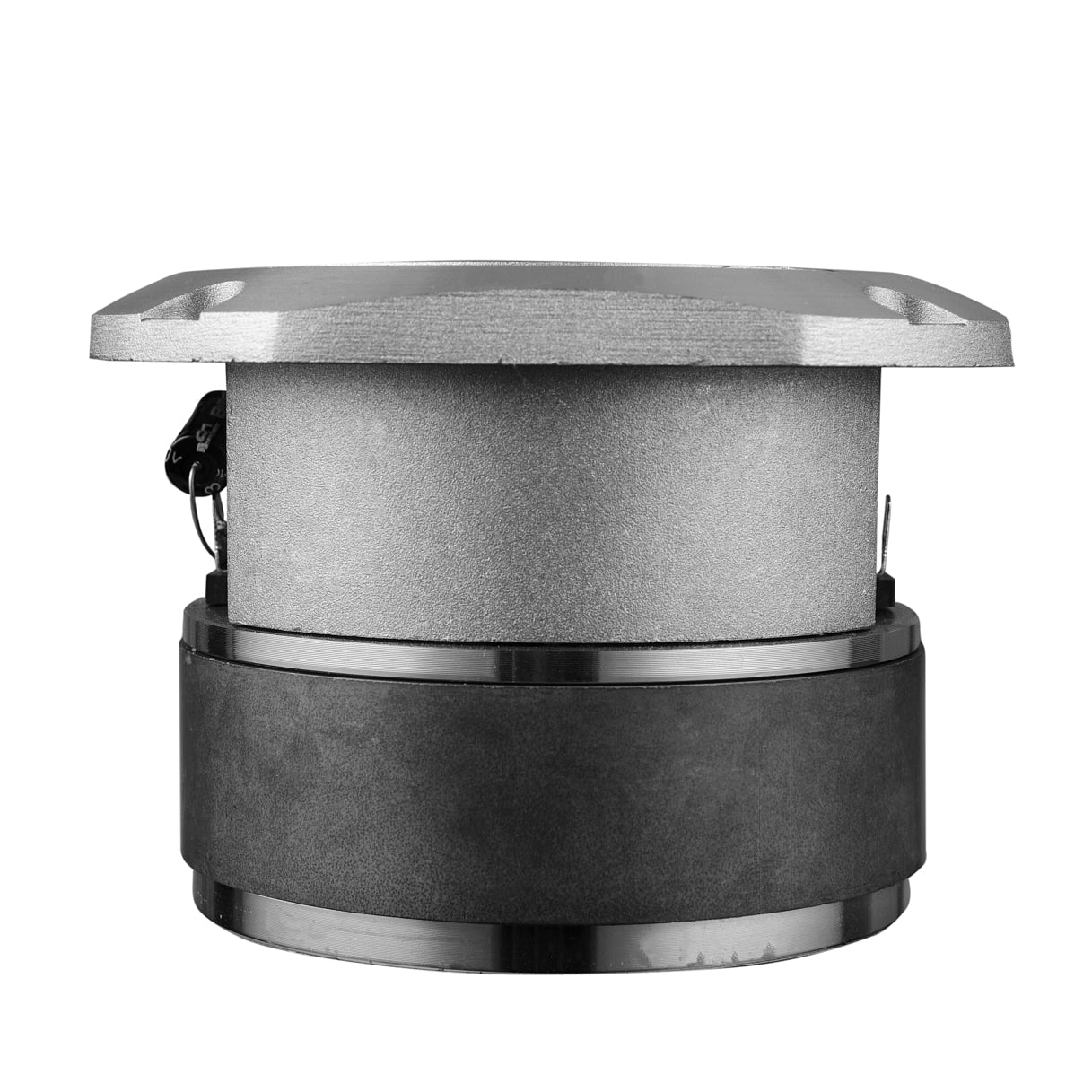

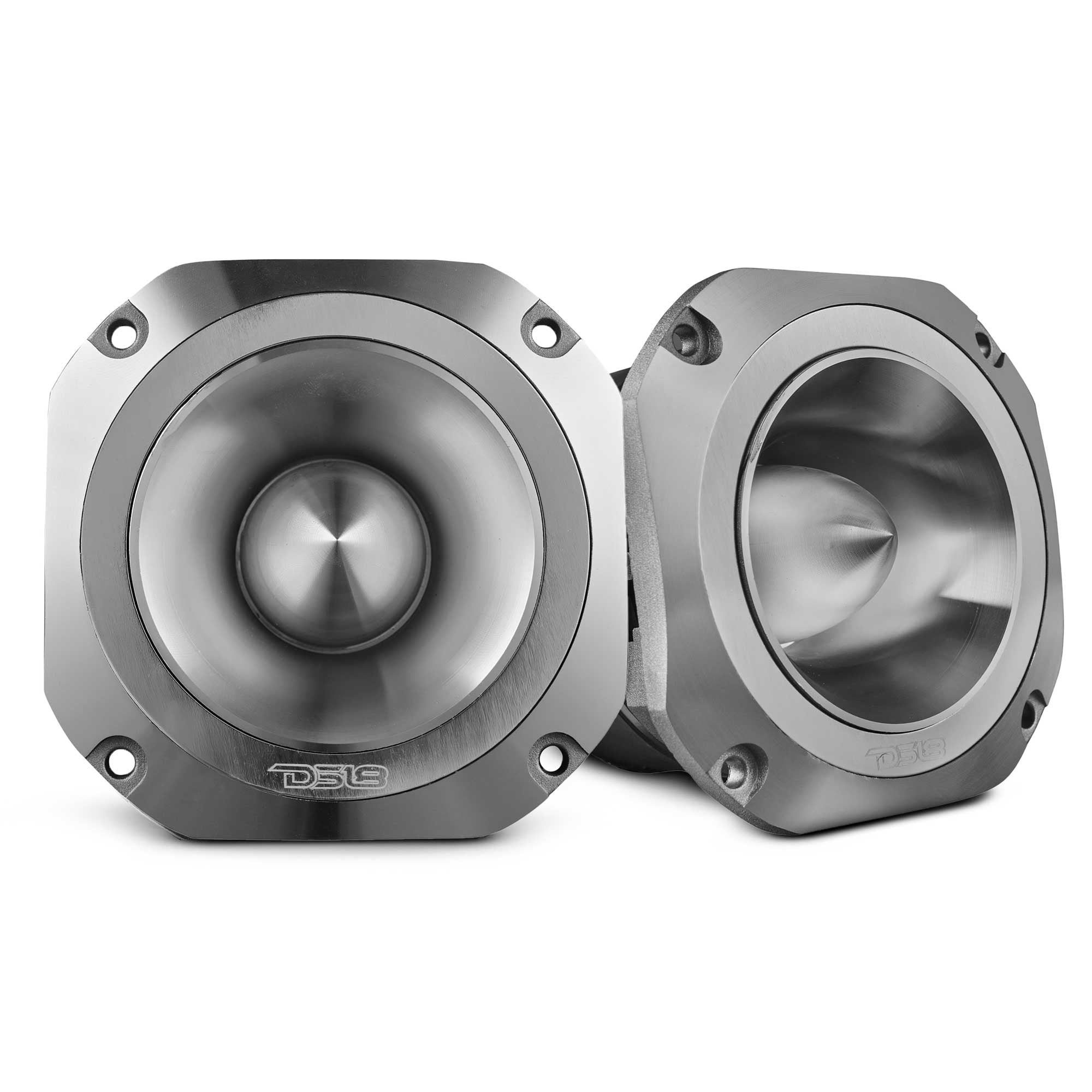

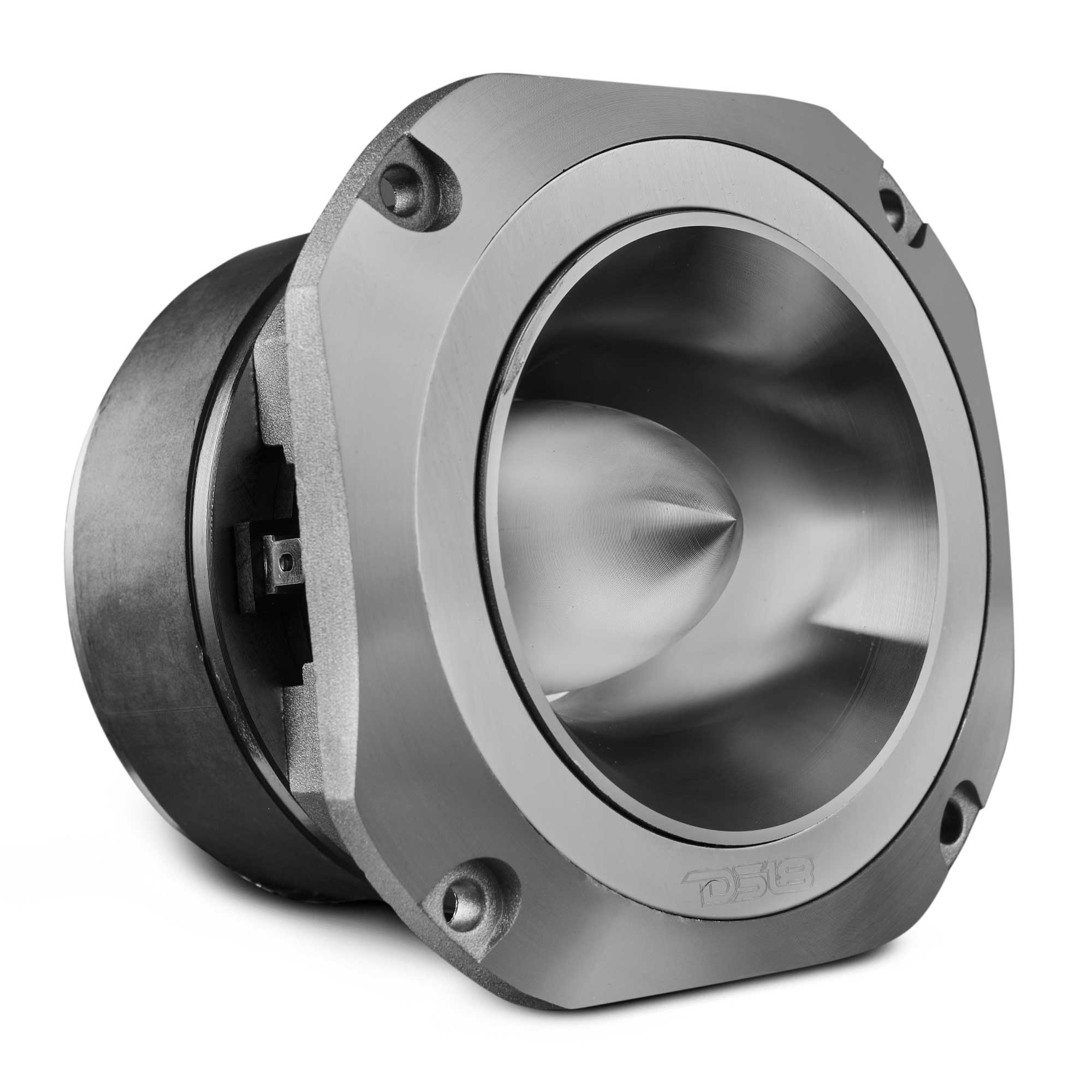

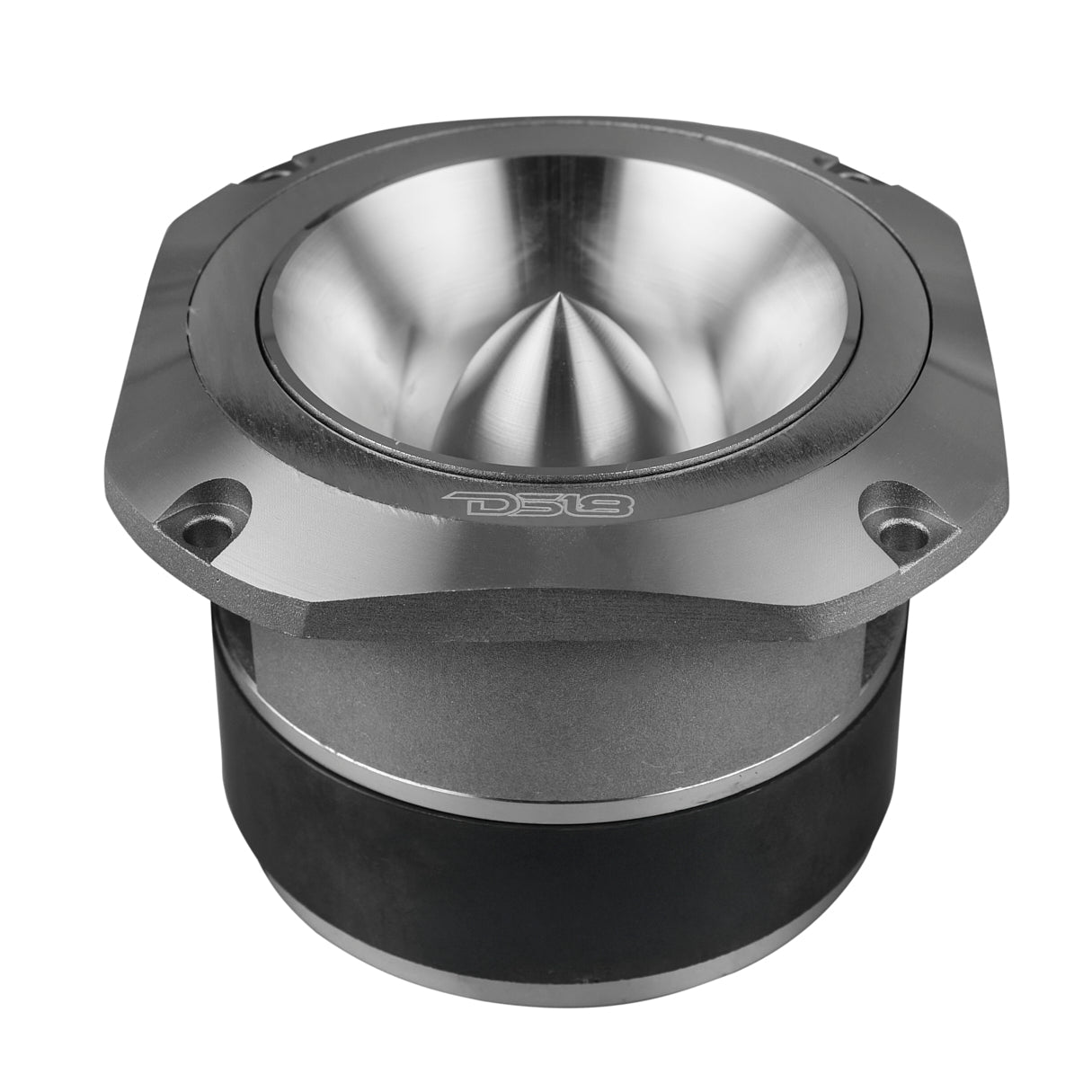

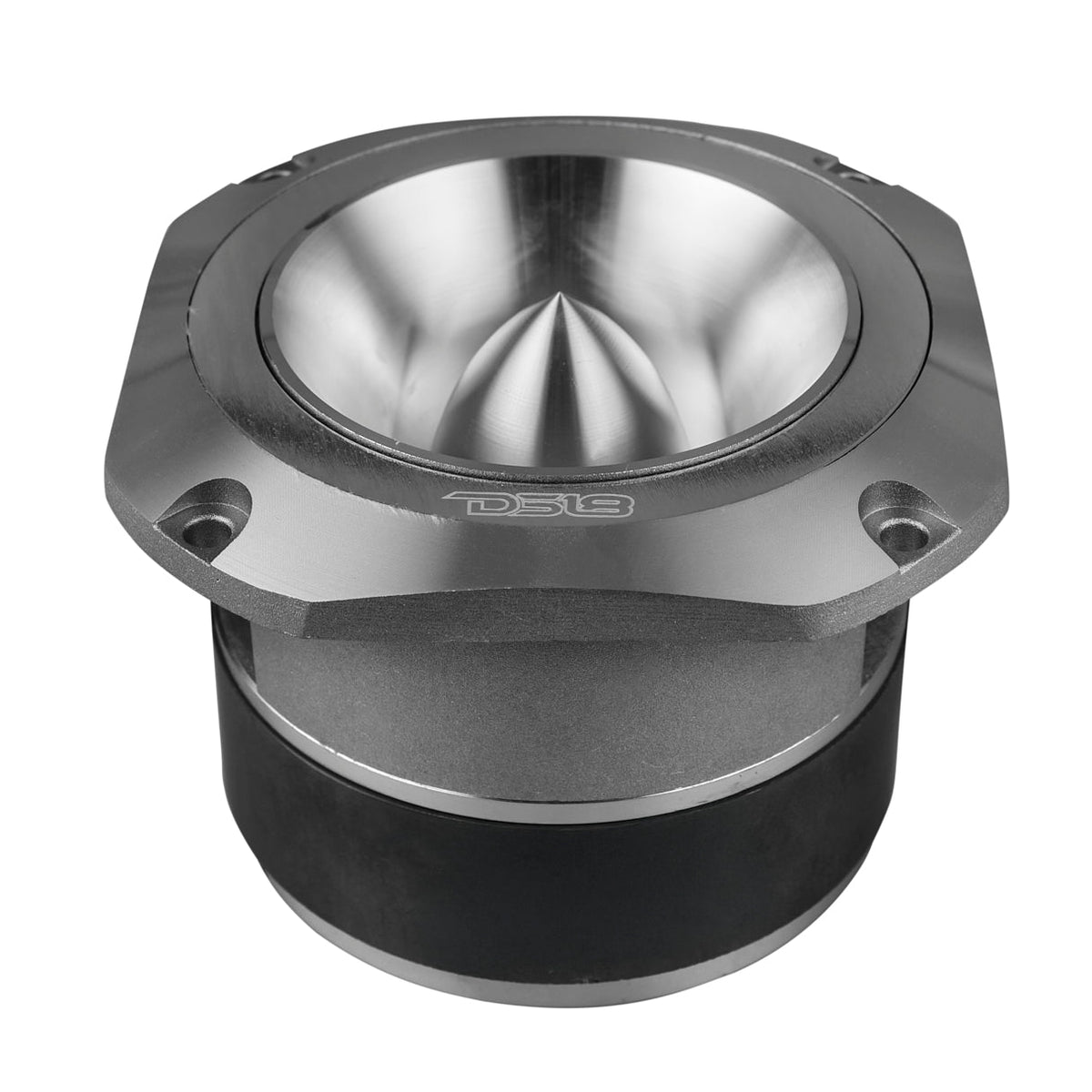

DS18 PRO-TW750C-4/SL
4” Super Bullet Tweeter with 1.5” Titanium Voice Coil And Oversized Ferrite Magnet
Next level quality is possible with DS18’s PRO-TW750C-4, a 4-inch bullet tweeter designed for precision. Built for detailed high frequencies, the PRO-TW750C-4 transforms every audio setup into a masterpiece.

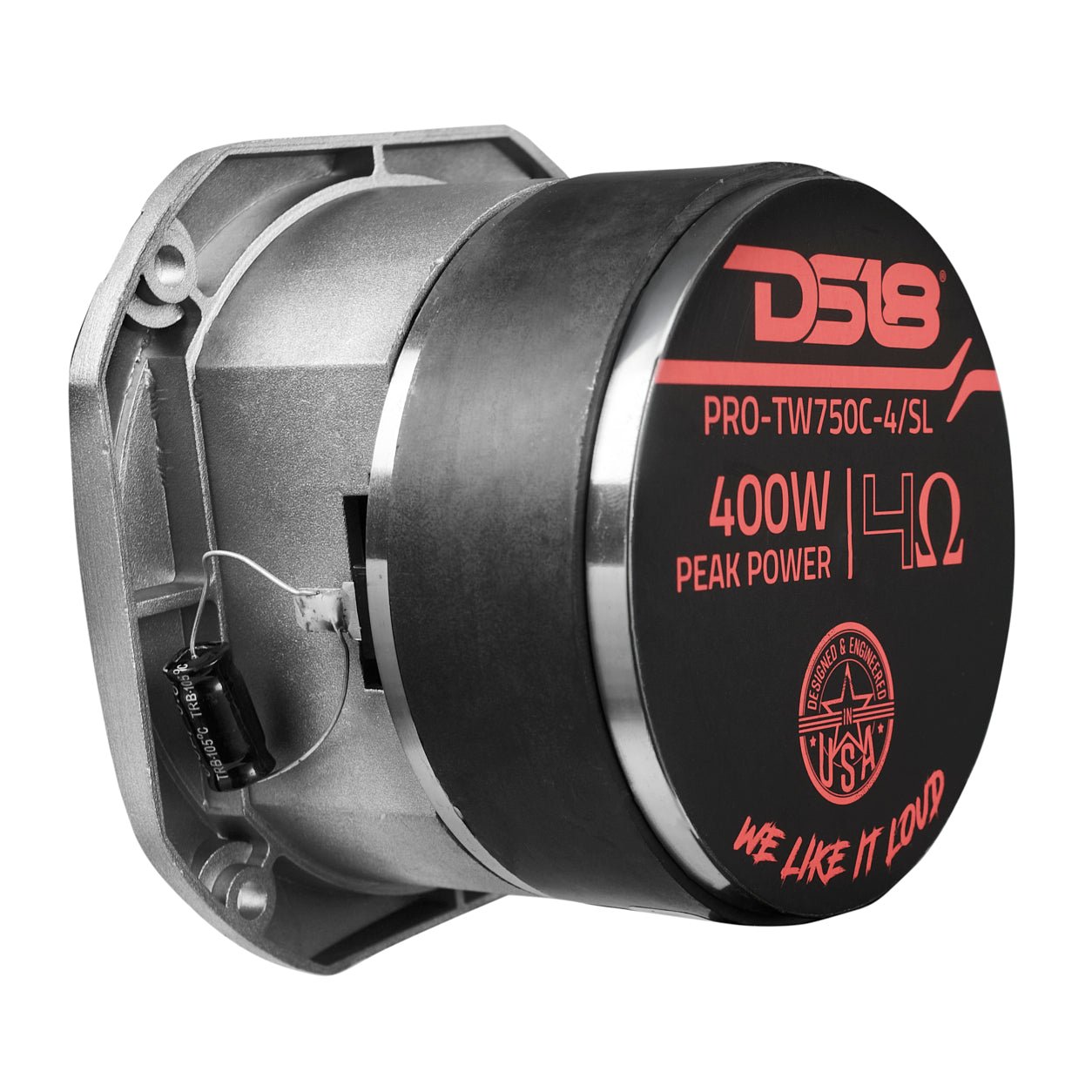

Featuring a robust titanium voice coil, the PRO-TW750C-4 offers premium sound reproduction with AES Power Handling at 150W and Program Power Handling at 200W. Its oversized ferrite magnet ensures high sensitivity and consistent performance across a wide frequency range of 900Hz–20KHz. To optimize its performance, we’ve paired it with a 3.3uF bass blocker ensures that low-frequency sounds are filtered out, preventing distortion and protecting the tweeter from damage.
Crafted for durability, this tweeter features a CNC aluminum bullet and sandblasted body, coming in either a sleek silver or bold black color. With an impressive sensitivity of 109dB, 4-ohm impedance, and a compact 2.5" mounting depth, the PRO-TW750C-4 integrates effortlessly into various systems for a seamless audio upgrade.
For those who demand the best in sound and design, DS18’s PRO-TW750C-4 is the ultimate choice.
Key Features
- 4" Super Bullet Tweeter
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Ferrite Magnet
- Easily Repaired With
Specifications
| SKU | PRO-TW750C-4/SL |
|---|---|
| Nominal Diameter | 4" / 103mm |
| Nominal Impedance | 4 ohms |
| AES Power Handling | 150W |
| Program Power Handling | 200W |
| Peak Power Handling | 400W |
| Sensitivity (1w/1m) | 109dB |
| Frequency Response | 900Hz-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Sold In Pair or Single | Single |
| Filter (Bass Blocker) | 6.8uf / 100V |
| Body Material | Aluminum |
| Body Color Available / Finish | Aluminum / Machined Sandblaster Black |
| Faceplate Color Available / Finish | Aluminum / Machined Sandblaster Black |
| Bullet Material | CNC Aluminum |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Size | 3.5"x1" / 90x25mm |
| Magnet Weight | 20.1 Oz |

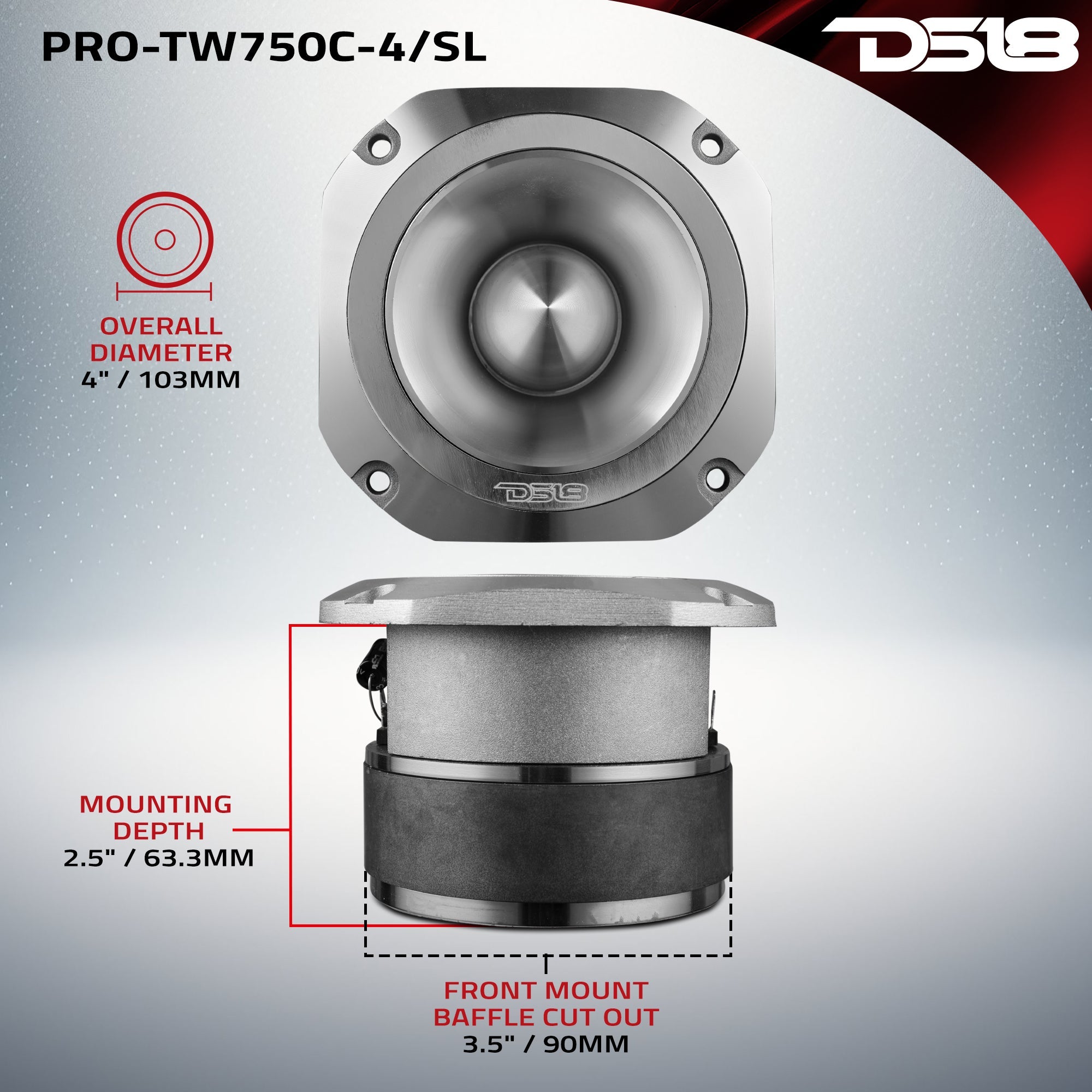

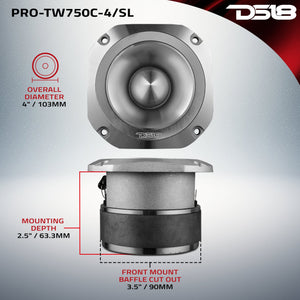

| Overall Diameter | 4" / 103mm |
| Overall Depth | 3" / 75.3mm |
| Front Mount Baffle Cutout | 3.5" / 90mm |
| Mounting Depth | 2.5" / 63.3mm |
