PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 8-Ohm

Availability: In stock SKU: PRO-X5M
Regular price $44.95 Sale price $35.96

PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 8-Ohm - DS18

PRO-X 5.25" Mid-Range Loudspeaker 150 Watts Rms 8-Ohm

$35.96

Product Overview

DS18 PRO-X5M 5.25” Mid-Range Loudspeaker 150 Watts RMS 8-Ohm

Loud & Powerful Music, Without Distortion

With strong midrange and clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 1.2” 8-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time.

Order the DS18 PRO-X5M today to own powerful midrange speakers that will last for years and give an amazing audio experience every time!

Blast Concert-Like Music for Years to Come!

The high 90.4dB sensitivity of the PRO-X5M lets you crank up the volume without any sound distortion, while the 245Hz to 13.5KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 150 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!

Product Highlights

  • 5.25” Midrange Loudspeaker
  • MAX Power Handling: 300 Watts
  • RMS Power Handling: 150 Watts
  • Frequency Response: 125Hz-12Khz
  • Voice Coil Diameter: 1.2”
  • Voice Coil Material: Kapton
  • Impedance: 8-Ohms
  • Sensitivity (1W/1M): 90.4dB
  • Magnet Weight: 18.5 Oz
  • Magnet Material: Ferrite
  • Mounting Depth: 2.6”
Technical Details

Model: PRO-X5M
Type: Midrange Loudspeaker
Size: 5.25"
RMS Power: 150W
MAX Power: 300W
Frequency Response: 245Hz - 13.5 KHz
Impedance: 8 Ohms
Sensitivity: 90dB
Materials
Surround: Cloth Edge
Frame: Red Steel Basket
Cone: Paper
Magnet: Ferrite
Voice Coil Wire: KCCAW

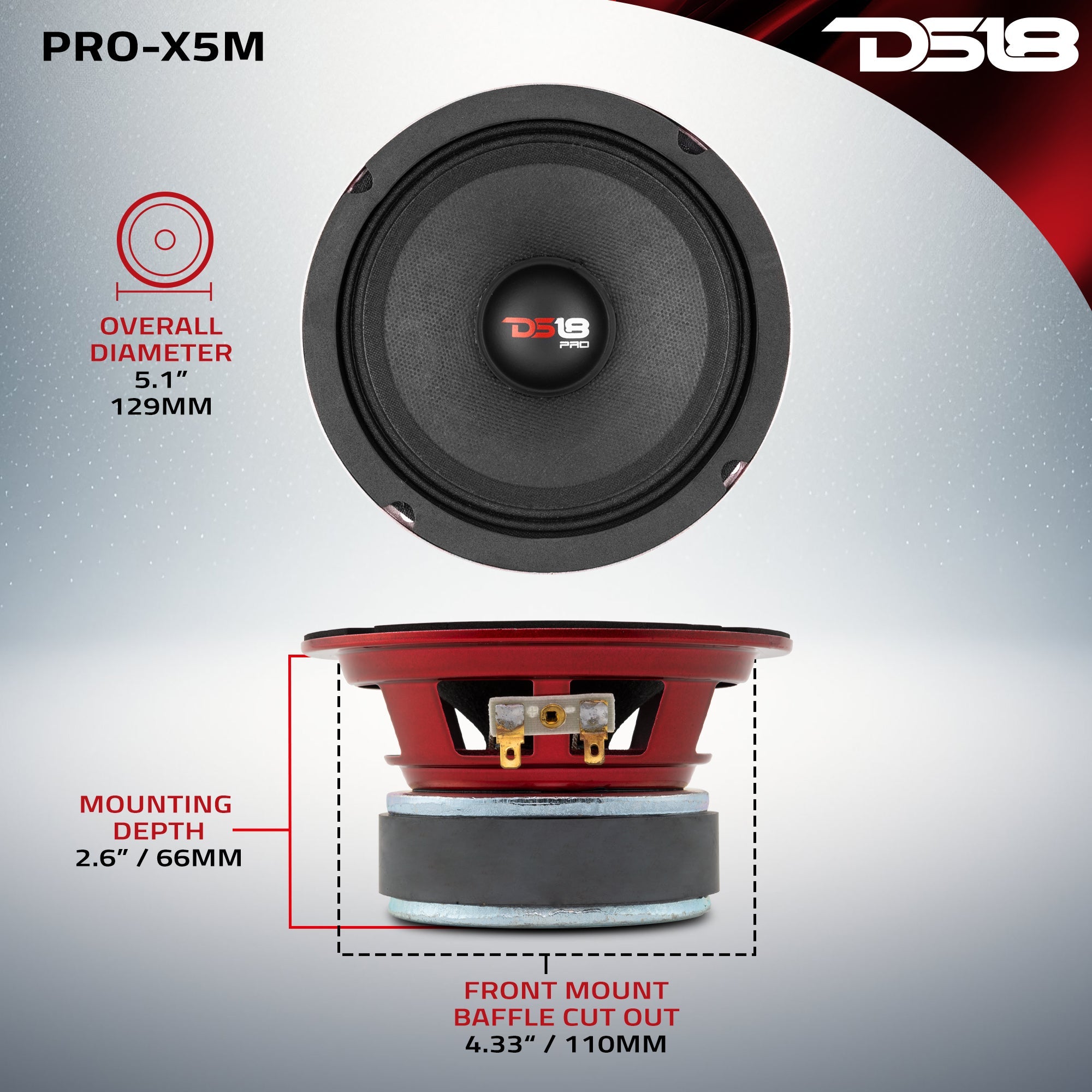

Diameters
Voice Coil Size: 1.2"
Magnet Size: 18.5 oz.
Mounting Depth: 2.6" (66mm)
Cut-Out Dimension: 4.33" (110mm)

Key Features

  • 5.25" Mid-Range
  • MAX Power: 300 Watts
  • RMS Power: 150 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet
  • 93dB
  • UPC: 663593064332

Specifications

SKU PRO-X5M
Nominal Diameter 5.25 inch
Nominal Impedance 8 ohms
Max Power Handing 300 WATTS
RMS Power Handing 150 WATTS
Sensitivity 90.4 dB
Frequency Response 245 Hz - 13.5 KHz
Voice Coil Diameter 30.5 mm (1.2 inch)
Voice Coil Former Material Kapton
Winding Material KCCAW
Cone Material Non-pressed Paper
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 18.5 oz
Vas 0.864 LTR
Xmax 6.7 mm (0.25 inch)
Fs 245 Hz
Qms 6.852
Qes 1.785
Qts 1.416
Re 5.2 ohms
Overall Diameter 5" / 129mm
Front Mount Baffle Cutout 4.33" / 110mm
Mounting Depth 2.6" / 66mm
Overall Depth 2.83" / 72mm
Product Weight 2.7 lbs
Product Dimensions 5.5 x 5.5 x 3.25
M/C Weight 35 lbs
M/C Dimensions 16.5 x 11.5 x 7.5
M/C QTY 12
