Product Overview

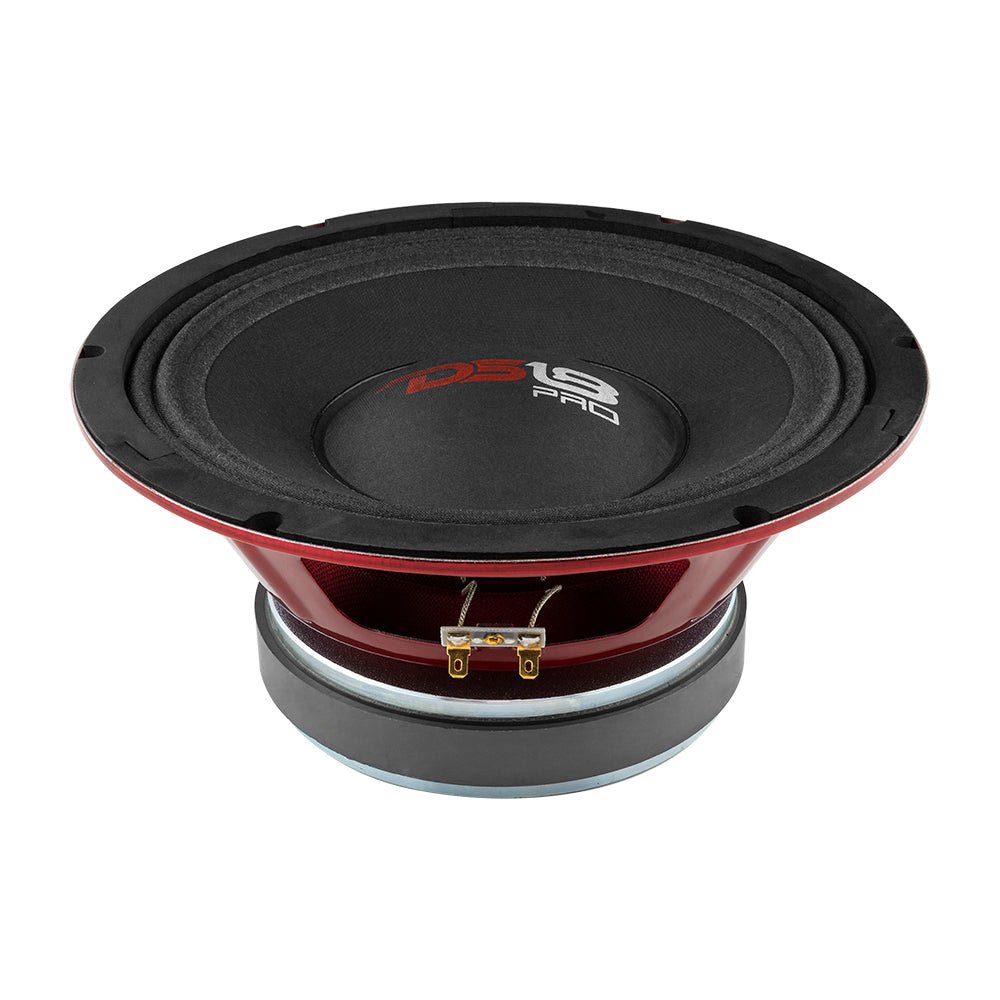

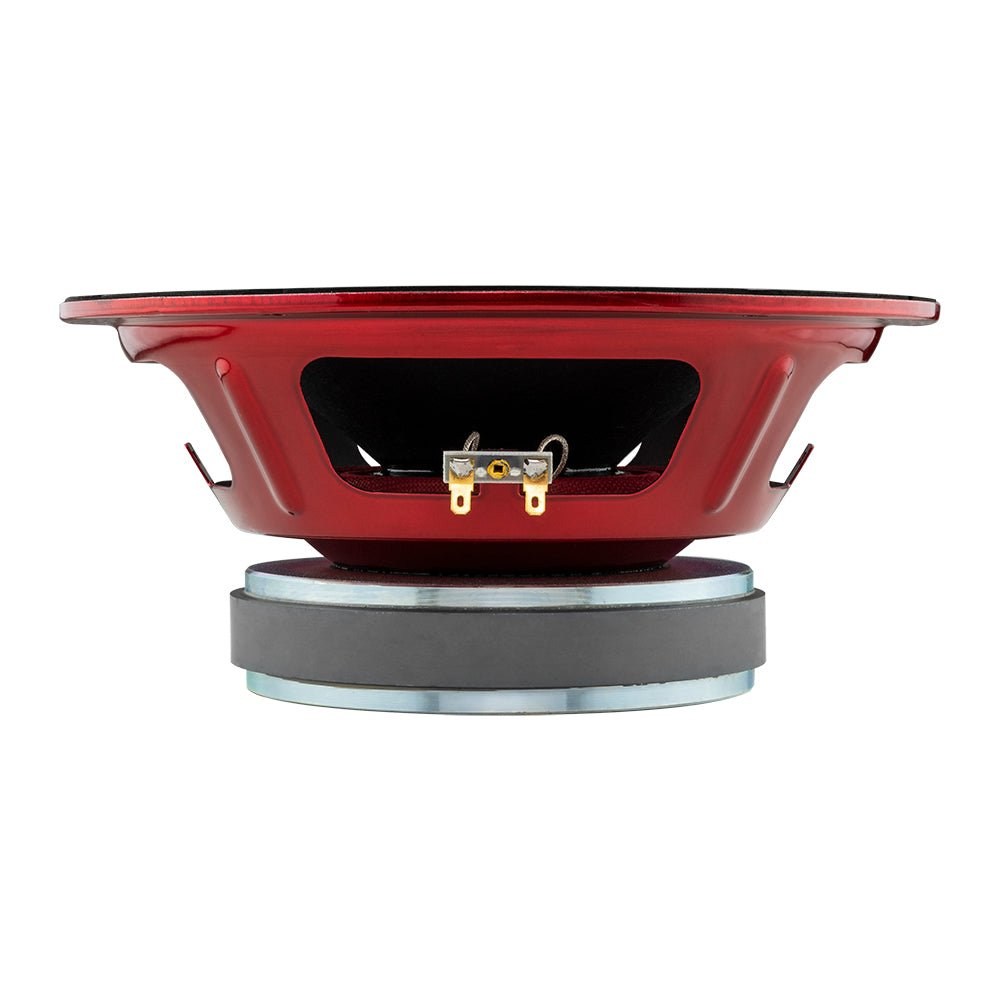

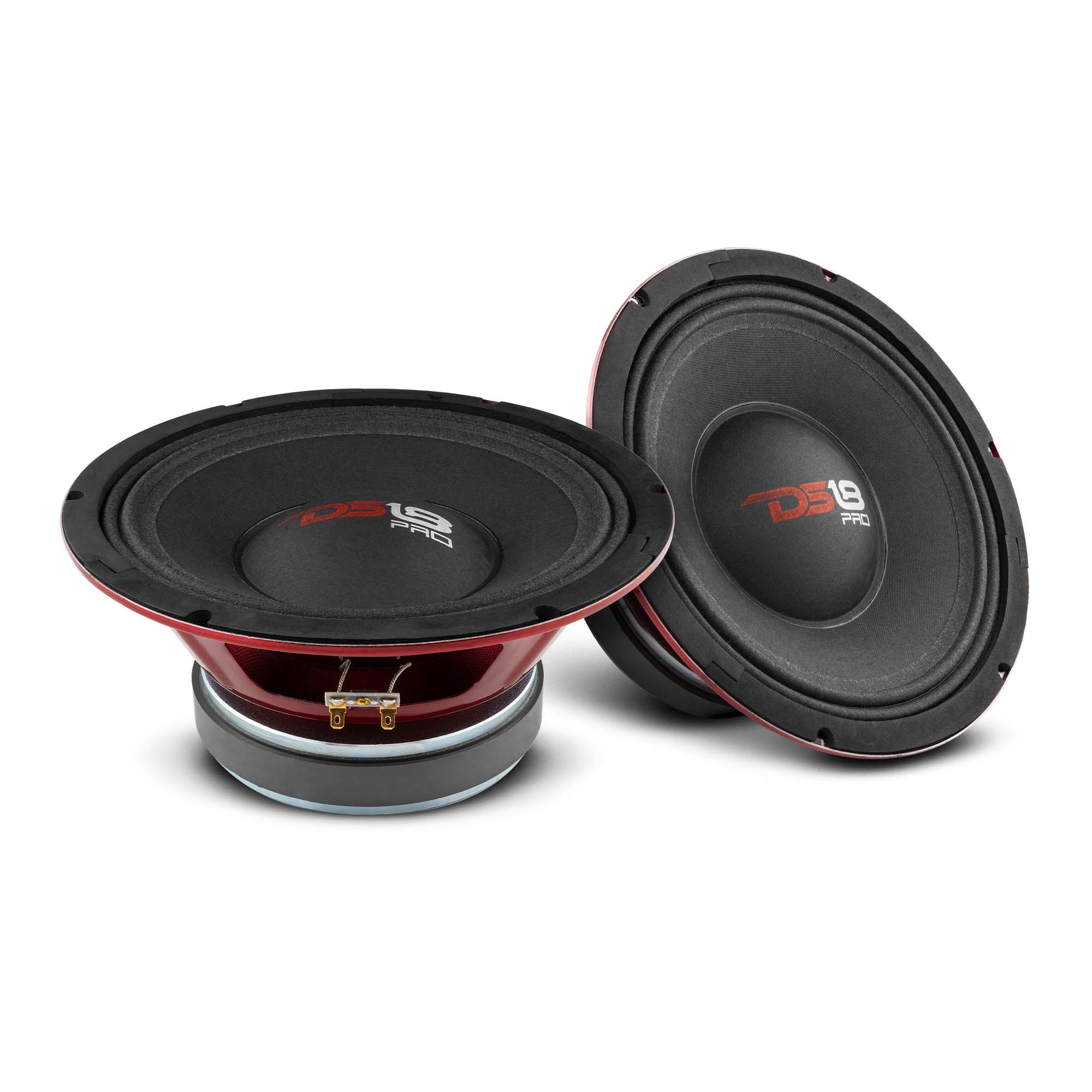

DS18 PRO-X10MBASS 10" Mid-Bass Loudspeaker 800 Watts 8-Ohm
|
During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you! Highlights
|
Technical Details
| Nominal Diameter: | 10" |
| Nominal Impedance: | 8 Ohms |
| RMS Power Handing: | 400 Watts |
| Maximum Power Handing: | 800 Watts |
| Sensitivity (1w/1m): | 96.3 dB |

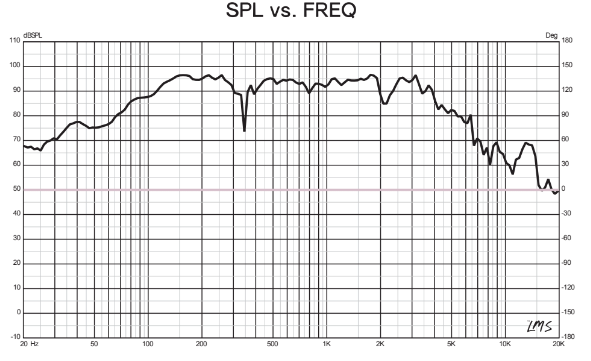

| Frequency Response: | 80Hz - 6.3KHz |
| Recommended Hi Pass Crossover: | 80Hz |
| Voice Coil Diameter: | 65.5mm (2.5") |
| Voice Coil Former Material: | KAPTON |
| Winding Material: | SV |

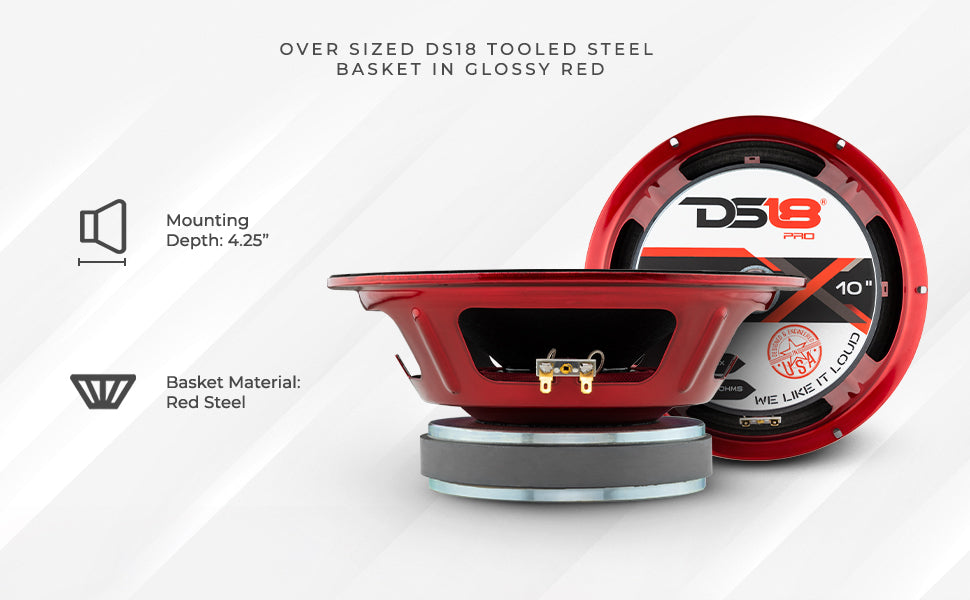

| Basket Material: | Steel Basket |
| Frame Material: | Steel Basket |

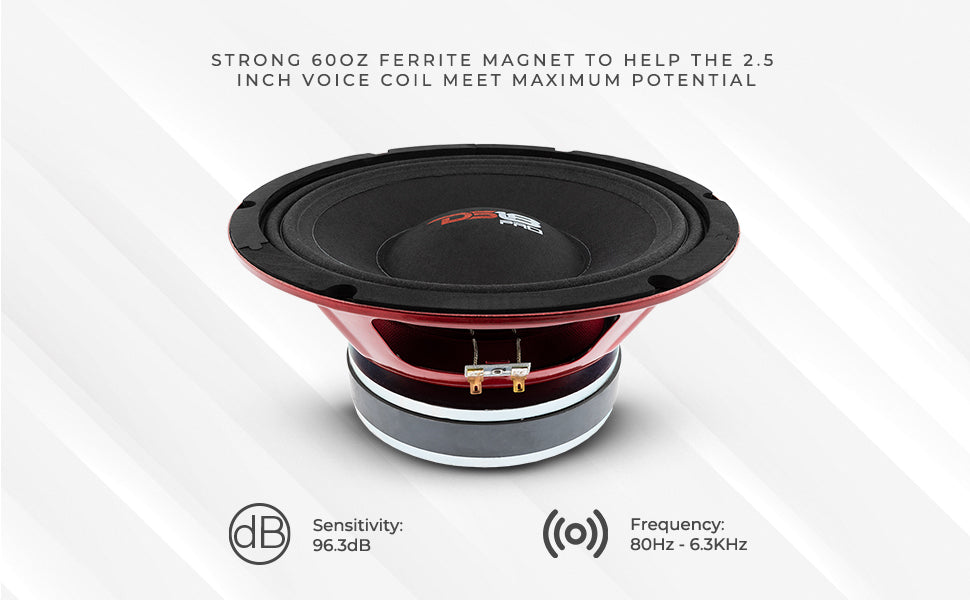

| Magnet Material: | Ferrite 60 oz |
Key Features

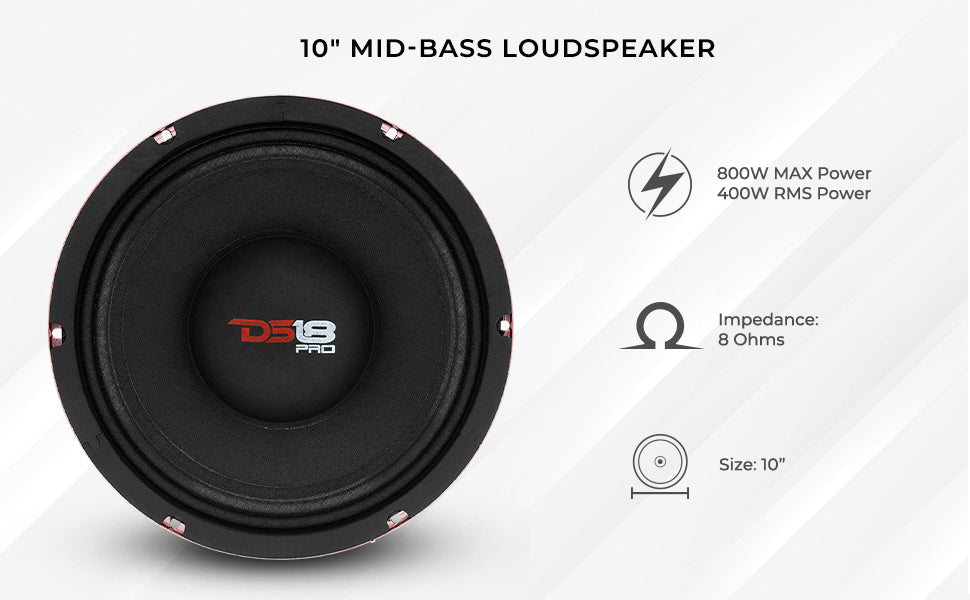

- 10" Mid-Bass
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 95dB
Specifications
| SKU | PRO-X10MBASS |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handing | 400 Watts |
| Maximum Power Handing | 800 Watts |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 80Hz - 6.3kHz |
| Recommended Hi Pass Crossover | 80Hz |
| Voice Coil Diameter | 2.5" / 65.5mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCA + SV |
| Basket Material | Steel |
| Magnet Weight | 60 oz |
| Vas | 24.79L / 0.875ft3 |
| Xmax | 10.5 mm |
| Fs | 70Hz |
| Qms | 9.819 |
| Qes | 0.54 |
| Qts | 0.512 |
| Re | 5.3 ohms |

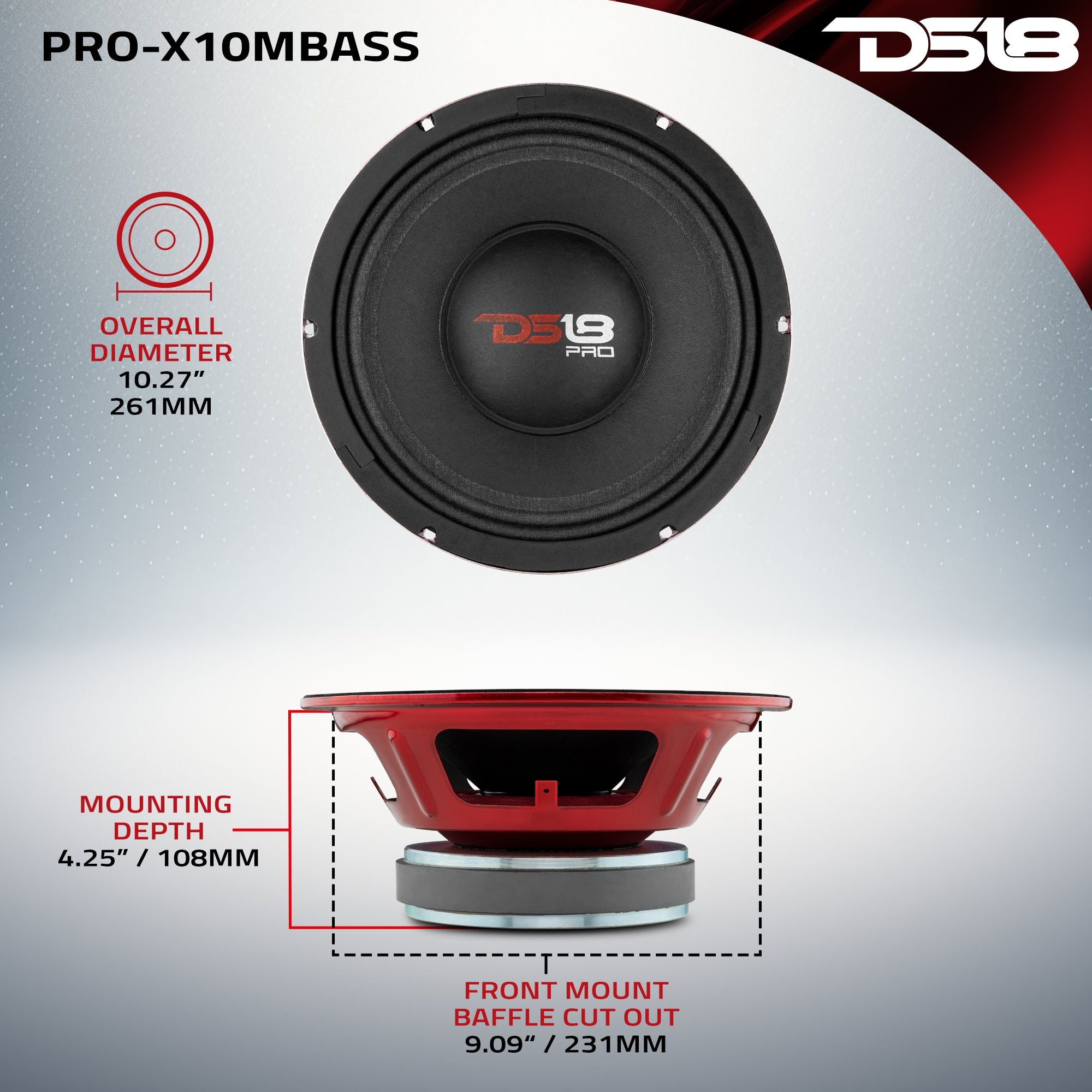

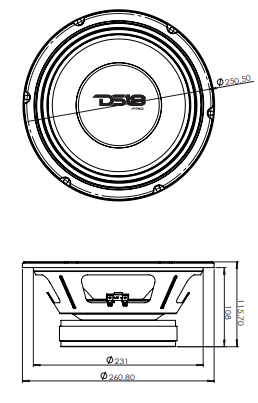

| Overall Diameter | 10.27" / 261mm |
| Front Mount Baffle Cutout | 9.09" / 231mm |
| Mounting Depth | 4.25" / 108mm |
| Overall Depth | 4.55" / 115.7mm |
| Product Weight | 11 lbs |
| Product Dimensions | 10.875 x 10.875 x 5 |
| M/C Weight | 46.5 lbs |
| M/C Dimensions | 22.5 x 11.75 x 11 |
| M/C QTY | 4 |
| Sold In | Single |
