PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
Product Overview 10” Slim Neodymium Mid-Range Loudspeaker with Bullet DS18’s PRO-NEO10SLIM is a shallow-mount 10” mid-range loudspeaker...
Vendor:
DS18
Manufacturer SKU
PRO-NEO10SLIM
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $215.95
- $215.95
- Unit price
- per
Subtotal:
$215.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

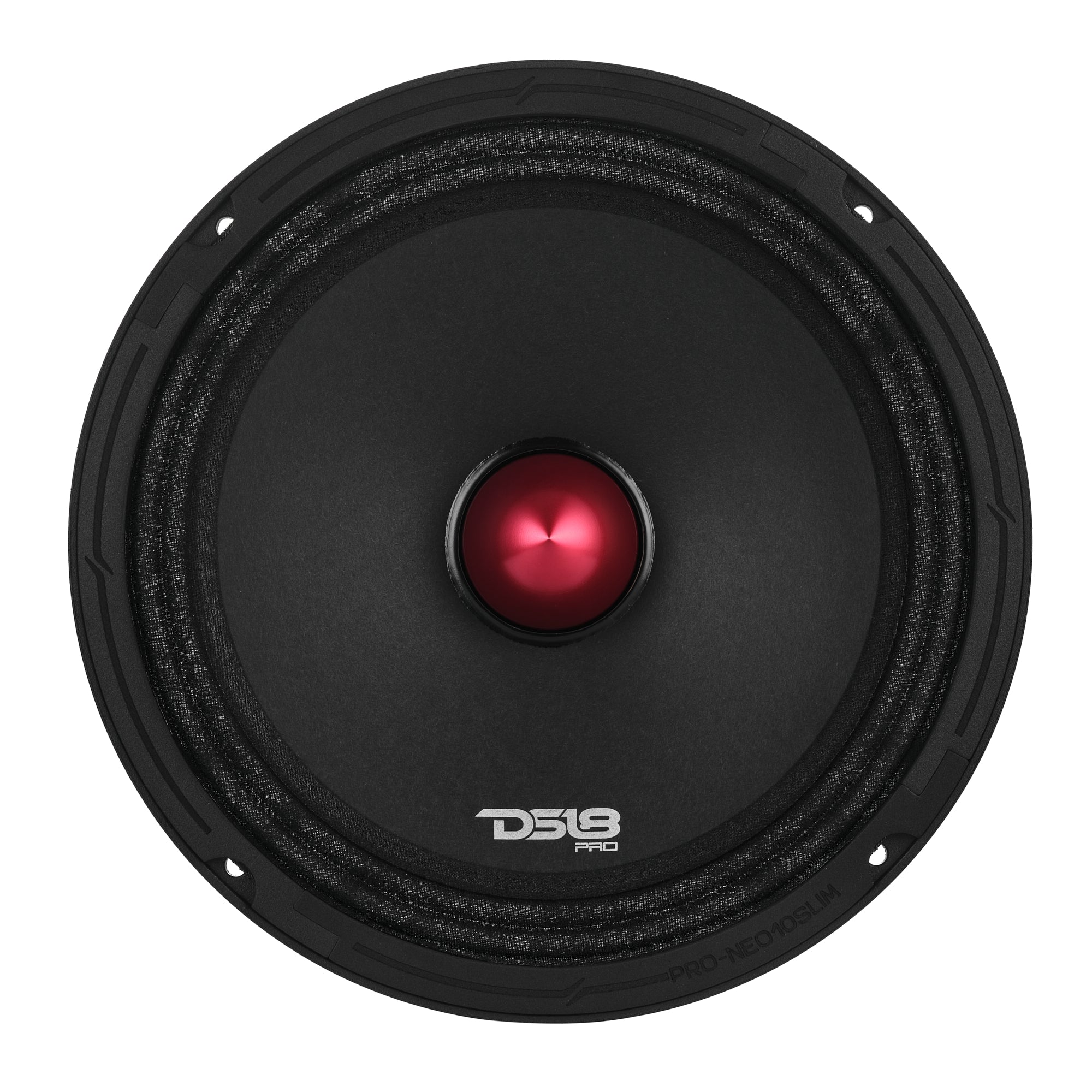

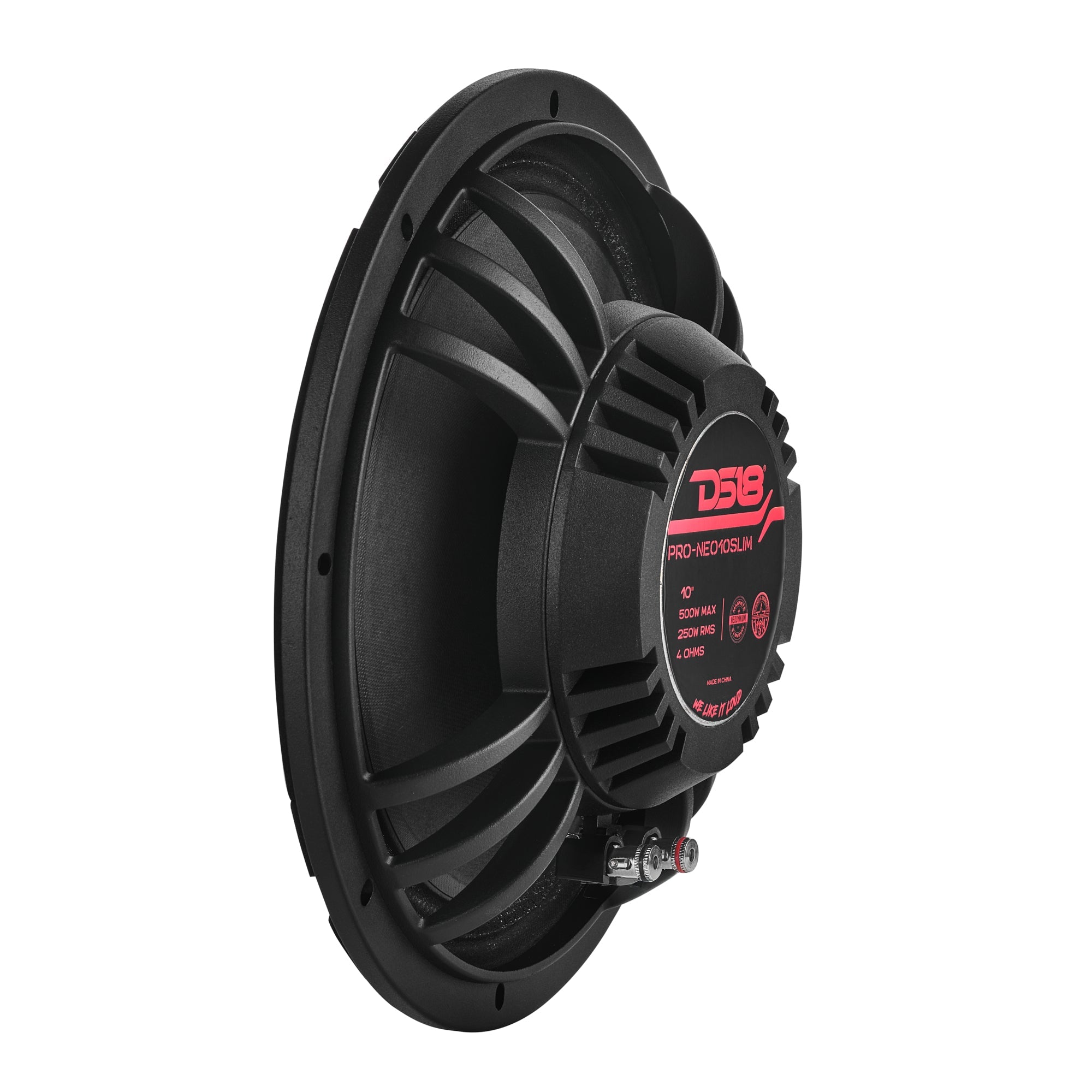

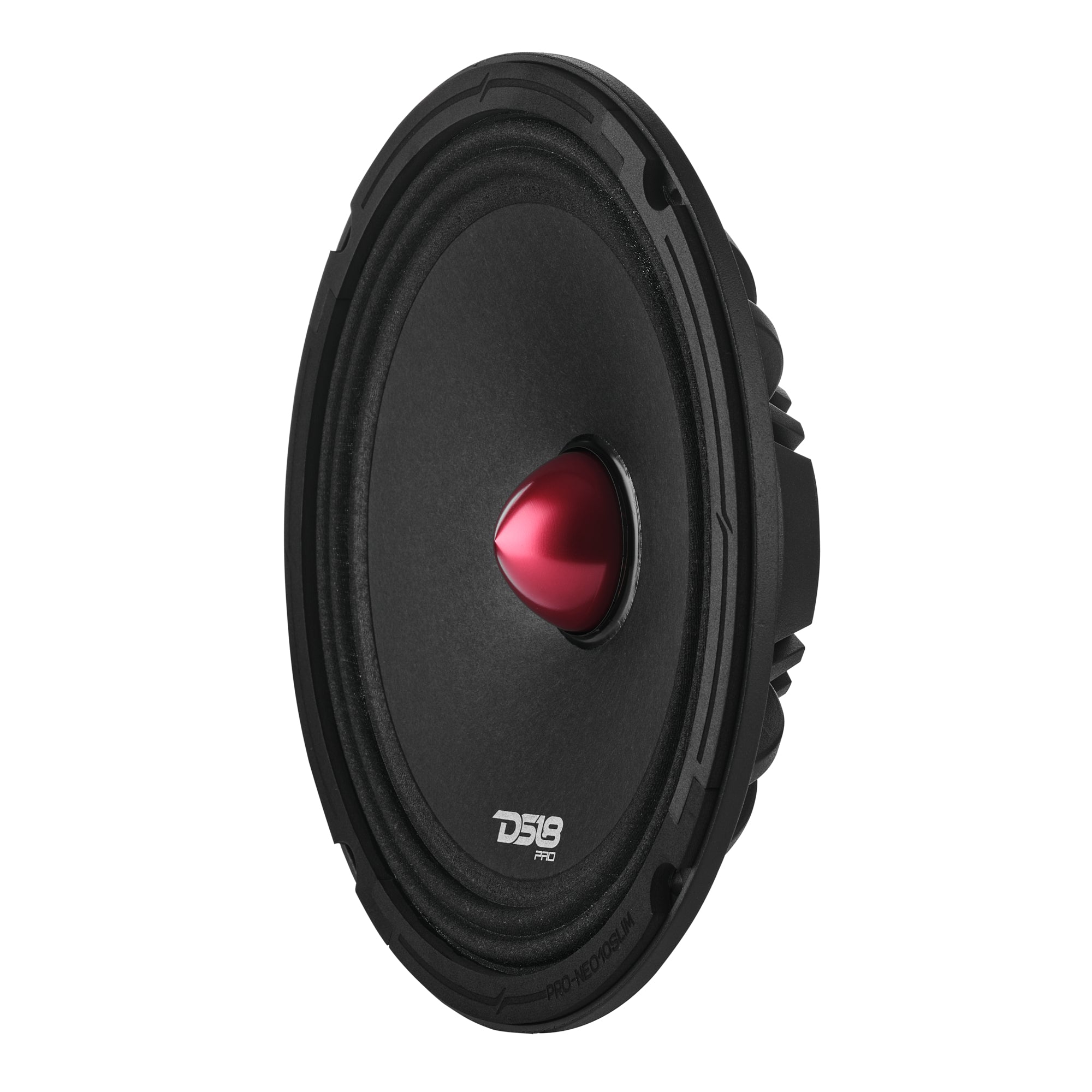

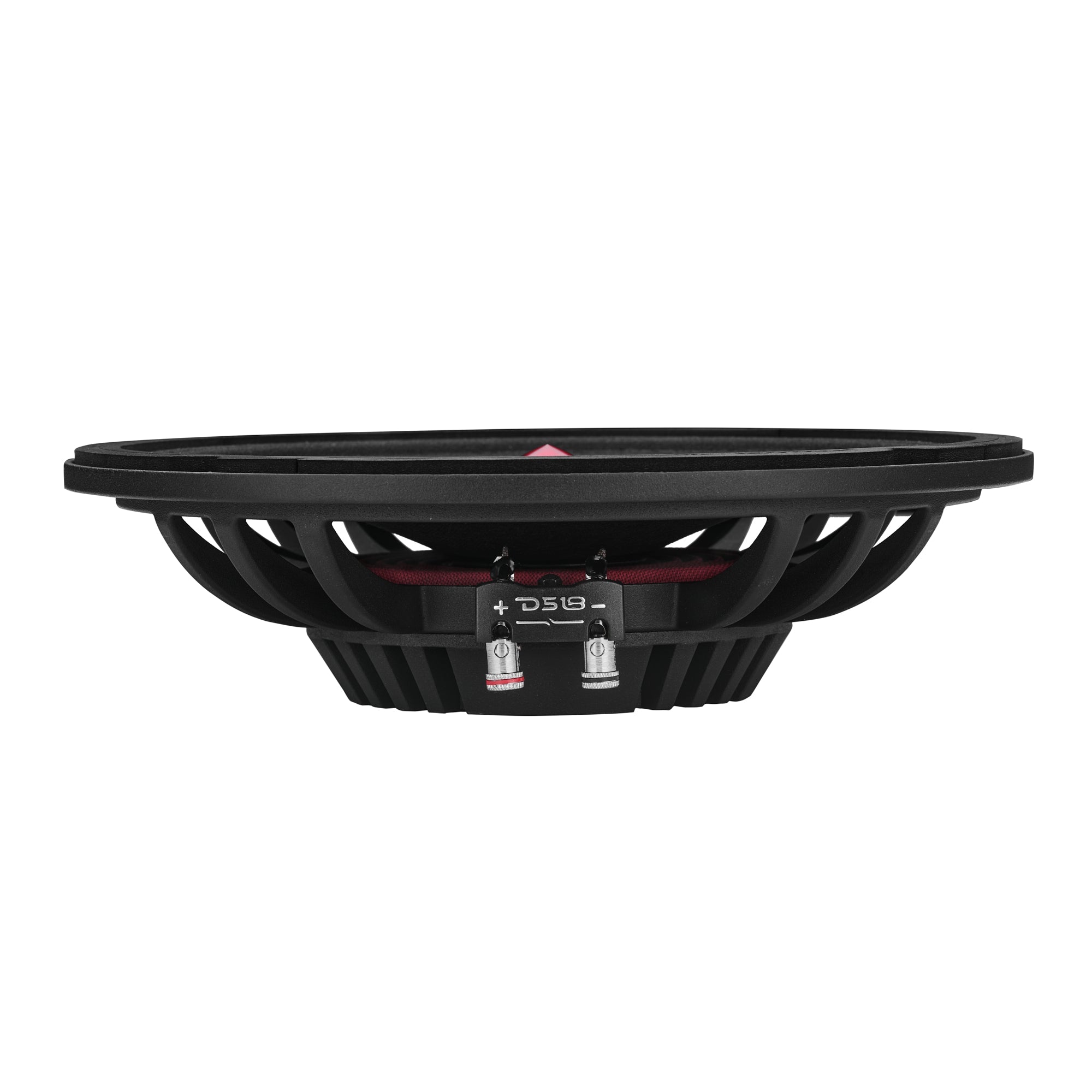

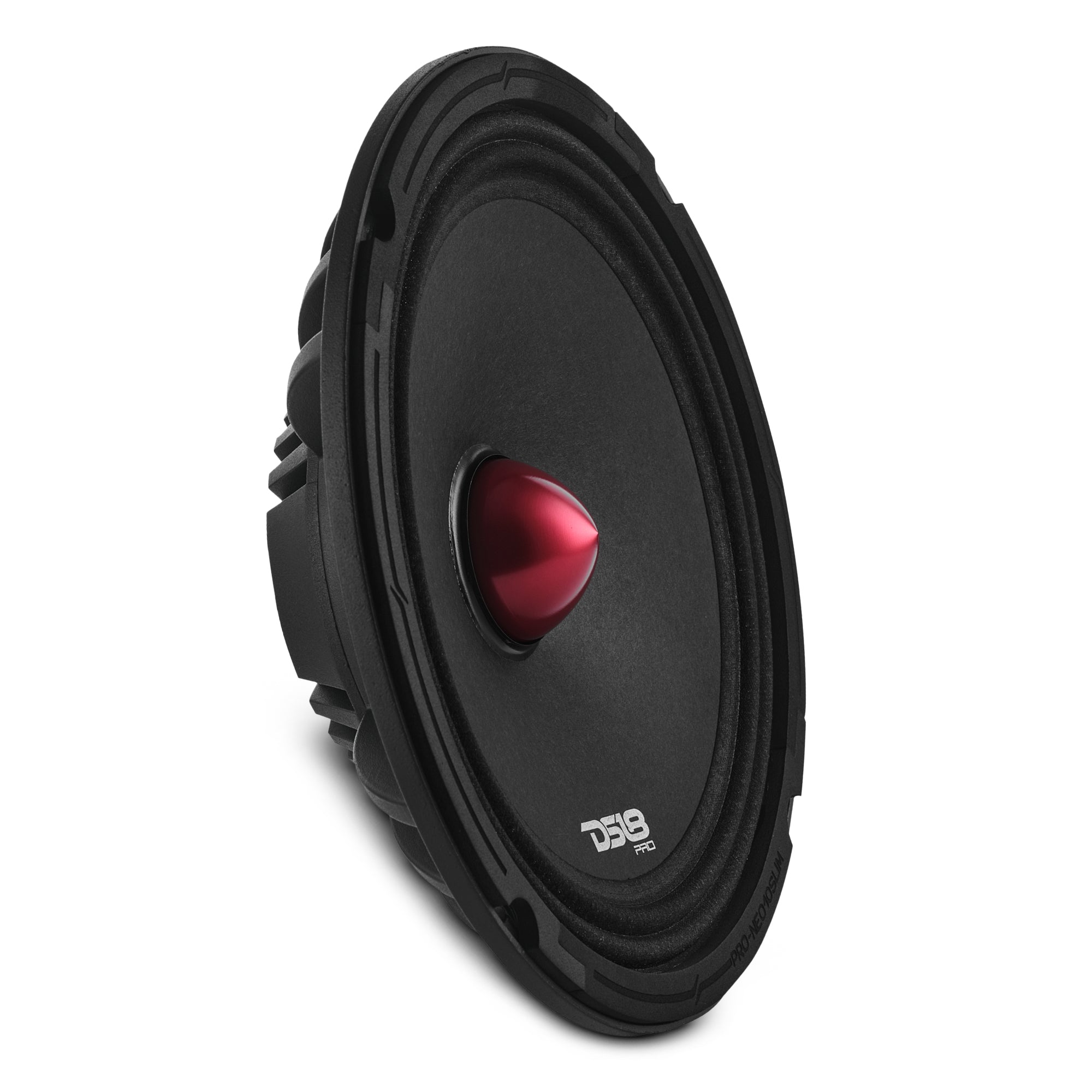

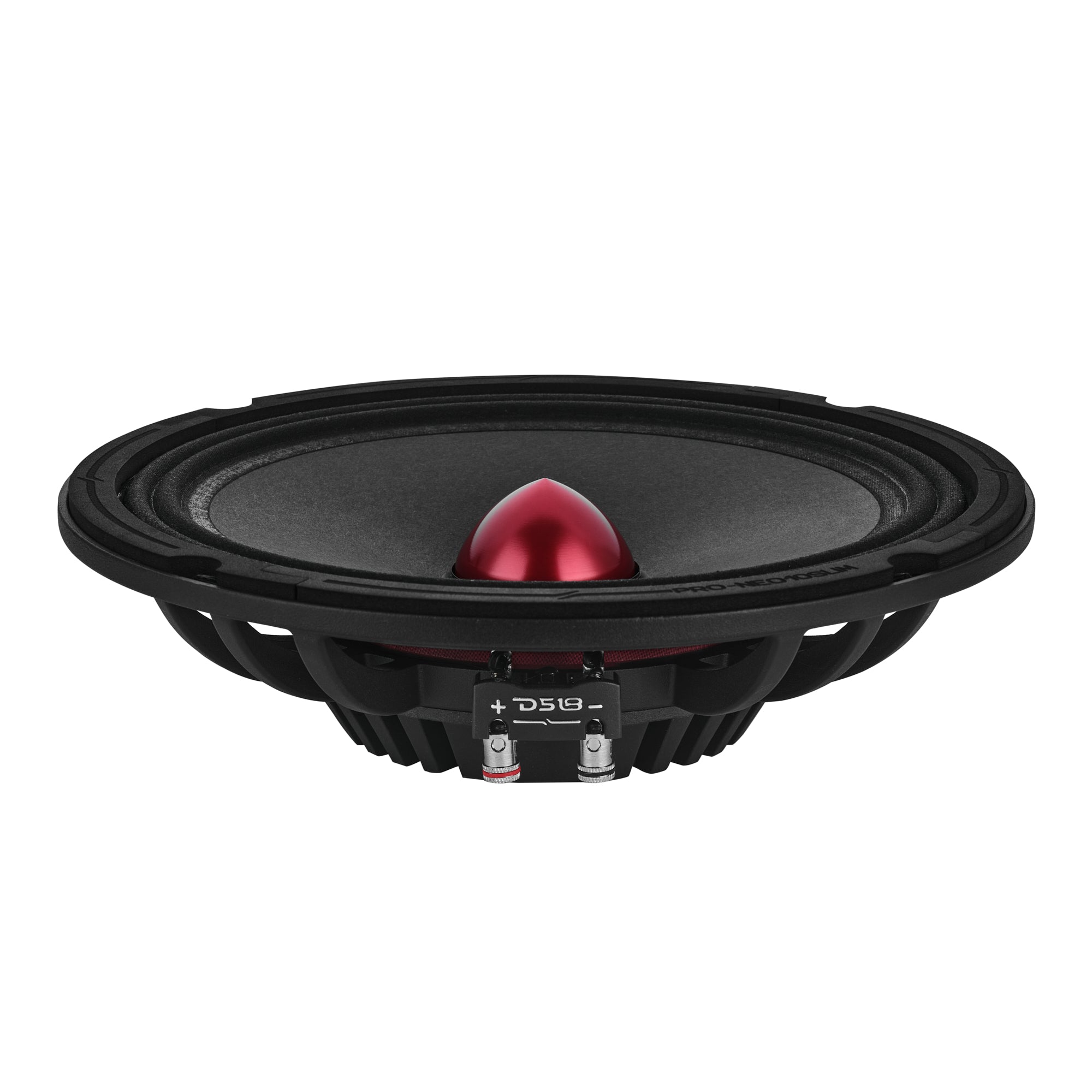

10” Slim Neodymium Mid-Range Loudspeaker with Bullet
DS18’s PRO-NEO10SLIM is a shallow-mount 10” mid-range loudspeaker engineered for crushing volume and pro-grade clarity—all in a low-profile frame.
Compact Frame, Massive Output
With a mounting depth of just 2.3", the PRO-NEO10SLIM fits where standard 10” drivers won’t. Despite its slim form, it pumps out a powerful 250W RMS (500W MAX), driven by a neodymium magnet and a 2" Kapton voice coil.
Pro-Level Sound
A CNC-machined aluminum bullet boosts dispersion and cuts distortion, while the paper cone and cloth surround maintain tight response from 100Hz to 3.7kHz. With a sensitivity rating of 97dB, this speaker delivers high output with minimal power.
Light Magnet, Heavy Impact
With an extremely lightweight neodymium motor weight, the PRO-NEO10SLIM gives you all the output without the bulk. More room for air movement, so it’s the loudest “slim” you’ll ever hear.
Install Loud. Stay Clean.
If you’re chasing SPL trophies or just want a high-powered midrange to punch through your mix, the PRO-NEO10SLIM gives you pro-audio performance in a form factor that fits almost anywhere.
Key Features
- 10" Mid-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- Shallow ~ 97dB
Specifications
| SKU | PRO-NEO10SLIM |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 100Hz - 3.7kHz |
| Recommended HI Pass Crossover | 120Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | CNC Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Matte Black |
| Magnet Material | Neodymium |
| Magnet Weight | 7.9 Oz |
| Displacement Volume | 0.85L / 0.03ft3 |
| Equivalent Volume | 21.86L / 0.77ft3 |
| Excursion (one way) | 1.45 mm |
| Free Air Resonance | 80 Hz |
| Mechanical Factor | 6.58 |
| Electrical Factor | 0.39 |
| Total Factor | 0.37 |
| Mechanical Mass | 24.95 g |
| Mechanical Compliance | 0.129 mm/N |
| BL Factor | 8.93 |
| Voice Coil Inductance | 0.05 mH |
| Cone Area | 346.36 cm2 |
| DC Resistance | 3.3 ohms |
| Mechanical Mass w/o air | 17.66 g |

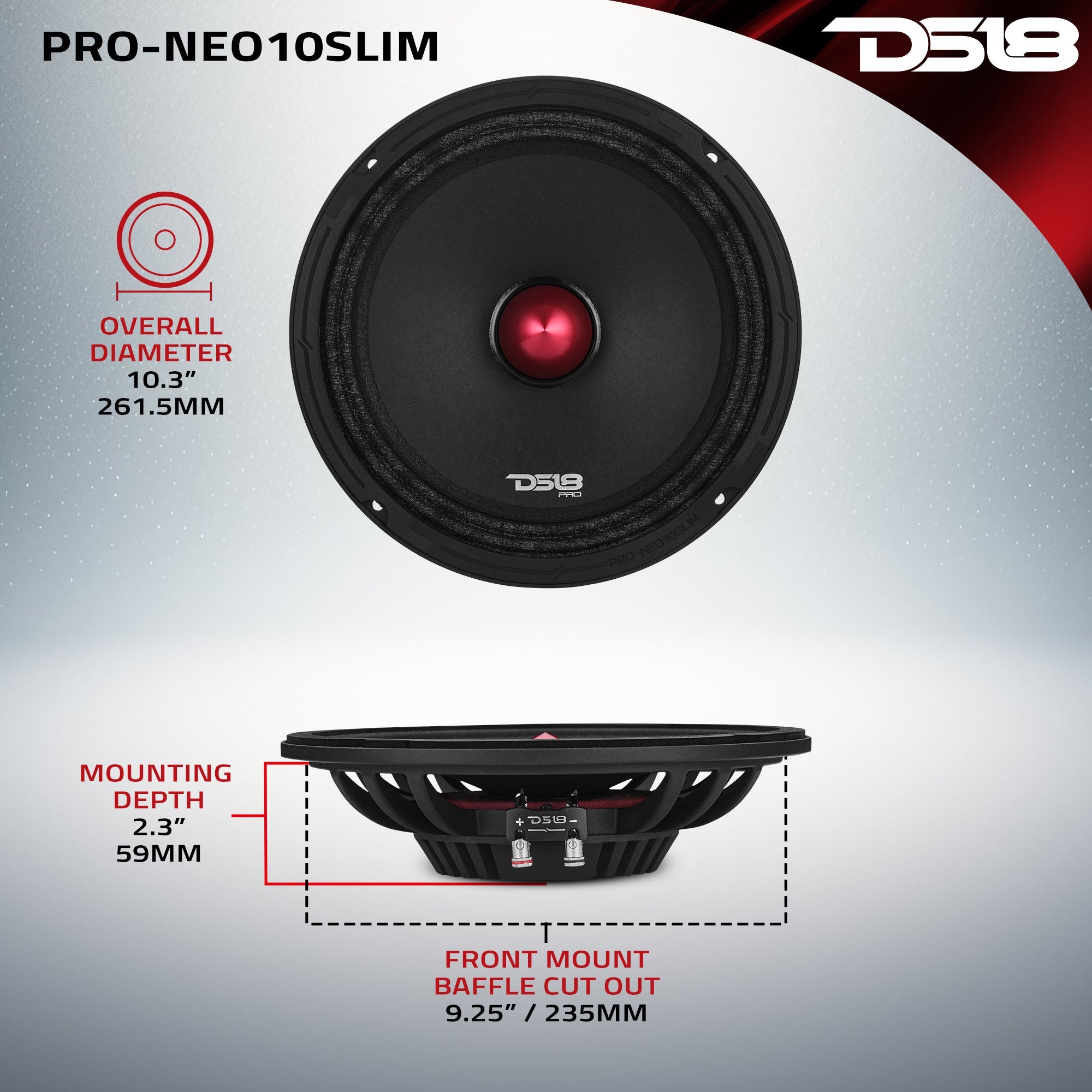

| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 2.75" / 70mm |
| Front Mount Baffle Cutout | 9.25" / 235mm |
| Mounting Depth | 2.3" / 59mm |
| Motor Diameter | 4.13" / 105mm |
Manuals & Documents
