PRO 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm
Product Overview 6x9” Water Resistant Hybrid Loudspeaker With 1” Compression Driver Horn The PRO-HY69.4B is a high-powered,...
Vendor:
DS18
Manufacturer SKU
PRO-HY69.4B
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $173.95
- $173.95
- Unit price
- per
Subtotal:
$173.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
6x9” Water Resistant Hybrid Loudspeaker With 1” Compression Driver Horn
The PRO-HY69.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 6x9" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
The PRO-HY69.4B features a 1" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
With a maximum power handling of 500 watts and a sensitivity of 97 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY69.4B also has a nominal impedance of 4 ohms, a frequency response range of 50Hz-20KHz, and a recommended hi-pass crossover of 80Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
The PRO-HY69.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.
Key Features
- 6x9" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Specifications
| SKU | PRO-HY69.4B |
|---|---|
| Nominal Diameter | 6x9" / 152 x 228mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 50Hz - 20Khz |
| Recommended HI Pass Crossover | 80Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5"/ 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper (IPx5) |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 27 Oz |
| Displacement Volume | 0.051L / 0.0018ft3 |
| Equivalent Volume Vas | 14.84L / 0.52ft3 |
| Excursion (one way) Xmax | 9.2mm |
| Free Air Resonance Fs | 87Hz |
| Mechanical Factor Qms | 3.629 |
| Electrical Factor Qes | 0.661 |
| Total Factor Qts | 0.559 |
| Mechanical Mass Mms | 14.264g |
| Mechanical Compliance Cms | 0.236 mm/N |
| BL Factor BL | 6.135 |
| Voice Coil Inductance Le | 4.22mH |
| Cone Area Sd | 210.48 cm² |
| DC Resistance Re | 3.2 ohms |
| Mechanical Mass w/o air Mmd | 12.509g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3.26" / 83mm |

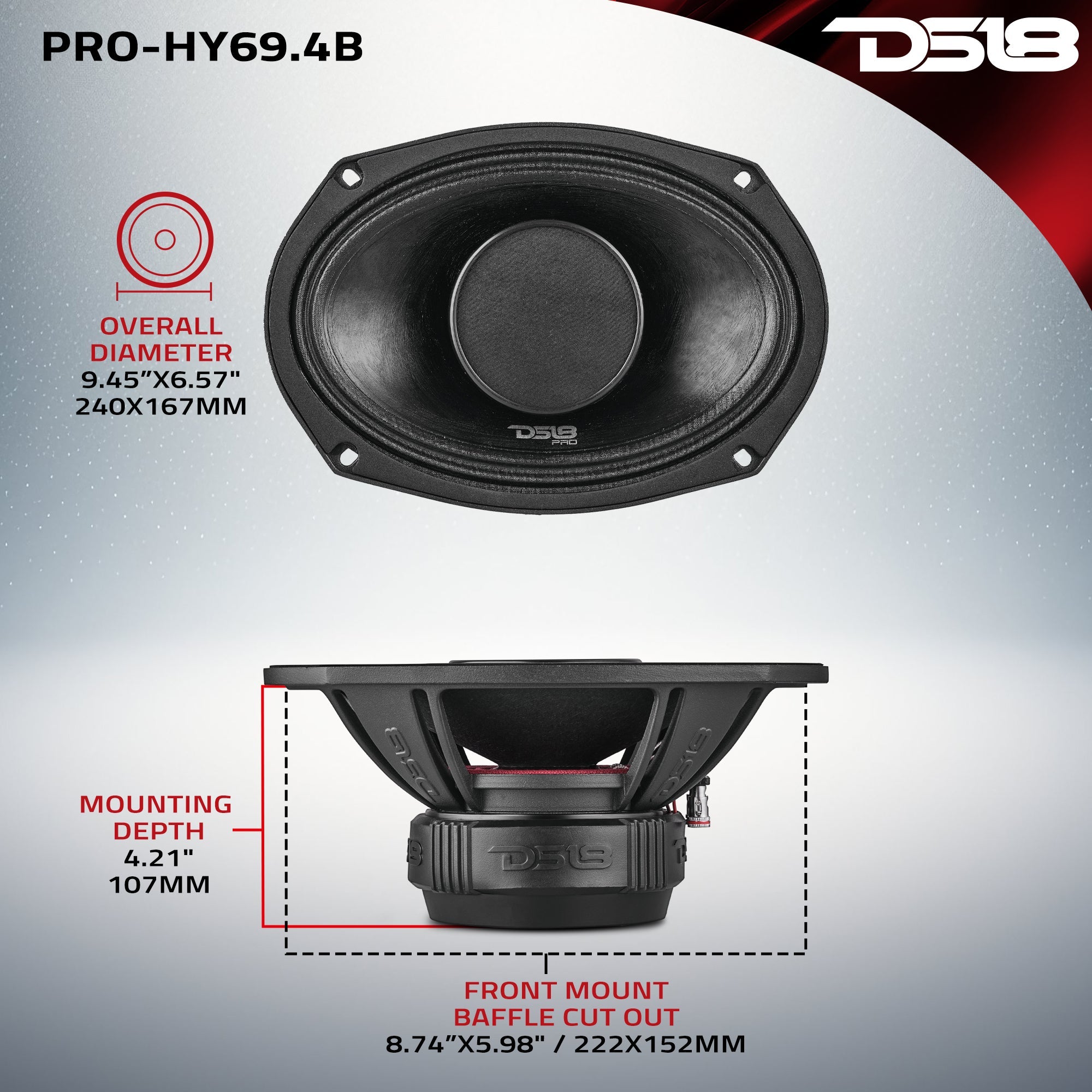

| Overall Diameter | 9.45 X 6.57" / 240 X 167mm |
| Overall Depth | 4.54" / 115.4mm |
| Front Mount Baffle Cutout | 8.74 X 5.98" / 222 X 152mm |
| Mounting Depth | 4.21" / 107 mm |
| Motor Diameter | 4.61" / 117mm |
Manuals & Documents
