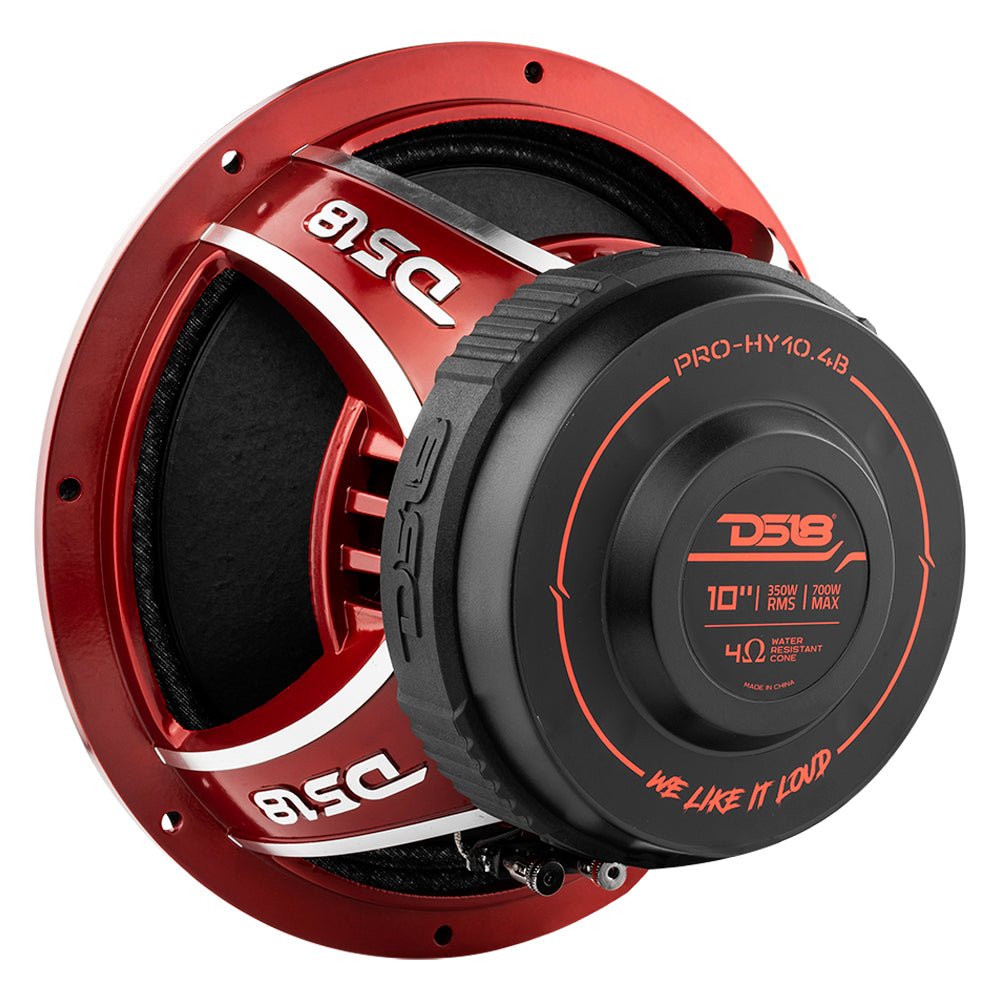

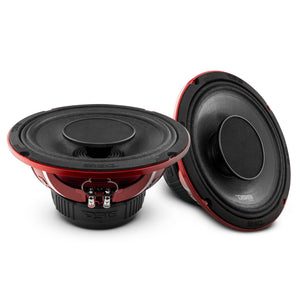

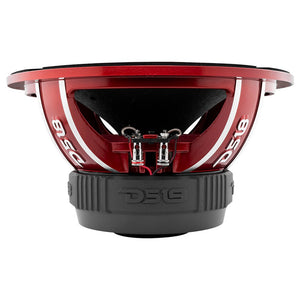

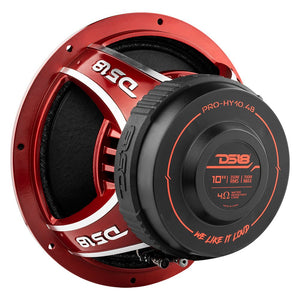

PRO 10" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 350 Watts Rms 4-Ohm
Product Overview DS18 PRO-HY10.4B PRO 10" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 4-Ohm 10” Water...
Vendor:
DS18
Manufacturer SKU
PRO-HY10.4B
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $275.95
- $275.95
- Unit price
- per
Subtotal:
$275.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-HY10.4B PRO 10" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 4-Ohm
10” Water Resistant Hybrid Loudspeaker With 1.5” Compression Driver Horn
The PRO-HY10.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 10" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
The PRO-HY10.4B features a 1.5" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
With a maximum power handling of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response range of 40Hz-20KHz, and a recommended hi-pass crossover of 70Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
The PRO-HY10.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.
Key Features
- 10" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- 100dB ~ w/Grill
Specifications
| SKU | PRO-HY10.4B |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 350W |
| MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 100dB |
| Frequency Response | 40Hz - 20KHz |
| Recommended HI Pass Crossover | 70Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 2" / 50.8mm / 1.5" / 38.6mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper (IPx5) |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 49 Oz |
| Displacement Volume | 2.86L / 0.1ft3 |
| Equivalent Volume Vas | 21.8L / 0.76ft3 |
| Excursion (one way) Xmax | 10mm |
| Free Air Resonance Fs | 95Hz |
| Mechanical Factor Qms | 12.59 |
| Electrical Factor Qes | 0.995 |
| Total Factor Qts | 0.922 |
| Mechanical Mass Mms | 26.78g |
| Mechanical Compliance Cms | 0.125 mm/N |
| BL Factor BL | 6.851 |
| Voice Coil Inductance Le | 0.313mH |
| Cone Area Sd | 352.99 Cm2 |
| DC Resistance Re | 3.4 ohms |
| Mechanical Mass w/o air Mmd | 25g |
| Diaphragm Material | Titanium |
| Horn Diameter | 4.25" / 108mm |

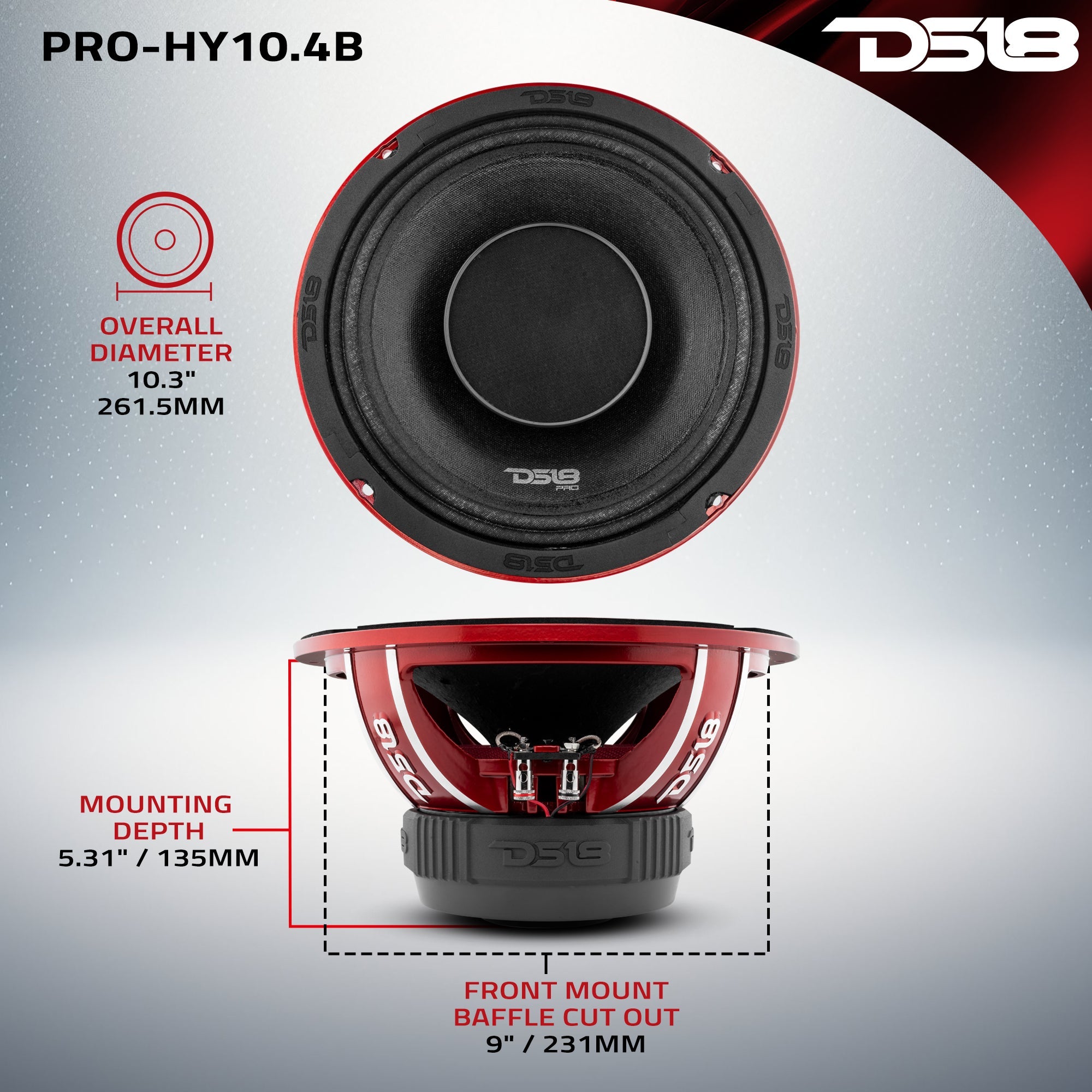

| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 5.7" / 144.4mm |
| Front Mount Baffle Cutout | 9" / 231mm |
| Mounting Depth | 5.31" / 135mm |
| Motor Diameter | 5.7" / 145mm |
