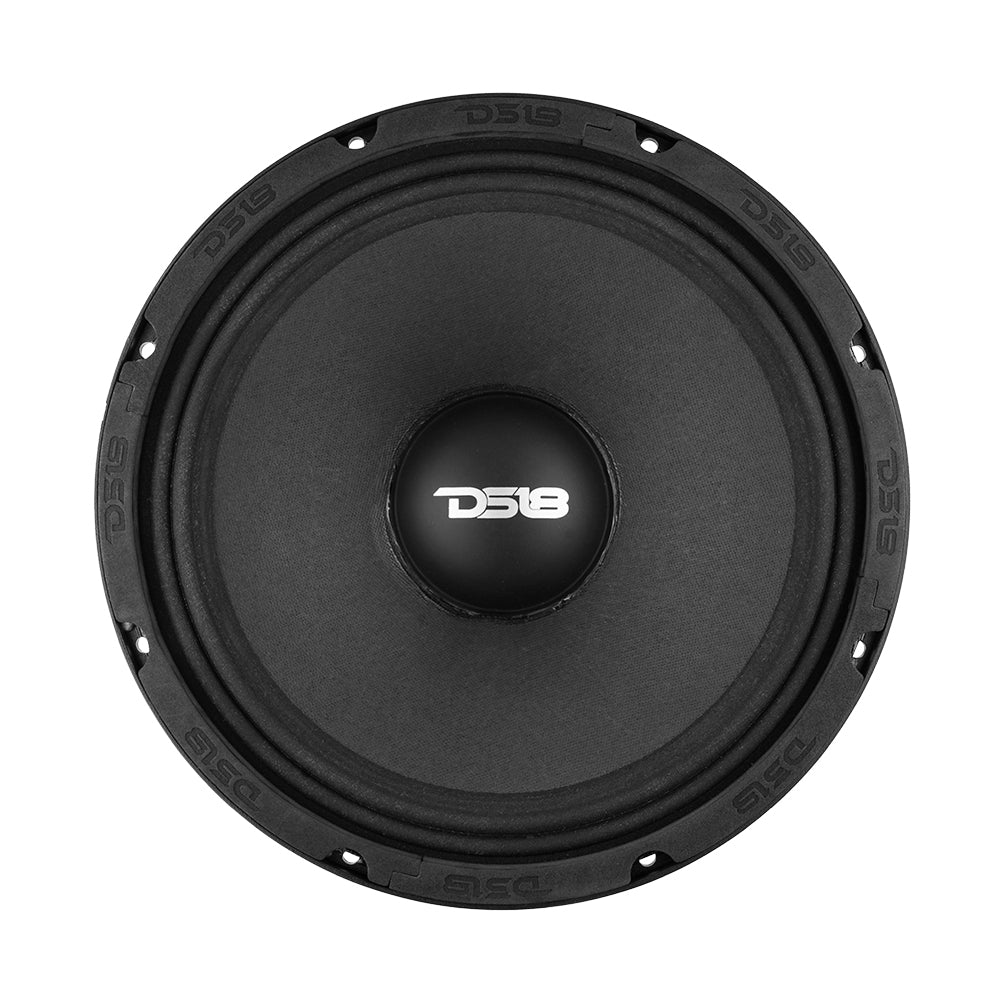

PRO-FU 12" Mid-Range Loudspeaker 600 Watts Rms 4-Ohm

Availability: In stock SKU: PRO-FU12.4
Regular price $179.95 Sale price $89.98

PRO-FU 12" Mid-Range Loudspeaker 600 Watts Rms 4-Ohm - DS18

PRO-FU 12" Mid-Range Loudspeaker 600 Watts Rms 4-Ohm

$89.98

Product Overview

DS18 PRO-FU12.4 12" Mid-Range Loudspeaker 1200 Watts 4-Ohm

A fresh new DS18 Mid-range speaker has landed on the pro audio scene! The PRO-FU12.4 sports a 3 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3 inch voice coil will take 600 watts RMS and 1200 watts Max with extreme efficiency and reliability. The PRO-FU will give you screaming vocals but have enough cone area to help with you with your mid-bass.

Highlights

  • Amazing pro audio construction that emphasizes loudness and needs to be accompanied by components.
  • DS18 Tooled black stealth basket maintaining great looks with the highest integrity in mind.
  • High powered pro audio voice coils housed in massive ferrite motors for the greatest efficiency to power ratio possible.


Technical Details
                                                    PRO-FU12.4 Product Manual

Model PRO-FU12.4
Nominal Diameter 12"
Nominal Impedance 4 Ohms
MAX Power Handling 1200W
RMS Power Handling 600W
Sensitivity (1w/1m) 97.7 dB

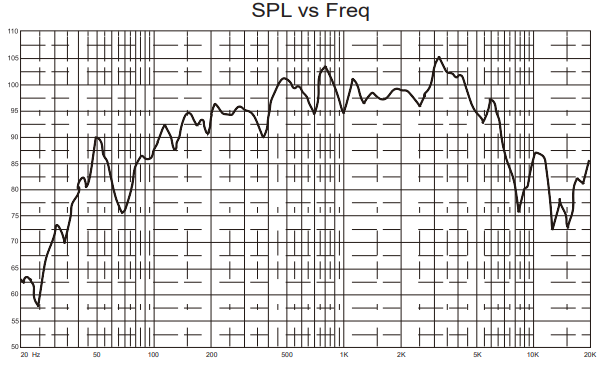

Frequency Response 57Hz-10KHz
Recommended HI Pass Crossover 80Hz
Motor
Voice Coil Diameter 3"
Voice Coil former Material Fiber Glass
Winding Material CCAW
Cone Material Non-pressed Paper
Dust Cap Paper
Surround Material Cloth
Basket Material Aluminum
Magnet Material Ferrite
Magnet Weight 100 oz.
Measurements
Overall Diameter 12.4"
Front Mount Baffle Cutout 5.39"
Mounting Depth 11.2"
Overall Depth 4.92"
Motor Diameter 7.4"

Key Features

  • 12" Mid-Range
  • MAX Power: 1200 Watts
  • RMS Power: 600 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • Aluminum Basket

Specifications

SKU PRO-FU12.4
Nominal Diameter 12"
Nominal Impedance 4 Ohms
RMS Power Handing 600W
Maximum Power Handing 1200W
Sensitivity (1w/1m) 97.7dB
Frequency Response 57Hz-10KHz
Recommended Hi Pass Crossover 80Hz
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Material Fiber Glass
Winding Material CCA
Basket Material Aluminum
Magnet Weight 100 oz
Vas 51.705L
Xmax 20 mm
Fs 64.7Hz
Qms 2.608
Qes 0.365
Qts 0.32
Re 2.8 ohm
Overall Diameter 12.4" / 316mm
Front Mount Baffle Cutout 11.2" / 285mm
Mounting Depth 4.92" / 125mm
Overall Depth 5.39" / 137mm
Product Weight 20 lbs
Product Dimensions 13.25 x 13.25 x 6.5
M/C Weight 41 lbs
M/C Dimensions 14 x 14 x 13.5
M/C QTY 2
Sold In Piece
