PRO-FU 10" Mid-Range Loudspeaker 400 Watts Rms 8-Ohm
Product Overview DS18 PRO-FU10.8 10" Mid-Range Loudspeaker 800 Watts 8-Ohm A fresh new DS18 Mid-Range speaker has...
- $155.95
- $155.95
- Unit price
- per
Subtotal:
$155.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

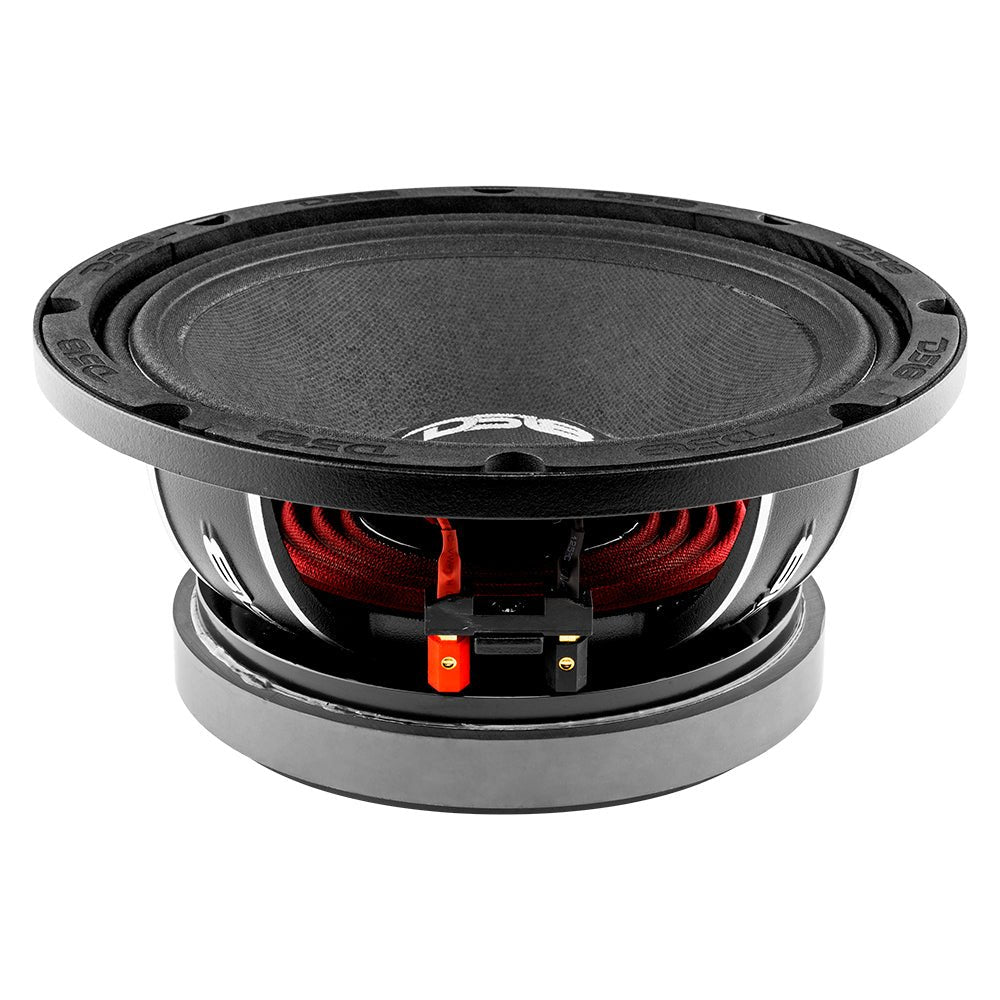

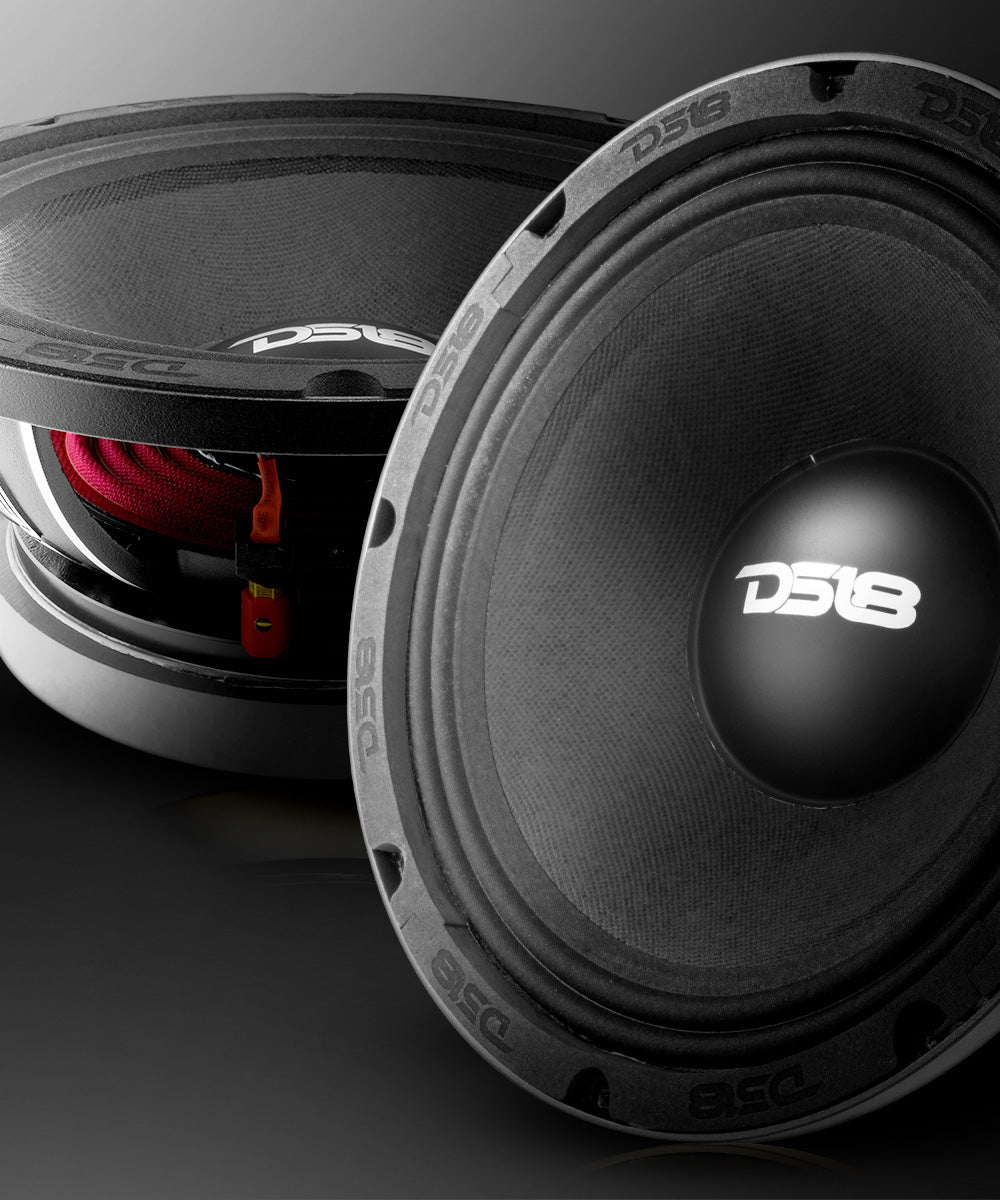

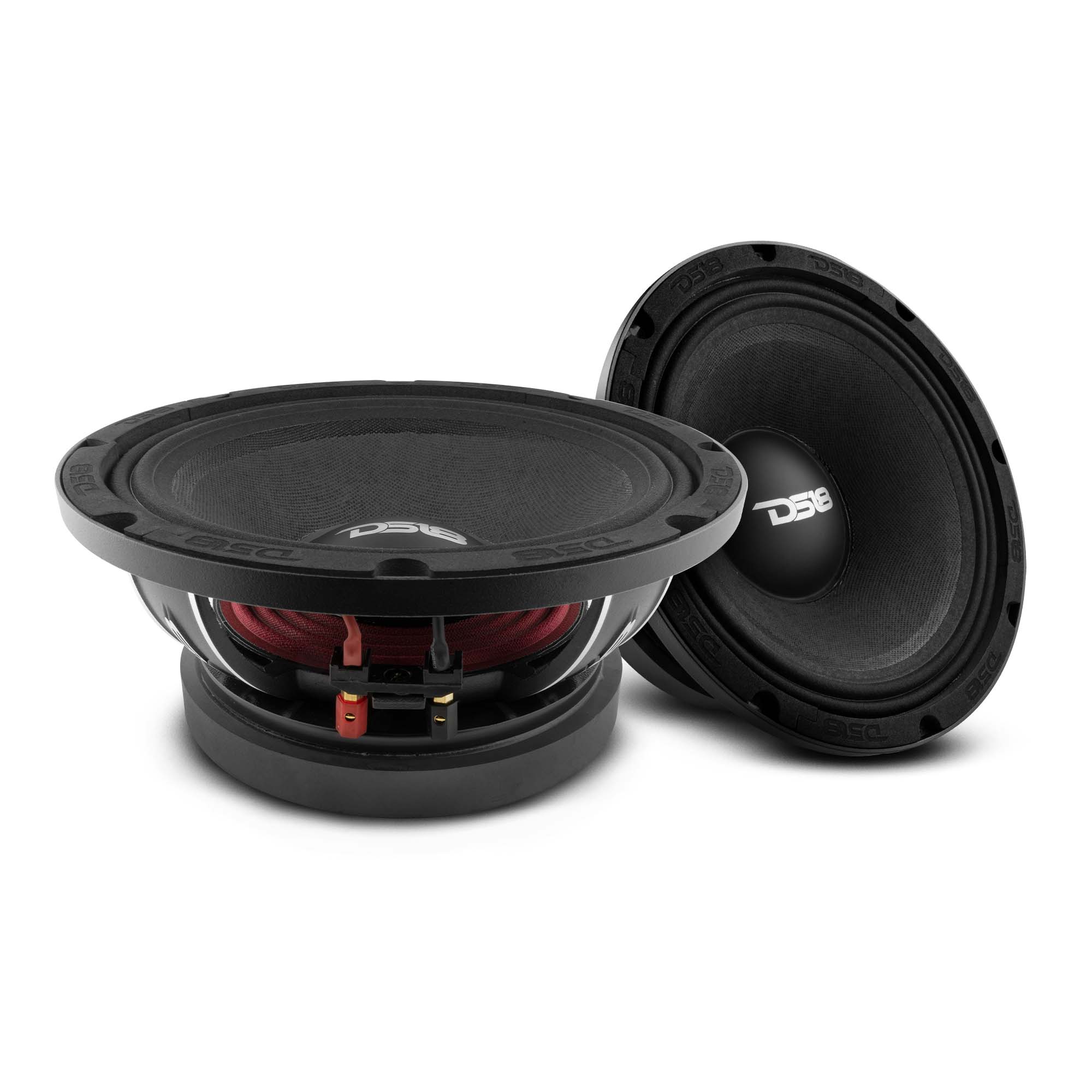

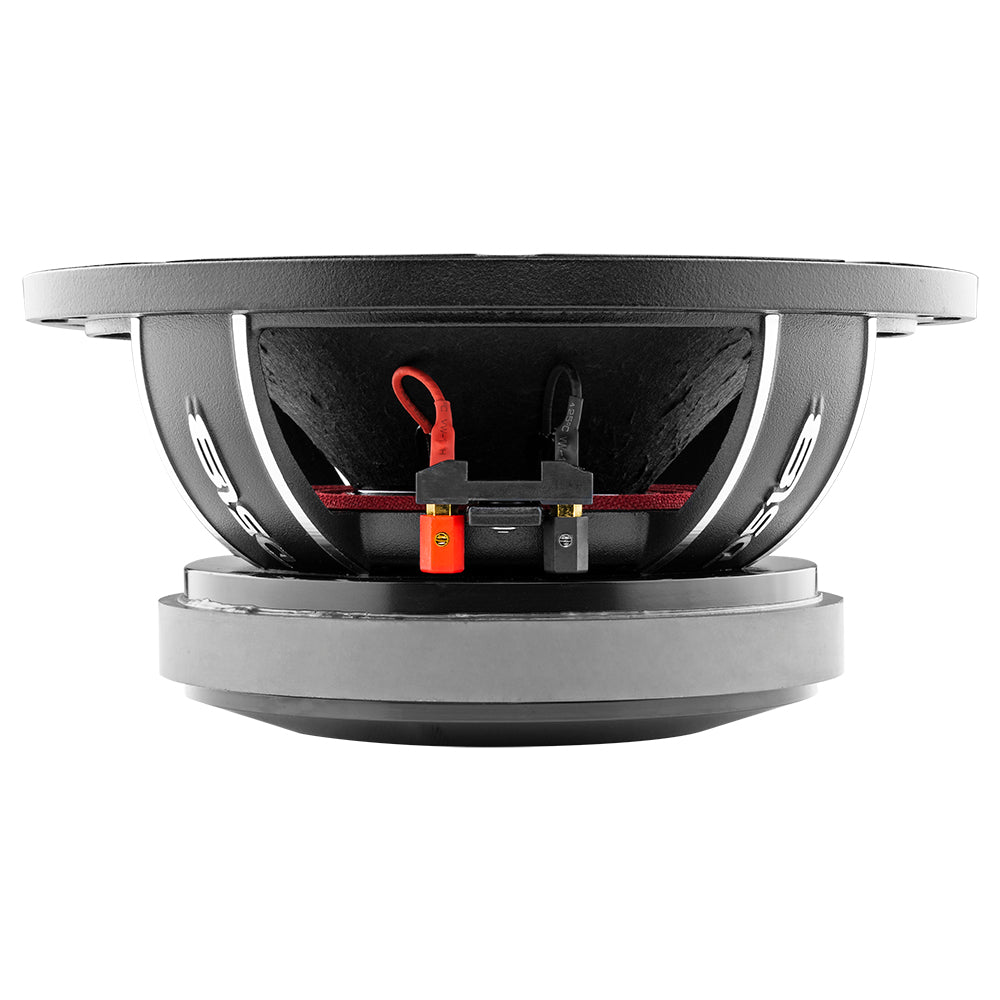

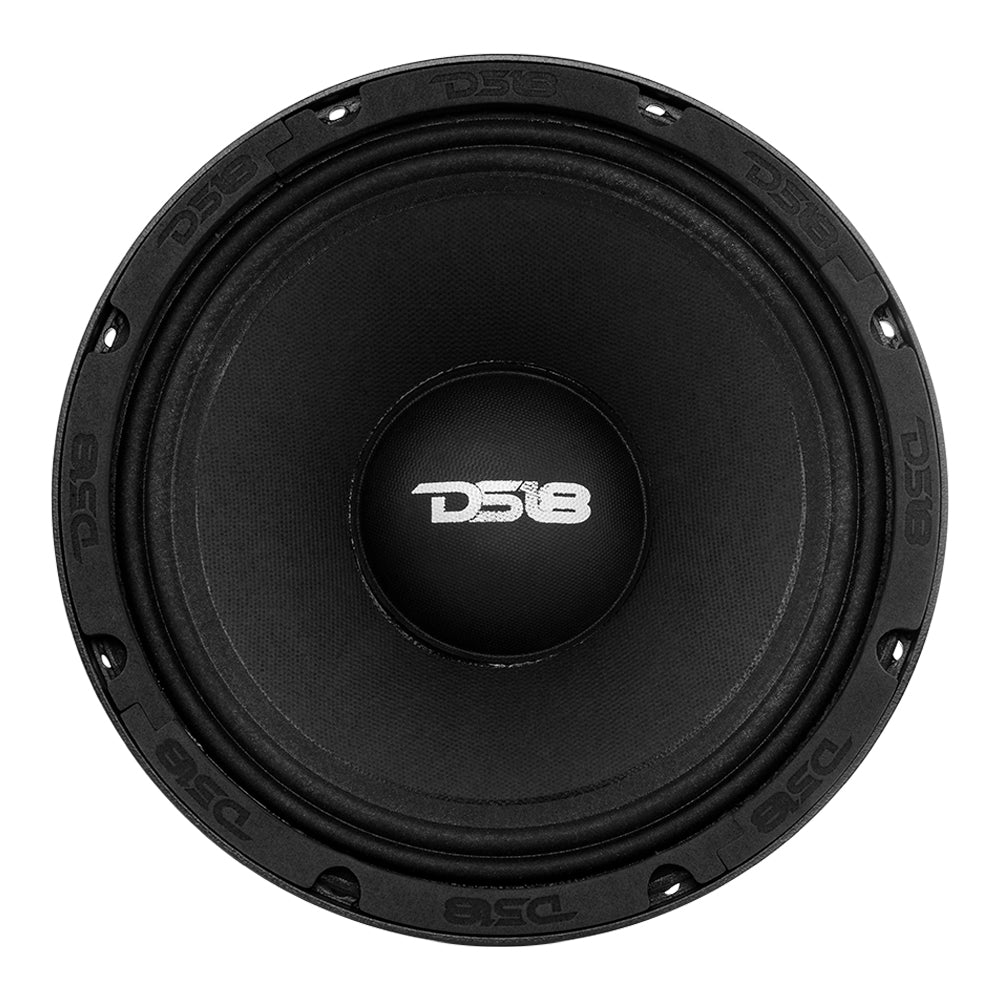

DS18 PRO-FU10.8 10" Mid-Range Loudspeaker 800 Watts 8-Ohm

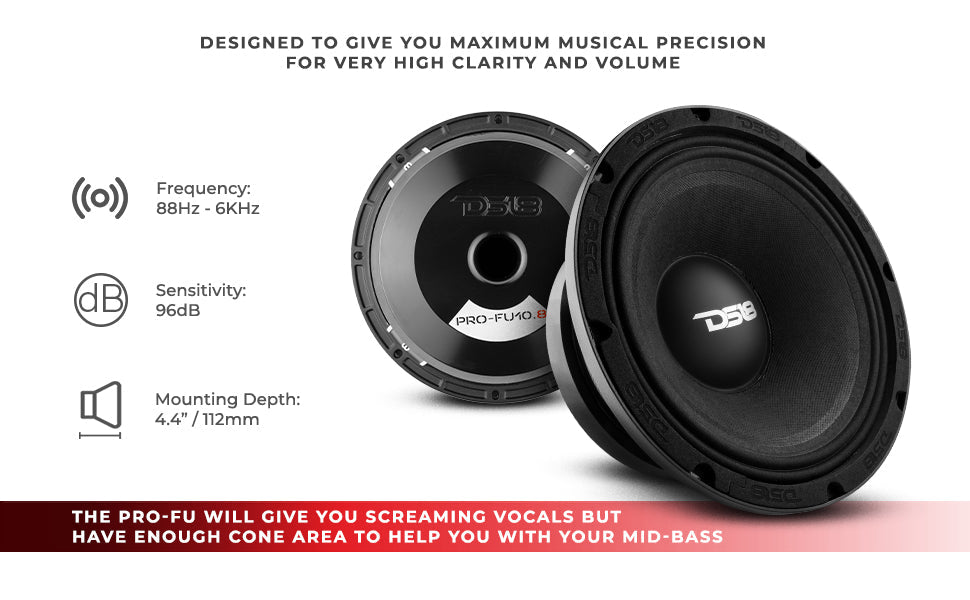

A fresh new DS18 Mid-Range speaker has landed on the pro audio scene! The PRO FU10.8 sports a 3 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3 inch voice coil will take 400 watts RMS and 800 watts Max with extreme efficiency and reliability. The PRO FU will give you screaming vocals but have enough cone area to help with you with your mid-Range.
Highlights

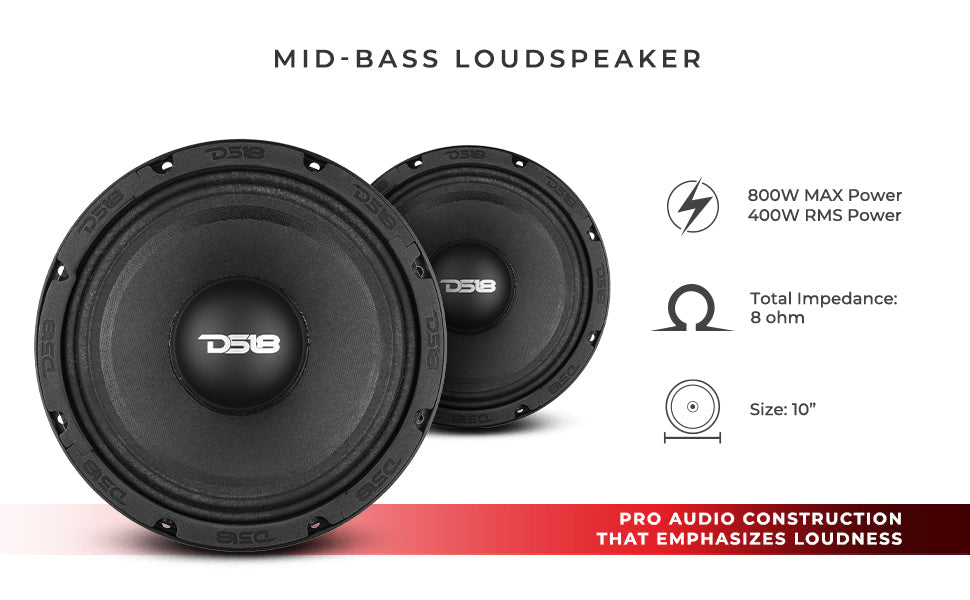

- Amazing pro audio construction that emphasizes loudness and needs to be accompanied by components.
- DS18 Tooled black stealth basket maintaining great looks with the highest integrity in mind.
- High powered pro audio voice coils housed in massive ferrite motors for the greatest efficiency to power ratio possible.
Technical Details
| Model | PRO-FU10.8 |
| Nominal Diameter | 10" |
| Nominal Impedance | 8 Ohms |
| MAX Power Handling | 800W |
| RMS Power Handling | 400W |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 88Hz-6KHz |
| Recommended HI Pass Crossover | 120Hz |
| Motor | |
| Voice Coil Diameter | 3" |
| Voice Coil former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 82 oz |
| Measurements | |
| Overall Diameter | 10.35" |
| Front Mount Baffle Cutout | 4.92" |
| Mounting Depth | 9.05" |
| Overall Depth | 4.4" |
| Motor Diameter | 7.4" |
Key Features
- 10" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- Aluminum Basket
Specifications
| SKU | PRO-FU10.8 |
|---|---|
| Nominal Diameter | 10" |
| Nominal Impedance | 8 Ohms |
| RMS Power Handing | 400W |
| Maximum Power Handing | 800W |
| Sensitivity (1w/1m) | 96dB |

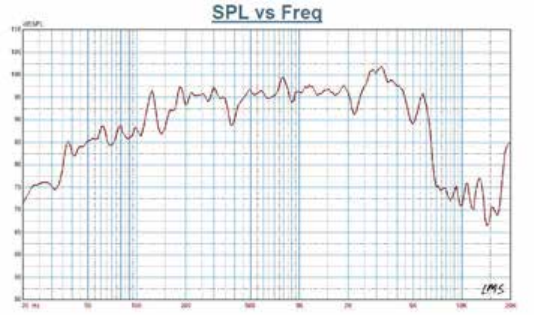

| Frequency Response | 88Hz-6KHz |
| Recommended Hi Pass Crossover | 120Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCA |
| Basket Material | Aluminum |
| Magnet Weight | 82 oz |
| Vas | 15.783L |
| Xmax | 5 mm |
| Fs | 86.7Hz |
| Qms | 6.339 |
| Qes | 0.474 |
| Qts | 0.441 |
| Re | 5.2 ohm |

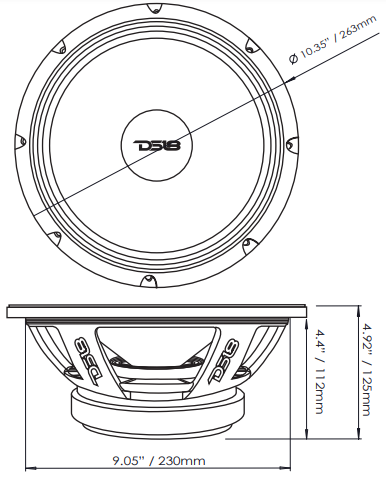

| Overall Diameter | 10.35" / 263mm |
| Front Mount Baffle Cutout | 9.05" / 230mm |
| Mounting Depth | 4.4" / 112mm |
| Overall Depth | 4.92" / 125mm |
| Product Weight | 1 lbs |
| Product Dimensions | 11.5 x 11.5 x 4 |
| M/C Weight | 1 lbs |
| M/C Dimensions | 11.5 x 11.5 x 4 |
| M/C QTY | 1 |
| Sold In | Piece |
