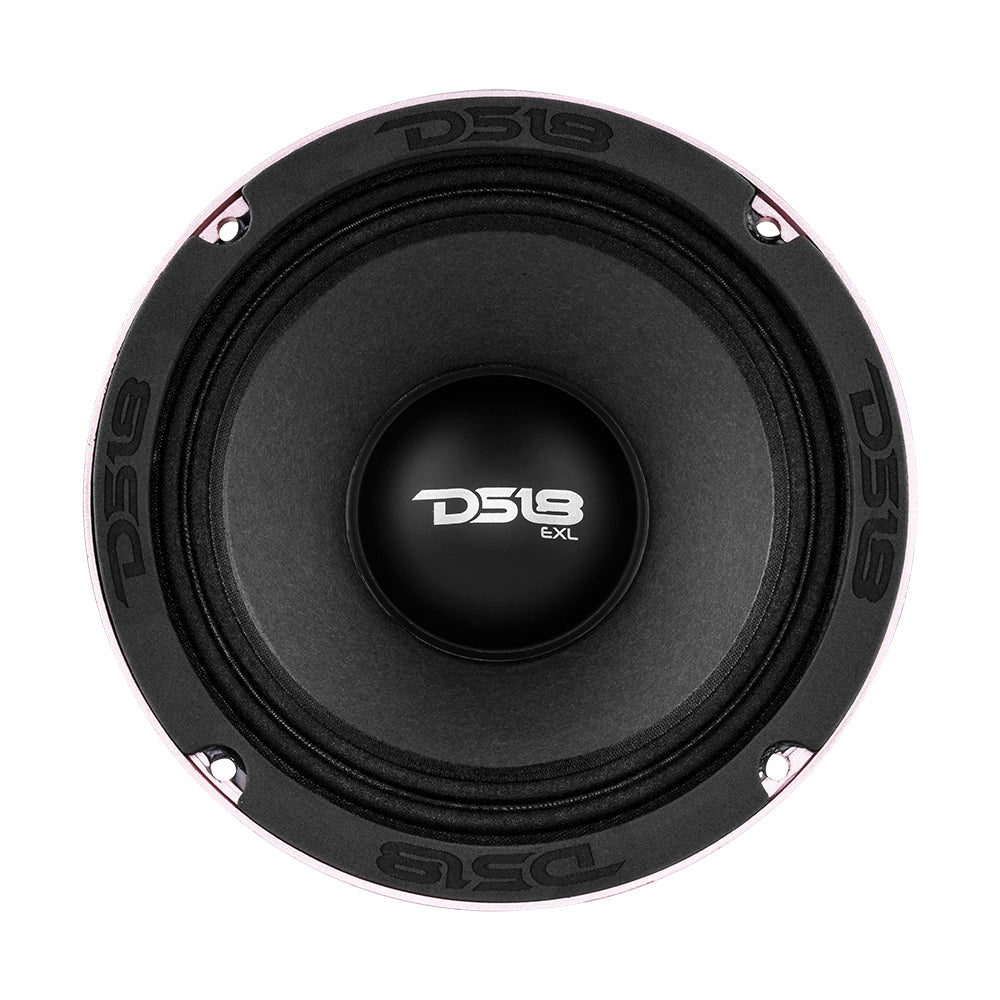

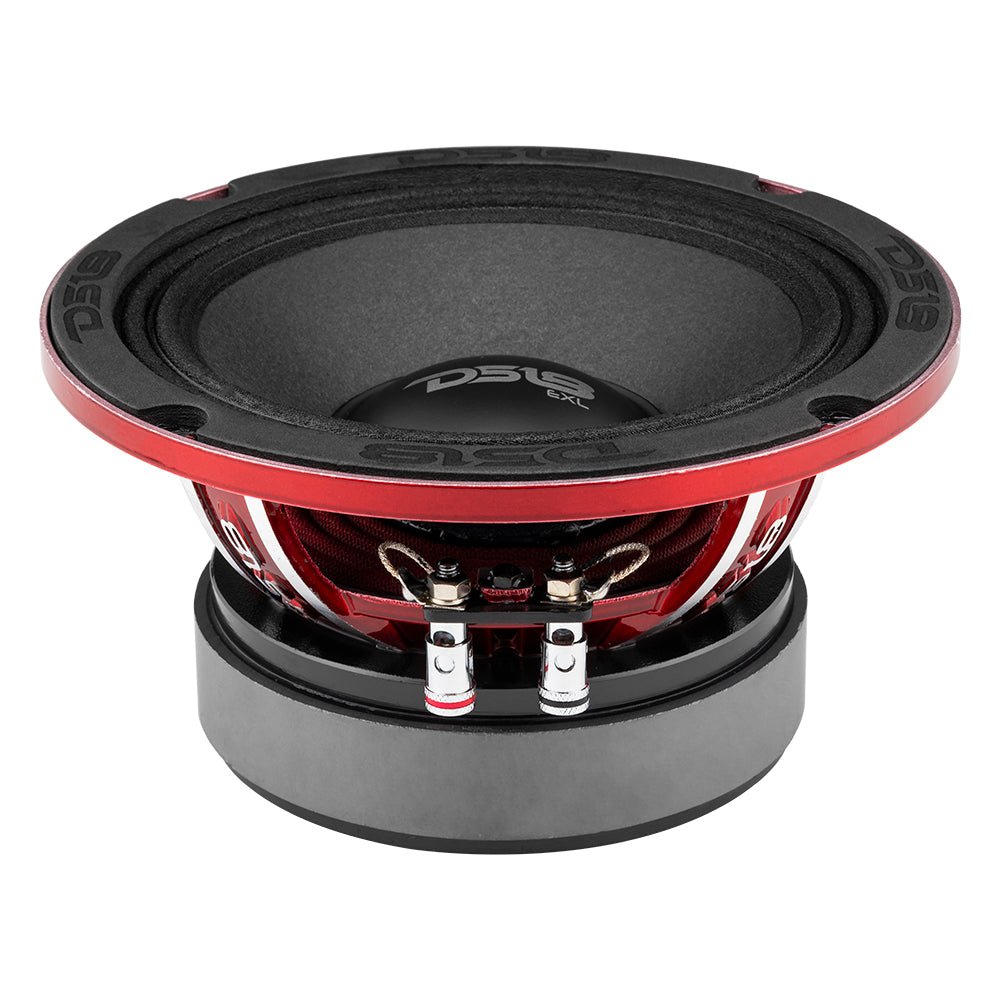

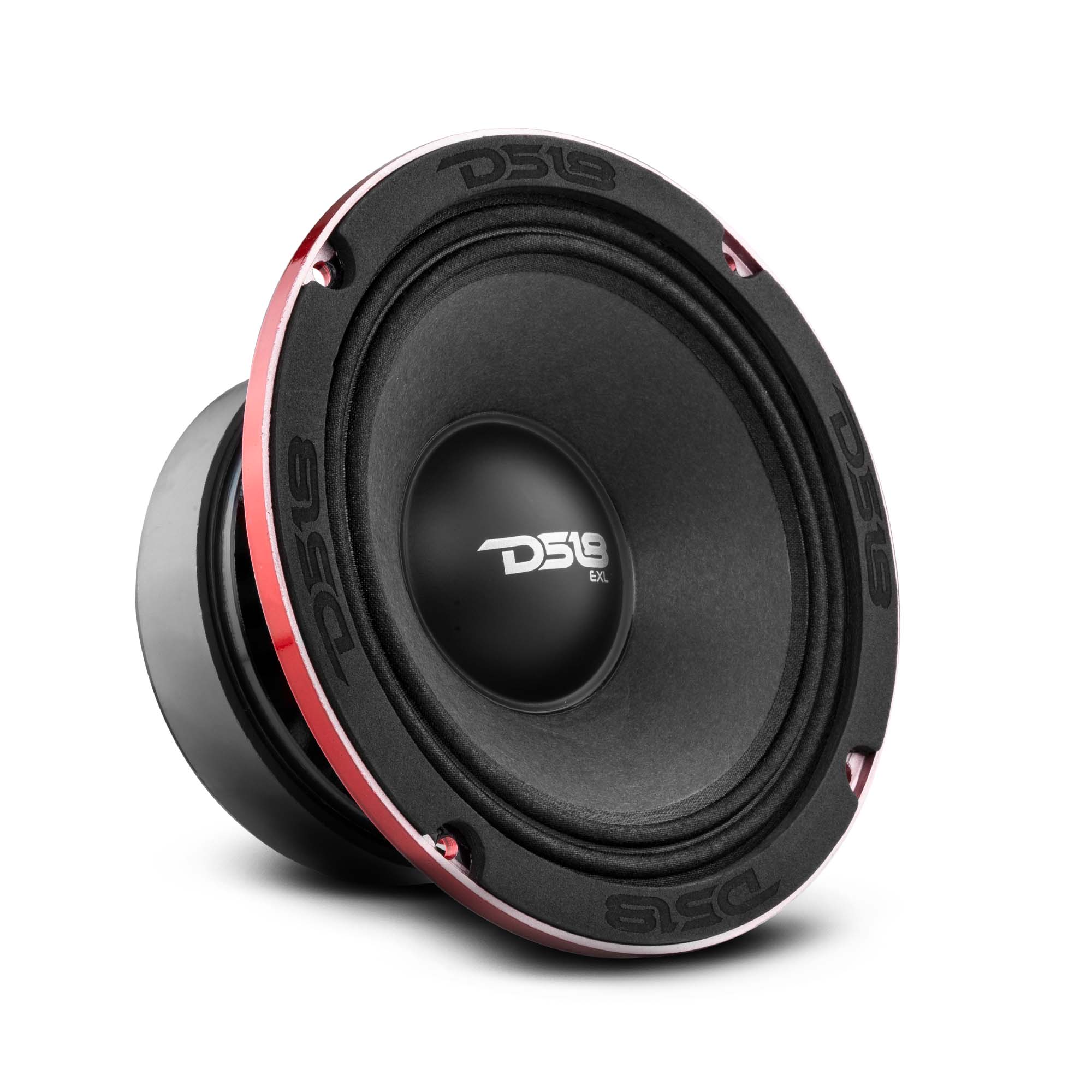

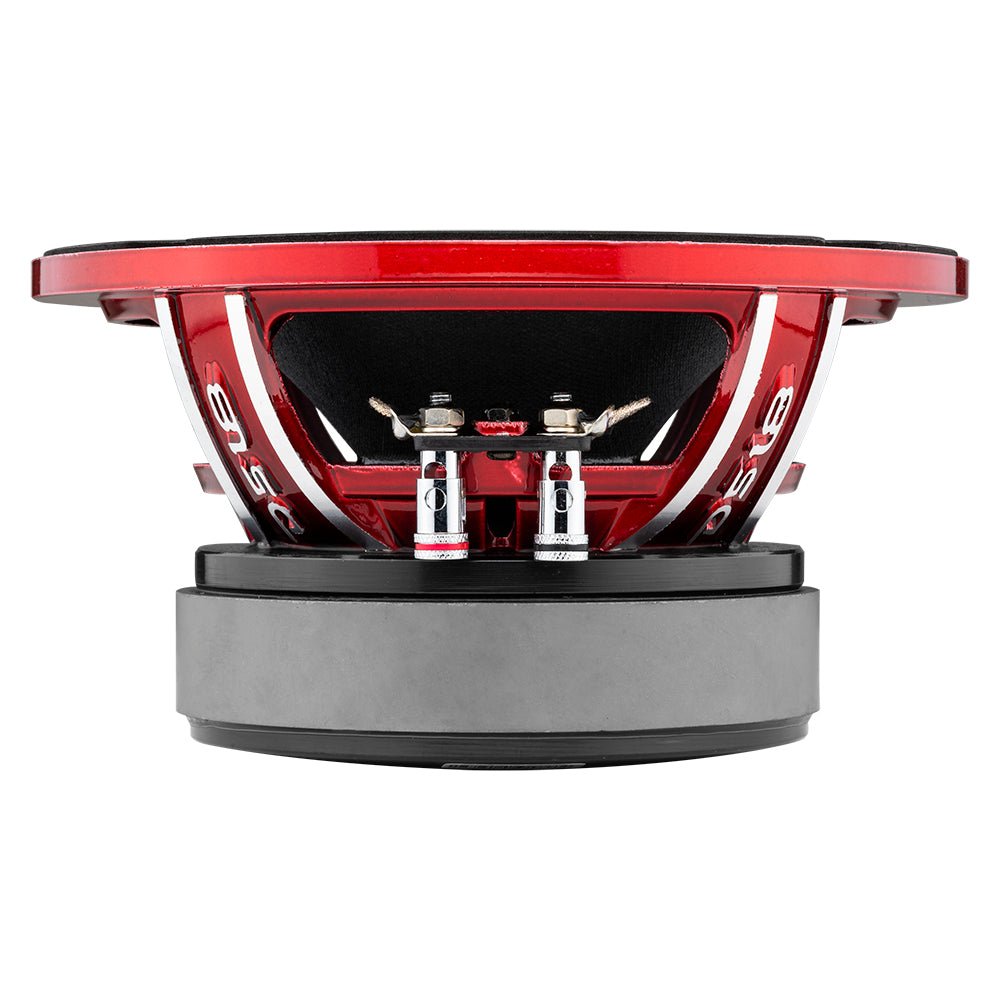

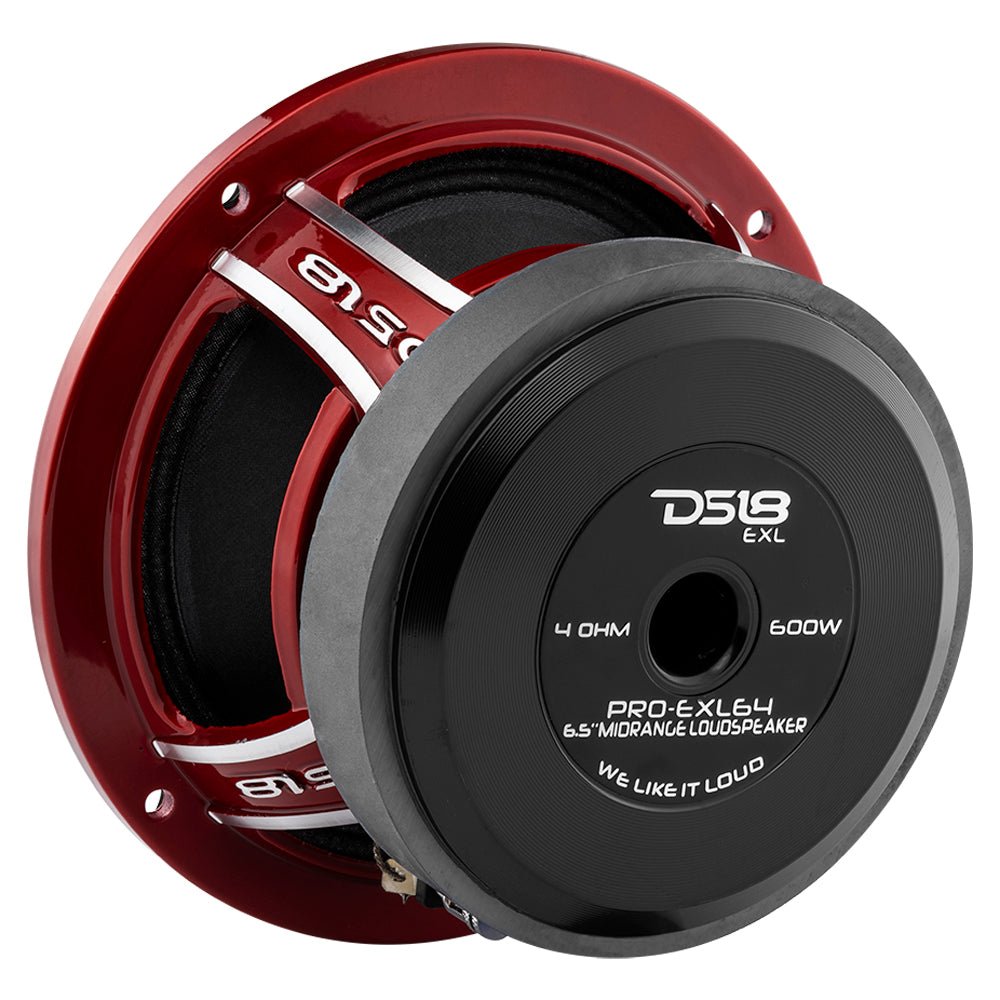

PRO-EXL 6.5" Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
Product Overview

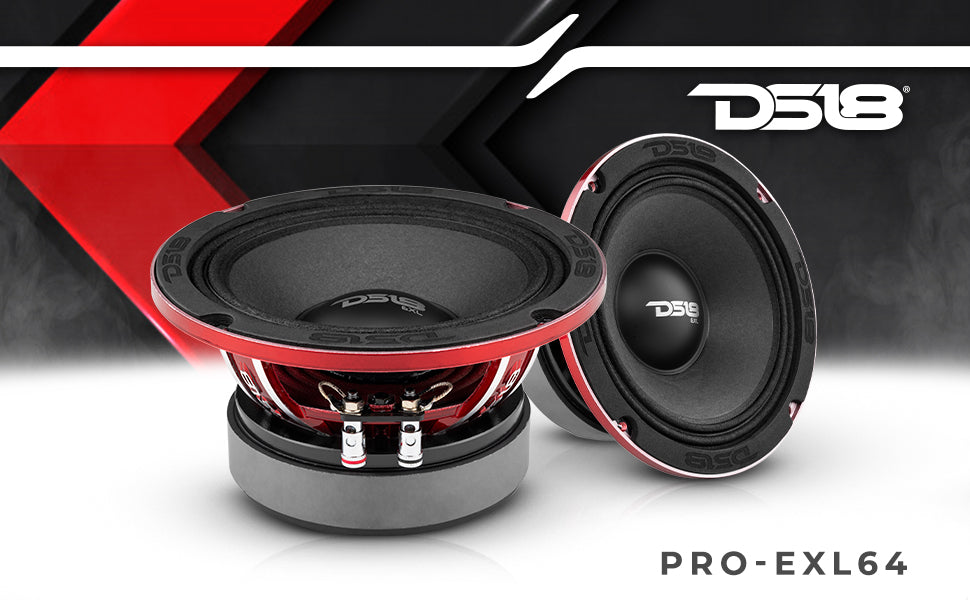

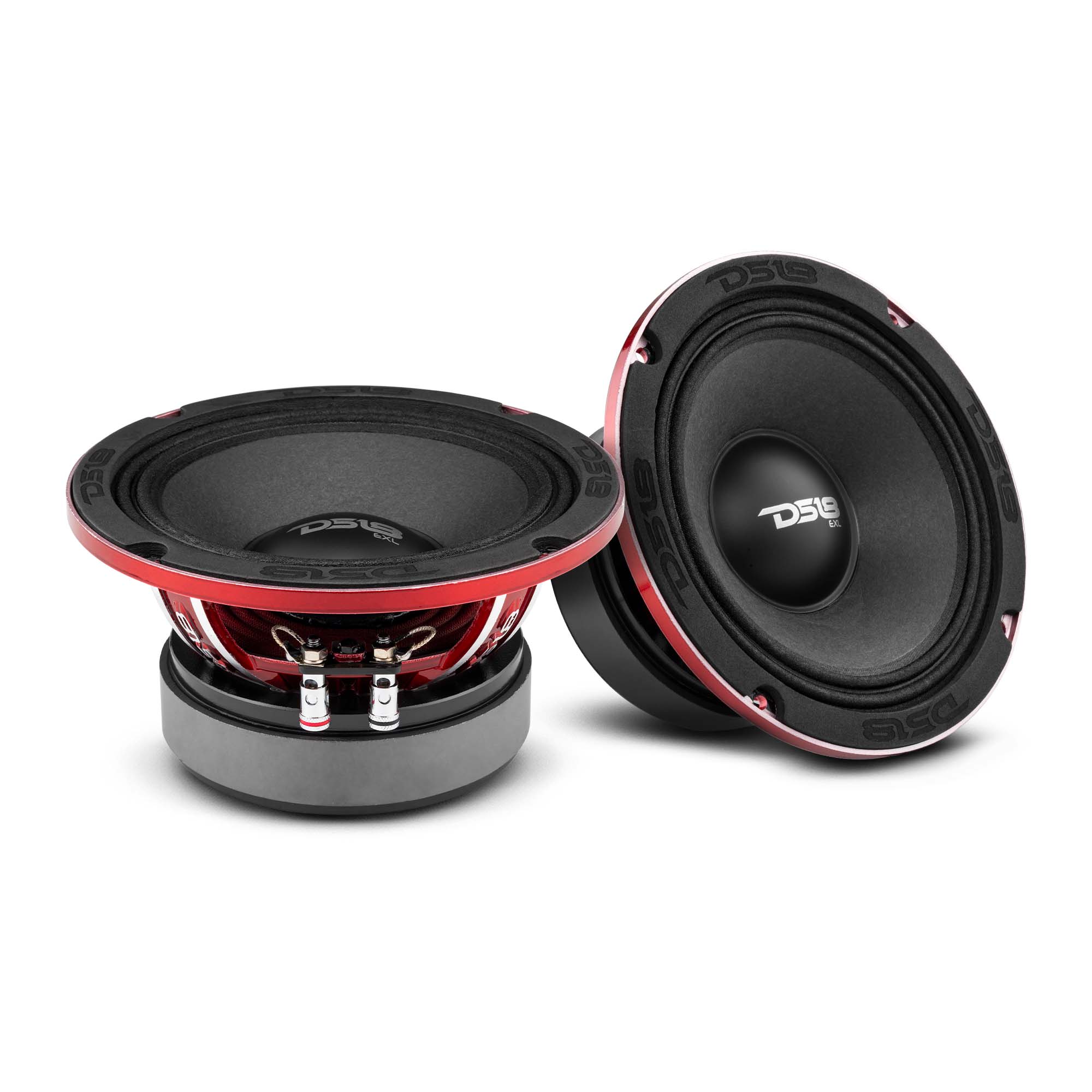

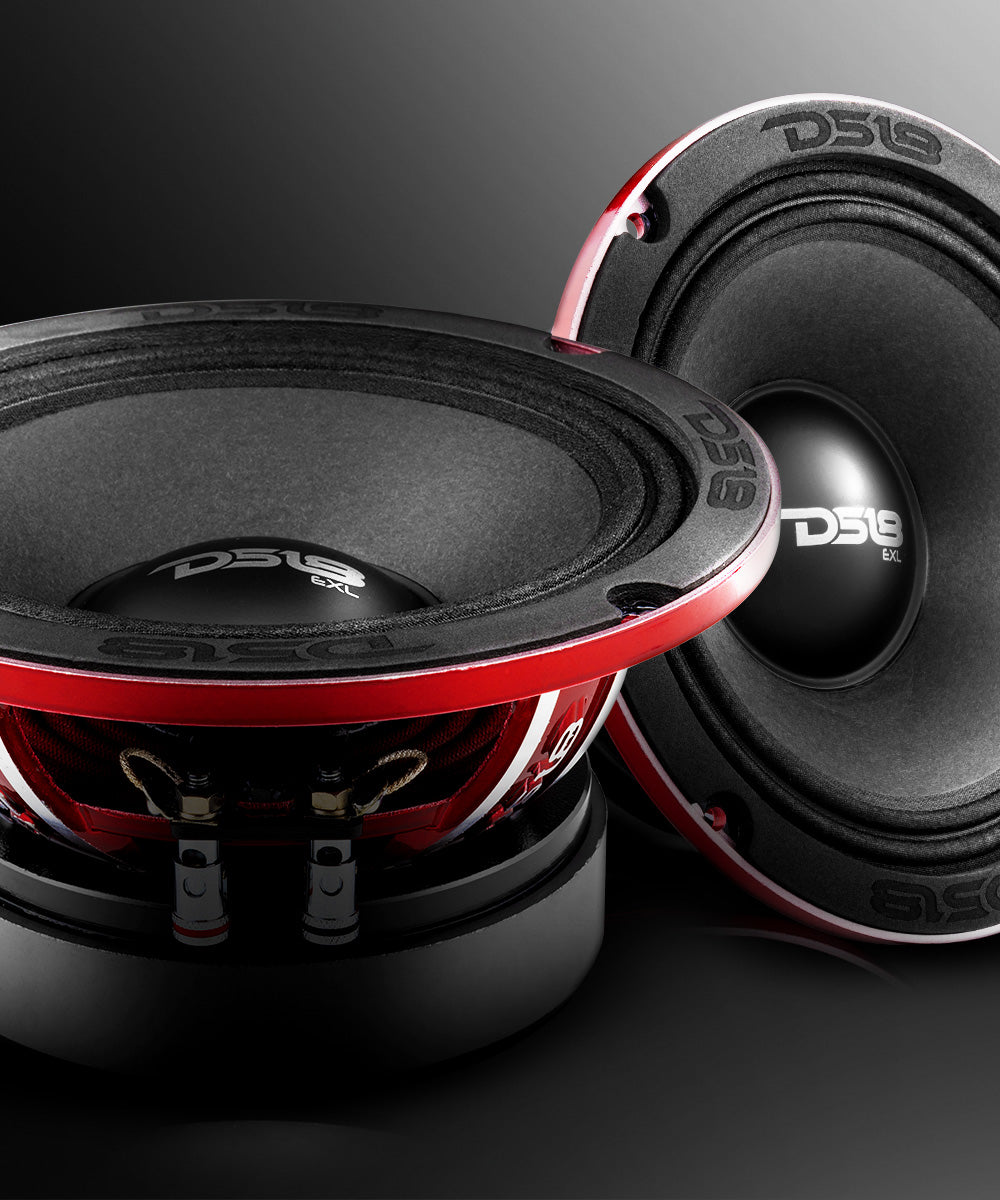

DS18 PRO-EXL64 6.5" Mid-Range Loudspeaker 600 Watts @ 4-Ohm

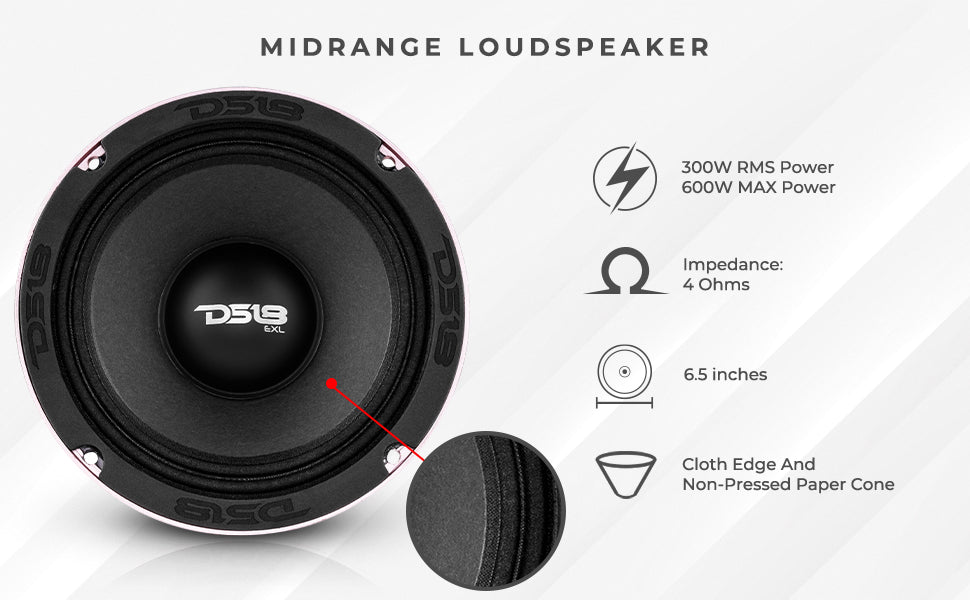

The people who live and breathe car audio demanded a higher performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.

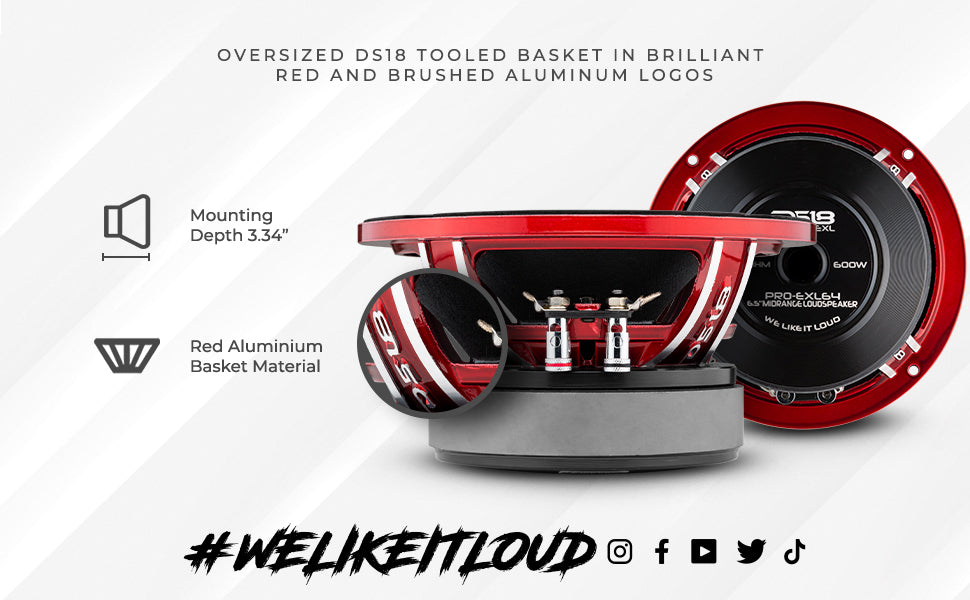

- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

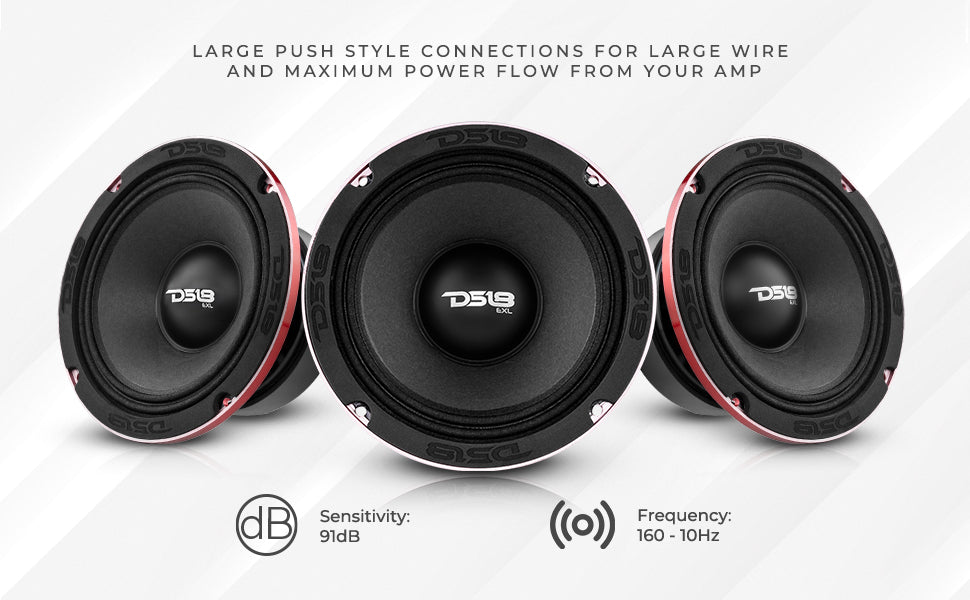

- Large push style connections for large wire and maximum power flow from your amp.




Technical Details
| Model: | PRO-EXL64 |
| Type: | Midrange Loudspeaker |
| Size: | 6.5" |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Frequency Response: | 100Hz-14.7KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 91dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Paper Cone |
| Magnet: | Ferrite |
| Voice coil wire: | CCAW |
| Diameters | |
| Voice coil size: | 2" |
| Magnet Size: | 32 oz |
| Mounting depth: | 3.34" (85mm) |
| Cut-out dimension: | 5.9" (150mm) |
| Net Weight: | 2.7 kg |

Key Features
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 91dB
Specifications
| SKU | PRO-EXL64 |
|---|---|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 300W |
| Maximum Power Handing | 600W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 160-10 Hz |
| Recommended Hi Pass Crossover | 180 Hz |
| Voice Coil Diameter | 2" /50.8 mm |
| Voice Coil Former Material | Glass Fiber |
| Basket Material | Aluminum |
| Magnet Weight | 32oz |
| Vas | 2.1982L |
| Xmax | 8.9 mm |
| Fs | 136.9Hz |
| Qms | 4.003 |
| Qes | 0.601 |
| Qts | 0.523 |
| Re | 3.2 ohms |

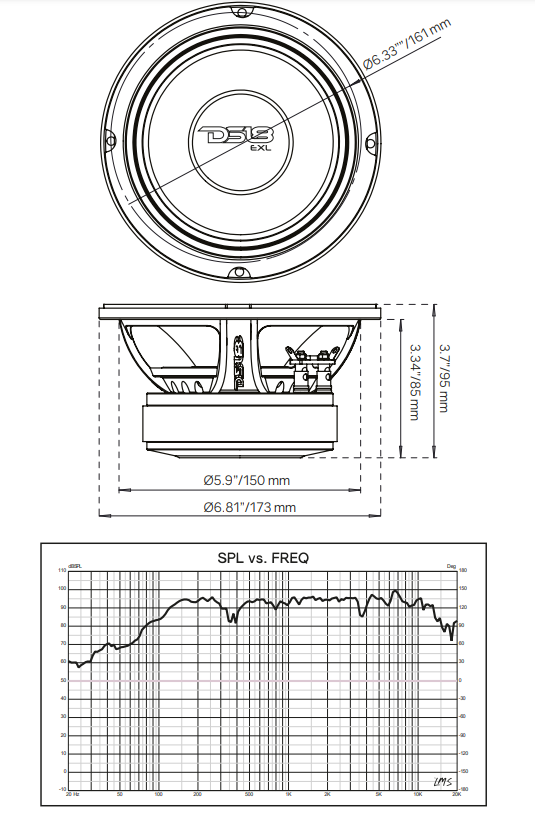

| Overall Diameter | 6.81" /173 mm |
| Front Mount Baffle Cutout | 5.9" /150 mm |
| Mounting Depth | 3.34" /85 mm |
| Overall Depth | 3.7" /94 mm |
| Product Weight | 3.5 lbs |
| Product Dimensions | 7.5 x 7.25 x 3.75 |
| M/C Weight | 29.5 lbs |
| M/C Dimensions | 15.75 x 15.5 x 8.5 |
| M/C QTY | 8 |
| Sold In | Piece |
