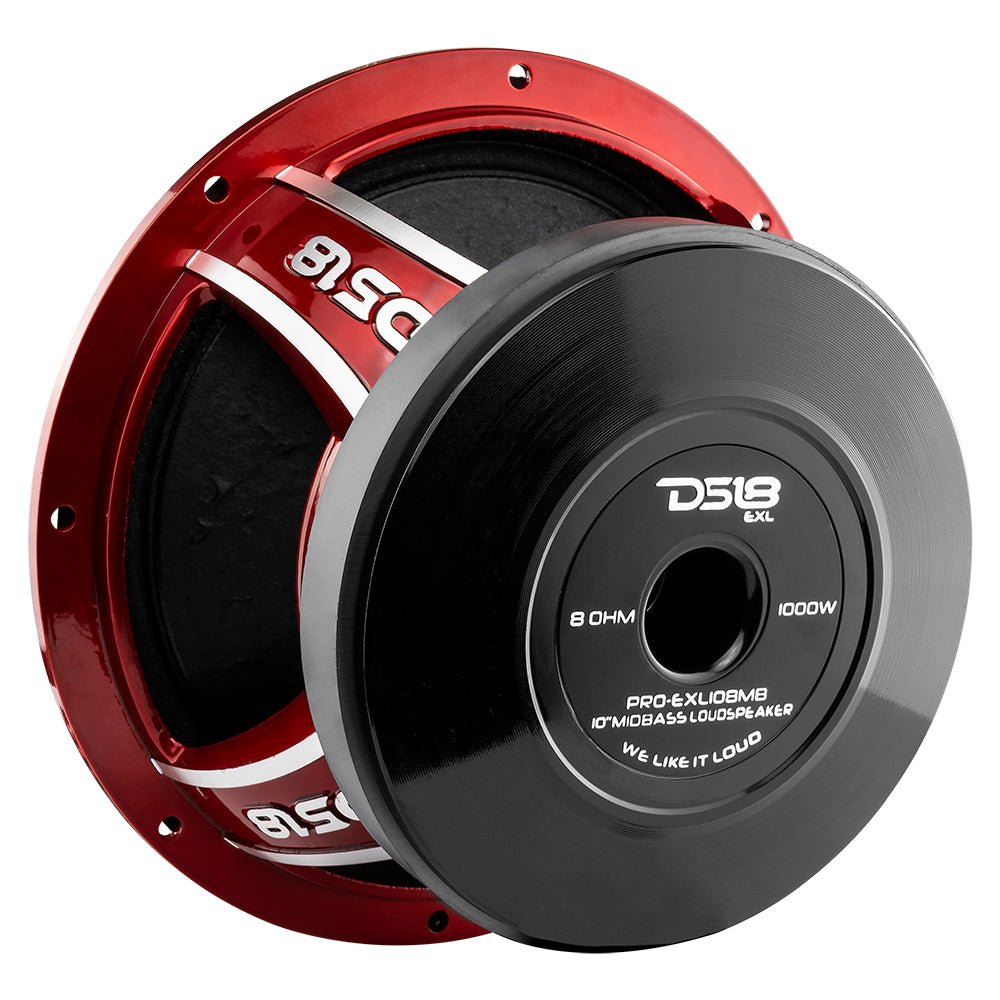

PRO-EXL 10" Mid-Bass Loudspeaker 600 Watts Rms 8-Ohm
Product Overview
DS18 PRO-EXL108MB 10" Mid-Bass Loudspeaker 1200 Watts 8-Ohm
|
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology. Highlights
|
Technical Details
| Model: | PRO-EXL108MB |
| Type: | Mid-bass Loudspeaker |
| Size: | 10" |
| RMS Power: | 600W |
| MAX Power: | 1000W |
| Frequency Response: | 72Hz-8KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Measurements | |
| Voice Coil Size: | 3" |
| Magnet Size: | 80 oz. |
| Mounting Depth: | 4.68" (119mm) |
| Cut-Out Dimension: | 9.21" (234mm) |
| Net Weight: | 6.9 kg |


Key Features
- 10" Mid-Bass
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-EXL108MB |
|---|---|
| Nominal Diameter | 10" |
| Nominal Impedance | 8 ohms |
| RMS Power Handing | 600 Watss |
| Maximum Power Handing | 1200 Watts |
| Sensitivity (1w/1m) | 96 dB |

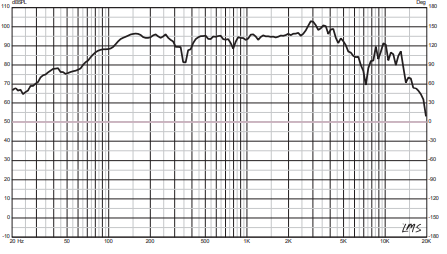

| Frequency Response | 72 - 8k Hz |
| Recommended Hi Pass Crossover | 80 Hz |
| Voice Coil Diameter | 76.5mm (3") |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | Ferrite 80 Oz |
| Vas | 18.6 L |
| Xmax | 10 mm |
| Fs | 65.9 Hz |
| Qms | 7.188 |
| Qes | 0.265 |
| Qts | 0.256 |
| Re | 5.47 ohm |

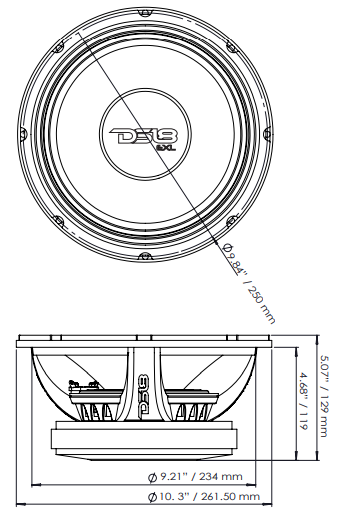

| Overall Diameter | 261.5mm (10.3") |
| Front Mount Baffle Cutout | 234mm (9.21") |
| Mounting Depth | 119mm (4.68") |
| Overall Depth | 129 (5.07") |
| Product Weight | 17.5 lbs |
| Product Dimensions | 11 x 11 x 6 |
| M/C Weight | 36 lbs |
| M/C Dimensions | 11.75 x 11.75 x 13.5 |
| M/C QTY | 2 |
| Sold In | Piece |
