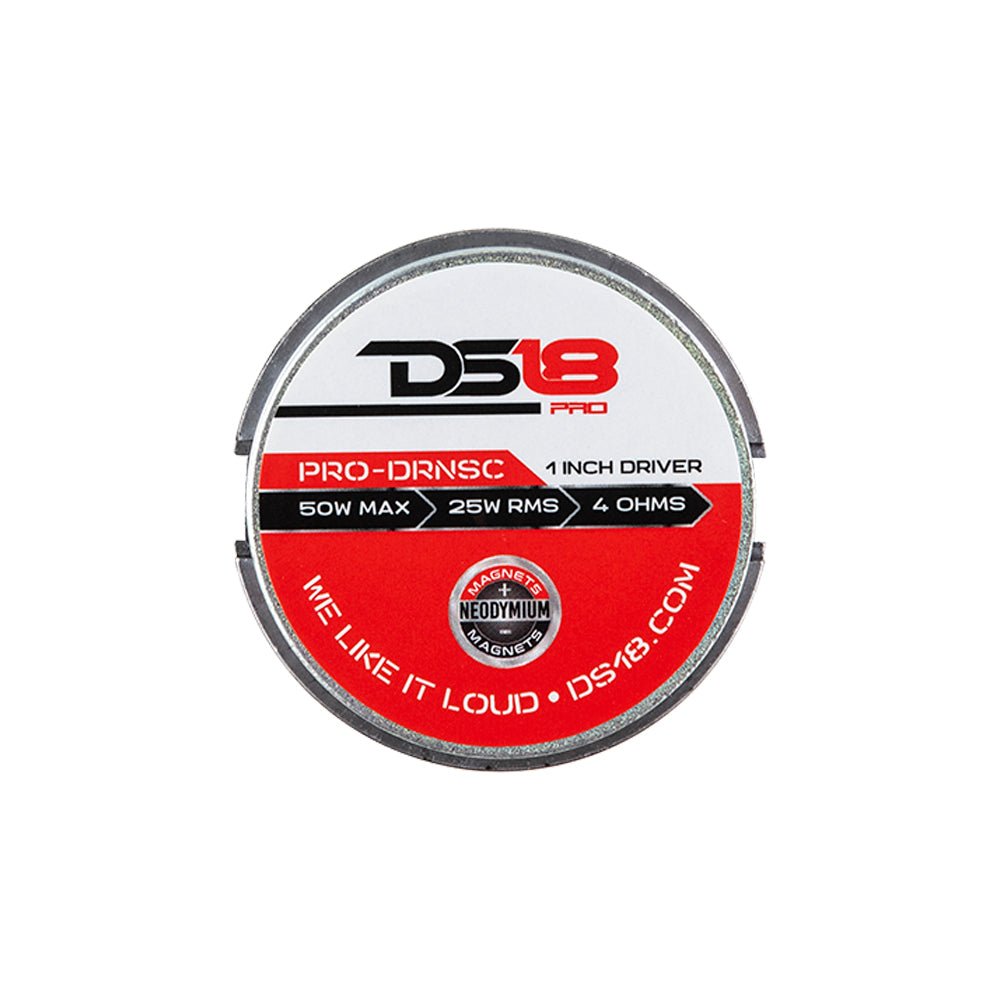

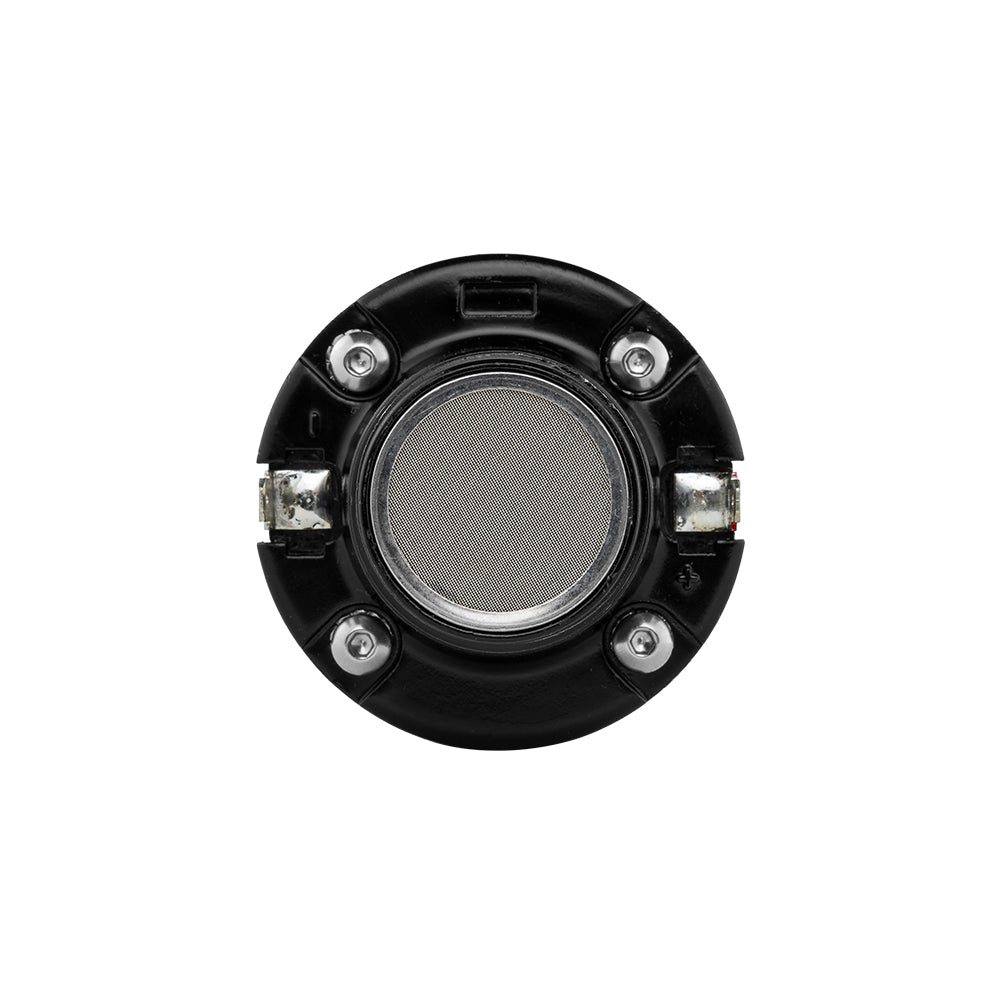

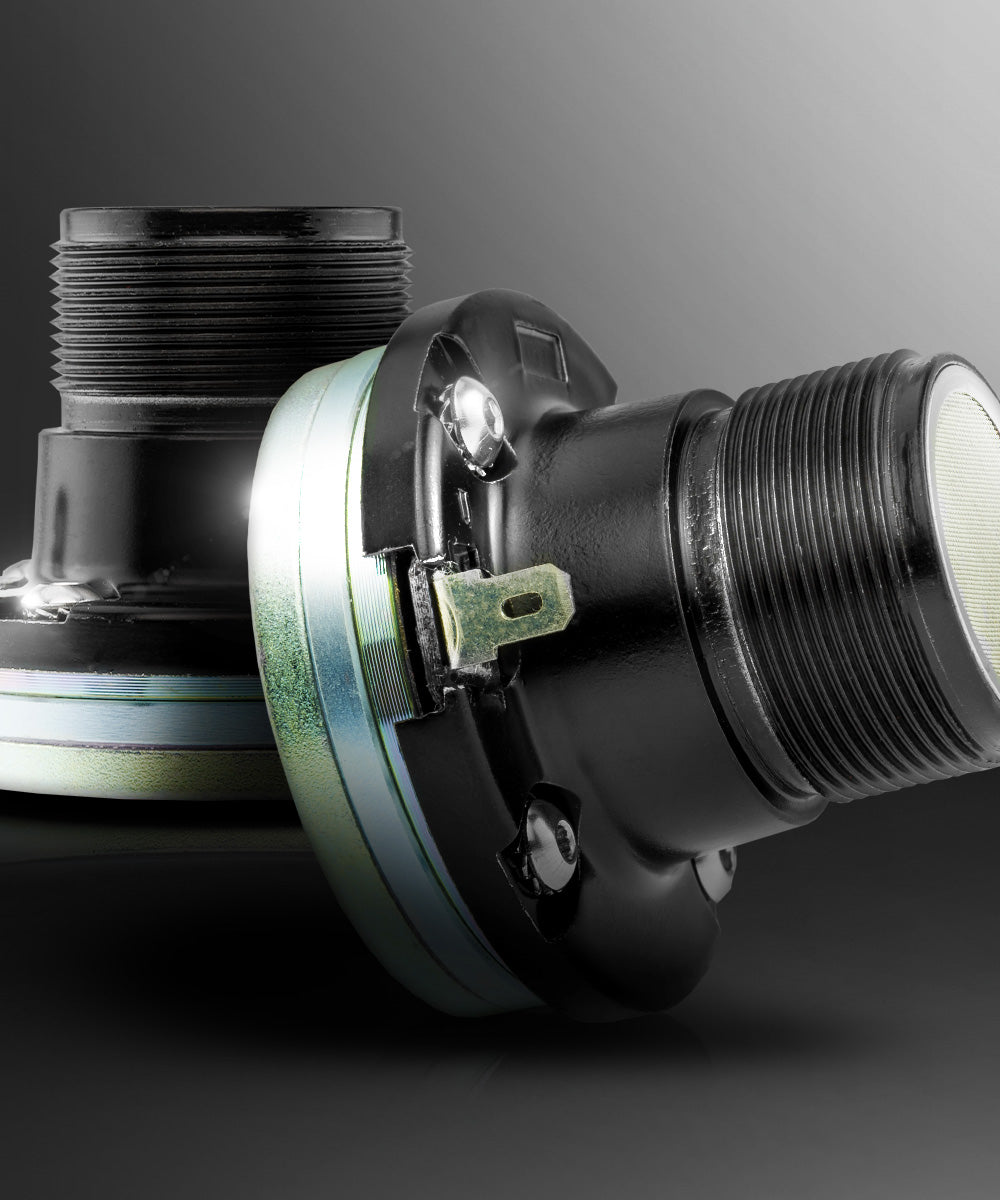

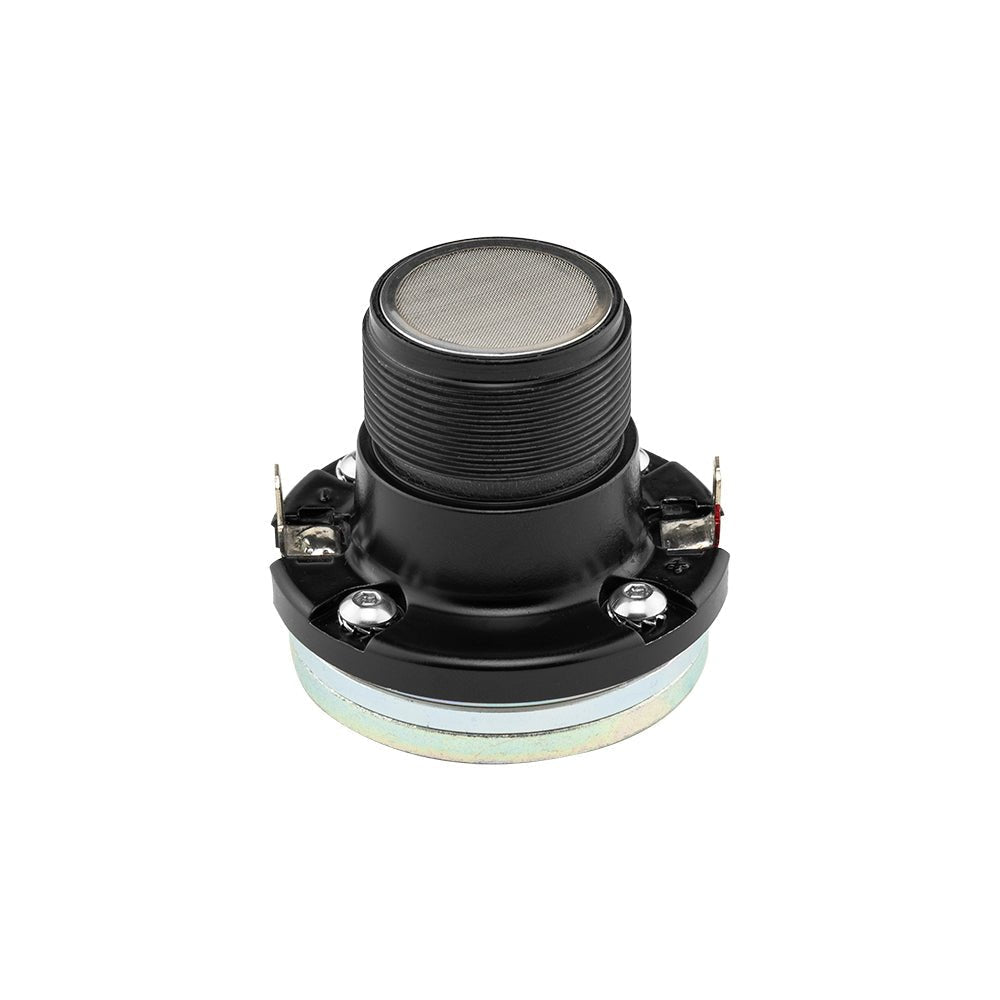

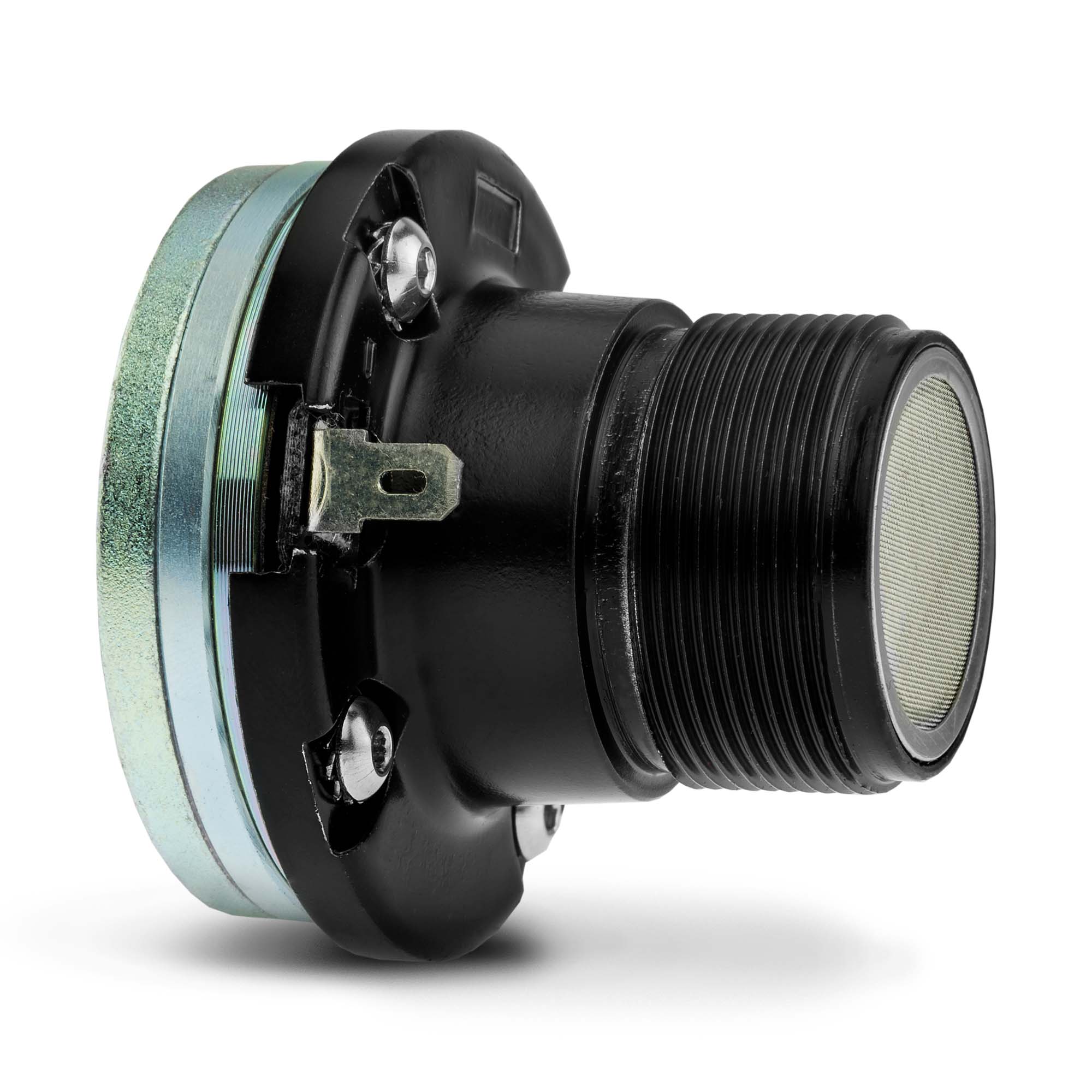

1" Throat Twist On Neodymium Driver 120 Watts 1" Composite Polyimide Vc 4-Ohm
Product Overview DS18 PRO-DRNSC 1" Twist On Throat Neodymium Driver 1" Composite Polyimide VC 240 Watts 110dB...
Vendor:
DS18
Manufacturer SKU
PRO-DRNSC
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $71.95
- $71.95
- Unit price
- per
Subtotal:
$71.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

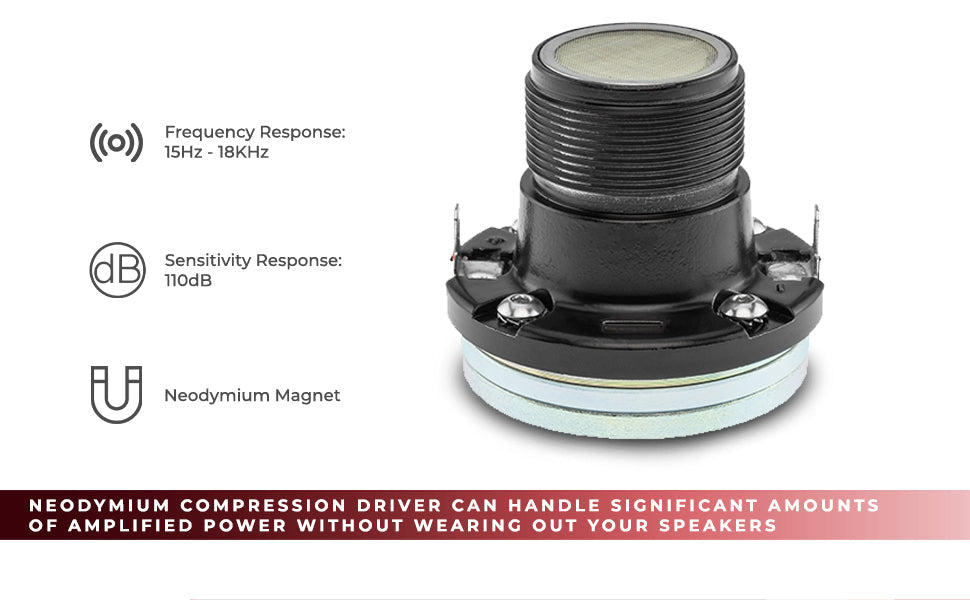

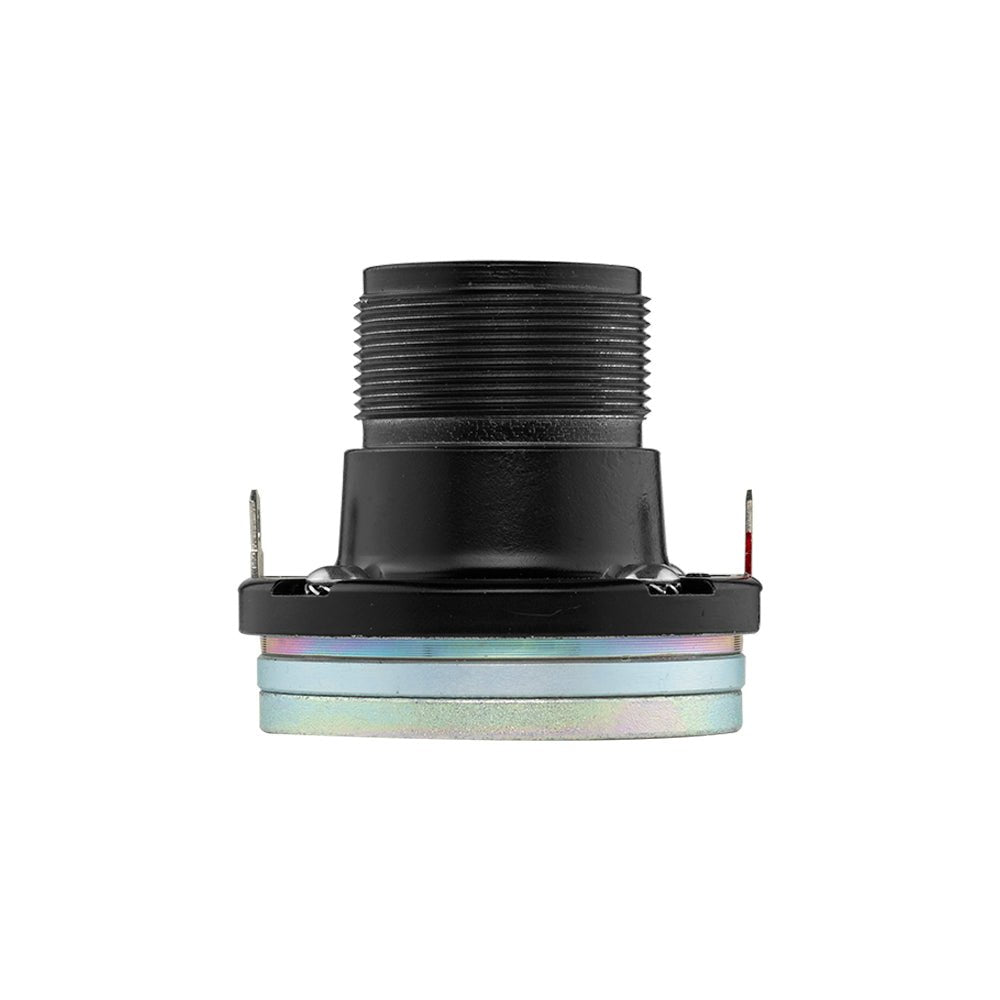

DS18 PRO-DRNSC 1" Twist On Throat Neodymium Driver 1" Composite Polyimide VC 240 Watts 110dB 4 Ohm
Peak power handling - PRO-DRNSC neodymium compression (horn) driver boasts out-of-this-world power handling for a Pro audio sound you will love. 120 Watts RMS - 240 Watts Max
Sensitivity - PRO-DRNSC neodymium compression driver offers State of the art performance that provides powerful sound with clarity and depth. Frequency response 1.5Hz - 20KHz with build in capacitor
Nominal impedance 4 ohms - PRO-DRNSC neodymium compression driver can handle significant Amounts of amplified power without wearing out your speakers, for a powerful & distortion free sound!
Durable & long lasting performance - this compression driver does not draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment.
Technical Details
| Nominal Impedance | 4 Ohms |
| RMS Power Handing | 25 Watts |
| Maximum Power Handing | 50 Watts |
| Sensitivity (1w/1m) | 110dB |
| Frequency response | 1.5KHz-18KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Recommended Mylar capacitor | 4.7UF @ 50V |
| Winding Material | Aluminum Wire |
| Magnet | Neodymium |
| Overall With | 2.38" |
| Overall Depth | 2.06" |
| Voice Coil Diameter | 1" |
| Screw on | 3/8"-18 |
| Mounting Depth | 1.24" |
Key Features
- 1" Compression Driver
- RMS Power: 25 Watts(50 Watts Peak)
- Impedance: 4 Ohm ~ 110dB
- Neodymium Magnet - Composite Polyimide Diaphragm
- Twist On
- Easily Repaired With The PRO-DRNSCVC
Specifications
| SKU | PRO-DRNSC |
|---|---|
| Nominal Impedance | 4 OHM |
| RMS Power Handling | 25 Watts |
| Maximum Power Handling | 50 Watts |
| Sensitivity (1w/1m) | 110 dB |
| Frequency Response | 15KHz-18KHz |
| Recommended Hi Pass Crossover | 3Hz |
| Recommended Mylar Capacitor | 4.7UF@50V |
| Winding Material | Aluminium Wire |
| Diaphragm Material | Composite Polyimide |
| Frame Material | Aluminium |
| Magnet | Neodymium |

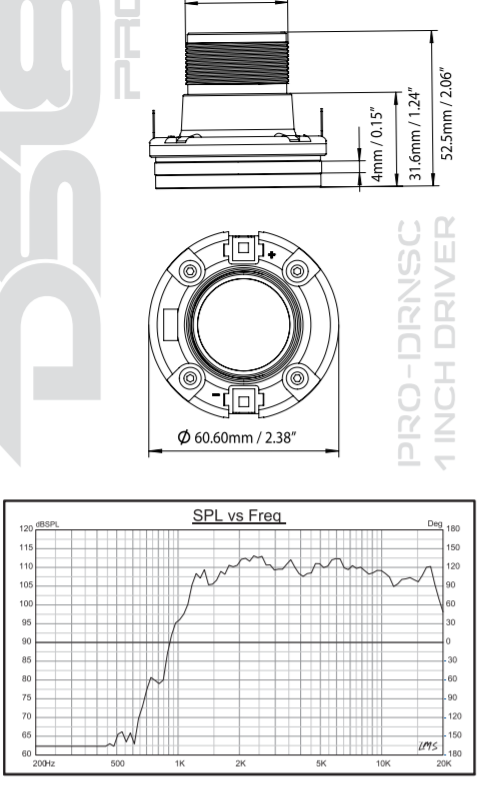

| Overall Width | ∅60.6mm / 2.38" |
| Overall Depth | 52.5mm / 2.06" |
| Voice Coil Diameter | 25.4mm / 1" |
| Screw On | 34.2mm / 3/8" - 18 |
| Mounting Depth | 316mm / 124" |
| Gross Single Unit Weight | 0.34 kg |
| Quantity of Units in Master Carton | 24 pcs/ctn |
| Gross Master Carton Weight | 9 kg |
| Master Carton Dimensions W x L x H | 300mm / 11.81" x 210mm / 8.26" x 160mm / 6.29" |
| Single Unit Box Dimensions W x L x H | 68mm / 2.67" x 68mm / 2.67" x 60mm / 2.36" |
| Product Weight | 0.8 lbs |
| Product Dimensions | 2.8 x 2.8 x 2.5 |
| M/C Weight | 18.5 lbs |
| M/C Dimensions | 11.75 x 8.5 x 5.75 |
| M/C QTY | 24 |
| Sold In | Piece |
