Product Overview

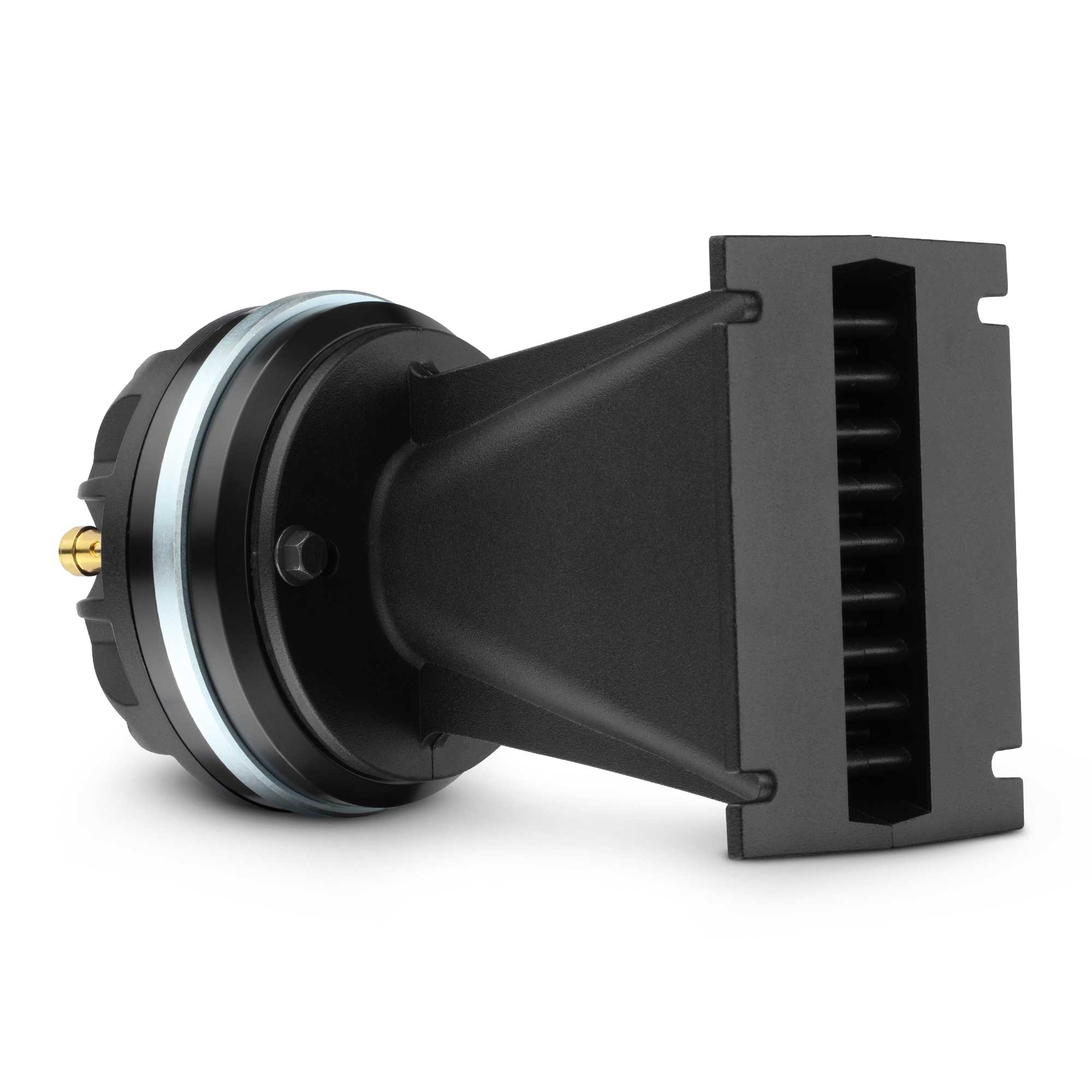

DS18 PRO-DKN175WG
3.5” x 4.4” Wave Guide Horn + 1” Compression Driver Kit (Neodymium Magnet)
DS18’s PRO-DKN175WG uses a neodymium magnet to pack more punch in a lighter build. It’s a perfect fit for pro-audio systems that demand performance.

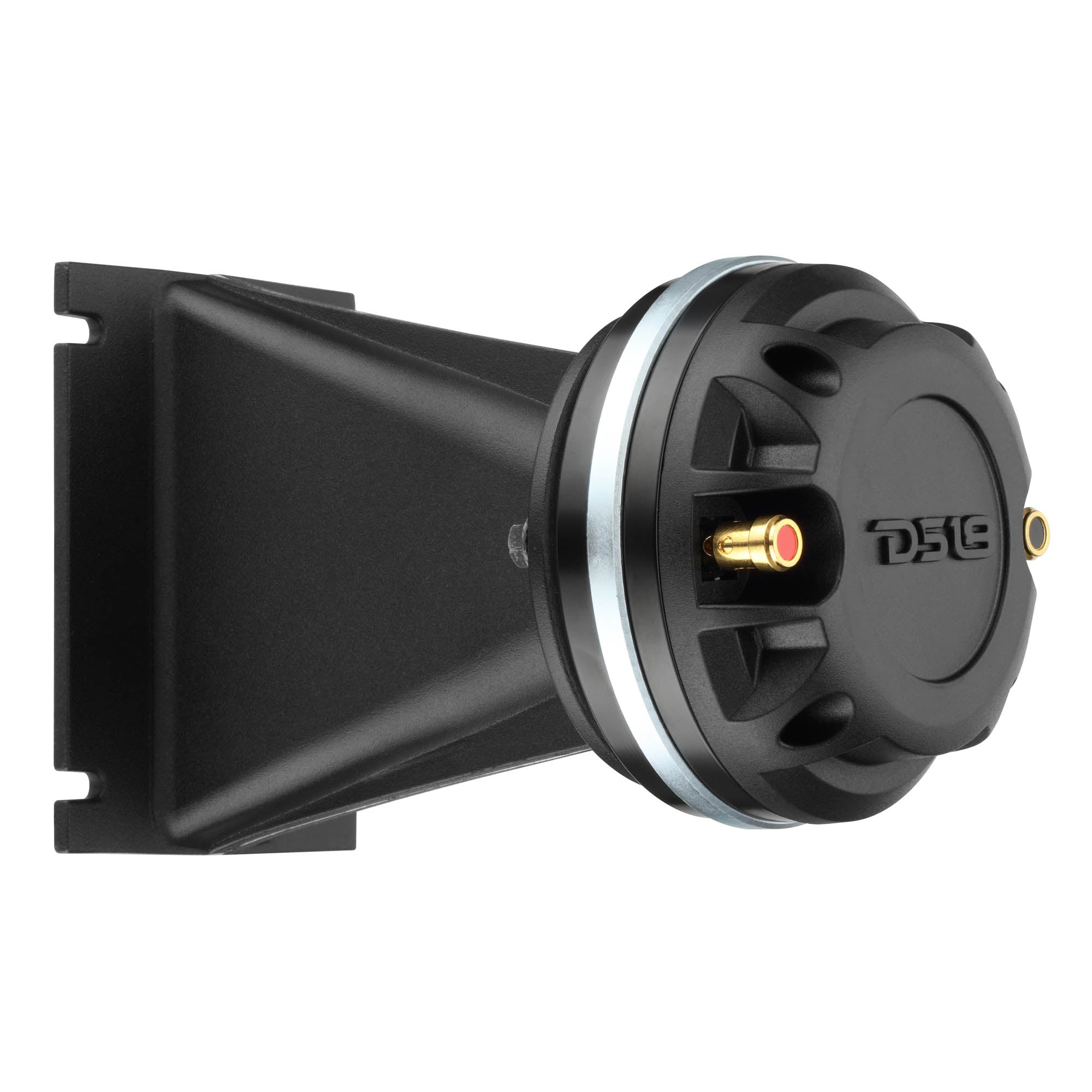

Titanium Voice Coil + Neodymium Motor
This combo features a 1.75” titanium voice coil with a neodymium motor: rated for 90W AES, 180W Program, 360W Peak power handling and 105dB sensitivity — bringing ultra-clear highs with less distortion and more efficiency.
High-Powered Clarity

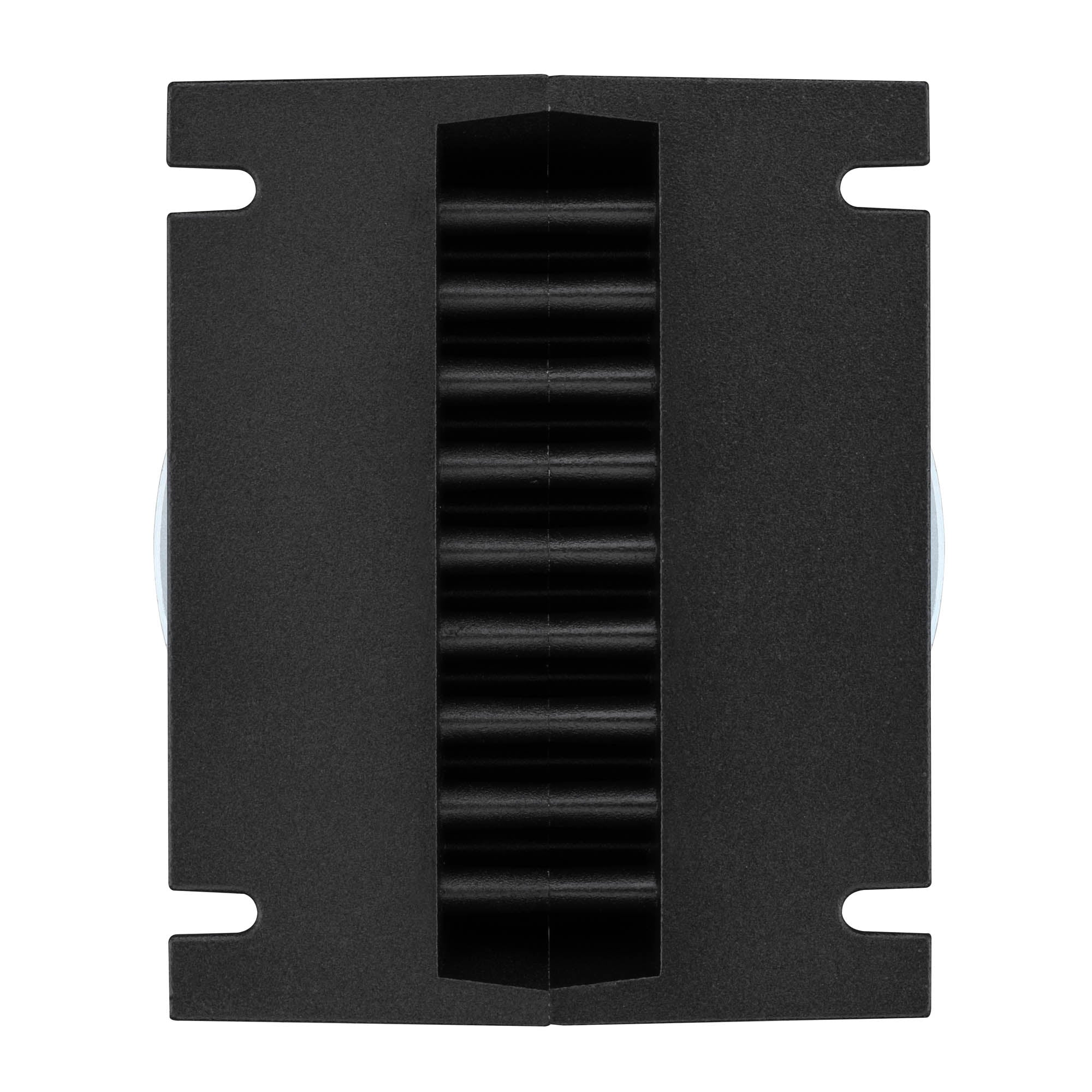

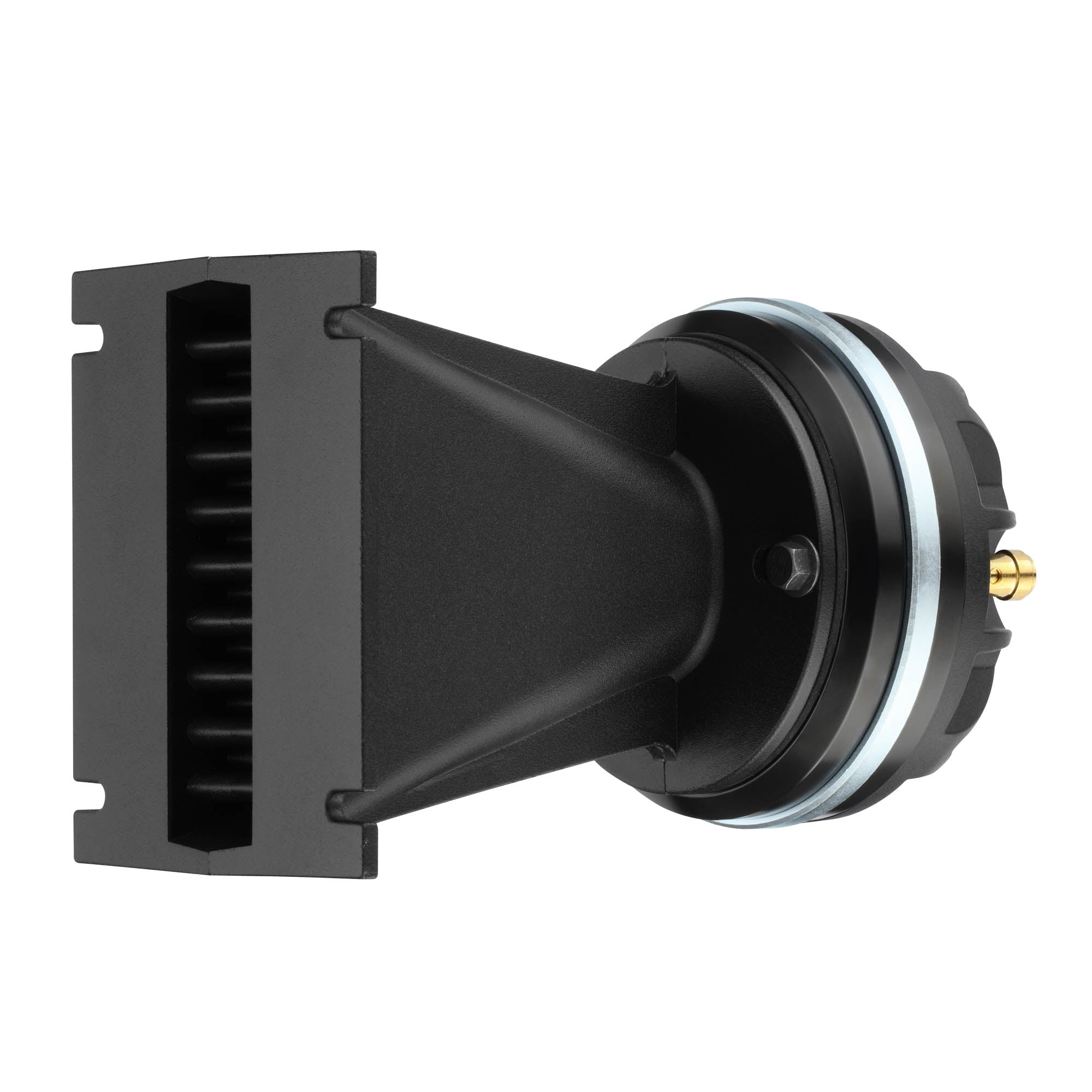

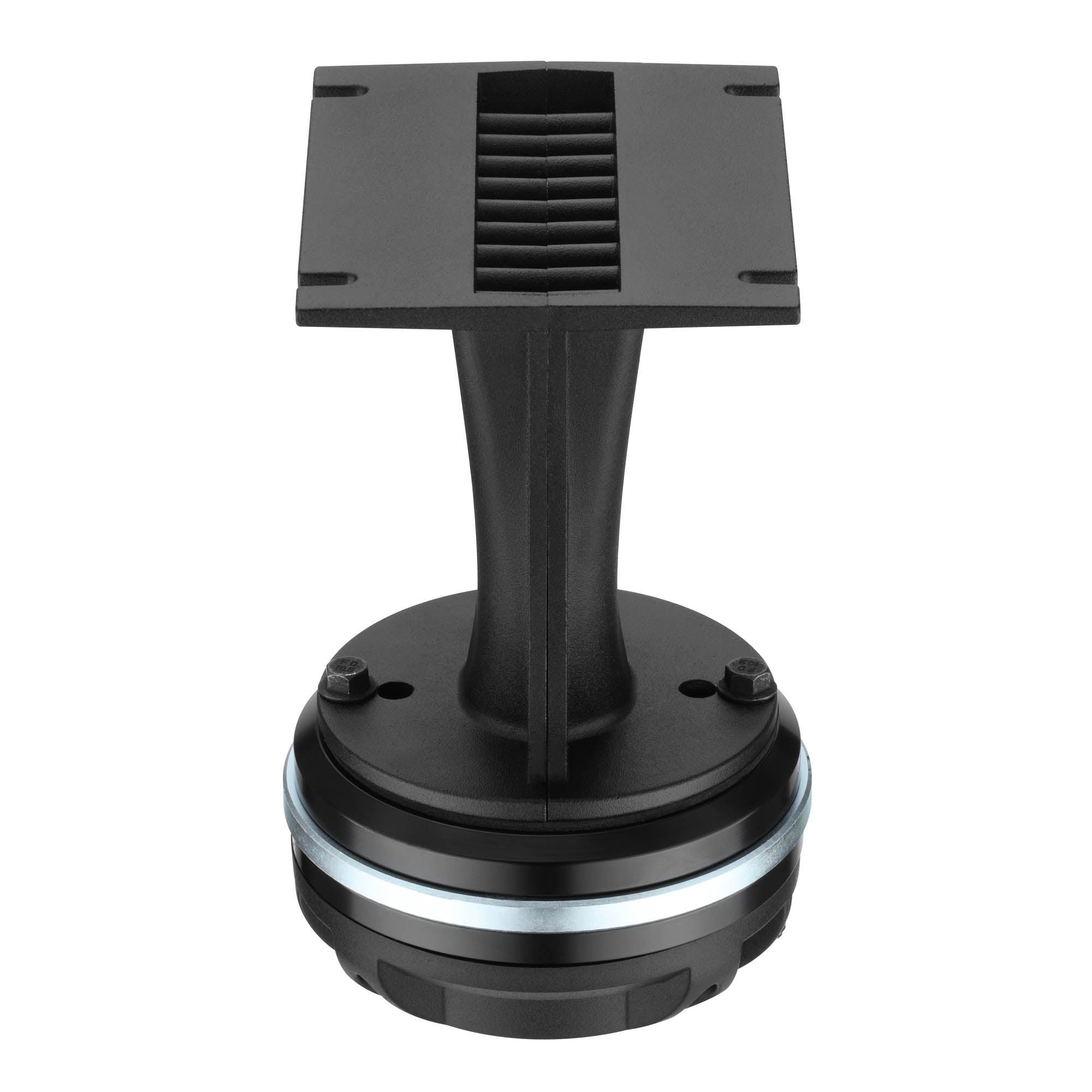

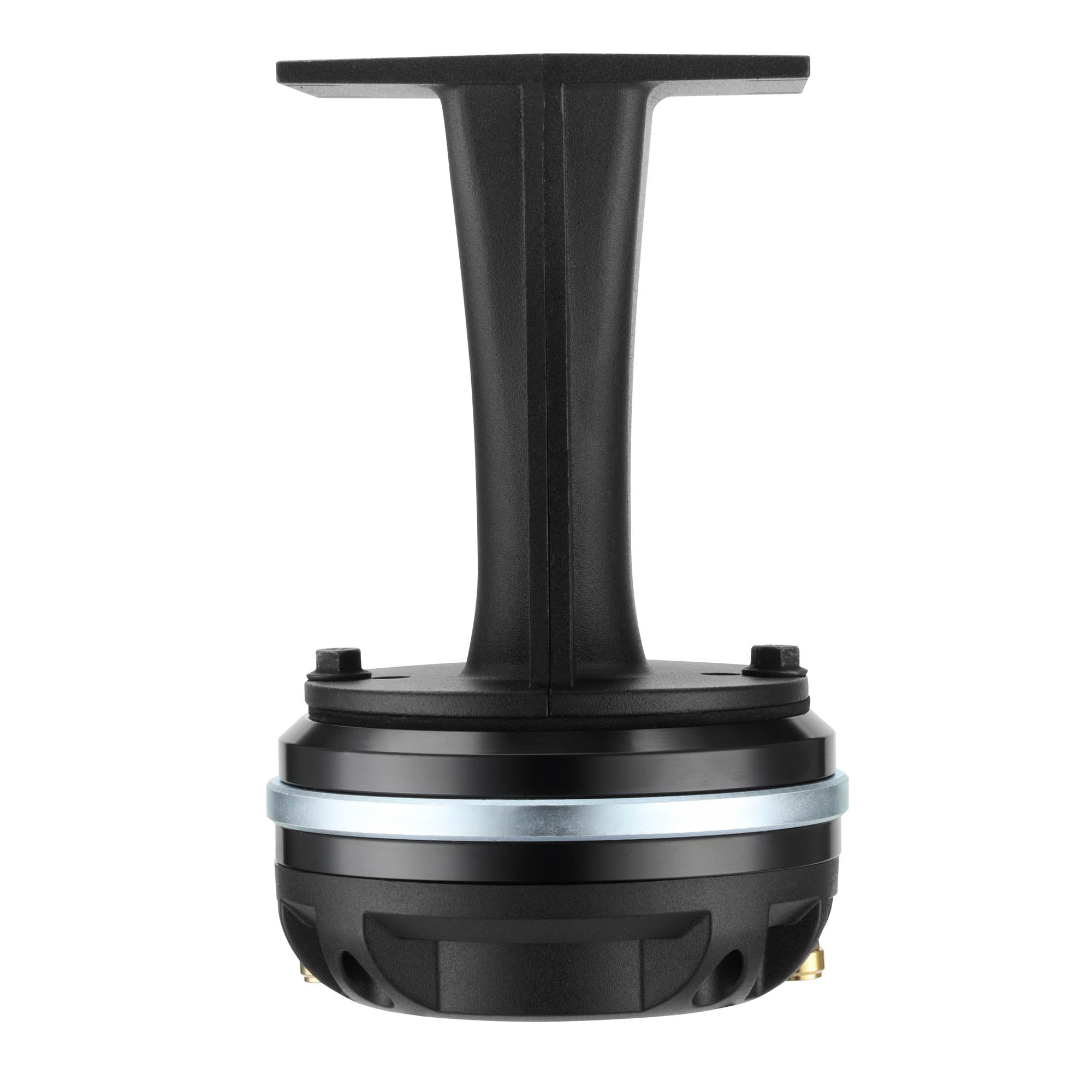

The 3.5” x 4.4” cast aluminum waveguide offers wide horizontal sound dispersion and narrow vertical control. This compression driver cuts cleanly through ambient noise with aggressive tone and dynamic presence.
DS18 Standard Build
The satin-black waveguide and ABS cover provide long-lasting durability for demanding applications — on or off the road.
Take over any venue with DS18’s PRO-DKN175WG!
Key Features
- Extreme SPL Output - 90W AES, 180W Program, 360W Peak
- Cut-Through-the-Noise Clarity - Titanium diaphragm
- Wide-Throw Sound Control - 140° horizontal dispersion
- High-Efficiency - 105dB Sensitivity
- Perfect for Loud Setups
Specifications
| Nominal Impedance | 8 Ohms |
|---|---|
| AES Power Handling | 90W |
| Program Power Handling | 180W |
| Peak Power Handling | 360W |
| Sensitivity (1w/1m) With Horn | 105dB |
| Frequency Response | 1.5kHz - 20kHz |
| Recommended High-Pass Crossover | 2kHz |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| VC Cover Material | ABS |
| Magnet Weight | 11.6 Oz |
| Motor Diameter | 4" / 102mm |
| Nominal Diameter | 3.5" x 4.4" / 89 x 111mm |
| Throat Diameter | 1" / 25.4mm |
| Sound Coverage | 140° H x 15° V |
| Body Material | Aluminum Cast |
| Color / Finish | Satin Black |
| Overall Diameter | 3.5" x 4.4" / 89 x 111mm |
| Overall Depth | 6.5" / 165.4mm |
| Mounting Depth | 6.3" / 160.4mm |
| Mounting Hole Cut-out | 1" x 4" / 25.4 x 101.6mm |
