2" Throat Bolt-On Compression Driver 320 Watts With 2" Polyimide Voice Coil 8-Ohm
Product Overview DS18 PRO-D22PY.8 2" Throat Bolt-On Compression Driver 320 Watts With 2" Polyimide Voice Coil DS18’s...
Vendor:
DS18
Manufacturer SKU
PRO-D22PY.8
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $83.95
- $83.95
- Unit price
- per
Subtotal:
$83.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

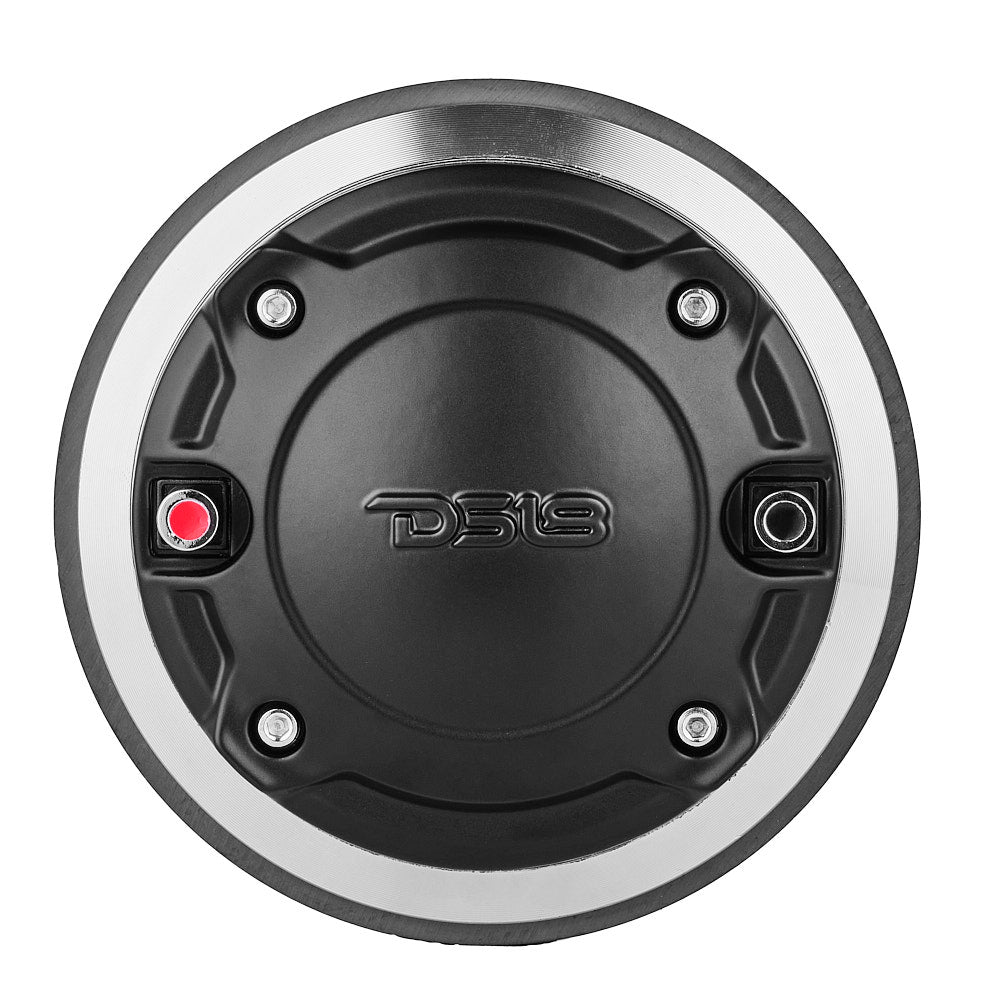

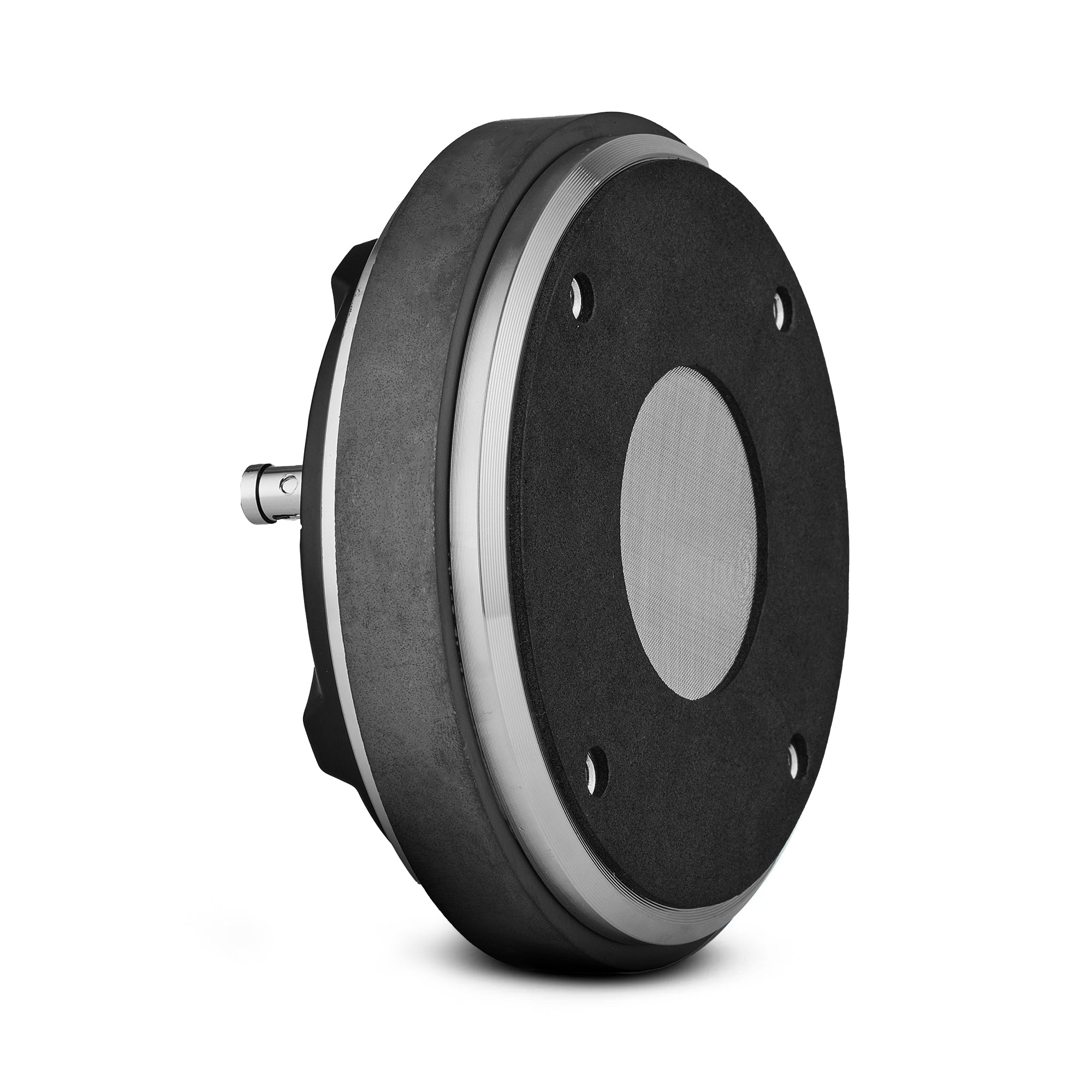

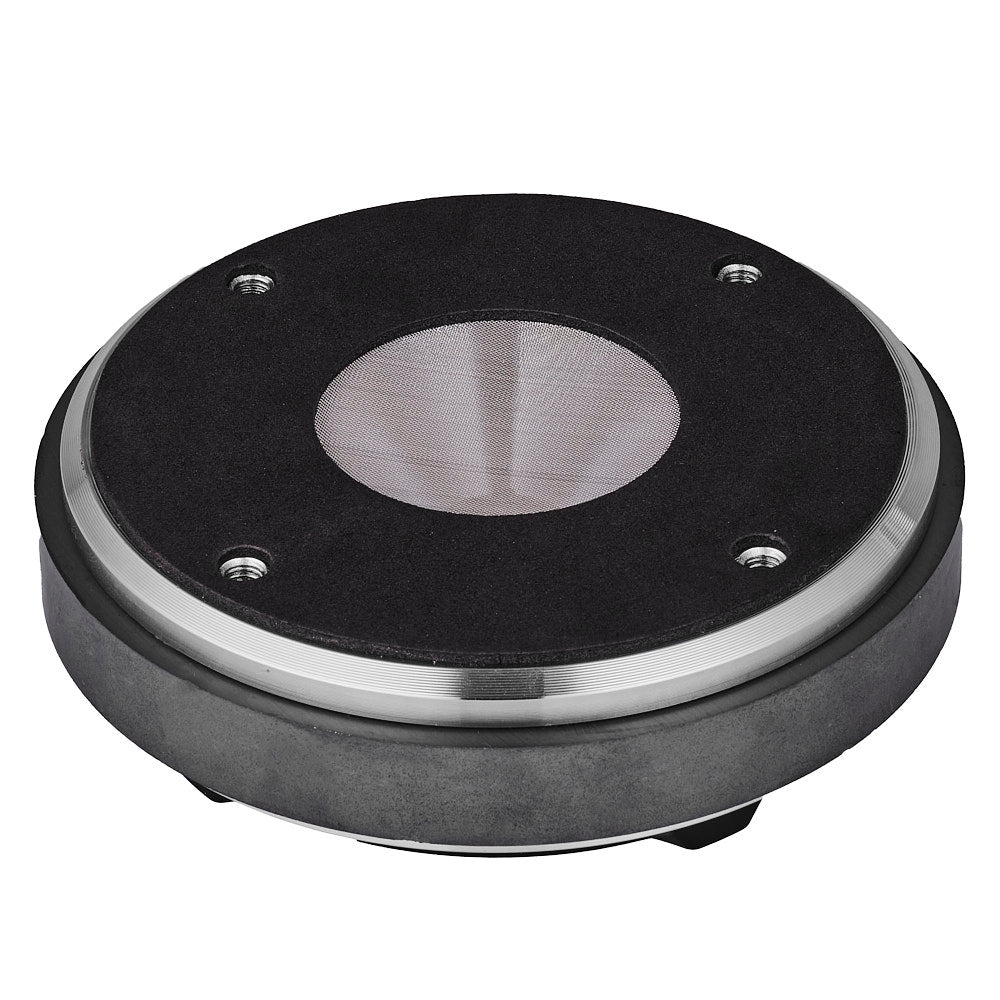

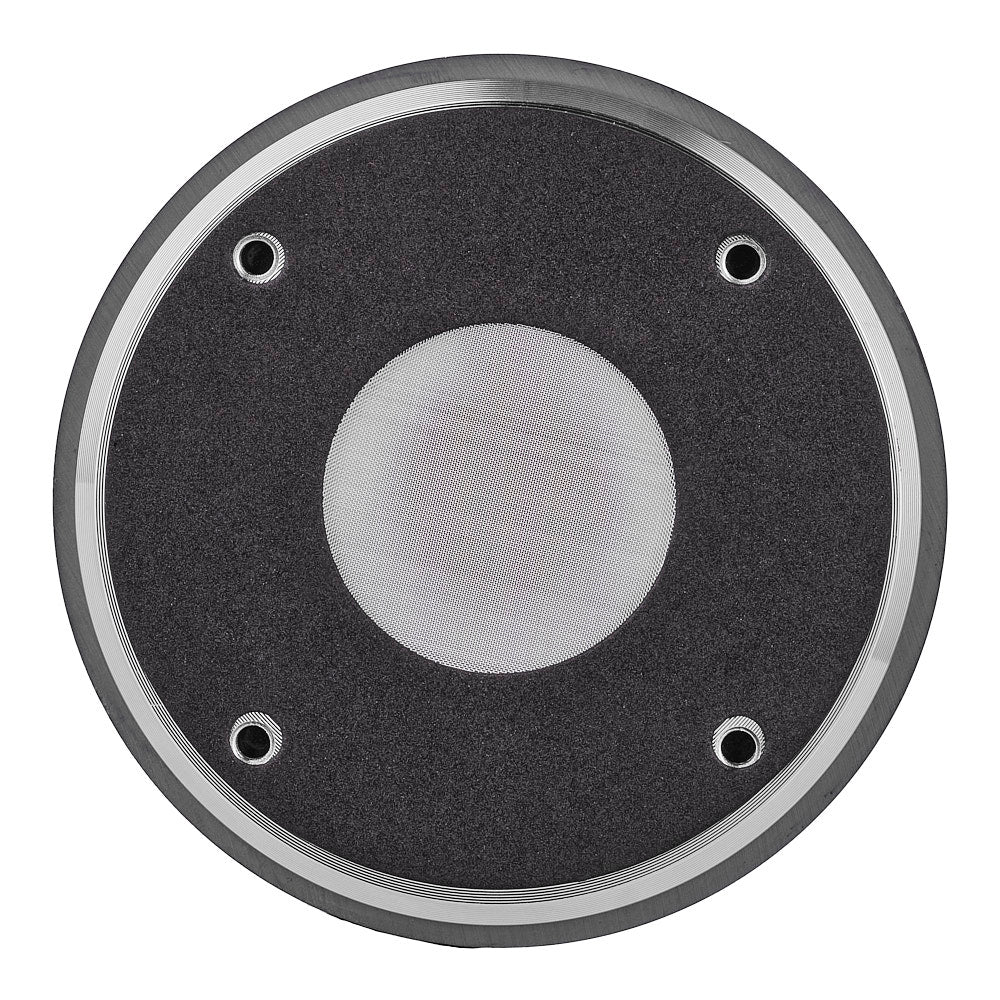

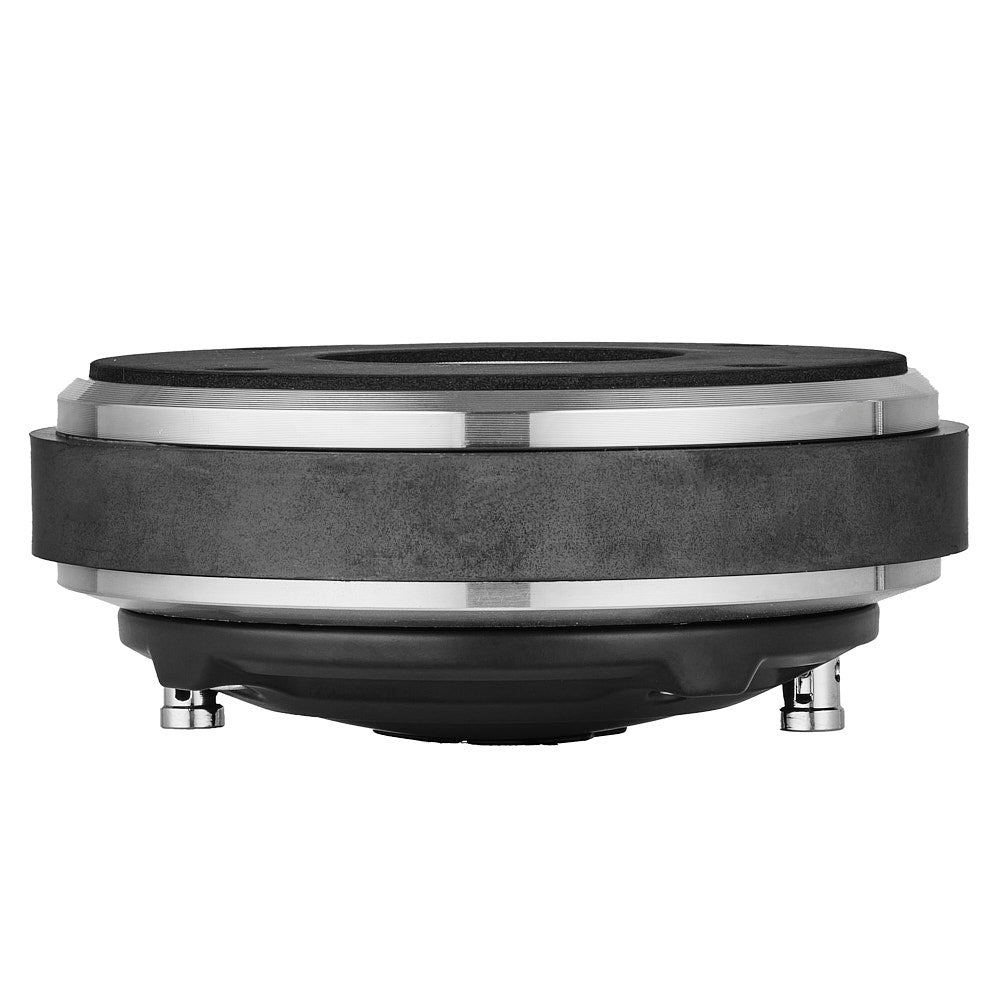

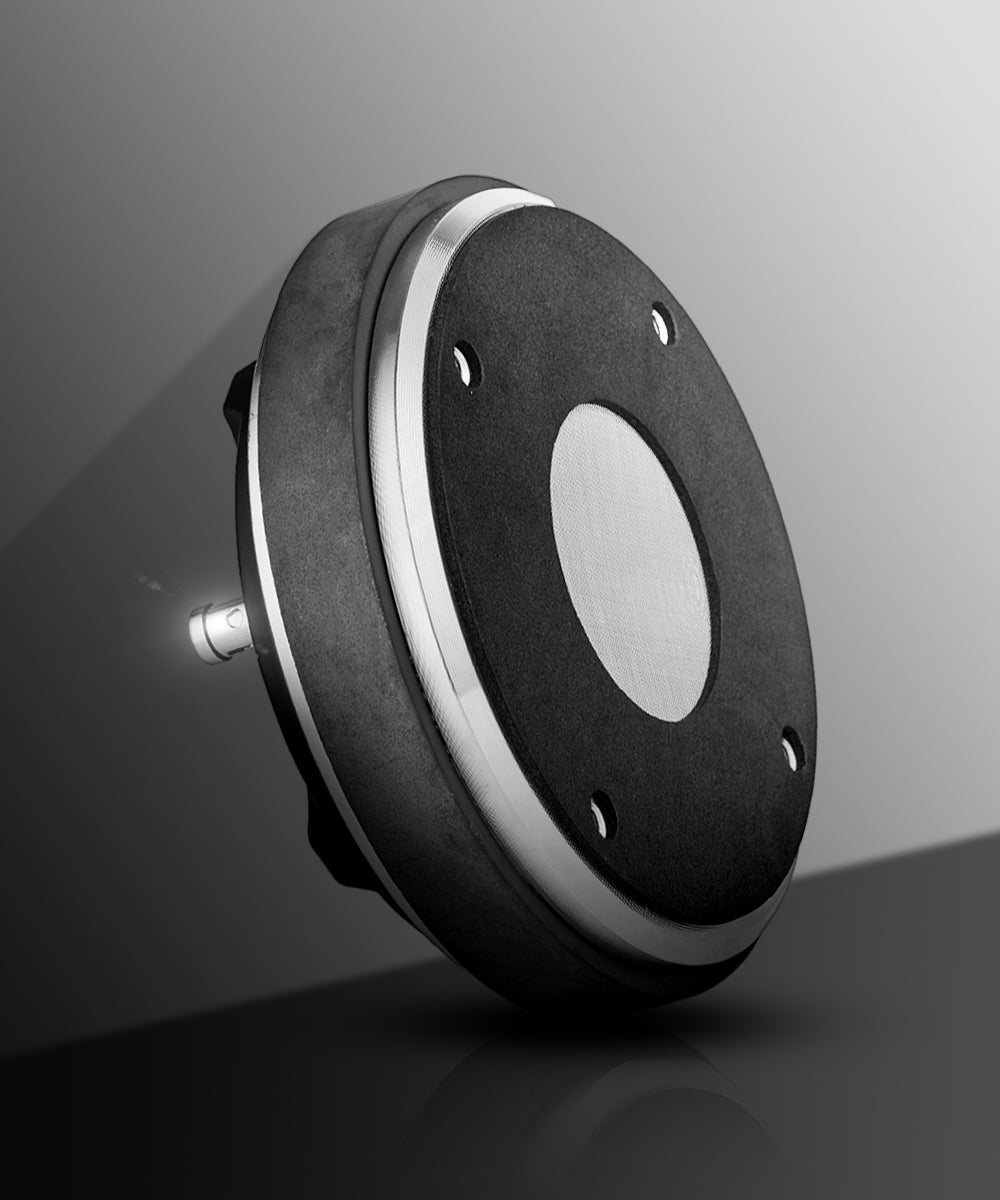

DS18 PRO-D22PY.8 2" Throat Bolt-On Compression Driver 320 Watts With 2" Polyimide Voice Coil
DS18’s PRO-D22PY.8 delivers unparalleled performance and clarity, taking your audio experience to new heights.
DS18’s PRO-D22PY.8 features a 2" throat diameter, bolt-on installation type, and 8-ohm nominal impedance: ensuring seamless integration into your existing setup. Its impressive power ratings of 160W AES, 320W Program Power, and a Peak Power of 640W ensure that this compression driver can handle even the most demanding audio requirements.
What truly sets the DS18 PRO-D22PY.8 apart is its exceptional sensitivity of 106dB (1w/1m), guaranteeing crystal-clear sound reproduction that fills the room with every note. The wide frequency response range of 630Hz-12.5KHz ensures that no detail is missed.
The voice coil, with a diameter of 2", is made from high-quality Kapton material and attached to a Polyimide diaphragm and Ferrite magnet for enhanced durability and exceptional sound reproduction with minimal distortion.
With an overall diameter of 5.31" and an overall depth of 2.08", the DS18 PRO-D22PY.8 offers a compact yet powerful solution. Its black machined finish gives it a sleek and professional look that complements any audio setup.
Order DS18’s PRO-D22PY.8 and experience the DS18 difference in your sound system.
Key Features
- 2" Compression Driver
- RMS Power: 320W (640W MAX)
- Impedance: 8 Ohm ~ 106dB
- Ferrite Magnet - Polyimide Diaphragm
- Bolt On
- Easily Repaired With The PRO-D22PY.8VC
Specifications
| SKU | PRO-D22PY.8 |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power handling | 160W |
| Program Power Handling | 320W |
| Peak Power handling | 640W |
| Sensitivity (1w/1m) | 106dB |
| Frequency Response | 630Hz-12.5KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Sold in Pair or Single | Single |

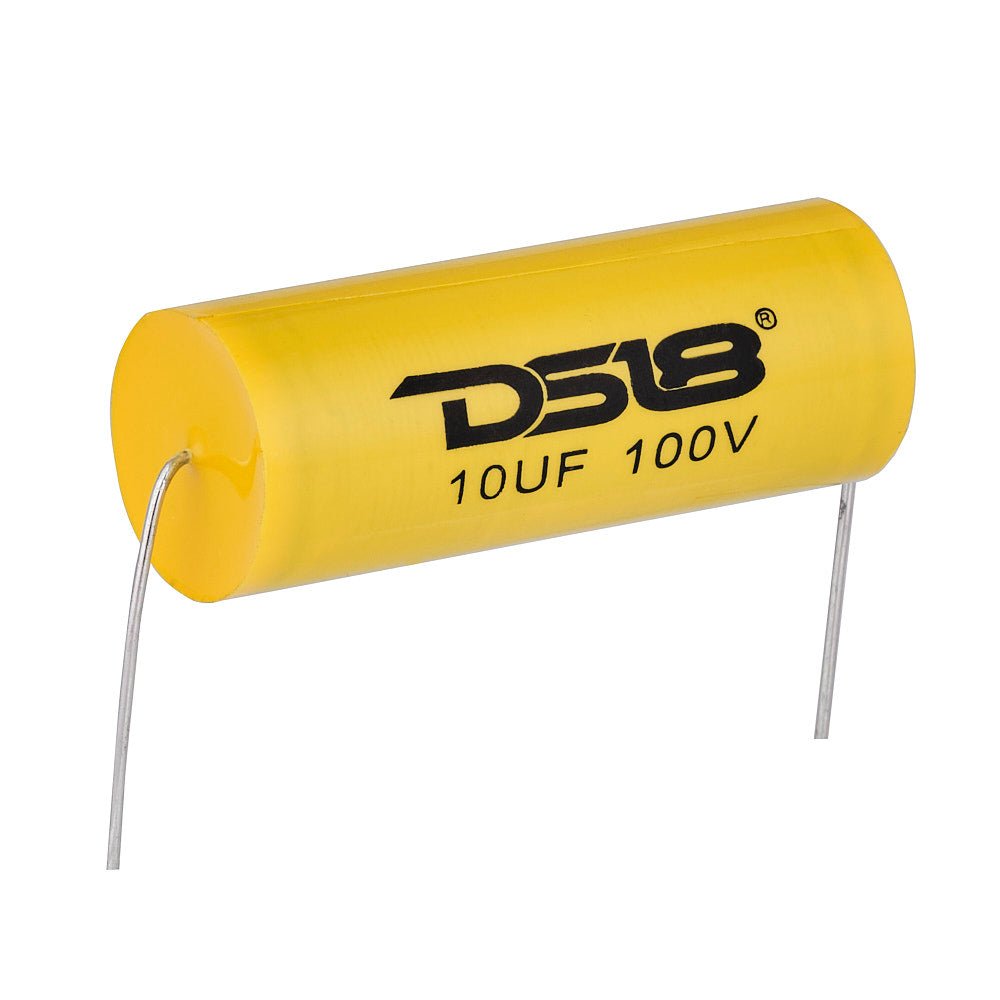

| Filter (Bass Blocker) | 10Uf/100V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Polyimide |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Overall Diameter | 5.31" / 135mm |
| Overall Depth | 2.08" / 53mm |
| Bolt Pattern/Type | 4xM6 - 4" /102mm |
