2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)
Product Overview DS18 PRO-DKH1X 2"Bolt On Throat Compression Driver with Spacer, 2" Throat Titanium VC and PRO-HA102/BK...
Vendor:
DS18
Manufacturer SKU
PRO-DKH1X
Availability:
Out Of Stock
Product Type:
Compression Drivers & Horns
- $131.95
- $131.95
- Unit price
- per
Subtotal:
$131.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 PRO-DKH1X 2"Bolt On Throat Compression Driver with Spacer, 2" Throat Titanium VC and PRO-HA102/BK Horn 640 Watts 115dB 8 ohm Mounting Depth 7.9"
Everyone is looking for louder horns and what they can do to tweak them. We make that easy for you with no guesswork with the DKH1X. This full size driver includes the DS18 DKH1 redesigned to be louder with the included dB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you only need 7.9 inches depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone's attention to your audio!
Highlights
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum full size throat with 111dB sensitivity spacer
- DKH1 Driver with an AES rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohms voice coil.
- 5.7 inch mounting depth and 6 inches overall depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
Technical Details
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| AES Power Handling | 160W |
| Sensitivity | 111dB |
| Frequency Response | 630Hz-20KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor: | |
| Voice Coil Diameter | 2.03"/51mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35oz |

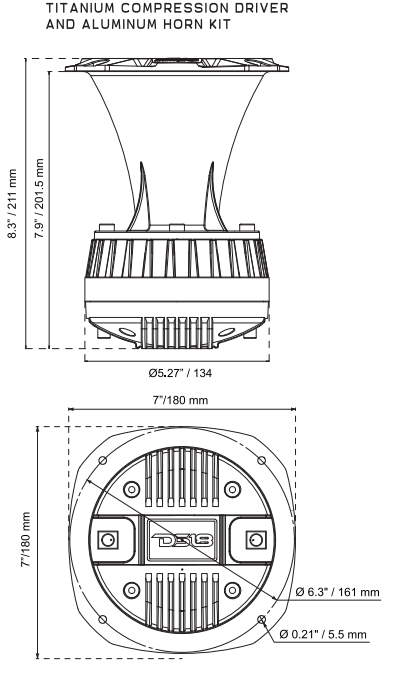

| Measurements: | |
| Overall Diameter | 7"/180mm |
| Overall Depth | 8.3"/211mm |
| Bolt Pattern/Type | 5.5mm hole-6.3"/161 mm Diameter |
| Mounting Depth | 7.9"/201.5mm |
| Mounting Hole Diameter | 5.7"/145mmm |
Key Features
- 2" Compression Driver with Spacer and Horn
- 1 X PRO-D1
- 1 X PRO-HA102/BK
- RMS Power: 320 Watts(640 Watts Peak)
- Impedance: 8 Ohm ~ 115dB
- Ferrite Magnet
Specifications
| SKU | PRO-DKH1X |
|---|---|
| Nominal Impedance | 8 OHM |
| AES Power | 160 Watts |
| Program Power Handling | 320 Watts |
| Peak Power Handling | 640 Watts |
| Sensitivity (1w/1m) | 115 dB |
| Frequency Response | 630Hz-20KHz |
| Recommended Hi Pass Crossover | 900Hz |
| Voice Coil Diameter | 2.03" / 51.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Body Material | Aluminum |
| Nominal Diameter | 6.5" / 165mm |
| Throat Diameter | 2" / 50.8mm |
| Sound Coverage | 35° Rounded |
| Color | Finish | Black Satin |
| Overall Diameter | 6.37" / 162mm |
| Overall Depth | 8.3" / 211mm |
| Mounting Depth | 7.9" / 201.5mm |
| Mounting Hole Diameter | 5.7" / 145mm |
| Bolt Pattern / Type | Ø 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole |
| Product Weight | 9 lbs |
| Product Dimensions | 7 x 7 x 8.75 |
| M/C Weight | 36.5 lbs |
| M/C Dimensions | 14.5 x 14.5 x 9.5 |
| M/C QTY | 4 |
| Sold In | Piece |
