Product Overview
DS18 PRO-CUPOLA2
4” Soft Dome Midrange Loudspeaker | 300W MAX | 4Ω

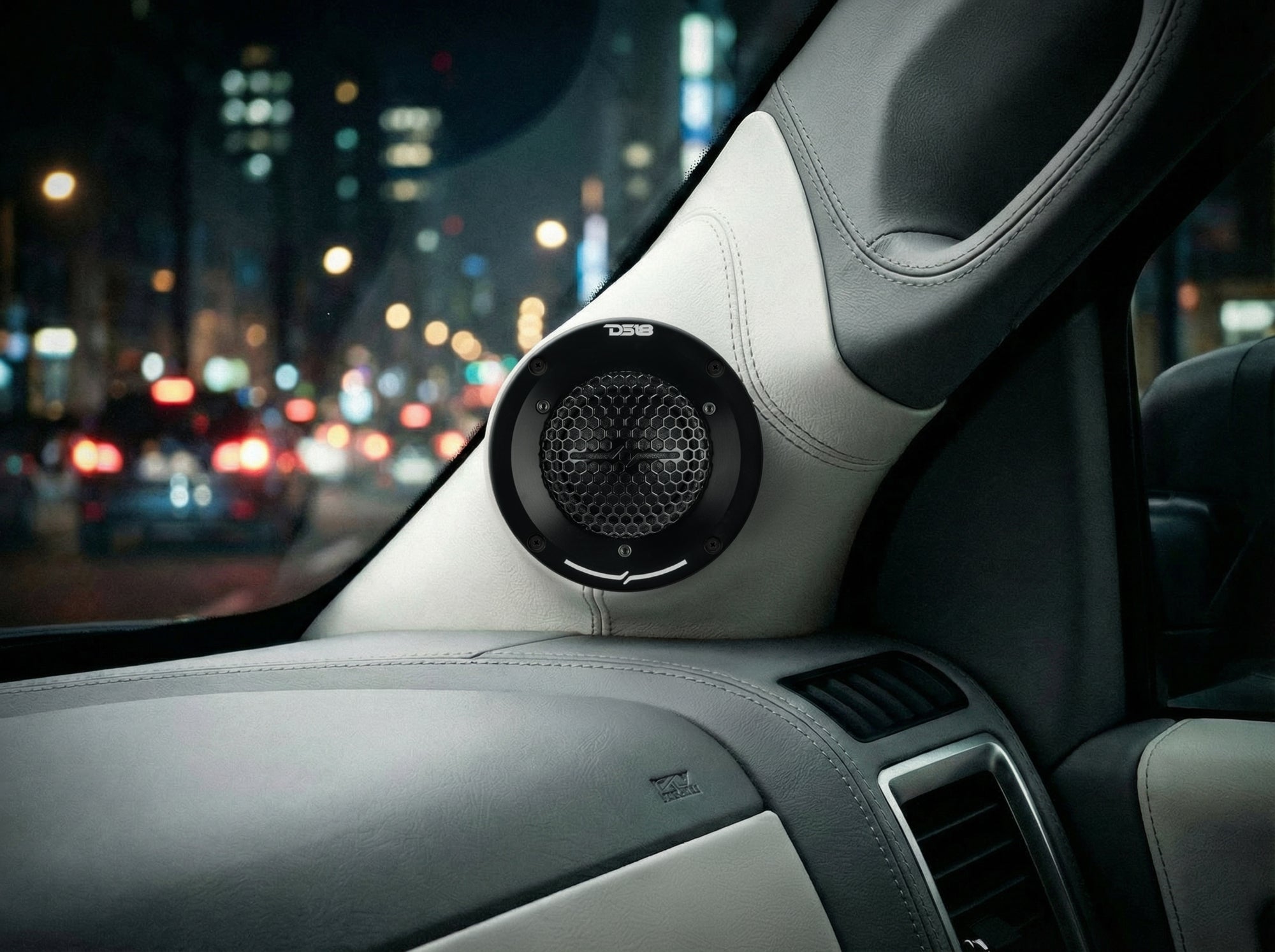

The PRO-CUPOLA2 delivers crisp, detailed midrange in a compact 4” form factor: perfect for vehicles or audio builds with limited space that still demand high-end sound quality.
This high-performance soft dome midrange is loaded with a 2.5” KSV voice coil, 8.5 oz neodymium magnet, and treated cloth diaphragm. With 100W AES, 200W Program, and 300W MAX Power handling, it produces clean output from 450Hz–12KHz, giving vocals and instruments a natural, balanced presence.
Pro-Tuned Design

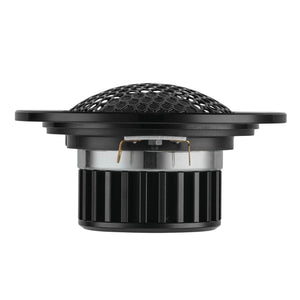

Housed in a sealed aluminum chamber tuned for low resonance, the PRO-CUPOLA2 maintains clarity and accuracy in any system. Its 3.77” cutout and shallow 2.44” mounting depth make installation easy across a wide range of vehicles and custom applications.
If you’re looking for sound quality, the PRO-CUPOLA2 packs professional-grade midrange performance into a compact footprint.
Key Features
- 4” Soft Dome Midrange with 2.5" KSV Voice Coil
- 100W AES : 200W Program : 300W MAX Power Handling
- 450Hz–12KHz Frequency Response for Clean Midrange
- High-Powered Neodymium Motor

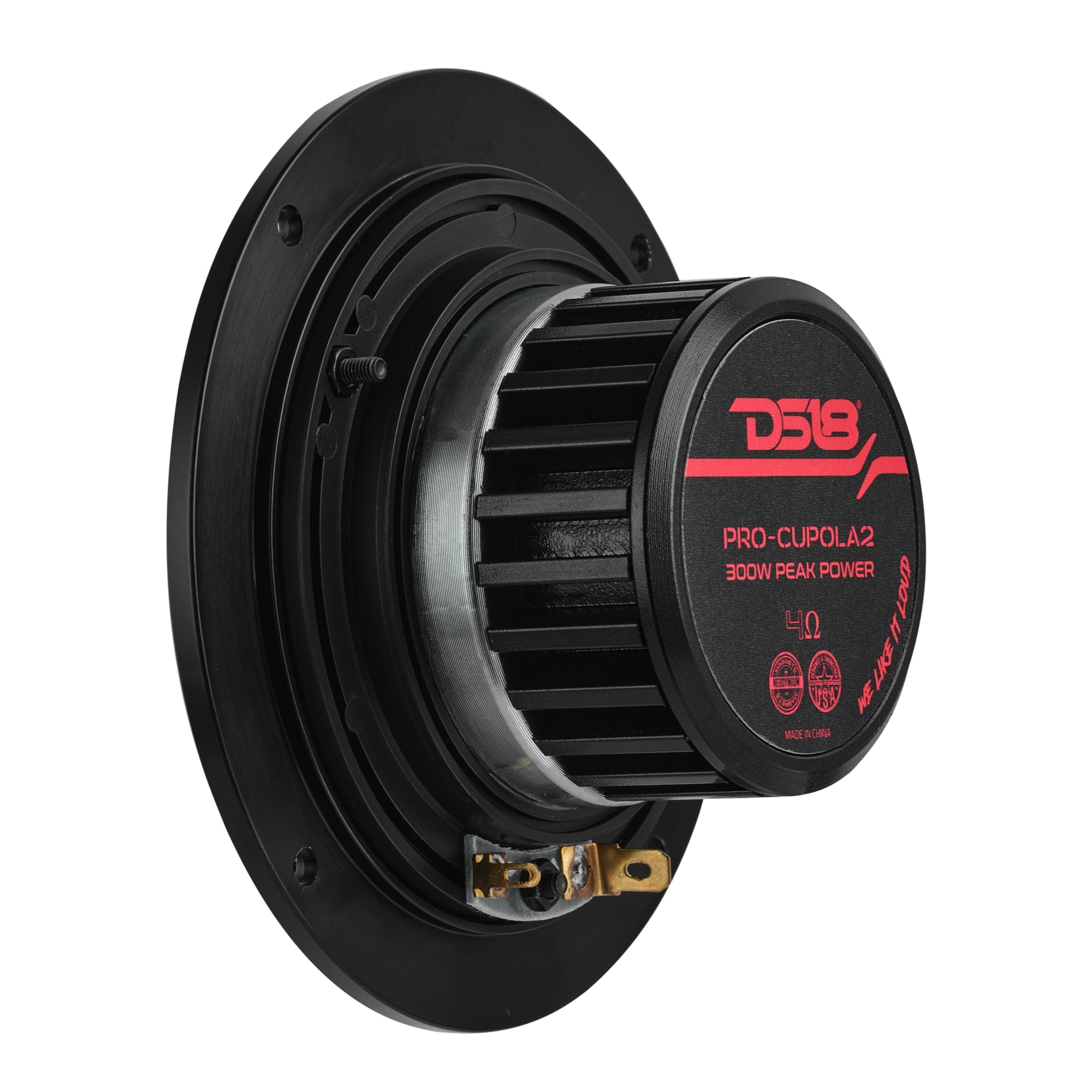

- Sealed Aluminum Rear Chamber
- Perfect for Studio Monitors or High-End Car Audio
Specifications
| SKU | PRO-CUPOLA2 |
|---|---|
| Nominal Diameter | 4" / 102mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 100W |
| Program Power Handling | 200W |
| Peak Power Handling | 300W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 450Hz-16kHz |
| Recommended High Pass Crossover | 480Hz |
| Pair or Single | Single |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Cloth |
| Body Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 2.5 Oz |

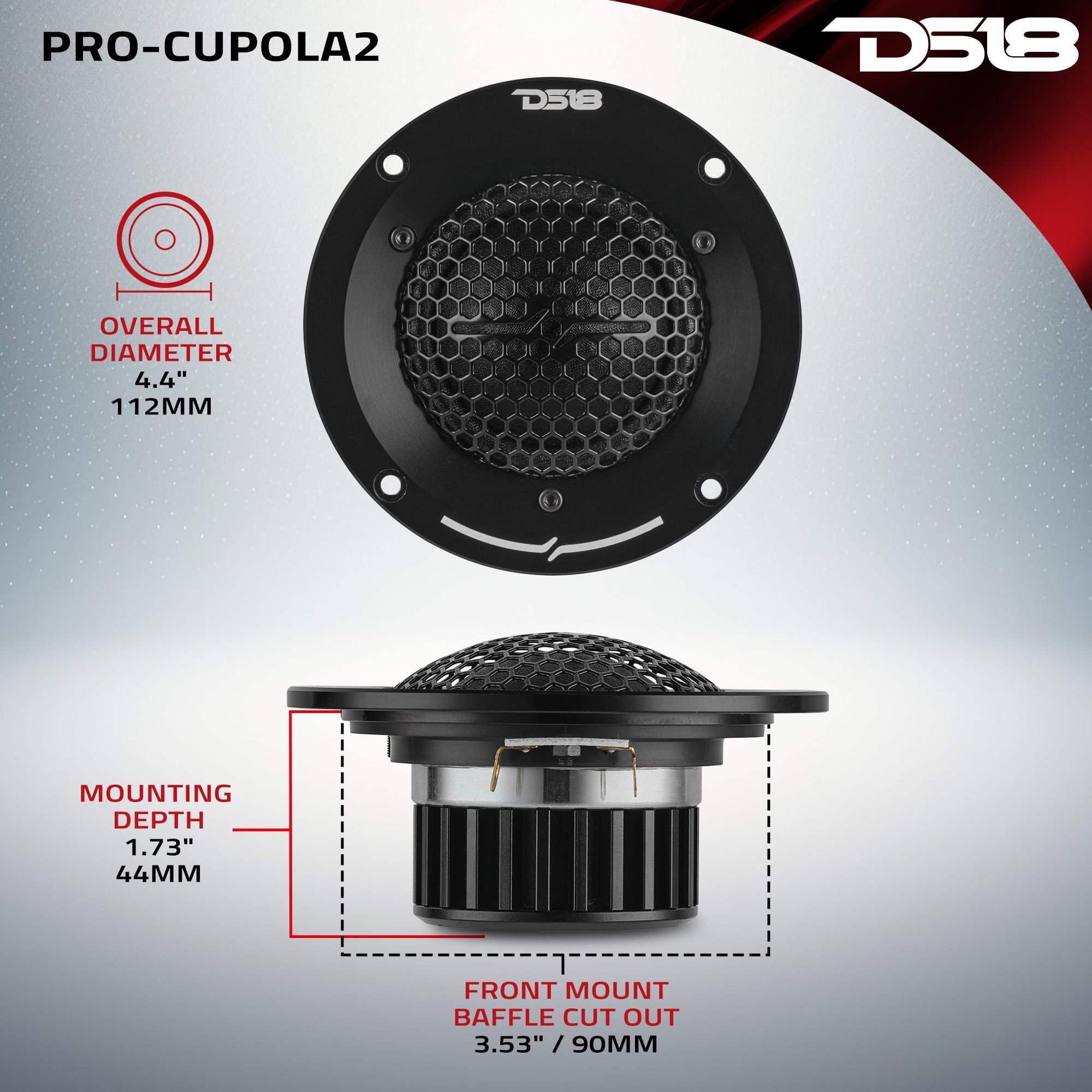

| Overall Diameter | 4.4" / 112mm |
| Overall Depth | 2.4" / 61mm |
| Front Mount Baffle Cutout | 3.53" / 90mm |
| Mounting Depth | 1.73" / 44mm |
