2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn

Product Overview DS18 PRO-HP52 2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn  DS18’s PRO-HP52 is our latest addition...
Vendor: DS18
Manufacturer SKU PRO-HP52/BK
Availability: In Stock
Product Type: Compression Drivers & Horns
$17.95
$17.95
Color: Black
Subtotal: $17.95
Ask An Expert
Instructions: View Instructions
10 in stock
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18

2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn

$17.95
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn - DS18

2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn

$17.95
Color: Black
Description
Description

Product Overview

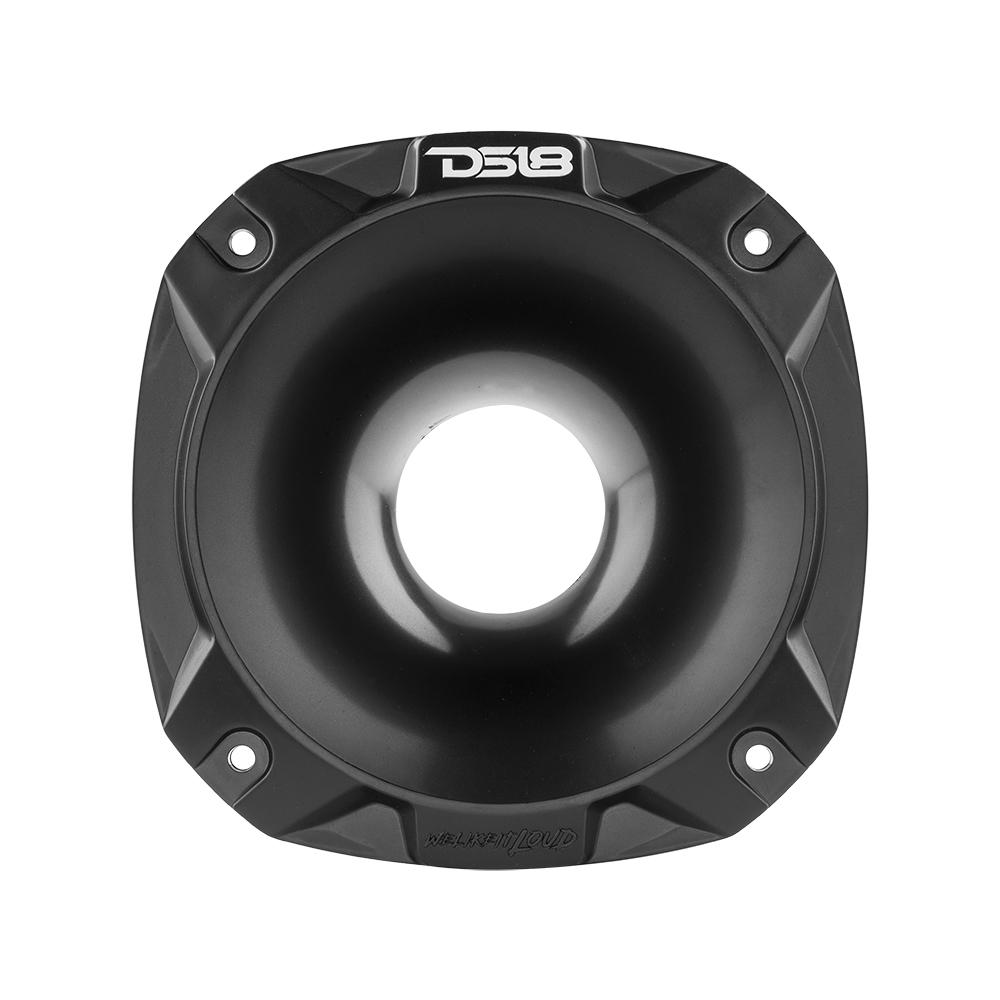

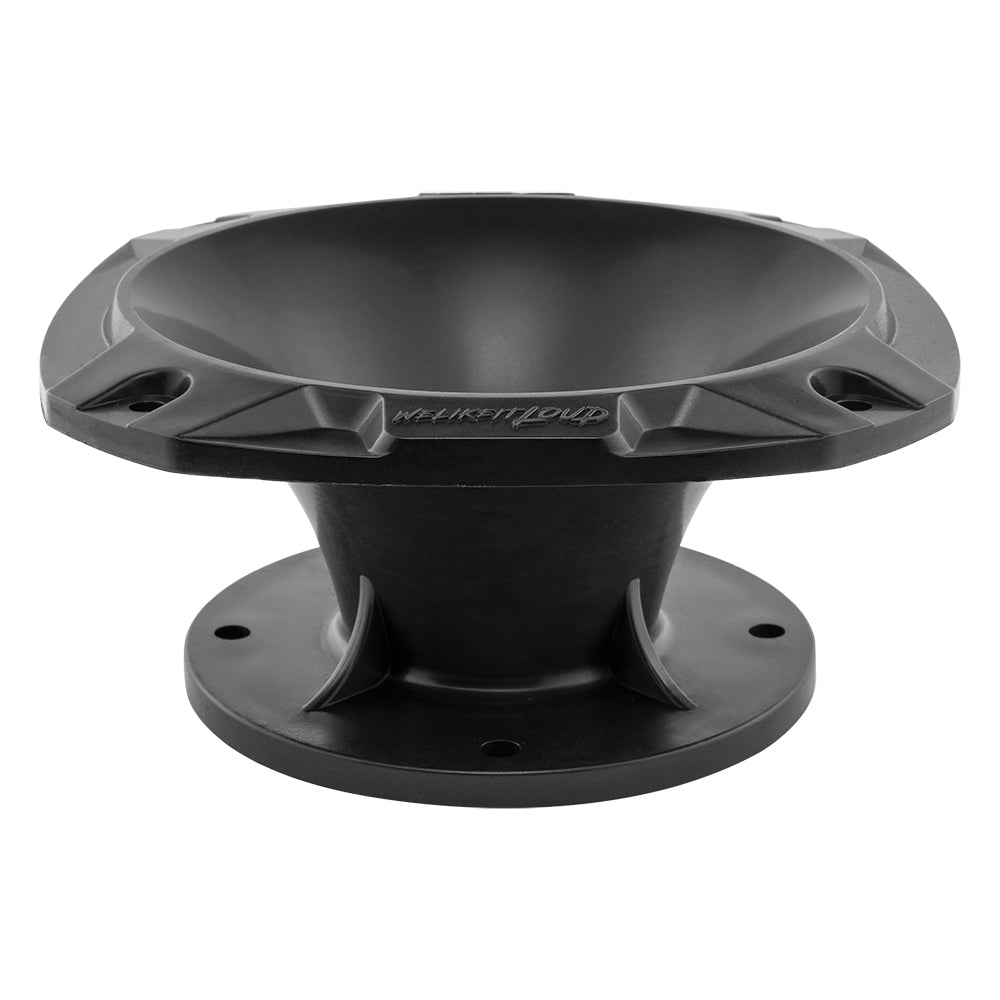

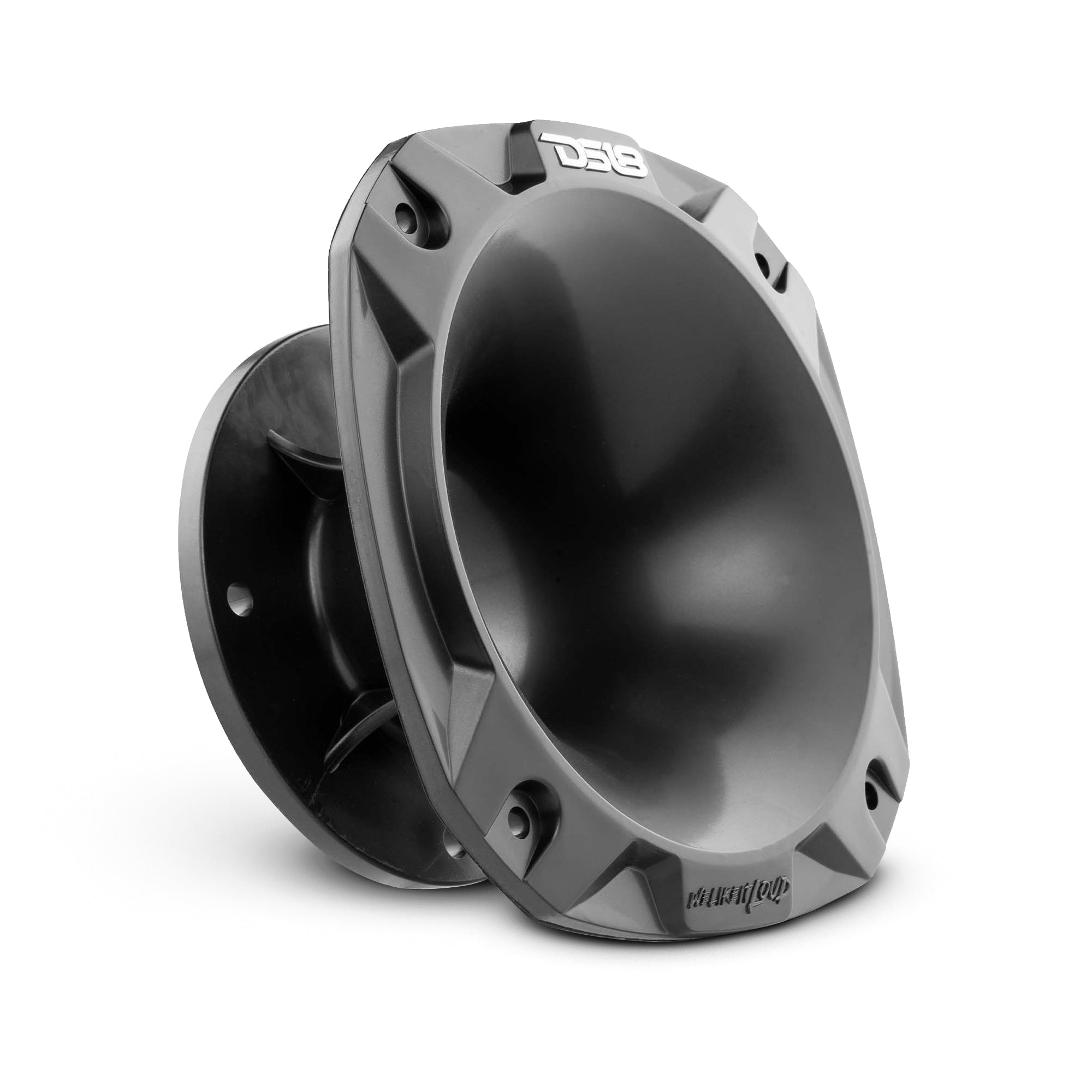

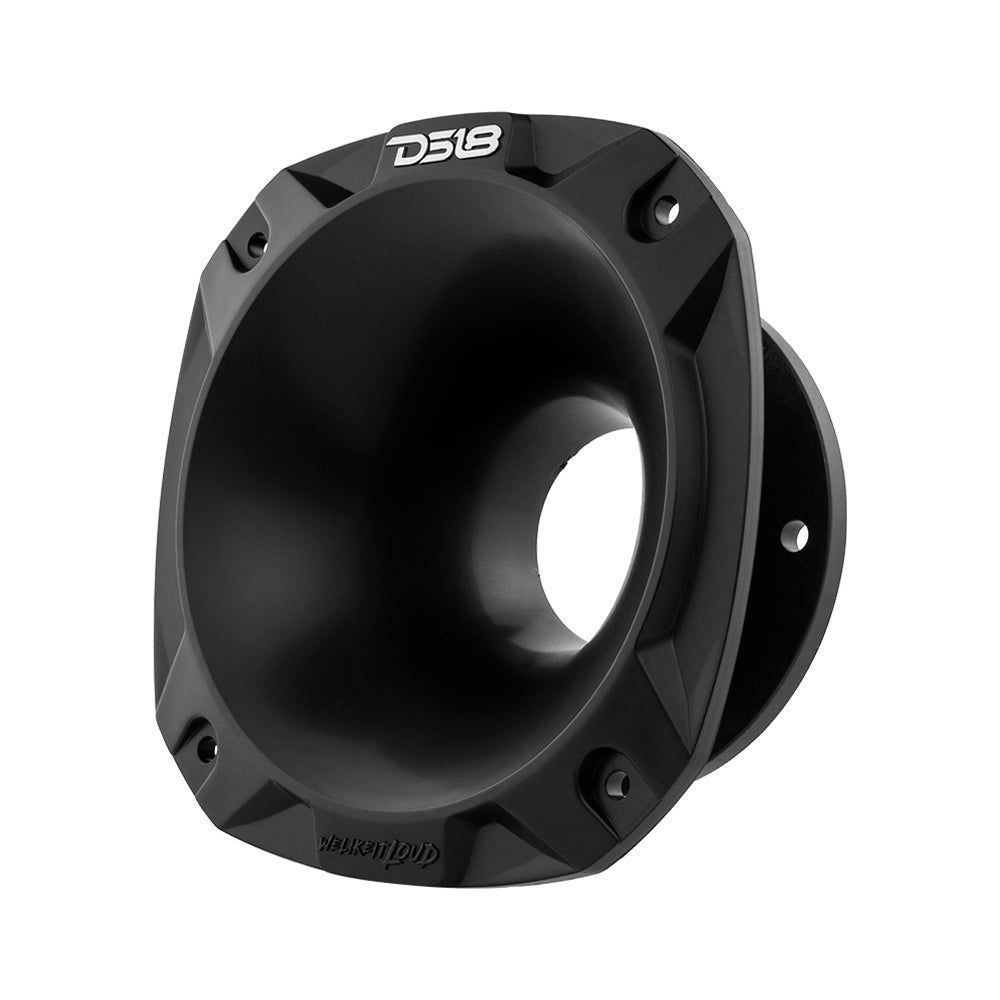

DS18 PRO-HP52 2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn

DS18’s PRO-HP52 is our latest addition to our series of short throated horns!

This waveguide has a mounting depth of 2.61” and a throat diameter of 2” for extreme directional sound that can fit anywhere!

This short horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage as well as a brighter selection of colors to choose from!

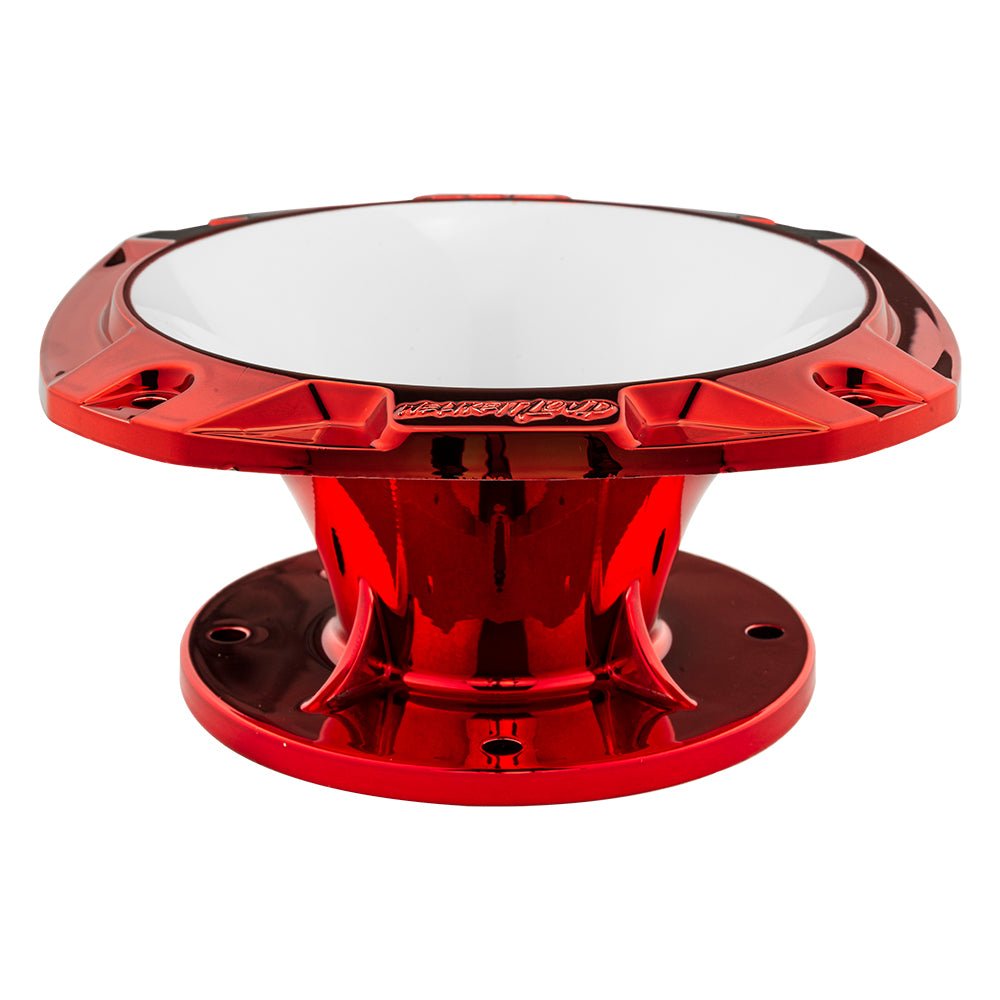

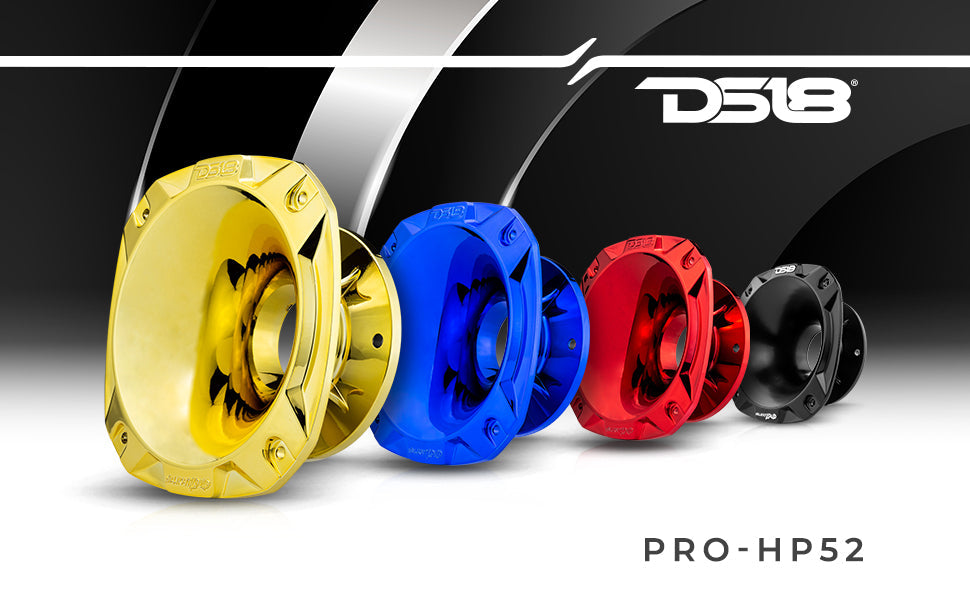

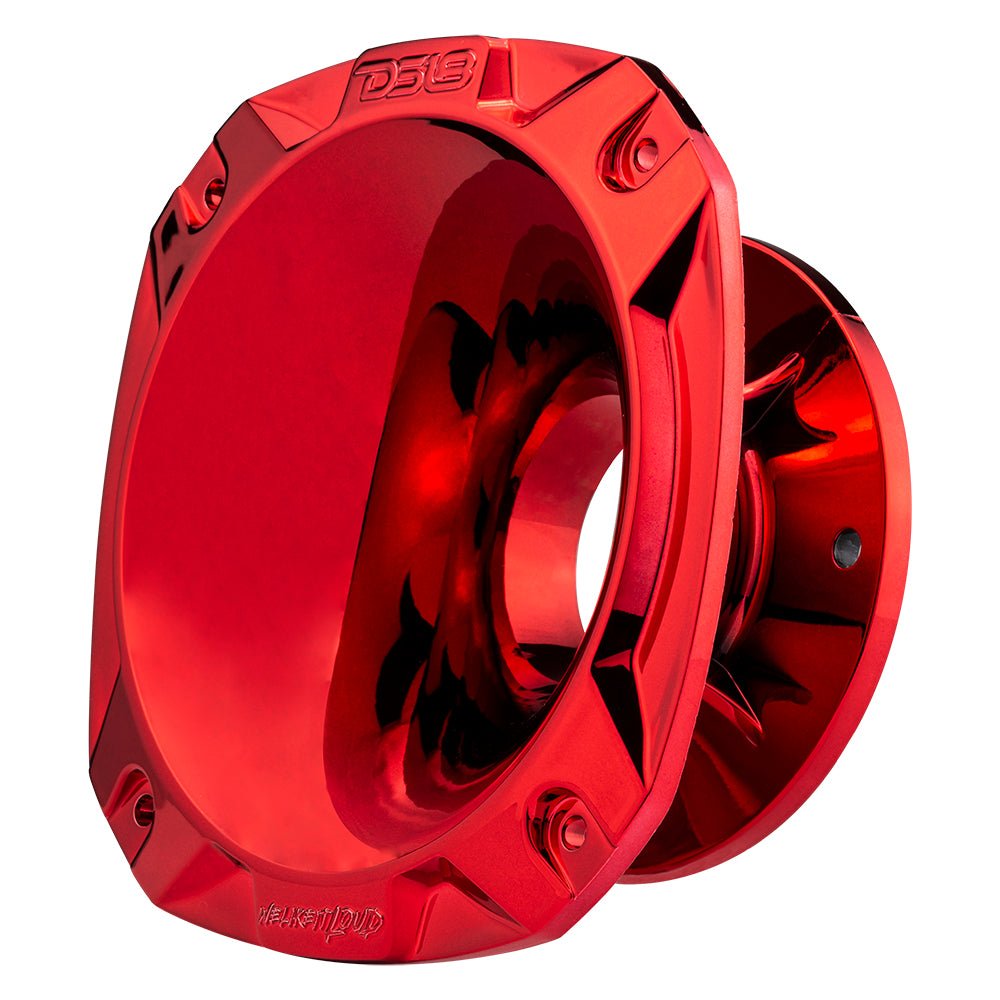

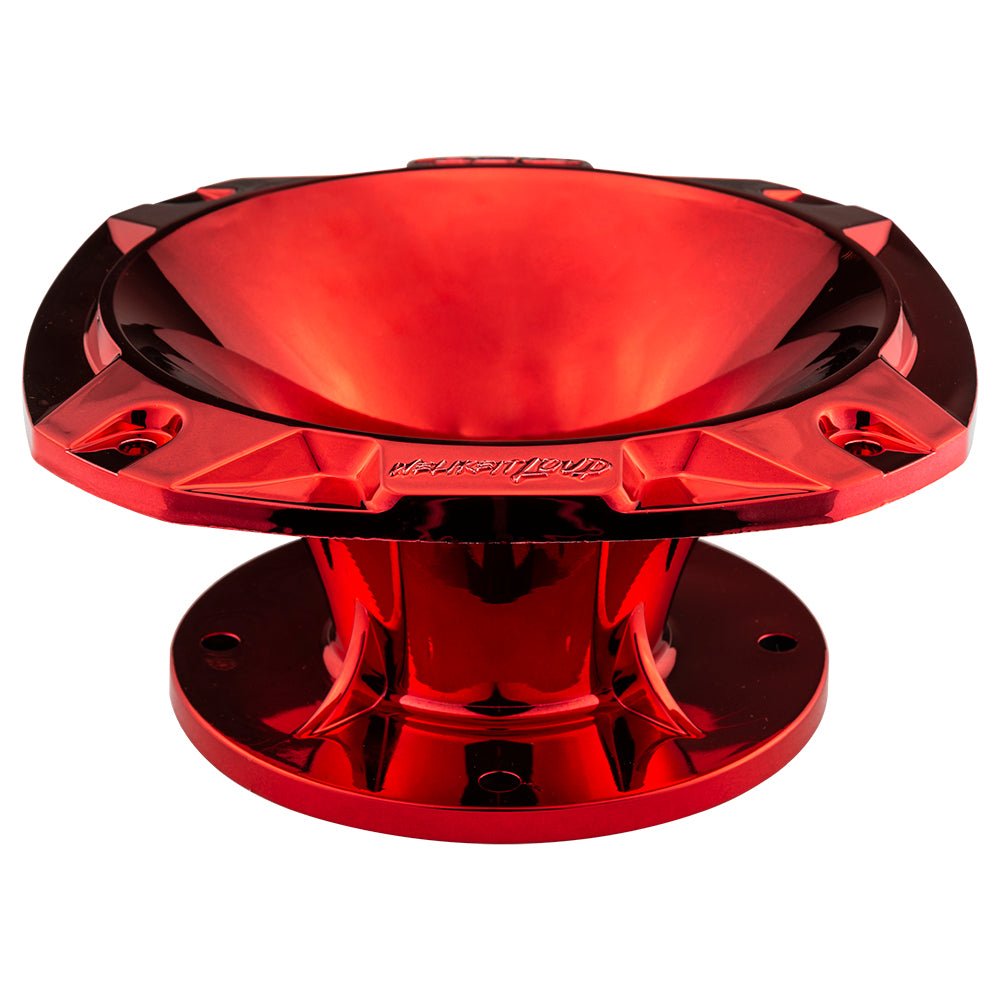

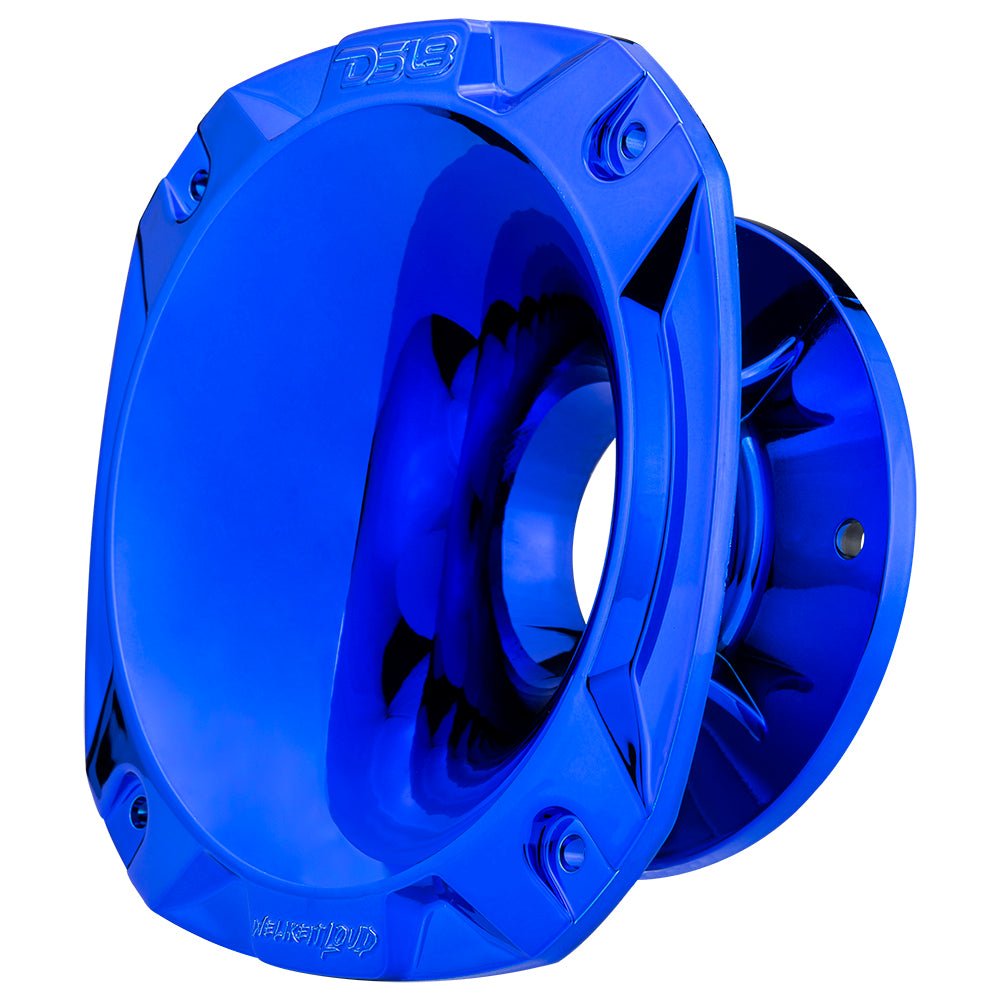

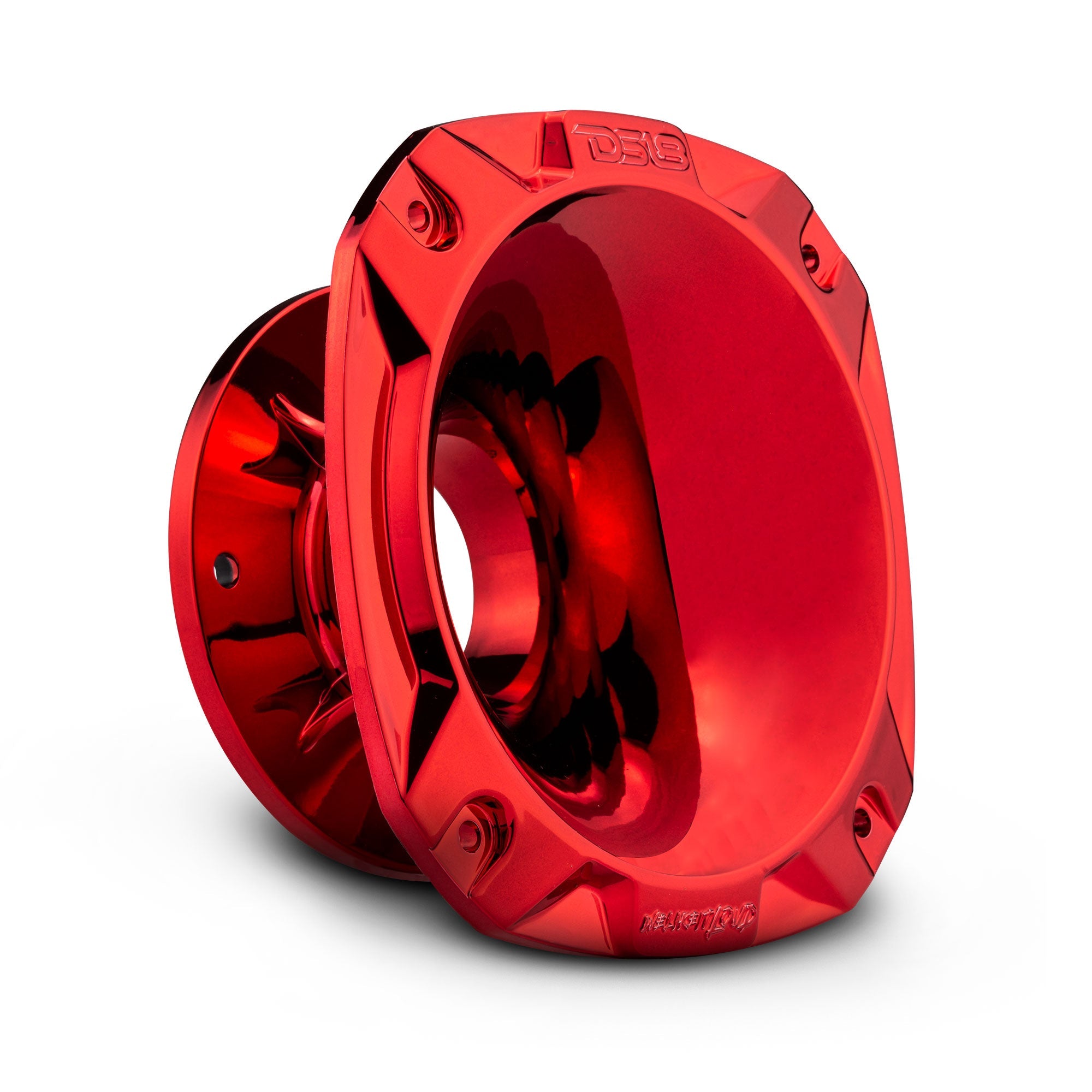

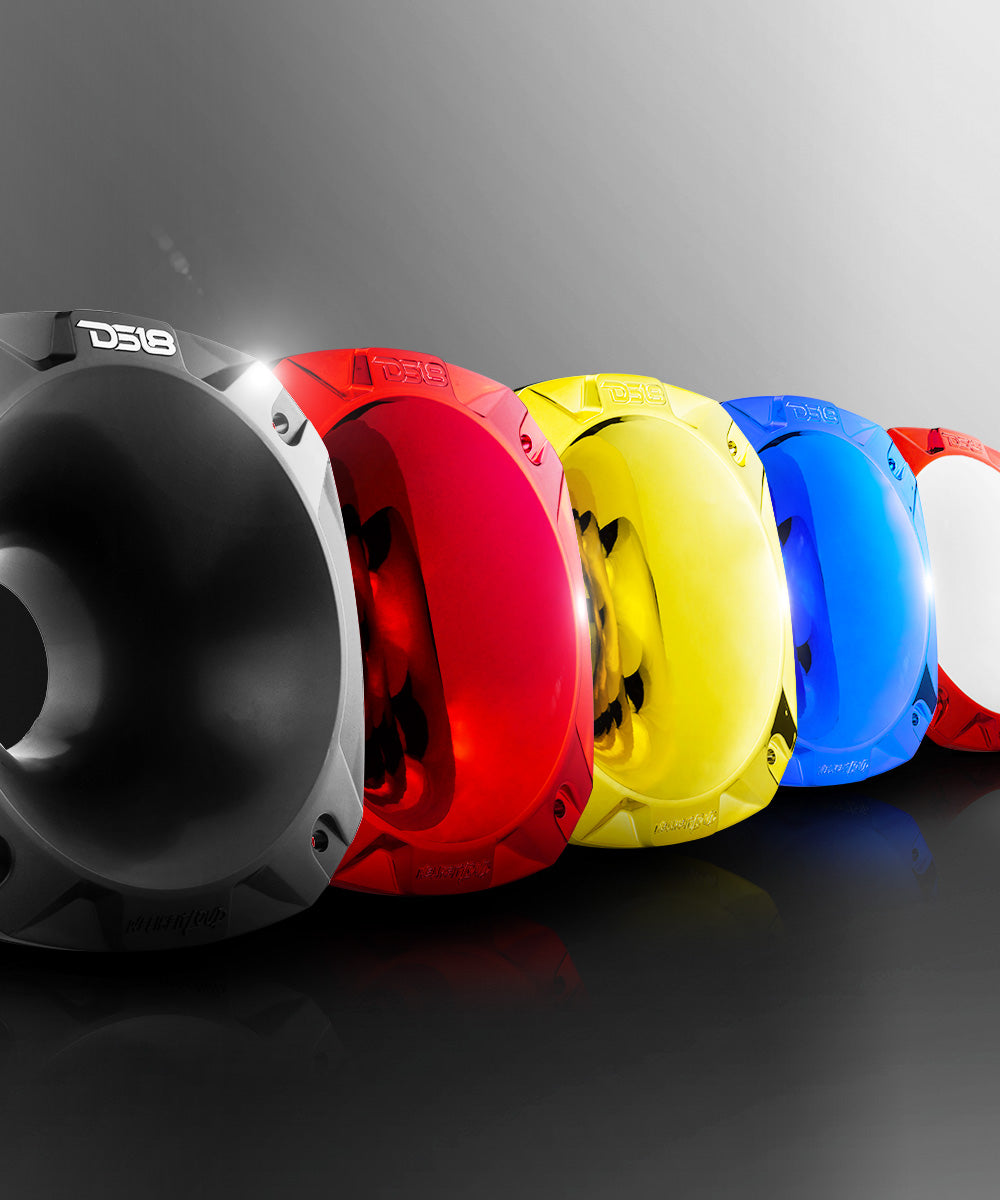

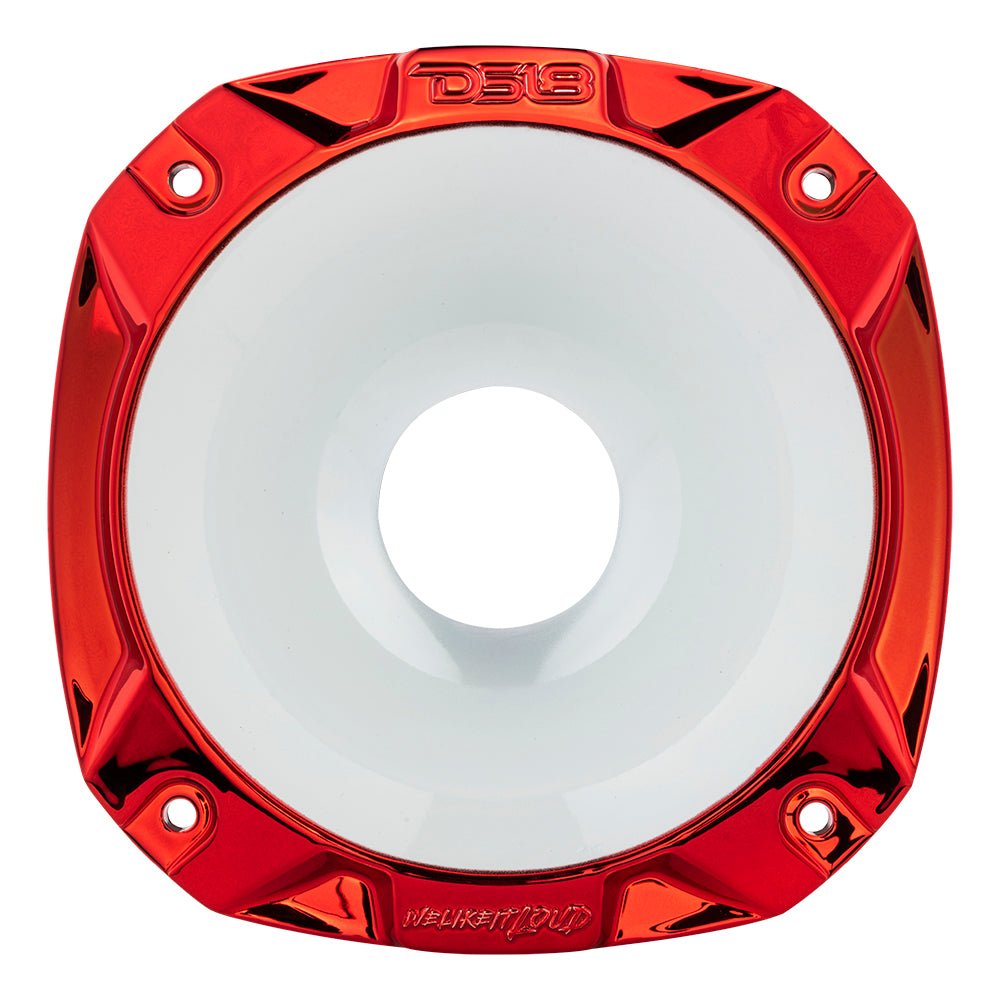

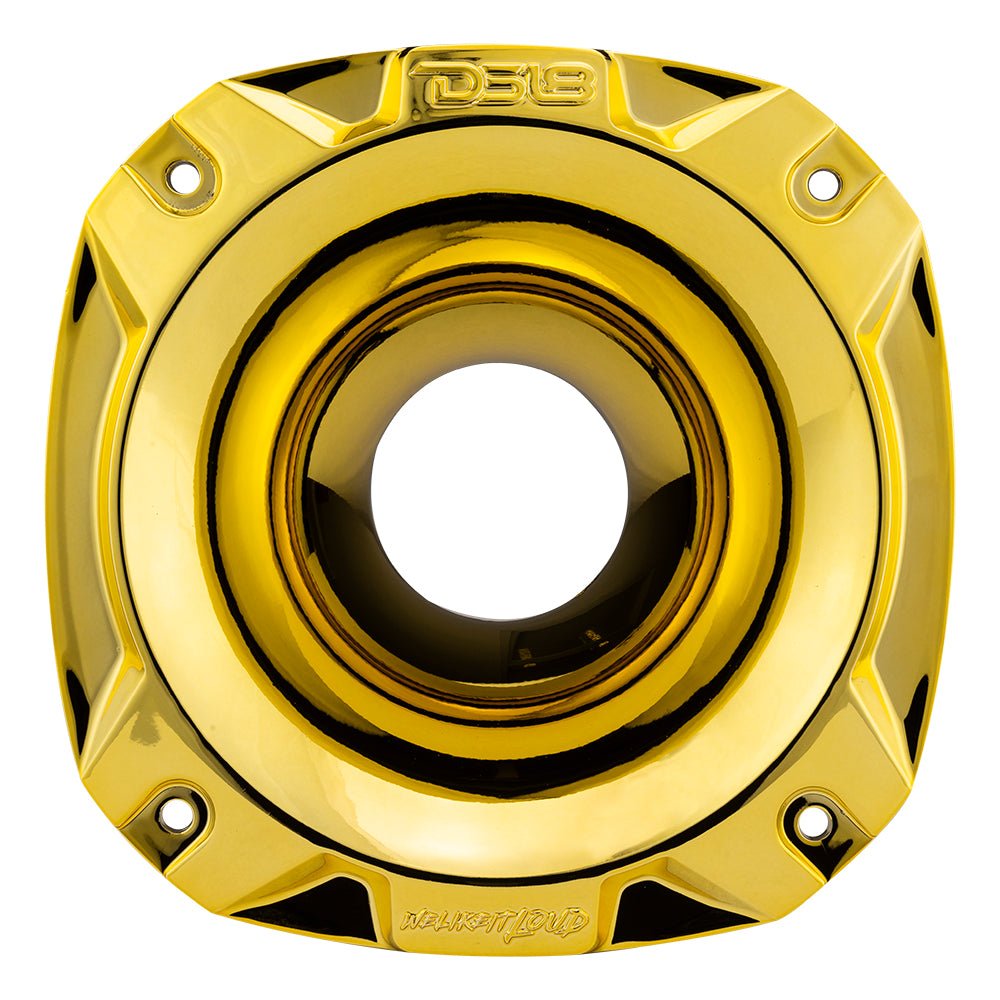

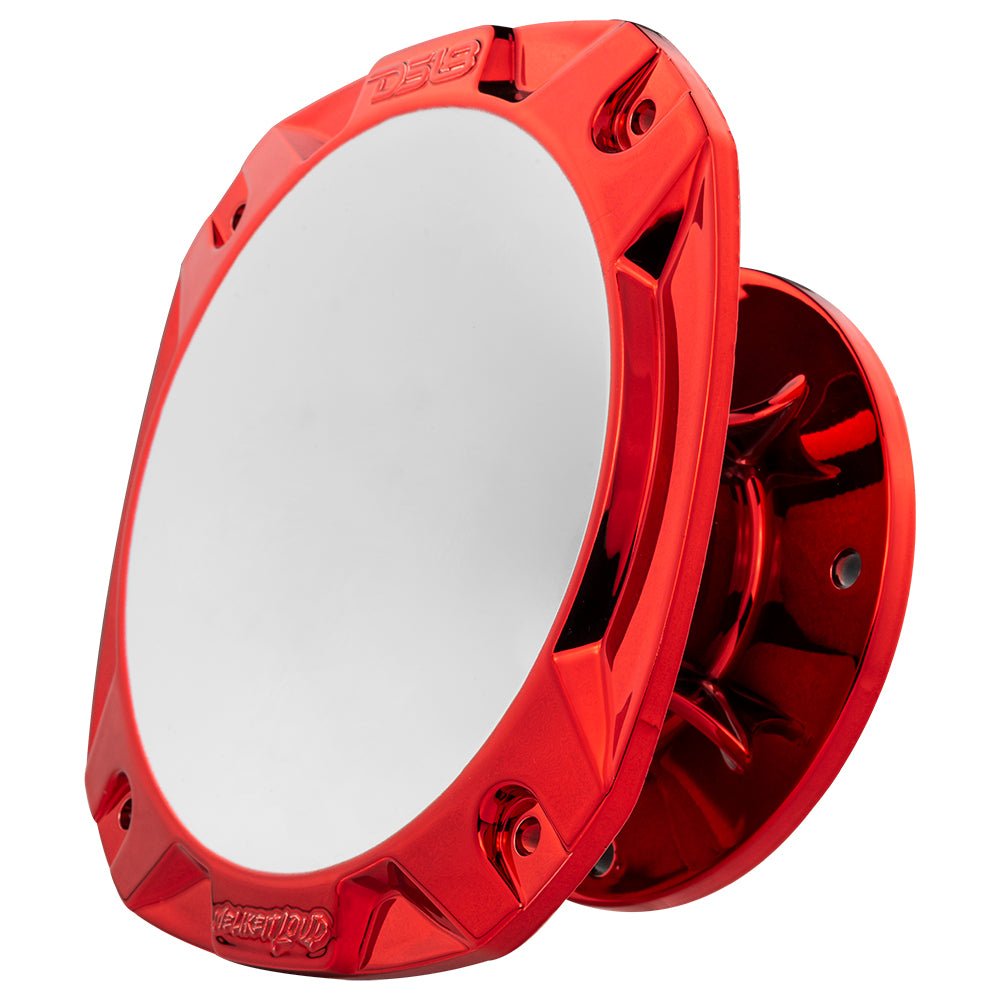

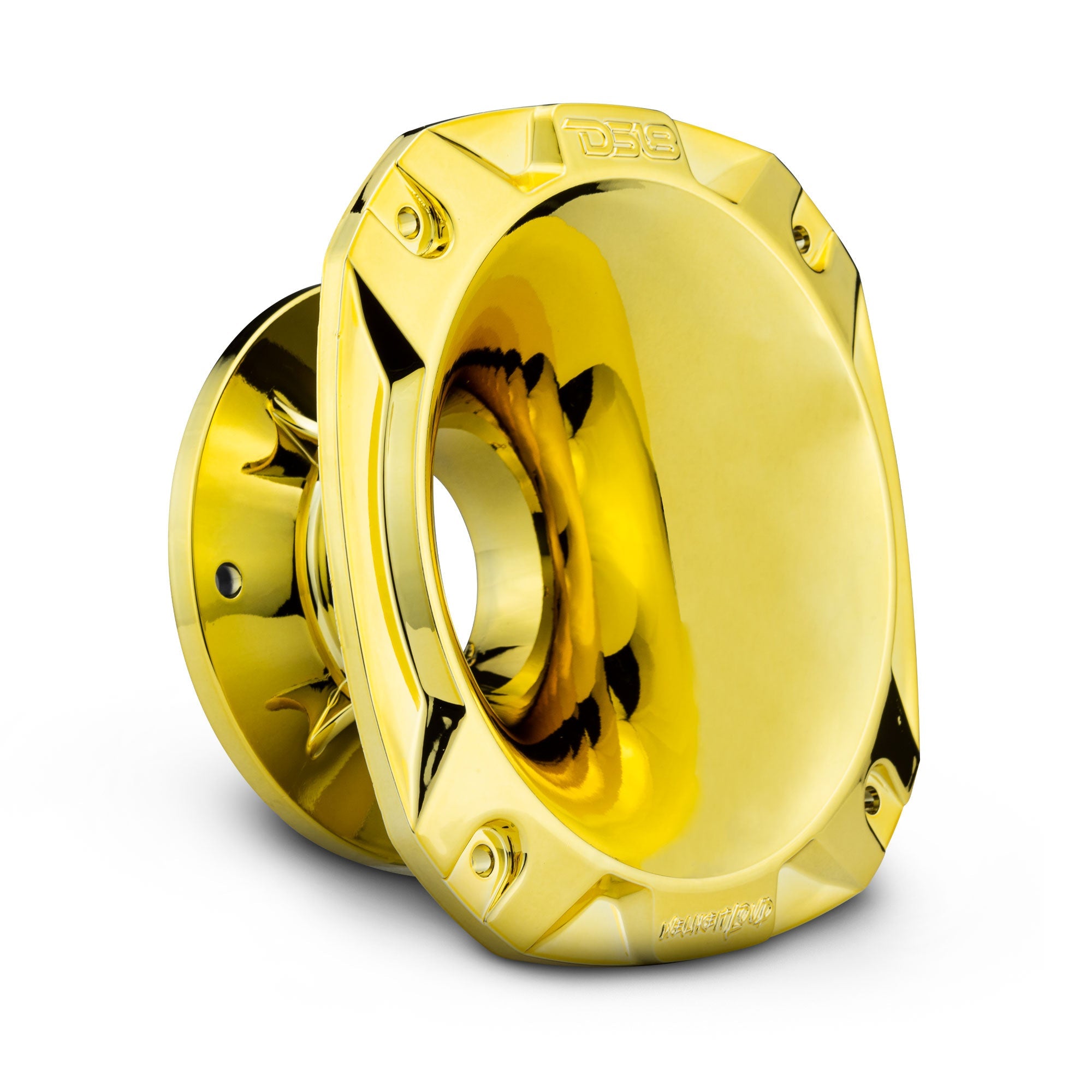

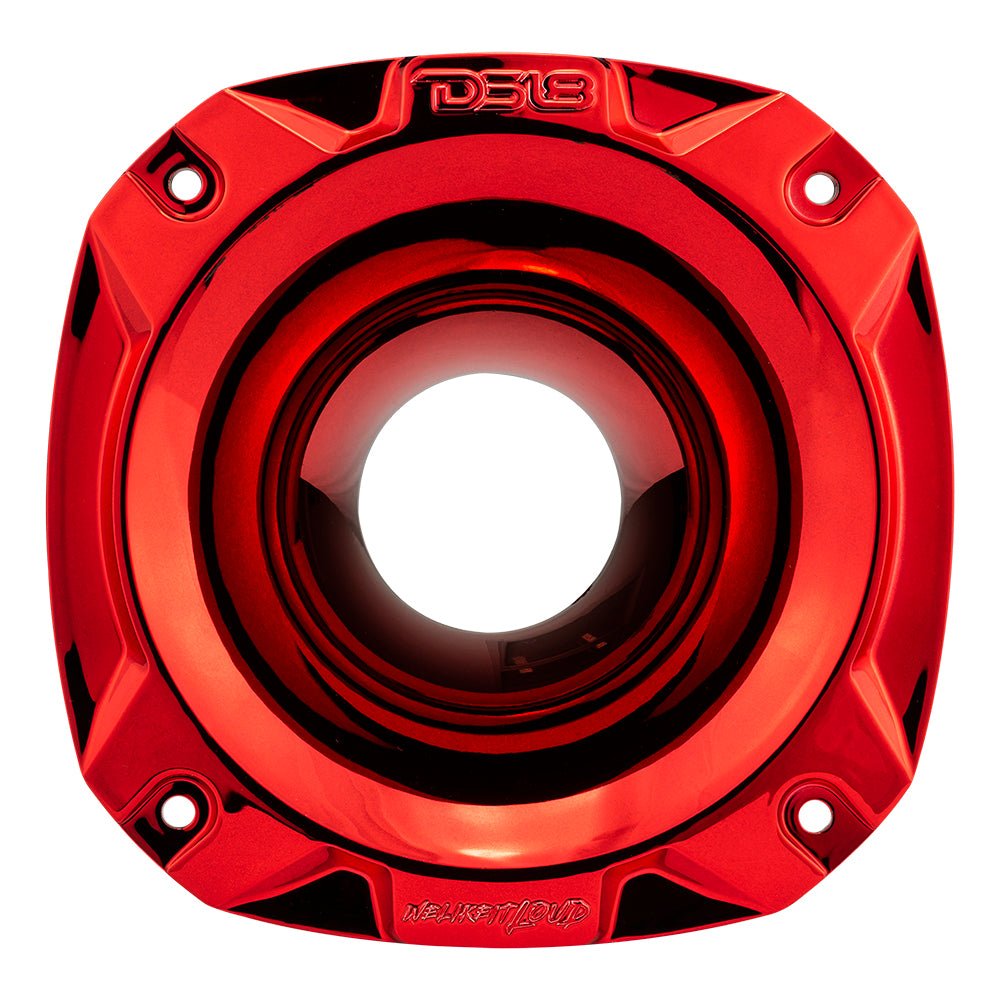

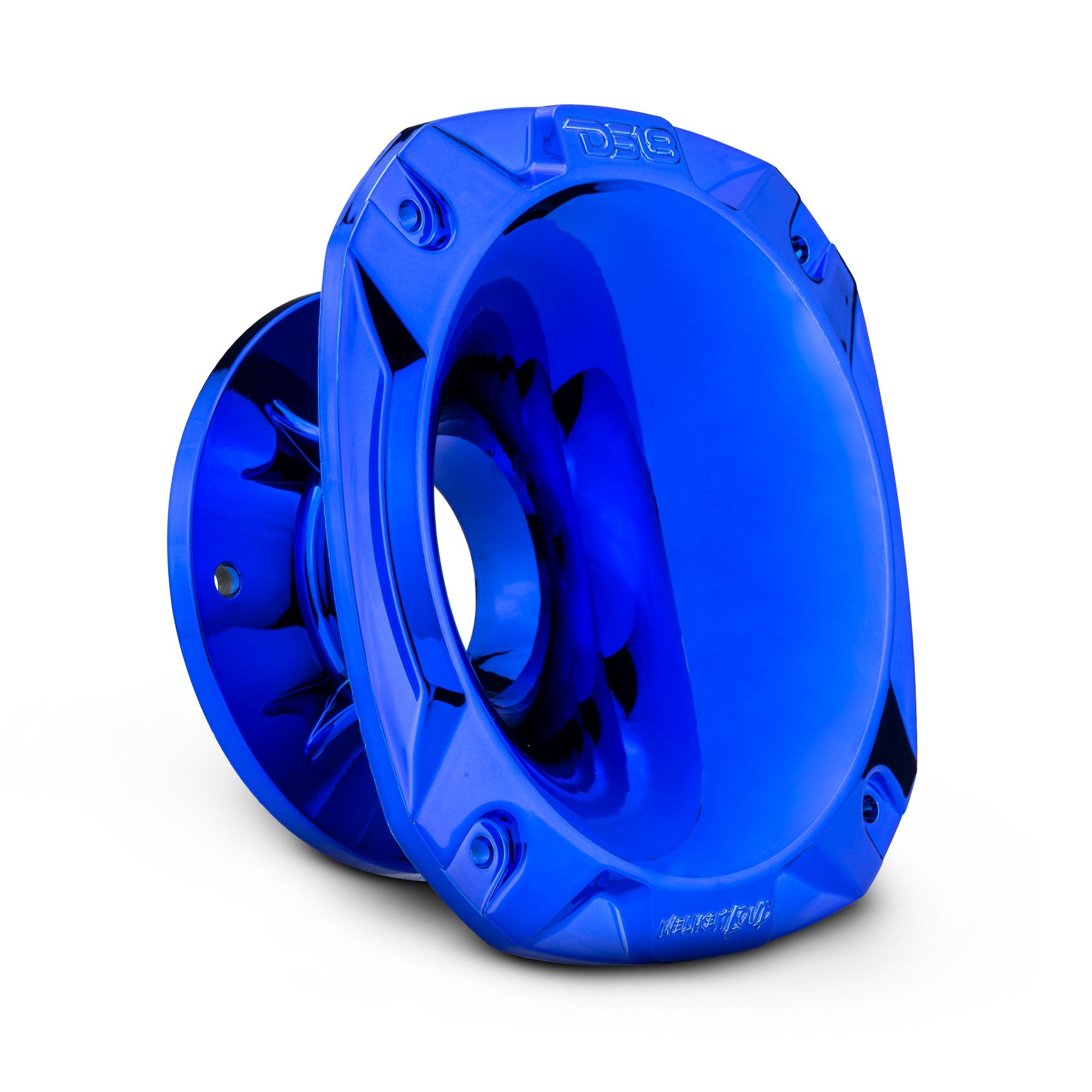

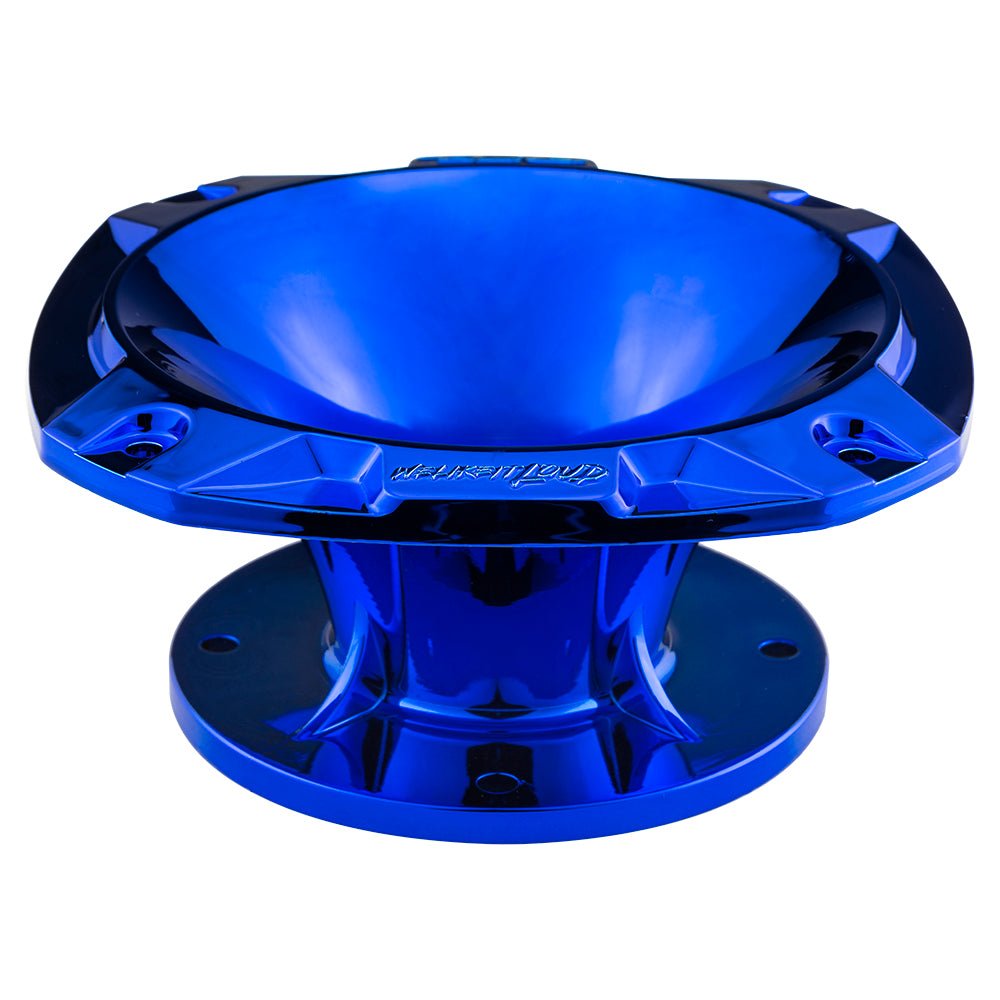

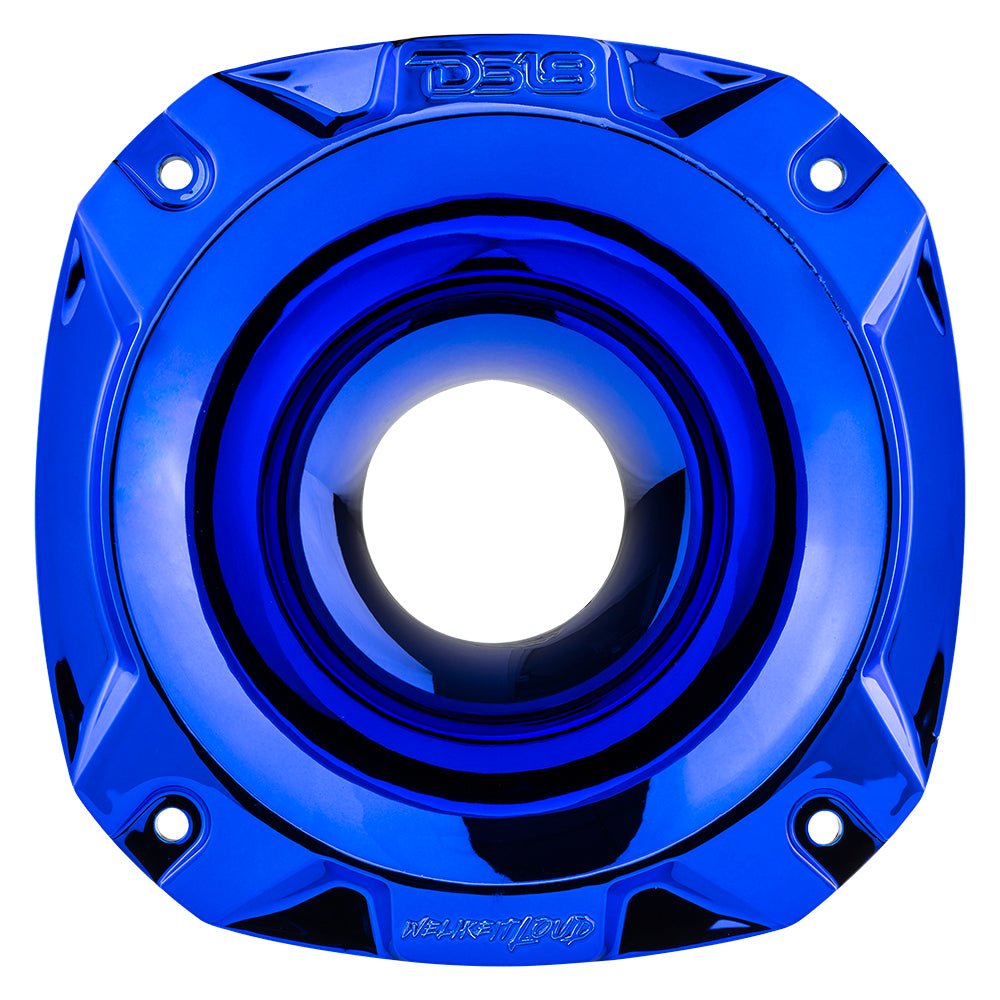

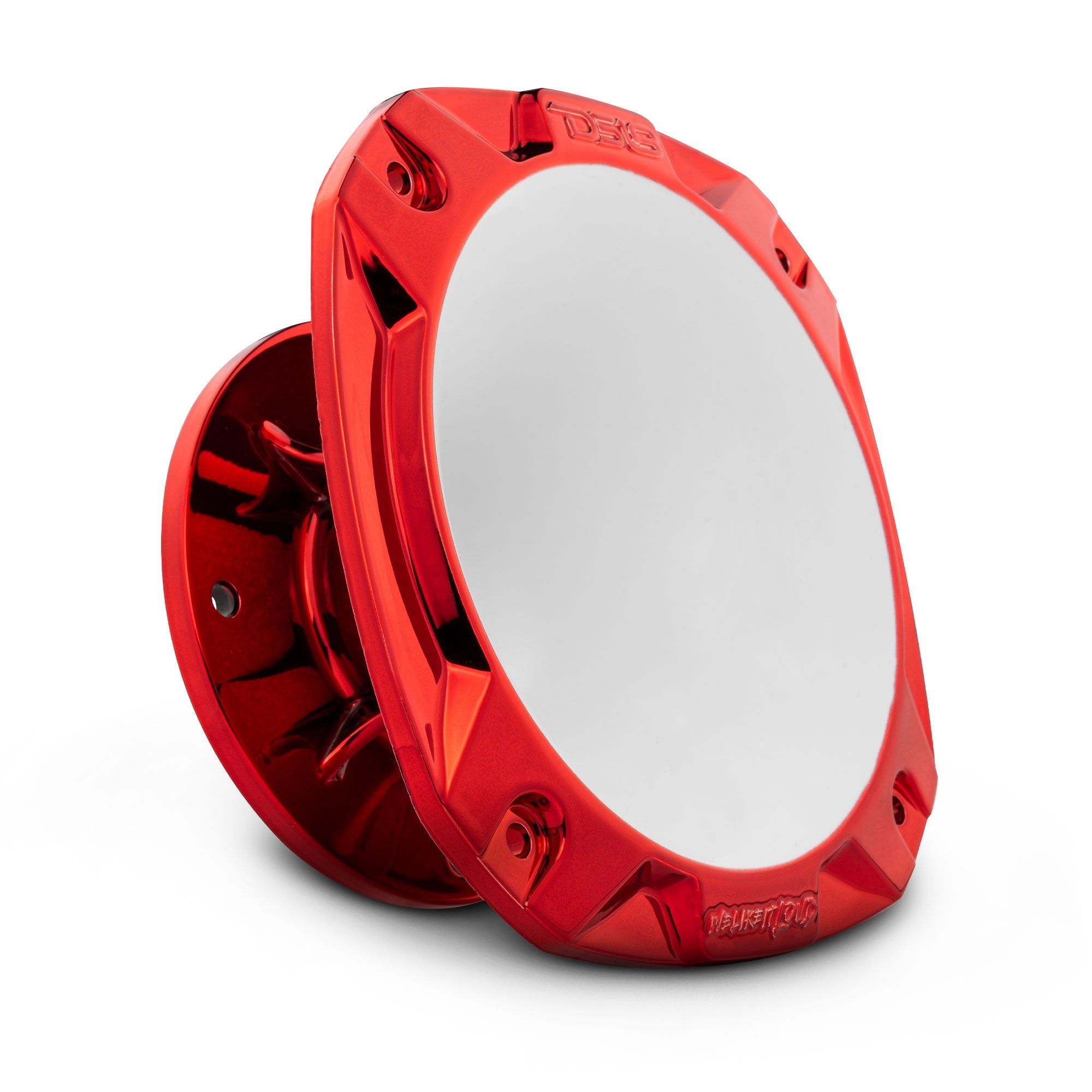

To give your system a more polished look, DS18 is offering the PRO-HP52 in five unique colors: Black, Chrome Blue, Chrome Gold ,Chrome Red and Chrome Red/White.

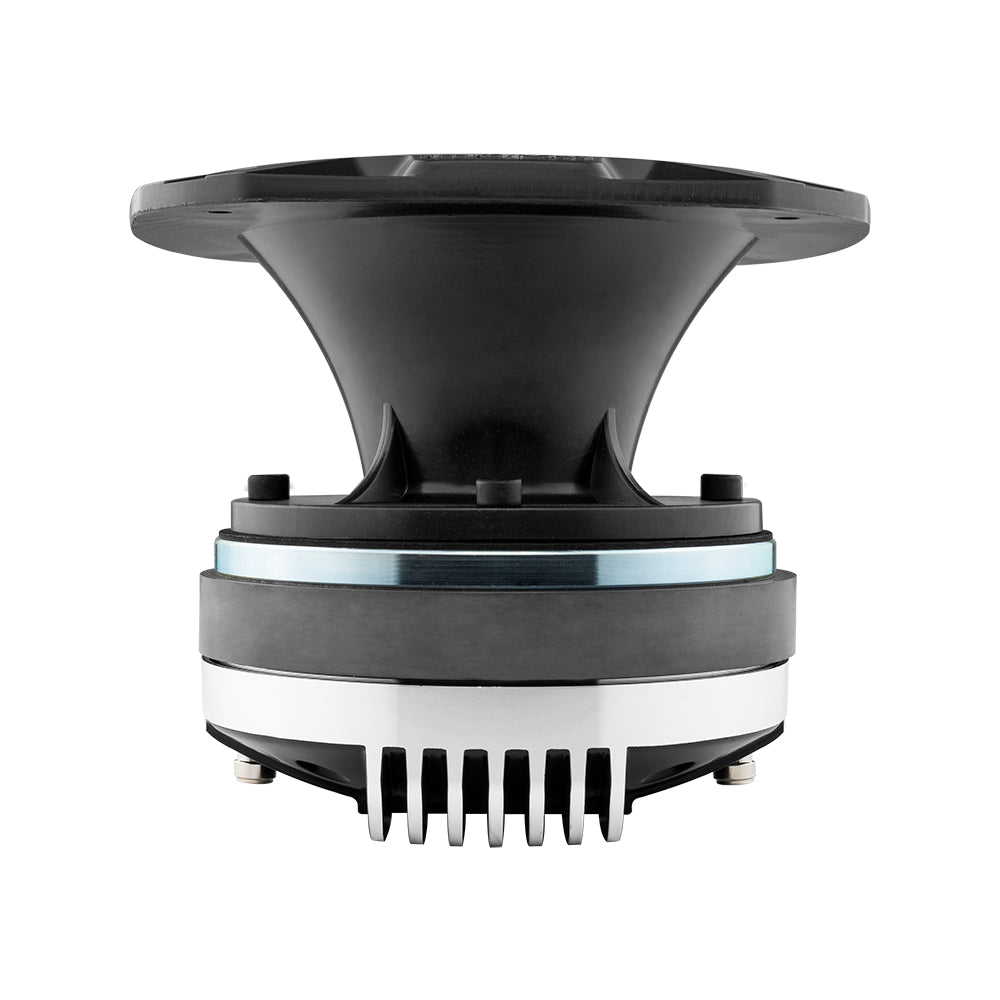

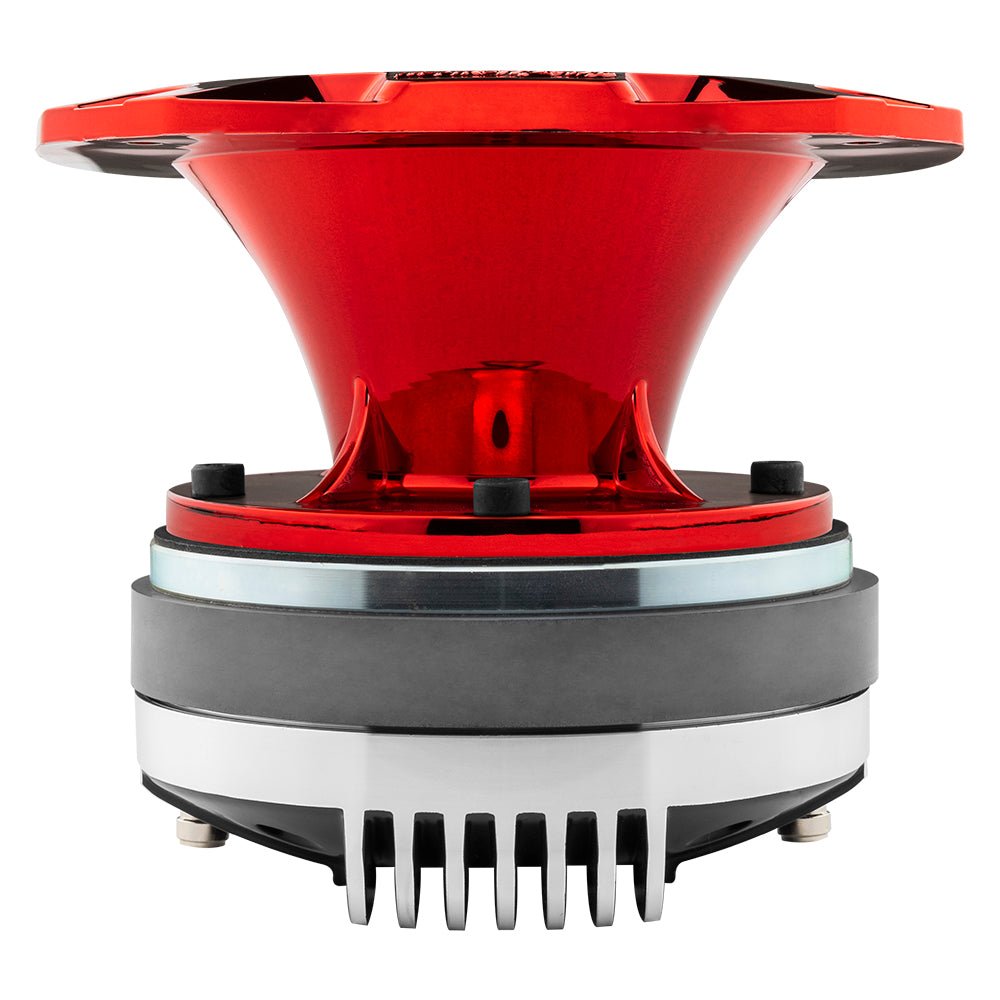

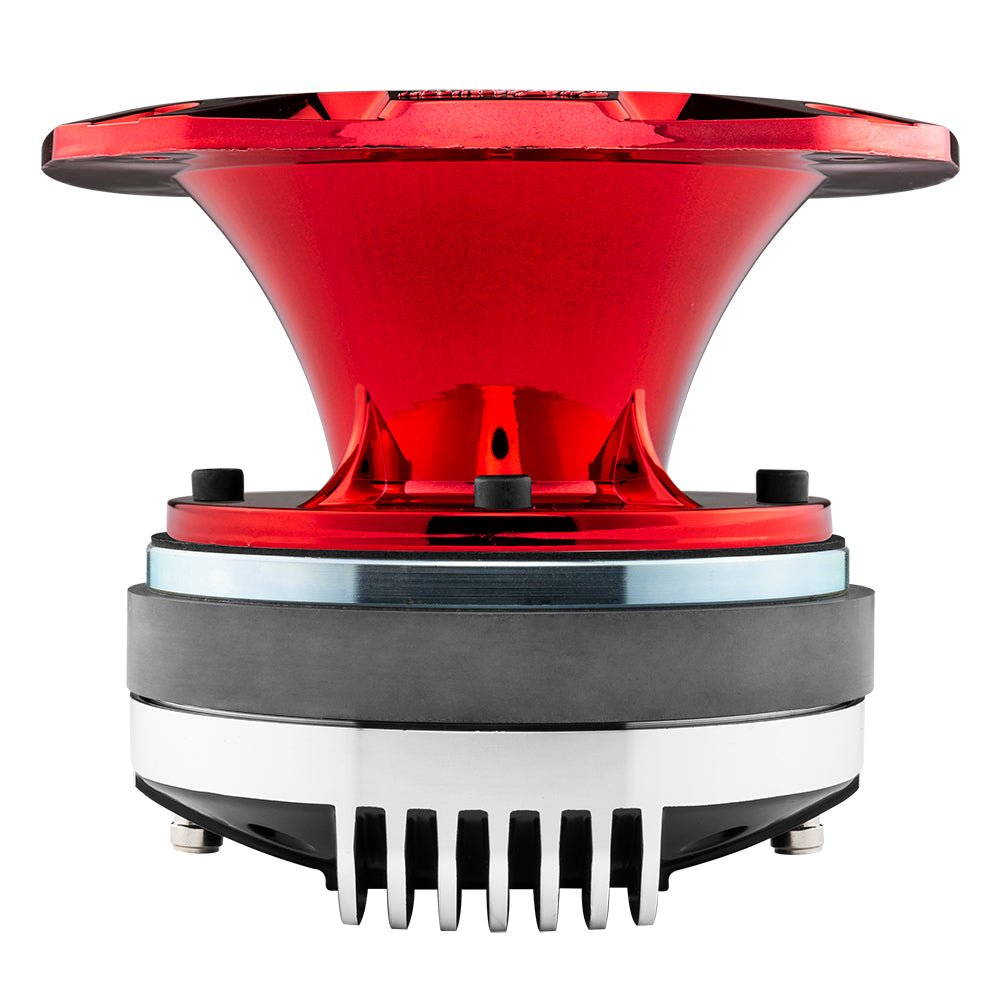

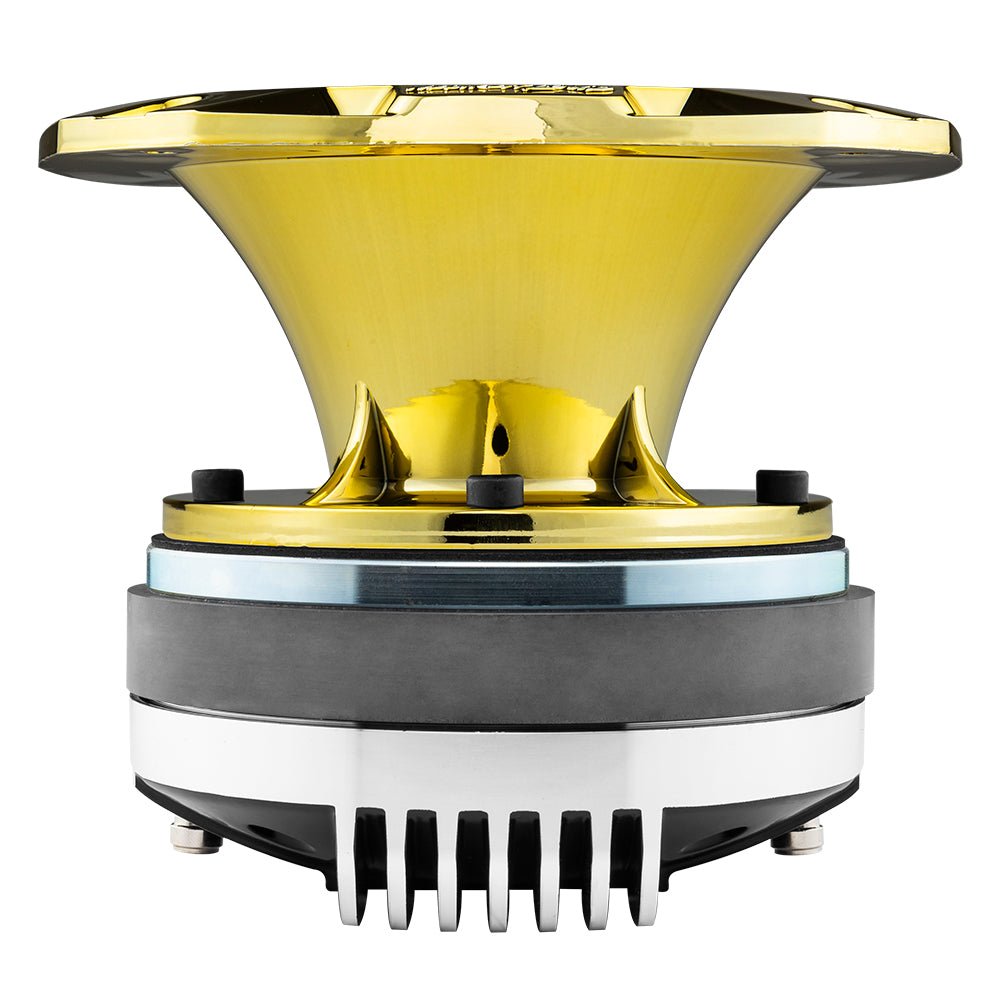

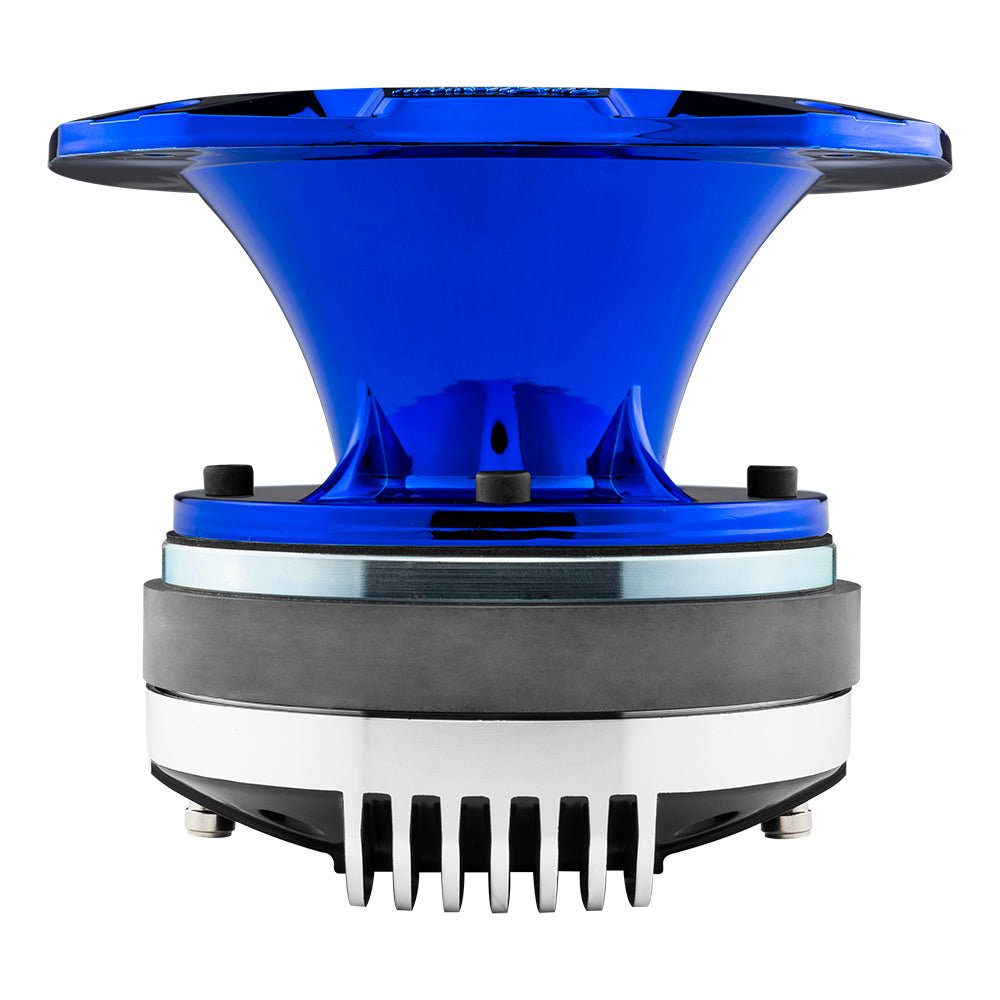

This bolt on throat requires a 4-bolt pattern on your driver to be installed correctly.

Never sacrifice your systems space for directional sound again with the PRO-HP52!

Highlights

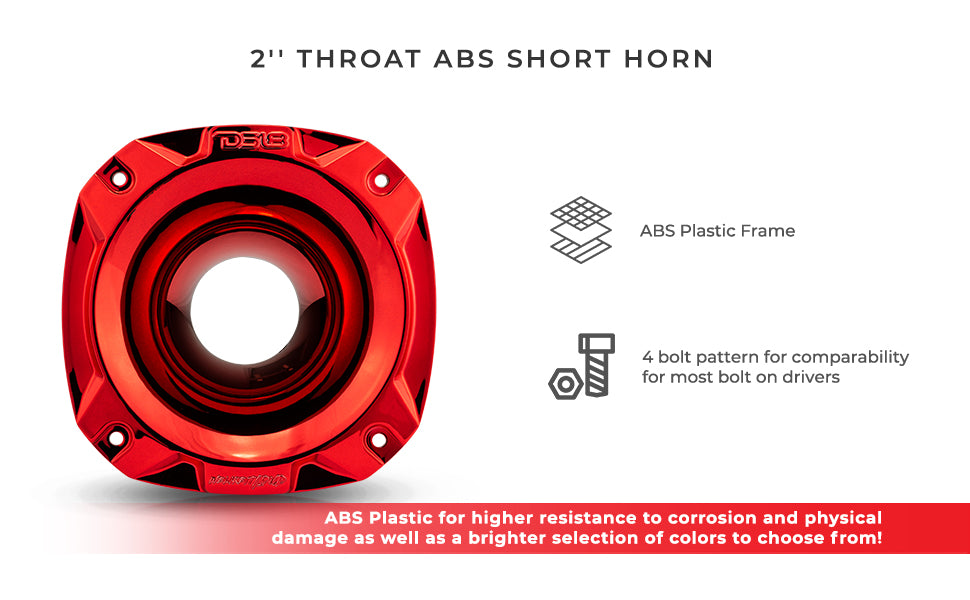

  • ABS Plastic Frame
  • Shorter style horn to save mounting depth space but still get tons of directional volume
  • 4 bolt pattern for comparability for most bolt on drivers

 Great For

  • Stunt Walls

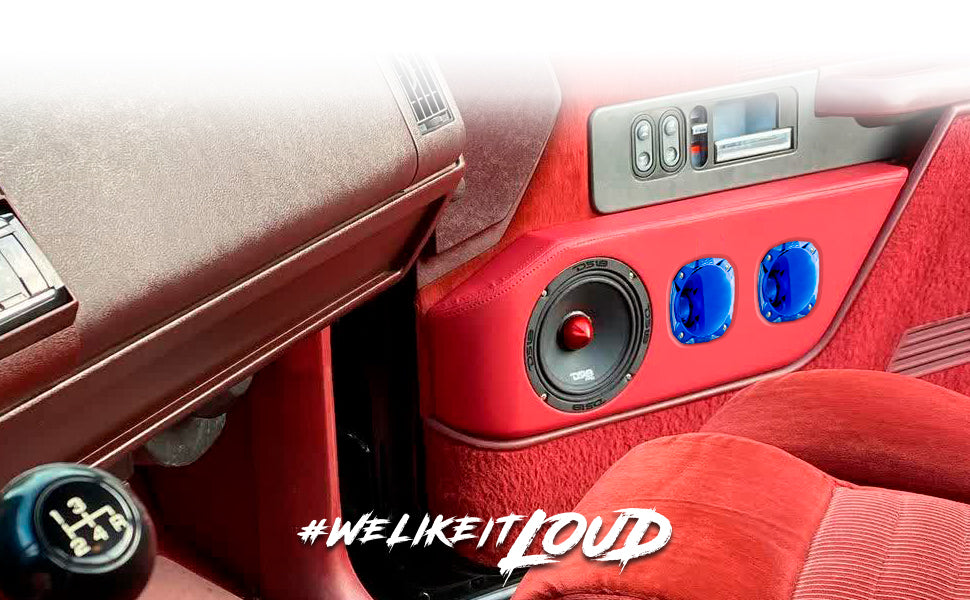

  • Car Audio

    Technical Details
    PRO-HP52/BK Product Manual



    Installation Type Bolt-on
    Throat Diameter: 2 / 50.8mm
    Nominal Horn Diameter: 6.5
    Sound Coverage: 57° Rounded

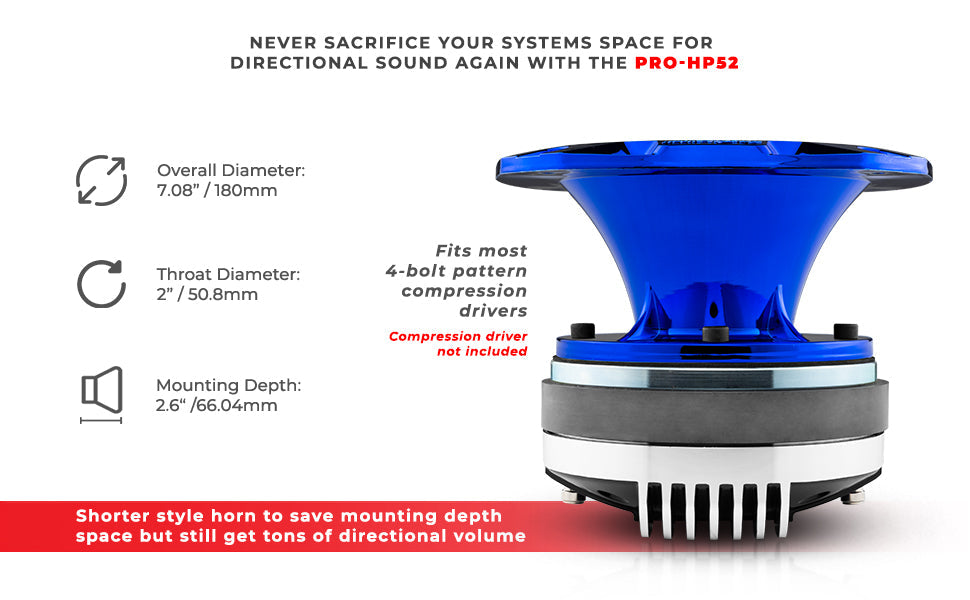

    Measurements:
    Overall Diameter: 7.08 / 180mm
    Overall Depth: 2.96" / 75.25mm
    Mounting Depth: 2.6 /66.04mm
    Driver Bolt Pattern: 4.05/ 102mm x 4-0.26 / 6.8mm
    Mounting Bolt Pattern: 6.3 / 161mm x 4- 0.21 / 5.5mm
    Mounting Hole Diameter: 5.43" / 138mm

    Key Features

    • 2" Bolt On Horn
    • 57° Sound Coverage
    • Shallow
    • 2.61" Depth
    • Plastic
    • Multiple Colors


    Specifications

    SKU PRO-HP52
    Nominal Diameter 6.5" / 165mm
    Throat Diameter 2" / 50.8mm
    Installation Type Bolt-On
    Sound Coverage 57° Rounded
    Body Material Plastic ABS
    Color Black - Chrome Blue - Chrome Gold - Chrome Red - Chrome Red/White
    Overall Diameter 6.4" / 162.5mm
    Overall Depth 2.96" / 75.2mm
    Mounting Depth 2.61" / 66.3mm
    Mounting Hole Diameter 5.43" / 138mm
    Bolt Pattern (Horn) 6.33" / 161mm x 4-0.21" / 5.5mm
    Bolt Pattern (Driver) 4" / 102mm x 4-0.26" / 6.8mm
    Gross Single Unit Weight (lb) 0.5
    Single Unit Box Dimensions W x L x H (Inches) 6.75 x 6.75 x 3.5
    Quantity of Units in Master Carton 30
    Gross Master Carton Weight (lb) 22.5
    Master Carton Dimensions W x L x H (Inches) 20.75 x 13.75 x 17.75
