2" Throat Bolt On 27° 10.84" Depth Aluminum Horn
Product Overview DS18 PRO-HA202 2" Throat Bolt On 27° 10.84" Depth Aluminum Horn The PRO-HA202 is a full...
Vendor:
DS18
Manufacturer SKU
PRO-HA202/RD
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $95.95
- $95.95
- Unit price
- per
Subtotal:
$95.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

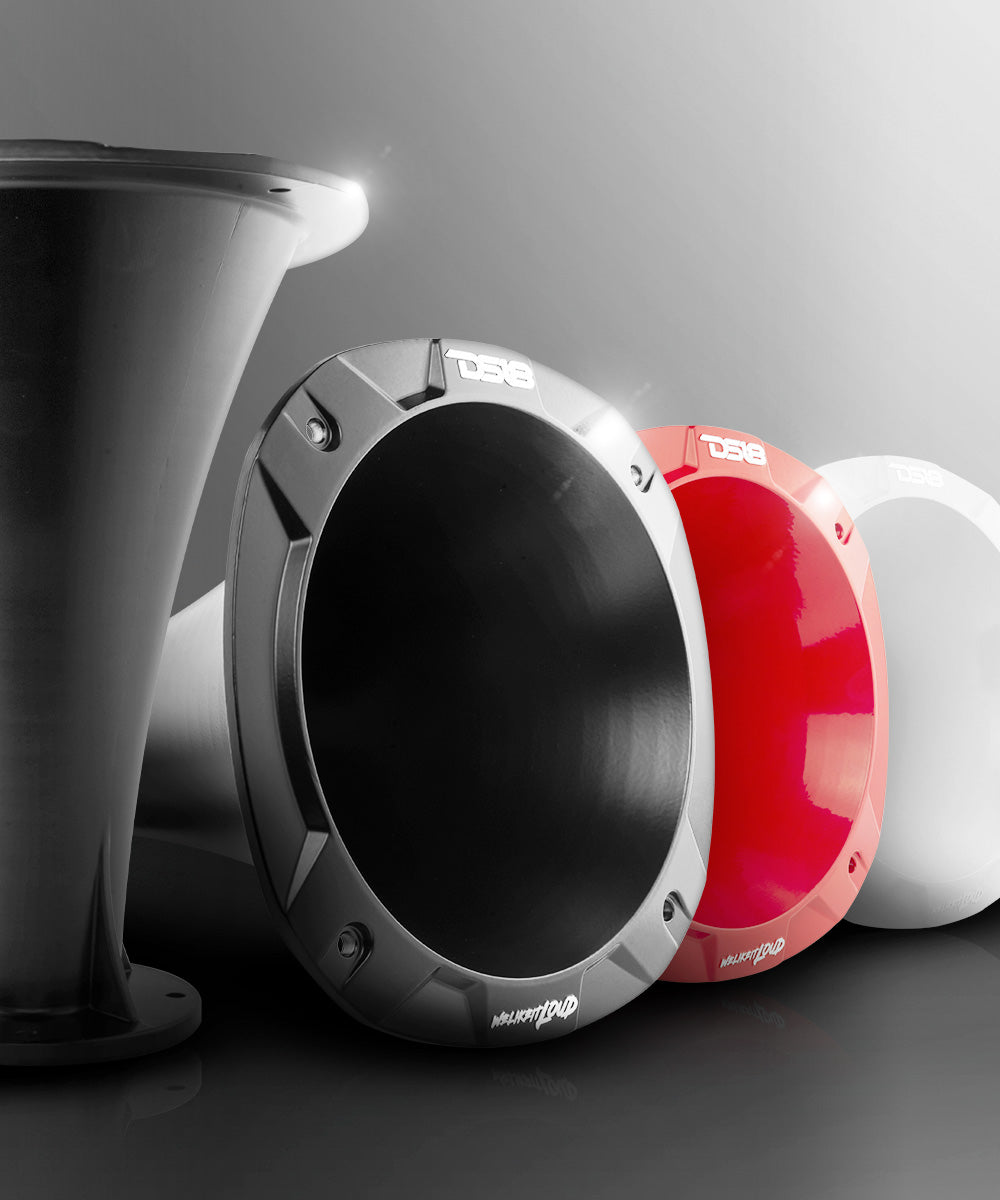

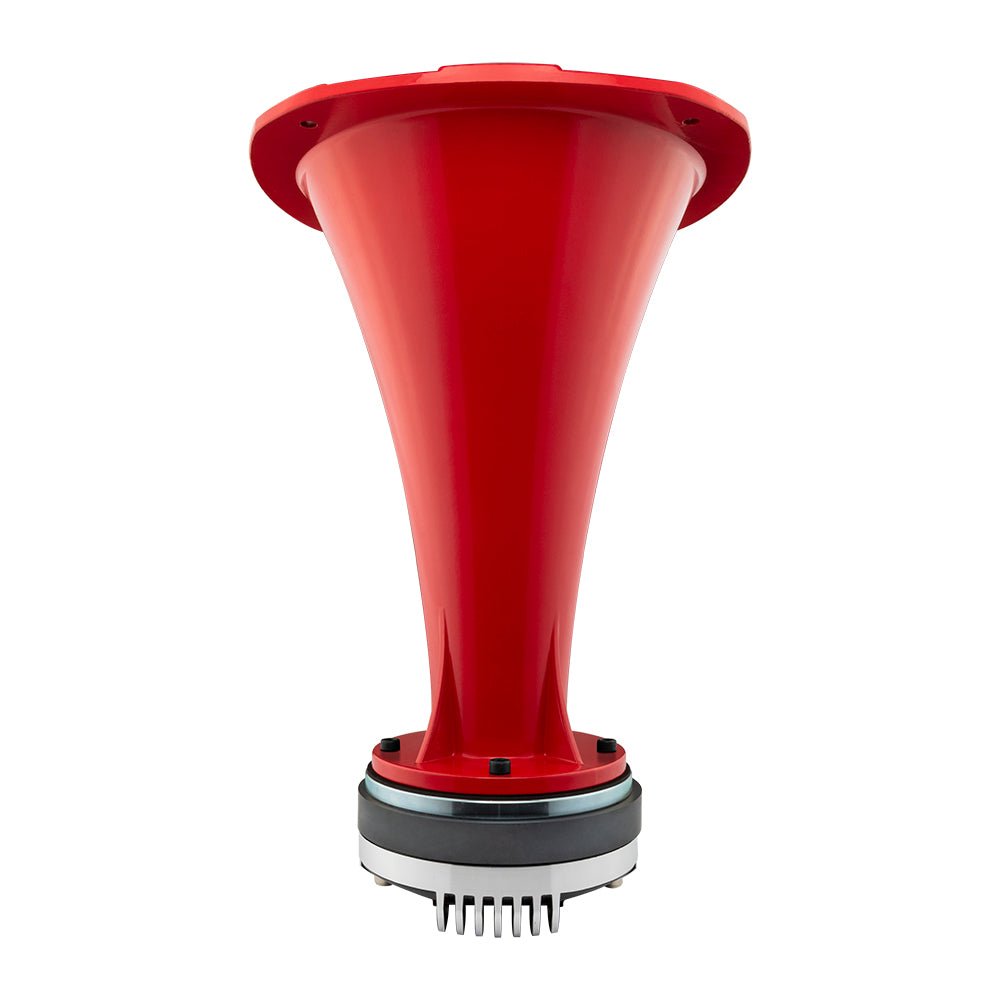

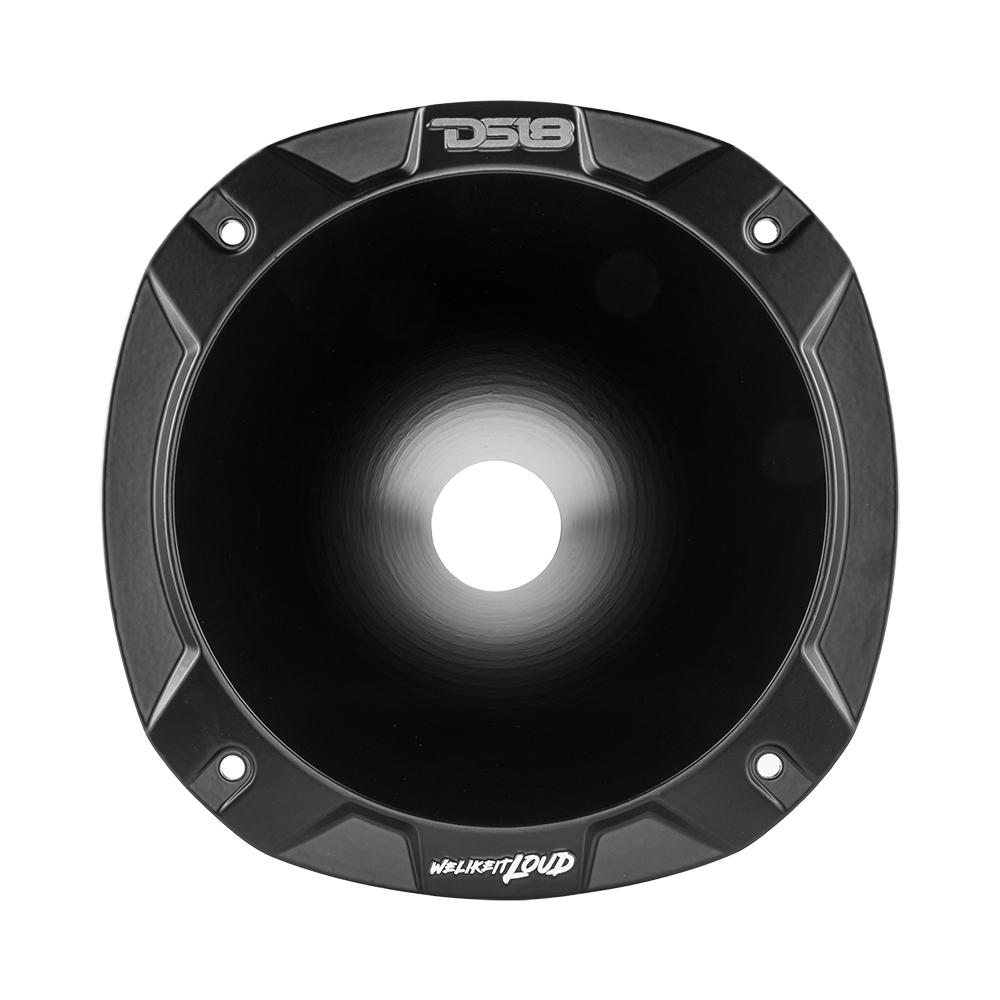

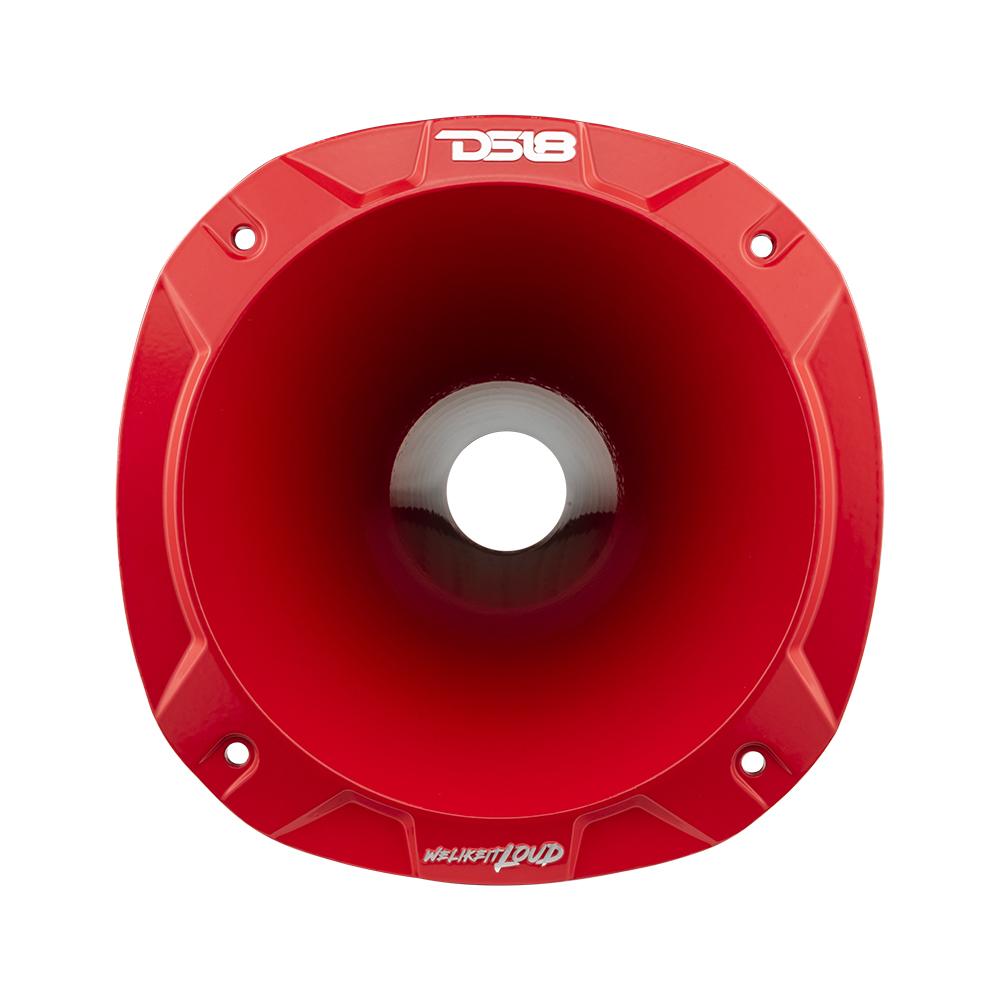

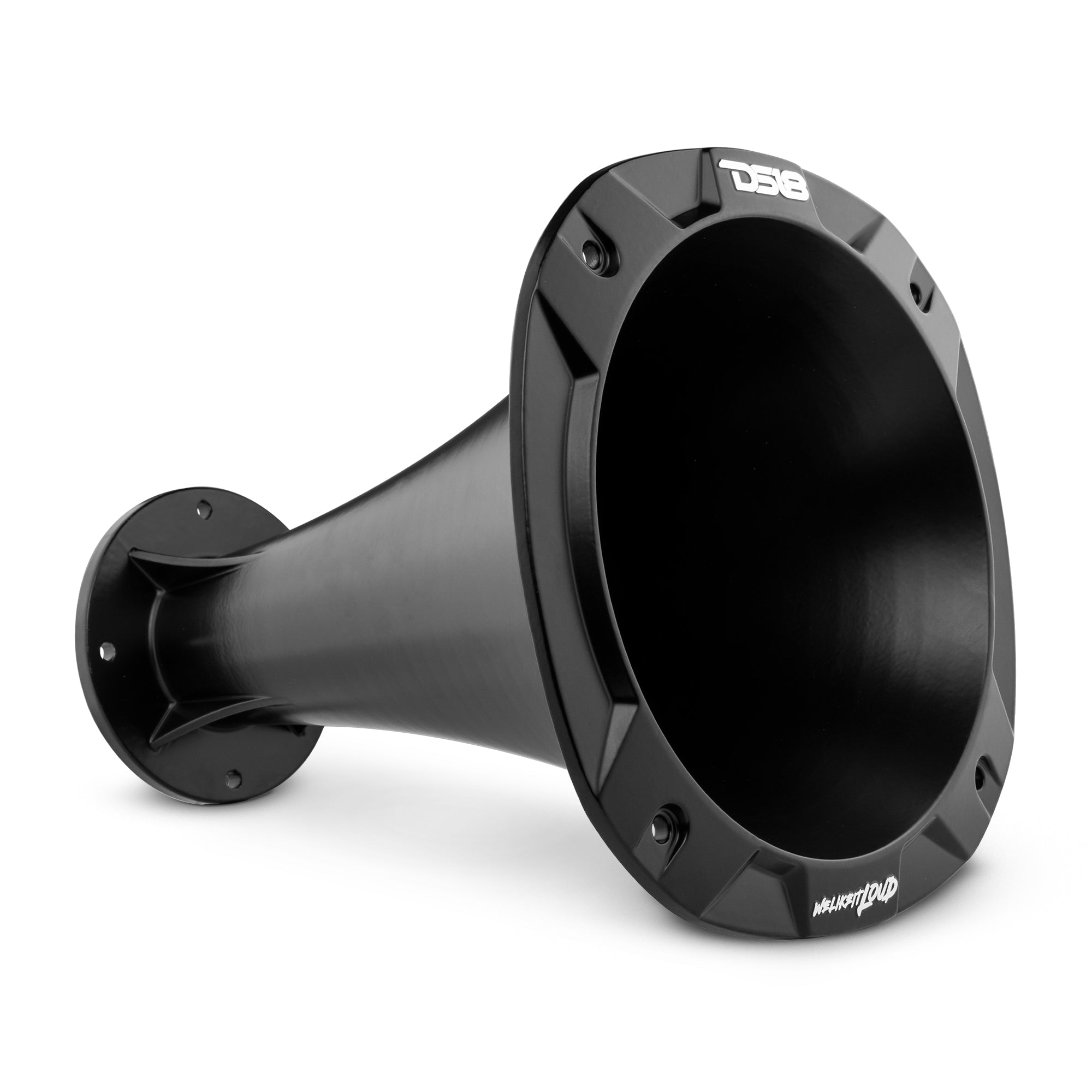

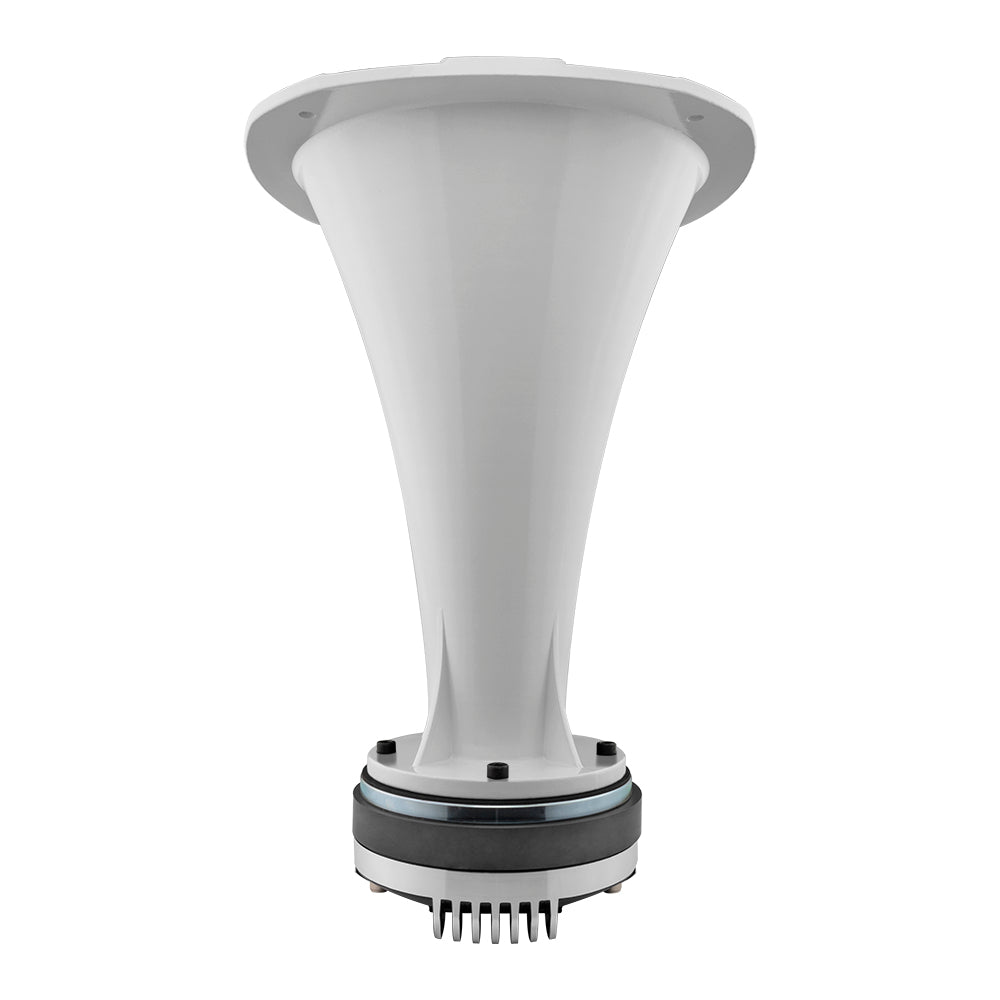

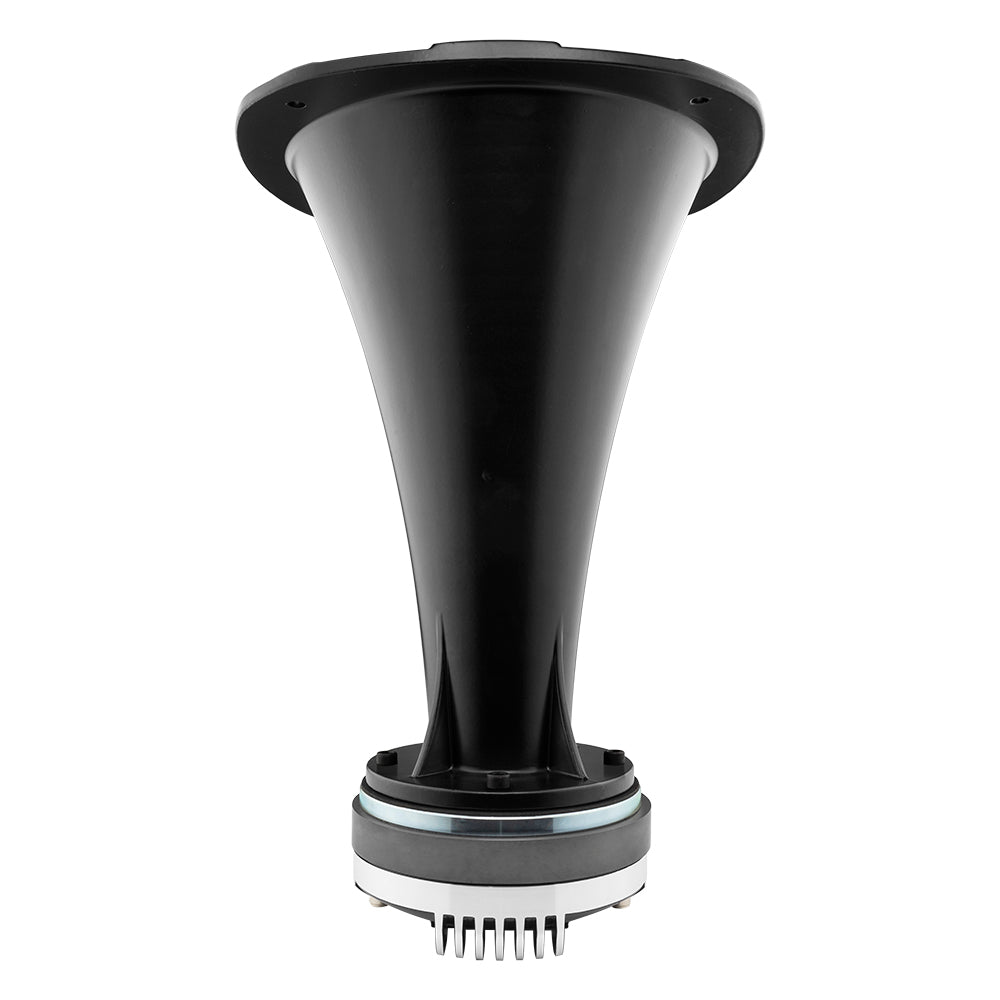

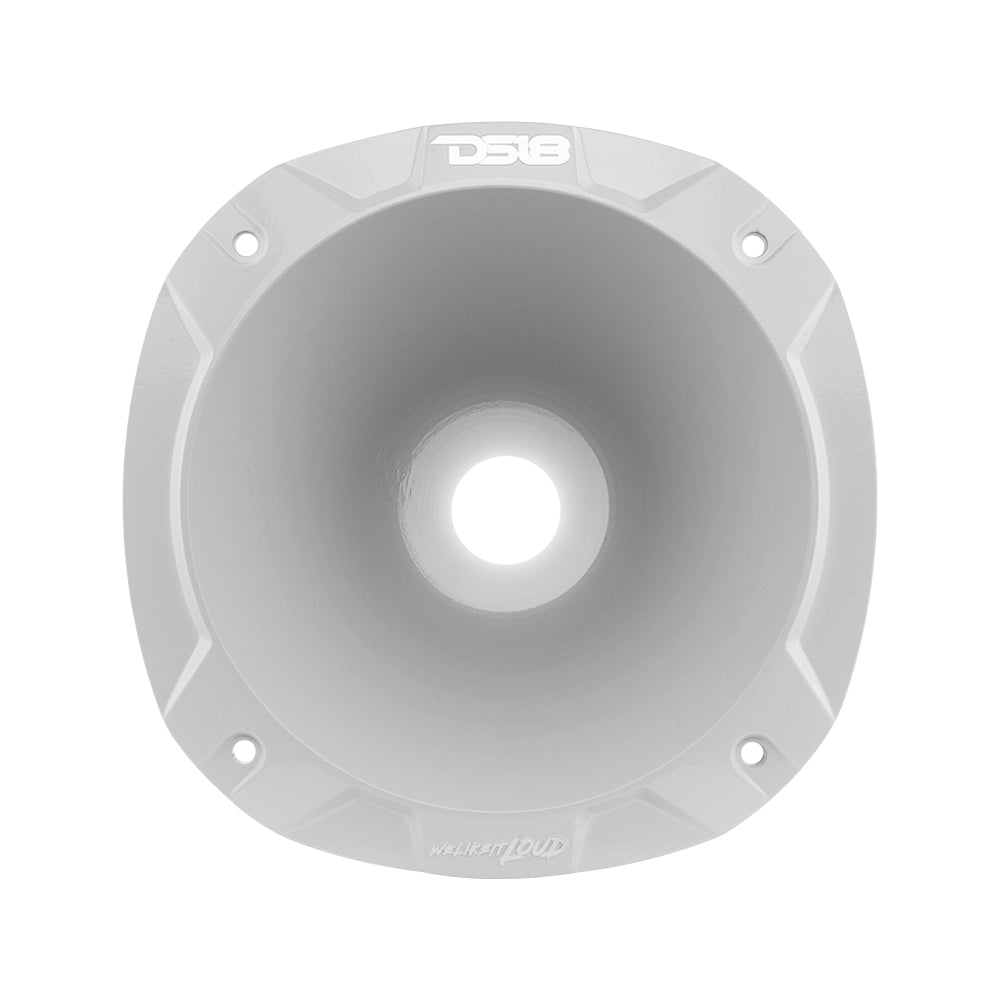

DS18 PRO-HA202 2" Throat Bolt On 27° 10.84" Depth Aluminum Horn
The PRO-HA202 is a full length throat designed to bring you maximum directional volume for your high powered drivers.
This throat has a length of 11.25 inches and an over all diameter of 9.65 inches making it the biggest and most impressive throat available from DS18. This driver throat is the end all of driver throats and will ensure the loudest DB amplification possible all while turning heads because of the sleek and thoughtfully designed look that DS18 takes the utmost pride in.
Technical Details
| Specifications | |
| Installation Type | Bolt-On |
| Throat Diameter | 2" / 50.8mm |
| Nominal Horn Diameter | 8" |
| Sound Coverage | 27° Rounded |
| Measurements | |
| Overall Diameter | 9.69" / 246mm |
| Overall Depth | 11.25’’ / 286mm |
| Mounting Depth | 10.84’’ / 275.336mm |
| Driver Bolt Pattern | 4"/ 102mm x 4-0.26" / 6.8mm |
| Mounting Bolt Pattern | 8.58" / 218mm x 4- 0.21" / 5.5mm |
| Mounting Hole Diameter | 7.95" / 202mm |
Key Features
- 2" Bolt On Horn
- 27° Sound Coverage
- 10.84" Depth
- Aluminum
- Multiple Colors
Specifications
| SKU | PRO-HP202 |
|---|---|
| Installation Type | Bolt-On |
| Throat Diameter | 2" / 50.8mm |
| Nominal Horn Diameter | 8" |
| Sound Coverage | 27° Rounded |
| Colors | Black - Red - White |
| Overall Diameter | 9.69" / 246mm |
| Overall Depth | 11.25’’ / 286mm |
| Mounting Depth | 10.84’’ / 275.336mm |
| Driver Bolt Pattern | 4"/ 102mm x 4-0.26" / 6.8mm |
| Mounting Bolt Pattern | 8.58" / 218mm x 4- 0.21" / 5.5mm |
| Mounting Hole Diameter | 7.95" / 202mm |
| Gross Single Unit Weight (lb) | 4.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 9.25 x 9.25 x 11.75 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight (lb) | 40 |
| Master Carton Dimensions W x L x H (Inches) | 19.5 x 19.5 x 24.25 |
