Product Overview

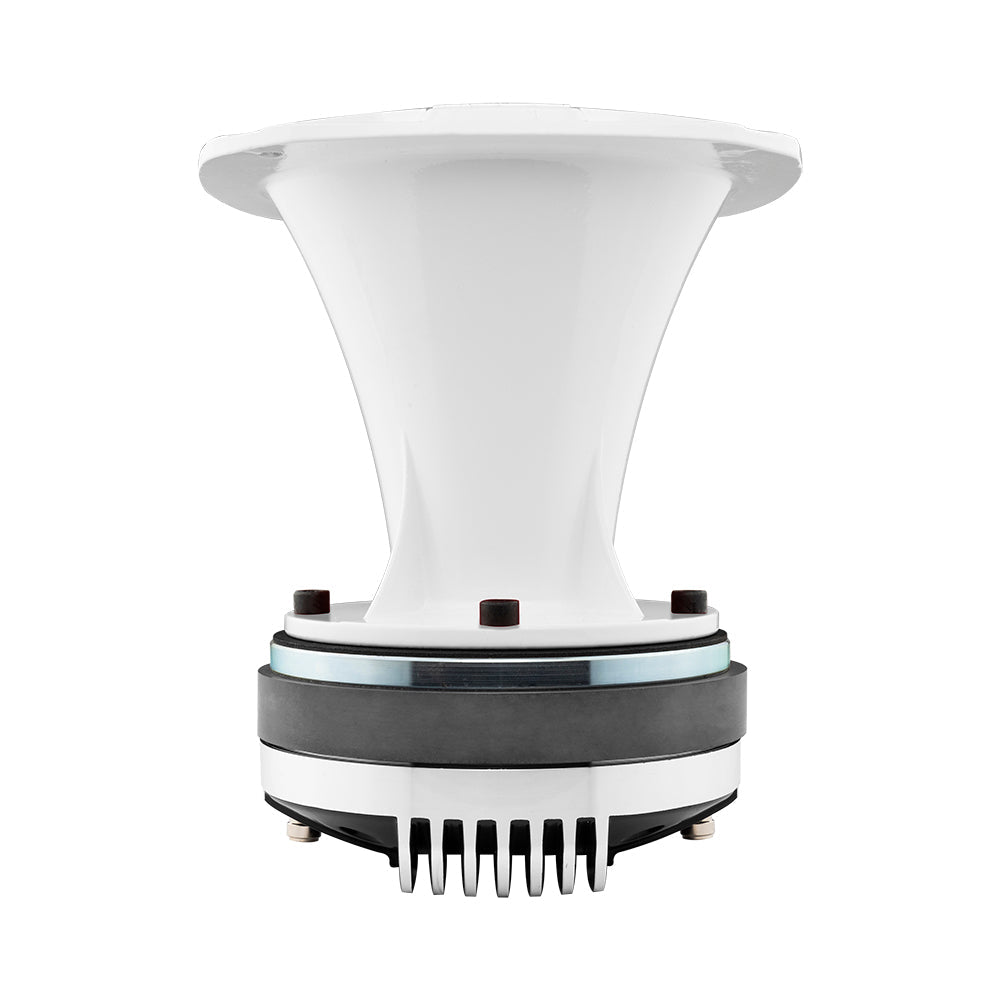

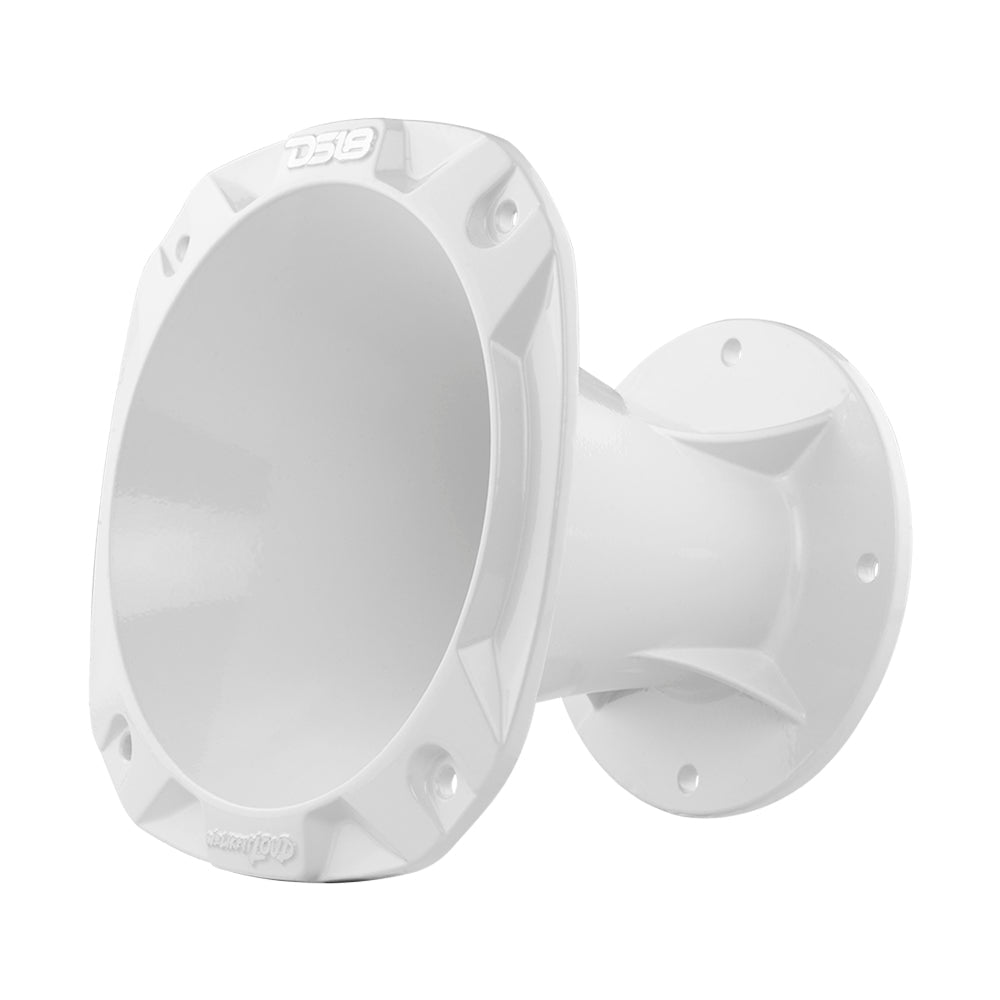

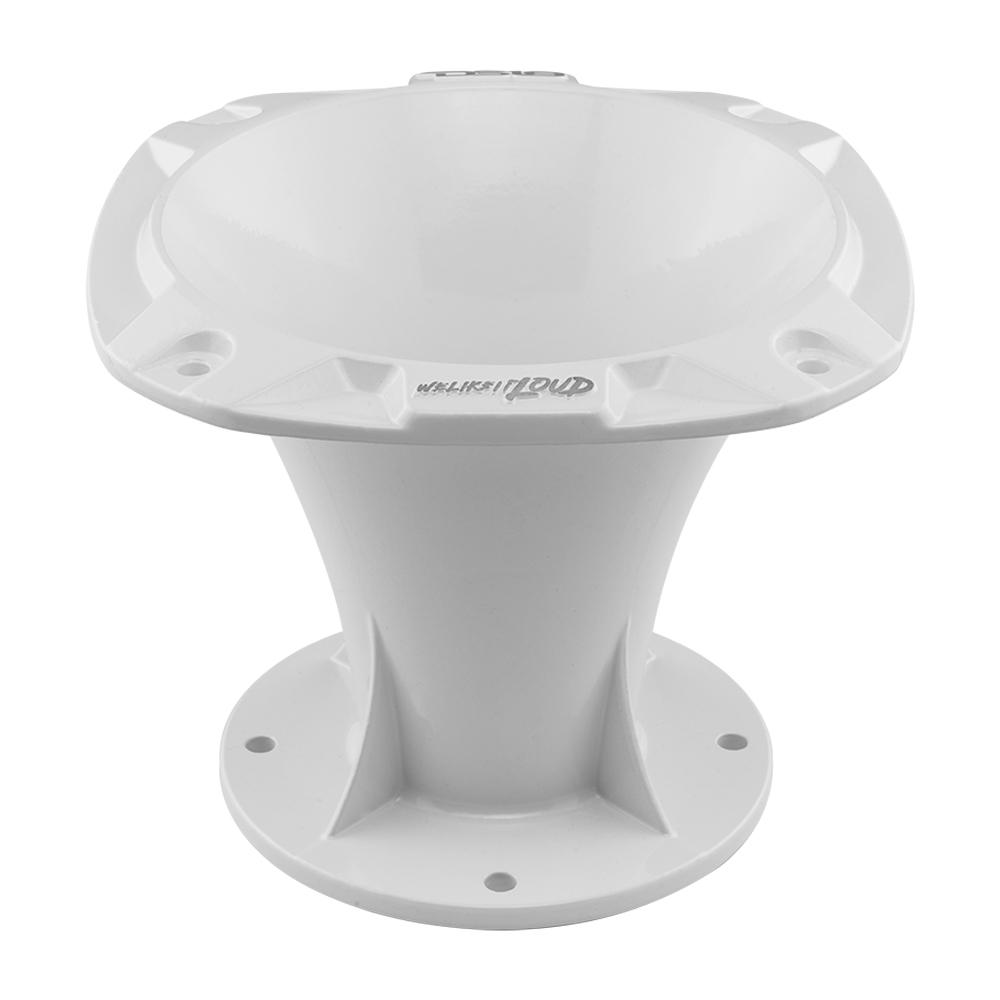

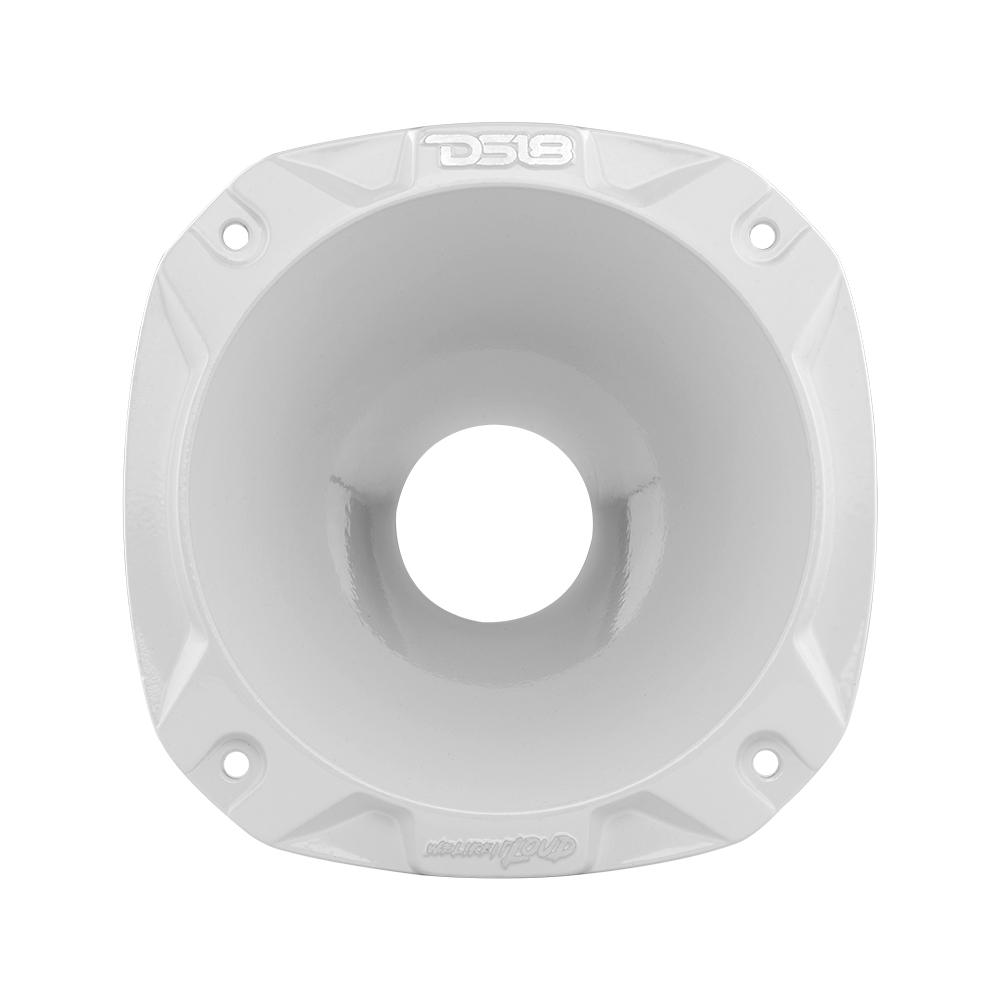

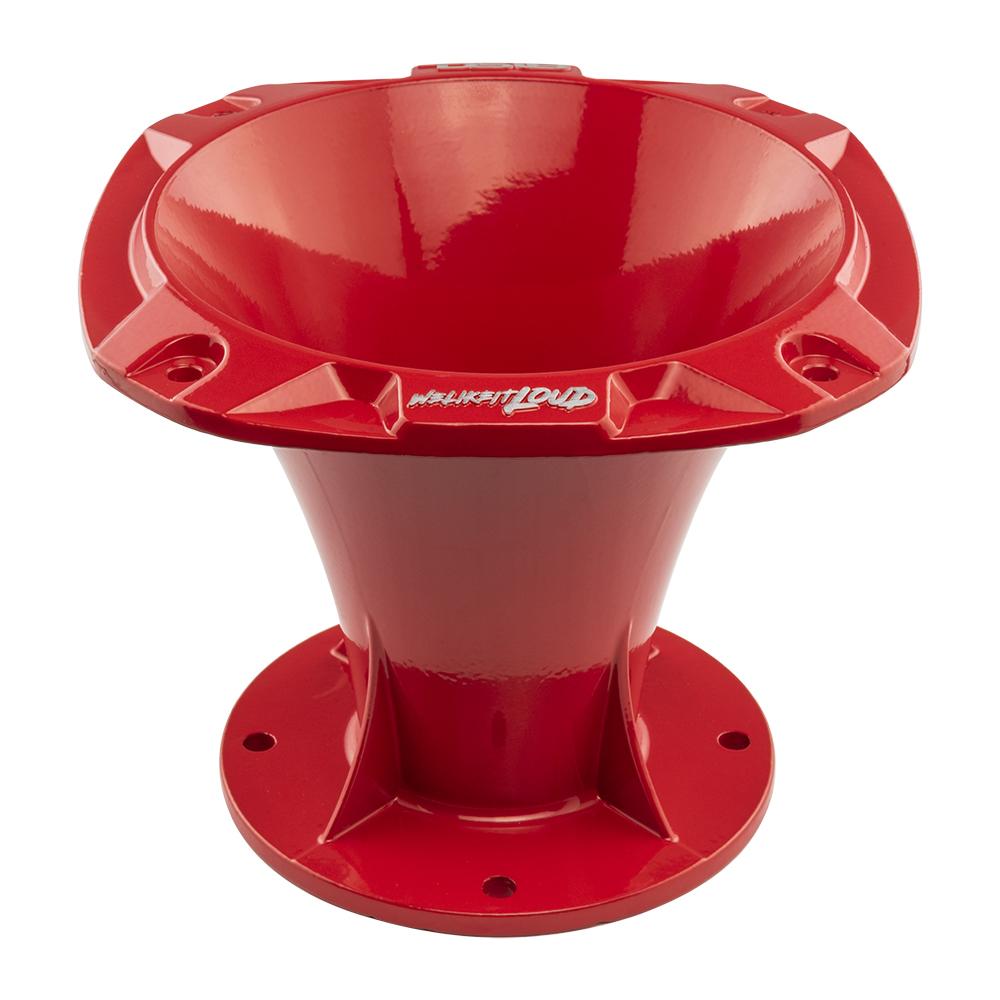

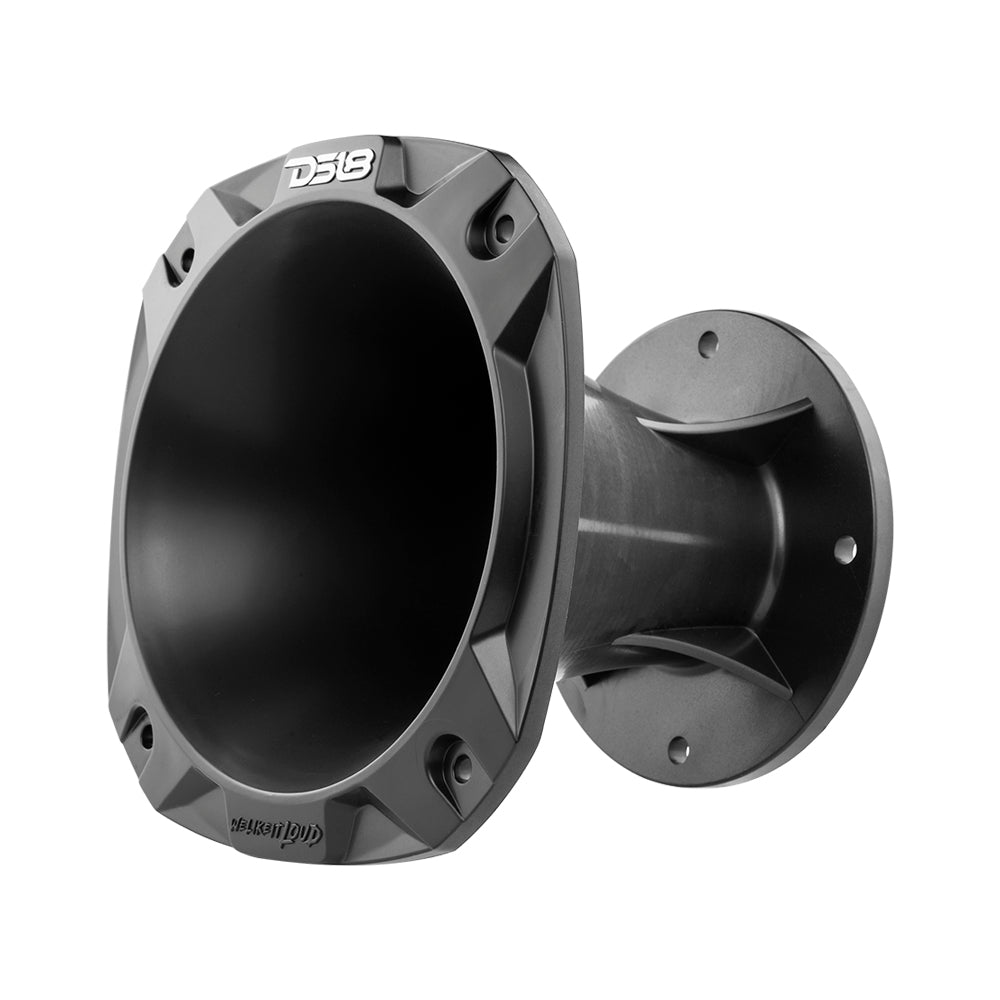

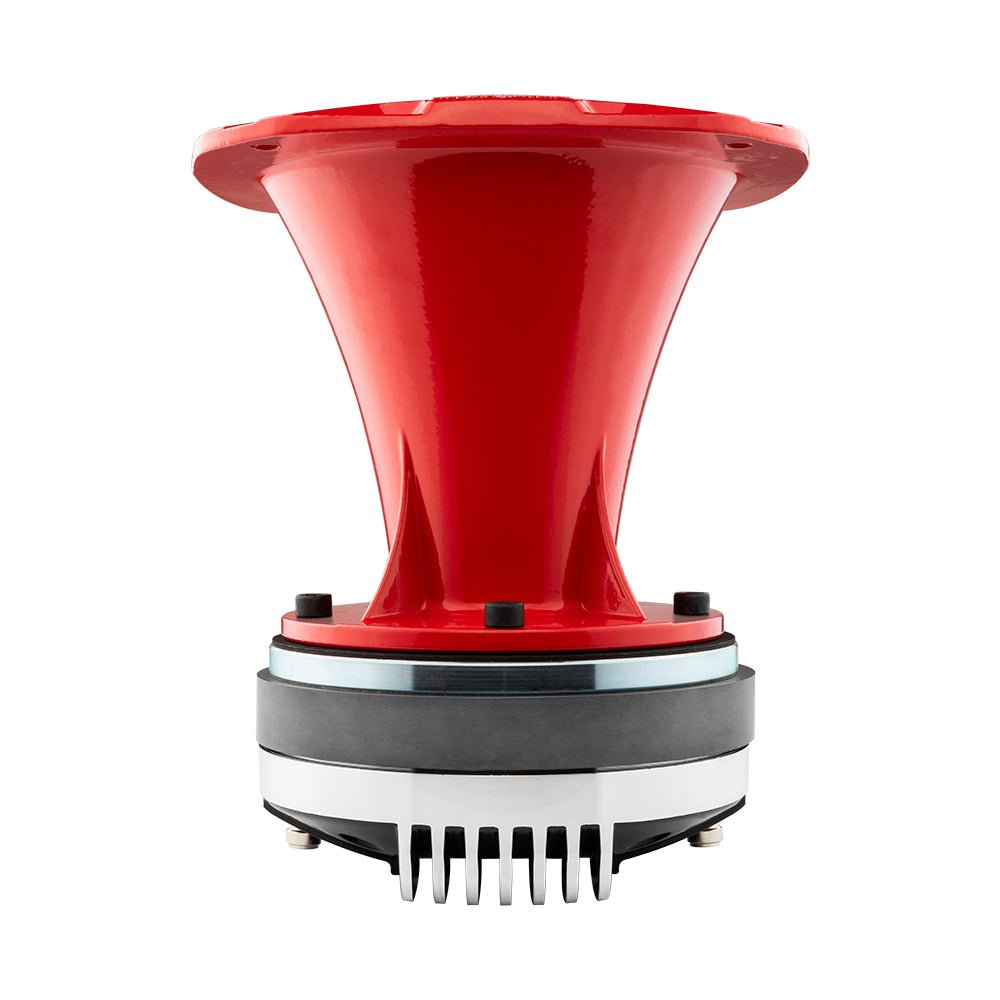

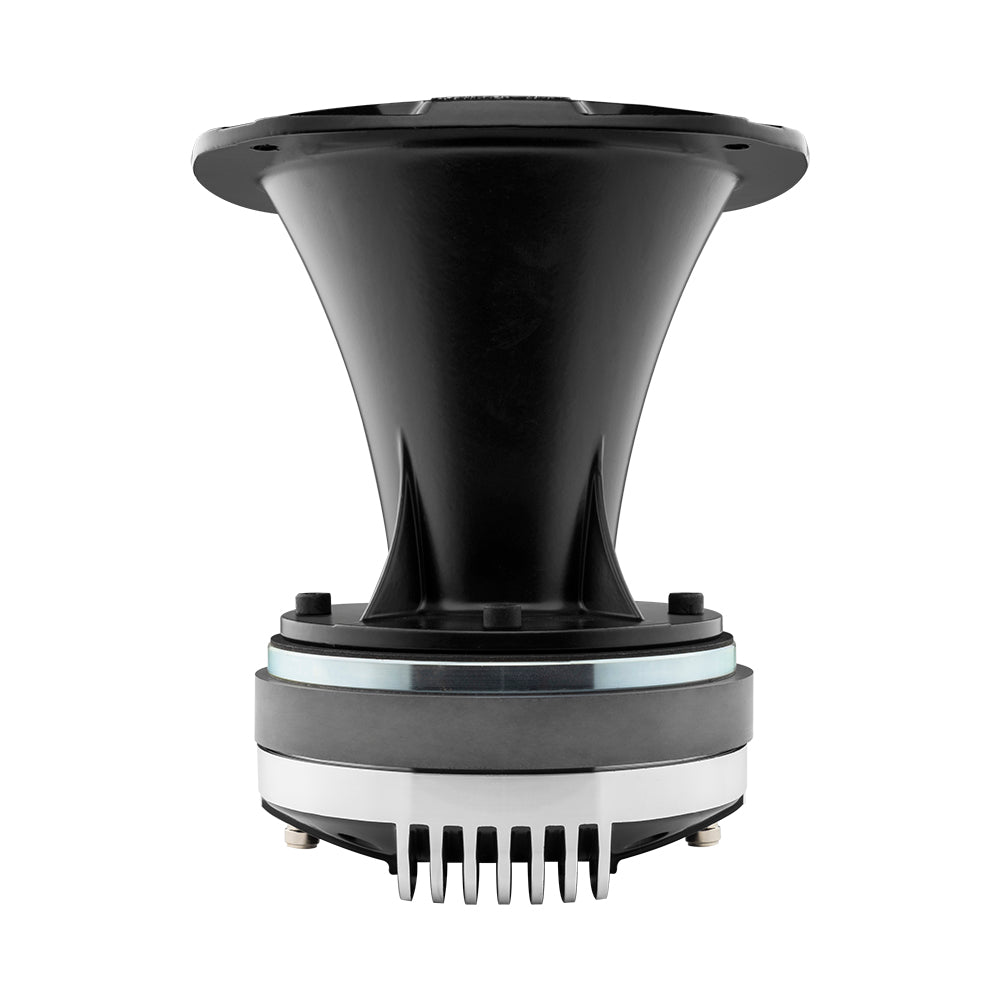

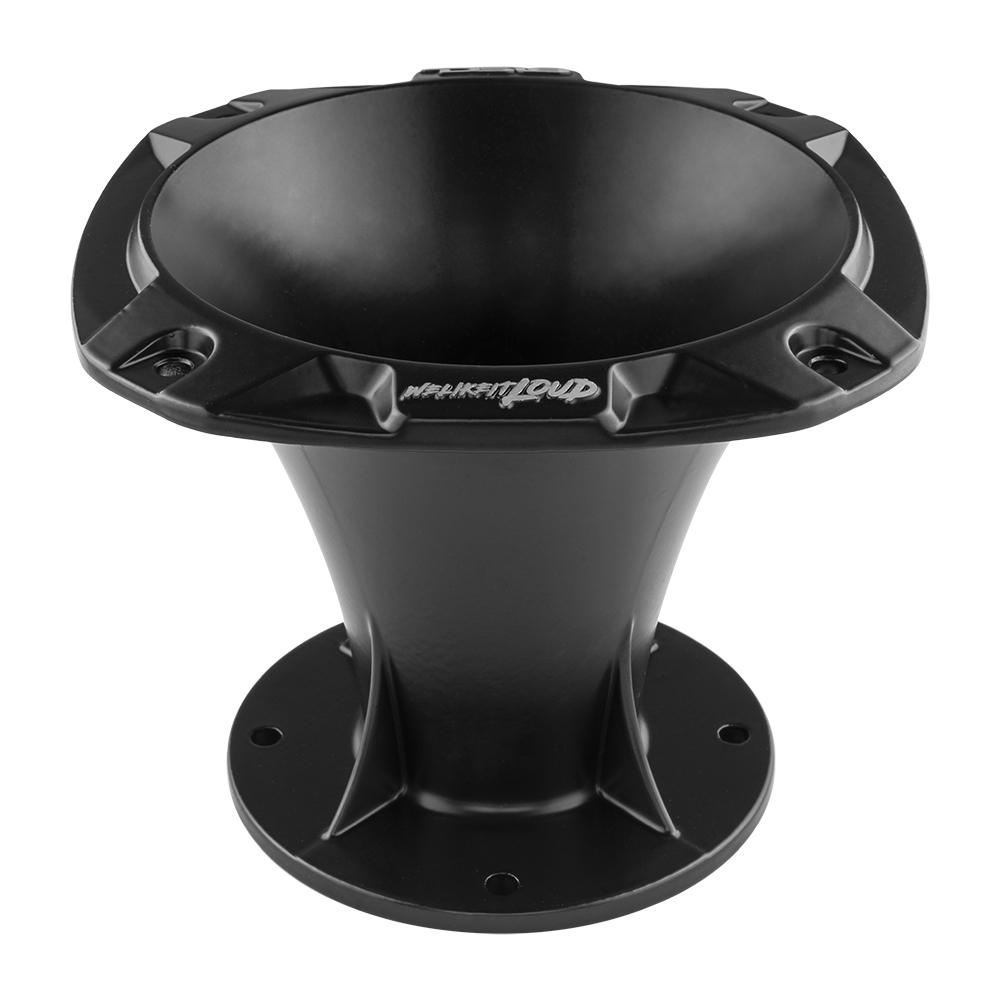

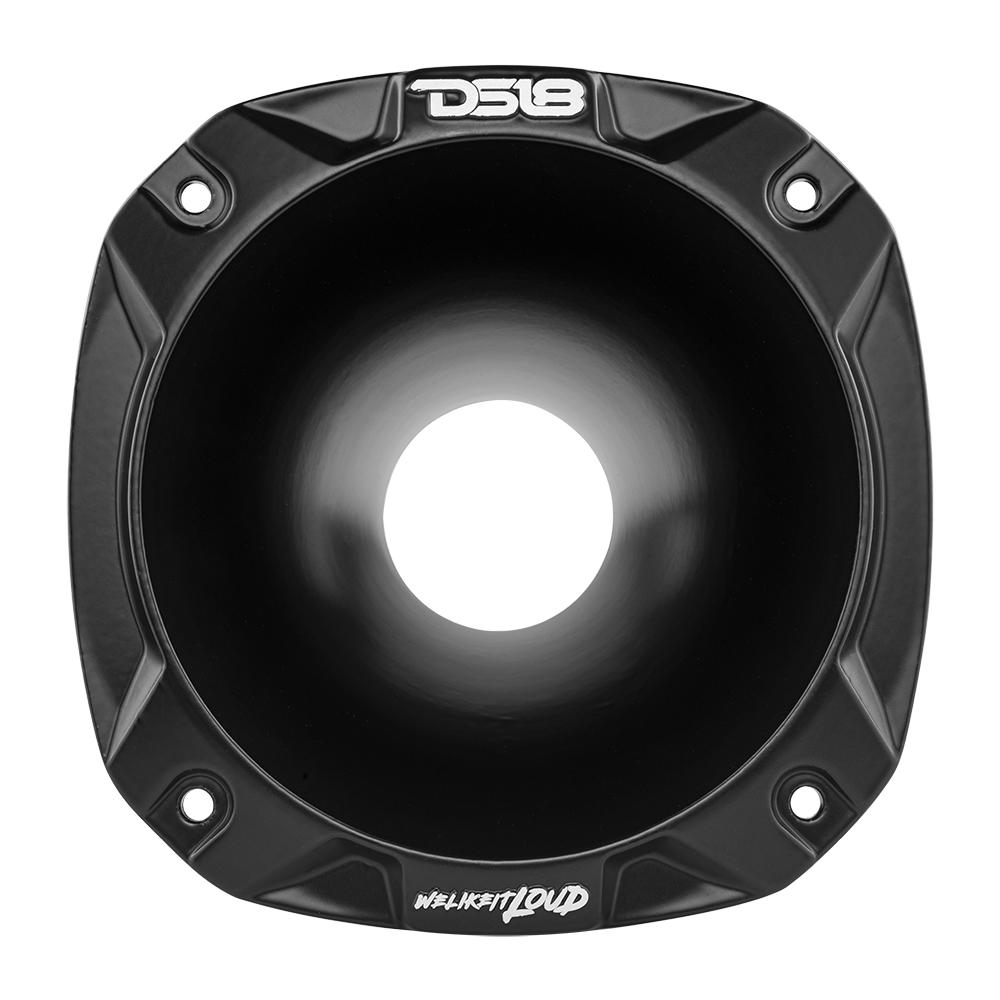

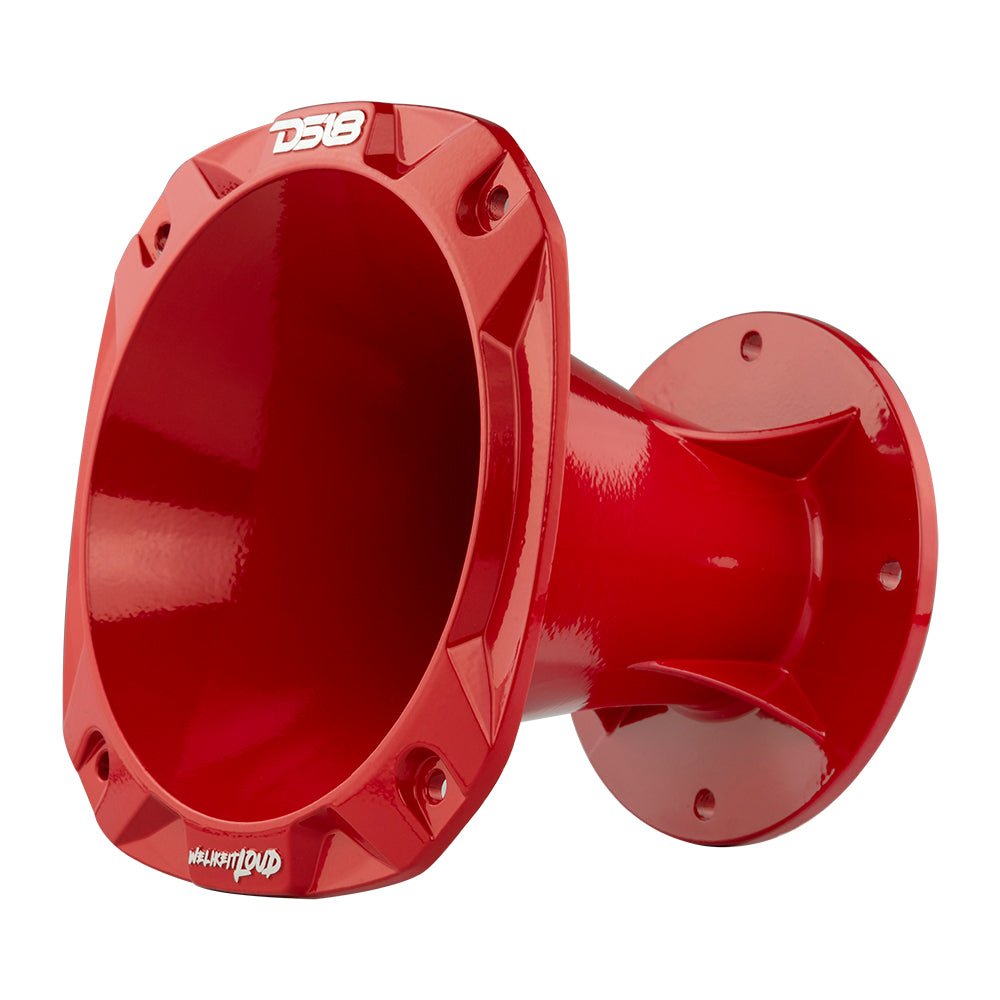

DS18 PRO-HA102 Bolt On 2" 35° 4.84" Depth Aluminum Horn
All aluminum casing with brushed DS18 logo. This throat will require a 4 bolt pattern on your driver to attach correctly. Now you can save some space while having crazy loud directional sound from your drivers.
Highlights
- Aluminum frame with brushed DS18 logo
- 4 bolt pattern for compatibility for most bolt on drivers
- Installation Type: Bolt-on
- Throat Diameter: 2" / 50.8mm
- Nominal Horn Diameter: 6.5"
- Sound Coverage: 35° Rounded
Technical Details

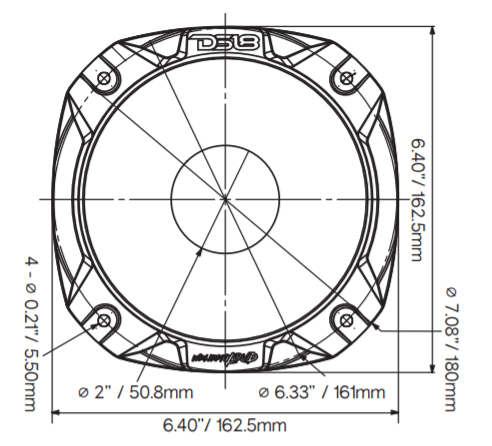

Measurements
- Overall Diameter: 7.08" / 180mm
- Overall Depth: 5.18’’ / 131.50mm
- Driver Bolt Pattern: 4.05"/ 102mm x 4-0.26" / 6.8mm
- Mounting Bolt Pattern: 6.33" / 161mm x 4- 0.21" / 5.5mm
Key Features
- 2" Bolt On Horn
- 35° Sound Coverage
- 4.84" Depth
- Aluminum

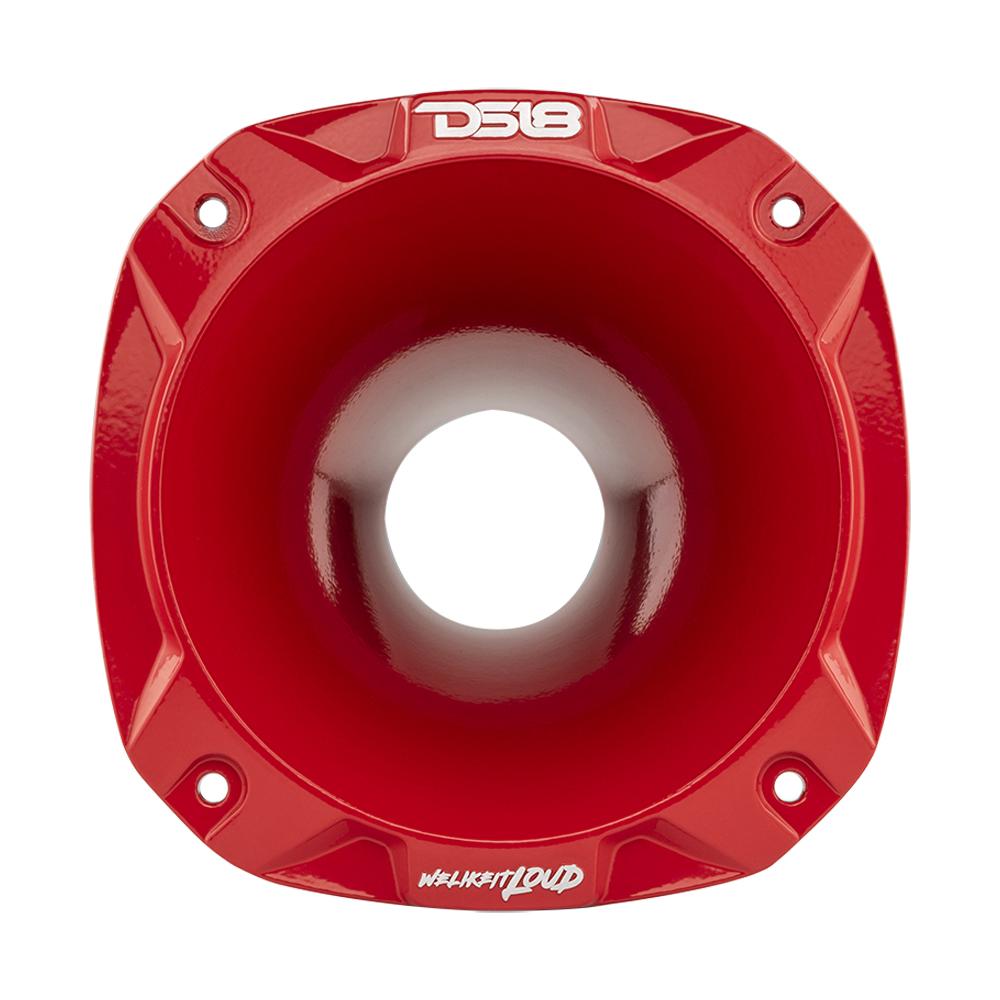

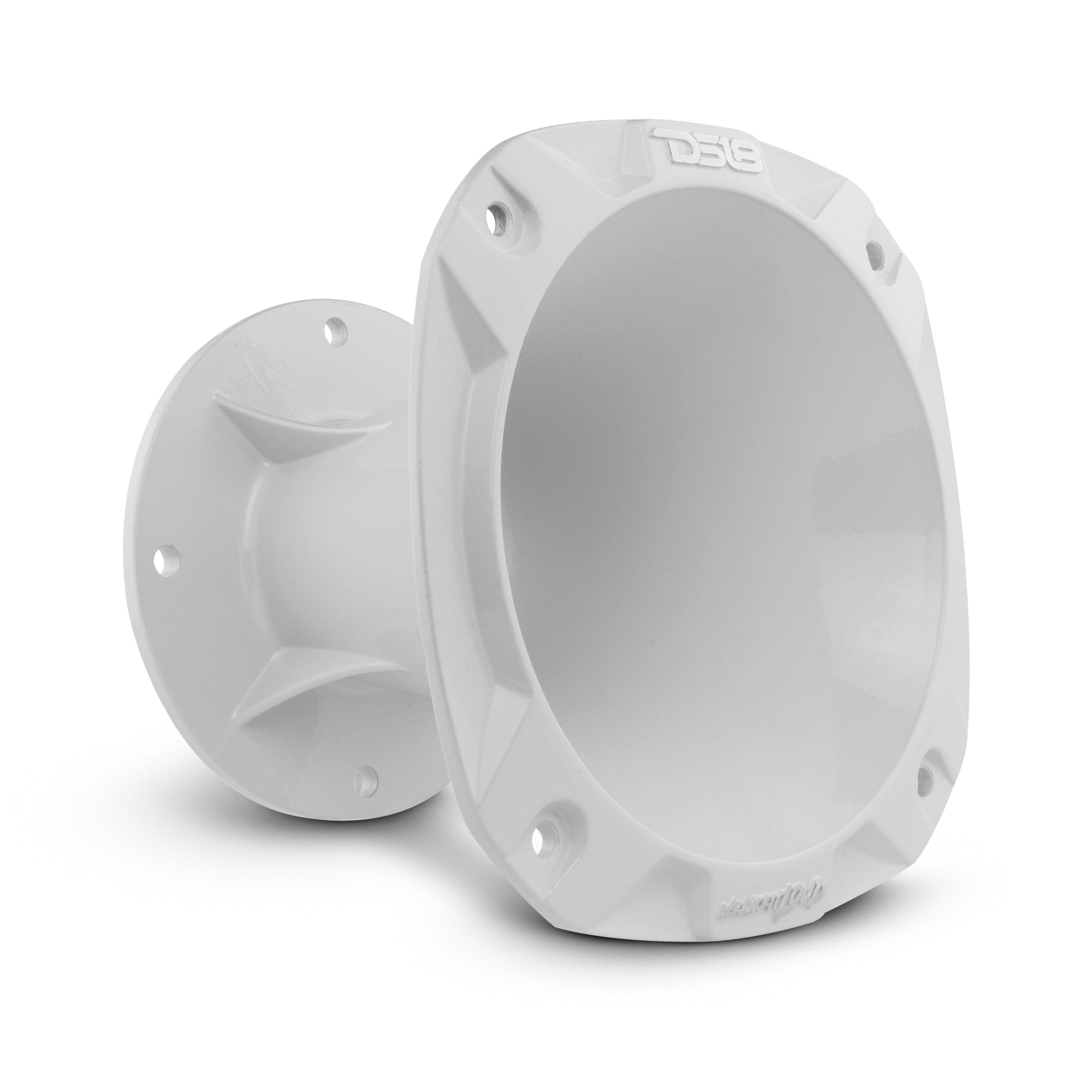

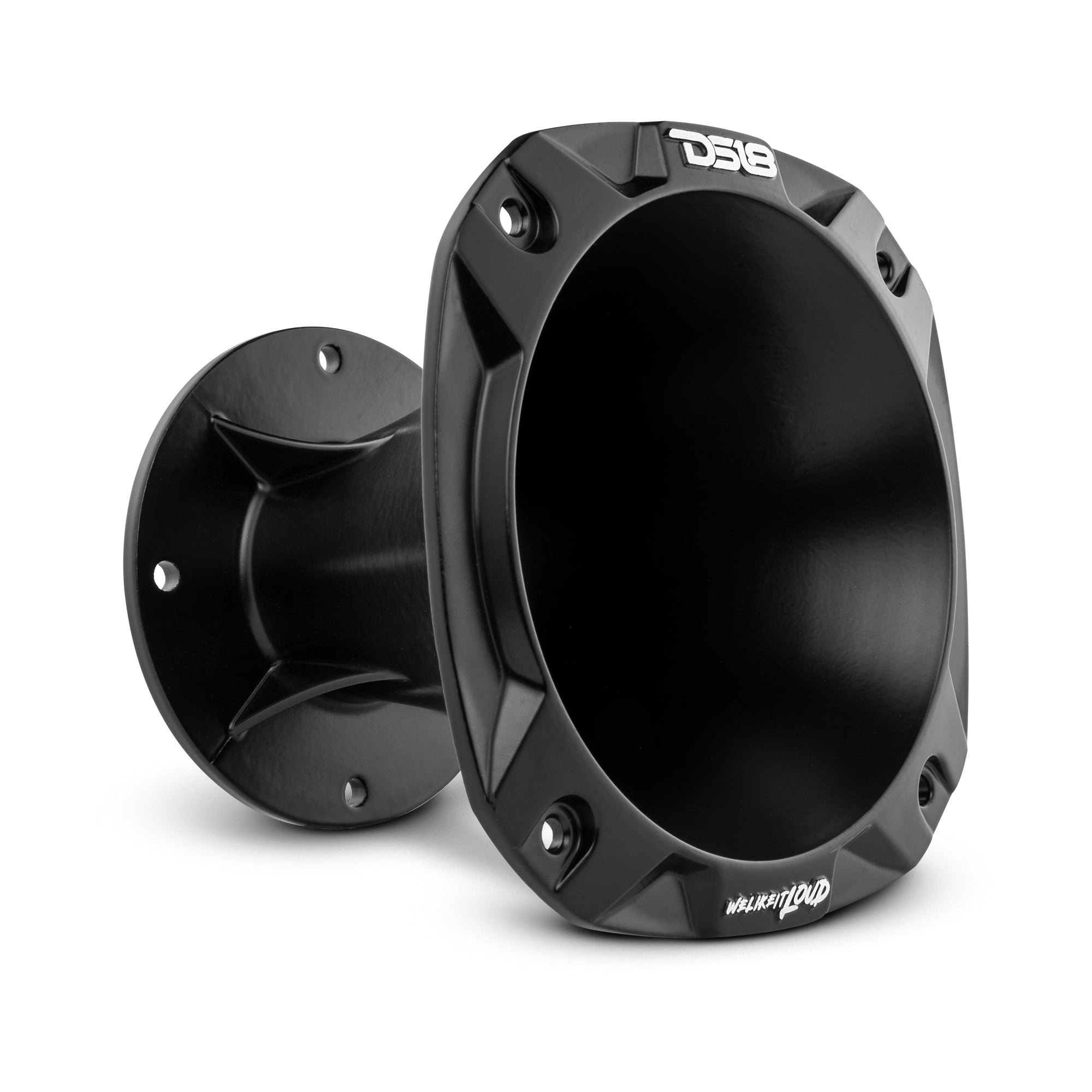

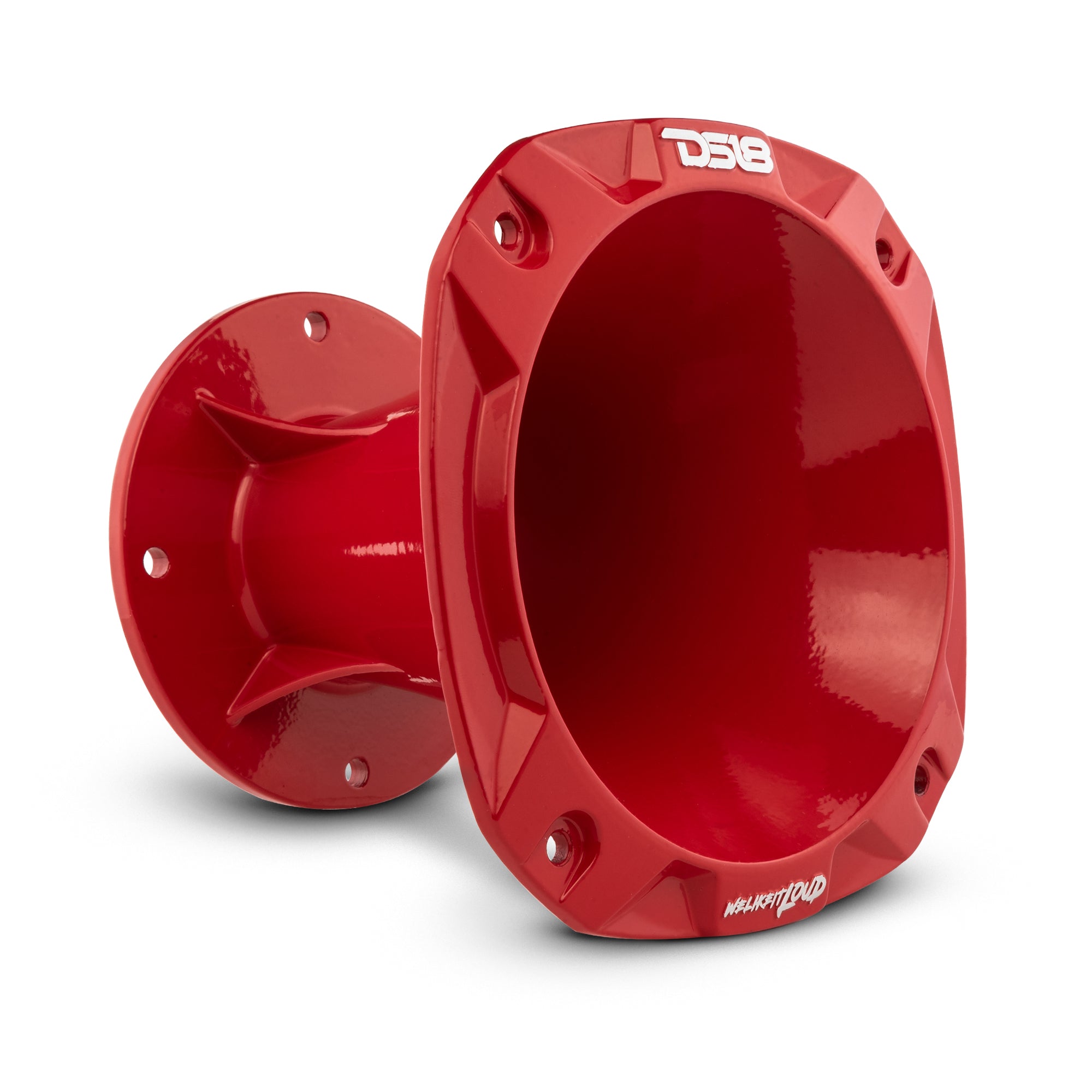

- Multiple Colors
Specifications
| SKU | PRO-HA102 |
|---|---|
| Installation Type | Bolt-On |
| Throat Diameter | 2" / 50.8mm |
| Nominal Horn Diameter | 8" |
| Sound Coverage | 27° Rounded |
| Colors | Black - Red - White |
| Overall Diameter | 9.69" / 246mm |
| Overall Depth | 11.25'' / 286mm |
| Mounting Depth | 10.84'' / 275.336mm |
| Driver Bolt Pattern | 4"/ 102mm x 4-0.26" / 6.8mm |
| Mounting Bolt Pattern | 8.58" / 218mm x 4- 0.21" / 5.5mm |
| Mounting Hole Diameter | 7.95" / 202mm |
| Gross Single Unit Weight (lb) | 4.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 9.25 x 9.25 x 11.75 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight (lb) | 40 |
| Master Carton Dimensions W x L x H (Inches) | 19.5 x 19.5 x 24.25 |
