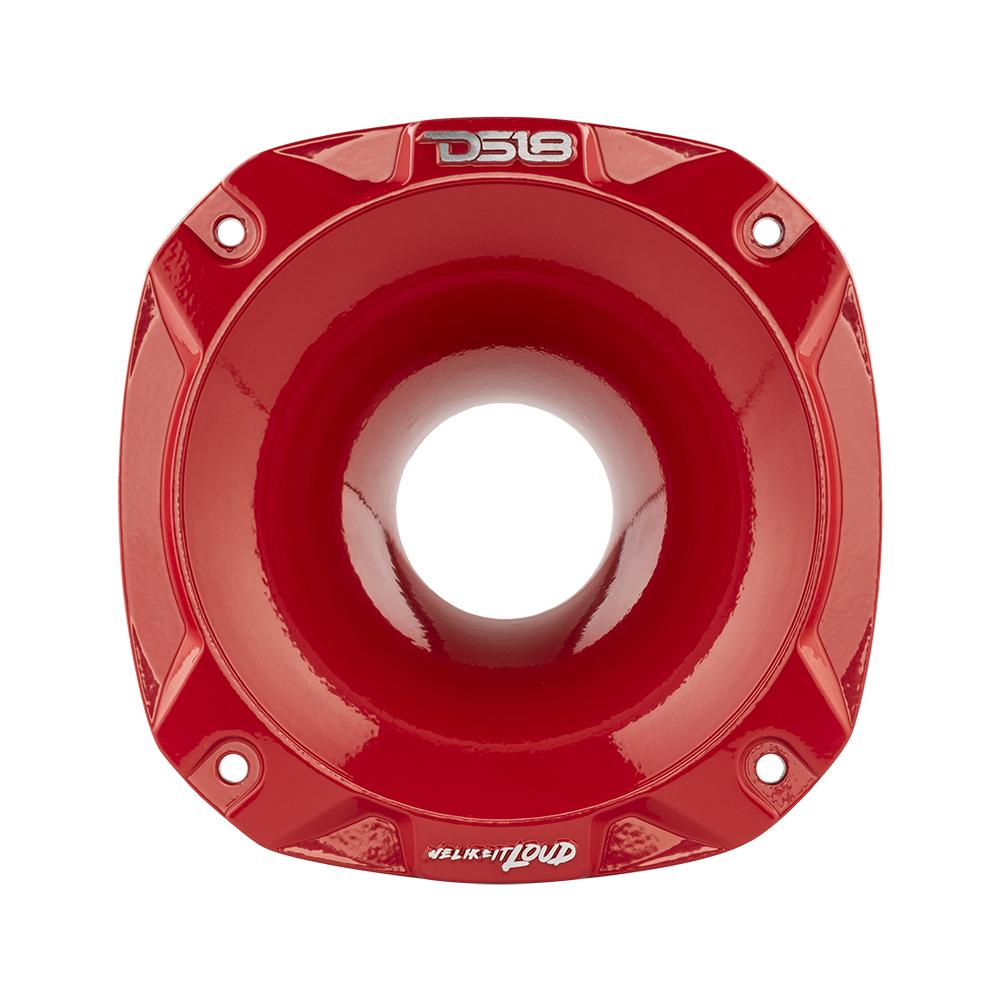

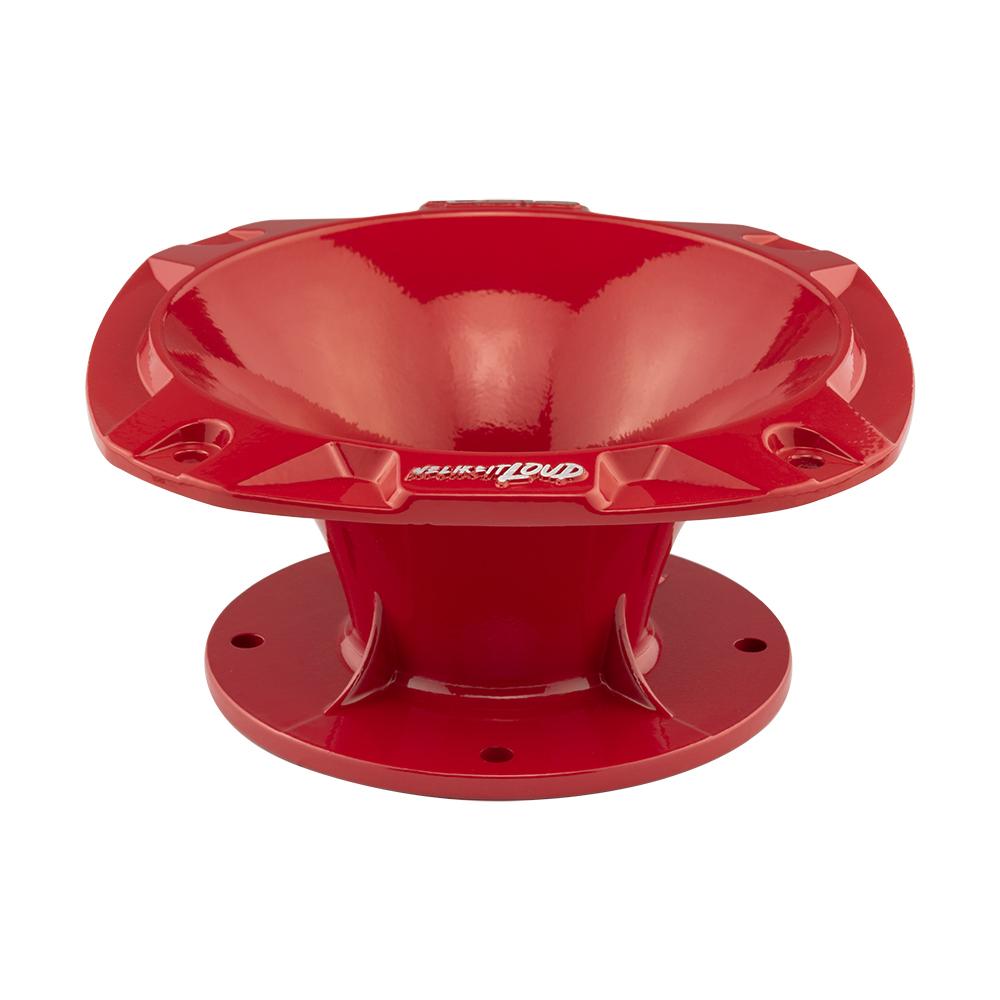

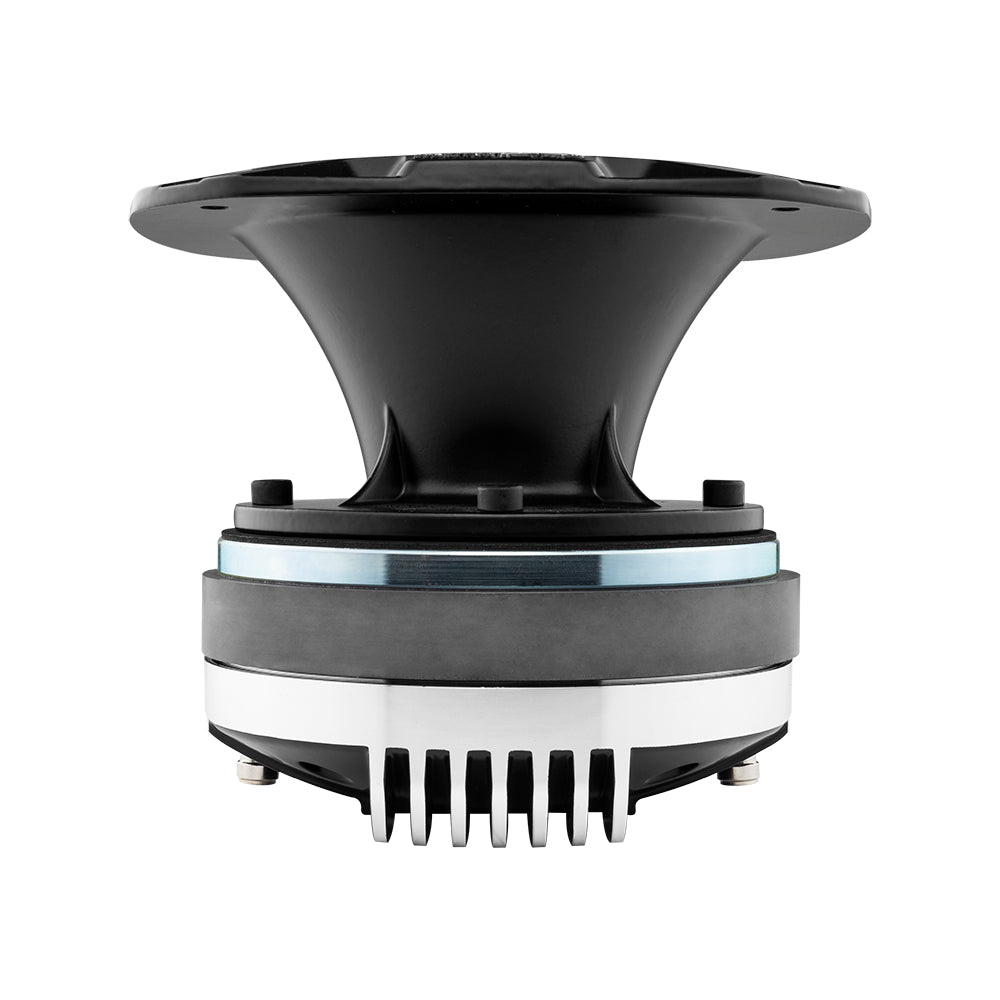

PRO Bolt On 2" 57° 2.6" Depth Aluminum Horn
Product Overview DS18 PRO-HA52 Bolt On 2" 57° 2.61" Depth Aluminum Horn The HA-52 is DS18's newest...
Vendor:
DS18
Manufacturer SKU
PRO-HA52/RD
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $26.95
- $26.95
- Unit price
- per
Subtotal:
$26.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-HA52 Bolt On 2" 57° 2.61" Depth Aluminum Horn

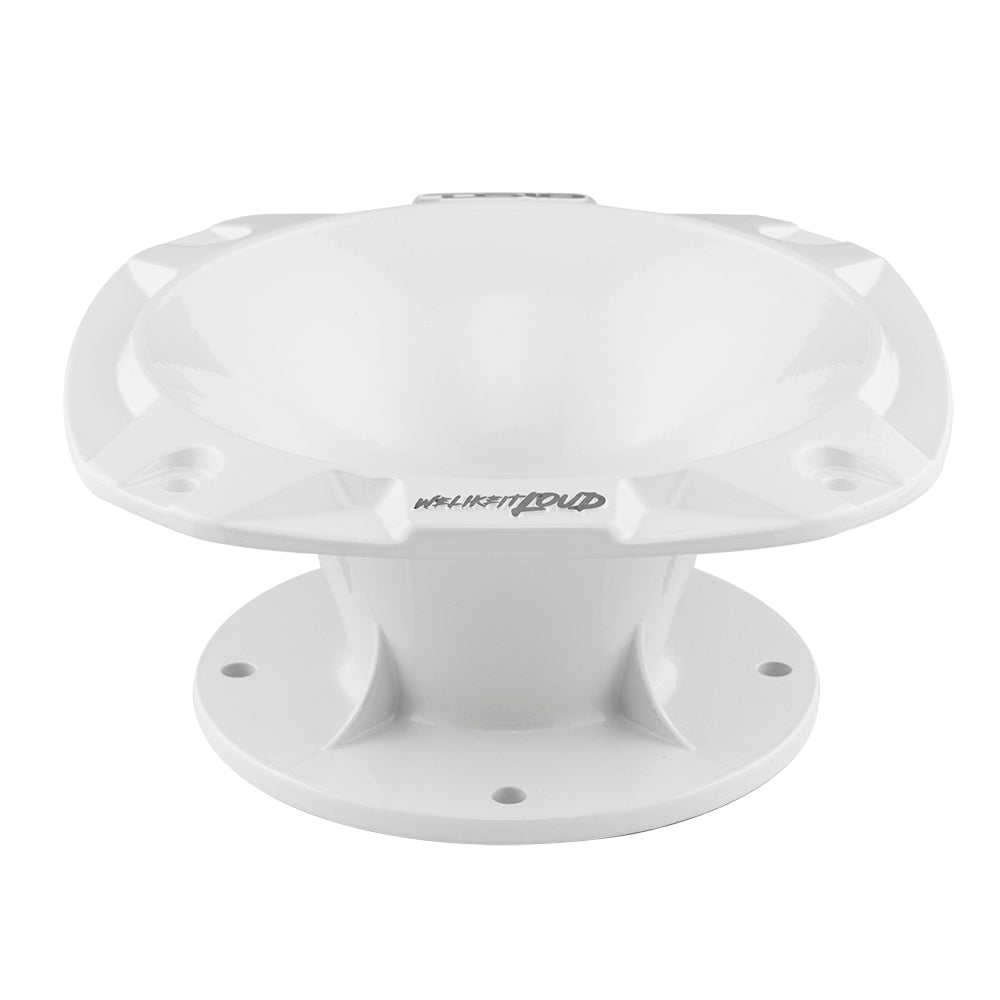

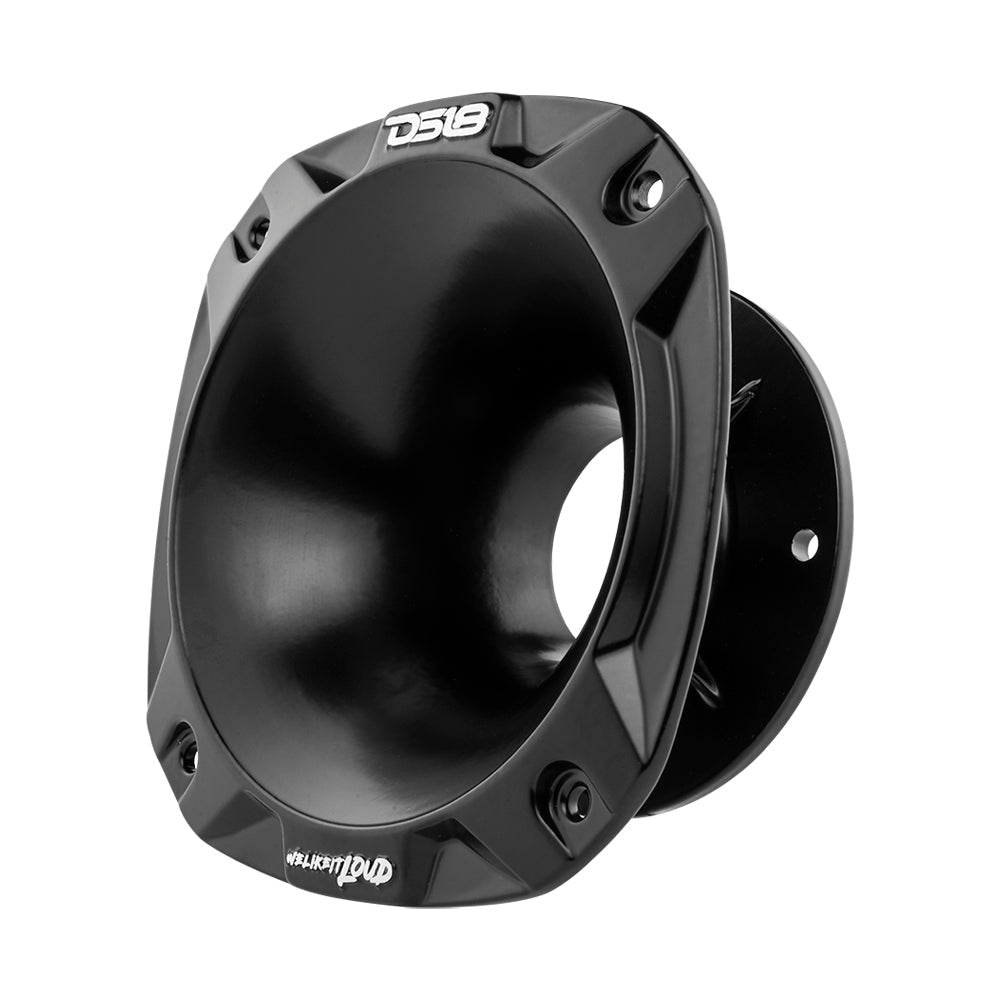

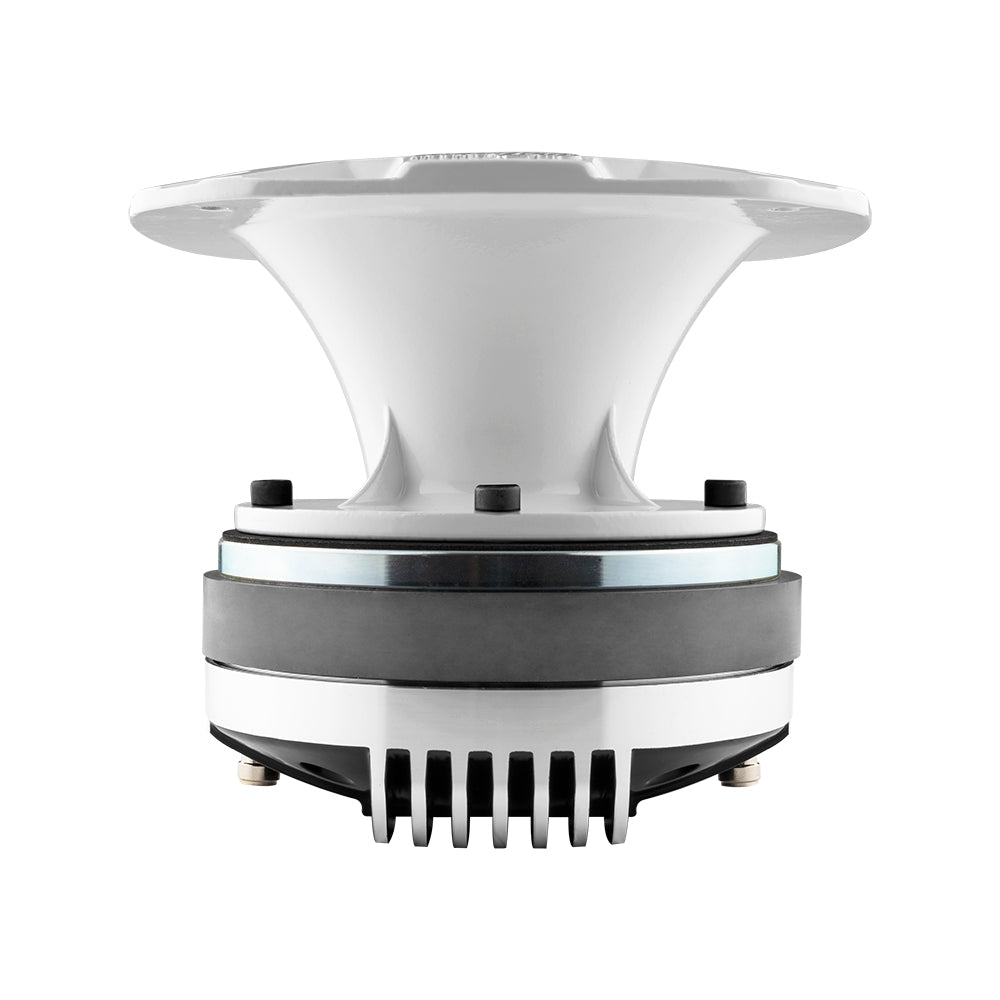

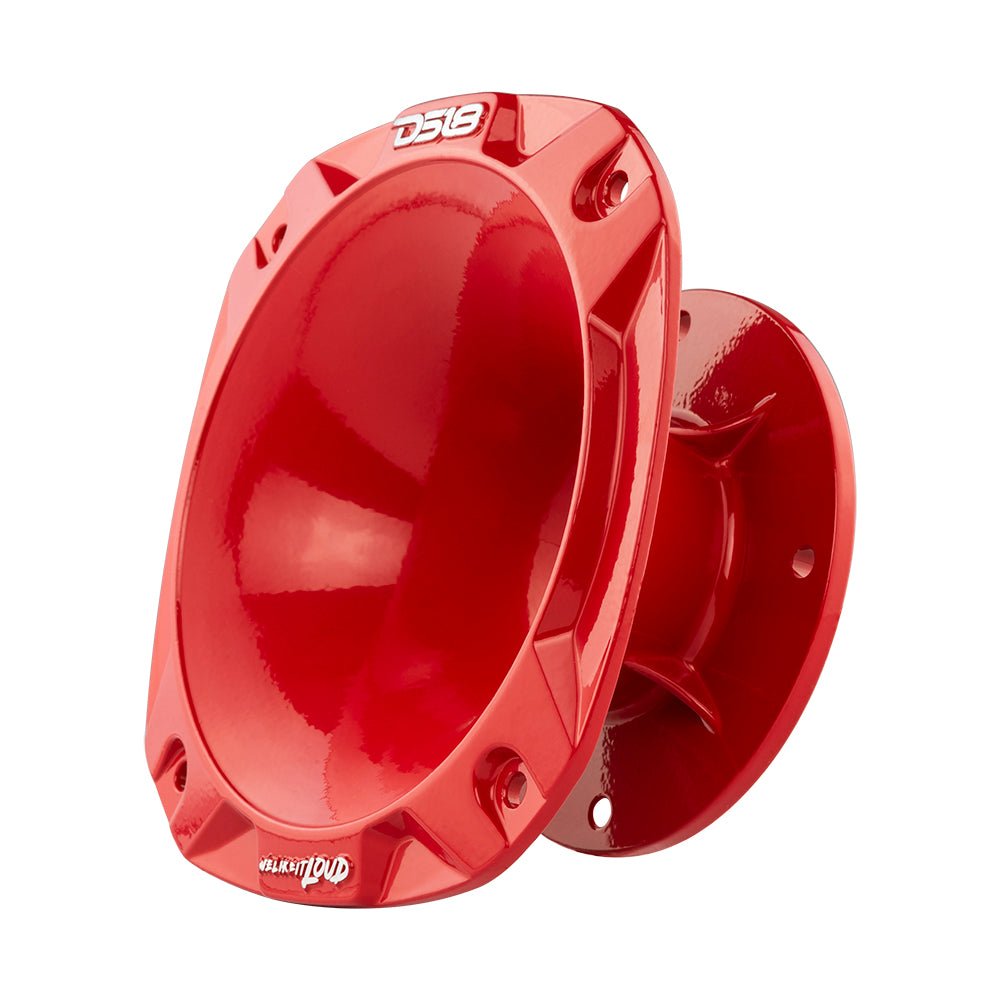

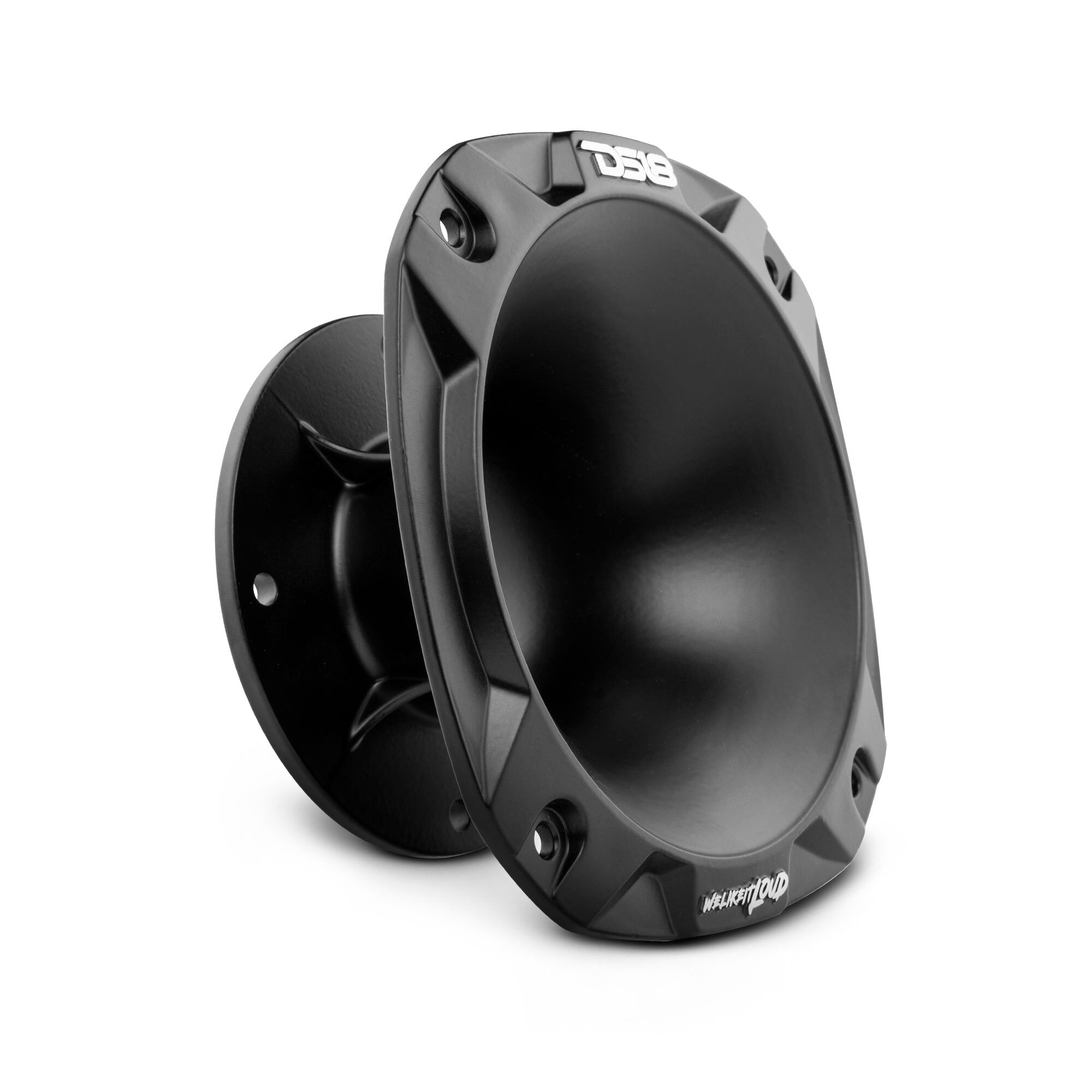

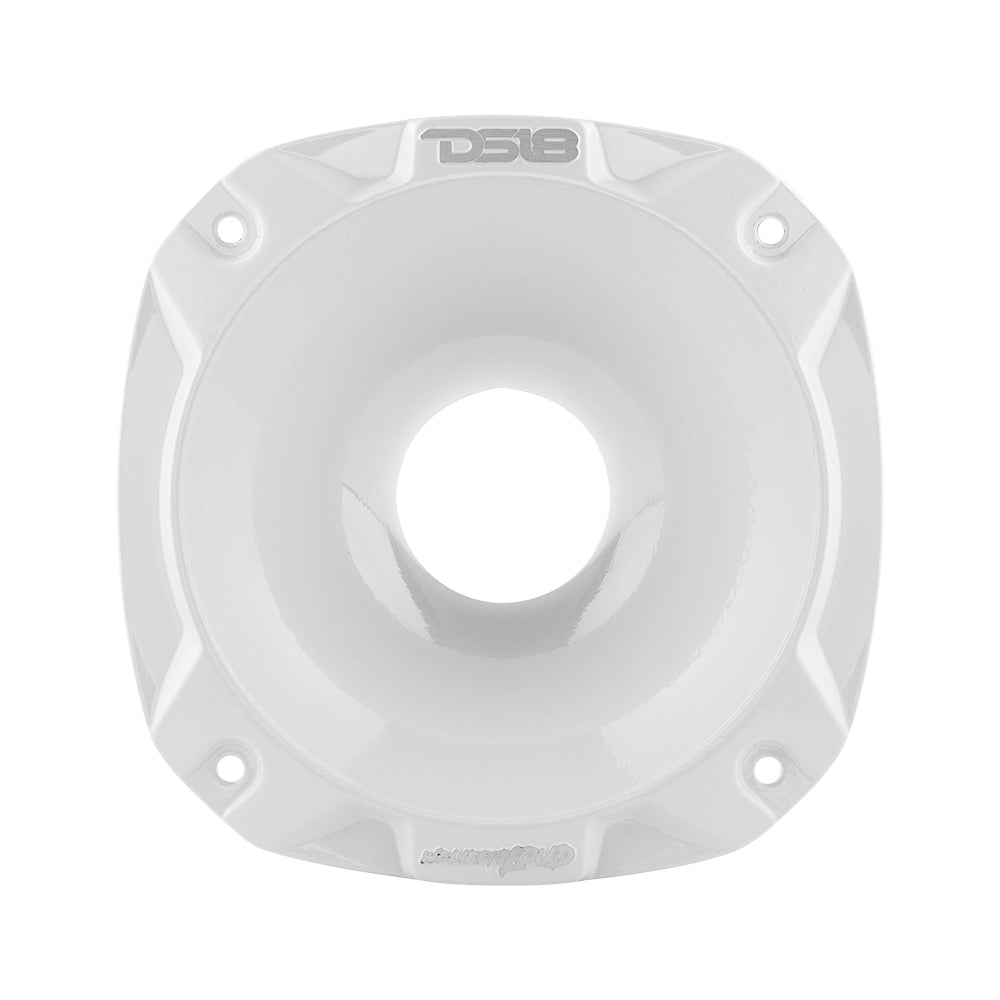

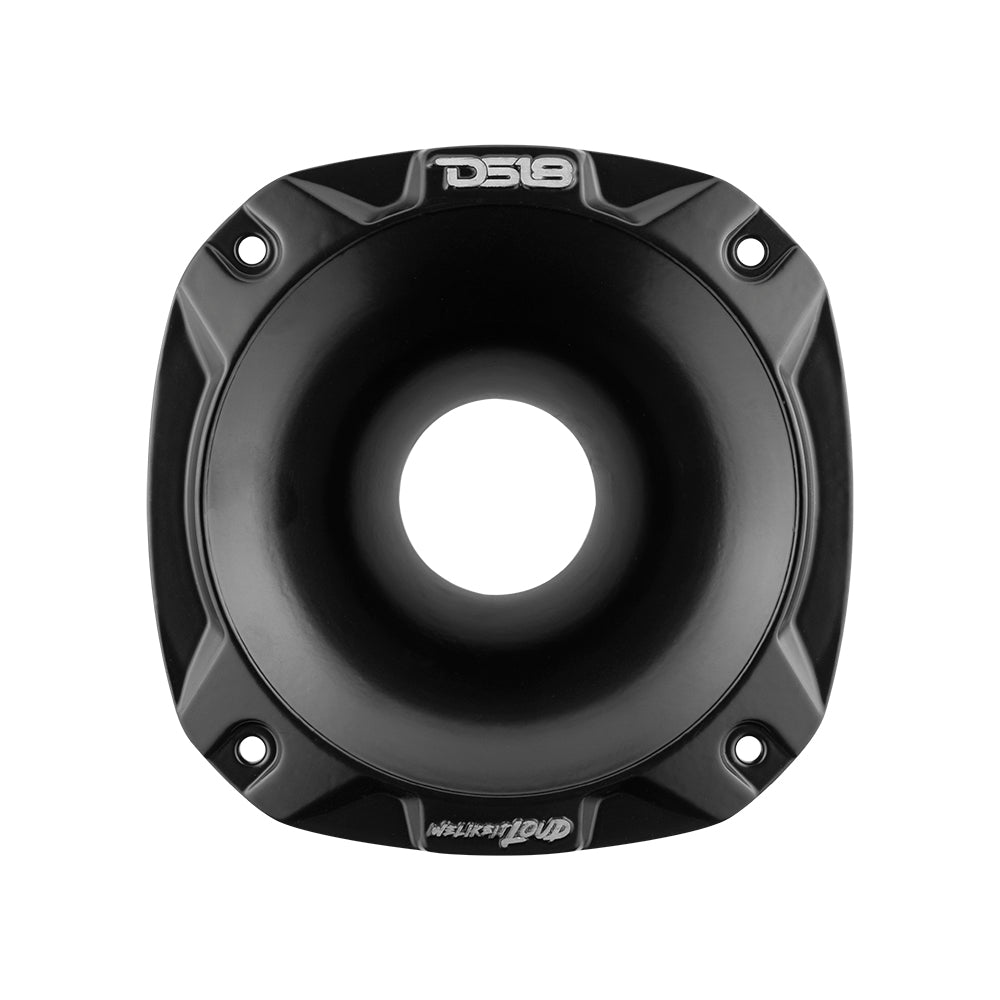

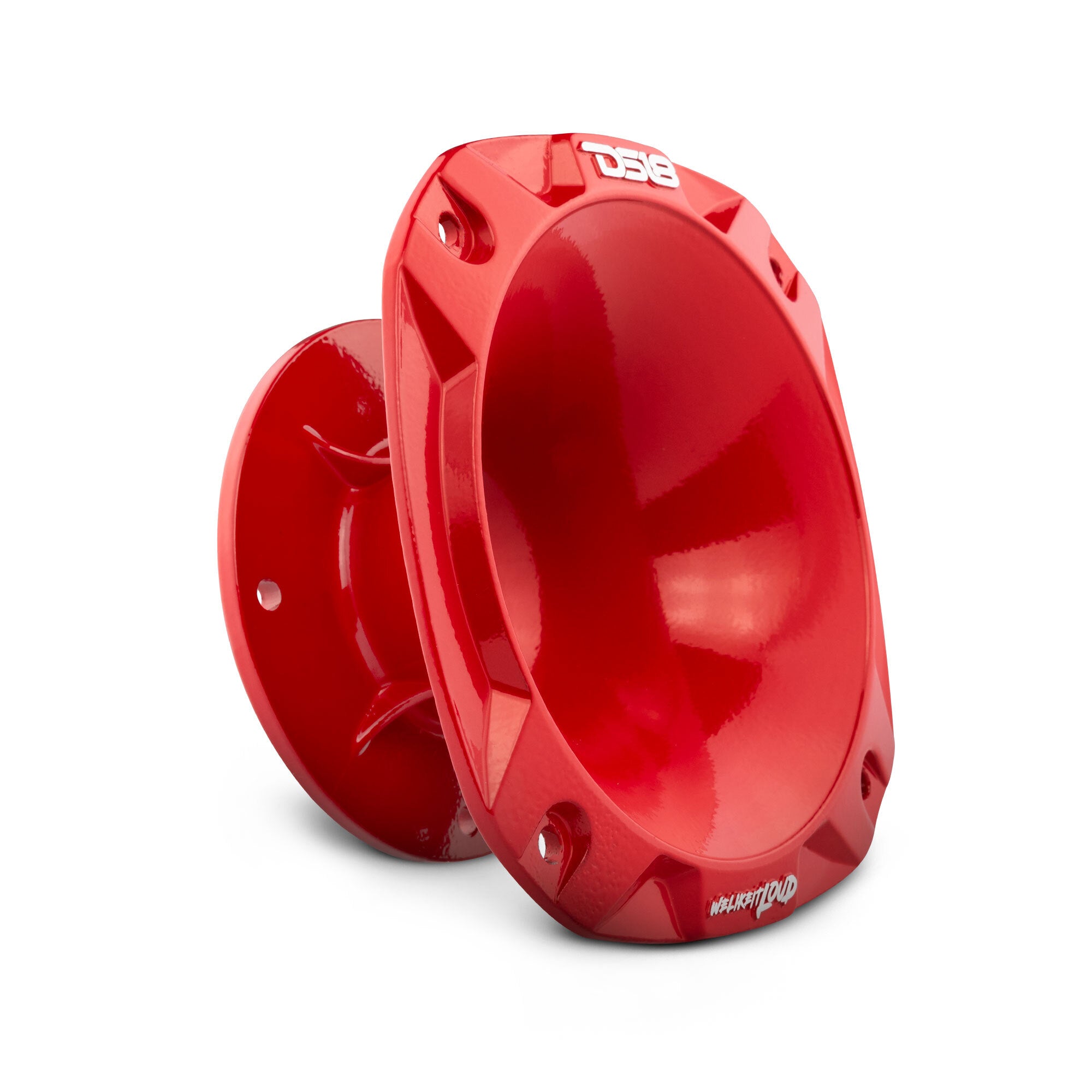

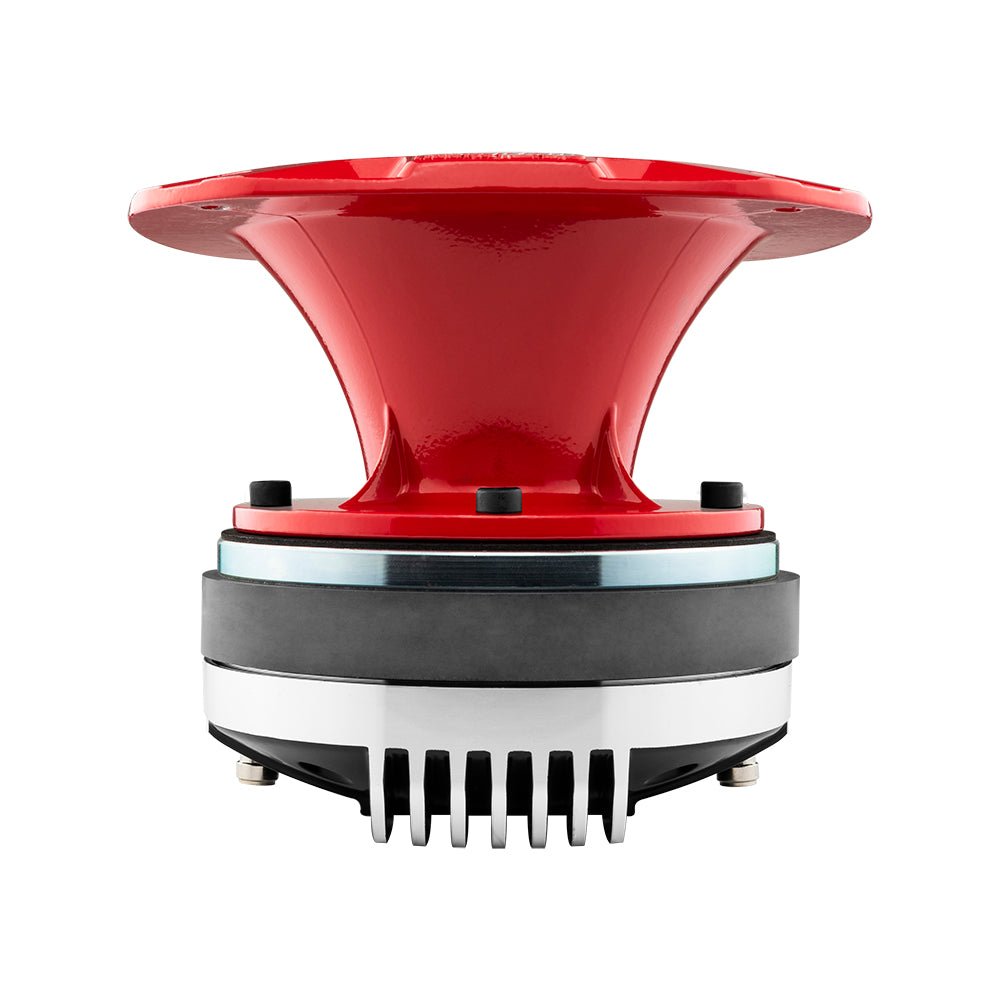

The HA-52 is DS18's newest short throated horn. This shorty features an all aluminum casing with brushed DS18 logo. This throat will require a 4 bolt pattern on your driver to attach correctly. Now you can save some space while having crazy loud directional sound from your drivers.
Highlights
- Aluminum frame with brushed DS18 logo
- "Shorty" style horn to save mounting depth space but still get tons of directional volume
- 4 bolt pattern for comparability for most bolt on drivers

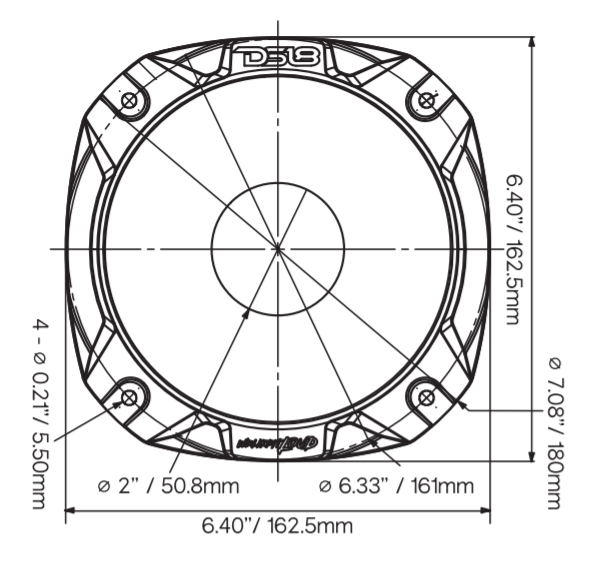

Technical Details
| Overall Diameter | 7.08" |
|
Overall Depth |
2.96" |
| Throat Diameter | 2" |
| Driver Bolt Pattern | 4.05" |
| Mounting Bolt Pattern | 6.33" |
Key Features
- 2" Bolt On Horn
- 57° Sound Coverage
- Shallow
- 2.61" Depth
- Aluminum
- Multiple Colors
Specifications
| Nominal Diameter | 6.5" |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Sound Coverage | 57° Rounded |
| Body Material | Aluminum |

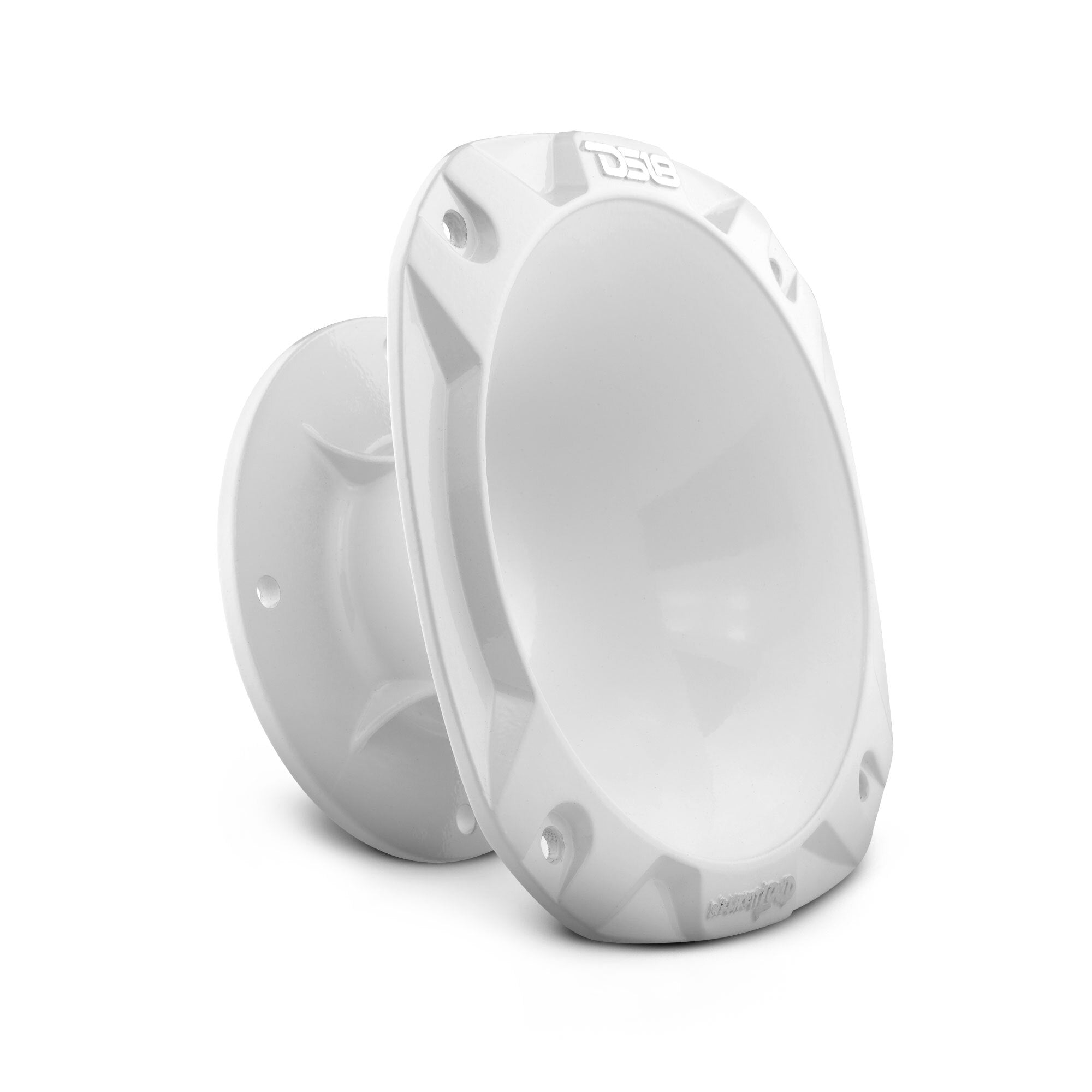

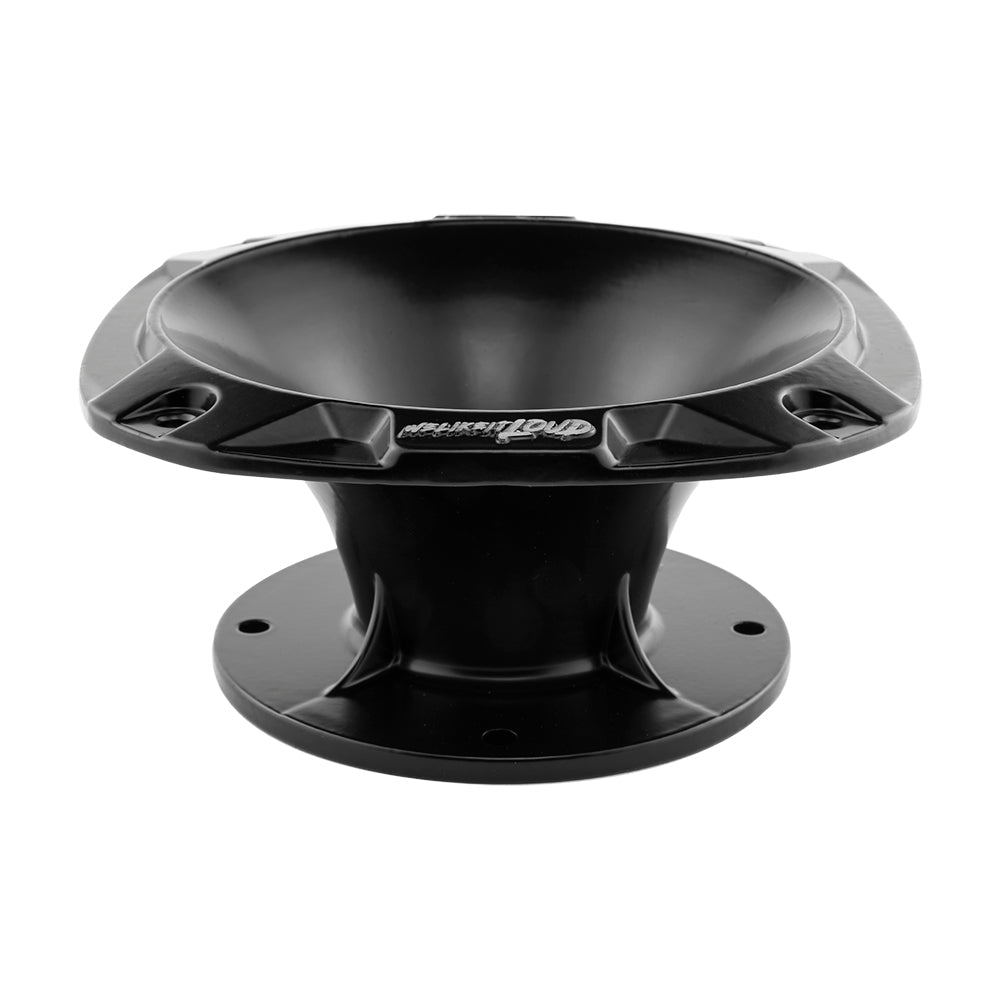

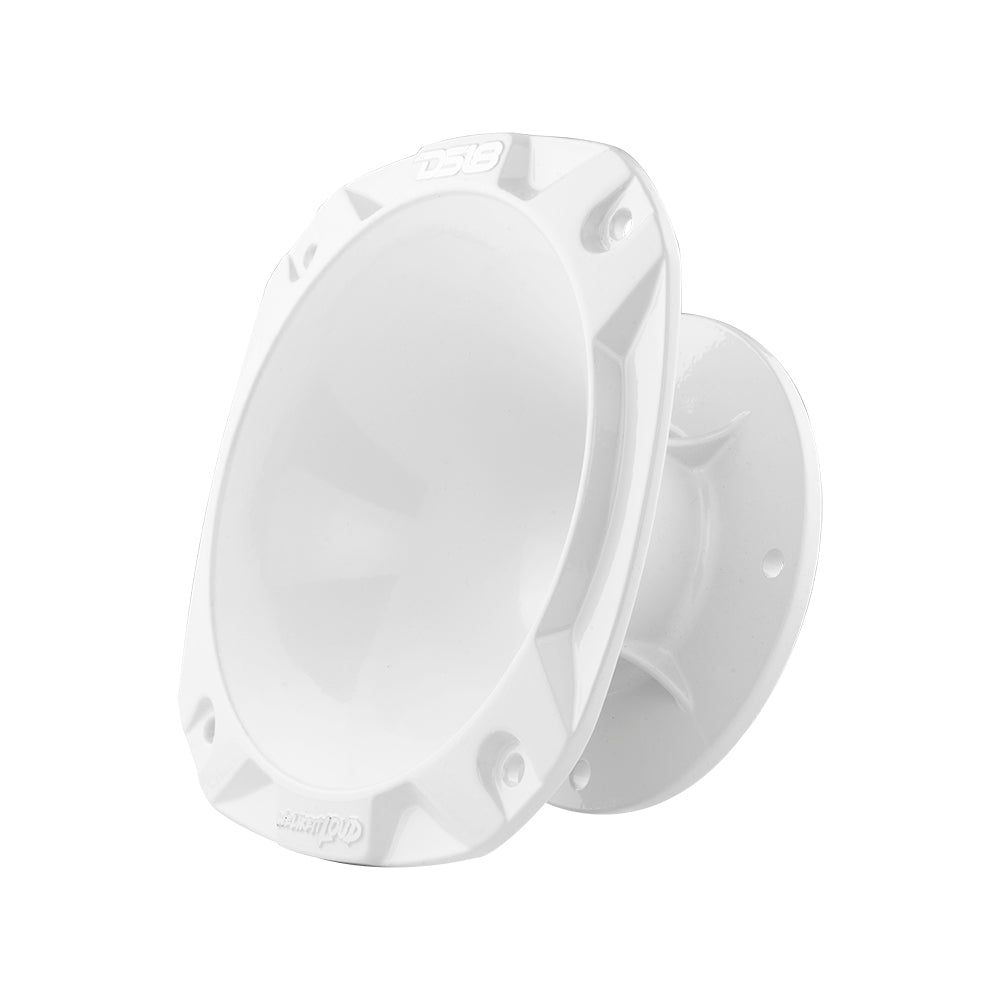

| Color | Black - White - Red |
| Overall Diameter | 7.08" / 180mm |
| Overall Depth | 2.96" / 75.25mm |
| Mounting Depth | 2.61" / 66.3mm |
| Mounting Hole Diameter | 5.7" / 145mm |
| Bolt Pattern (Driver) | 4.05" / 102mm x 4-0.26" / 6.8mm |
| Bolt Pattern (Horn) | 6.33" / 161mm x 4-021" / 5.5mm |
| Gross Single Unit Weight (lb) | 1.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 6.75 x 6.75 x 3.5 |
| Quantity of Units in Master Carton | 30 |
| Gross Master Carton Weight (lb) | 40 |
| Master Carton Dimensions W x L x H (Inches) | 20.75 x 14 x 17.75 |
