2.7" High Compression Neodymium Super Bullet Tweeter 160 Watts 1.4" Titanium 4-Ohm Vc
Product Overview DS18 PRO-TW920Neodymium Super Bullet Tweeter With 1.4” Titanium Voice Coil And Screw Mounting Ring DS18’s...
- $83.95
- $83.95
- Unit price
- per
Subtotal:
$83.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

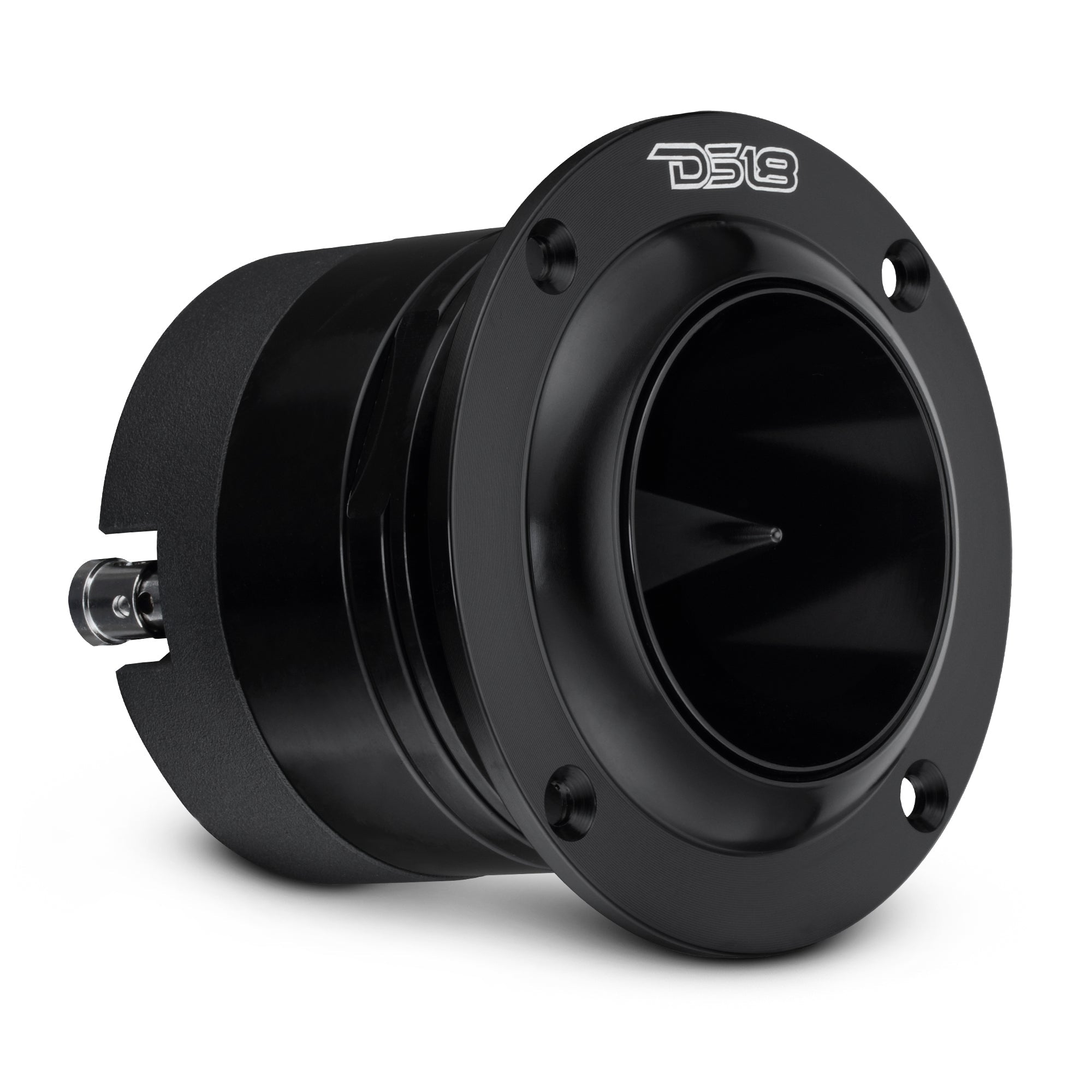

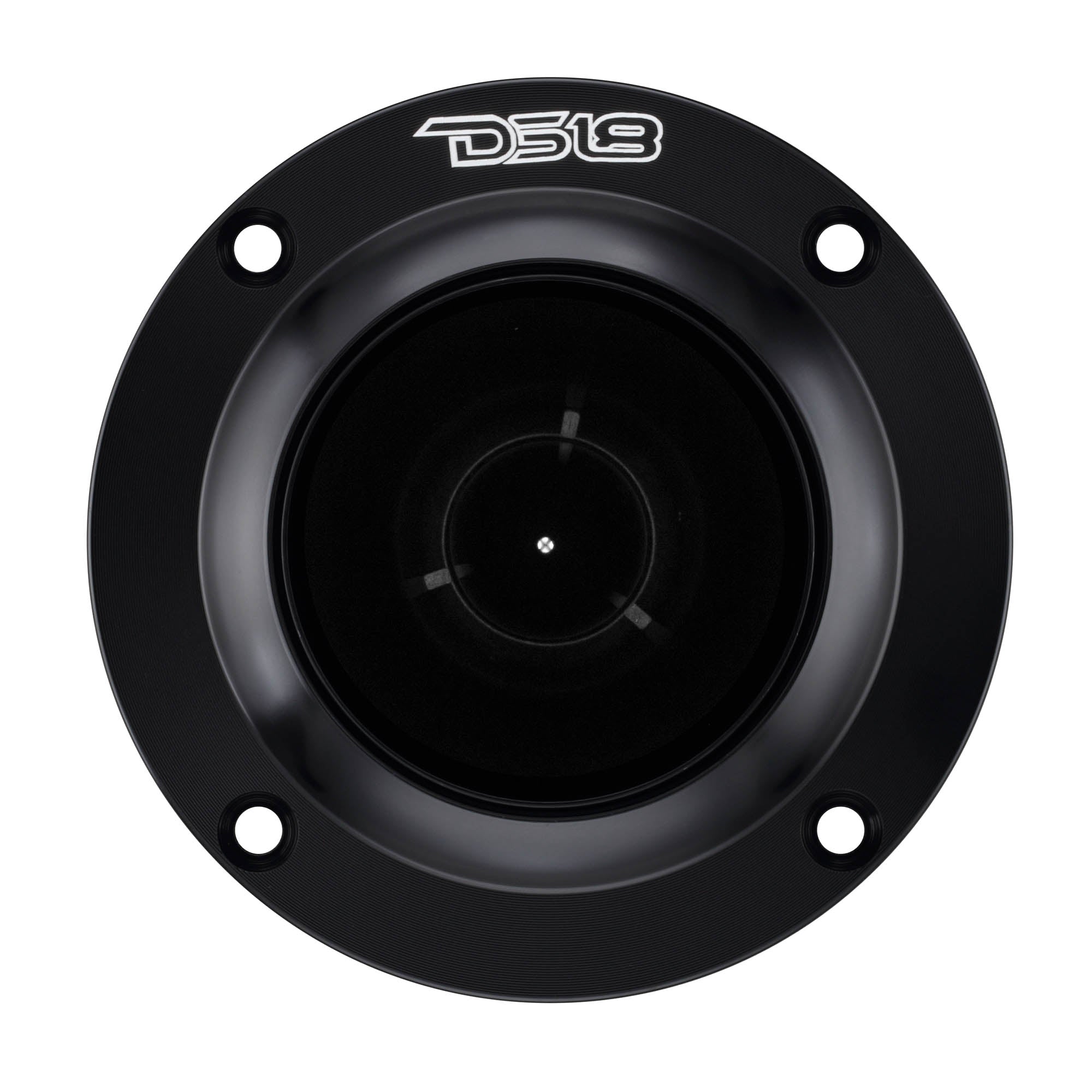

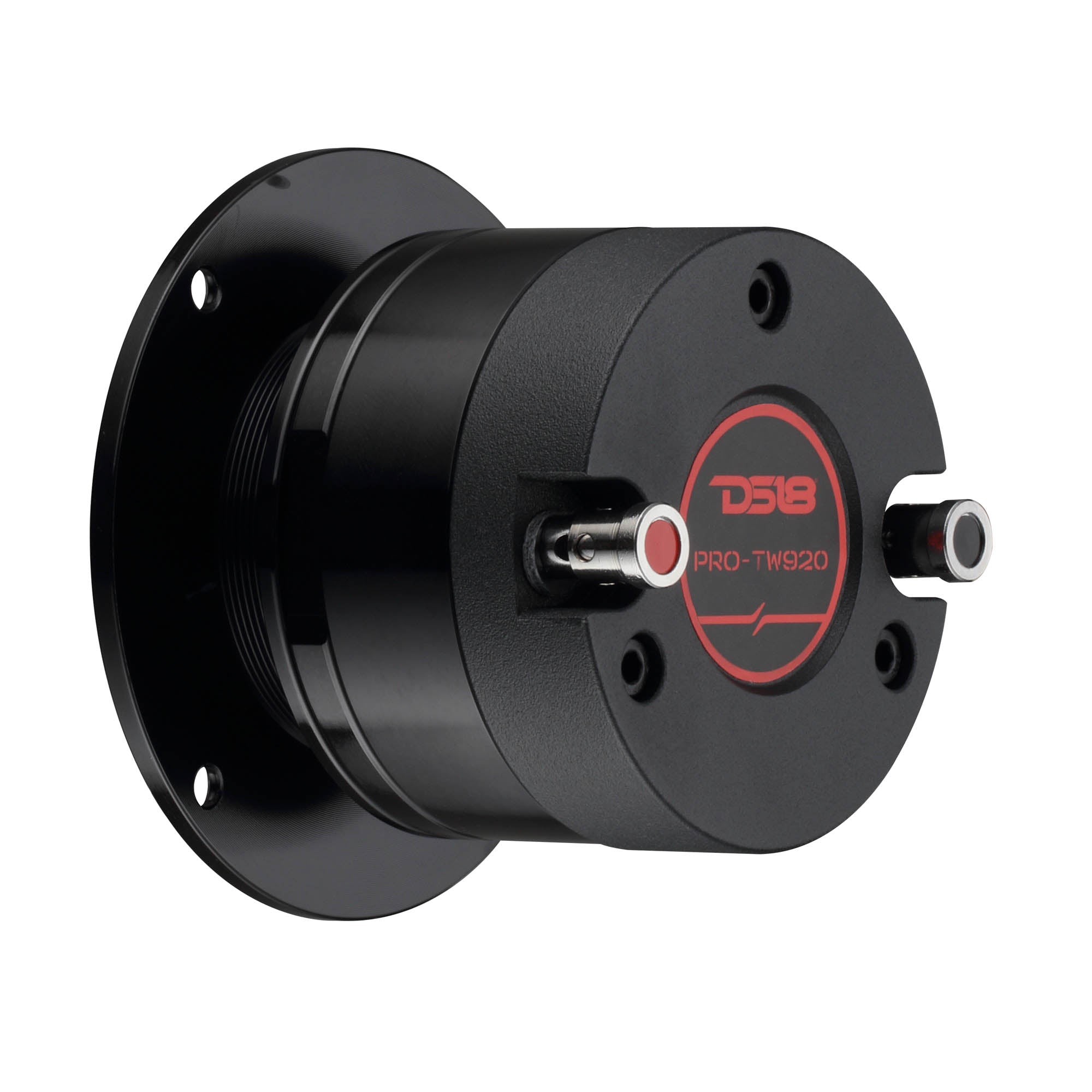

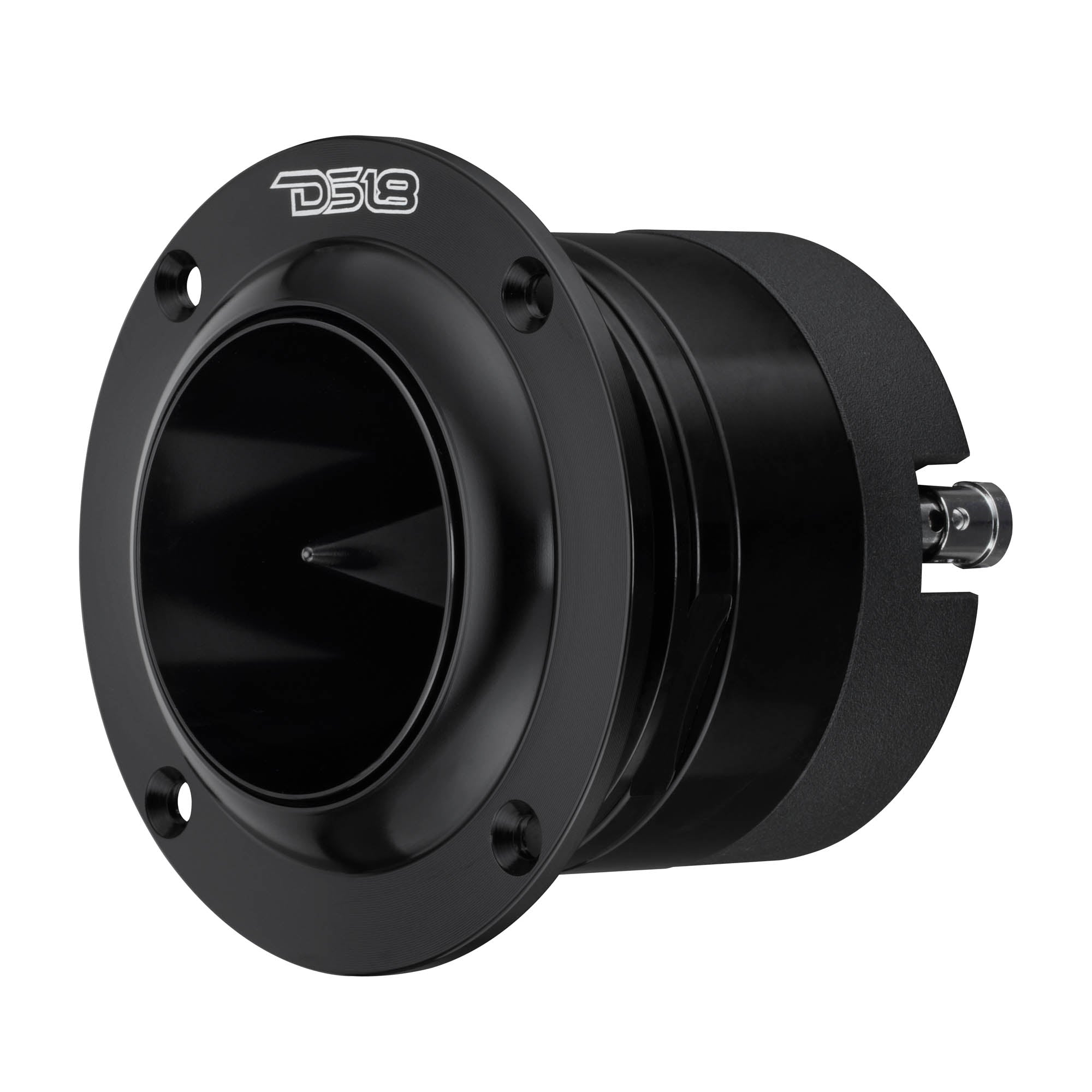

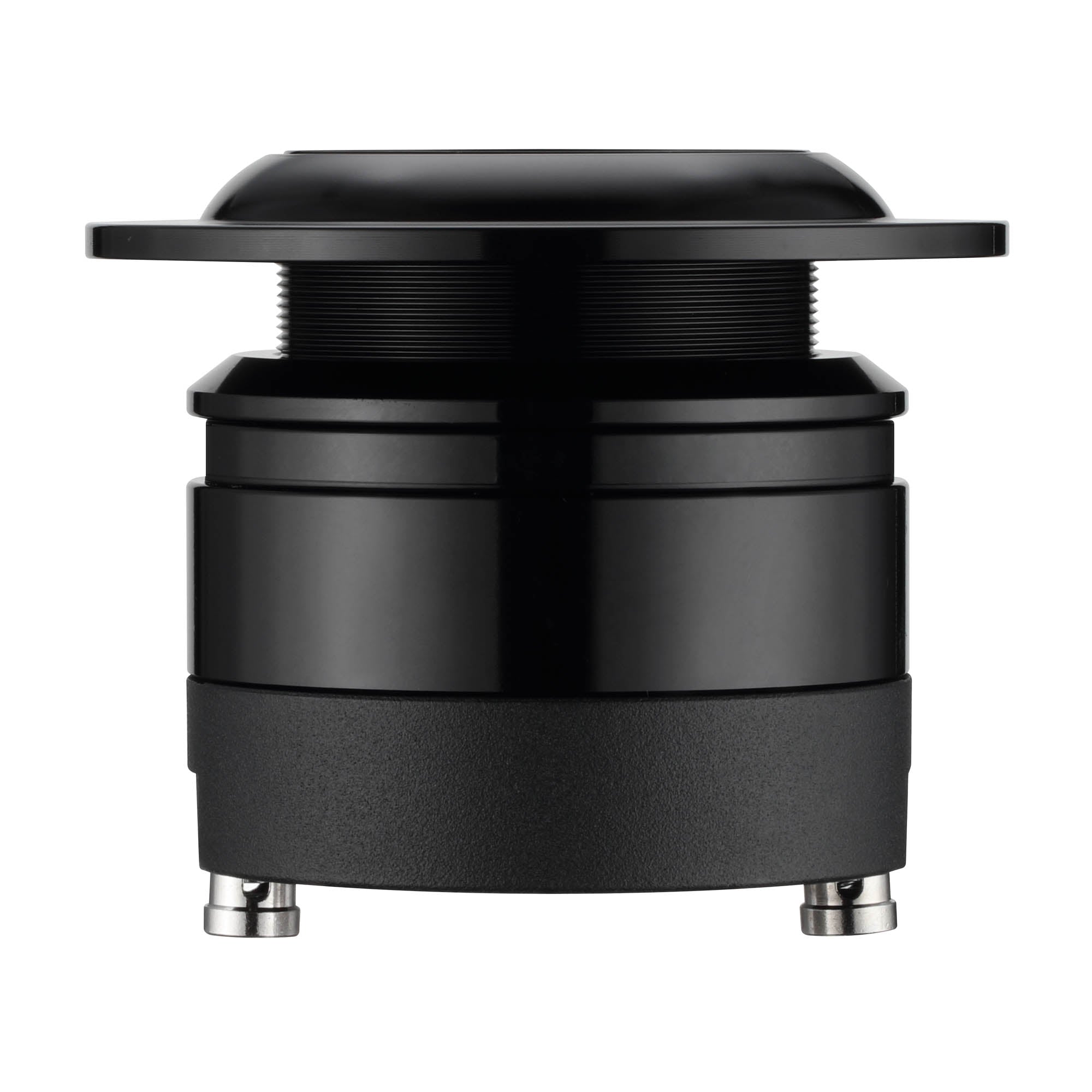

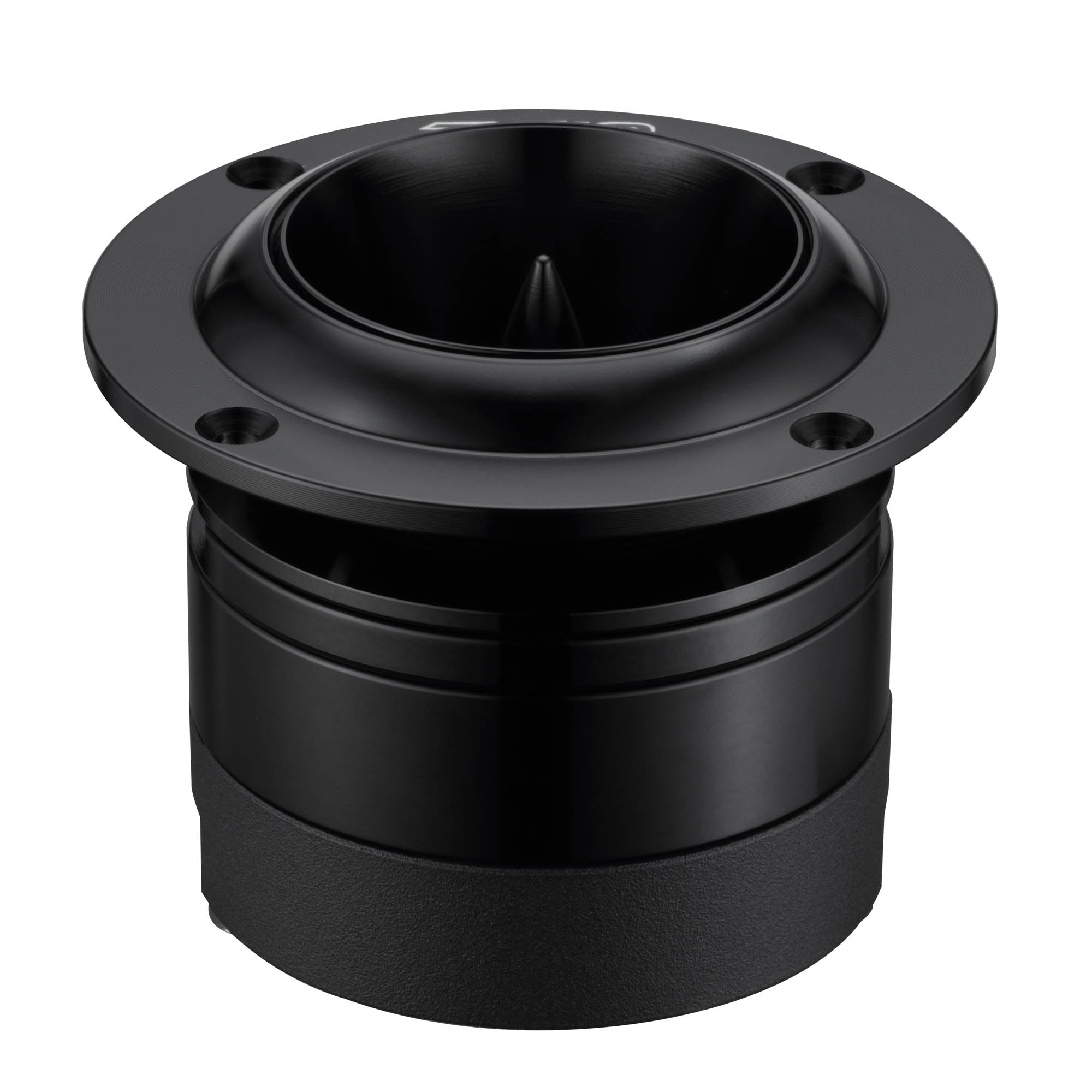

DS18 PRO-TW920
Neodymium Super Bullet Tweeter With 1.4” Titanium Voice Coil And Screw Mounting Ring
DS18’s PRO-TW920 is a high-output super bullet tweeter with a high-efficiency motor and an upgraded mounting system to deliver piercing clarity in any setup.
Max Impact
Push 80W AES, 160W program, and up to 320W peak through this 4-ohm beast. A 1.4" titanium voice coil powered by a neodymium magnet gives you clean, distortion-free highs that cut through the mix—even in high-SPL setups.
Neodymium Motor + CNC Aluminum Bullet
The neodymium motor keeps things lightweight while delivering superior magnetic force for quicker transient response and aggressive output. Titanium diaphragm and CNC aluminum bullet ensure speed and strength in every note.
Custom Mounting
Now ships with a screw-on aluminum mounting ring and 2 rubber gasket rings (thin + thick) for a flush, rattle-free install. Adjustable mounting depth from 2" to 2.7" makes it perfect for A-pillars, dash pods, or door panels.
Easy to Service

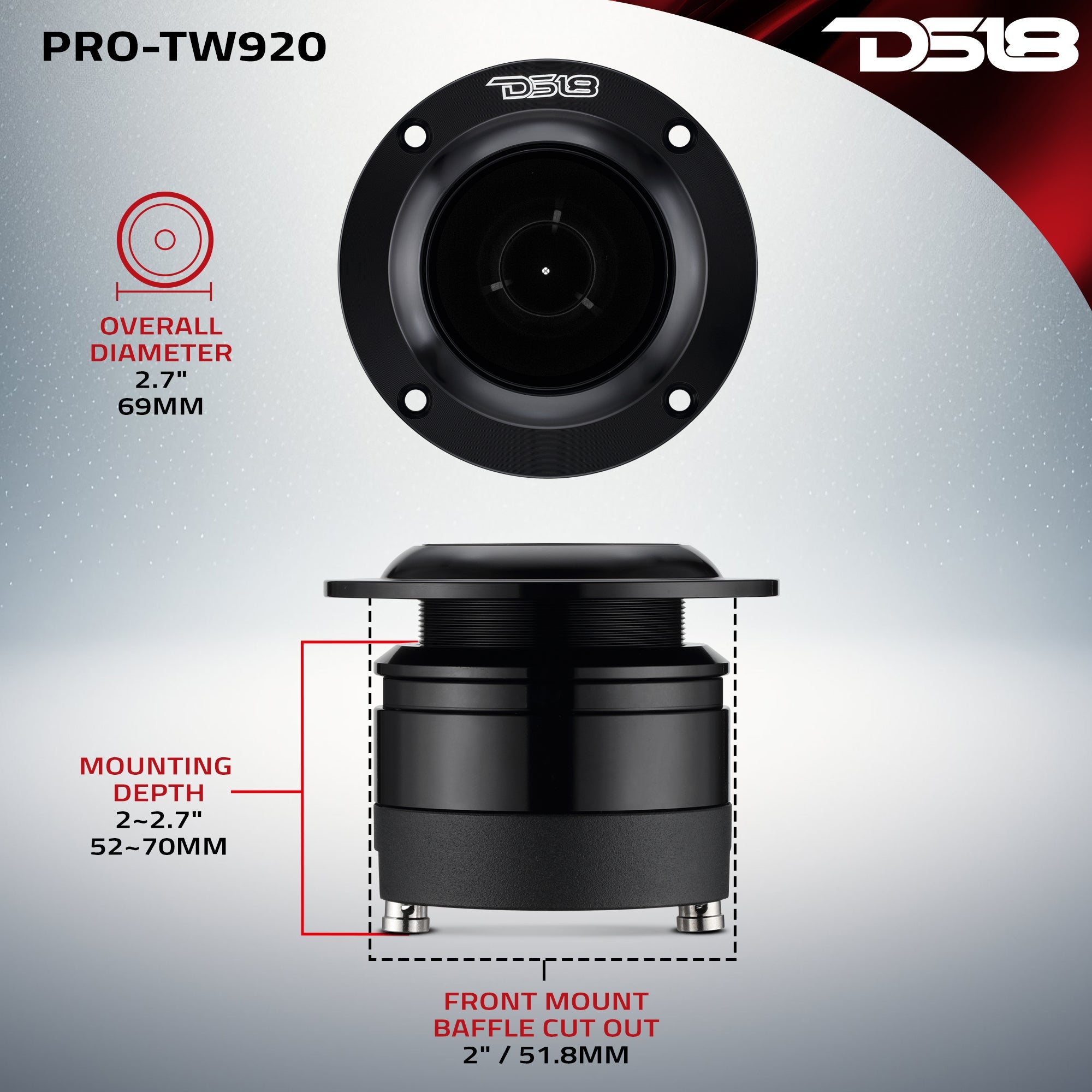

Measuring just 2.7” diameter (3.88” with ring) and 3.01” overall depth, the TW920 fits into tighter spaces without sacrificing volume. Requires a 2" cutout for front-mount baffles.
Wide Range
Covers 700Hz–20kHz, and includes a 4.7uF/50V bass blocker for protection right out of the box. Recommended high-pass crossover: 2kHz.
Add the PRO-TW920 to your SPL system or pro build for sharp highs that slice through any mix.
Key Features
- 2.7" High Compression Super Bullet Tweeter
- RMS Power: 160 Watts(320 Watts Peak)
- Impedance: 4 Ohm ~ 106db
- Neodymium Magnet
- Adjustable Surface Mount
- Single
- Easily Repaired With The PRO-TW920VC
Specifications
| SKU | PRO-TW920 |
|---|---|
| Nominal Diameter | 2.7"-3.5" |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 80W |
| Program Power Handling | 160W |
| Peak Power Handling | 320W |
| Sensitivity (1w/1m) | 106dB |
| Frequency Response | 700Hz-20kHz |
| Recommended Hi Pass Crossover | 2KHz |
| Sold In Pair or Single | Single |
| Filter (Bass Blocker) | 4.7uf/50v (included) |
| Body Material | Aluminum |
| Body Color / Finish | Anodized Black |
| Bullet Material | CNC Aluminum |
| Voice Coil Diameter | 1.4" / 35.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAR |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size | 1.38" x 0.27" |
| Overall Diameter | 2.72" / 69.2mm |
| Overall Depth | 3.01" / 76.6mm |
| Front Mount Baffle Cutout | 2" / 51.8mm |
| Mounting Depth | 2~2.7" / 52~70mm |
| Gross Single Unit Weight (lb) | 2 |
| Single Unit Box Dimensions W x L x H (Inches) | 3.5 x 3 x 3.25 |
| Quantity of Units in Master Carton | 20 |
| Gross Master Carton Weight (lb) | 38 |
| Master Carton Dimensions W x L x H (Inches) | 15.75 x 7.75 x 7.25 |
