Product Overview

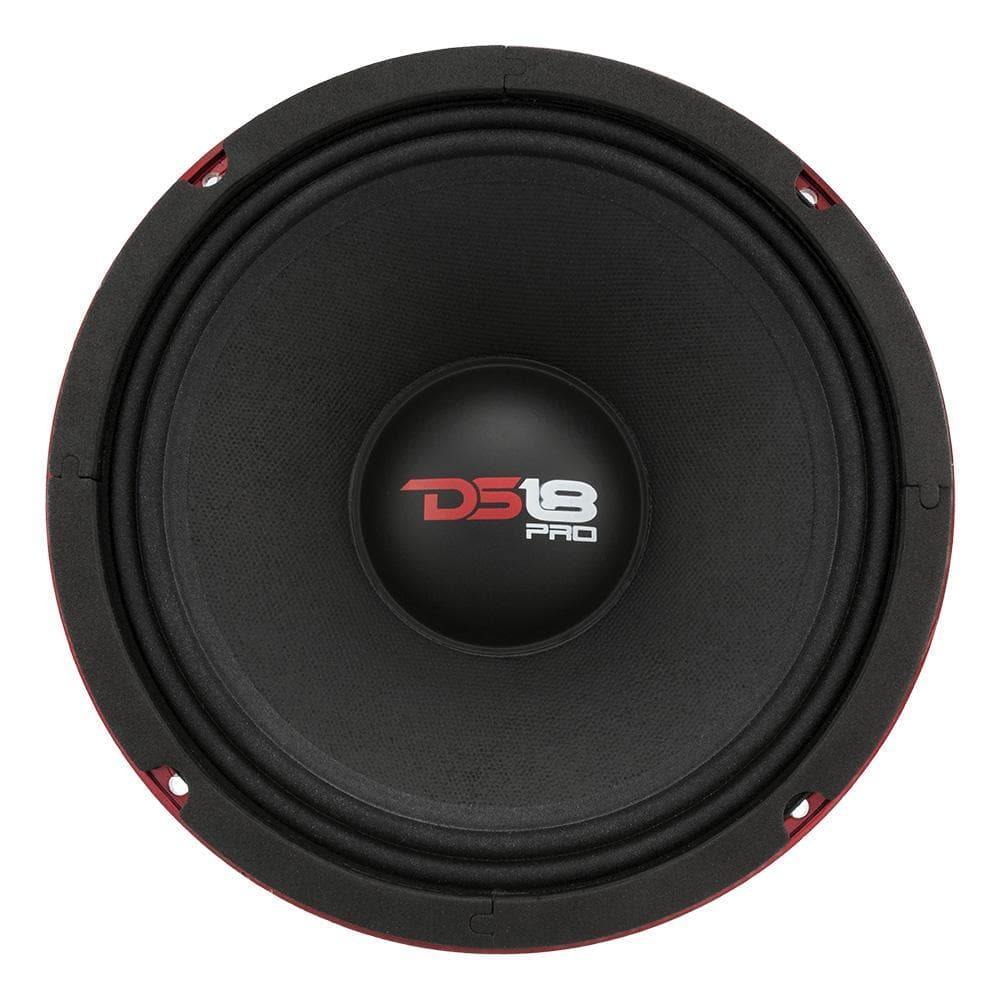

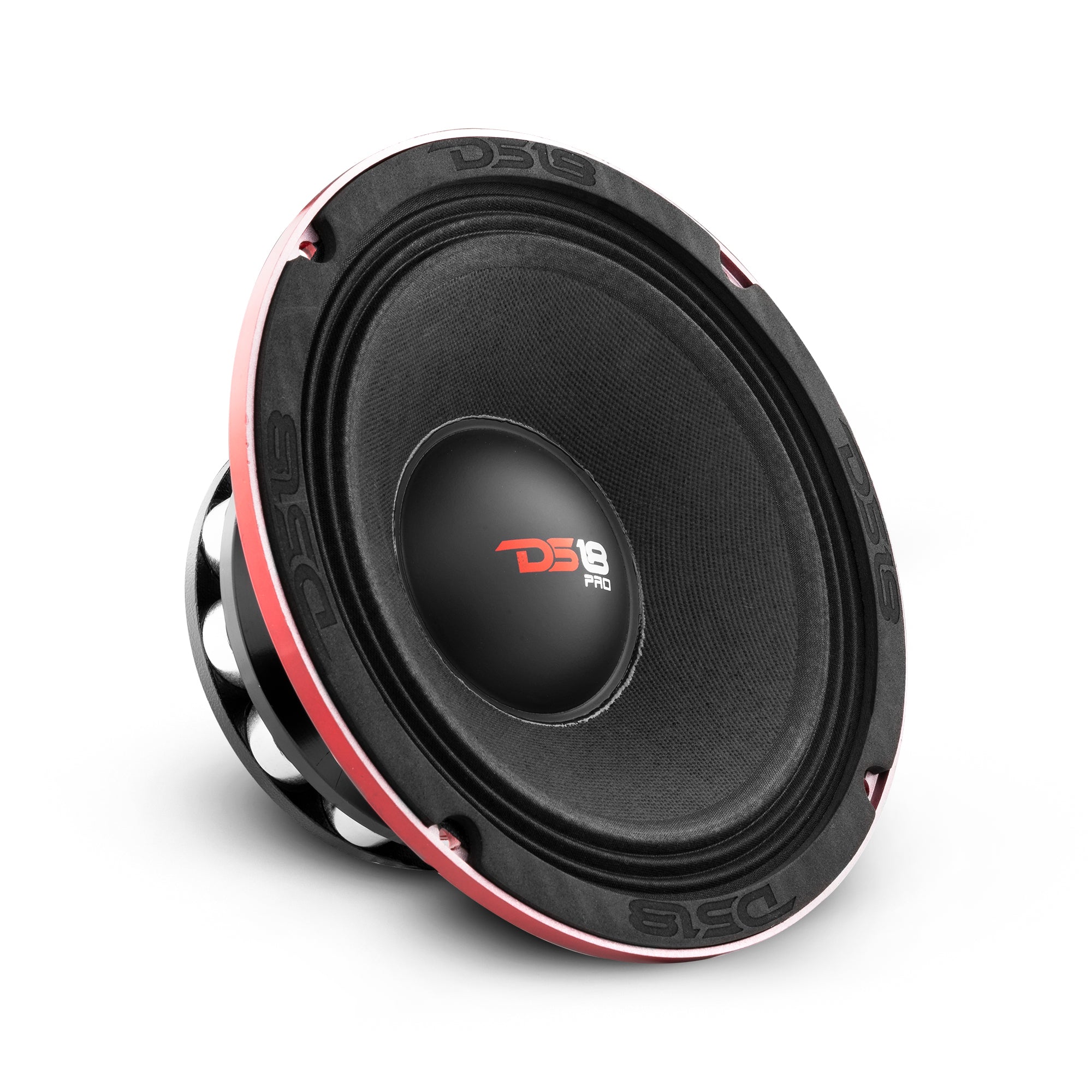

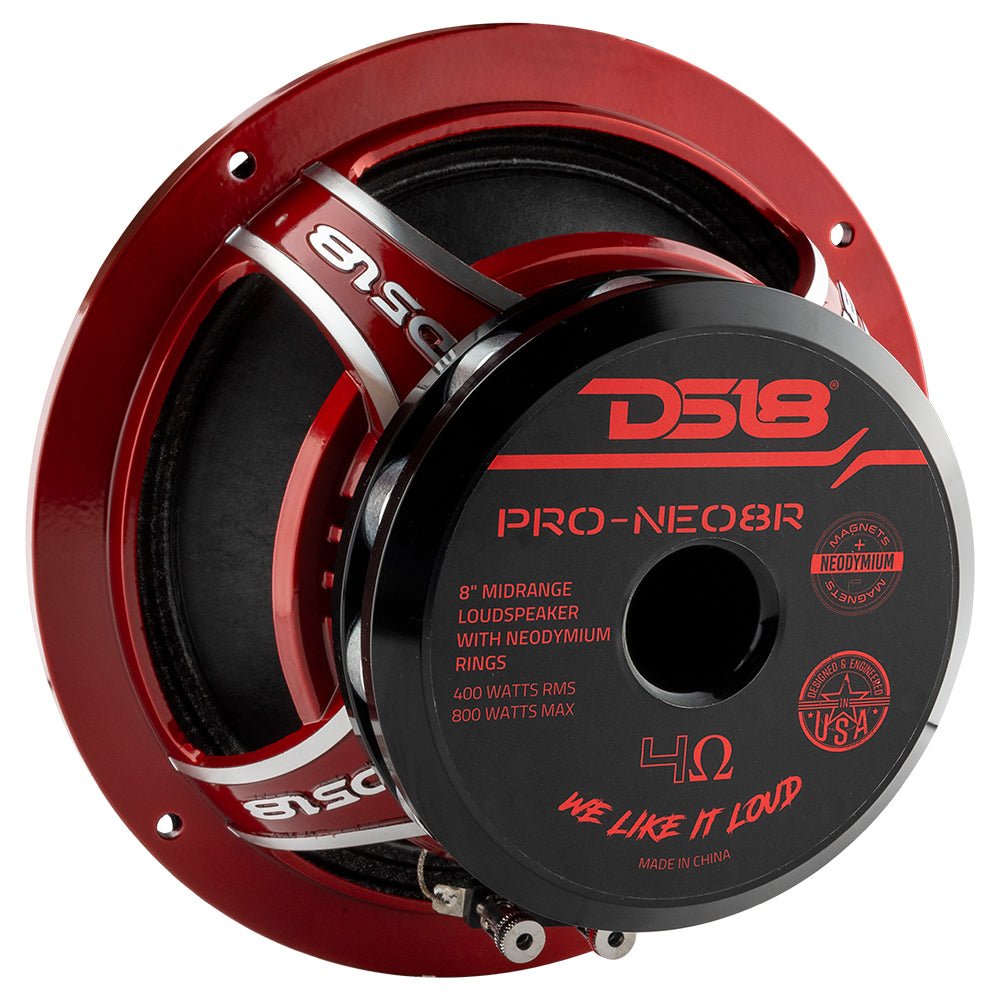

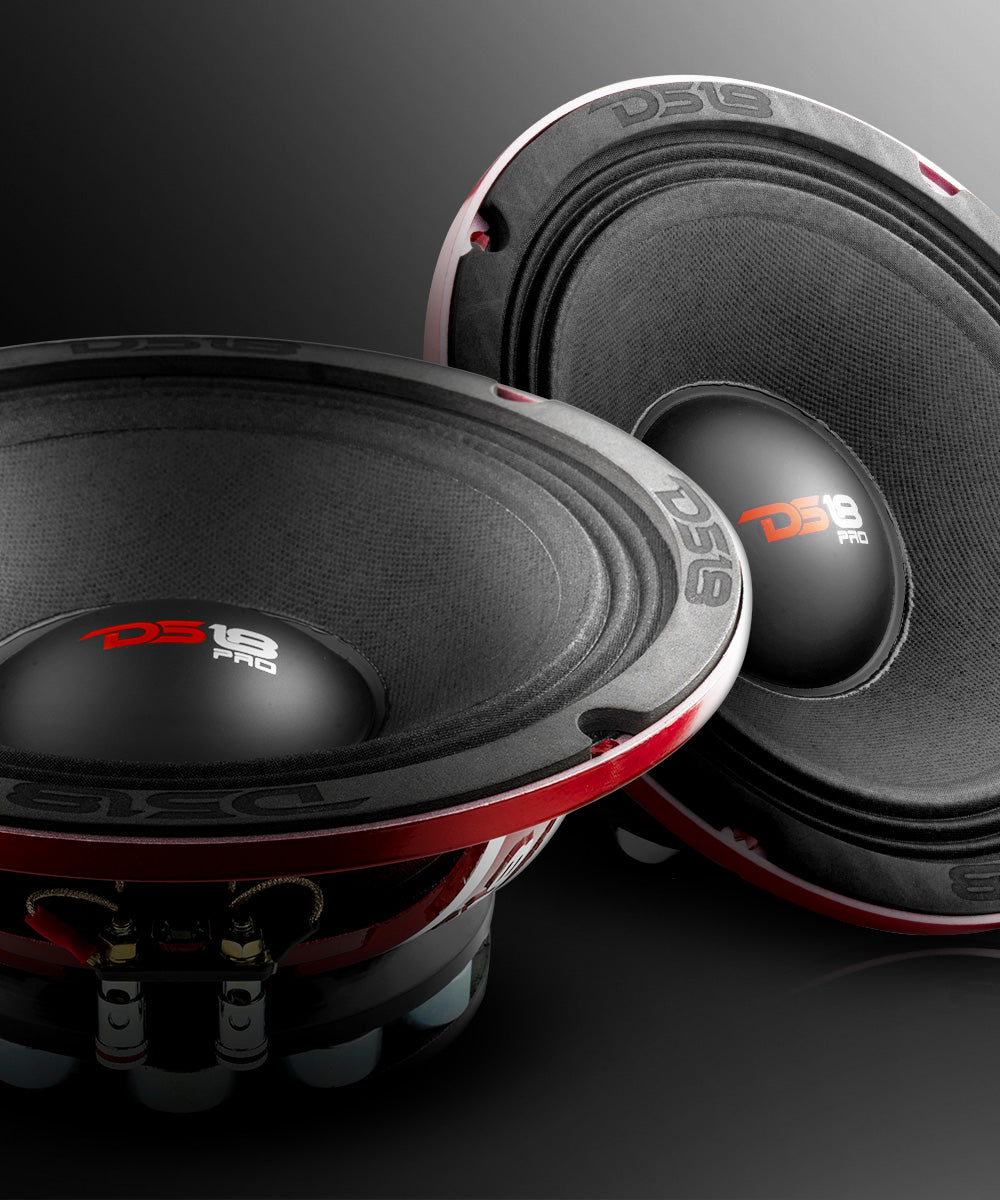

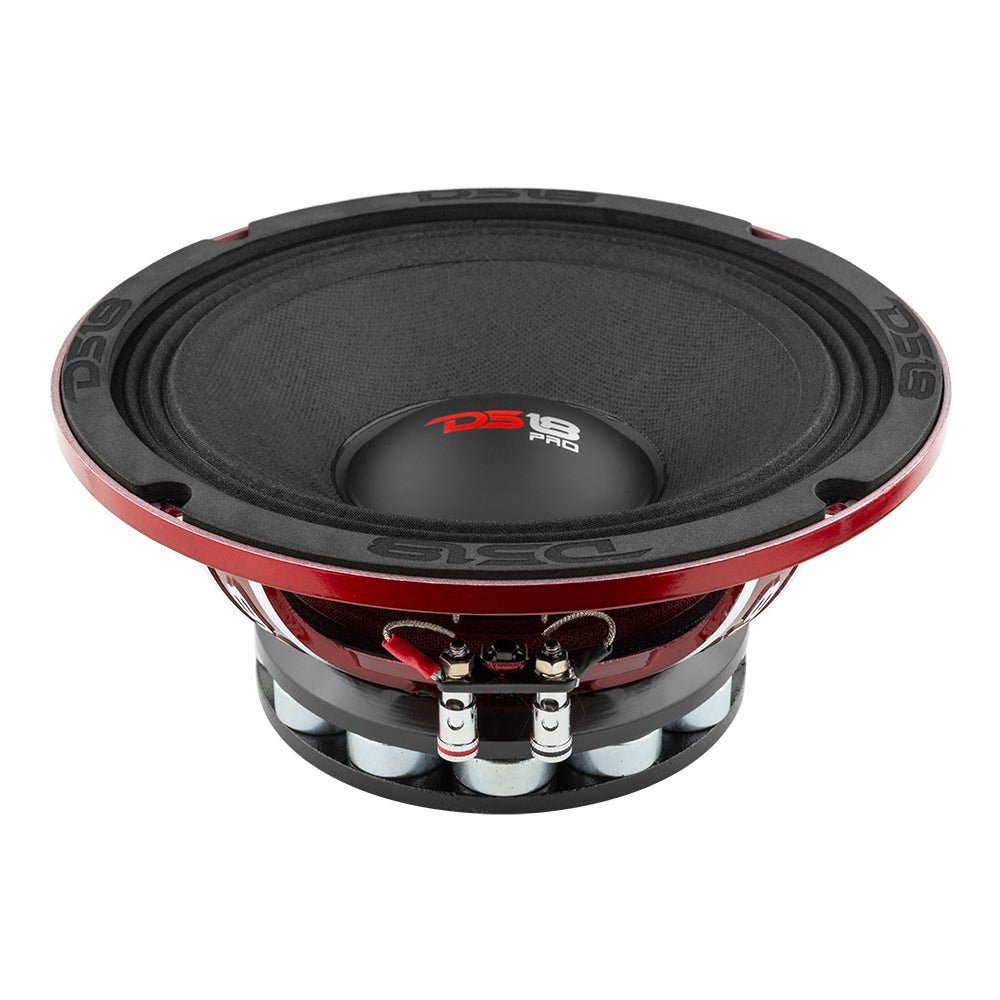

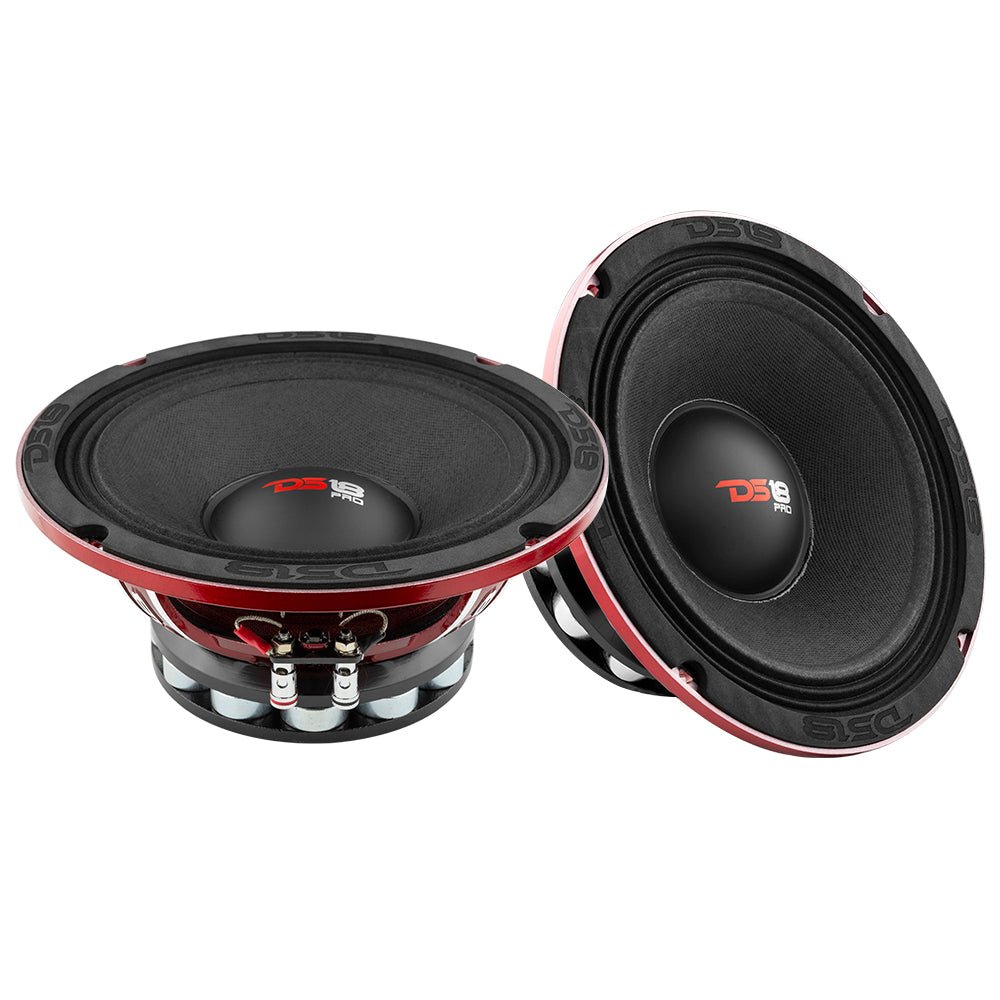

DS18 PRO-NEO8R 8" Neodymium Mid-Range Loudspeaker 800 Watts 4-Ohm
|

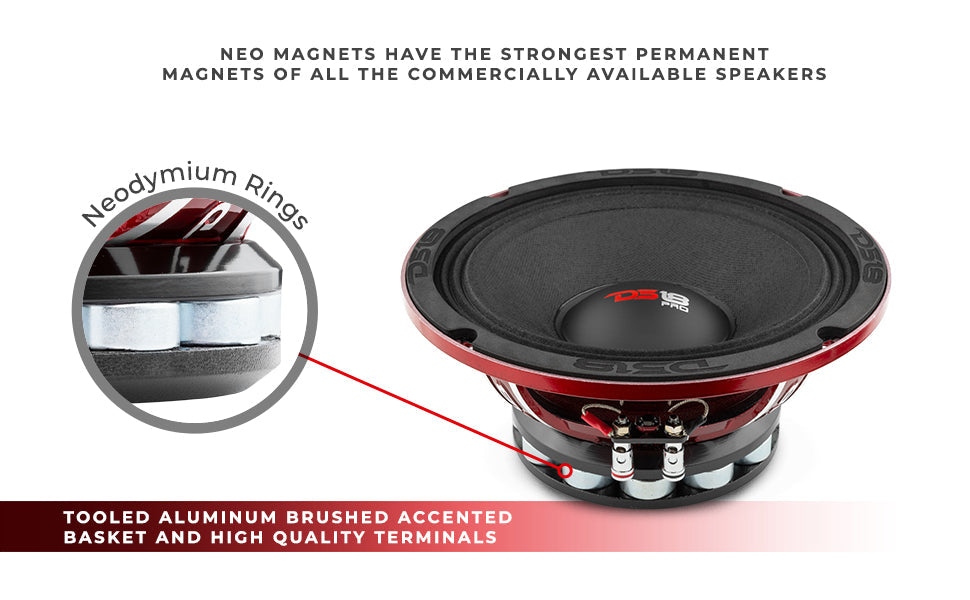

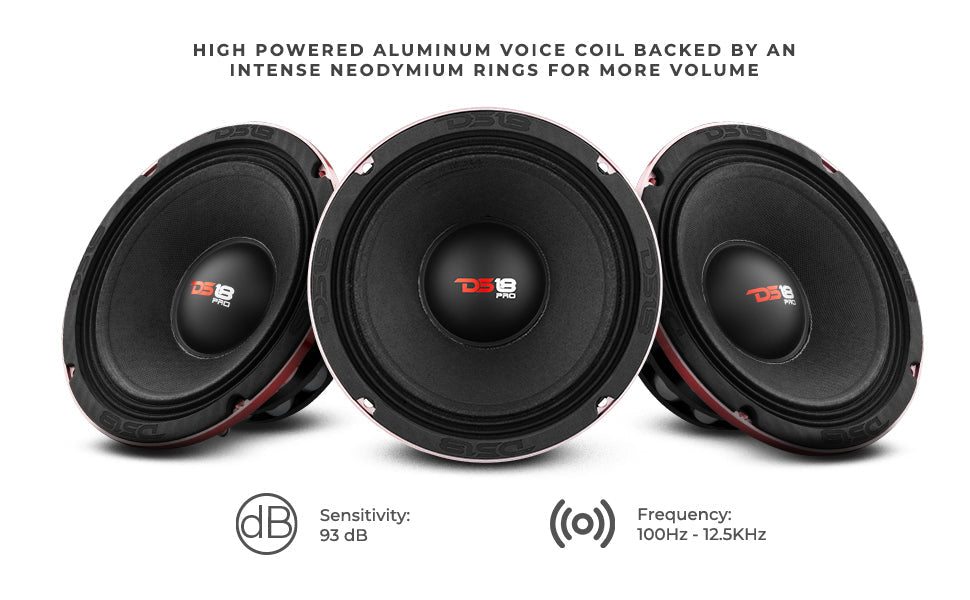

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build. Highlights
|




Technical Details
| Model: | PRO-NEO8R |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 400W |
| MAX Power: | 800W |
| Frequency Response: | 100Hz - 12.5KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 93dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Paper Cone |
| Magnet: | Neodymium |
| Voice Coil Wire: | Glass Fiber CCAW |
| Measurements | |
| Voice Coil Size: | 2" |
| Magnet Weight: | 13.68 oz. |
| Mounting Depth: | 3.50" |
| Cut-Out Dimensions: | 7.12" (181mm) |
| Net Weight: | 2.92 kg |
Key Features
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- Aluminum Basket
Specifications
| SKU | PRO-NEO8R |
|---|---|
| Nominal Diameter | 8" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 400W |
| Maximum Power Handing | 800W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 100 Hz - 12.5KHz |
| Recommended Hi Pass Crossover | 140 Hz |
| Voice Coil Diameter | 2" /50.8mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 13.68 Oz |
| Vas | 2.9 Ltr |
| Xmax | 11.2 mm |
| Fs | 138 Hz |
| Qms | 2.315 |
| Qes | 0.775 |
| Qts | 0.569 |
| Re | 3.2 ohm |
| Overall Diameter | 8.3" / 211mm |
| Front Mount Baffle Cutout | 7.12" / 181mm |

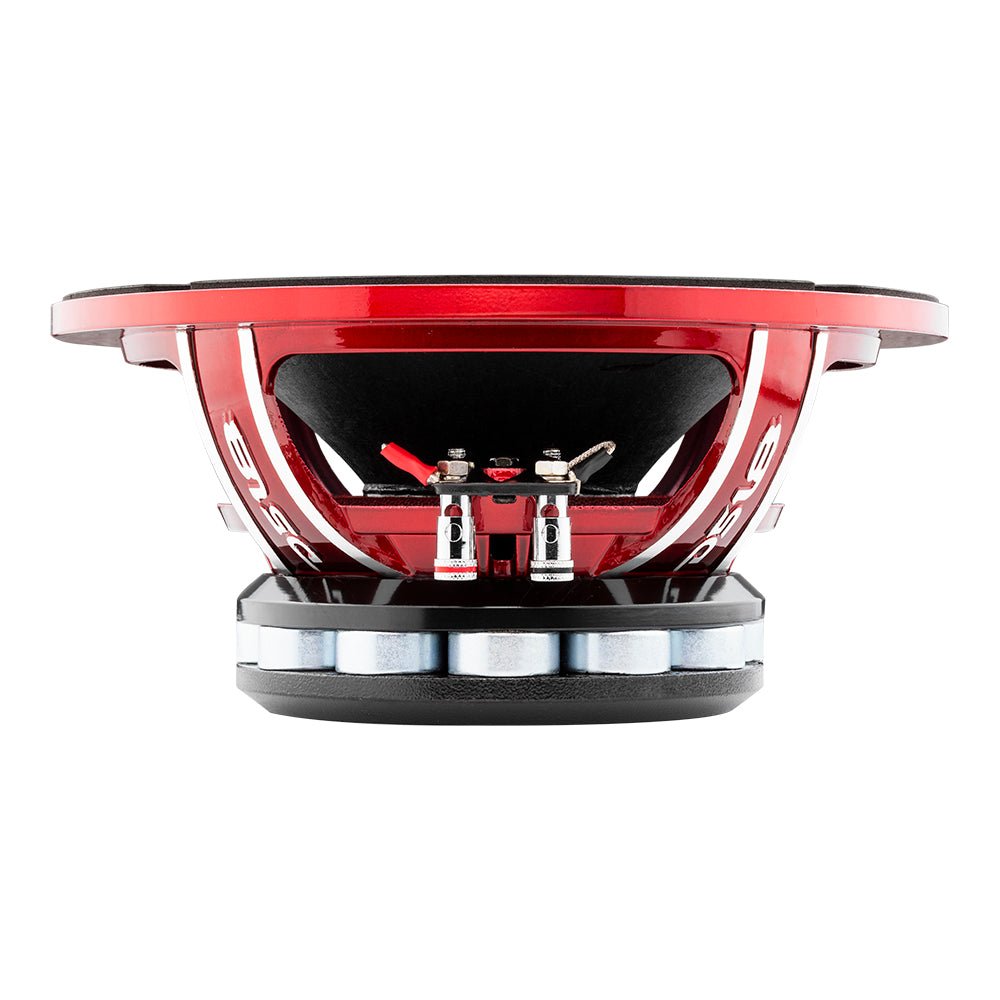

| Mounting Depth | 3.46 " / 88mm |
| Overall Depth | 3.85" / 98mm |
| Product Weight | 7 |
| Product Dimensions | 8.75 x 8.75 x 4.5 |
| M/C Weight | 58 lbs |
| M/C Dimensions | 18.25 x 18 x 9.75 |
| M/C QTY | 8 |
| Sold In | Piece |
