PRO 8" Neodymium Full-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm

Availability: In stock SKU: PRO-FR8NEO
Sale price $214.95

PRO 8" Neodymium Full-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm - DS18

PRO 8" Neodymium Full-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm

$214.95

Product Overview

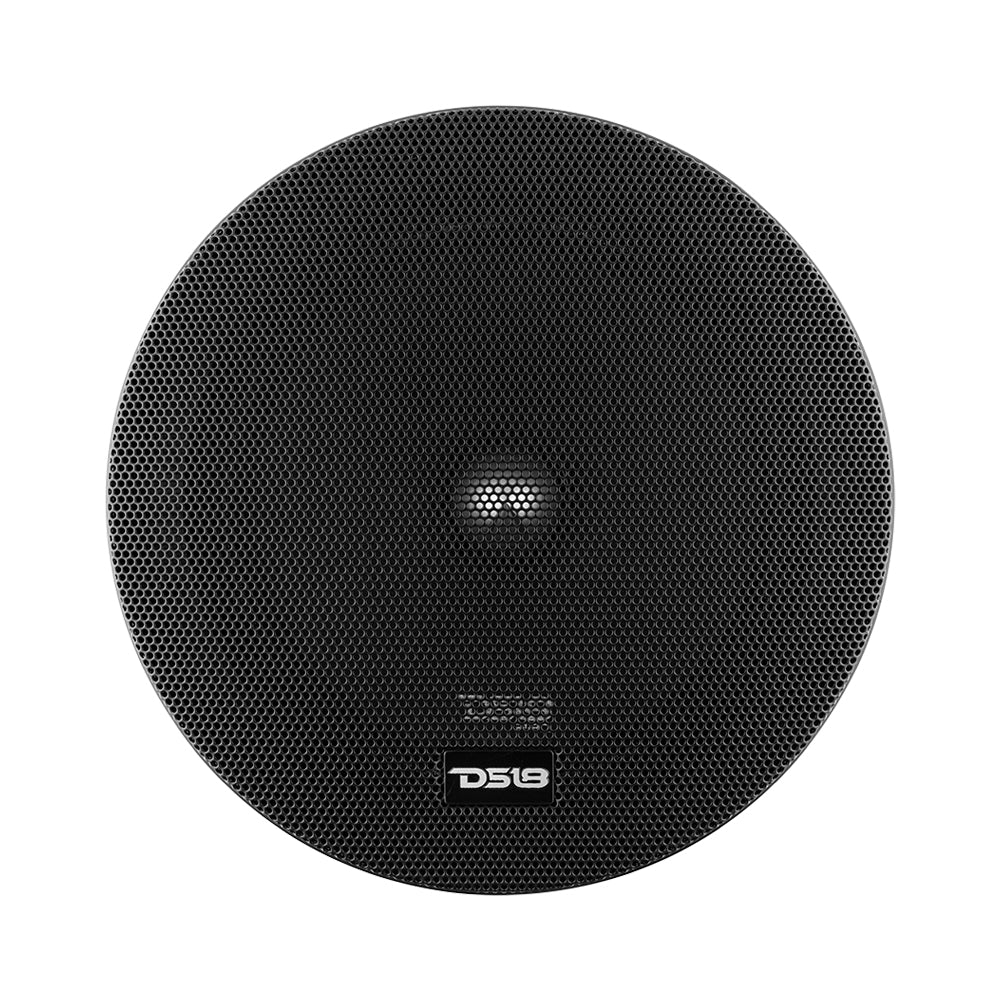

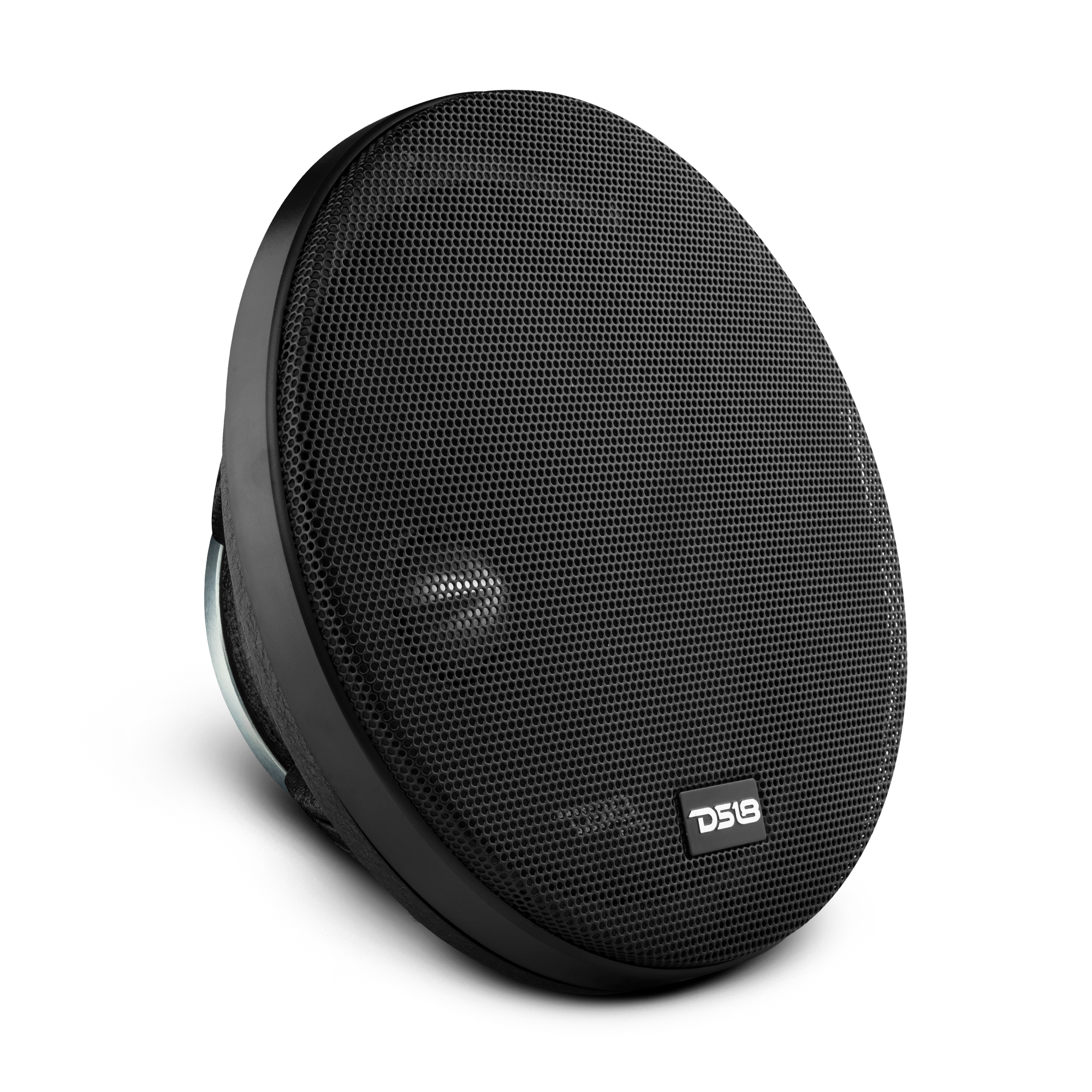

DS18 PRO-FR8NEO 8" Neodymium Bullet Full-Range Loudspeaker 500 Watts 4-Ohm With Grill

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo full range to accommodate any build.

Highlights

  • High powered aluminum voice coil backed by an intense neodymium magnet for more volume at the highest efficiency on the market.
  • Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.
  • Silver Bullet Resonator (tweeter) that effectively widens the higher range of your NEO bringing you a fuller range of frequencies to blast.

Technical Details
Model: PRO-FR8NEO
Type: Full Range Loudspeaker with Bullet
Size: 8"
RMS Power: 250W
MAX Power: 500W
Frequency Response: 160Hz - 12.5KHz
Impedance: 4 Ohms
Sensitivity: 99dB
Materials
Surround: Cloth Edge
Frame: CNC Aluminum
Cone: Non-Pressed Paper Cone
Magnet Material: Neodymium
Voice Coil Wire: KCCAW
Measurements
Voice Coil Size: 1.5"
Mounting Depth: 2.97" / 75.5mm
Cut-Out Dimension: 7.08" / 180mm


Key Features

  • 8" Full-Range w/Bullet
  • MAX Power: 500 Watts
  • RMS Power: 250 Watts
  • Impedance: 4-Ohm
  • Neodymium Magnet
  • 99db ~ w/Grill

Specifications

SKU PRO-FR8NEO
Nominal Diameter 8"
Nominal Impedance 4 ohms
RMS Power Handing 250 Watts
Maximum Power Handing 500 Watts
Sensitivity (1w/1m) 99 dB

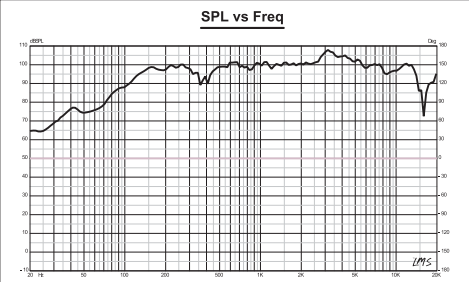

Frequency Response 160 Hz-12.5KHz
Recommended Hi Pass Crossover 180 Hz
Voice Coil Diameter 1.5" (38.6 mm)
Voice Coil Former Material Kapton
Winding Material KCCAW
Basket Material Aluminum
Vas 7.872 Ltr
Xmax 6.8 mm
Fs 128.77 Hz
Qms 3.356
Qes 0.376
Qts 0.338
Re 3.2 ohms

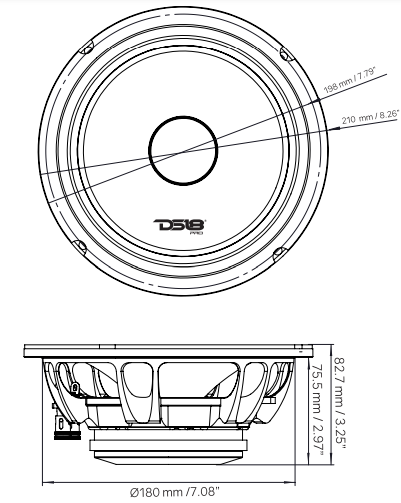

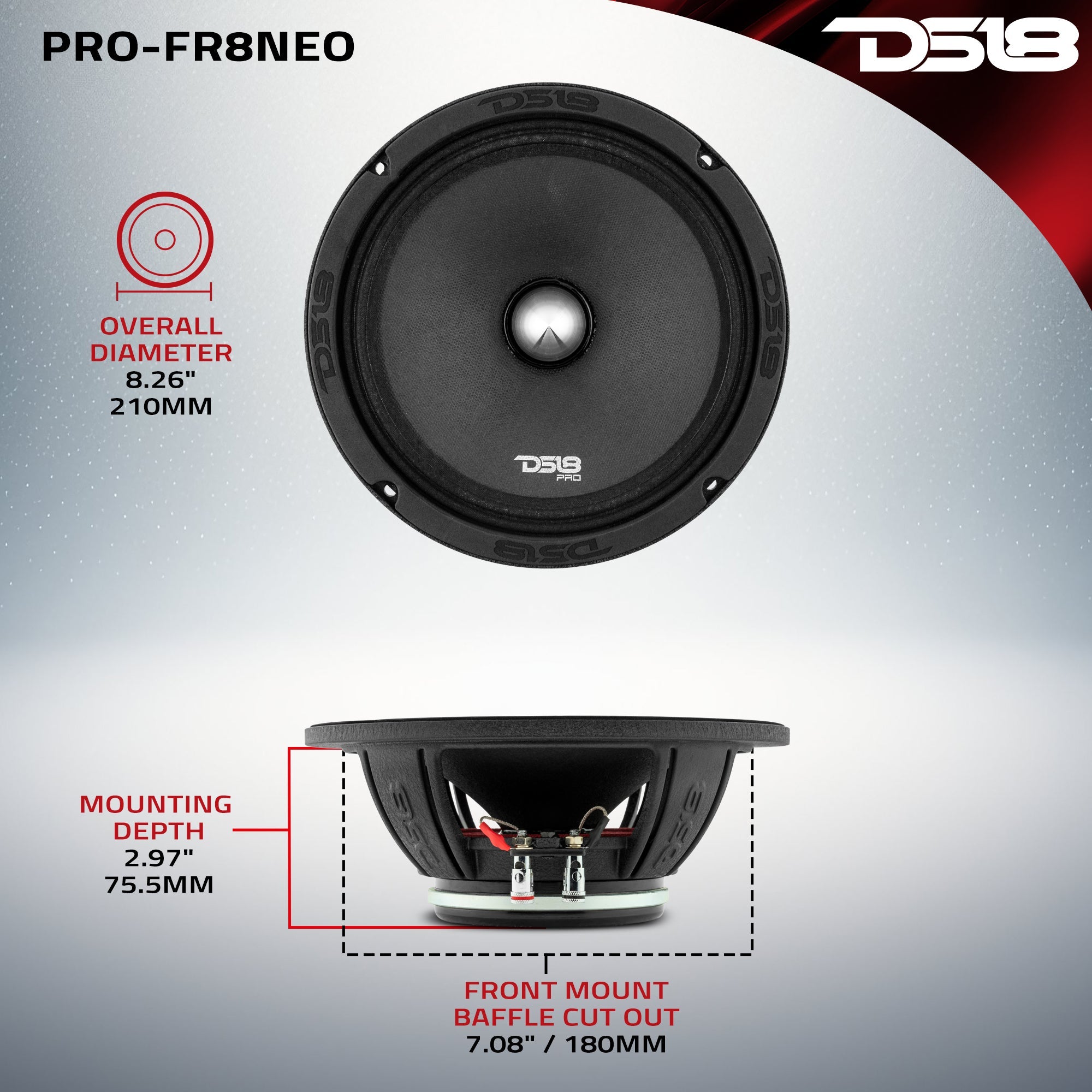

Overall Diameter 210 mm (8.26")
Front Mount Baffle Cutout 180 mm (7.08")
Mounting Depth 75.5 mm (2.97")
Overall Depth 82.7 mm (3.25")
Product Weight 4 lbs
Product Dimensions 9.5 x 9.5 x 3.75
M/C Weight 35.5 lbs
M/C Dimensions 19.75 x 10.75 x 16
M/C QTY 8
Sold In Piece
