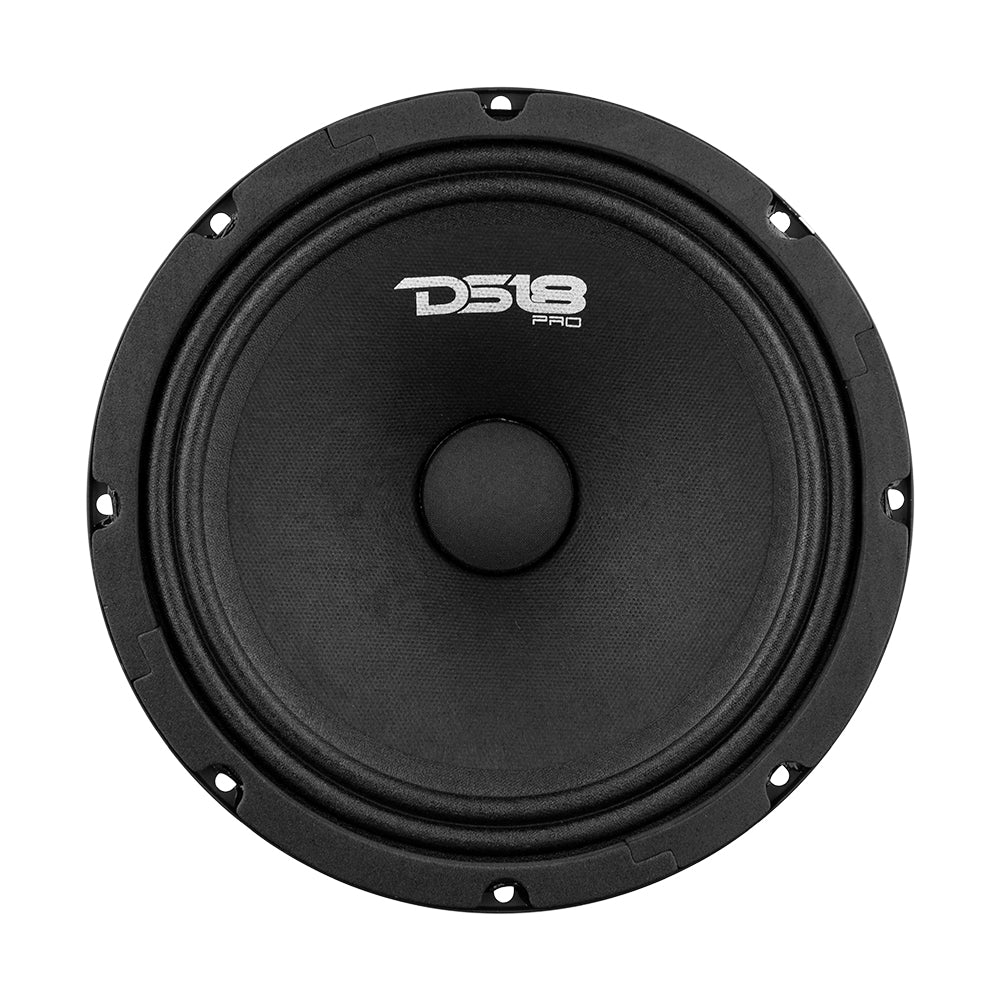

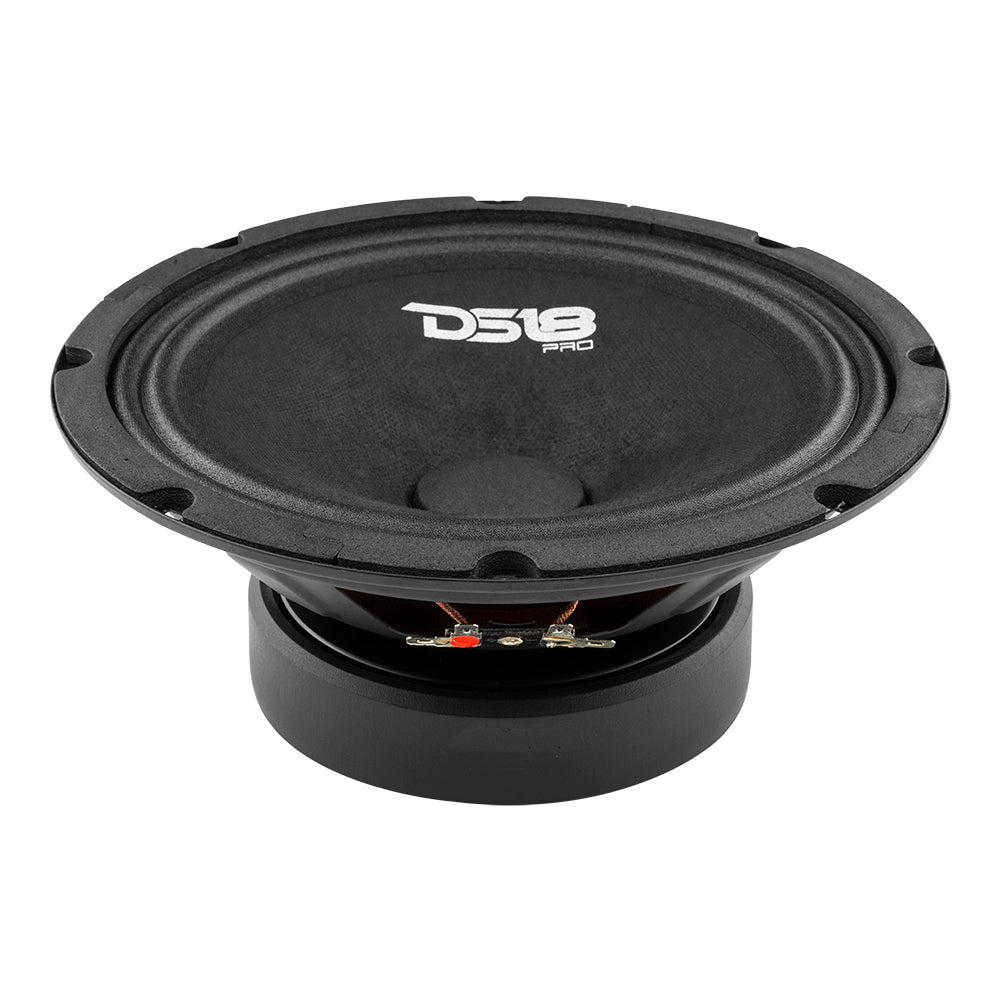

DS18 PRO-GM8 8" Mid-Range Loudspeaker 580 Watts 8-Ohm

Availability: In stock SKU: PRO-GM8
Regular price $41.95 Sale price $33.56

DS18 PRO-GM8 8" Mid-Range Loudspeaker 580 Watts 8-Ohm - DS18

DS18 PRO-GM8 8" Mid-Range Loudspeaker 580 Watts 8-Ohm

$33.56

Product Overview

DS18 PRO-GM8 8" Mid-Range Loudspeaker 580 Watts 8-Ohm

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a midrange driver of good quality be capable of low-distortion reproduction.

Highlights

  • DS18's highly popular series of High Powered pro audio.
  • Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
  • These mids come with a solid cone design and are pure midrange speakers and will be greatly complemented with a not included tweeter.

Technical details
                                                   PRO-GM8 Product Manual
Model: PRO-GM8
Type: Midrange Loudspeaker
Size: 8"
RMS Power: 190W
MAX Power: 580W
Frequency Response: 90Hz-10KHz
Impedance: 8 Ohms

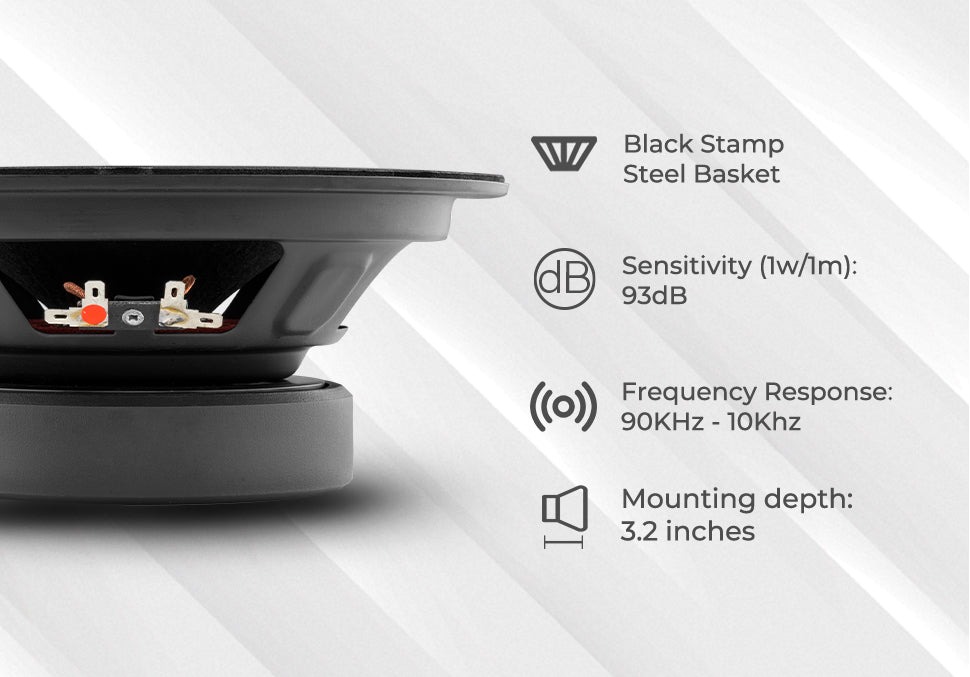

Sensitivity: 93 dB
Materials
Surround: Cloth
Basket: Steel
Cone: Paper
Magnet: Ferrite
Voice Coil Wire: Kapton
Measurements

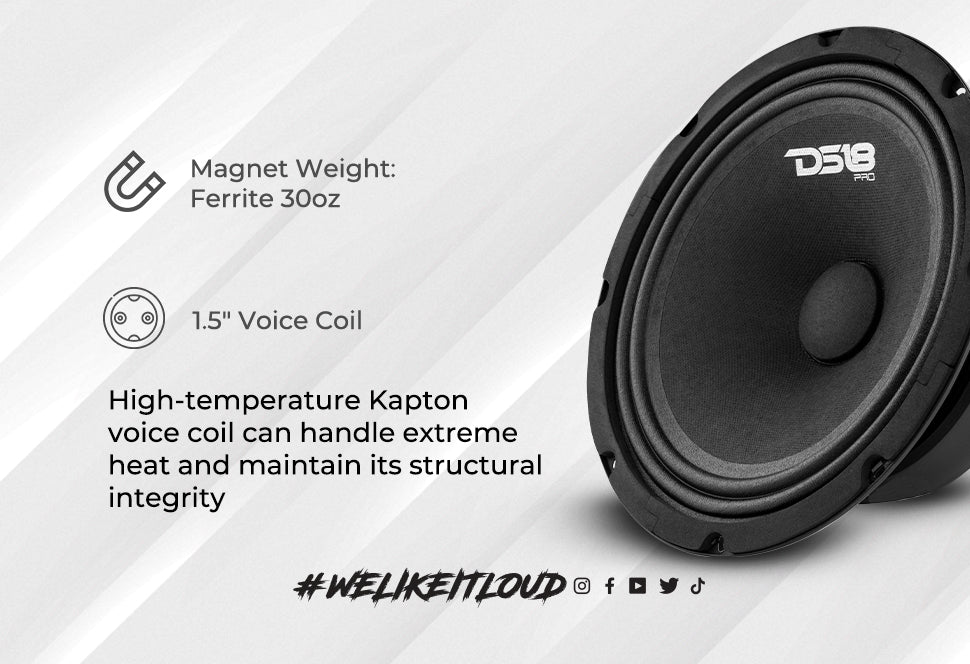

Voice coil size: 1.5"
Magnet Weight: 30 oz.
Mounting Depth: 3.22" / 82mm
Cut-Out Dimension: 7.2" / 183mm

Key Features

  • 8" Mid-Range
  • MAX Power: 580 Watts
  • RMS Power: 190 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet


Specifications

SKU PRO-GM8
Nominal Diameter 8" / 203.2mm
Nominal Impedance 8 Ohm
RMS Power Handling 190W
MAX Power Handling 580W
Sensitivity (1w/1m) 94dB

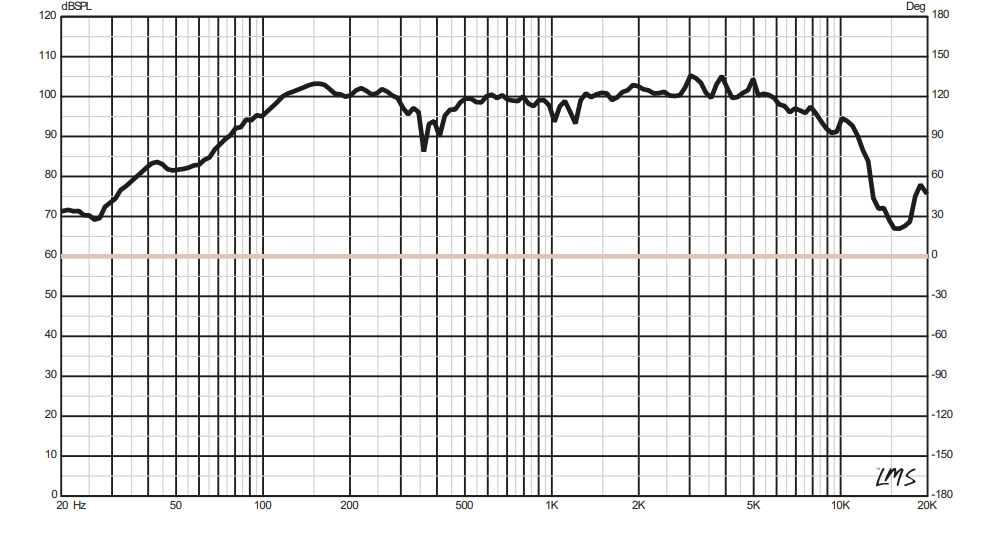

Frequency Response 80Hz-10KHz
Recommended HI Pass Crossover 120Hz
Pair or Single Single
Grill Included No
Voice Coil Diameter 1.5" / 38.1mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Dust Cap Material Paper
Bullet Material / Color N/A
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 30 oz
Equivalent Volume (Vas) 28.33L / 1ft3
Excursion (one way) (Xmax) N/A
Free Air Resonance (Fs) 85Hz
Mechanical Factor (Qms) 10.696
Electrical Factor (Qes) 0.961
Total Factor (Qts) 0.881
Mechanical Mass (Mms) 8.3g
Mechanical Compliance (Cms) 0.42mm/N
BL Factor (BL) 5.44
Voice Coil Inductance (Le) 0.769mH
Cone Area (Sd) 213.82cm2
DC Resistance (Re) 6.4 ohm

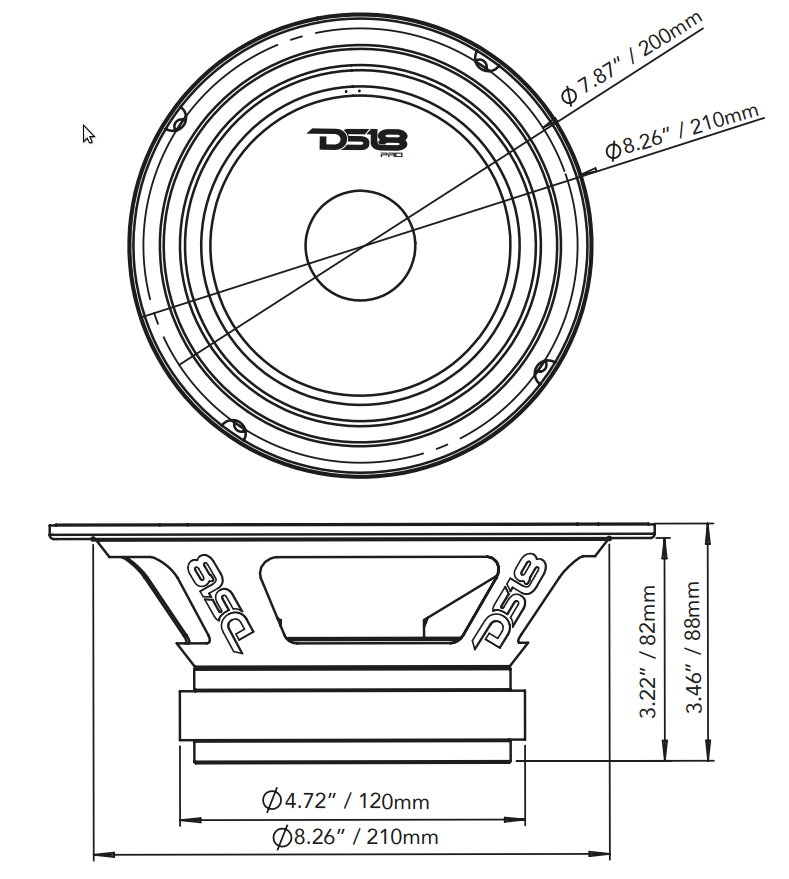

Overall Diameter 8.26" / 210 mm
Overall Depth 3.46" / 88 mm
Front Mount Baffle Cutout 7.2" / 183 mm
Mounting Depth 3.22" / 82mm
Motor Diameter 4.72" / 120mm
Gross Single Unit Weight (lb) 5
Single Unit Box Dimensions W x L x H (Inches) 9 x 9 x 4
Quantity of Units in Master Carton 8
Gross Master Carton Weight (lb) 40
Master Carton Dimensions W x L x H (Inches) 18.5 x 18.5 x 8.8
